Aewin Technologies AW-A795 Bedienungsanleitung

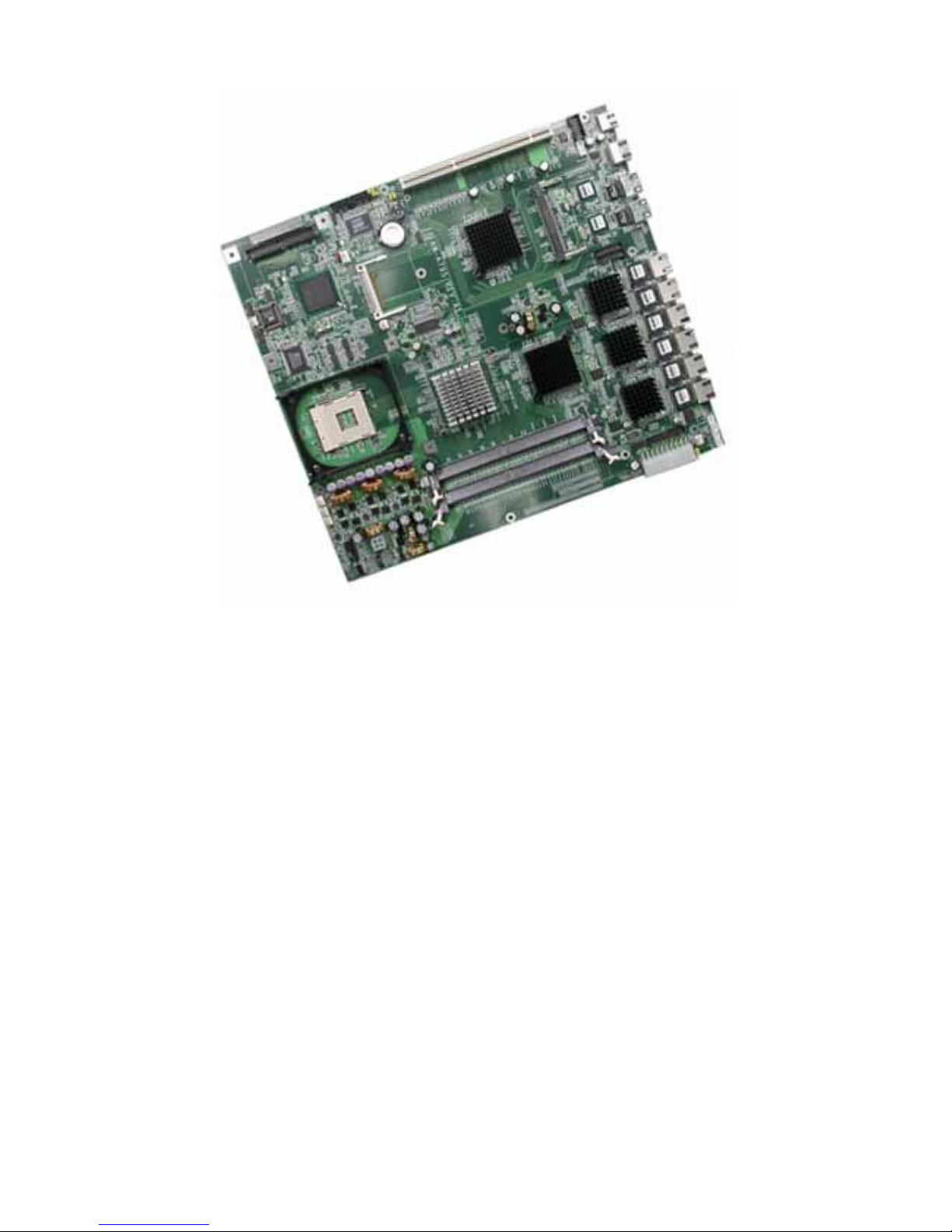

Control Board

Model Number：AW-A795

Intel®Pentium®4 Embedded SBC with Six Gigabit/Two 10/100LAN &

SSD

User’s Manual

Version 1.0

Weembedyourneed!

User’s Manual

Manual Edition 1.0, January 2005

This document contains proprietary information protected by copyright. All rights are

reserved, no part of this manual may be reproduced, copied, translated or transmitted in

any form or by any means without prior written permission of the manufacturer.

The content of this manual is intended to be accurate and reliable, the original

manufacturer assumes no responsibility for any inaccuracies that may be contained in this

manual. The original manufacturer reserves the right to make improvements to the

products described in this manual at any time without prior notice.

Trademarks

IBM, EGA, VGA, XT/AT, OS/2 and PS/2 are registered trademarks of International business

Machine Corporation

Award is a trademark of Award Software International, Inc

Intel is a trademark of Intel

RTL is a trademark of Realtek

VIA is a trademark of VIA Technologies, Inc

Microsoft, Windows, Windows NT and MS-DOS are either trademarks or registered

trademarks of Microsoft Corporation

All other product names mentioned herein are used for identification purpose only and may

be trademarks and/or registered trademarks of their respective companies

Limitation of Liability

While reasonable efforts have been made to ensure the accuracy of this manual, the

manufacturer and distributor assume no liability resulting from errors or omissions in this

manual, or from the use of the information contained herein.

User’s Manual

Table of Contents

Chapter 1. General Information-------------------------------------------------------------5T

1.1 Introduction---------------------------------------------------------------------------------5

1.2 Specification---------------------------------------------------------------------------------6

1.3 AW-A795 Package--------------------------------------------------------------------------7

1.4 Board Layout--------------------------------------------------------------------------------8

1.5 Board Dimension----------------------------------------------------------------------------8

Chapter 2. Connectors Location and Configuration-------------------------------------9

2.1 Connectors/Jumpers Location and Define---------------------------------------------9

2.2 Installing Processors-----------------------------------------------------------------------11

2.3 Installing Memory-------------------------------------------------------------------------14

2.4 Connector and Jumpers Settings-------------------------------------------------------17

CN1:USB0 Connnector-----------------------------------------------------------------------17

CN2/3:LAN (10/100) Connector-----------------------------------------------------------------------17

CN4/5/6/7/8/9:Gigabit LAN Connector---------------------------------------------------17

CN10:COM1 RJ45 Connector --------------------------------------------------------------------17

CN11/20/24/28/29/30/31:FAN Connector-------------------------------------------------------------18

CN12:Power LED Pin Header----------------------------------------------------------------------18

CN13:USB1 Pin Header -------------------------------------------------------------1 8

CN14:COM2 Box Header--------------------------------- ------------------------------------------------18

CN15:Parallel Box Header------------------------------------------------------------------18

CN16:ATX Power Connector---------------------------------------------------------------18

CN17:Mini PCI-------------------------------- ----------------------------------------------------------------19

CN18:GPIO Pin Header -----------------------------------------------------------------------------------20

CN19/21:SATA0/1 Connector ------------------------------------------------------------------------20

CN22:SATA LED Pin Header-----------------------------------------------------------------20

CN23:HDD Power Connector--------------------------------------------------------------------20

CN25:IDE (2mm) 44-pin 90 degree---------------------------------------------------------------------20

CN26:IDE (2.54mm) 40-pin Connector-------------------------------------------------------------21

CN27:+12V Power Connector-------------------------------------------------------------------21

CN32:HDD LED Pin Header-----------------------------------------------------------------21

CN33:PS/On Pin Header----------------------------------------------------------------21

CN34:Reset Pin Header---------------------------------------------------------------------21

User’s Manual

CN36:KB/MS Pin Header------------------------------------------------------------------------22

CN37:LAN LED Pin Header---------------------------------------------------------------------22

CN38:LAN LED Pin Header-------------------------------------------------------------------------22

JP1:PS/On Always On Select--------------------------------------------------------------------------22

JP2/4/5:PCI-X slot Frequency Select------------------------------------------------------------------23

JP3:Speak Buzzer Enable---------------------------------------------------------------23

JP6: Clear CMOS-----------------------------------------------------------------------------------------23

Chapter 3. BIOS Setup-------------------------------------------------------------------------24

3.1 Quick Setup----------------------------------------------------------------------------------24

3.2 Entering the CMOS Setup Program----------------------------------------------------25

3.3 Menu Options--------------------------------------------------------------------------------26

Standard CMOS Features---------------------------------------------------------------------27

Advanced BIOS Features----------------------------------------------------------------------28

Advanced Chipset Features-------------------------------------------------------------------30

Integrated Peripherals--------------------------------------------------------------------------31

Power Management Setup---------------------------------------------------------------------32

PNP/PCI Configuration------------------------------------------------------------------------34

PC Health Status---------------------------------------------------------------------------------36

Load Fail-Safe Default--------------------------------------------------------------------------36

Load Optimized Default------------------------------------------------------------------------37

Set Supervisor & User Password-------------------------------------------------------------38

Chapter 4. Drivers and Utilities Installation-----------------------------------------------40

4.1 Ethernet Driver Installation --------------------------------------------------------------40

4.2 System Chipset Driver Installation------------------------------------------------------47

Appendix A. System Resources----------------------------------------------------------------50

Appendix B. Optional Cable List--------------------------------------------------------------53

User’s Manual

Chapter 1. General Information

1.1Introduction

THE AW-A795 embedded computing board, an “all-in-one” Network Security Hardware

Appliance based on Intel® architecture with E7501+ICH3+P64H2 chipset supporting the

Pentium® 4 processor with 400/533MHz FSB. The DDR 200/266 RAM (PC2100 registered)

with ECC for enhanced data integrity up to 4GB. Based on E7501 chipset, AW-795 support

eight Ethernet ports including six GbE ports, two 10/100BASE-T coppers for various

markets and performance requirements.

Other features includes a CompactFlash socket, one PCI-X 133MHz slot and one Mini PCI

socket for flexible expansion capabilities, one IDE connector, two USB ports, two Serial

ports, one Parallel port, digital I/O, watchdog timer and hardware system monitoring for 1U

chassis applications to give the customer a complete platform solution.

User’s Manual

1.2Specification

General Functions

CPU Intel Pentium® 4 based processors with 400/533MHz Front-side Bus

BIOS Award® 512KB Flash BIOS

Chipset Intel® E7501 + ICH3 + P64H2

I/O Chipset Winbond® 83627HF

Memory Onboard two 184-pin DDR DIMM socket, support PC2100 registered

memory up to 4Gbytes

Enhanced IDE Support up to two IDE devices

Serial port Two RS-232 ports, oneRJ-45 connector and one pin header

Parallel port One pin header for parallel port

KB/Mouse

connector 5x2 header onboard support PC/AT Keyboard and PS/2 mouse

USB connectors Two USB ports, one with pin header

PCI Slot One 64-bit PCI-X 133MHx

Watchdog Timer Can generate a system reset, Support software selectable timeout

interval.

System

Monitoring Support temperatures, fan speed and voltages monitoring

Digital I/O Support eight application definable LEDs

Ethernet Interface

Chipset Two Intel® 82551ER Fast Ethernet controller. Triple Intel®82546GB

Fast Ethernet controller for Copper.

Ethernet interface PCI 10/100Mbps Ethernet controller, IEEE 802.3U protocol

compatible

SSD Interface One 50-pin CompactFlash™ socket

Mechanical and Environmental

Power supply voltage Standard ATX Power supply

Operating temperature 32 to 140℉(0 to 40℃)

Board size 11.7”(L) x 13.1”(W) , (300mmx350mm)

User’s Manual

1.3AW-A795 Package

Please make sure that the following items have been included in the package

before installation.

1. AW-A795 Low Power Embedded SBC

2. Quick Setup

3. Cable: Please refer to Appendix B Optional Cables

4. CD-ROM which contains the following folders:

(1) Manual

(2) System Driver

(3) Ethernet Driver

(4) Tools

If any of these items are missing or damaged, please contact your dealer from

whom you purchased the board at once. Save the shipping materials and

carton in the event that you want to ship or store the board in the future. After

you unpack the board, inspect it to assure an intact shipment. Do not apply

power to the board if it appears to have been damaged.

Leave the board in its original packing until you are ready to install

Precautions

Please make sure you properly ground yourself before handling the AW-A795 board or

other system components. Electrostatic discharge can be easily damage the AW-A795

board.

Do not remove the anti-static packing until you are ready to install the AW-A795 board.

Ground yourself before removing any system component from it protective anti-static

packaging. To ground yourself, grasp the expansion slot covers or other unpainted parts of

the computer chassis.

Handle the AW-A795 board by its edges and avoid touching its component.

User’s Manual

1.4 Board Layout

1.5 Board Dimension

User’s Manual

Chapter 2. Connectors/Switch Location and Configuration

2.1 Connectors/Jumpers Location and Define

User’s Manual

Connector Define

CN1 USB0 Connector CN2 LAN (10/100) Connector

CN3 LAN (10/100) Connector
