AG Neovo F-415 Bedienungsanleitung

Table of Content

PRECAUTIONS ................................................................................................. 2

INSTALLATION .................................................................................................... 2

POWER CONNECTION ......................................................................................... 2

USING THE TILT ................................................................................................. 2

MAINTENANCE ................................................................................................... 3

TRANSPORTING THE MONITOR ............................................................................. 3

GETTING STARTED ......................................................................................... 4

PACKAGE CONTENTS .......................................................................................... 4

INSTALLING AND REMOVING THE BASE ................................................................. 5

IDENTIFYING PARTS AND CONTROLS ..................................................................... 6

SETUP .............................................................................................................. 7

CUSTOMIZING YOUR MONITOR..................................................................... 9

WORKING WITH OSD GROUPS ........................................................................... 9

TROUBLESHOOTING..................................................................................... 12

ATTENTION...................................................................................................... 12

LCD PANEL DISPLAY TECHNICAL FEATURES AND SPECIFICATIONS... 13

INTERFACE FREQUENCY ................................................................................... 14

REGULATIONS ............................................................................................... 15

FCC COMPLIANCE ........................................................................................... 15

INFORMATION FOR USERS APPLICABLE IN EUROPEAN UNION COUNTRIES................ 16

INFORMATION FOR USERS APPLICABLE IN UNITED STATES OF AMERICA.................. 16

TCO'99.......................................................................................................... 17

Precautions

Installation

• Do not cover or block the ventilation ports on the rear of the monitor.

• Do not install the monitor close to heat sources such as radiators or air ducts, or

in a location exposed to direct sunlight, excessive dust, mechanical vibration, or

shock.

Power connection

• Use the correct power cord for your local voltage.

• Use an accessible outlet close to the monitor.

• Do not allow anything to rest on the power cable.

• Disconnect the power cable from the power supply if:

 You will not use the monitor for an extended period.

 The cable is damaged or frayed.

 The monitor has been dropped or the cabinet damaged.

 A distinct change in performance indicates a need for servicing.

Using the Tilt

• Use the monitor’s tilt capability to adjust its vertical orientation to an appropriate

position. Grasp the top corners of the monitor with both hands and tilt to the

desired angle.

+30

-5

Maintenance

• Clean the cabinet and controls with a soft cloth lightly moistened with a mild

detergent solution. Do not use any abrasive materials or solvents such as alcohol

or benzene.

• Do not rub, touch, or tap the surface of the screen with sharp or abrasive items

such as pens or screwdrivers, as the screen may scratch.

• Do not insert objects or spill liquids into the ventilation ports on the monitor’s rear,

as fire, electric shock, and/or unit failure may result.

Transporting the monitor

When transporting the monitor for repair or shipment, use the original carton and

packing materials.

Getting Started

Package contents

Before beginning, ensure that the carton contains the following items:

• Monitor

• Base

• Power cord

• CD-ROM containing Windows®information file

• Quick Guide

Installing and Removing the Base

To attach the base to the monitor, do the following:

When you open the box to take the base and put on the desk first. Then connect the

LCD Monitor and base please.

To remove the base, turn the monitor on its side or up-side down, push the pegs to lift

base off monitor.

Identifying parts and controls

The center front panel of the monitor carries the control array.

FRONT VIEW

The controls are, from left to right:

AUTO button

Automatically adjusts the picture and performance. The AUTO function

should be used the first time you use the monitor and after changing the

resolution and/or refresh rate of the input signal.

1) It must be pressing the AUTO button over 1 second to execute auto

adjustment.

Note:

2) If the OSD is acting, this key function will same as down button.

LEFT button

Navigates within the display

RIGHT button

Navigates within the display

DOWN button

Activates the OSD and navigates within the display

UP button

Activates the OSD and navigates within the display

LED indicator

Indicates the monitor’s operational mode; green for regular operation,

and amber for power saving mode.

Power switch

Turns the monitor on and off

Setup

Follow these directions to correctly set up your monitor.

1. Remove all packing materials and wrapping from the monitor

2. Place the monitor in its desired location. Ensure that there is space around the

monitor, especially the rear area.

3. With the computer turned off, connect the signal cable to the VGA port on your

PC. Make sure connection is secure.

4. With the monitor switched off, connect the power cord to the Monitor AC socket.

5. Connect the plug Pin of power cord to an AC power source.

C Power Jack Power Cord

6. Turn on the computer.

7. Press the power switch on the monitor. The display should appear. If no display

appears, check Troubleshooting in this manual.

8. Ensure that your computer display is set at 1024X768 pixels and 60Hz. Press

the AUTO button exceed 1 second. The monitor optimizes the display

automatically.

Note: The monitor is compliant with VESA FPMPMI standards and can be wall-

or arm-mounted. Before wall-mounting or arm-mounting, please

disassemble the monitor stand first.

1. Unscrew screws of the hinge bracket

2. Remove the stand from LCD monitor

3. The rear of this LCD display has four integrated 4 mm, 0.7 pitches threaded

nuts, as well as four 5 mm access holes in the plastic covering as illustrated

below. These specifications meet the VESA Flat Panel Monitor Physical

Mounting Interface Standard (paragraphs 2.1 and 2.1.3, version 1, dated 13

November 1997).

75mm

75mm x 75mm

Screw Mounting Options

4mm ,0.7pitch threaded holes x4

Customizing your Monitor

The On Screen Display (OSD) system provides a full range of customizable tools to

optimize your display.

Important: While full customization is available, we strongly recommend using

the AUTO settings, which are preset to fully optimize your monitor’s

performance. Simply presses the AUTO button exceed 1 second to

engage the AUTO settings. It is also recommended that you execute

the AUTO function following any change made to your display from

your computer.

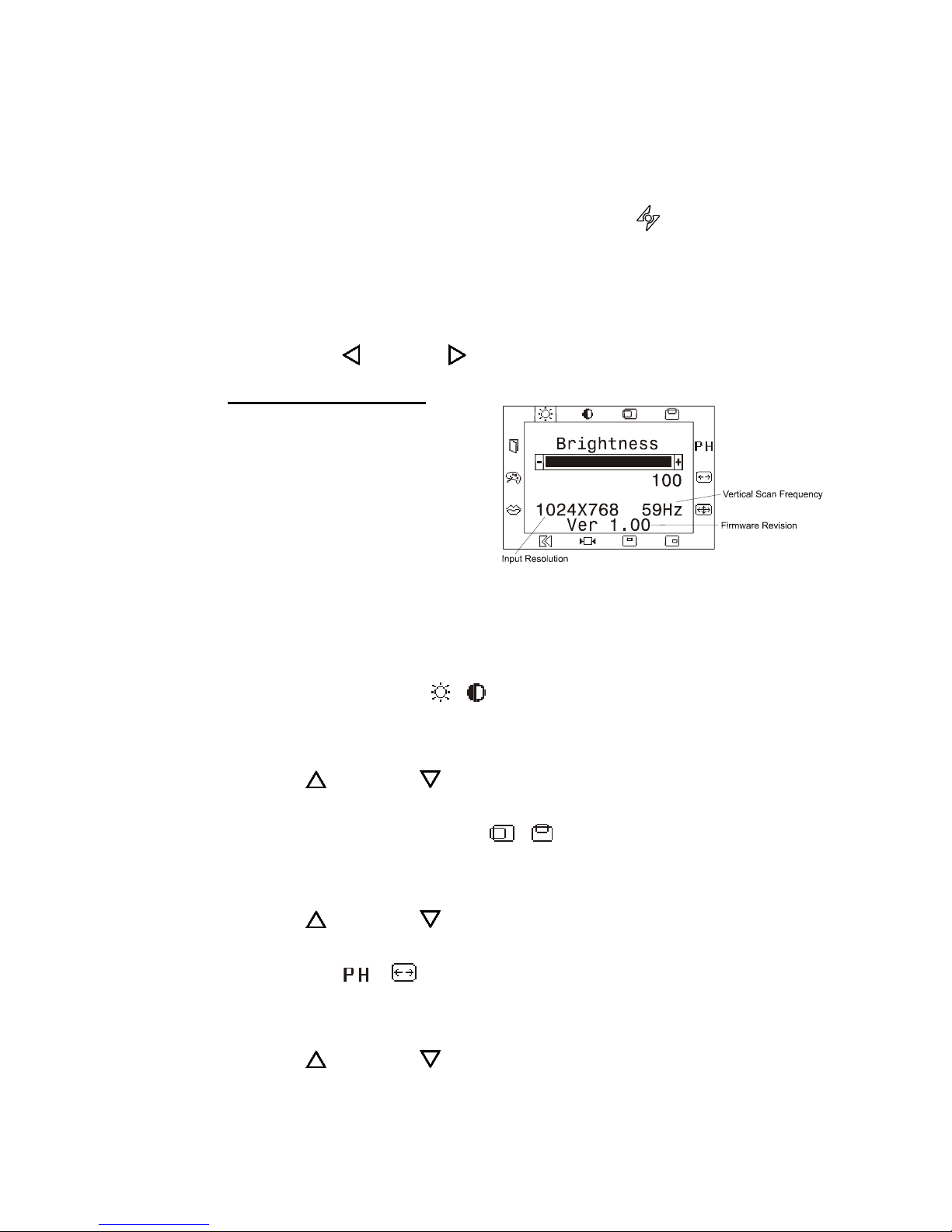

Working with OSD Groups

Press any of the LEFT , or RIGHT buttons to open the OSD window.

OSD Function Menu

To access OSD Main menu, simply press

one of the Function Select control buttons,

and the menu diagram will pop up on the

screen as shown on Fig. 1-1:

Continue pressing the Function Select

buttons (left/right) to scroll through the

entire menu items ,then press Adjustment

Control buttons (up/down) to adjust content

of selected item.

Attention Firmware revision may have been updated into a latest version

while the version number shown on all OSD menus in this manual

will stay as Ver. 1.00.

Brightness & Contrast ( / )

• To fine-tune the monitor’s brightness and contrast, select the pertinent item from

the menu.

• Use the UP and DOWN buttons to set the display as desired on the 0-100

scales that appears at the bottom of the window.

Horizontal & Vertical Position ( / )

• To fine-tune the display’s position on the monitor screen, select the pertinent item

from the menu.

• Use the UP and DOWN buttons to set the display as desired on the 0-100

scales that appears at the bottom of the window.

Phase & Clock ( / )

• To fine tune picture performance to compensate for drifts in the computer signal,

select the pertinent item from the menu.

• Use the UP and DOWN buttons to set the display as desired that appears

at the bottom of the window.
