AG Neovo F-419 Bedienungsanleitung
1
Table of Content
PRECAUTIONS ................................................................................................. 2
Installation ..................................................................................................... 2
Power connection.......................................................................................... 2
Using the Tilt ................................................................................................. 2
Maintenance .................................................................................................. 3
Transporting the monitor ............................................................................. 3
GETTING STARTED.......................................................................................... 4
Package contents........................................................................................... 4
Installing and Removing the Base ............................................................... 5
Identifying parts and controls ...................................................................... 6
Setup .............................................................................................................. 7
CUSTOMIZING YOUR MONITOR.................................................................... 9
Working with OSD Groups ........................................................................... 9
TROUBLESHOOTING ..................................................................................... 12
Attention ...................................................................................................... 12
LCD PANEL DISPLAY TECHNICAL FEATURES AND SPECIFICATIONS...... 13
Interface Frequency..................................................................................... 14
REGULATIONS ............................................................................................... 15
FCC compliance........................................................................................... 15
Information for users applicable in European Union countries............... 16
Information for users applicable in United States of America................. 16
TCO'99.......................................................................................................... 17
2
Precautions
Installation
• Do not cover or block the ventilation ports on the rear of the monitor.
• Do not install the monitor close to heat sources such as radiators or air ducts,
or in a location exposed to direct sunlight, excessive dust, mechanical
vibration, or shock.
Power connection
• Use the correct power cord for your local voltage.
• Use an accessible outlet close to the monitor.
• Do not allow anything to rest on the power cable.
• Disconnect the power cable from the power supply if:
You will not use the monitor for an extended period.
The cable is damaged or frayed.
The monitor has been dropped or the cabinet damaged.
A distinct change in performance indicates a need for servicing.
Using the Tilt
• Use the monitor’s tilt capability to adjust its vertical orientation to an
appropriate position. Grasp the top corners of the monitor with both hands
and tilt to the desired angle.
+20
0
3
Maintenance
• Clean the cabinet and controls with a soft cloth lightly moistened with a mild
detergent solution. Do not use any abrasive materials or solvents such as
alcohol or benzene.
• Do not rub, touch, or tap the surface of the screen with sharp or abrasive
items such as pens or screwdrivers, as the screen may scratch.
• Do not insert objects or spill liquids into the ventilation ports on the
monitor’s rear, as fire, electric shock, and/or unit failure may result.
Transporting the monitor
When transporting the monitor for repair or shipment, use the original carton and
packing materials.
4
Getting Started
Package contents
Before beginning, ensure that the carton contains the following items:
• Monitor
• Base
• Power cord
• Signal Cable
Analog: D-SUB Cable
Digital: DVI Cable
(Optional)
• CD-ROM containing Windows®information file
• Quick Guide
5
Installing and Removing the Base
To attach the base to the monitor, do the following:
When you open the packing carton, remove the LCD monitor base, and place it on a
desk or table. Then attach the LCD monitor to the base.
Note: Make sure that the monitor’s base pegs and the base stand are firmly
locked together.
To remove the base, turn the monitor on its side or up-side down, push the pegs to
lift base off monitor.
6
Identifying parts and controls
The center front panel of the monitor carries the control array.
FRONT VIEW
The controls are, from left to right:
AUTO button
Automatically adjusts the picture and performance. The AUTO
function should be used the first time you use the monitor and after
changing the resolution and/or refresh rate of the input signal.
1) It must be pressing the AUTO button over 1 second to execute auto
adjustment.
Note:
2) If the OSD is acting, this key function will same as down button.
LEFT button
Navigates within the display
RIGHT button
Navigates within the display
DOWN button
Activates the OSD and navigates within the display
UP button
Activates the OSD and navigates within the display
LED indicator
Indicates the monitor’s operational mode; green for regular operation,
and amber for power saving mode.
Power switch
Turns the monitor on and off
7
Setup
Follow these directions to correctly set up your monitor.
1. Remove all packing materials and wrapping from the monitor
2. Place the monitor in its desired location. Ensure that there is space
around the monitor, especially the rear area.
3. With the computer turned off, connect the signal cable to the VGA port
or DVI Port on your PC. Make sure connection is secure.
Video Connector
VGA Port
DVI Port
4. To connect the power cord to the Monitor AC socket.
5. Connect the plug Pin of power cord to an AC power source.
A
C Power Jack Power Cor
d
6. Turn on the computer.
7. Press the soft power switch on the monitor. The display should appear.
If no display appears, check Troubleshooting in this manual.
8. Ensure that your computer display is set at 1024X768 pixels and 60Hz.
Press the AUTO button exceed 1 second. The monitor optimizes the
display automatically.
8
Note: The monitor is compliant with VESA FPMPMI standards and can be
wall- or arm-mounted. Before wall-mounting or arm-mounting,
please disassemble the monitor stand first.
1. Unscrew screws of the hinge bracket
2. Remove the stand from LCD monitor
2
11
3. The rear of this LCD display has four integrated 4 mm, 0.7 pitches
threaded nuts, as well as four 5 mm access holes in the plastic covering
as illustrated below. These specifications meet the VESA Flat Panel
Monitor Physical Mounting Interface Standard (paragraphs 2.1 and
2.1.3, version 1, dated 13 November 1997).
100mm
100mm
100mm x 100mm
Screw Mounting Options
4mm ,0.7pitch threaded holes x4
9
Customizing your Monitor
The On Screen Display (OSD) system provides a full range of customizable tools to
optimize your display.
Important: While full customization is available, we strongly recommend
using the AUTO settings, which are preset to fully optimize your
monitor’s performance. Simply presses the AUTO button
exceed 1 second to engage the AUTO settings. It is also
recommended that you execute the AUTO function following any
change made to your display from your computer.

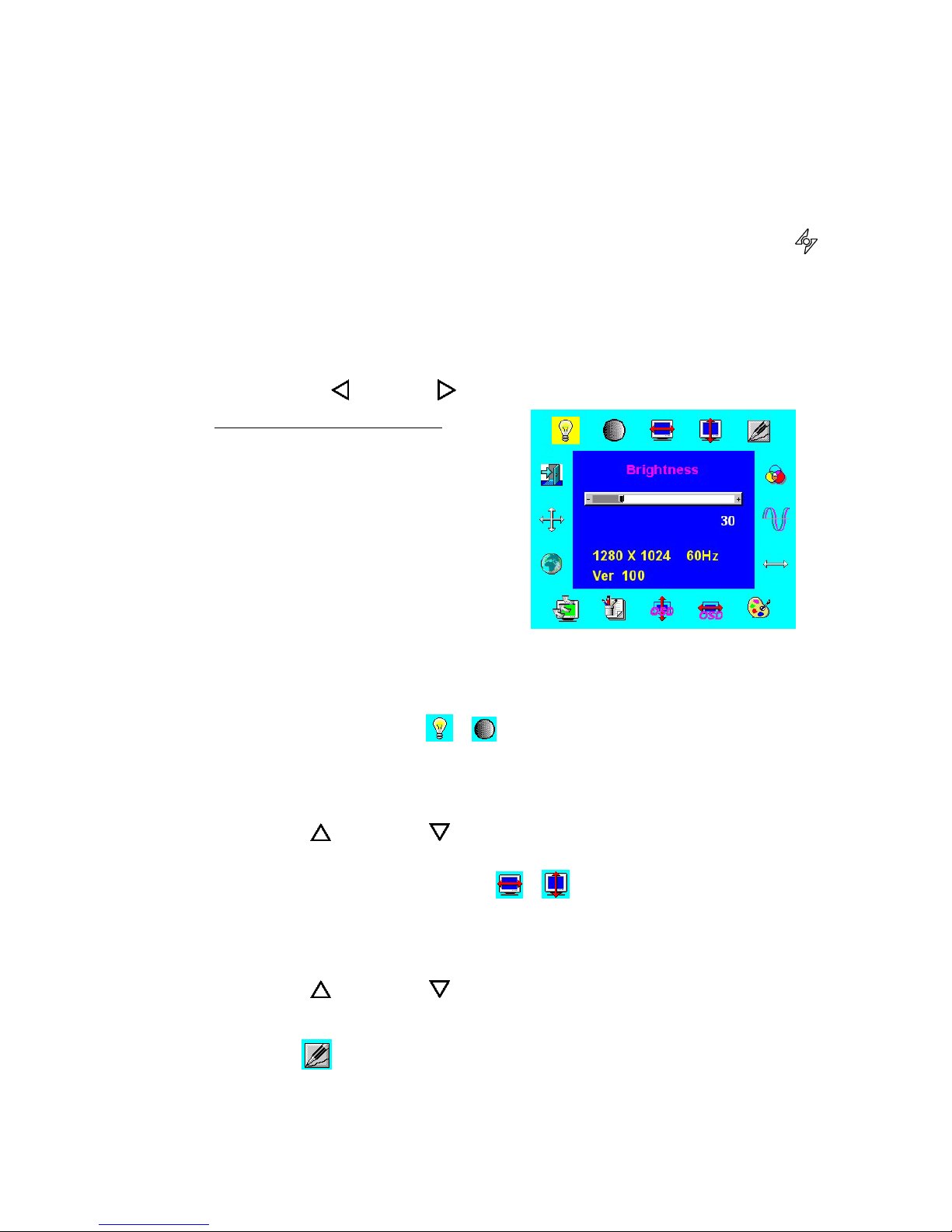

Working with OSD Groups
Press any of the LEFT , or RIGHT buttons to open the OSD window.
OSD Function Menu
To access OSD Main menu, simply press
one of the Function Select control buttons,
and the menu diagram will pop up on the
screen as shown on Fig. 1-1:
Continue pressing the Function Select
buttons (left/right) to scroll through the
entire menu items ,then press Adjustment
Control buttons (up/down) to adjust
content of selected item.
Attention Firmware revision may have been updated into a latest version
while the version number shown on all OSD menus in this manual
will stay as Ver. 1.00.
Brightness & Contrast /
• To fine-tune the monitor’s brightness and contrast, select the pertinent item
from the menu.
• Use the UP and DOWN buttons to set the display as desired on the 0-
100 scales that appears at the bottom of the window.
Horizontal & Vertical Position /
• To fine-tune the display’s position on the monitor screen, select the
pertinent item from the menu.
• Use the UP and DOWN buttons to set the display as desired on the 0-
100 scales that appears at the bottom of the window.
Sharpness
• This function let's you select the images sharpness. Five selections are
available. A smoother setting is more suitable for pictures, while a sharper
setting is more suitable for text.
