AGA Premium Series Bedienungsanleitung

PREMIUM SERIES

INSTALLATION GUIDE

Premium Series Installation Guide

Page

Important safety instructions 3

Children Safety 3

Appliance features and installation requirements 3

Installation compartment features 4

899 Premium Maxi Series

749 Premium Standard Series

599 Premium Wine Cellar Series

Transport to installation site and unpacking 7

Electrical and Water connection 8

Building-in into the compartment and levelling 9

Anti-tipping safety assembly 9

Application of side and central proles 10

Ventilation 11

Post installation control 12

Start up 12

Index

Premium Series Installation Guide

Important safety instructions

Appliance features and installation requirements

Children safety

Wine Cellar Series w: 585 mm / h: 2150 mm / d: 700,5 mm

Premium Standard Series w: 735 mm / h: 2150 mm / d: 700,5 mm

Premium Maxi Series w: 885 mm / h: 2150 mm / d: 700,5 mm

Wine Cellar Series w: 650 mm / h: 2300 mm / d: 800 mm

Premium Standard Series w: 800 mm / h: 2300 mm / d: 800 mm

Premium Maxi Series w: 950 mm / h: 2300 mm / d: 800 mm

Wine Cellar Series up to 236 kg

Premium Standard Series up to 268 kg

Premium Maxi Series up to 315 kg

AC 220-240V

13 Amp plug

from 0.05 MPa to 0.5 MPa (0.5 Bar - 5 Bar)

3/4” female attachment

Anti-tipping Kit (kit B04000200)

4 mm allen wrench.

Phillips head screwdriver

Wood and percussion drill

8 mm bit for masonry

17 mm wrench

Appliance dimension

with packaging

Weight with packaging

Voltage

Power supply cable

Potable water supply presure

Water supply tube

Provided installation accessories

Additional equipment necessary

for installation not provided

If this appliance is replacing an existing appliance which must be

removed or disposed of, make sure that it does not become a

dangerous trap for children by cutting its power supply cable and

rendering it impossible to close the door. Use the same caution at the

end of the lifespan of the new appliance.

Important

Directions for avoiding appliance

damage

Symbols used in the Guide

Warning

directions for preventing injury

Note

Tips for the correct use of the

appliance

885

105°

1243,5

1602

216,5

885

2150

643,7

660

> 2165

E W

900

695

102,5 102,5

98 100

100

140 140

700,5

660

1295,3513,7130 195

625

740,5

Installation compartment features: Premium Maxi Series

A: area to be left clear for the anti-tipping

brackets

E- W: area to be left clear for the power supply

cable and water supply hose.

Minimum Niche Height: 2165 mm

Minimum Niche Width: 900 mm

Door Swing Clearance: 1602 mm

Door Opening Right Clearance: 216,5 mm

Door Opening Angle: 105°

Width: 885 mm

Minimum Height: 2160 mm

Depth: 700,5 mm

Net Weight: AFR9FTCR 257 kg

735

105°

1243,5

1333,5

176

735

2150

643,7

660

E W

750

545

102,5 102,5

98 100

100

140 140

> 2165

700,5

660

1295,3513,7130 195

625

740,5

Premium Series Installation Guide

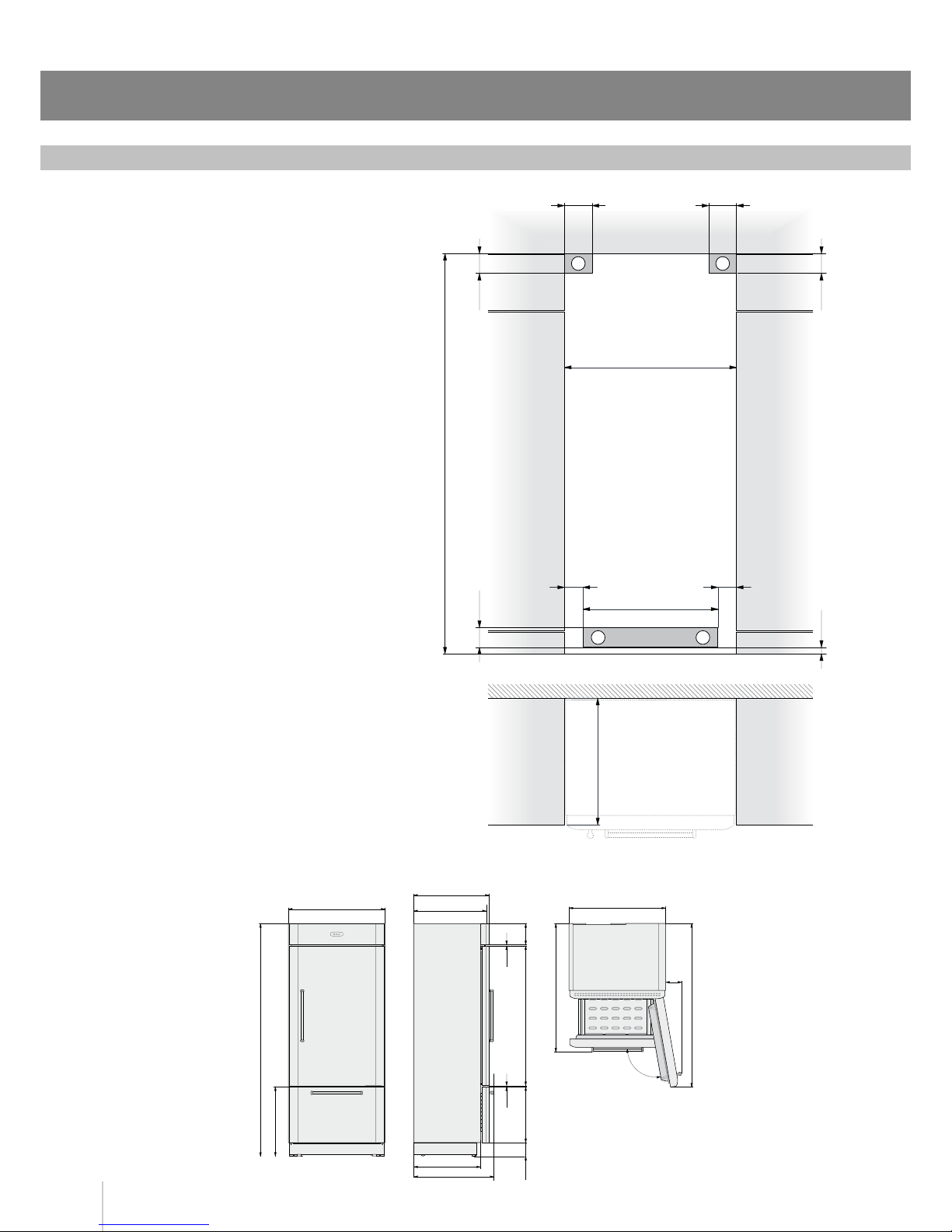

Installation compartment features: Premium Standard Series

A: area to be left clear for the anti-tipping

brackets

E- W: area to be left clear for the power supply

cable and water supply hose.

Minimum Niche Height: 2165 mm

Minimum Niche Width: 750 mm

Door Swing Clearance: 1335.5 mm

Door Opening Right Clearance: 176 mm

Door Opening Angle: 105°

Width: 735 mm

Minimum Height: 2160 mm

Depth: 700,5 mm

Net Weight: AFFR7FTCR 210 kg

585

105°

1243,5

1305,5

137

585

2150

643,7

660

E W

600

394

102,5 102,5

98 100

100

140 140

> 2165

700,5

660

1295,3513,7130 195

625

740,5

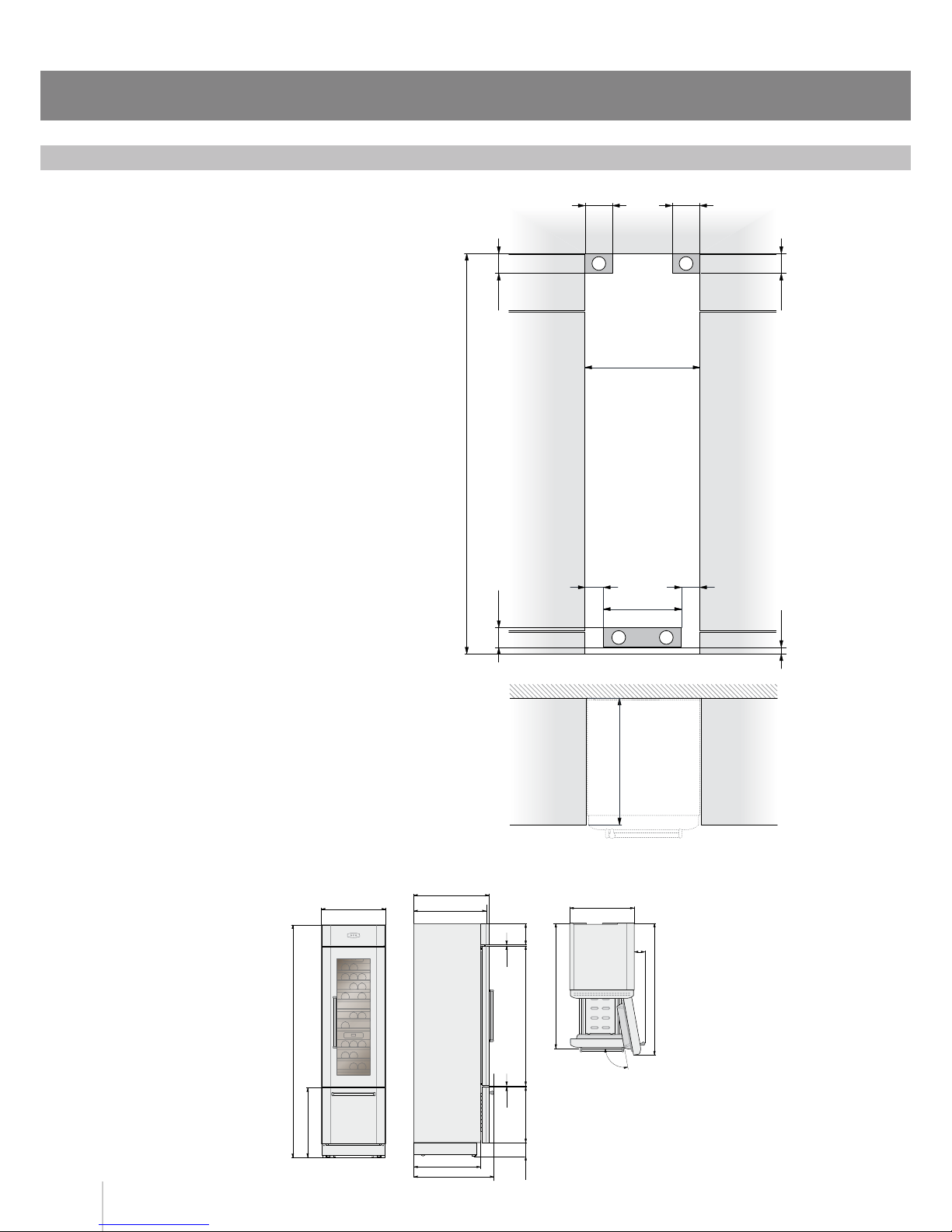

Installation compartment features: Wine Cellar Series

A: area to be left clear for the anti-tipping

brackets

E- W: area to be left clear for the power supply

cable and water supply hose.

Minimum Niche Height: 2165 mm

Minimum Niche Width: 600 mm

Door Swing Clearance: 1305,5 mm

Door Opening Right Clearance: 137 mm

Door Opening Angle: 105°

Width: 585 mm

Minimum Height: 2160 mm

Depth: 700,5 mm

Net Weight: AFWL6 195 kg

Premium Series Installation Guide

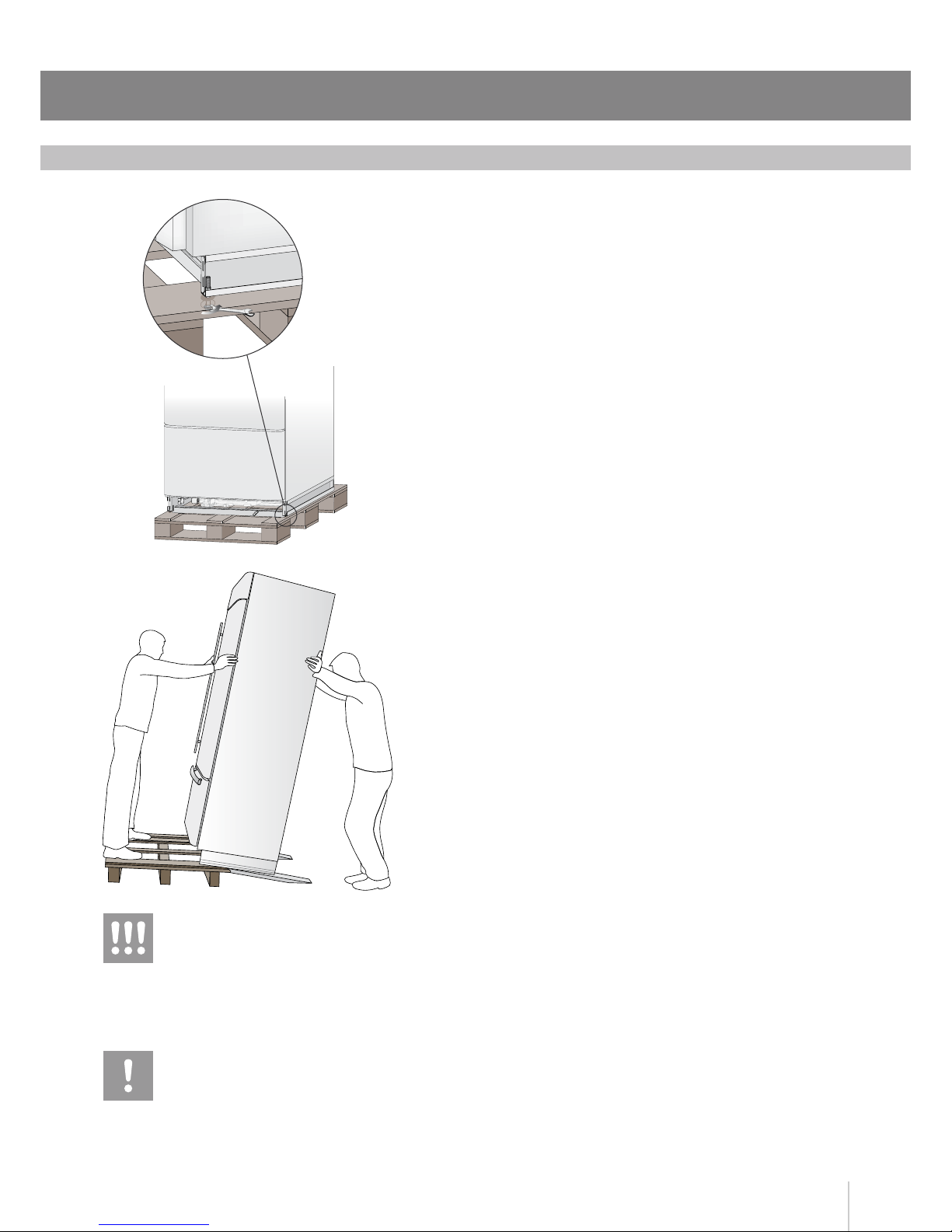

Transport to installation site and unpacking

Since this is a large and heavy appliance, before transporting

the appliance, check the access to the location where it will be

installed (door size, manoeuvring space in stairwells, etc.).

It may be convenient to remove a part of the packaging before

transporting to the installation site, taking maximum care to protect

the appliance from scratches and damages.

The appliance is secured to the base of the packaging (pallet) by

four bolts which can be removed using a 17 mm wrench.

It is recommended to use a manual transporting device to move the

appliance to the installation site, and only at this point to remove the

base of the packaging.

The appliance should always be transported in an erect position. If this

is not possible, transport it laying on its rear side, avoiding at all costs

laying it on its front side.

Once the installation site has been reached, it is necessary to remove

the four anchor bolts that hold the appliance to the pallet (use a 17 mm

wrench). Once at the installation site, the appliance, which is equipped

with four wheels, can be taken off the pallet (two slide guides are

provided for this purpose, see illustration) and positioned in the correct

location.

Be extremely careful during this operation, and do not lean the

appliance any more than necessary when placing it on the slide guides

(max 70°< ) to avoid grave harm to persons and property.

Be very careful to avoid any damage to oors. Especially delicate

oors should be protected with plywood, hard cardboard or similar

material panels.

The appliance is very heavy.

Take maximum care during handling

to avoid injury.

The appliance should always be transported

in an erect position.

Avoid at all costs leaning it on its front side.

Electrical and Water connection

A 13 Amp socket with an efcient earth should be made available for

the electrical mains connection, as well as an omnipolar switch which

can easily be reached after the appliance has been installed.

Do not use extension cords or adapters.

Electrical connection

Water connection For connection to the water supply system (for appliances equipped

with ice maker) a tap with a male 3/4” connection should be provided,

which must also be easily accessible once the appliance is installed.

The appliance is provided with a water supply hose and seal kit which

is suitable for high water pressure and complies the Food Regulations.

The water lter cartridge, which is provided with the appliance, should

be installed according to the accompanying instructions.

Use only the new hose and the new gaskets which are supplied with the

appliance. Discard any hose and gasket which may have already been

installed.

The appliance should be connected only

to a drinkable water supply system, in

accordance with current laws in the country

where the appliance is being installed.

Make sure that the the power supply cable is

properly plugged into its seat as per drawing on

facing page. The cable must be secured with

the specic cable clamp.

Do not use extension cords or adapters.

The built in lter cannot make safe for drinking

any water which is not suitable for human

consumption.
