Solar High Power MPPT Controller
Solar MPPT 20A Charge Controller for 12V battery
User’s Manual
READ BEFORE TO INSTALL
General Safety Recommendations
1. Batteries stores a large amount of energy. Under all circumstances, never short circuit a Battery. We
recommend connecting a fuse directly to the positive battery terminal, adjusted to the maximum intensity of
use and without overpass the nominal intensity of AGNEUS Regulator.
2. Batteries can produce flammable gases.Avoid making sparks using fire or any naked flame. Be sure that the
battery room is ventilated.
3. Avoid touching or short circuiting wires or terminals. Use isolated tools, remains always in dry floor and keep
your hands dry.
4. Keep children away from batteries and the charge regulator.
5. Please, observe the safety recommendations of the battery manufacturer. If you have any doubt, consult your
seller or installer.
Intended Use
The charge regulator is designed to be used in a isolated photovoltaic system for a Lead-acid battery with 12V of
nominal voltage.
Liability Exclusion
The manufacturer shall not be able for damages, especially on the battery, caused by use other than as intended or as
mentioned in this manual, or if the recommendations of the battery manufacturer are neglected. The manufacturer shall
not be liable if there has been service or repair carried out by any unauthorized person, unusual use, wrong installation
or bad system design. Opening case voids warranty.
General Description
The High Power battery charge regulator AGNEUS AGCD2035HP tracks the Maximum Power Point of the photovoltaic
module (Maximum Power Point Tracking MPPT), increasing the electric energy yields if compares with the traditional
market regulators. Moreover, it makes an active control of photovoltaic module and loads, to protect battery from
overcharge and extended uses without finishing a deep battery charge or equalization charge.

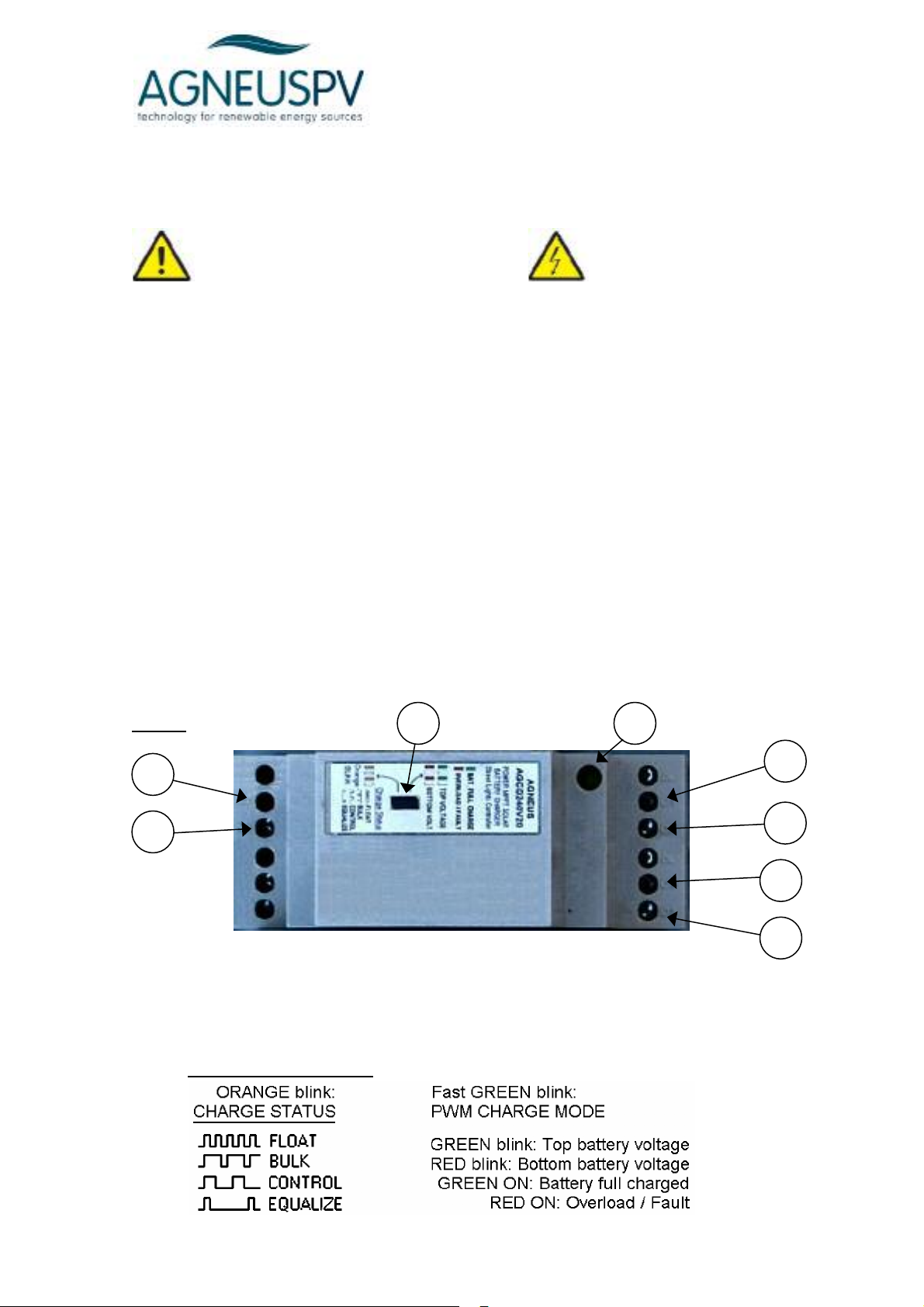

Figure 1
1. Positive of Photovoltaic module PV+
2. Negative of Photovoltaic module PV-
3. Positive of the output for user’s loads OUT+
4. Negative of the output for user’s loads OUT-
5. Positive of battery BAT+
6. Negative of battery BAT-
7. Switch on Loads LED indicator (Street Light Controller version)
8. Battery State LED indicator:
1
2
3
4
6
5
8
7
Installation and connection (see figures 1 and 2)
Protects the regulator from direct sun light and rain and place it in a dry and non flammable surface (the
regulator warms up during operation). The distance between the regulator and the battery should be as
short as possible, always bellow 1m length. Use wires of 4mm2of maximum thickness.
Between regulator output OUT+ (4) and loads positive side (12V luminaries, for example), we will insert
the switch breaker, as shown in the figure 2. User loads negative side will be connect directly to the
battery negative terminal.
Before begin to install, be sure that battery is not connected!
1. Install the electric enclosure and inserts the regulator and the switch breaker in the DIN RAIL.
2. Connect the regulator output terminal OUT+ (3) at switch breaker nearest terminal, Be sure that the
switch lever is at OFF position. Connect the other switch breaker terminal to the positive side of your
desired loads to be supplied.
3. Connect the regulator output terminal OUT- (4) to the negative side of your loads.
4. With battery unconnected, insert the positive wire of battery BAT+ to the regulator terminal (5).
After, insert the negative wire BAT- to the regulator terminal (6).
5. Now proceed to make the battery connections. Attention! If inverts the battery polarity, could be
produced irreparable damages over the regulator.
6. Connect the positive wire of the photovoltaic module PV+ to the regulator terminal (1)
7. Connect the negative wire of the photovoltaic module PV- to the regulator terminal (2)
Components Technical Specifications
Lead acid Battery Photovoltaic module
Nominal Voltage 12V Peak power 220Wp maximum
Maximum capacity C10 350Ah VOC (open circuit) 31V maximum
Minimum capacity C10 100Ah ISC (short circuit) 14A maximum
Technical Specifications - AGNEUS regulator
Specification Nominal Maximum Minimum
Battery voltage VBAT 12V 15V 10V
Track VMPP PV module 17V 26V VBAT +2V
Charge current 16A 20A 0,01A
Load current 7,5A 10A 0A
Self consumption 3W 4W 0,1W (night)
Temperature 25ºC 60ºC -15ºC
General data - AGNEUS regulator
regulator 38mm x 93mm x 71mm 150 gr.Dimensions & weight
(width x height x deep) kit SLC 72mm x 119mm x 76mm 300 gr.
Kind of regulation Maximum Power Point Tracking MPPT
Deep Charge algorithm 4 estates with active control of charge current
Battery charge control voltages 13,5VFLOAT 14,4VBULK 14,5VCONTROL 15VEQUALIZE
Charge cycles interval Minimum 1 day till a maximum of 30 days
Load Control Cut-off voltage: 11,2V Load re-connection: 11,75V
Device protections Low battery PV module
polarity
overcharge short circuit
Case protection degree IP54 AGNEUS regulator IP23 Street Light C. kit
