30" LAWNSWEEPER

BARREDORA DE CESPED DE 76 cm

BALAYEUSE DE 76 cm

OWNERS MANUAL

MANUAL DEL USUARIO

NOTICE D’UTILISATION

CAUTION:

Read Rules for

Safe Operation

and Instructions

Carefully

Model No.

Modelo No.

Modèle No.

45-03371

ATTENTION:

Lire et suivre attentivement

les instructions et

consignes de sécurité de

cette notice.

PRECAUCION:

Lea cuidadosamente

los Procedimientos e

Instrucciones para la

Operación Segura de la

Máquina.

• Safety

• Assembly

• Operation

• Maintenance

• Parts

• Seguridad

• Montaje

• Operación

• Mantenimiento

• Piezas de Repuesto

• Sécurité

• Assemblage

• Fonctionnement

• Maintenance

• Pièces de Rechange

the fastest way to purchase parts

www.speedepart.com

™

AerosmithRocks

1. Sweeper Housing Assembly

2. Bag Arm Tube (2)

3. Hitch Tube, L.H.

4. Hitch Bracket

5. Hitch Bracket (Straight)

6. Height Adjustment Strap

7. Height Adjustment Handle

8. Hitch Tube, R.H.

9. Rope

10. Hopper Bag

11. Upper Hopper Side Tube (2)

12. Rear Hopper Tube (2)

13. Lower Hopper Side Tube (2)

14. Hopper Support Rod (2)

15. Bag Frame Strap

11 11

1. Conjunto de Carcaza de la Barredora

2. Brazo del Tubo de la Bolsa (2)

3. Tubo de Enganche (Mano Izquierda)

4. Ménsula de Enganche

5. Ménsula de Enganche (Recta)

6. Banda de Ajuste de Altura

7. Manija de Ajuste de Altura

8. Tubo de Enganche (Mano Derecha)

9. Cuerda

10. Bolsa de la Tolva

11. Tubo Lateral de la Parte Superior de

la Tolva (2)

12. Tubo de la Parte Posterior de la Tolva (2)

13. Tubo Lateral de la Parte Inferior de

la Tolva (2)

14. Barra de Soporte de la Tolva (2)

15. Banda del Marco de la Bolsa

1. Bâti de la balayeuse

2. Tube du bras du sac (2)

3. Tube d‘attelage, côté droit

4. Support de l’attelage

5. Support de l’attelage, droit

6. Étrier de réglage de la hauteur

7. Poignée de réglage de la hauteur

8. Tube d’attelage, côté droit.

9. Cordage

10. Sac de récupération des débris

11. Tube latéral supérieur de la

trémie (2)

12. Tube arrière de la trémie (2)

13. Tube latéral inférieur de la

trémie (2)

14. Tiges de support de la trémie (2)

15. Bride du cadre du sac

FRANÇAISESPAÑOL

ENGLISH

CARTON CONTENTS (Loose Parts in Carton)

CONTENIDO DE LA CAJA (Partes Sueltas en la Caja)

CONTENU DU CARTON (Pièces en Vrac Dans le Carton)

REF QTY DESCRIPTION

A 2 Hex Bolt, 5/16 x 2-1/2" Lg.

B 2 Hex Bolt, 5/16 x 2" Lg.

C 2 Curved Head Bolt, 5/16" x 1-5/8"

D 4 Carriage Bolt, 5/16" x 1-1/2"

E 1 Carriage Bolt, 5/16 x 1" Lg.

F 2 Hex Bolt, 5/16" x 3/4"

G 10 Nylock Nut, 5/16"

H 2 Hex Nut (Plain), 5/16"

I 2 Flat Washer, 5/16" (Small)

J 2 Flat Washer, 5/16" Std. Wrt.

K 2 Lock Washer, 5/16"

L 2 Bowed Washer

M 1 Lock Washer (Tooth), 5/16"

N 1 Hair Cotter Pin, 1/8"

ENGLISH

A B C DFGH

V W X Y

T U

SHOWN FULL SIZE

NOT SHOWN FULL SIZE

REF QTY DESCRIPTION

O 8 Hair Cotter Pin, 3/32"

P 2 Clevis Pin, 3/8" x 1/2"

Q 2 Clevis Pin, 1/4" x 1-1/8"

R 2 Clevis Pin, 1/4" x 1-3/4"

S 2 Clevis Pin, 3/8" x 3"

T 1 Spacer Bushing,

U 2 Hitch Spacer, 3/4"

V 2 Vinyl Cap

W 1 Grip

X 1 Knob, Plastic

Y 1 Hitch Pin

Z 4 Plastic Plug

AA 1 Angle Bracket

6. Vehicle braking and stability may be affected with

the attachment of this sweeper. Do not ll sweeper to

maximumcapacitywithoutcheckingthecapability ofthe

towing vehicle to safely pull and stop with the sweeper

attached. Stay off of steep slopes.

7. Stop and inspect vehicle and sweeper for damage after

striking an object.Repair any damage before continuing

operation.

8. Keep sweeper away from re. Excessive heat can

damage the brushes and hopper bag and could cause

the bag and its contents to burn.

9. Before storing the sweeper, always empty the hopper

bag to avoid spontaneous combustion.

10. Follow maintenance and lubrication instructions as

outlined in the maintenance section of this manual.

1. Read the vehicle and sweeper owners manuals and

know how to operate your vehicle and sweeper before

using this sweeper attachment. Always instruct other

users before they operate the sweeper.

2. Do not permit children to operate sweeper.

3. Do not permit anyone to ride on sweeper.

4. Never attach the hopper rope to any part of your body

or clothing! Never hold onto the rope while towing the

sweeper! Attach the rope to the towing vehicle to keep

it away from wheels and rotating parts.

5. Operate the sweeper at reduced speed on rough

terrain, near ditches and on hillsides to prevent loss of

control.

Remember, any power equipment can cause injury if operated improperly or if the user does not understand how to operate

the equipment. Exercise caution at all times when using power equipment.

SAFETY RULES

ENGLISH

Look for this symbol to point out important safety precautions. It means — Attention!!

Become alert!! Your safety is involved.

TOOLS REQUIRED FOR ASSEMBLY

(1) Knife or Scissors

(2) 1/2" Open End or Box End Wrenches

ASSEMBLY

All loose parts are shown on page 2. Fasteners in the parts

bag are shown full size on page 3.

Remove the hardware pack and all loose parts from the

carton and verify that all the parts and fasteners shown on

pages 2 and 3 are included.

CONTENTS

SAFETY...........................................................................4

ASSEMBLY...................................................................... 5

OPERATION..................................................................11

MAINTENANCE ............................................................11

STORAGE .....................................................................12

SERVICE AND ADJUSTMENTS...................................12

TROUBLESHOOTING...................................................12

REPAIR PARTS .............................................................22

ASSEMBLY OF SWEEPER

Note: Righthand(R.H.)andlefthand(L.H.)aredetermined

from the operator's position while seated on the tractor.

1. (Figure 1) Assemble the angle bracket to the sweeper

housing using a 5/16" x 3/4" hex bolt (F) and a 5/16"

nylock nut (G). Make sure the bracket is turned as

shown and aligned straight with the housing and then

tighten.

2. Cut off the plastic tie that holds the height adjustment

tube in place.

3. (Figure 2) Assemble the R.H.hitch tube to the sweeper

housing using two 5/16" x 1-1/2" carriage bolts (D) and

5/16" nylock nuts (G). Do not tighten yet. Repeat for

the L.H. hitch tube.

4. (Figure 3) Fasten the hitch tubes together using two

5/16" x 2-1/2" hex bolts (A), 5/16" small at washers (I)

and 5/16" nylock nuts (G). Do not tighten yet.

ENGLISH

5/16" x 3/4"

HEX BOLT (F)

5/16" NYLOCK NUT (G)

ANGLE

BRACKET

5/16" x 1-1/2"

CARRIAGE BOLT (D)

5/16" NYLOCK NUT (G)

5/16" x 2-1/2"

HEX BOLT (A)

5/16" NYLOCK

NUT (G)

5/16" SMALL FLAT

WASHER (I)

9. (Figure 7) Assemble the height adjustment handle to

the height adjustment tube as shown in gure six. Use

two curved head bolts (C), bowed washers (L), 5/16"

lock washers (K) and 5/16" hex nuts (H).Do not tighten

yet.

10. (Figure 7) Assemblethegrip onto theheight adjustment

handle.

Ifyour tractorhitchhas11"to13" groundclearancerefer

to gure 4. If your tractor hitch has 8" to 11" ground

clearance refer to gure 5.

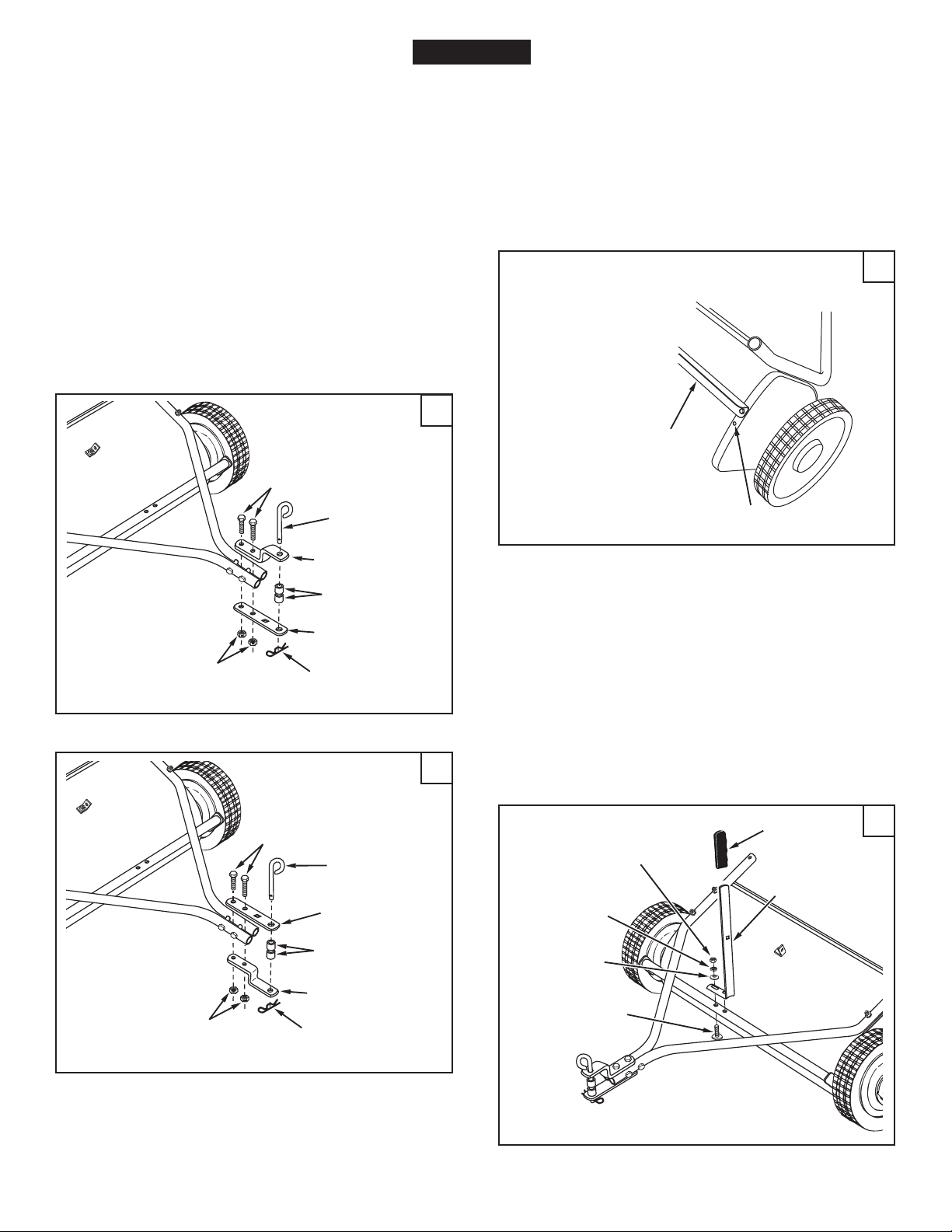

5. (Figure 4 or 5) Assemble the hitch brackets to the hitch

tubes using two 5/16" x 2" hex bolts (B) and 5/16" nylock

nuts (G). The bolts should straddle the front hitch tube

bolt. Do not tighten yet.

6. At this time tighten the four bolts fastening the hitch

tubestothesweeperhousing.Next,tightenthetwobolts

fastening the ends of the hitch tubes together. Finally,

tighten the two bolts fastening the hitch brackets to the

hitch tubes.

7. (Figure 4 or 5) Assemble the hitch pin (Y), two 3/4"

spacers (U) and the 1/8" hair cotter pin (N) to the hitch

brackets.

ENGLISH

If your tractor hitch has 13" or more ground clearance

refer to gure 6, otherwise proceed to gure 7.

8. (Figure 6) Move the rear support brace that came

assembled to the rear of the sweeper to the bottom set

of holes in the sweeper end plates. This will allow the

sweeper bag to sit level when the sweeper is attached

to a tractor with a taller hitch.

5/16" x 2"

HEX BOLT (B)

5/16" NYLOCK

NUT (G)

3/4" SPACER (U)

HITCH PIN (Y)

HITCH BRACKET

(STRAIGHT)

1/8" HAIR

COTTER PIN (N)

HITCH BRACKET

5/16" x 2"

HEX BOLT (B)

5/16" NYLOCK

NUT (G)

3/4" SPACER (U)

HITCH BRACKET

(STRAIGHT)

1/8" HAIR

COTTER PIN (N)

HITCH PIN (Y)

VIEWED FROM REAR OF SWEEPER

REAR SUPPORT BRACE

BOTTOM HOLE

CURVED

HEAD BOLT (C)

5/16" HEX NUT (H)

BOWED

WASHER (L)

5/16" LOCK

WASHER (K)

HEIGHT

ADJUSTMENT

HANDLE

GRIP

12. (Figure 9) Position the height adjustment handle side to

side so that the tooth lock washer (M) can t between

the handle and the height adjustment strap. Tighten

the nuts securing the height adjustment handle.

13. (Figure 9) Insert the 5/16" x 1" carriage bolt (E) through

the height adjustment handle. Assemble onto the bolt,

in order, the 5/16" tooth-lock washer (M), the height

adjustment strap, a 5/16" at washer (J) and the plastic

knob.

2. (Figure 11) Insert the two upper hopper side tubes

through the stitched aps on each side of the hopper

bag.

3. (Figure 11) Assemble the ends of the rear hopper tube

onto the ends of the upper hopper side tubes. Fasten

together using plastic plugs (Z).

ENGLISH

11. (Figure 8) Insert a 5/16" x 3/4" hex bolt (F) through the

angle bracket. Assemble onto the bolt (in order) the

spacer bushing (T), the height adjustment strap, a 5/16"

at washer (J) and a 5/16" nylock nut (G). Tighten.

ASSEMBLY OF HOPPER BAG

1. (Figure 10) Turn a rear hopper tube so that the brace

holes in the middle of the tube face down.

5/16" NYLOCK

NUT (G)

5/16" FLAT

WASHER (J)

HEIGHT

ADJUSTMENT

STRAP

5/16" x 3/4"

HEX BOLT (F)

SPACER

BUSHING (T)

5/16" x 1"

CARRIAGE BOLT (E)

TOOTH LOCK

WASHER (M)

PLASTIC

KNOB

5/16" FLAT

WASHER (J)

REAR HOPPER TUBE

(brace holes on bottom)

UPPER HOPPER

SIDE TUBE

PLASTIC PLUG (Z)

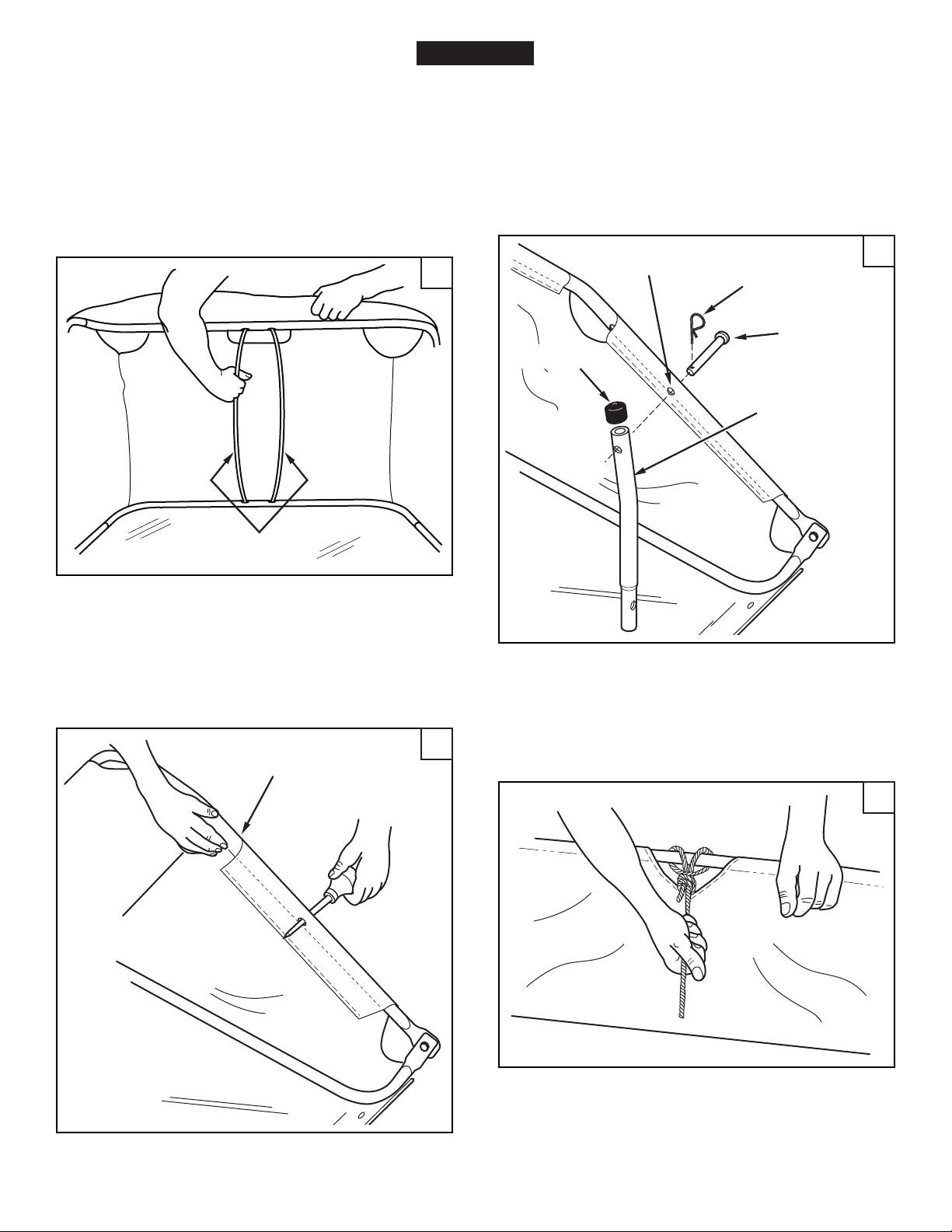

7. (Figure 14) Insert the bag frame strap into the stitched

sleeve along the front edge of the bag bottom.

8. (Figure 14) Assemble the bag frame strap to the lower

hopper side tubes using two 1/4" x 1-1/8" clevis pins

(Q) and 3/32" hair cotter pins (O).

9. (Figure 15) Secure the bag corners around the lower

hopper side tubes by snapping the bag aps to the bag

bottom on both sides.

5. (Figure 13) Place the assembled lower hopper tubes

into the bottom of the hopper bag

6. (Figure 13) Attach the ends of the lower hopper side

tubes to the inside of the upper hopper side tubes using

two 3/8" x 1/2" clevis pins (P) inserted from the inside,

and two 3/32" hair cotter pins (O).

4. (Figure 12)Turn the second rear hopper tube so that the

brace holes in the middle of the tube face up.Assemble

the ends of the rear hopper tube onto the ends of the

lower hopper side tubes. Fasten together using plastic

plugs (Z).

ENGLISH

LOWER

HOPPER

SIDE TUBE

PLASTIC PLUG (Z)

REAR HOPPER TUBE

(brace holes on top)

LOWER HOPPER

SIDE TUBE

HOPPER BAG

BOTTOM

UPPER HOPPER

SIDE TUBE

3/8" x 1/2"

CLEVIS PIN (P)

3/32" HAIR

COTTER PIN (O)

1/4" x 1-1/8"

CLEVIS PIN (Q)

3/32" HAIR

COTTER PIN (O)

BAG FRAME STRAP

SNAP

FLAP

IMPORTANT: Do not over bend the support rods during

the following step. Over bending will cause the steel rods

to loose supporting tension.

10. (Figure 16) Tip the hopper onto it's back to assemble

the two hopper support rods. Place the ends of each

rod into the upper and lower rear hopper tubes, bending

the rod just enough to t into the holes in the tubes.

ENGLISH

11. (Figure 17) Feel along the stitched ap on the hopper

bag to locate the hole in each upper hopper side tube.

Pierce a hole through both sides of the stitched aps

in alignment with the lower hole.

12. (Figure 18) Insert a 3/8" x 3" clevis pin (S) through

the lower hole in each upper hopper side tube. Next,

assemble a bag arm tube (pointing in direction shown)

onto each clevis pin and secure it with a 3/32" hair cotter

pin (O).

13. (Figure 18) Assemble a vinyl cap (V) onto the end of

each bag arm tube.

14. (Figure 19) Secure the rope to the top center of the

hopper bag frame.

SUPPORT

RODS

UPPER HOPPER SIDE TUBE

LOWER HOLE 3/32" HAIR

COTTER PIN (O)

3/8" x 3"

CLEVIS PIN (S)

BAG ARM TUBE

VINYL CAP

15. (Figure 20)To assemble the hopper bag to the sweeper,

slide the ends of the bag arm tubes into the ends of the

sweeper's hitch tubes and secure with two 1/4" x 1-3/4"

clevis pins (R) and 3/32" hair cotter pins (O).

ENGLISH

BAG ARM TUBE

1/4" x 1-3/4"

CLEVIS PIN (R)

3/32" HAIR

COTTER PIN (O)

Inhaltsverzeichnis

Andere Agri-Fab Rasenkehrmaschine Handbücher

Agri-Fab

Agri-Fab 45-0570 Bedienungsanleitung

Agri-Fab

Agri-Fab 45-04561 Bedienungsanleitung

Agri-Fab

Agri-Fab 45-0352 Gebrauchs- und Pflegehandbuch

Agri-Fab

Agri-Fab 26" Leaf/Lawnsweeper 45-02181 Bedienungsanleitung

Agri-Fab

Agri-Fab 45-03261 Bedienungsanleitung

Agri-Fab

Agri-Fab 45-0521 Bedienungsanleitung

Agri-Fab

Agri-Fab 45-04561 Bedienungsanleitung

Agri-Fab

Agri-Fab 45-0456 Bedienungsanleitung

Agri-Fab

Agri-Fab 45-02212 Bedienungsanleitung

Agri-Fab

Agri-Fab 45-03523 Bedienungsanleitung

Agri-Fab

Agri-Fab 45-05221 Bedienungsanleitung

Agri-Fab

Agri-Fab 26" Leaf/Lawnsweeper 45-02181 Bedienungsanleitung

Agri-Fab

Agri-Fab 45-0320 Gebrauchs- und Pflegehandbuch

Agri-Fab

Agri-Fab 45-0331 Bedienungsanleitung

Agri-Fab

Agri-Fab Lawn Care Made Easy 45-02183 Bedienungsanleitung

Agri-Fab

Agri-Fab 45-0290 Bedienungsanleitung

Agri-Fab

Agri-Fab 45-0337 Gebrauchs- und Pflegehandbuch

Agri-Fab

Agri-Fab 45-03201 Bedienungsanleitung

Agri-Fab

Agri-Fab 45-02183 Bedienungsanleitung

Agri-Fab

Agri-Fab 45-03201-062 Bedienungsanleitung

Beliebte Rasenkehrmaschine Handbücher anderer Marken

Starmix

Starmix StarSweep 65 Bedienungsanleitung

HAKO

HAKO Hako-Profi-Flipper Bedienungsanleitung

RedMax

RedMax RMSZ2500 Betriebsanleitung

Black & Decker

Black & Decker GWC1800L Bedienungsanleitung

Sanitaire

Sanitaire SC6093A Bedienungsanleitung

Zenoah

Zenoah RMSZ2601 Bedienungsanleitung

Craftsman

Craftsman 486.242231 Bedienungsanleitung

YARD Commander

YARD Commander SP31128 Bedienungsanleitung

FLORABEST

FLORABEST FKM 2400 A1 Bedienungsanleitung

Craftsman

Craftsman 486.24212 Bedienungsanleitung

Kärcher

Kärcher KM 120 Bedienungsanleitung

Nordic

Nordic WS-L0118 Bedienungsanleitung

Smithco

Smithco 72-000-A Bedienungsanleitung

Parker

Parker Suburbanite 895803 Bedienungsanleitung

Starmix

Starmix haaga Series Bedienungsanleitung

Craftsman

Craftsman 486.24221 Bedienungsanleitung

MasterCraft

MasterCraft HS 700 S Bedienungsanleitung

P.Lindberg

P.Lindberg 9043628 Bedienungsanleitung
