- INSTRUCTIONS -

Form C Relay for 12-18V DC Intercom Systems with Door Release

WIRING DIAGRAMS:

Page 1

INSTALLATION:

1. Install in a suitable location, either near the power source for the door release mechanism, or behind the intercom.

2. Secure wire connections with proper termination, such as wire nuts or crimp connectors.

3. Trim the wires to the desired length.

4. Cut the unused contact wire so the bare strands are not exposed.

RY-18L COLOR CODE:

Input of Relay:

Red:L/RED, Postive trigger

Gray:(-) NEGATIVE

Output of Relay:

Brown:COMMON

Orange: N.O. Contact

Yellow:N.C. Contact

(See contact rating specs on

back page)

The RY-18L Door Release Relay Module is an interface between the door strike contacts on the Aiphone unit and the

actual release mechanism. The contact ratings on Aiphone units vary, and are all Normally Open. If your strike or

maglock is a higher voltage or draws more current than specified for the unit, the RY-18L is required. It provides either a

Normally Open contact for an electric strike, or a Normally Closed contact for a magnetic lock. The contact rating

supports a majority of door release hardware available on the market. This relay is recommended with all JF and JK

systems when using the single door release feature, and for the LEM-1DL or LEF systems when connecting a maglock.

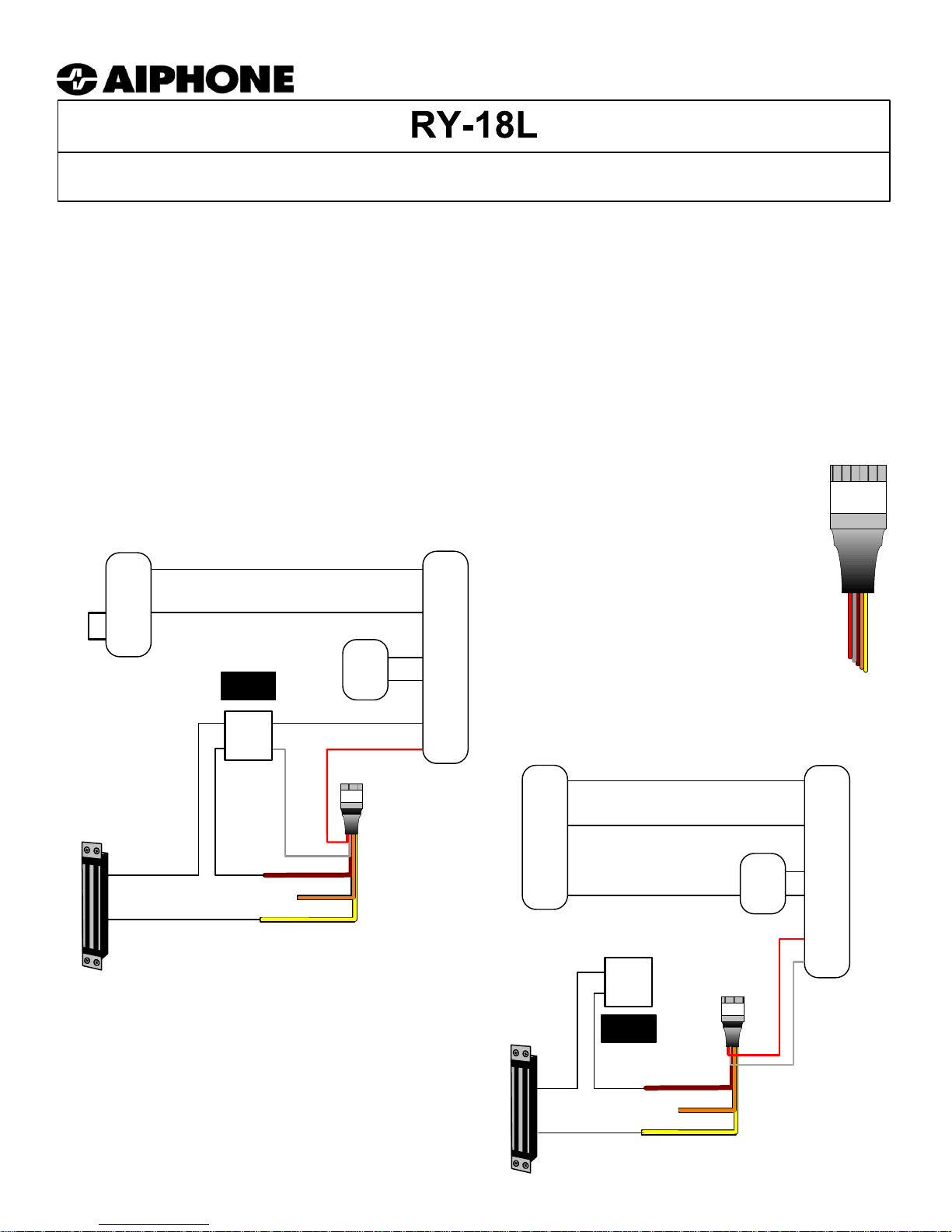

MAGNETIC LOCK WIRING METHOD:

(Normally Closed contact)

Lock Power: Power source for Magnetic Lock

When using 12-18V DC power, use the RY-18L.

When using 24V DC power, use the RY-24L.

LE-Series Sub 1

LEM-1DL

PT-1210N

Leave jumper

between E and -

attached

Red

Gry

Brn

Org

Yel

COM

N/C

Use Brown & Yellow wires

when connecting to Maglock.

LOCK

POWER

RY-18L

Magnetic Lock

RED: L/RED

BLK: (-) Neg.

BRN: Common

ORG: N.O.

YEL: N.C.

30405 0310

LEF-5LE-Series Sub

PS-1225UL

Red

Gry

Brn

Org

Yel

RY-18L

LOCK

POWER

Magnetic Lock

COM

N/C

NOTE:

Release contacts on the JF-2MED are from

4-pin connector included with unit.

Connect Red & Brown wires as shown.

Orange & Yellow wires are not used.

Release contacts on the JK-1MD/MED

are L/L terminals.

Aiphone Communication Systems

1700 130th Ave. N.E.

Bellevue, WA 98005

(425) 455-0510

FAX (425) 455-0071

Toll Free Technical Support:

1-800-692-0200

E-mail [email protected]m RY-18L Instr.

0310JD

SPECIFICATIONS:

Power Source: Supplied by master station

Mounting: No mounting required

Terminations: Color-coded prewired pigtails

Relay Input: 12-18V DC, Red, Gray wires, 22AWG

Relay Output: Brown, Red, Orange wires, 18AWG

N/O Output rating: 5A at 30V DC

10A at 125V AC

3A at 250V AC

N/C Ouptut rating: 3A at 30V DC or 125V AC

Wiring: 2 conductors from monitor's door release contacts to RY-18L.

2 conductors from RY-18L to strike, with power for strike wired in series.

Dimensions (HxWxD): 1-3/4" x 7/8" x 7/16", with wires extending approx. 7-1/2"

WIRING DIAGRAMS:

DC 18V

RELEASE

(L)BRN

(L)RED

JK-1MD/MED

JF-2MED

Door A1

PS-1820UL

Red

Gry

Brn

Org

Yel

COM

N/O

N/C

Use Normally Open

contact for electric strike

ELECTRIC STRIKE

WIRING METHOD:

JF/JK OPEN VOICE COLOR VIDEO SYSTEM:

PS-1820UL

Red

Gry

Brn

Org

Yel

COM

N/O

N/C

Use Normally Closed

contact for magnetic lock

MAGNETIC LOCK

WIRING METHOD:

DC 18V

RELEASE

(L)BRN

(L)RED

Add

jumper

wire from

BRN to +

Add

jumper

wire from

BRN to +

NOTE:

Only wiring pertaining to connection of door

release relay is shown here.

For complete system information, please

consult the main system installation manual.

JK-1MD/MED

JF-2MED

+ -

LOCK

POWER

+ -

LOCK

POWER
