AIPHONE 13.08.2015-V1.2

JPTLIIP

VoIP INTERFACE

FOR JP SYSTEM

INSTALLATION MANUAL

AIPHONE 213.08.15 –V1.2

AIPHONE 313.08.15 –V1.2

[1] [2] [3]

[4] [5]

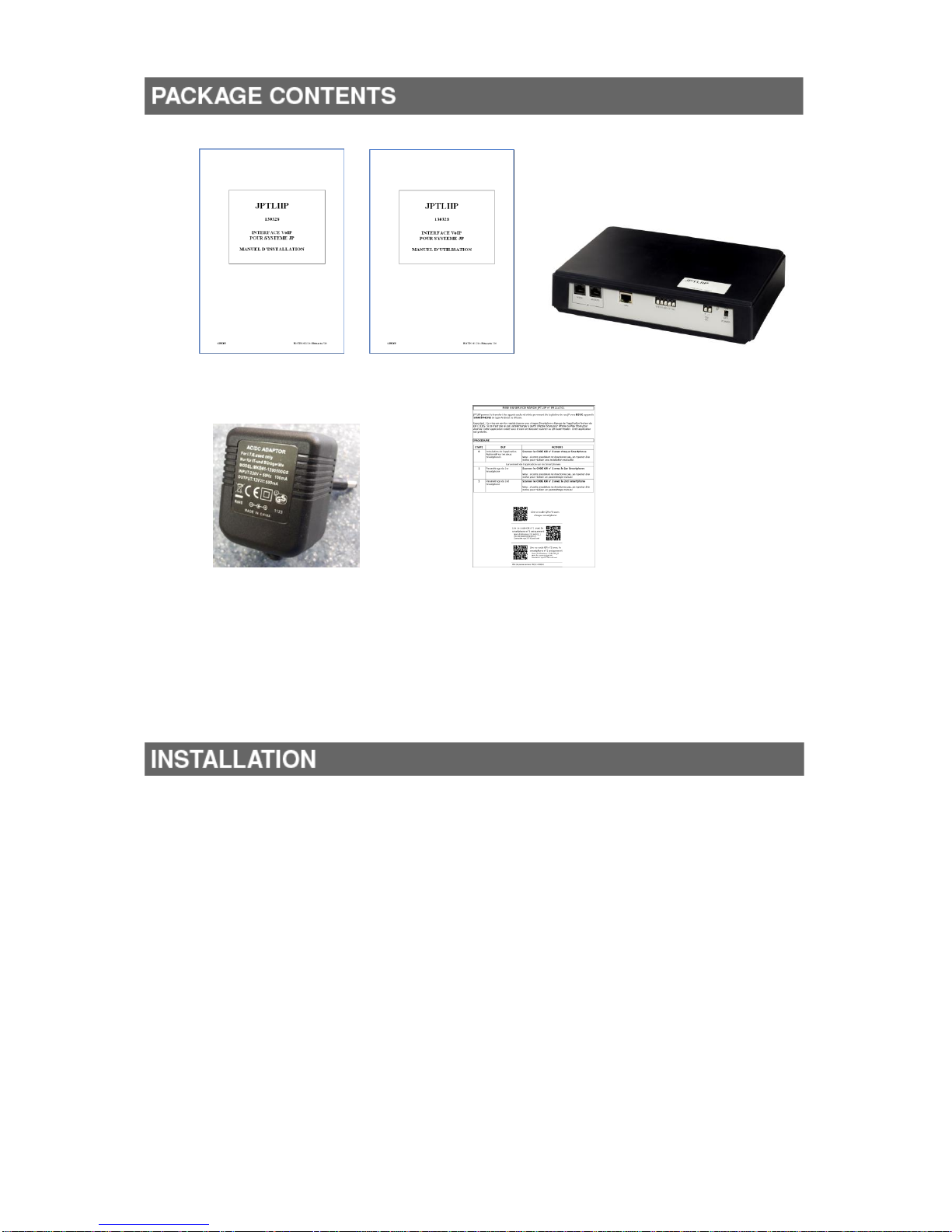

Contenu de l’emballage :

[1] Installation manual [2] User manual

[3] JPTLIIP cabinet [4] Power supply [5] Fast installation manual

JPTLI can be installed:

- on desktop or

- wall mounted (use for example two screws type M3,5).

JPTLI must be installed as far as possible from humidity or heating source.

AIPHONE 413.08.15 –V1.2

State lighting

State Lightning

State JPTLIIP

Lit green fixed

During initialization

1 blinking all the seconds

Correct functioning

3 blinking all the seconds

JPTLIIP did not find an IP address (DHCP did not work).

JPTLIIP started with an address 192.168.0.100

4 blinking all the seconds

JPTLIIP has no connection with server proxy

5 blinking all the seconds

JPTLIIP is not registered on server SIP

ON :

POWER ON

OFF :

POWER

OFF

AIPHONE 513.08.15 –V1.2

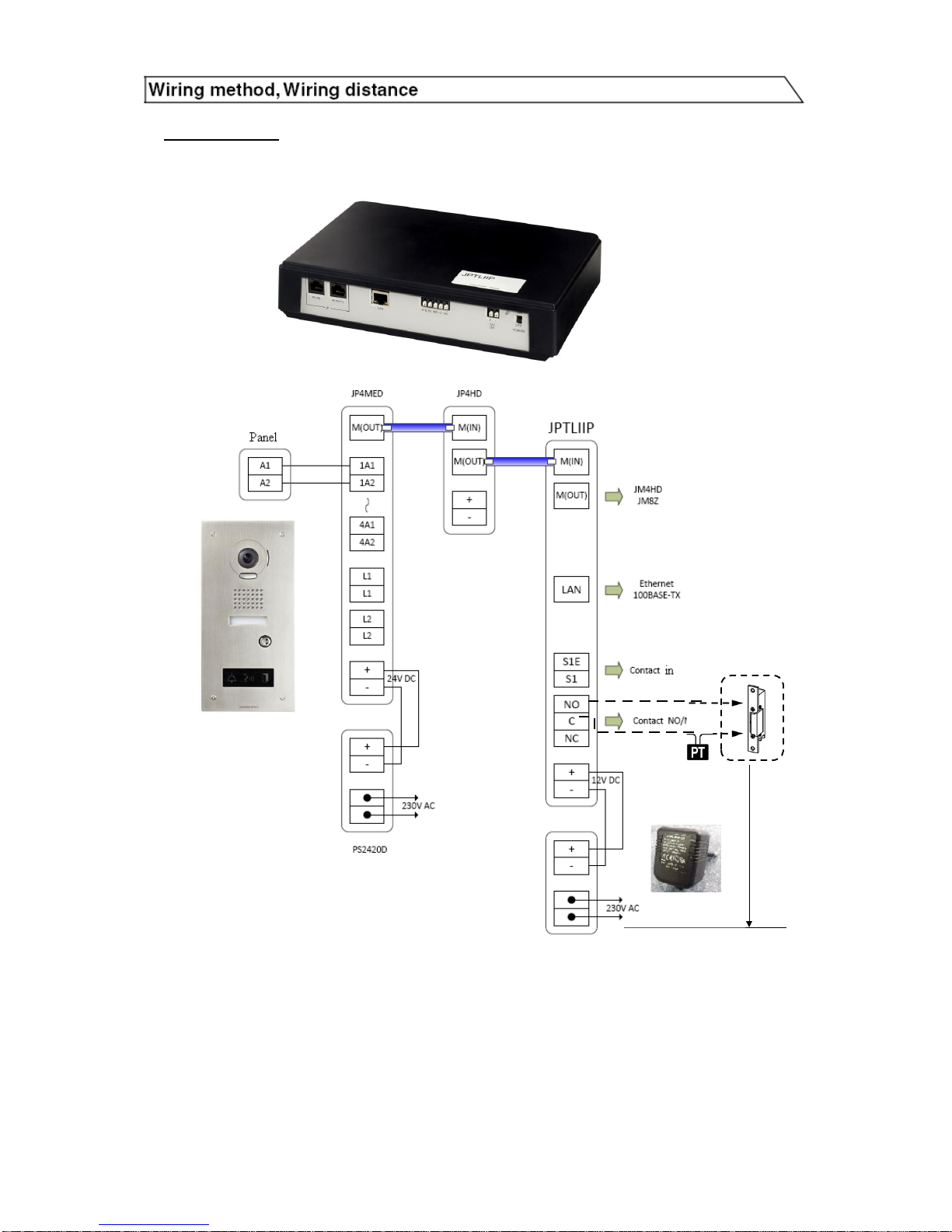

1 –JPTLIIP wiring

JPTLIIP

Power supply

12VDC / 0,5A

Door lock:

12VDC / 2A

24VDC / 1A

NO: normally open

C: common

NC: normally closed

PT: Power Transformer

See wiring method

of JPTLIIP

AIPHONE 613.08.15 –V1.2

Connections Panel function:

- LAN: Ethernet port,

- External Power supply 12VDC +/- 10% linear regulated: position + (12VDC), - (0V).

(Consumption: 380mA in work, installed not far from 3 meters from JPTLIIP).

- Connection with bus on RJ45:

- M(IN): cable from M(OUT) of JP4MED,

- M(OUT) : cable to a possible sub-master station JP4HD.

- Relay on JPTLIIP:

- normally open (NO) on NO,

- common on C,

- normally closed (NC) on NC.

Relay Contact Ratings: 2 Amp/12VDC - 1Amp/24VDC. Maximum tension: 24VDC.

- Alarm function.

- plug contact on S1 & S1E.

Connecting JPTLIIP system

It can have several type of installation of JPTLIIP.

2 –Physical connection

2.1- Behind Box or modem router (livebox, freebox, …)

Connect JPTLIIP directly on box or modem router with Ethernet straight cable (not supplied).

AIPHONE 713.08.15 –V1.2

If no port Ethernet is available on your equipment, you will have to add a Switch 10/100Mbits/s

(multiport Ethernet).

AIPHONE 813.08.15 –V1.2

2.2- Modem without router function:

Add an Ethernet router 10/100 Mbits/s with several Ethernet port to your installation.

2.3- Modem only USB:

Ask to your ISP the replacement by an Ethernet modem.

2.4 Fast activation of JPTLIIP:

After check connections, put your installation and JPTLIIP ‘ON’. JPTLIIP connects via a server.

When JPTLIIP is registered on the server, the state led will blink green/orange.

Activate your Smartphone application. When your Smartphone will be registered on the server, you

can use your system.

3 –TCP/IP network setting:

There are several possible solutions. By default, JPTLIIP is delivered in DHCP mode.

JPTLIIP is delivered with dynamic IP (DHCP):

Go to 4 (connection via the proxy).

If DHCP does not work, JPTLIIP is automatically with a fixed IP address (192.168.0.100).

In this case, it is necessary to verify if JPTLIIP is in the same sub-network as our PC:

Make touch « windows » + ‘R’

In the window which displays, enter « cmd » and « enter »

Then « ipconfig » and « enter»

Find line « Address IPv4 », like 192.168.x.y

If x is not « 0 » : it is necessary to modify programming of network card : see Annexe A

Launch your web browser (Internet Explorer, Firefox, …)

In the address field of browser, enter the IP address of JPTLIIP : 192.168.0.100

Go to 4 (JPTLIIP setting).

AIPHONE 913.08.15 –V1.2

ANNEXE A

Configuration and images below were realized under Windows XP, for the other versions of Windows

the steps can be a little bit different.

1. Click on Start » Control Panel » Network Connections

2. Double-click on « Local Area Connection » then « Properties »

For Windows 8, make a right click on the icon “Internet Access” (Wi-Fi or Ethernet ) on the

toolbar then choose “Network and Sharing Center”. Click on ‘Ethernet’.

In the box of properties of the connection to the LAN, choose the object «Internet Protocol Version 4

(TCP/IP) » and click on ‘Properties’.

AIPHONE 10 13.08.15 –V1.2

Enter an IP address in the range of JPTLIIP address by default: 192.168.0.X (where X is a number

between 1 and 254, here in our example 32) and use 255.255.255.0 for the mask of sub-network.

4 –JPTLIIP setting:

Launch your web browser (Internet Explorer, Firefox, …) and in the address field of browser, enter

‘http://vps37790.ovh.net/login.php’. The PC is going to connect to the proxy, the following window

displays:

Enter the serial number of the device in ‘User’ field and then click the ‘To connect’.
