AIPTEK PocketCinema Z20 Bedienungsanleitung
English
If the time arises to throw away your product, please
recycle all the components possible.
Batteries and rechargeable batteries are not to be
disposed in your domestic waste! Please recycle
them at your local recycling point.
Together we can help to protect the environment.
Welcome:
Thank you kindly for purchasing this ne product.
Much investment in time and effort has gone into its development, and it is our hope
that it will give you many years of trouble-free service.
Safety Notice:
1. Do not drop, puncture or disassemble the device; otherwise the warranty will be voided.
2. Avoid all contact with water, and dry hands before using.
3. Do not expose the device to high temperature or leave it in direct sunlight. Doing so may
damage the device.
4. Use the device with care. Avoid pressing hard on the device body.
5. For your own safety, avoid using the device when there is a storm or lightning.
6. Use only the accessories supplied by the manufacturer.
7. Keep the device out of the reach of infants.
8. Risk of explosion if battery is replaced by an incorrect type.

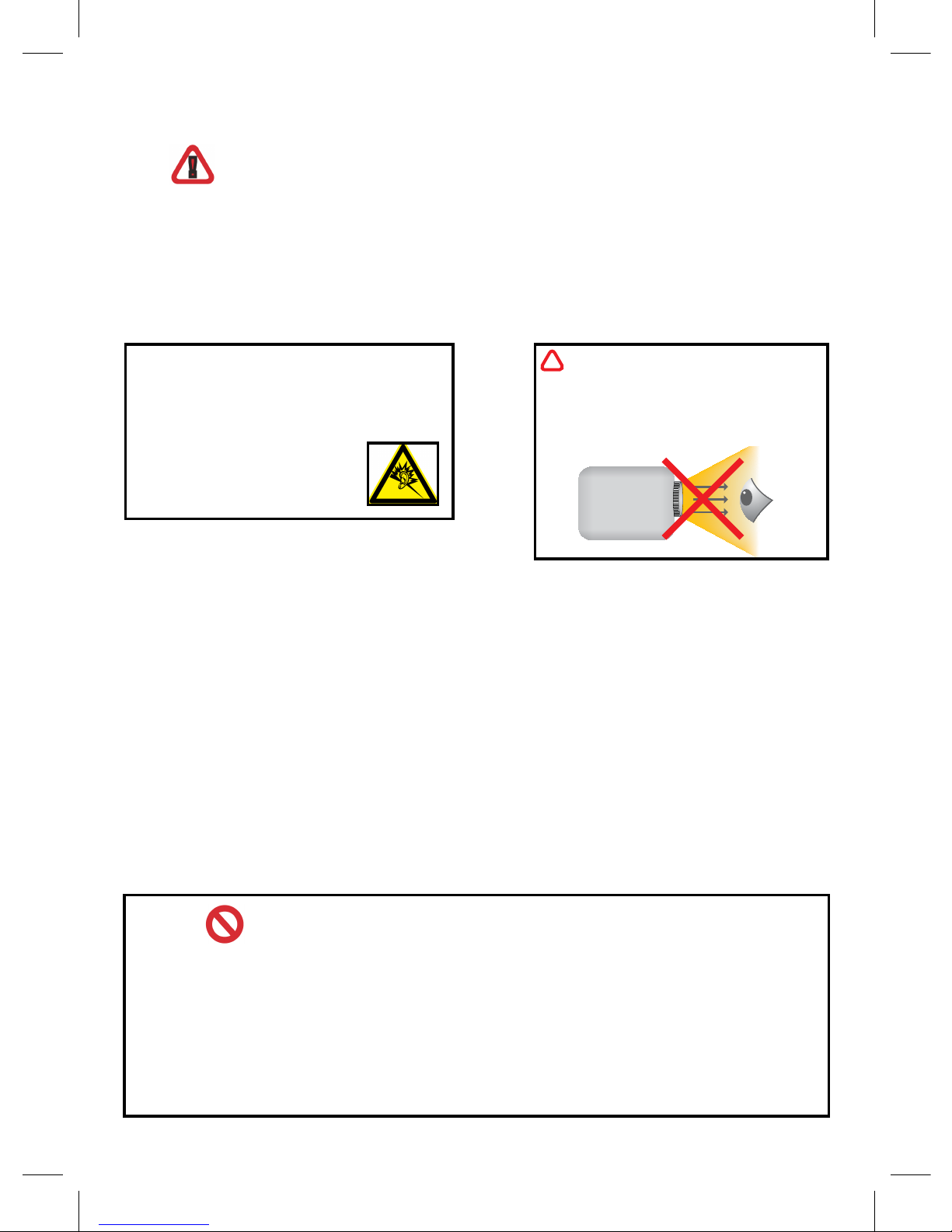

Care and Safety Information:
Please follow all warnings, precautions and maintenance as recom-
mended in this user’s guide.
Warning- Keep away from liquid to avoid electric res.
Warning- Do not disassemble the projector.
Warning- Avoid facing directly into projector’s lens.
•
Usage Notice:
Do:
Turn off and unplug the power before cleaning the product.
Use a soft dry cloth with mild detergent to clean the display housing.
Unplug the power if the product is not used for a long period of time.
Ensure that the ambient room temperature is within 5 - 35°C.
Relative Humidity is 5 - 35°C, 80% (Max.), non-condensing.
•
•
•
•
•
Avoid Hearing Damage:
Listening at high volume for a long
period of time could cause damage
to your ears.
Eye Safety Warnings
!
Avoid staring/facing directly into
the projector beam at all time.
projector
Eye Safety Warning
Avoid staring/facing directly
into the projector beam at
all time.
Do not:
Block the ventilation opening.
Use abrasive cleaners, waxes or solvents to clean the unit.
Use under the following conditions:
In extremely hot, cold or humid environments.
In areas susceptible to excessive dust and dirt.
Near any appliance generating a strong magnetic eld.
In direct sunlight.
•
•
•
1
English
Getting Started

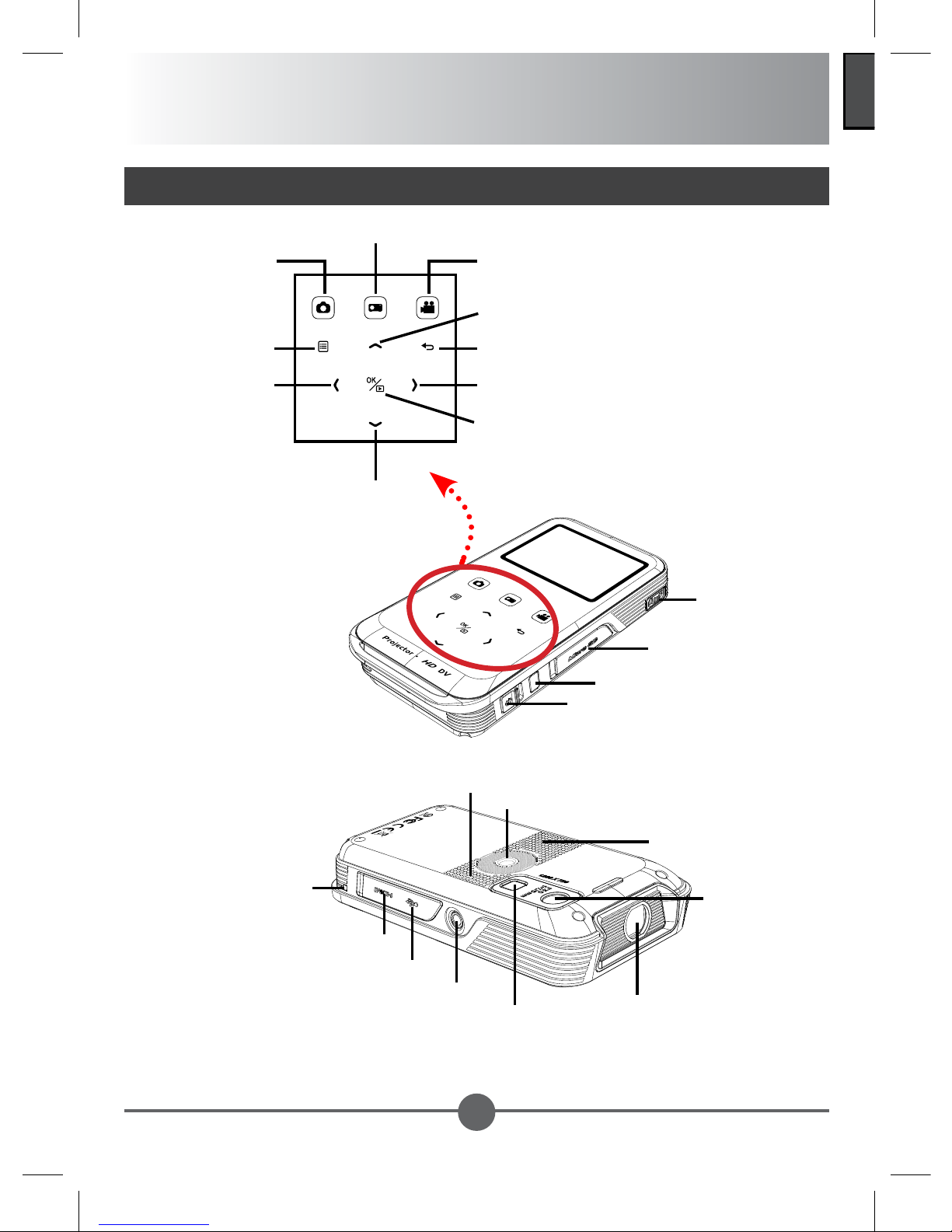

Product overview
Focus switch
Micro SD card slot
IR receiver
Power Switch
Tripod socket
Projection Lens
HDMI out
Power/Charging LED
AV input / Headphone output
Down button
(Zoom out)
Left button (Folder) Right button (LED light)
Menu button
Up button (Zoom in)
Return Button
OK button
Shutter button Record button
Projection button
Camcorder
Lens
DC In/USB connector
LED Light
Speaker
Mic
2

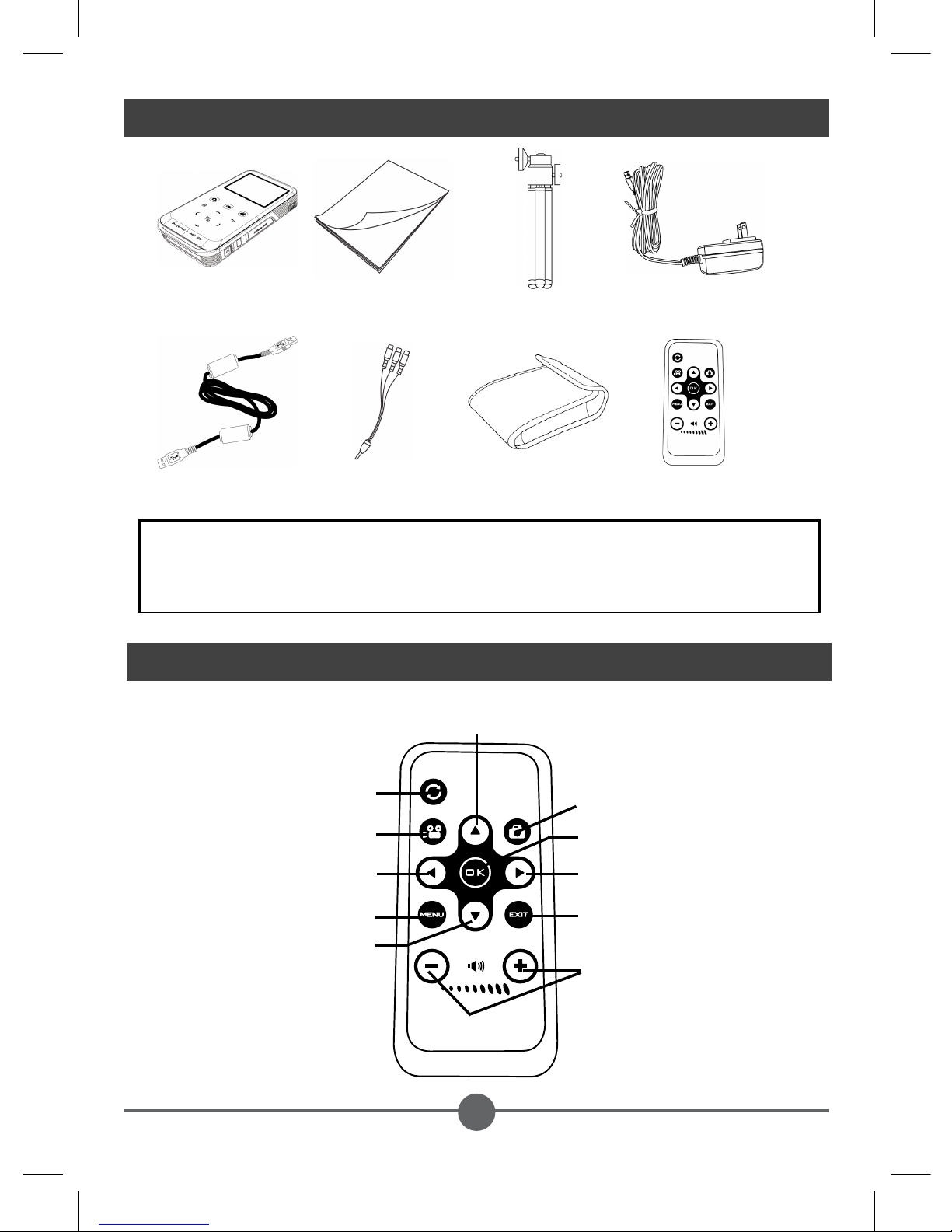

Package Content
Remote Controller
Projection on/off
Record button
Volume control buttons
Return button
Right button
Shutter button
OK/Play/Pause button
Left button
Up button
Down button
Menu button
Projector Quick Guide Tripod AC power adapter
USB cable AV cable (RCA
female to mini jack)
Pouch Remote Controller
Optional Accessory:
iPod cable, AV cable (mini jack to mini jack ), AV cable (RCA male to mini jack), HDMI cable,
Pouch (bigger), Projection screen
3
English

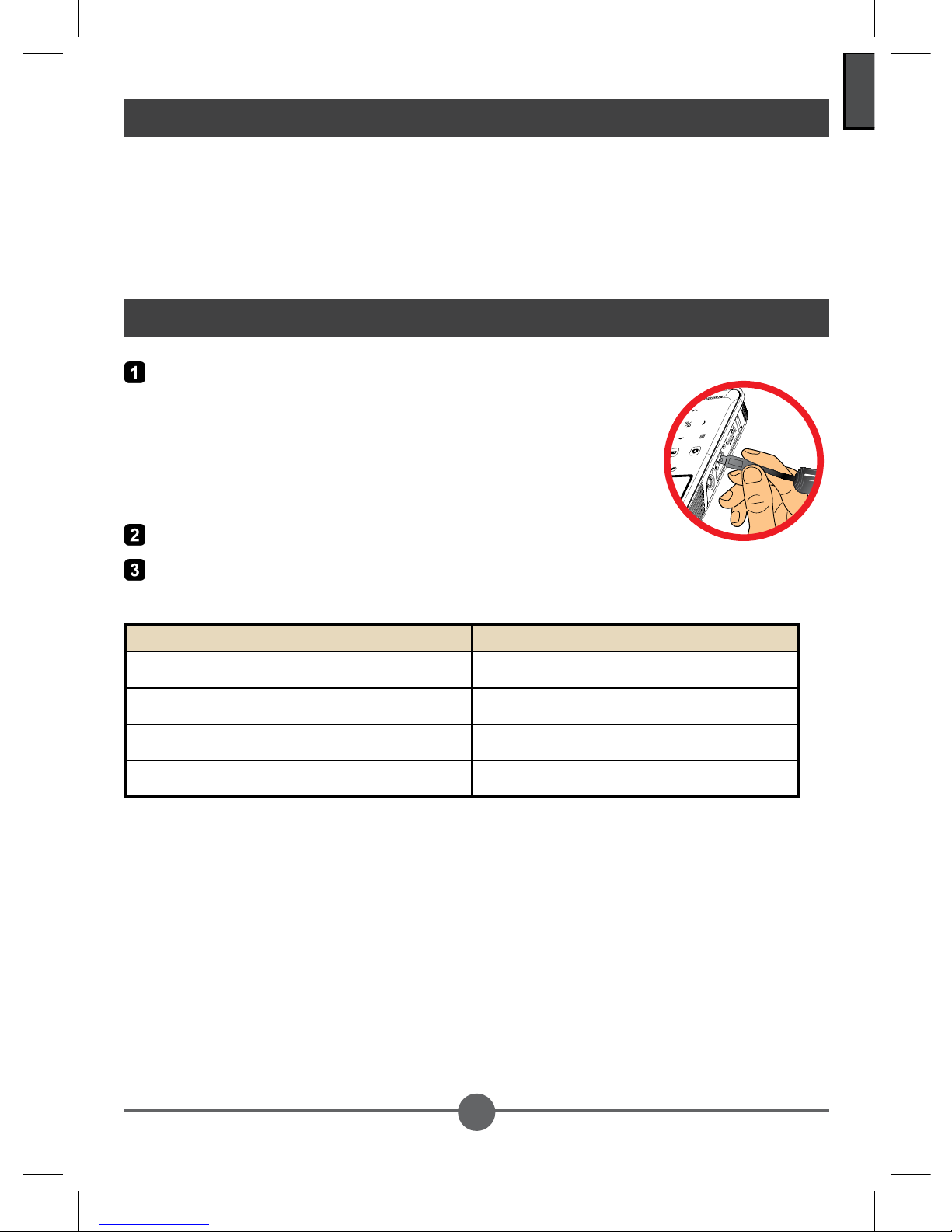

Connect one end of the supplied AC adapter to the USB
port of the projector and the other end to a wall outlet.
OR
Connect one end of the supplied USB cable to the USB
port of the projector and the other end to a powered PC.
Make sure the projector is powered off.
The charging LED turns orange and the charging starts.
When interrupted the LED went off.
Charging status Charging time
Powered OFF, charged by AC adapter around 4 hours
Powered OFF, charged by USB around 7 hours
Powered ON and connecting with AC adapter no charging
Powered ON and connecting with USB no charging
Reading LED indicators
The Power LED is lighting orange when projector is charged.
The Power LED is lighting green when connected with AC power adapter in standby
mode or the battery is fully charged.
Charging the battery
4

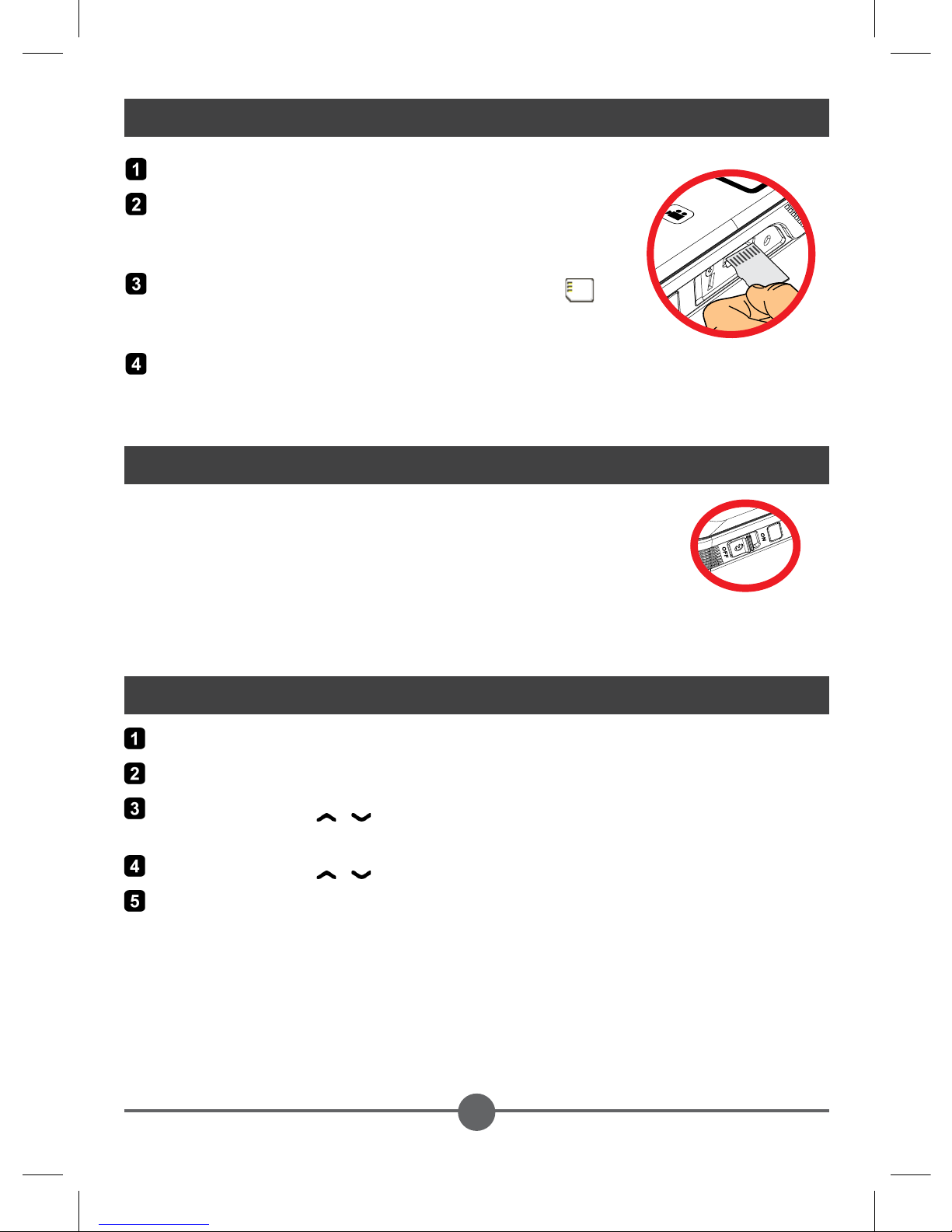

Slide the Power switch to “ON” position to turn on the projector.
To turn off the projector, slide the Power switch to “OFF” position.
Inserting a memory card (optional)
Open the Micro SD card cover.
Gently push the card as indicated (golden-ngers
facing upwards) until the card reaches the end of the
slot.
When the card is inserted successfully, the icon ( )
will appear on screen. To remove the card, push the card
to release it and then pull it out gently.
Put the cover back.
Turning on/off your projector
Power on the projector.
Press the MENU button to enter the Setting screen.
Use the Up/Down ( / ) button to select the Language item, and then Press
the OK button to conrm.
Use the Up/Down ( / ) button to select a language.
When done, press the OK button to conrm the setting.
Setting language
5
English

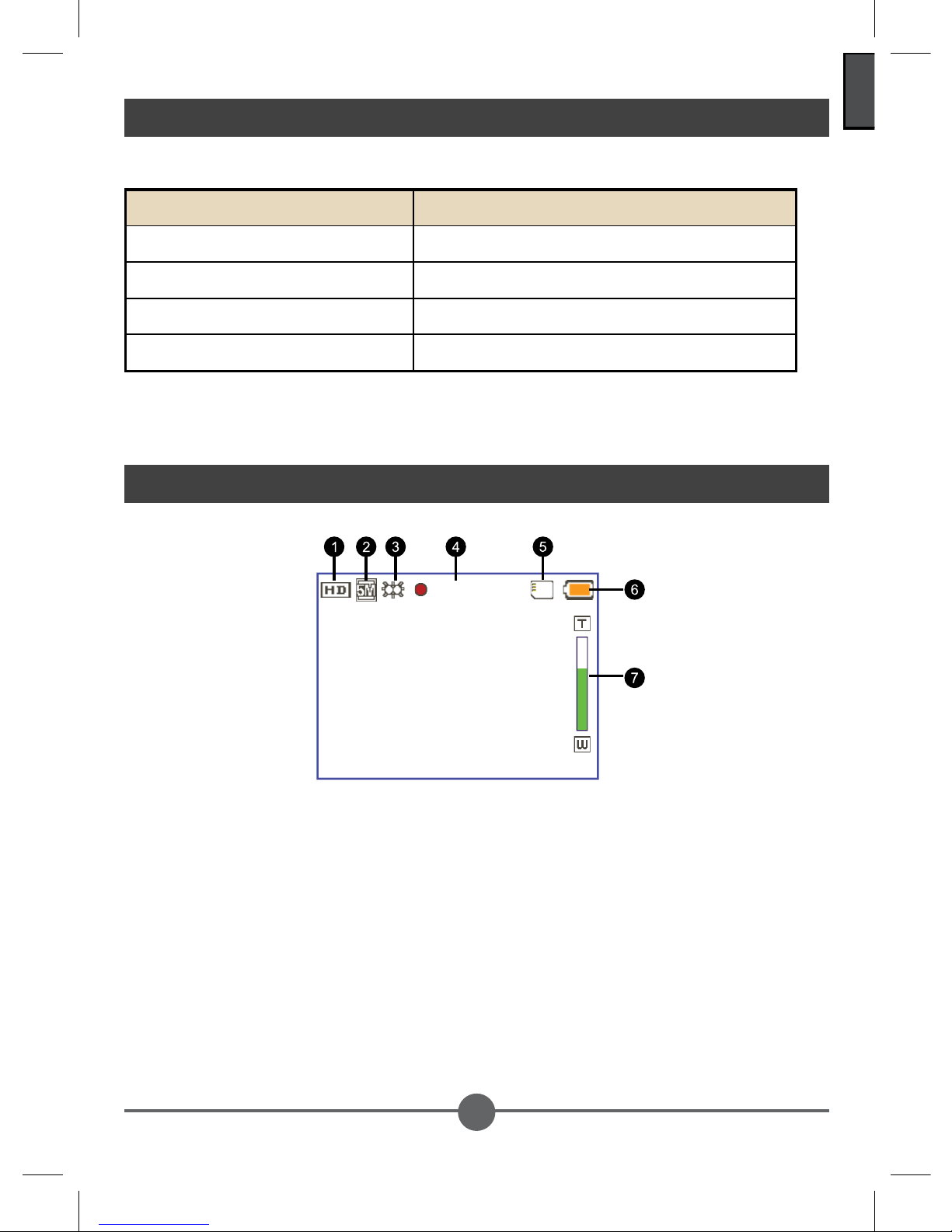

Reading LCD indicators
Video resolution Internal memory/SD card inserted
Picture resolution Battery life
LED light Zoom ratio indicator
Recording time
00:03:12
How to Action
Bring up the menu Press the MENU button.
Move the highlight bar Press the Up/Down/Left/Right button.
Enter sub-menu/Conrm an item Press the OK button.
Exit menu/Go back to upper menu Press the Return button (when in sub-menu).
Button Operation
6

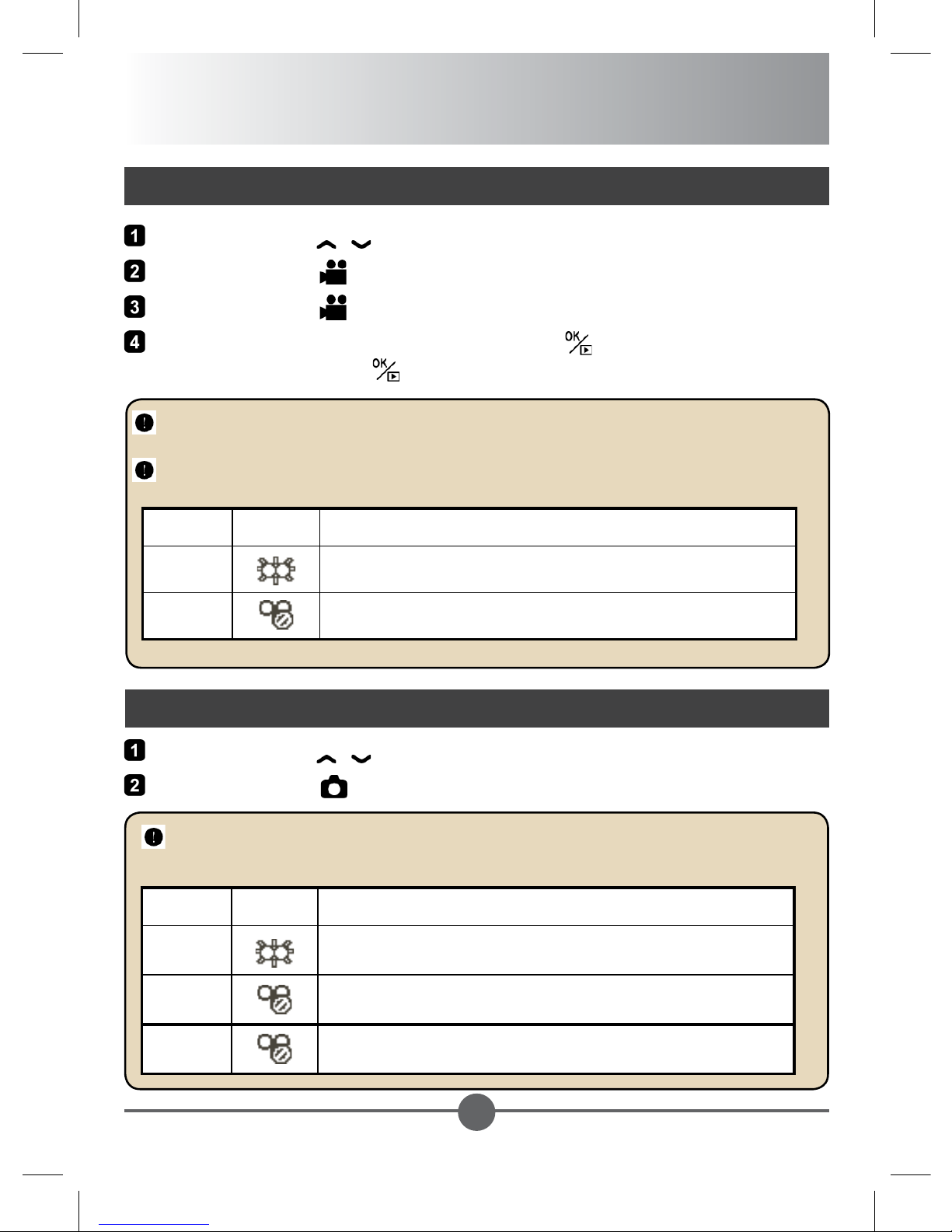

Basic Operations
Recording a video clip
Use the Up/Down ( / ) buttons to zoom in or zoom out.
Press the Record ( ) button to start recording.
Press the Record ( ) button again to stop recording.
While recording, press the OK/Quick Playback ( ) button to pause
recording, and press the ( ) button again to resume recording.
Use the Up/Down ( / ) buttons to zoom in or zoom out.
Press the Shutter ( ) button to take a picture.
Taking a still picture
Video recording will be stopped after 25 minutes due to power saving setting. If you want
to continue recording, press the “Record” button again.
For better image quality, you may add extra light when the lighting is insufcient during
recording video clips. Please press the Right button to turn on the LED light.
Option Icon Description
On Enable LED light.
Off Disable LED light.
For better image quality, you may add extra light when the lighting is insufcient during
taking pictures. Please press the Right button to turn on the LED light.
Option Icon Description
On Enable LED light.
Auto The LED light automatically res when the lighting is insufcient.
Off Disable LED light.
7
English

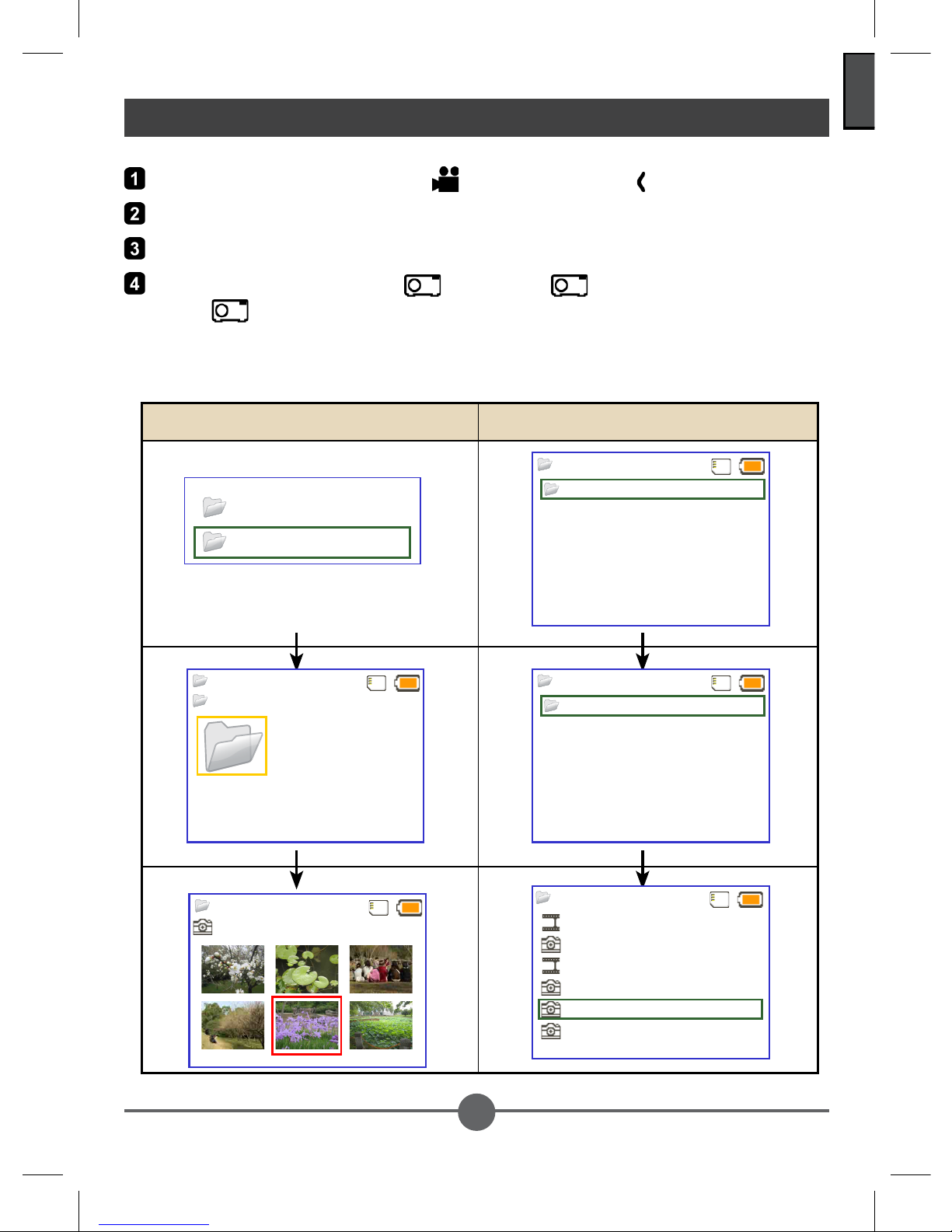

Projecting les
Press the OK/Quick Playback ( ) button or the Left ( ) button.
Use the Up/Down buttons to select target folder.
When selecting one le, press the OK button to play it.
Press the Projection button ( ) to project. ( is lighting blue in working
mode; is lighting white in standby mode.)
• There are two ways to view the les.
OK/Quick Playback button Left button
Video
0001/0001
100MEDIA
100MEDIA
0005/0012
100MEDIA
0001/0001
DCIM
0001/0001
100MEDIA
DCIM
0005/0012
CLIP0007.MP4
100MEDIA
CLIP0008.MP4
00:00:07
486KB
809KB
611KB
00:05:12
1MB
8
AV OUT
<AV cable>
(red)
(yellow)
(white)
(red)
(yellow)
(white)

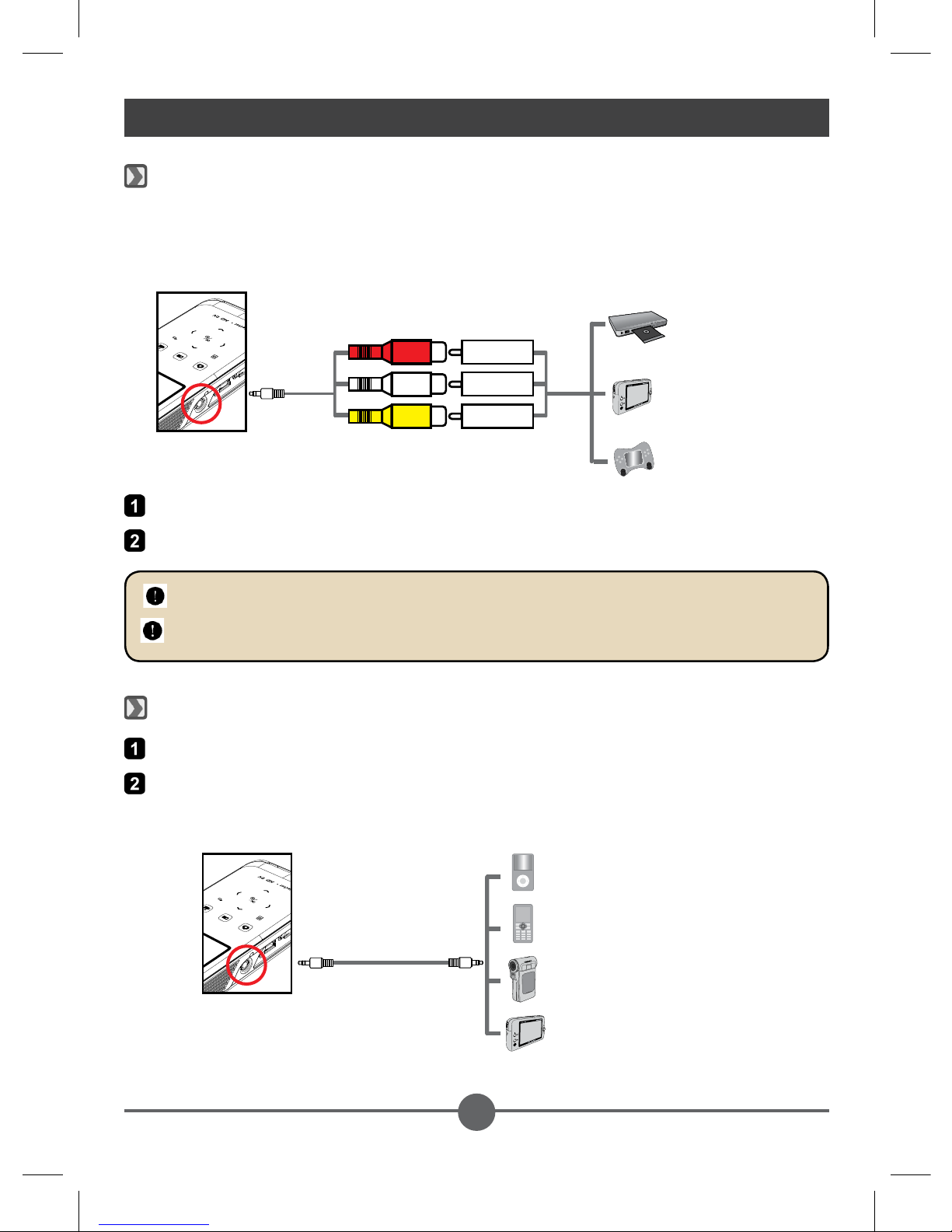

Connecting the projector with your media players
Before connecting your media player to projector, you need to have media player
dedicated composite AV-out cable and projector AV cable ready.
DVD Player/
SAT-Receiver
Game console
Portable Media
Player
Playing les in other devices
White might be black on some Media players or cables.
Please make sure that your media player is enabled with AV-out function.
Connecting the projector to your mobile media devices
Connect the other end of the projector cable to the AV jack of Projector.
Now you can project photos and videos from your mobile devices. You also can
control the volume from control panel (Up/Down button).
Video/Music Player
Mobile Phone
Digital camcorder/
camera
Portable Media Player
<AV cable> (optional)
Projector AV cable Composite AV-out
cable
Connect Composite AV-out cable to media player.
Connect both AV cables (yellow to yellow, white to white and red to red).
