AIR GUARD AG-1600 Bedienungsanleitung

AG-1600 Antibacterial Vaporizer

USER MANUAL

- ENGLISH

Safety Information

Thank you for choosing Air Guard. Please read the following safety information carefully

before operating the machine. This information includes important safeguards about

installation, usage, and maintenance. Pay attention to all warning labels and instructions

in this manual and printed on the machine.

l Keep this device dry.

l Always connect to a grounded circuit to avoid risk of electrocution.

l Before connecting the machine to power, always check the voltage indicate on the machine

matches to your local AC voltage. Do not use the machine if AC power voltage does not match.

l Disconnect the machine from AC power before servicing and when not in use.

l If the supply cord is damaged, contact your local dealer for replacement.

l This product is for indoor use only! Do not expose to rain or moisture. If fluid is spilled,

disconnect AC power and clean with a damp cloth. If fluid is spilled onto electronic parts,

immediately unplug the machine and contact your local dealer for advice.

l No user serviceable and modifiable parts inside. Never try to repair this product, an

unauthorized technician may lead the machine to damage or malfunction.

l For adult use only. Children being supervised not to play with the machine. Never leave the

machine running unattended.

l The machine is not to be used by persons (including children) with reduced physical, sensory

or mental capabilities, or lack of experience and knowledge.

l Installed in a well ventilated area. Provide at least 50 cm space around the machine.

l Never add flammable liquid of any kind to the machine.

l Make sure there are no flammable materials close to the machine while operating.

l Only use Air Guard Antibacterial Solution. Other solution may lead to heater clog and

malfunction.

l If the machine fails to work, unplug the machine and stop operation immediately. Contact

your local dealer for advice .

l Before transporting the machine, make sure the fluid tank is completely drained.

l Do not drink Air Guard solution. Store it securely. In case of eye contact, immediately look for

medical advice.

Unpacking and Inspection

Immediately upon receiving the antibacterial vaporizer, carefully unpack the carton, check the

content to ensure that all parts are present and have been received in good condition. If any parts

appear damaged or mishandled from shipping, notify the shipper immediately and retain the

packing material for inspection.

What are included: 1 x AG-1600 Antibacterial Vaporizer

1 x Wireless Remote Control

1 x Power Cord

1 x User Manual

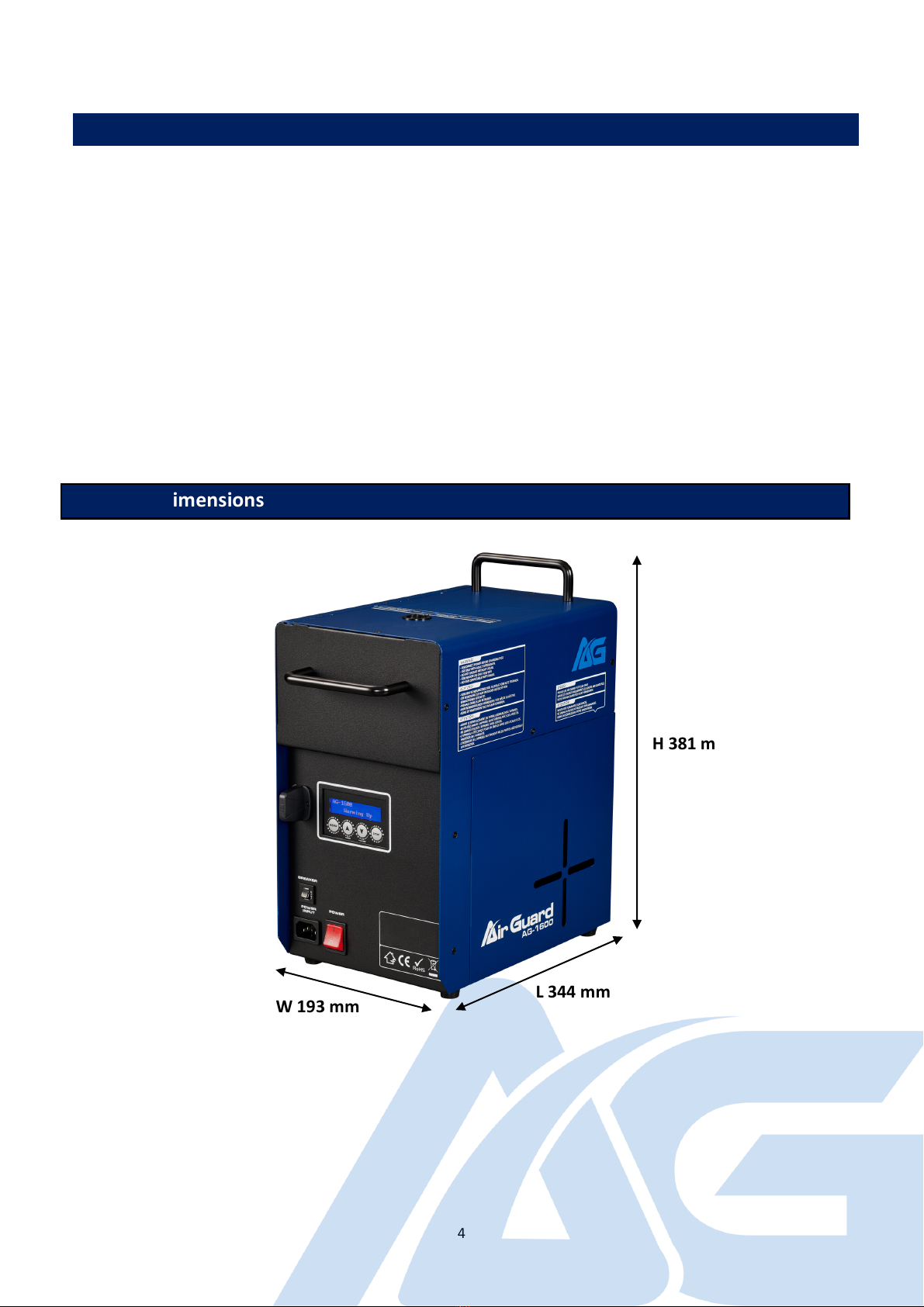

Product Dimensions

L 344 mm

W 193 mm

H 381 mm

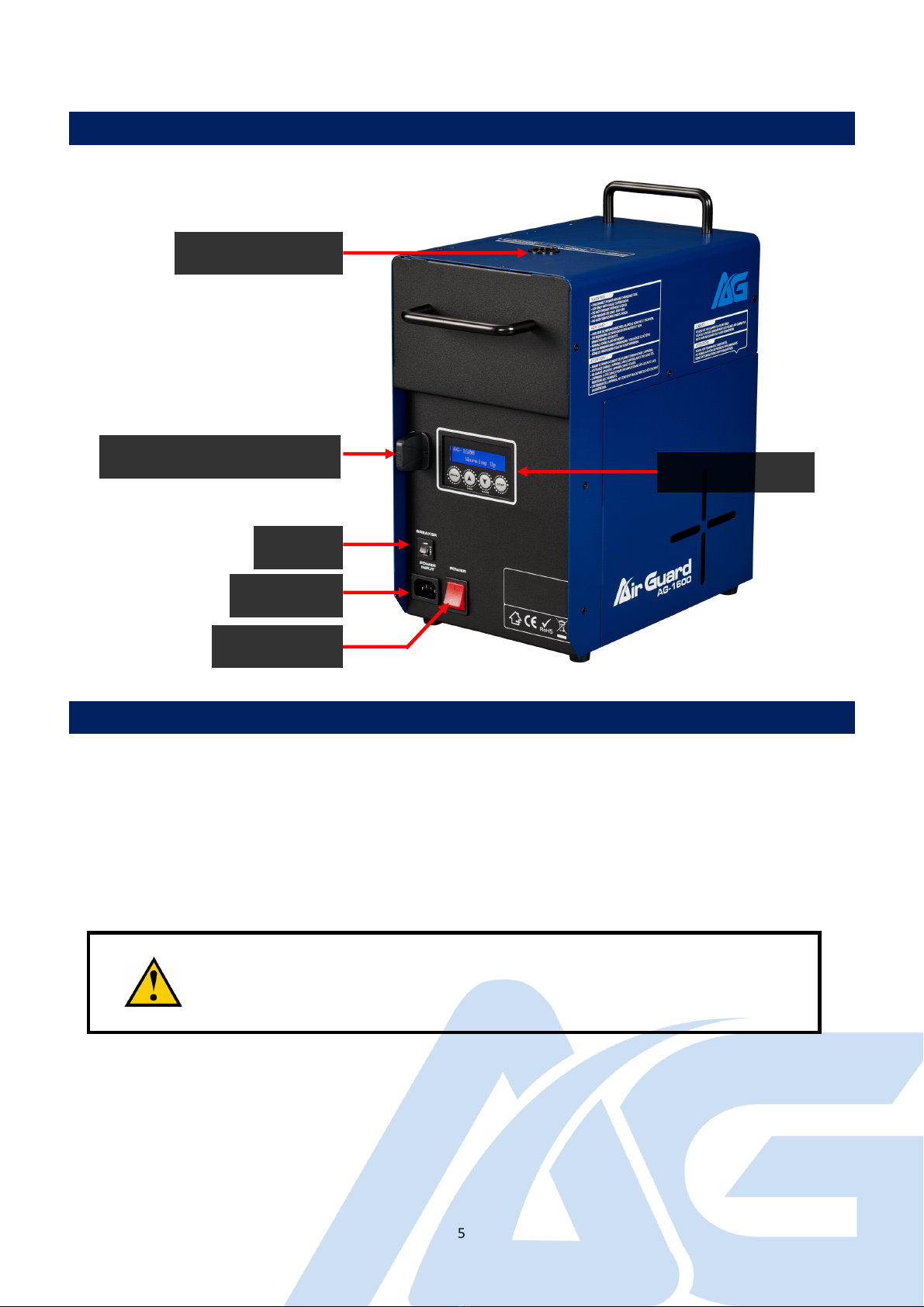

Product Overview

Setting Up

Step 1: Place the machine on a flat surface and in a suitably large area with at least 50 cm open

space at each side of the machine and 2 meters for the output direction of the machine.

Step 2: Fill the fluid tank with Air Guard fluid.

Step 3: Connect the machine to suitably rated power supply. To determine the power requirement

for the machine refer to the label on the back of the machine.

Always connect the machine to a protected circuit and ensure it is properly

grounded to avoid risk of electrocution.

Step 4: Turn on the power switch. Once powering up the machine, it takes approximately 6 minutes

to complete the warming-up process to make heater reach operating temperature to work.

LCD control panel

Wireless Receiver (antenna)

Power Switch

Breaker

Power Inlet

Fog Output Nozzle

Operation Instructions

The date format is YYYY/MM/DD. The time format is HH:MM:SS.

The AG-1600 has a built-in clock and calendar. It is important to have an accurate clock setting to

ensure proper operation of the schedule application. To adjust the date and/or time displayed, on

the main menu page (Date/Time page), press and hold the MENU button for 3 seconds to enter the

date/time setting mode. Use ▲ (UP/TIMER) and ▼ (DOWN/VOLUME) buttons to adjust the

highlighted value. Once all changes have been made, press STOP button to confirm and save the

selected setting.

Manual Mode (Volume Button):

The AG-1600 has a quick access button to manually operate the unit in either “Normal” or “High”

mode. After the unit has reached operating temperature simply press the▼ (DOWN /VOLUME)

button and the unit will immediately begin to fog in the preselected mode, and tap the STOP button

to stop manual output. To change “ Volume” output mode, tap the MENU button once while on the

main menu page (Date/Time page), use the ▲ (UP/TIMER) and ▼ (DOWN/VOLUME) buttons to

scroll to “Output Volume,” tap the STOP button once to toggle between “Normal” and “High” using

the ▲ (UP/TIMER) and ▼ (DOWN/VOLUME) buttons. Once you make your selection tap the STOP

button once again to confirm and save the desired setting.

Timer Mode:

The AG-1600 includes an advanced built-in electronic timer control that allows the unit to fog for a

predetermined amount of time. To activate the timer simple press the ▲ (UP/TIMER) while on the

main menu page (Date/Time page).

To adjust the setti ng s of the built-in timer tap the MENU button twice from the main menu page

(Date/Time page) until “Timer” is displayed in the menu, then press the STOP button to access the

different timer settings. There are three different settings that can be configured; Waiting Time,

2021/12/24

Friday 14:59:07

Fogging Time, and Cycle Duration. Use the ▲ (UP/TIMER) and ▼ (DOWN/VOLUME) buttons to

toggle between the different settings.

*Waiting Time – is the amount of time in between blast and can be set between 00:10 (10 seconds)

and 60:00 (60 minutes) by using ▲ (UP/TIMER) and ▼ (DOWN/VOLUME) buttons. Once a setting

has been made press the STOP button once to confirm and save the setting.

*Fogging Time - is the amount of time the unit will emit fog and can be set between 00:10 (10

seconds) and 60:00 (60 minutes) by using ▲ (UP/TIMER) and ▼ (DOWN/VOLUME) buttons. Once a

setting has been made press the STOP once button to confirm and save the setting.

*Cycle Duration – is the number of times the machine will repeat the above two settings before

stopping and can be set between 1 and 20 times or Continuous by using ▲ (UP/TIMER) and ▼

(DOWN/VOLUME) buttons. Once a setting has been made press the STOP button once to confirm

and save the setting.

Note: If cycle duration is set to “Continuous” the AG-1600 will continue to run the timer settings

until the timer is switched off manually by pressing the STOP button.

Once all settings are made press STOP button again to exit the settings menu and return to the

main menu page (Date/Time page), press ▲ (UP/TIMER) button to trigger Timer mode, and press

STOP button to stop Timer mode.

Together the three di fferent setti ngs provide for a n ex tremely flexible fogging cycle, for example: If

you wish the AG-1600 to fog for 5 minutes every 30 minutes, three times, set the Waiting Time to

30:00 , the Fogging Time to 05:00, and the Cycle Duration to 3.

NOTE: At the end of the last cycle the AG-1600 will automatically go into stand-by mode in three

minutes, shutting down the heater and display to conserve power.

Schedule Mode:

The AG-1600 comes with a built-in clock and calendar that allows the unit to be triggered

automatically at any time. This feature is especially useful when wanting to sanitize a room or space

late at night or any other time when a room is scheduled to be empty. There are two selectable

schedules available: Schedule 1 and Schedule 2. Both schedules have the same function and both

can be run simultaneously.

To access and acti vate the schedule 1 fu nction tap the MENU button 3 times from the main menu

page (Date/Time page) until “Schedule 1” appears in the menu, you can then use the ▲

(UP/TIMER) and ▼ (DOWN/VOLUME) buttons to toggle between ON (activate) and OFF

(deactivate).

To adjust the setti ng s for schedule 1, press the STOP button while on “Schedule 1” in main menu

page (Date/Time page) to access the different schedule settings. There are three different settings

that can be configured; Day, Start Time, and Stop Time. Use the ▲ (UP/TIMER) and ▼

(DOWN/VOLUME) buttons to toggle between the different settings.

*Day set: - Is the day or days the schedule 1 will activate and is represented by the following; S, M,

T, W, T, F, S . a n d re p resent Sunday through Saturday respectively. Use the ▲ (UP/TIMER) and ▼

(DOWN/VOLUME) buttons to select the days you would like the AG-1600 to run. For example; If

you would like the AG-1600 to run on Mondays and Wednesdays, adjust the days setting to read _,

M, _, W, _, _, _. Only the “M” (Monday) and “W” (Wednesday) should be displayed in the menu.

Once you have finished your selection press the STOP button once to confirm and save the settings.

*Start Time

– is the time of day the AG-1600 will begin to fog. This setting is displayed in 24 hour

time and can be adjusted between 00:00 and 23:59 by using the ▲ (UP/TIMER) and ▼

(DOWN/VOLUME) buttons. Once you have finished your selection press the STOP button once to

confirm and save the settings.

*Stop Time

– is the time of day the AG-1600 will stop the fogging process. This setting is displayed

in 24 hour time and can be adjusted between 00:00 and 23:59 by using the ▲ (UP/TIMER) and ▼

(DOWN/VOLUME) buttons. Once you have finished your selection press the STOP button once to

confirm and save the settings.

Once all settings are made press STOP button again to exit the settings menu and return to the

“Schedule 1” menu page and use the ▲ (UP/TIMER) and ▼ (DOWN/VOLUME) buttons to either

activate or deactivate schedule 1.

Example of the schedule function: If you wish the AG-1500 to start to fog at 13:00 and stop fogging

at 13:15 in the afternoon every Monday, the settings should be set as follows: Day: _, M, _, _, _, _,

_. , Start Time: 13:00, Stop Time: 13:15,

To acti vate and chang e the setting for schedule two (2), tap the MENU button four (4) times from

the main menu page (Date/Time page) until “Schedule 2” appears in the menu and follow the same

instructions listed above for Schedule 1.

NOTE: At the end of a scheduled cycle, the AG-1600 will automatically go into stand-by mode in

three minutes, shutting down the heater and display to conserve power.

Wireless Remote setting:

The AG-1600 wireless remote function can be turned off if necessary. On extremely rare occasions

the AG-1600 may encounter wireless interference that will require the built-in wireless function to

be switched off. To change the wireless setting, tap the MENU button five (5) times while on the

main menu page (Date/Time page). After the fifth tap of the menu button the menu will switch to

the Remote Settings page. Toggle between “ON” (active) and “OFF” (inactive) using the ▲

(UP/TIMER) and ▼ (DOWN/VOLUME) buttons. Once you make your selection tap the STOP button

once to confirm and save the desired setting.

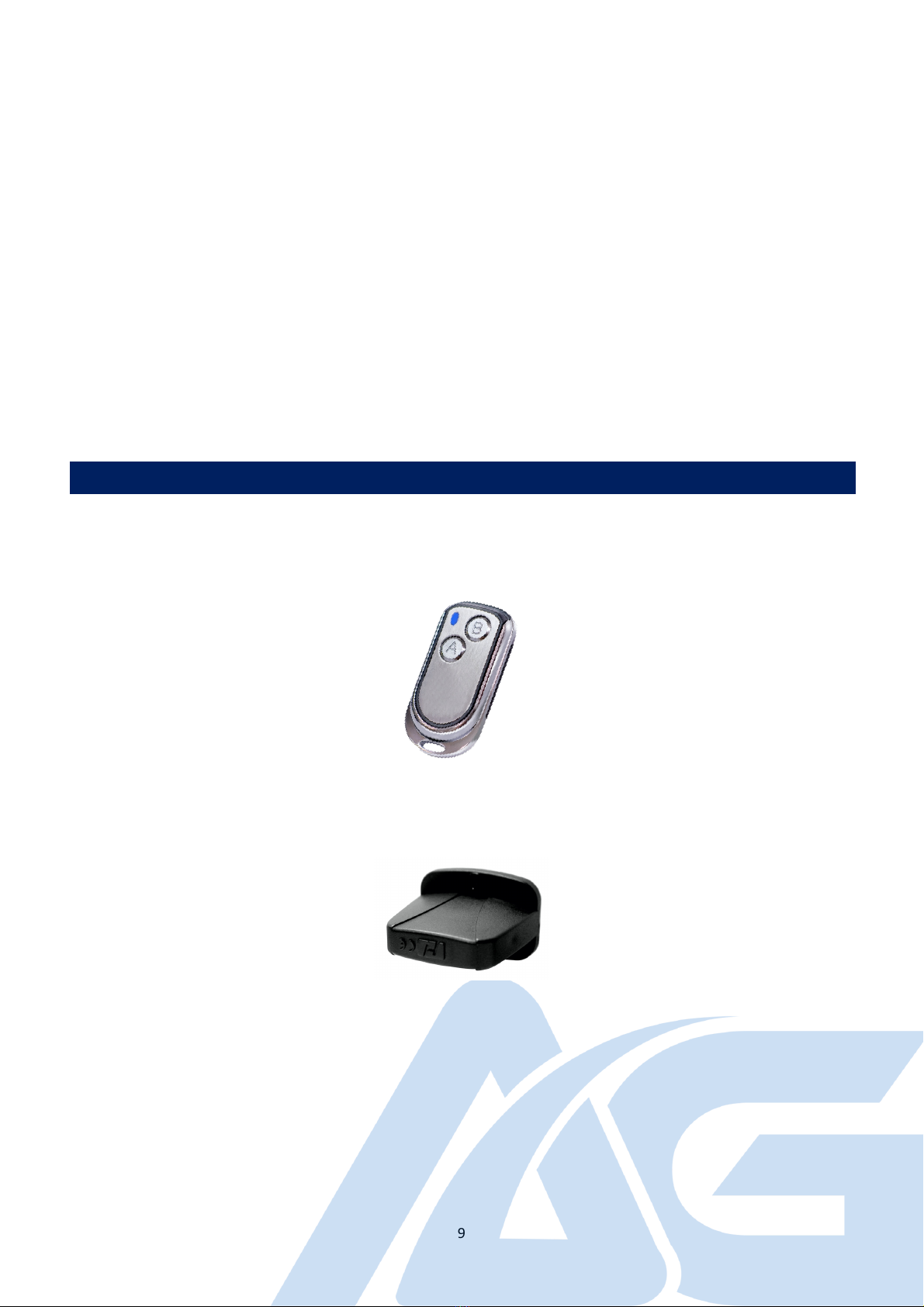

Wireless Remote Control Operation

Wireless remote control system consists of a transmitter equipped with two buttons to activate,

deactivate and an onboard receiver attached to the rear panel of AG-1600.

W-1 Wireless Transmitter

Press button

○

A to emit fog and press button

○

B to stop.

Wireless Receiver

The maximum working distance of wireless remote is 50 meters. The distance varies, depending on

transmitter’s battery level, and blockage and interference of radio signal.

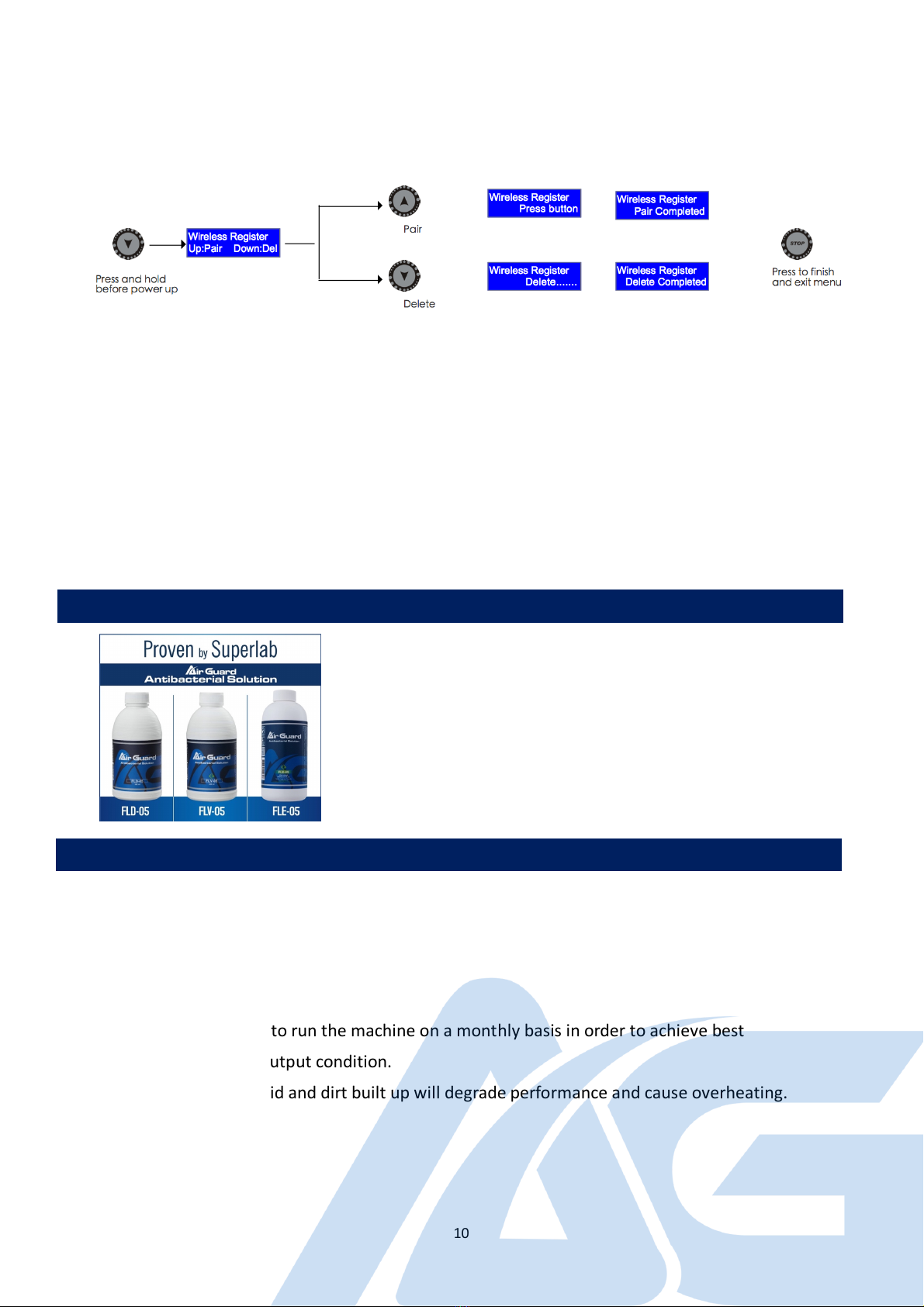

Pair and Delete transmitters

Step 1: Power off AG-1600 Antibacterial Vaporizer

Step 2: Press and hold ▼ (DOWN) button

Step 3: Turn power on and release ▼ (DOWN) button when LCD display blinks

Step 4: Follow the instructions showed in the LCD display to pair or delete transmitters

Notes:

One machine can be controlled by up to 10 transmitters while one transmiter can be paired with

unlimited number of machines.

Transmitter battery replacement

If the wireless remote’s working distance is reduced, it is possible the battery level is low. Undo the

screws on the back of transmitter case and remove the cover. Replace with the same type and

specification of battery which is 27A 12V.

Fluid

Use Air Guard Antibacterial Solution for AG-1600. The machine

is tested and calibrated with these authorized fluids to achieve

the best performance. Warranty will be void, if any other type

of liquid is used. Improper use of liquid may lead to machine

failure and danger.

Service and Maintenance

․ Do not allow the machine and fluid to become contaminated.

․ Regularly fill distilled water to fluid tank and run the machine to clean the system. After

cleaning, refill Air Guard fluids into fluid tank and make sure machine can produce fog

properly.

․ It is recommended to run the machine on a monthly basis in order to achieve best

performance and output condition.

․ Excessive dust, liquid and dirt built up will degrade performance and cause overheating.

Inhaltsverzeichnis

Andere AIR GUARD Nebelmaschine Handbücher

AIR GUARD

AIR GUARD AG-800 Bedienungsanleitung

Beliebte Nebelmaschine Handbücher anderer Marken

Antari

Antari ICE Bedienungsanleitung

Boost

Boost BOOST-FOG400LED-BK Bedienungsanleitung

Home Accents Holiday

Home Accents Holiday FM1000-ASH Bedienungsanleitung

EuroLite

EuroLite ZEITGEIST FOG-1200 Bedienungsanleitung

Dyna-Fog

Dyna-Fog CYCLONE ULTRA 2734 Bedienungsanleitung

PROEL

PROEL DRAGO HEAVY PLFD150HY Bedienungsanleitung

Sparklyn

Sparklyn Y846 Bedienungsanleitung

Magicfx

Magicfx CO2 Gun Bedienungsanleitung

Ibiza

Ibiza LSM500LAS Bedienungsanleitung

Antari

Antari M-5 Bedienungsanleitung

Venue Lighting Effects

Venue Lighting Effects ULTRA MINI-FOGGER Bedienungsanleitung

High End

High End F-100 Bedienungsanleitung

Chauvet

Chauvet ARENA 2100 FLEX Bedienungsanleitung

Antari

Antari X FAZER Bedienungsanleitung

Beamz

Beamz F1600 Bedienungsanleitung

Sagitter

Sagitter SG ARS900C Bedienungsanleitung

KISANKRAFT

KISANKRAFT KK-STF-480 Bedienungsanleitung

Orion

Orion OT-U250PP Leitfaden
