1. Power on the TDT1000. The LED will glow green.
2. Open the SensorCheck app on your device and connect
to the TDT1000 via Bluetooth.
3. Ensure the transducer is connected to the TDT1000 with
the proper OEM test cable.
4. Press the Start Test icon on the SensorCheck app
to begin the test.
NOTE: If the SensorCheck app does not connect to TDT1000, see
the back panel of this Quick Start Guide, Troubleshooting.
Step 2
Start the test
5. SensorCheck automatically checks for
Xducer ID® (Screen A). If found, the test
will begin.
If not found, you will have to enter the
information requested on the screen
(Screen B) by scanning the bar code on
the cable label or entering model or
serial number.
1. Read the entire TDT1000 Owner’s Guide and SensorCheck™ User
Manual, review product specications.
2. The SensorCheck™ app must be installed on a Bluetooth®
LE-enabled iOS or Android device to connect to the TDT1000.
CAUTION: The transducer must be connected to the TDT1000
through an OEM test cable. Do not connect the transducer directly to the TDT1000.
CAUTION: The transducer and OEM test cable must be connected to the TDT1000
before starting a test. Do not connect or disconnect a transducer while testing is in
progress. Doing so may damage the TDT1000.
Before you start

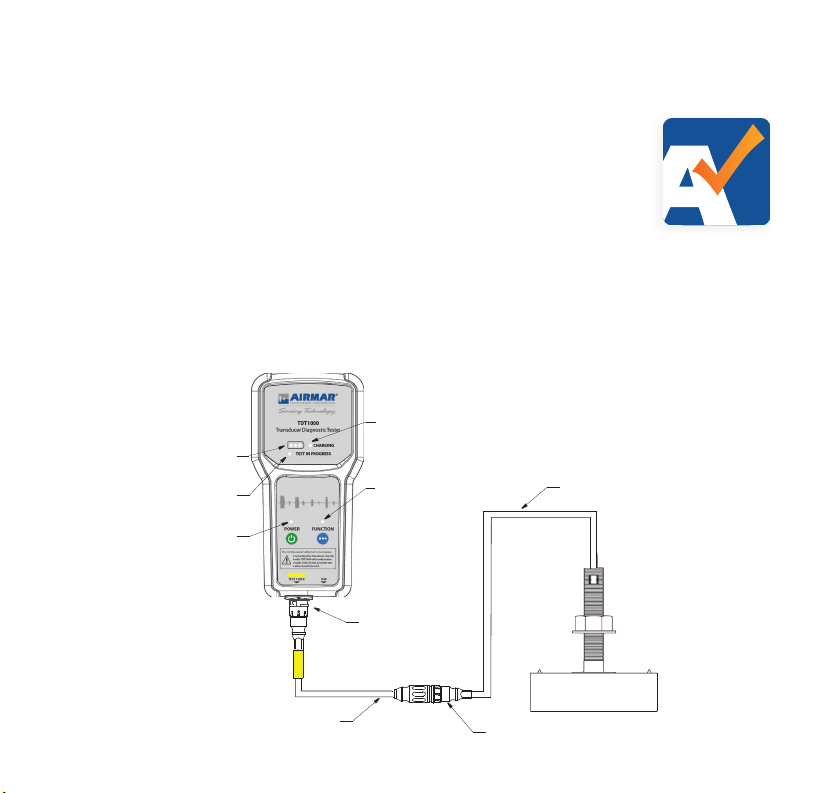

Diagram 1
Screen BScreen A
transducer
battery-status
light (3)
st in Progress
indicator light
Charging
indicator light
Power
indicator light
Function
indicator light
test cable
port
transducer
transducer
test cable
(purchased separately)
cable
1. The transducer being tested must be done one of the following ways:
• Installed in a boat while the boat is in the water.
• Tested utilizing the TDT tester block. Best results when test block is submerged in water.
2. Utilizing the correct OEM test cable (sold separately), connect the TDT1000 to the
transducer cable (Diagram 1). If the transducer does not have a connector, it must
be connected through the terminal box. Follow the color-coded instructions on the
terminal box.
Step 1
Prepare the transducer for testing
Available OEM Test Cables: Part Number
Furuno, 10M - FU connector 33-1328-01
Furuno/Si-tex, 8M - F (Fuji) connector 33-1327-01
Furuno 12 pin PU Connector TDT-FJ12
Garmin, 6M - A connector 33-1324-01
Garmin, 8M - G connector 33-1325-01
Garmin, 12M - G connector 33-1326-01
Koden, 8M - A connector 33-1338-01
Lowrance Chirp, dual 7FB - LR connector 33-1333-01
Lowrance Conventional, 7FB - LR connector 33-1332-01
Mix & Match, 1kW, 9F - A connector 33-1323-01
Mix & Match, 600W, 5F - A connector 33-1389-01
Mix & Match Chirp, 12M - MM connector 33-1390-01
Navico, dual 9F - A connectors 33-1388-01
Navman, 6M - A connector 33-1335-01
Simrad, 7M - A connector 33-1334-01
Si-tex, 8F - A connector 33-1337-01
Raymarine, 6/9F - A connector 33-1330-01/1310-01 (Sense Resistor Ident.)
Raymarine, 11M - LTW connector 33-1331-01/1312-01 (Sense Resistor Ident.)
Raymarine, 8M - RR connector 33-1329-01/1311-01 (Sense Resistor Ident.)
Visit AIRMAR.COM/TDT1000 for the most updated OEM test cable list.
