FireProtect / FireProtect Plus User Manual

Updated December 30, 2021

FireProtect (FireProtect Plus) is a wireless indoor re detector with an in-built

buzzer and a battery, ensuring up to 4 years of autonomous operation. FireProtect

can detect smoke and rapid temperature increase.

Aside from these functions, FireProtect Plus additionally can alert of dangerous

CO level. Both detectors can function independently from the hub.

Connecting to the Ajax security system via a secured radio protocol,

FireProtect (FireProtect Plus) communicates with the at a distance of up to

1,300 m in line of sight.

The detector can be a part of third-party security systems, connecting to them via

the or integration module.

Jeweller

hub

Ajax uartBridge Ajax ocBridge Plus

Buy �re detector with carbon monoxide sensor FireProtect Plus

The detector is set up via the for iOS, Android, macOS, and Windows.

The system noties the user of all events through push notications, SMS, and

calls (if activated).

The Ajax security system can be connected to a central monitoring station of a

security company.

Functional Elements

Operating Principle

Ajax apps

Buy �re detector FireProtect

1. Siren hole

2. Light indicator (acts as the sensor and Test button)

3. Smoke chamber hole with the temperature detector behind the net

4. SmartBracket attachment panel

5. Power button

6. Tamper button

7. QR code

When smoke penetrates the detector chamber, it distorts infrared light between the

emitter and photoelectric receiver. This distortion triggers a smoke alarm. When

the temperature exceeds 60°or rises by 30°during 30 minutes (not necessary to

reach 60°), the detector registers temperature increase, which triggers a re

alarm.

The life span of the FireProtect Plus detector lasts up to 7 years (up to 10 years for the

). In the event of a detector failure, you will receive a corresponding noti�cation —

it will need to be replaced or submitted for .

In case of alarm, the detector activates the built-in buzzer (the siren sound can be

heard from afar) and blinks with the light indicator. When connected to a security

system, both the user and the security company are notied of the alarm.

FireProtect Plus reacts to carbon monoxide long before the rst symptoms of

poisoning appear. It is triggered:

Loss of consciousness is possible at a CO concentration of 0.1% lasting over 2 hours!

The detector stops notifying about the dangerous level of carbon monoxide when

the concentration drops to 40 ppm (0.004%) within one minute.

The siren of the device can be turned off using three ways:

FireProtect

comprehensive diagnostics

• Not earlier than 120 minutes at a carbon monoxide concentration of 0.003%

(30 ppm).

• 60 to 89 minutes at a carbon monoxide concentration of 0.005% (50 ppm).

• 10 to 39 minutes at a concentration of 0.01% (100 ppm).

• Up to 3 minutes at a concentration exceeding 0.03% (300 ppm).

1. By pressing the Ajax logo on the device lid (there is a touch button under the

2. Through the Ajax app. In case of re alarm, you will see a pop-up message in

Ajax app suggesting to turn off the built-in sirens.

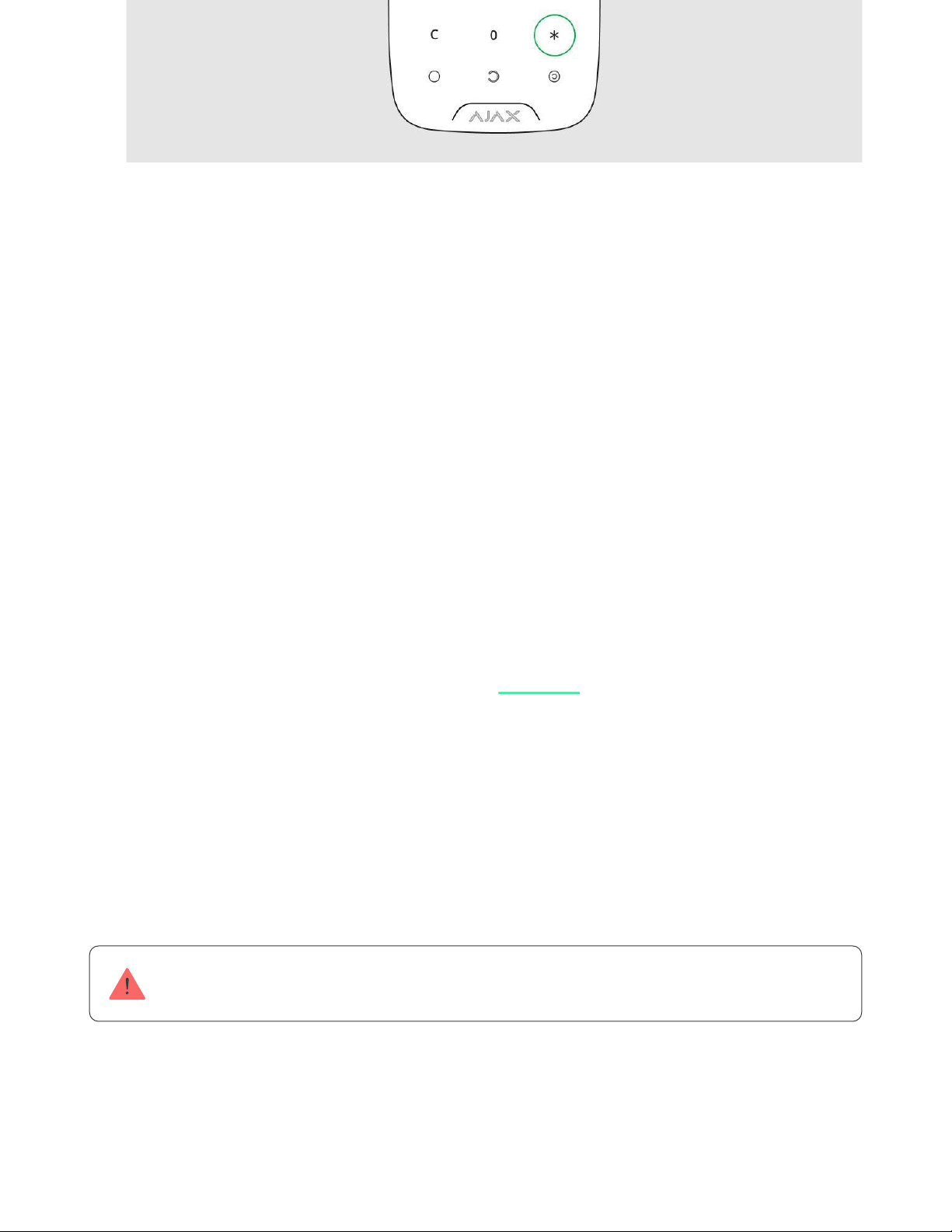

3. Using the / (if Interconnected Fire Detectors Alarmfeature

is enabled). To turn off the built-in sirens in case of re alarm, press the “*”

button on the KeyPad/KeyPad Plus.

KeyPad KeyPad Plus

Please note that for this to work you need to priorly select Mute Interconnected

Fire Alarmcommand for this button in the KeyPad/KeyPad Plus settings.

If smoke and/or temperature levels do not restore to normal values, in 10 minutes,

the FireProtect/FireProtect Plus turns on the siren again.

Connecting the Detector to the Ajax Security System

Connecting to the hub

Before starting connection:

Only users with administrator rights can add the device to the hub

Pairing the detector with hub:

1. Following the hub user guide, install the . Create the account, add the

hub, and create at least one room.

Ajax app

2. Switch on the hub and check the internet connection (via Ethernet cable and/or

GSM network).

3. Make sure that the hub is disarmed and does not update by checking its status

in the Ajax app.

To make sure that the detector is on, press the on/off button — the logo will light up

red for a second.

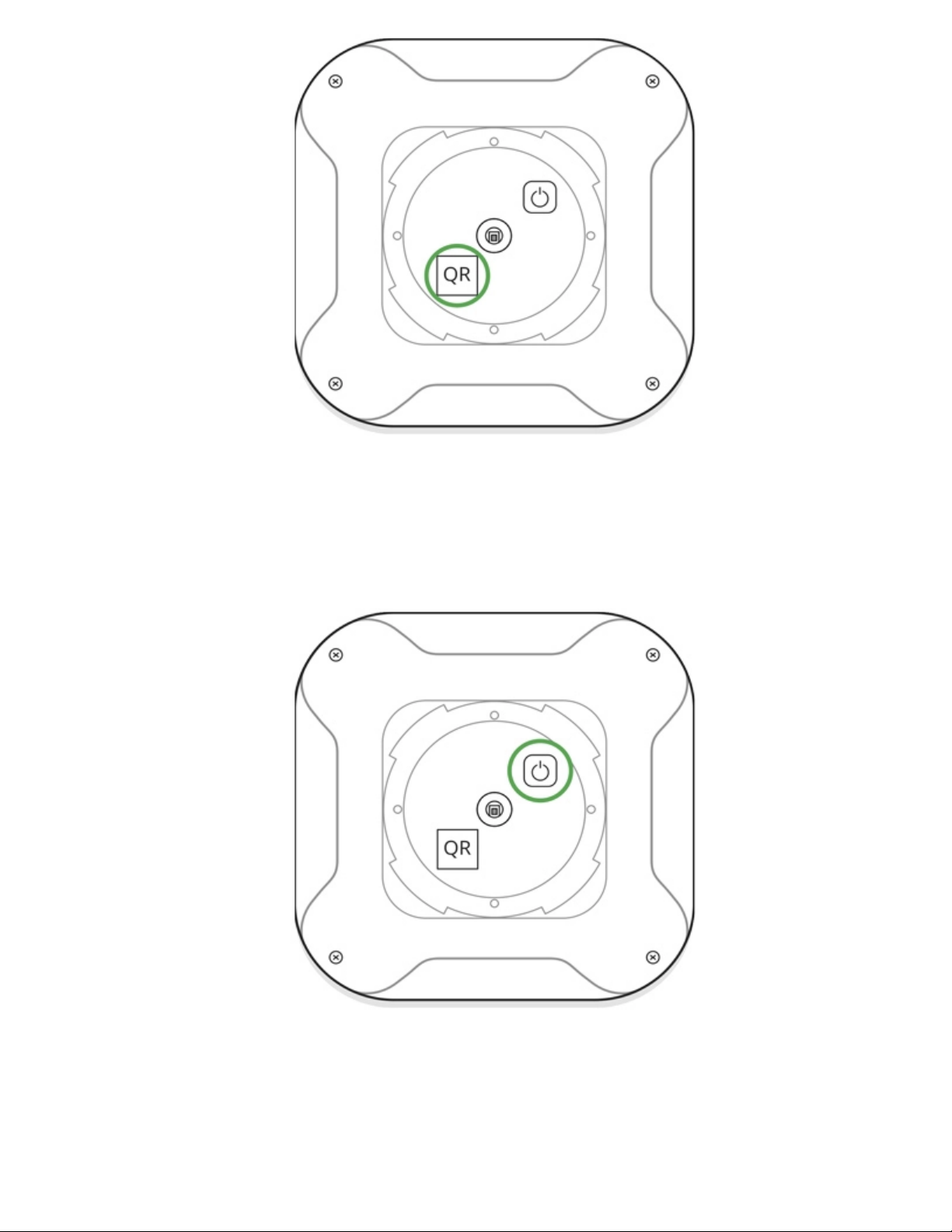

3. Tap Add — the countdown will start.

4. Switch on the device.

the device.

If pairing with the hub fails, the detector operates autonomously; switch off the

detector for 5 seconds and retry.

The detector connected to the hub is displayed in the list of devices in the app. The

update of the detector status in the list depends on the device inquiry time set in

the hub settings (the default value is 36 seconds).

Connecting to Third Party Security Systems

To connect the detector to a third party security central unit using the

or integration module, follow the recommendations

in the manual of the respective device.

The smoke detector always operates in the active mode. When connecting

FireProtect to third party security systems, it is appropriate to place it in a

permanently active protection zone.

States

Parameter State

Temperature Temperature of the device. Measures on the

device processor and changes gradually

Jeweller Signal Strength Signal strength between the hub and the detector

Connection Connection status between the hub and the

device

Ajax

uartBridge Ajax ocBridge Plus

1. Devices

2. FireProtect | FireProtect Plus

Lid The tamper state of the device — reacts to the

detachment

ReX Displays the status of using a

Smoke Shows if smoke is detected

Temperature Threshold Exceeded The state of temperature threshold exceeded

alarm

Rapid Temperature Rise The state of rapid temperature increase alarm

High CO Level (FireProtect Plus only) The state of dangerous CO level alarm

Backup Battery Charge Backup battery level of the device

Smoke sensor The state of the smoke detector

Smoke Sensor Dust Level The dust level in the smoke chamber

Temporary Deactivation

Shows the status of the device: active, completely

disabled by the user, or only noti�cations about

triggering of the device tamper button are

disabled

Firmware Detector �rmware version

Device ID Device identi�er

Settings

How battery charge is displayed in

Ajax apps

radio signal

range extender

1. Devices

2. FireProtect | FireProtect Plus

3. Settings

Dangerous CO Level Alarm (FireProtect Plus only)limits of carbon monoxide concentration

High Temperature Alarm If active, the detector reacts when the

temperature is 60°C and higher

Rapid Temperature Rise Alarm If active, the detector reacts to rapid temperature

increase (30°Сfor 30 minutes or less)

Alert with a siren if smoke is detected If active, added to the systemare

activated in case of smoke alarm

Alert with a siren if temperature threshold

exceeded

If active, added to the systemare

activated in case if temperature threshold

exceeded

Alert with a siren if rapid temperature rise

detected

If active, added to the systemare

activated in case if rapid temperature rise

detected

Alert with a siren if CO detected (FireProtect Plus

only)

If active, added to the systemare

activated in case if CO concentration is

dangerous

Jeweller Signal Strength Test Switches the device to the signal strength test

mode

Smoke Sensor Self Test Starts FireProtect selftest

Temporary Deactivation

Allows the user to disconnect the device without

removing it from the system.

Two options are available:

sirens

• Entirely— the device will not execute system

commands or participate in automation

scenarios, and the system will ignore device

alarms and other noti�cations

• Lid only— the system will ignore only

noti�cations about the triggering of the device

tamper button

Unpair Device Deletes device and its settings

Interconnected Fire Detectors Alarms Setup

The function activates built-in sirens of all re detectors if at least one of them is

triggered. Sirens are activated within the hub–detector ping interval according to

the Jeweller settings.

To enable Interconnected Alarms:

1. Open the Devices tab in the

2. Select a hub

3. Go to its Settings by pressing

4. Select the Service item

5. Go to the Fire detectors settings menu and activate the Interconnected Fire

Detectors Alarmsoption

Interconnected alarms are supported by FireProtect and FireProtect Plus detectors with

�rmware versions 3.42 and later. Please note that when you turn on the interconnected

alarms, you cannot set the hub–detector ping interval (Jeweller settings) of more than 48

seconds.

6. If necessary, set the Delay of Interconnected Alarms from 0 to 5 minutes (in

1-minute increments). The option allows you to postpone the interconnected alarm

for a specied period of time.

When this option is inactive, the interconnected alarm is sent to all �re detectors within a

Ajax app
