DVD PLAYERDVD PLAYER
Operator's manual
Operator's manual 1~20
DV-P4420S
POWER
DV-P4420S
ON
OFF
DVD / MP3 / KODAK PICTURE CD / CD / CD-R & CD-RW PLAYER
EJECT
STOP
PLAY
PAUSE
PHONES
LEVEL
PREV
NEXT
Dear customers:
May we take this opportunity to thank you for purchasing this DVD player. We strongly recommend that you carefully study the
operating instructions before operating the unit.
Before using the player, please ensure that the local AC voltage is suitable for this unit.Before using the player, please ensure that the local AC voltage is suitable for this unit.
Getting started
Skipping ahead and skipping back
Multi-speed slow motion playback
3-step zooming playback
3-way repeat playback
Numeric selection
Programmable playback
Time search
Main Features
Features of audio specifications
Playback features
-720 X 480 £¨30Hz£©
-720 X 576 £¨25Hz£©
PAL and NTSC
Features of playback specifications
This product complies the MPEG II standardization law.
Dolby Digital 2ch decoding output
MPEG-II Audio output
Linear PCM audio decoding output
MP3 audio decoding output
Fully compatible with DVD, MP3,CD, CD-R, CD-RW and KODAK PICTURE CD disc.
Compatible with full DVD playback functions: multi-angle, multi-language,
multi-story, parental control, etc..
Advanced 10-bit/27MHz video D/A converter with over 500 lines of horizontal
resolution.
Video output: Normal video output, S-video output, 21 pin scart,
24-bit/96kHz audio D/A converter.
3-step zoom/smooth scan.
NTSC/PAL TV system compatible.
Audio output: Dolby Digital 2ch output, MPEG-II Audio output,Coaxial
Linear PCM decoding output.
and optical
digital output
Audio & Video
Audio
Disc size 12cm
Single side, single layer /single side,
double layer
PAL and NTSC DVD disc
Playback time 135min/240min max.
Disc size 12cm/8cm
CD disc
Playback time 74min/20min max
P14
Getting started
Disc types
Disc maintenance
WrongRight
-Before playback, wipe the disc from the center hole toward the outer
edge with a clean cloth.
-Never use benzine, thinner, cleaning fluid, static electricity prevention
liquids or any other solvent.
Dirty disc may cause bad picture.
P1-P6
P1
P2
P3
P4
P5
P6
P7
P8
P7-P8
P9
P11
P13
Getting Started
Table of contents
Features
Safety precautions
System connection
Accessories and remote control unit
Front panel
Starting playback and function buttons
Searching buttons and other buttons
MP3 & JPEG operations
Playback mode
Troubleshooting tips
Definition of terms
Menu and program
Initial settings
Disc types & maintenance
Basic operation
P17
P18
Getting startedGetting started Basic operationBasic operation Playback
mode
Playback
mode
MP3/JPEG
operations
MP3/JPEG
operations
Menu &
program
Menu &
program TermsTerms
TroubleshootingTroubleshooting
Initial
settings
Initial
settings
2
Safety precautions
WARNING WARNING WARNING
WARNING
To avoid electrical shock, do not
open the cabinet, refer servicing
to qualified personnel only.
ATTENTION
ATTENTION ATTENTIONATTENTION
If smoke, malodor or noises are
emitted from the unit, turn off the
power and disconnect the AC
power cord.
Do not expose this equipment
to rain or moisture.
Keep the unit away from flower
vases, tubs, sinks, etc.. If liquids
are spilled into the unit, serious
damage could occur.
When left unused for a long period
of time, the unit should be unplugged
from the household AC outlet.
Do not block ventilation holes of
the unit so that air can circulate
freely.
Touching the unit is dangerous,
If thunder.
Be sure to turn the unit off and dis-
connect the AC power cord before
cleaning the unit surface .
If the surface is dirty, wipe clean with
a cloth which has been dipped in a
weak soap-and -water solution and
wrung out thoroughly, and then wipe
again with a dry cloth.
The above items are true of not only this unit but also most of the household electronic products.
Notes: This unit is a class 1 laser product and uses a visible laser beam which could cause hazardous radiation exposure if directed. Be
sure to operate it correctly as instructed.
Getting started
3
Getting Started
Accessories
Remote
control unit
Audio cord
Video cord
Battery installation(remote control unit)
Remove the battery cover.
Insert two batteries(AAA, R03, UM-4 type)
making sure the polarity(+/-) matches the marks
inside the unit.
Replace the cover.
1.
2.
3.
Remote control unit
Weak batteries can leak and severely damage the remote control unit.
--Do not attempt to recharge, short-circuit, disassemble, heat or throw
the batteries into the fire.
--Do not mix old and new batteries.
4
Point remote control unit no more than 8m from the remote
sensor and within about 60 of the front of the unit.
Batteries
(size AAA, R03, UM-4)
+&-
SYSTEM
POWER
PBC
ZOOM
ENTER
SLOW
FAST BACKWARD
FAST FORWARD
REPEAT
REP A-B
MUTE
GO TO
MENU
L/R
OSD
CLEAR
STEP
PROGRAM
RANDOM
RESUME
FUNCTION
P.12
P.14
P.1 1
P.1 1
P.12
P.14
P.8
P.7
P.1 1
P.1 1
P.1 1
P.12
P.12
P.8
P.7
P.12
P.12
P.13
P.13
P.12
P.1 1
P.9
P.12
P.7
P.1 1
P.13
PERITELEVISION
DIGITAL AUDIO
OUT
()
PCM/BITSTREAM
COAXIALCOAXIAL
VIDEOVIDEO
S-VIDEOS-VIDEO
RIGHTRIGHT
LEFTLEFT
OPTICALOPTICAL
AUDIO OUT
Getting Started

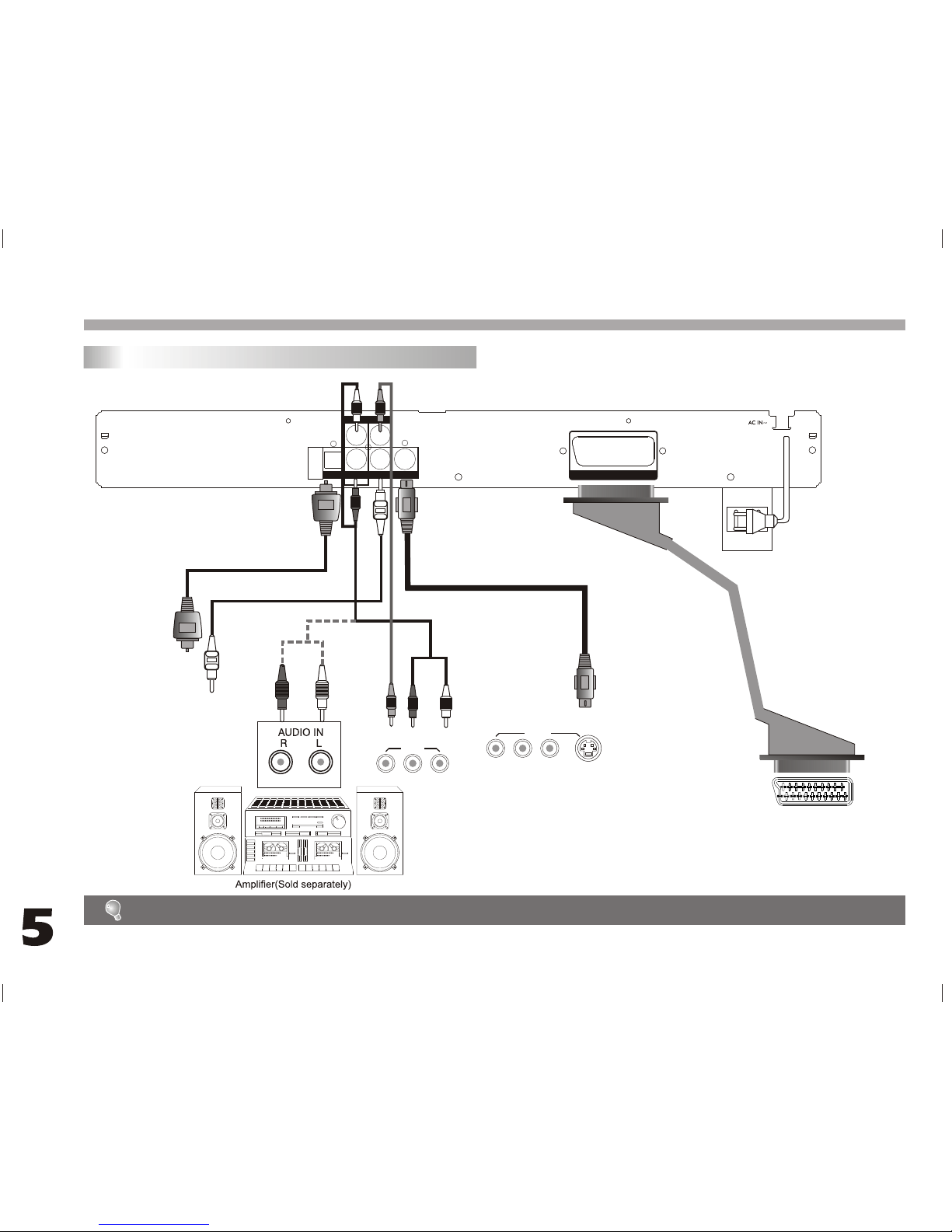

System connection
Turn off the power and keep AC cord pulled out from the outlet when connecting the system.
To coaxial digital audio
input connector
SCART connected cable
(optional)
To TV (Scart Input) connector
S-video cord
(optional)
Red White
Yellow
To stereo TV or other
audio equipments
Coaxial audio cable
(optional)
AC outlet on the wall
Yellow
Red White
Red
White
Audio cord
AV IN 1
VIDEO RIGHT LEFT
S-VIDEO
AV IN 2
VIDEO RIGHT LEFT
Optical digital cable
(optional)
To optical digital
audio input connector
Video cord
6
Most of the functions can be controlled by remote control unit.Most of the functions can be controlled by remote control unit.
Getting started

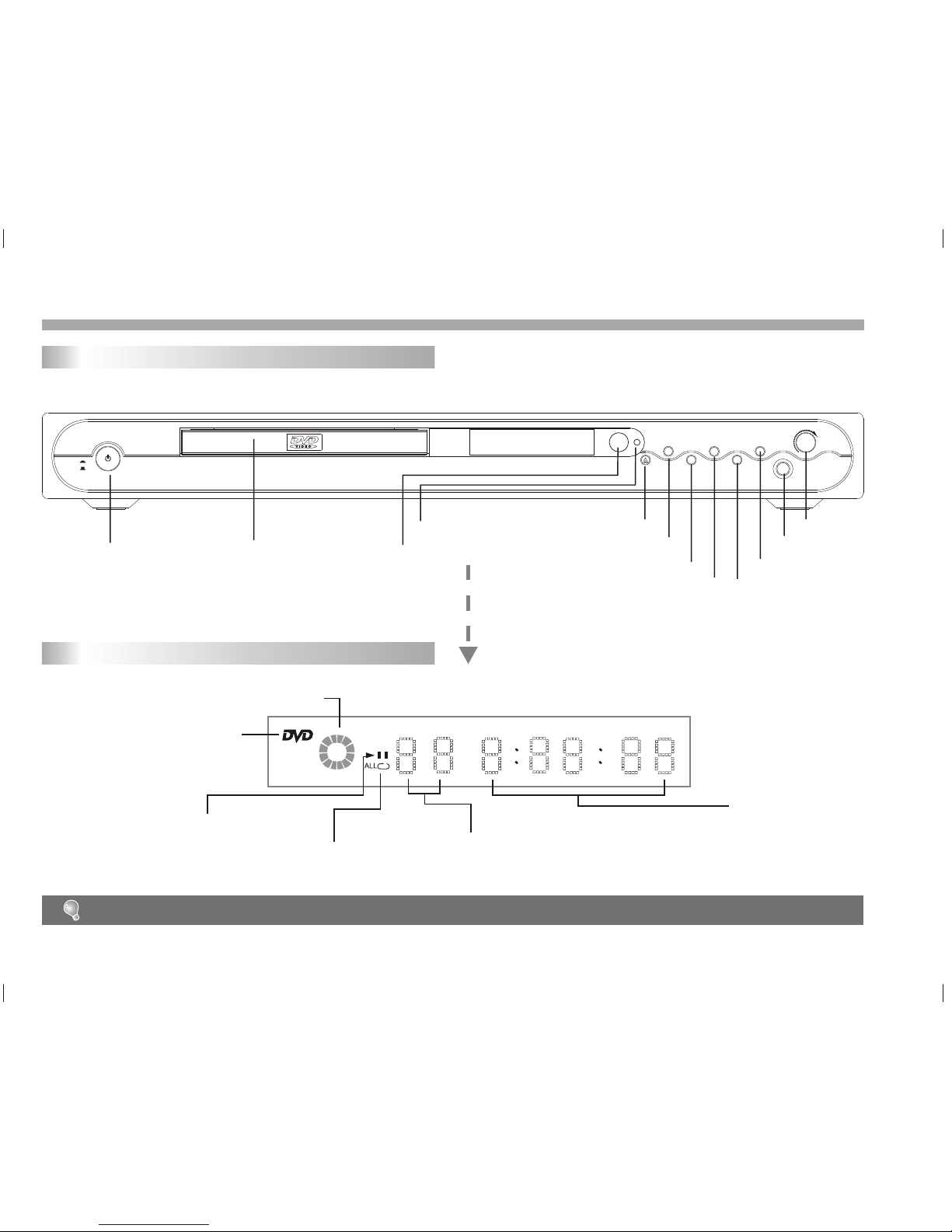

Front panel
Vacuum Fluorescent Display (VFD)
PLAYBACK TIME
PLAY MODE INDICATOR
DISC TYPE INDICATOR
PLAY/PAUSE INDICATOR
REPEAT INDICATOR TITLE/TRACK NUMBER
DISC TRAY
POWER BUTTON
REMOTE SENSOR PLAY BUTTON
PAUSE BUTTON
STOP BUTTON
PREV BUTTON
NEXT BUTTON
ON/STANDBY LED
INDICATOR
POWER
ON
OFF
EJECT
STOP
PLAY
PAUSE
PHONES
LEVEL
PREV
NEXT
EJECT BUTTON PHONES
LEVEL CONTROL
PHONES JACK
PLAY and PAUSE button: Press PLAY
button to start playback. Press PAUSE
button to pause playback.
Numeric buttons(0-9):
STOP button: When this button is pres-
sed once, the unit records the stopped
point, from where playback will resume
(resume function) if RESUME is pressed
afterwards. But if STOP button is pressed
again instead of PLAY button, there will
be no resume function.
You can select desired titles(DVD) by pressing
these buttons directly only if the title or track
number is less than 10.
If the title or track number is over 10. For instance,
if "28" is wanted, press "10+" twice, and then
press the 2-digit number "8".
Starting playback Function buttons
Basic operation
DVD discs possess super interactive function. Please normally use " " and " ENTER " keys in operation of OSD menu.
7
POWER
ON
OFF
EJECT
STOP
PLAY
PAUSE
PHONES
LEVEL
PREV
NEXT
POWER
ON
OFF
EJECT
STOP
PLAY
PAUSE
PHONES
LEVEL
PREV
NEXT
1Numeric buttons(0-9):
These buttons can function with GO TO
button .
1
SLOW button:
Press this button to select slow-motion
playback in forward and reverse direction
at 1/2, 1/4, 1/8,1/16 normal speed without
sound(DVD).
PREV button and NEXT button:
Press these buttons to go to the previous/
next chapter(DVD) or track(CD).
2
3
4
STEP button: You can enjoy picture
frame by frame by pressing this button.
FR and FF button:
These buttons allow
skipping ahead/back at 5-level speeds.
Press PLAY button to return to normal playback.
Press PLAY button to return to normal playback.
Basic operation
Searching function buttons Other buttons
8
22
11
11
33
22
44
POWER
ON
OFF
EJECT
STOP
PLAY
PAUSE
PHONES
LEVEL
PREV
NEXT
//
2
When the above items are showed on TV screen,
you can input numbers to locate desired sector and
commence play.
GO TO button:
Press this button to go to desired posi-
tion. The player provides 3 search mode
of DVD disc, but it provides 3 search
mode.
The number you input is invalid if it is beyond
the track's capcity.
[DVD only]
TITLE XX/XX CHAPTER [ ]/XXX
[DVD only]
DISC GOTO TRACK GOTO T: XX
[CD only]
[DVD only]
CHAPTER XX/XX TIME
99
Press the OPEN/CLOSE button.
Put in MP3 disc on label side,
now system begins searching
information on disc. Completing
searching, the menu screen
appears, now you can use " "
and PLAY buttons to select song
to play, or you can select desired
song to play by pressing numeric
buttons directly.
Mp3 /JPEG operations
POWER
ON
OFF
EJECT
STOP
PLAY
PAUSE
PHONES
LEVEL
PREV
NEXT
Numeric buttons:
Pressing number buttons on
your remote controller, you
can directly select the song
which you want to enjoy to
be played. For example, if
you want to enjoy listening
to the eighteenth song,
please press "1" once,
and then press "8".
STOP button:
Pressing the button will stop
playback.
" " & ENTER buttons:
Their functions is to choose the
previous or next song to be played.
