SPECIFICATION

SERVICE MANUAL

MODEL:MPC1000BK

General

Display / 240 x 64 dot graphic LCD w/back light

Memorycardslot/CompactFlash(Thesizeofthecompactflashcard

thatMPC1000canhandleisfrom

32MB to 2GB)

Dimentions(WxHxD)/330x75.5x228.2(Max234.6)

Weight 3.45kg

Power reqirement / 19W

Sound generator

Sampling rate / 44.1kHz

Memory capacity / 16MB standard (11.5MB for sound memory),

expandableto128MB

Recording time / 136sec. (16MB, MONO), 24m28sec. (128MB,

MONO)

Memoryexpansionslot/1xforoptionalEXM128

Data format / 16-bit linear

Polyphony / 32

Dynamicfiltering/2x2-polefilterpervoice

Filter type / Low pass, Band pass, High pass

Preset sound memory / 5MB

Numberofprograms/24

Effects

Effects/2stereoeffectsandMastereffect

Effect type / Chorus, Flanger, Bit grunger, 4 band EQ, Compressor,

Phase shifter, Tremolo, Flyingpan, Reverb,

DelayMaster effect: 4 band EQ, Compressor

Sequencer

Maximumevents100,000notes

Resolution 96 parts per 1/4-note

Sequences 99

Trackspersequence64

MIDIoutputchannels32(16channelsx2outputs)

Song mode 20 songs, 250 steps per song

Drum pad 16 (velocity and pressure sensitive)

Drum pad banks 4

Sync mode MIDI clock

Inputs/Outputs

Record input (L and R) / 1/4-inch stereo phone x 2, balanced -40dBu,

input impedance 11k ohms;Max. Input level

+10dBu

Digital input / RCA-pin x 1 S/PDIF

Stereo output (L and R) / 1/4-inch phone x 2 unbalanced +11dBu,

output impedance 1k Ohms,

Max. output level +17dBu

4 individual outputs / 1/4-inch phone x 4 unbalanced +11dBu, output

impedance 1k Ohms,Max. output level

+17dBu

Phones output / 1/4-inch stereo phone x 1, 200mW / 100 ohms

Digital output / RCA-pin x 1 S/PDIF

MIDI inputs / 5-pin DIN x 2

MIDI outputs / 5-pin DIN x 2

USB / Slave connector x 1, USB MASS STORAGE CLASS support

(You need Windows 2000/Me/XP or later version, or MacOS

9.x/10.x or later version. )

Footswitches / 1/4-inch phone x 2

Standard accessories

Standardaccessories/CompactFlashcard,Powercable,

Operator's manual



Options

EXM128 / 128MB expansion memory card

Kit - HDM10 The installation kit for Internal Hard Disk drive

Data Compatibility

MPC1000 / SEQ, WAV, PGM

MPC2000/2000XL/ SEQ, WAV, SND, PGM (Most parameters of

PGM file can be loaded.)

MPC2500 / SEQ, WAV, PGM

MPC4000 / SEQ, WAV, PGM (DRUM program only. Only note

assign and tune are loaded.)

MPC3000 SND (THRU Computer)

Z4/Z8 / WAV, PGM (DRUM program only. Only note assign and

tune are loaded.)

S5000/6000 / WAV only (THRU Computer)

S1000/3000 / No compatibility



DISASSEMBLY PROCEDURES

1. DISASSEMBLE THE TOP PANEL AND COVER HD .

(A) REMOVE THE 2 PCS KNOBS FROM TOP PANEL.

(B)

REMOVE THE 3 PCS SCREWS FROM COVER HD,AND REMOVE COVER HD.

(C)

REMOVE THE 3 PCS SCREWS FROM TOP PANEL.

(Fig1)

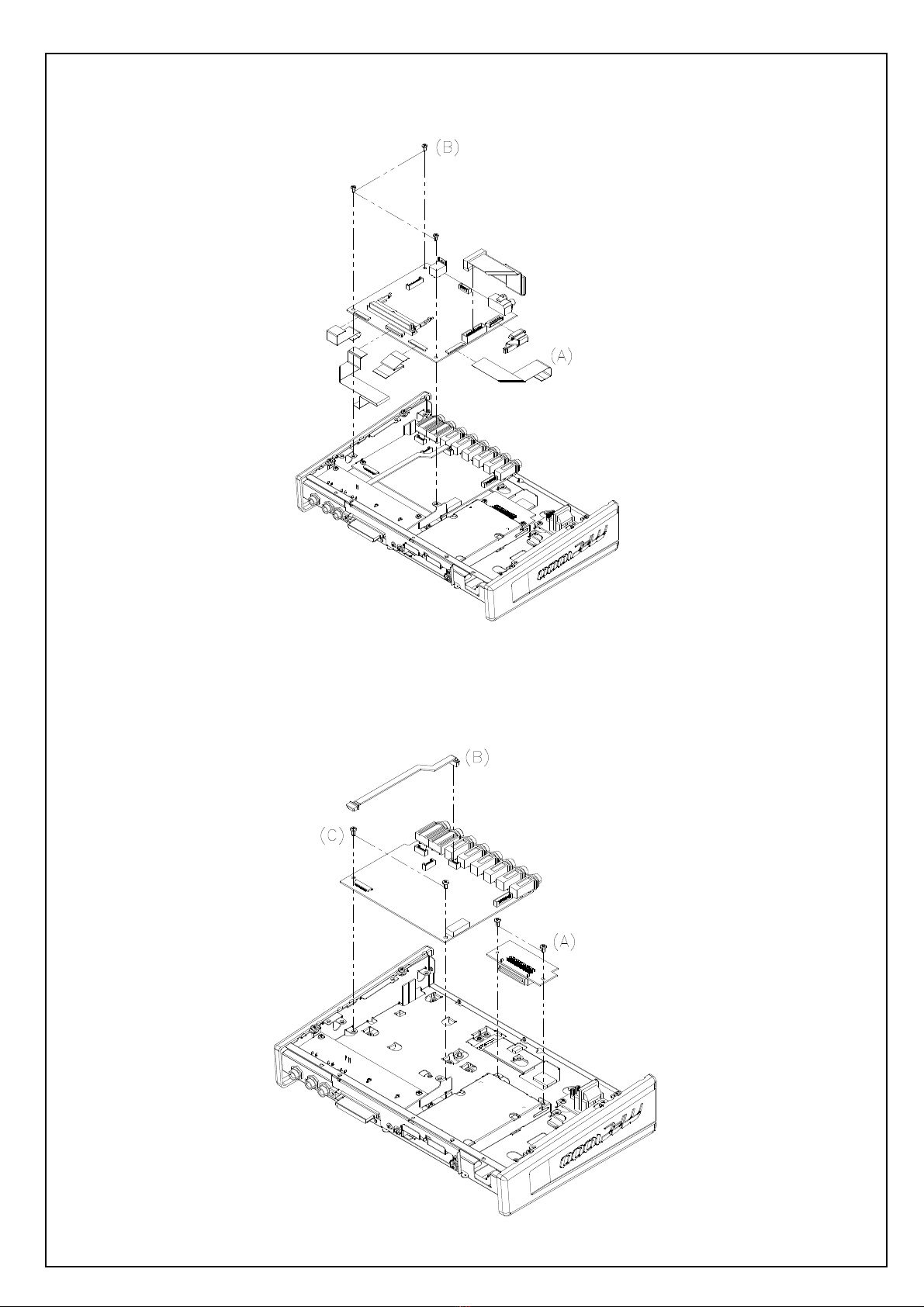

2. DISASSEMBLE THE MAIN PCB ASS’Y AND LCM-SW PCB AND ASS’Y AND

S-VR PCB ASS’Y

(A)(B) REMOVE THE CABLE.

(D) REMOVE THE 2 PCS SCREWS, AND REMOVE LCM-SW PCB ASS’Y.

(E) REMOVE THE 3 PCS SCREWS, AND REMOVE S-VR PCB ASS’Y.

(Fig2)

3. DISASSEMBLE THE PAD SENOR ASS’Y AND PAD PCB ASS’Y.

(A) REMOVE THE PAD.

(B) REMOVE THE 4 PCS SCREWS.

(D) REMOVE THE 2 PCS SCREWS

(E) REMOVE THE CABLE.

(Fig3)

4. DISASSEMBLE THE BOTTOM COVER.

(A) REMOVE THE 9 PCS SCREWS.

(Fig4)

5. DISASSEMBLE REAR PANEL.

(A) REMOVE THE 11 PCS SCREWS AND NUTS.

(B) REMOVE THE 8 PCS NUTS.

(Fig5)

6. DISASSEMBLE THE POWER SWITCH PCB ASS’Y AND SWITCH POWER.

(A) REMOVE THE CABLE.

(B) REMOVE THE 2 PCS SCREWS.

(D) REMOVE THE 4 PCS SCREWS.

(Fig6)

7. DISASSEMBLE THE MIDI PCB ASS’Y .

(A) REMOVE THE CABLE.

(B) REMOVE THE 2 PCS SCREW.

(Fig7)

8. DISASSEMBLE THE MAIN PCB ASS’Y .

(A) REMOVE THE 6 PCS CABLES.

(B) REMOVE THE 3 PCS SCREWS.

(Fig8)

9. DISASSEMBLE THE HD PCB ASS’Y AND I/O PCB ASS’Y .

(A) REMOVE THE 2 PCS SCREWS.

(B) REMOVE THE CABLE.

(Fig9)

10. DISASSEMBLE THE CF PCB ASS’Y .

(A) REMOVE THE 3 PCS NUTS.

(B) REMOVE THE 4 PCS SCREWS.

(Fig10)

11.DISASSEMBLE THE LCM .

(A) REMOVE THE CABLE .

(B) REMOVE THE 2 PCS SCREWS

(Fig11)

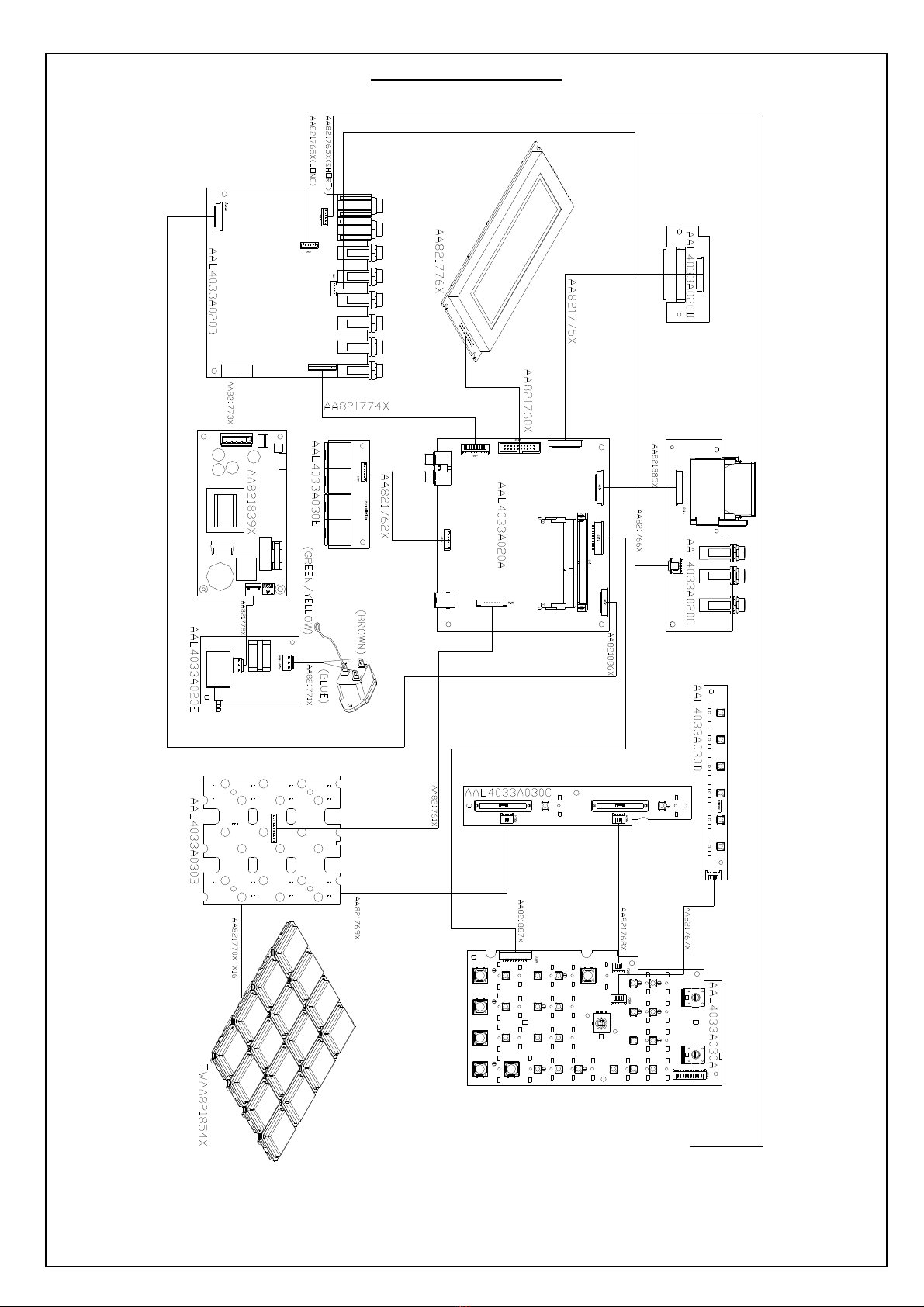

WIRING DIAGRAM

(US/EU/UK/JIS/AUS NZ)

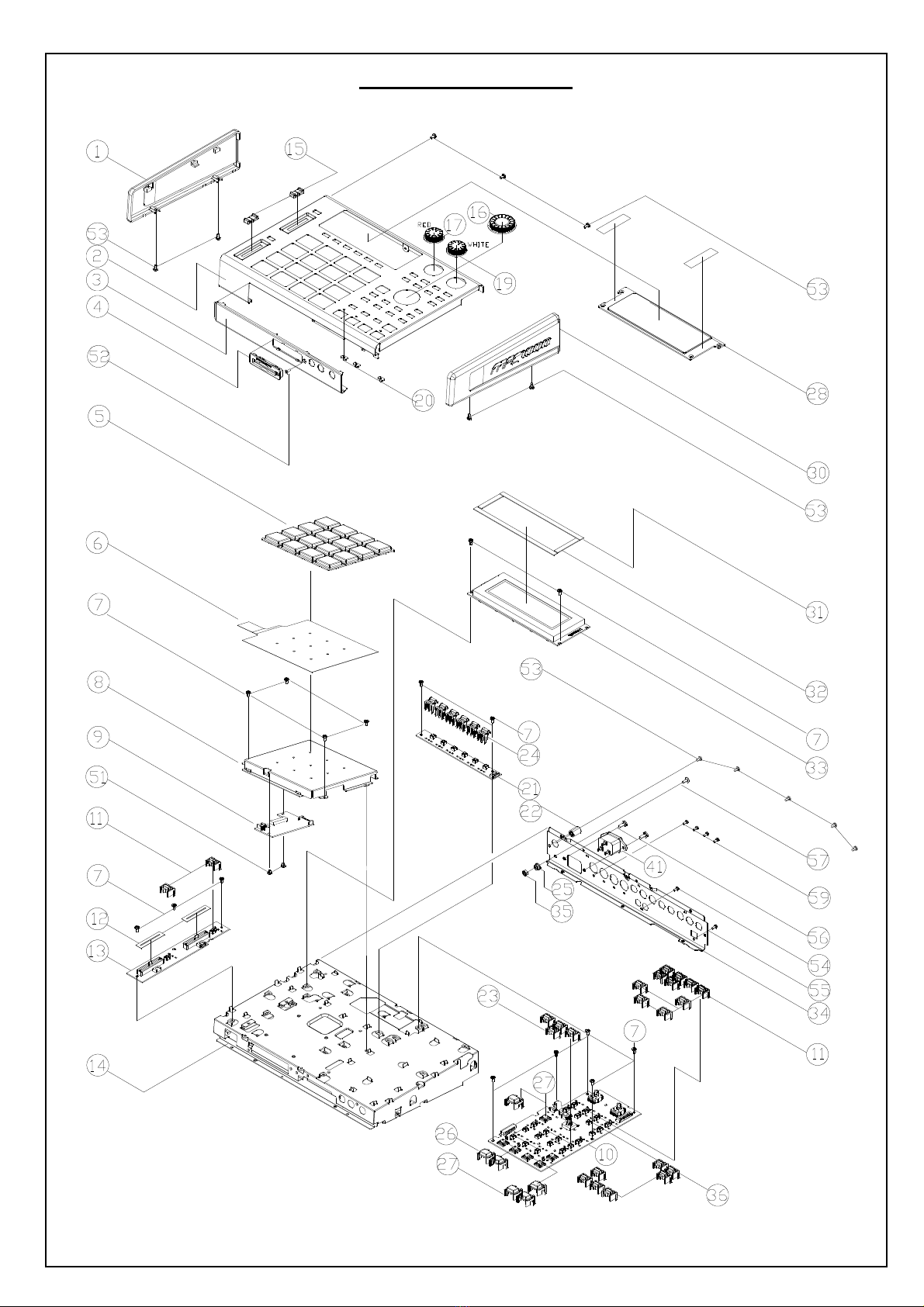

EXPLODE DIAGRAM

(US/EU/UK/JIS/AUS NZ)

EQUENCIAL NO EXPLODE DIAGRAM WILL BE MARKED ON REF.COLUMM OF BOM LIST

EXPLODE DIAGRAM

(US/EU/UK/JIS/AUS NZ)

EQUENCIAL NO EXPLODE DIAGRAM WILL BE MARKED ON REF.COLUMM OF BOM LIST
