User Guide (English)

Introduction

Load virtually any sample via standard SD card* and assign it to any of the MPX8’s eight backlit

velocity- and pressure-sensitive pads. It’s that simple. Use it in the studio. Use it live on stage

or on air. MPX8 packs proven Akai Pro technology into a compact, durable design that’s built to

perform. * SD card sold separately.

Box Contents

•MPX8 •USB Power Adapter

•MPX8 Sample Kit Editor (download) •1/8"-to-MIDI Adapters (2)

•Loop Library (download) •User Guide

•USB Cable •Safety & Warranty Manual

Support

For complete system requirements, compatibility information, and product registration, visit the

Akai website: www.akaipro.com.

For additional product support, visit www.akaipro.com/support.

Quick Start / Connection Diagram

Monitors✝SD card✝

Headphones✝

USB cable to USB

power adapter

USB cable to

computer

✝Sold separatel

Features

10 10 10

10 10 10 10

1. USB Port: Use the included USB cable to connect this USB port to (A) your computer or (B) the

included USB power adapter, and then connect the power adapter to a power outlet.

2. Power Switch: Turns MPX8 on and off. Remember to use the included USB cable to connect

MPX8 to a power source first.

3. SD Card Slot: Insert a standard SD card containing samples into this slot. Use the MPX8 Editor

(downloadable for free from www.akaipro.com/mpx8) to load samples onto an SD card. If you

choose to load samples to an SD card without using the MPX8 Editor, please see the Using Your

Own Samples section of this manual to make sure they are formatted properly.

4. Main Out: Use audio cables with standard 1/4" (6.35 mm) TS connectors to connect these

outputs to a speaker or amplifier system. For mono sound, connect a cable only to the left (L)

output. Adjust the volume of these outputs with the Volume +/– buttons.

5. Headphone Out: Connect stereo headphones with a standard 1/8" (3.5 mm) plug to this output.

Adjust the volume of this output with the Volume +/– buttons.

6. Display: Shows MPX8's current parameters and other operations. See the Display Overview

section of this manual for more information.

7. Data Dial: Decreases or increases the value of the currently selected parameter.

8. Select +/–: Moves up or down through the available parameters shown in the Display.

9. Volume +/–: Adjusts the volume level sent to the Main Out and Headphone Out. Press both

buttons at the same time to stop all samples that are currently playing.

10. Pads: Use these pads to trigger the samples on an inserted SD card (sold separately). The pads

are velocity-sensitive and pressure-sensitive, which makes them very responsive and intuitive to

play.

The pads light up different colors to indicate their current states:

•Off (no color): The pad has no sample assigned to it.

•Orange: The pad has a sample assigned to it.

•Green: The pad's assigned sample is currently playing.

•Red: The pad is currently being edited (whether or not a sample is assigned to it).

Note: The pads' pressure sensitivity does not affect sample playback. "Pressure information" is

only sent out the MIDI Out as polyphonic aftertouch messages when MPX8 is used as a MIDI

controller.

11. MIDI In: Use the included 1/8"-to-MIDI cable to connect this output to the MIDI Out of an external

MIDI device. This is useful if you want to use an external MIDI device to trigger samples assigned

to MPX8's pads (set each pad's MID parameter to the desired MIDI Note number). MPX8

recognizes MIDI Note On messages over Channel 10 only.

12. MIDI Out: Use the included 1/8"-to-MIDI cable to connect this output to the MIDI In of an external

MIDI device. MPX8 can then send MIDI Note On and polyphonic aftertouch messages to that

device (set each pad's MID parameter to the desired MIDI Note number).

13. Kensington®Lock Slot: This connector is compatible with standard laptop-style Kensington

security cables for theft protection.

Kensington and the K & Lock logo are registered trademarks of ACCO Brands.

Operation

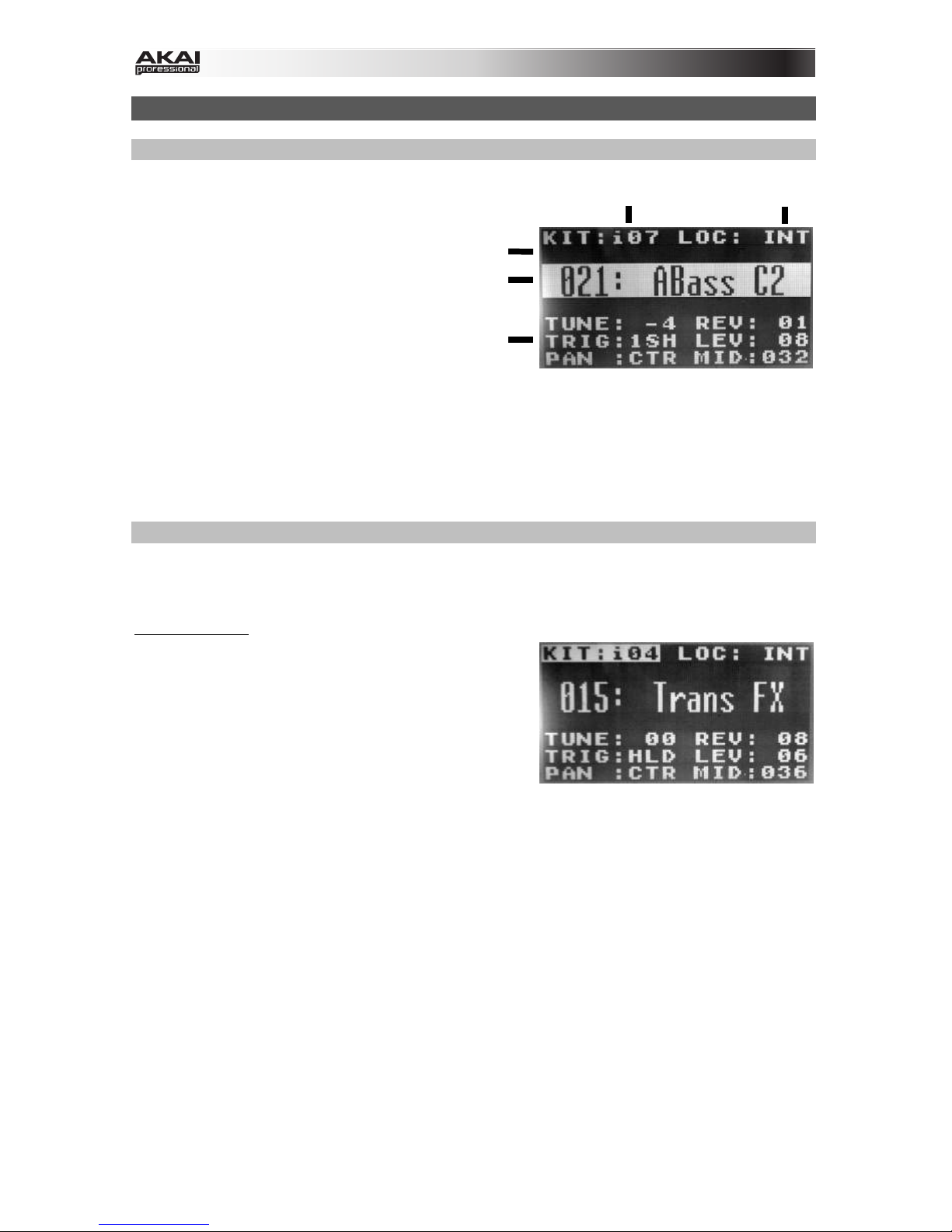

Display Overview

This is an overview of MPX8's Display:

1. Kit: The number of the preset, either a

Internal Kit (with an "i" prefix) or a User

Kit (with an "e" prefix).

2. Sample Location: Displays the sample

location, either MPX8's internal sample

library or an inserted SD card (sold

separately).

3. Message: Displays information about

MPX8's current state. This will show an error message if MPX8 cannot execute a

command.

4. Sample Name: Displays the name of the selected sample from MPX8's internal sample

library or an inserted SD card (sold separately).

5. Parameters: Displays the tuning, reverb, trigger type, level, panning, and MIDI note

number.

Selecting Kits

A "Kit" includes each pad’s sample location, name and/or number, tuning, reverb level, trigger

type, volume level, panning, and MIDI note number.

To select a Kit:

1. Use the Select +/–buttons to move the cursor to

the Kit field (KIT).

2. Use the Data Dial to scroll through the kit

numbers. (Internal Kits have an "i" prefix, and

User Kits have an "e" prefix.)

3. When the desired Kit number is shown, wait a

few seconds—the Kit will load automatically.

Editing Kits

You can edit the parameters of each Kit, including the samples assigned to the pads and the

tuning, trigger type, panning, etc. for each pad.

To assign a sample to a pad:

1. Select a Kit (as described in the previous Selecting Kits section).

2. Press the pad you want to assign a sample to. It will light up red, and the name of the

sample currently assigned to it (if any) will appear in the display.

3. Select the Location field (LOC) by using the Select +/– buttons.

4. Use the Data Dial to select where your desired sample is located: MPX8's internal memory

(INT) or an inserted SD card (CARD). If you are using your own samples on an SD card,

please see the important Using Your Own Samples section below.

5. Select the sample name field by using the Select +/– buttons.

6. Use the Data Dial to select the desired sample. When the desired sample name is shown,

wait a few seconds—the sample will load automatically.

IMPORTANT! Your Kit (including its pad assignments, parameters, etc.) will not be saved

automatically! To save it, please see the Saving Kits section of this manual.

Using Your Own Samples

You can use MPX8 to trigger your own samples instead of the ones in MPX8's internal

sample library.

To do this, load the sample files onto an SD card (not included) using one of the following:

•A standard SD card reader.

•The MPX8 Editor, downloadable for free at www.akaipro.com/mpx8. Instructions

for using the editor are included with the download.

Please note the following:

•The samples files must be 16-bit, mono WAVs. They can have a sample rate of 48,

44.1, 32, 22.05, or 11.205 KHz.

•The sample files must be located in the root (main) directory of the card and not in

any subdirectories.

•You can use an SD card or SDHC card with a capacity up to 32 GB.

•We recommend formatting your SD card to a FAT32 file system (if it is not already)

and naming your sample files according to this format. This means:

oDo not use any of these characters: " * / \ : < > ? |

oDo not use spaces.

oLimit your file name to 8 characters, if possible.

oUp to 512 files can be stored in the root directory of the card.

•You can assign up to 30 MB's worth of samples onto MPX8's pads at a time (the

sample library on your SD card can be larger, of course). Also, please note that a

sample's size will be rounded up when loaded (e.g., a 2.1 MB sample on the SD

card will be treated as a 3 MB sample when it is assigned to a pad).

To adjust the parameters of a pad:

1. Use the Select +/– buttons to highlight the desired

parameter name.

2. Use the Data Dial to adjust the parameter value.

The adjustable parameters are described below:

Tuning TUNE The pitch adjustment of sample assigned to the pad, in

semitones. The lowest possible tuning is -4, and the highest is

4. At 0, the pad will play the sample back at its normal pitch.

Reverb REV The amount of reverb applied to the sample assigned to the

pad. The lowest amount is 0(no reverb), and the highest is 10

(maximum reverb).

Trigger TRIG How the sample plays back when triggered by the pad. When

set to One-Shot (1SH), pressing the pad will play the entire

sample.

When set to Hold (HLD), pressing and holding the pad will play

the sample until you release the pad. If you are still holding the

pad when it reaches the end of the sample, it will loop back to

the beginning, looping it continuously until you release the pad.

When set to Loop (LP), pressing the pad will play the sample,

looping it continuously until you press the pad again.

Level LEV The volume level of the sample assigned to the pad. The

quietest value is 0(silent), and the loudest is 10.

Panning PAN The left-right balance of the sample assigned to the pad. The

left-most value is L4, the right-most value is R4, and the center

is CTR.

MIDI Note Number MID The MIDI note message sent out when you press the pad. The

available values are 000 – 127. This value does not affect the

sample assigned to the pad; it changes the MIDI note message

sent out MPX8's MIDI Out port and the MIDI note message

MPX8 recognizes sent into its MIDI In port.

Saving Kits

If you change the currently selected Kit (in the KIT field), you will lose any changes you have made

unless you save it first.

To save the currently selected Kit:

1. Press Select + and Volume + simultaneously. The Display will ask if you want to save the

current Kit.

2. Press the Volume + button (Yes) to save the kit or the Volume – button (No) to cancel.

Please note: Saving a kit will overwrite all the pad assignments, parameters, etc. since the last

time you saved it.

To copy and save the current Kit's settings to a new User Kit:

1. Make sure an SD card is inserted into the SD Card Slot.

2. Press Select – and Volume – simultaneously. The Display will ask if you want to save the Kit to

a new Kit.

3. Press the Volume + button (Yes) to save the kit or the Volume – button (No) to cancel. MPX8

will save the Kit to the next available User Kit number (e.g., if you have 12 User Kits already

saved on the SD card, the next User Kit will be e13).

Messages

MPX8's display may show these messages to indicate its current state:

Processing The sample is currently loading into MPX8's memory. Please wait!

Reading SD Card MPX8 is reading your SD card. Please wait!

Save Complete The Kit has been saved successfully.

Stop All Sounds This message is shown after you press both Volume +

– buttons

simultaneously, stopping all samples currently playing back.

MPX8's display may show these error messages if MPX8 cannot execute a command. Use the

information below to troubleshoot the problem:

<Empty> The sample you wanted is no longer on your SD card. Make sure the

sample is on the SD card's root directory.

Card Error Your SD card is not FAT16-

FAT32-formatted, or your SD card is not

functioning properly. Reformat your SD card to a FAT16 or FAT32 file

system.

Card Locked Your SD card is write-protected. Remove write protection before continuing.

Int Mem Error MPX8's internal memory is damaged and needs to be serviced. Contact

Akai Professional's technical support.

Invalid Format MPX8 does not support the sample's file format. Please make sure the file

is a 16-bit, mono WAVs at a sample rate of 48, 44.1, 32, 22.05, or 11.205

KHz.

Kit File Full MPX8 cannot save another User Kit because there are already 99 User Kits

saved on your SD card. Delete enough files so there are fewer than 99 User

Kits on your SD card.

No Kit File The KITS directory on your SD card is empty (this is where MPX8 saves

User Kits; at least one Kit file must be in this directory for MPX8 to operate

normally). Delete this directory from your SD card and insert it into MPX8

again. MPX will automatically create a new KITS folder and resume normal

operation.

No SD Card The SD card slot is empty. Insert a card in the SD card slot.

No Sounds Found Your SD card's root directory contains no WAV files. Make sure the

samples are on your SD card's root directory.

Not Enough Space There is not enough space on your SD card. Delete some files from it.

Sound File Error The sample assigned to the pad is of an invalid format or is too large.

Please make sure the file is a 16-bit, mono WAVs at a sample rate of 48,

44.1, 32, 22.05, or 11.205 KHz, and make sure only 30 MB's worth of

samples are assigned to MPX8's pads at a time.

Sound Too Large Either the sample is larger than 30 MB or adding the sample would exceed

the 30 MB limit of MPX8's memory. Please make sure only 30 MB's worth

of samples are assigned to MPX8's pads at a time.

Also, please note that a sample's size will be rounded up when loaded

(e.g., a 2.1 MB sample on the SD card will be treated as a 3 MB sample

when it is assigned to a pad).

Restoring Default Settings

To restore MPX8's default settings, which will reset all Internal Kits to their defaults, press and hold

both Volume +/– buttons while switching MPX8's power on.

Appendix (English)

MIDI Implementation Chart

Manufacturer: Akai Professional Model: MPX8 Version: 1.0

Transmit/Export Recognize/Import Remarks

1. Basic Information

MIDI channels 10 10

Note numbers 0-127 0-127 Responds to notes

assigned to pads

Program change No No

Bank Select response? (Yes/No)

If yes, list banks utilized in remarks column No No

Modes supported:

Mode 1: Omni-On, Poly (Yes/No)

Mode 2: Omni-On, Mono (Yes/No)

Mode 3: Omni-Off, Poly (Yes/No)

Mode 4: Omni-Off, Mono (Yes/No)

Multi Mode (Yes/No)

Yes

Note-On Velocity (Yes/No) Yes Yes

Note-Off Velocity (Yes/No) Yes Yes Trig must be set to

HLD

Channel Aftertouch (Yes/No) No No

Poly (Key) Aftertouch (Yes/No) Yes No Sends to MIDI Out

Pitch Bend (Yes/No) No No

Active Sensing (Yes/No) No No

System Reset (Yes/No) No No

Tune Request (Yes/No) No No

Universal System Exclusive:

Sample Dump Standard (Yes/No)

Device Inquiry (Yes/No)

File Dump (Yes/No)

MIDI Tuning (Yes/No)

Master Volume (Yes/No)

Master Balance (Yes/No)

Notation Information (Yes/No)

Turn GM1 System On (Yes/No)

Turn GM2 System On (Yes/No)

Turn GM System Off (Yes/No)

DLS-1 (Yes/No)

File Reference (Yes/No)

Controller Destination (Yes/No)

Key-based Instrument Ctrl (Yes/No)

Master Fine/Coarse Tune (Yes/No)

Other Universal System Exclusive (Yes/No)

Yes

All "No" except for

Device Inquiry

Manufacturer or Non-Commercial System Exclusive No No

NRPNs (Yes/No) No No

RPN 00 (Pitch Bend Sensitivity) (Yes/No)

RPN 01 (Channel Fine Tune) (Yes/No)

RPN 02 (Channel Coarse Tune) (Yes/No)

RPN 03 (Tuning Program Select) (Yes/No)

RPN 04 (Tuning Bank Select) (Yes/No)

RPN 05 (Modulation Depth Range) (Yes/No)

No No

2. MIDI Timing and Synchronization

MIDI Clock (Yes/No) No No

Song Position Pointer (Yes/No) No No

Song Select (Yes/No) No No

Start (Yes/No)

Continue (Yes/No)

Stop (Yes/No) No No

MIDI Time Code (Yes/No) No No

MIDI Machine Control (Yes/No) No No

MIDI Show Control (Yes/No)

If yes, MSC Level supported No No

3. Extensions Compatibility

General MIDI compatible? (Level(s)/No)

Is GM default power-up mode? (Level/No) No

No No

DLS compatible? (Levels(s)/No)

(DLS File Type(s)/No) No

No No

Standard MIDI Files (Type(s)/No) No No

XMF Files (Type(s)/No) No No

SP-MIDI compatible? (Yes/No) No No

Internal Kits

Kit 1 Pad 5: 808 HH C

•Tune: 0

•Rev: 2

•Trig: 1 SH

•Lev: 8

•Pan: CTR

•MIDI: 40

Pad 6: 808 HH O

•Tune: 0

•Rev: 2

•Trig: 1 SH

•Lev: 8

•Pan: CTR

•MIDI: 41

Pad 7: 808 Tom

•Tune: 2

•Rev: 4

•Trig: 1 SH

•Lev: 8

•Pan: L2

•MIDI: 42

Pad 8: Crash

•Tune: 0

•Rev: 3

•Trig: 1 SH

•Lev: 8

•Pan: R2

•MIDI: 43

Pad 1: 808 Kick

•Tune: -2

•Rev: 7

•Trig: 1 SH

•Lev: 9

•Pan: CTR

•MIDI: 36

Pad 2: Rimshot

•Tune: 1

•Rev: 4

•Trig: 1 SH

•Lev: 7

•Pan: CTR

•MIDI: 37

Pad 3: 808 SNR

•Tune: 0

•Rev: 2

•Trig: 1 SH

•Lev: 6

•Pan: CTR

•MIDI: 38

Pad 4: Clap

•Tune: -2

•Rev: 3

•Trig: 1 SH

•Lev: 8

•Pan: CTR

•MIDI: 39

Kit 2 Pad 5: Hat

•Tune: 0

•Rev: 2

•Trig: 1 SH

•Lev: 8

•Pan: CTR

•MIDI: 40

Pad 6: Pluck8Bt

•Tune: 0

•Rev: 2

•Trig: 1 SH

•Lev: 8

•Pan: CTR

•MIDI: 41

Pad 7: Trans FX

•Tune: 2

•Rev: 4

•Trig: HLD

•Lev: 8

•Pan: L2

•MIDI: 42

Pad 8: Crash

•Tune: 0

•Rev: 3

•Trig: 1 SH

•Lev: 8

•Pan: R2

•MIDI: 43

Pad 1: 909 Kick

•Tune: -3

•Rev: 7

•Trig: 1 SH

•Lev: 9

•Pan: CTR

•MIDI: 36

Pad 2: S-Ressy

•Tune: 1

•Rev: 4

•Trig: 1 SH

•Lev: 7

•Pan: CTR

•MIDI: 37

Pad 3: 808 SNR

•Tune: 0

•Rev: 2

•Trig: 1 SH

•Lev: 6

•Pan: CTR

•MIDI: 38

Pad 4: ABass C2

•Tune: 0

•Rev: 4

•Trig: 1 SH

•Lev: 5

•Pan: CTR

•MIDI: 39

Kit 3 Pad 5: 808 SNR

•Tune: 0

•Rev: 3

•Trig: 1 SH

•Lev: 8

•Pan: L4

•MIDI: 40

Pad 6: Clap

•Tune: 0

•Rev: 2

•Trig: 1 SH

•Lev: 7

•Pan: CTR

•MIDI: 41

Pad 7: Rimshot

•Tune: 2

•Rev: 4

•Trig: 1 SH

•Lev: 8

•Pan: L2

•MIDI: 42

Pad 8: S-Ressy

•Tune: 0

•Rev: 3

•Trig: 1 SH

•Lev: 7

•Pan: R4

•MIDI: 43

Pad 1: 909 Kick

•Tune: -1

•Rev: 7

•Trig: 1 SH

•Lev: 9

•Pan: L4

•MIDI: 36

Pad 2: 808 Kick

•Tune: 1

•Rev: 4

•Trig: 1 SH

•Lev: 7

•Pan: CTR

•MIDI: 37

Pad 3: ABass C2

•Tune: -3

•Rev: 2

•Trig: 1 SH

•Lev: 6

•Pan: CTR

•MIDI: 38

Pad 4: K-Harder

•Tune: 0

•Rev: 3

•Trig: 1 SH

•Lev: 8

•Pan: R4

•MIDI: 39

Kit 4 Pad 5: 808 Kick

•Tune: 0

•Rev: 9

•Trig: LP

•Lev: 8

•Pan: CTR

•MIDI: 40

Pad 6: Bass1 C2

•Tune: 0

•Rev: 2

•Trig: 1 SH

•Lev: 8

•Pan: CTR

•MIDI: 41

Pad 7: SynthStb

•Tune: 2

•Rev: 4

•Trig: 1 SH

•Lev: 8

•Pan: CTR

•MIDI: 42

Pad 8: Airhorn

•Tune: -2

•Rev: 7

•Trig: 1 SH

•Lev: 8

•Pan: CTR

•MIDI: 43

Pad 1: Trans FX

•Tune: 0

•Rev: 8

•Trig: HLD

•Lev: 6

•Pan: CTR

•MIDI: 36

Pad 2: UH

•Tune: -1

•Rev: 6

•Trig: 1 SH

•Lev: 7

•Pan: L1

•MIDI: 37

Pad 3: Yea

•Tune: 0

•Rev: 7

•Trig: 1 SH

•Lev: 6

•Pan: R1

•MIDI: 38

Pad 4: Uh Yeah

•Tune: -2

•Rev: 3

•Trig: 1 SH

•Lev: 5

•Pan: CTR

•MIDI: 39

Kit 5 Pad 5: Bass1 C2

•Tune: -1

•Rev: 2

•Trig: 1 SH

•Lev: 8

•Pan: CTR

•MIDI: 40

Pad 6: SynthStb

•Tune: 0

•Rev: 2

•Trig: 1 SH

•Lev: 8

•Pan: CTR

•MIDI: 41

Pad 7: ABass C2

•Tune: 2

•Rev: 4

•Trig: 1 SH

•Lev: 8

•Pan: L2

•MIDI: 42

Pad 8: SynthStb

•Tune: 3

•Rev: 3

•Trig: 1 SH

•Lev: 8

•Pan: R2

•MIDI: 43

Pad 1: 909 Kick

•Tune: -1

•Rev: 7

•Trig: 1 SH

•Lev: 9

•Pan: L4

•MIDI: 36

Pad 2: 808 Kick

•Tune: 1

•Rev: 4

•Trig: 1 SH

•Lev: 7

•Pan: CTR

•MIDI: 37

Pad 3: ABass C2

•Tune: -3

•Rev: 2

•Trig: 1 SH

•Lev: 6

•Pan: CTR

•MIDI: 38

Pad 4: K-Harder

•Tune: 0

•Rev: 3

•Trig: 1 SH

•Lev: 8

•Pan: R4

•MIDI: 39

Kit 6 Pad 5: Hat

•Tune: 2

•Rev: 2

•Trig: 1 SH

•Lev: 8

•Pan: L3

•MIDI: 40

Pad 6: 808 HH O

•Tune: 0

•Rev: 2

•Trig: 1 SH

•Lev: 8

•Pan: L1

•MIDI: 41

Pad 7: 808 HH C

•Tune: 3

•Rev: 4

•Trig: 1 SH

•Lev: 8

•Pan: R3

•MIDI: 42

Pad 8: Crash

•Tune: 0

•Rev: 3

•Trig: 1 SH

•Lev: 8

•Pan: R2

•MIDI: 43

Pad 1: K-Harder

•Tune: -2

•Rev: 7

•Trig: 1 SH

•Lev: 9

•Pan: CTR

•MIDI: 36

Pad 2: S-Ressy

•Tune: 1

•Rev: 4

•Trig: 1 SH

•Lev: 7

•Pan: CTR

•MIDI: 37

Pad 3: Rimshot

•Tune: 0

•Rev: 2

•Trig: 1 SH

•Lev: 6

•Pan: CTR

•MIDI: 38

Pad 4: Clap

•Tune: -2

•Rev: 3

•Trig: 1 SH

•Lev: 5

•Pan: CTR

•MIDI: 39

Kit 7 Pad 5: ABass C2

•Tune: 0

•Rev: 2

•Trig: 1 SH

•Lev: 8

•Pan: CTR

•MIDI: 36

Pad 6: ABass C2

•Tune: 1

•Rev: 2

•Trig: 1 SH

•Lev: 8

•Pan: CTR

•MIDI: 37

Pad 7: ABass C2

•Tune: 2

•Rev: 4

•Trig: 1 SH

•Lev: 8

•Pan: L2

•MIDI: 38

Pad 8: ABass C2

•Tune: 3

•Rev: 3

•Trig: 1 SH

•Lev: 8

•Pan: R2

•MIDI: 39

Pad 1: ABass C2

•Tune: -4

•Rev: 1

•Trig: 1 SH

•Lev: 8

•Pan: CTR

•MIDI: 32

Pad 2: ABass C2

•Tune: -3

•Rev: 4

•Trig: 1 SH

•Lev: 8

•Pan: CTR

•MIDI: 33

Pad 3: ABass C2

•Tune: -2

•Rev: 2

•Trig: 1 SH

•Lev: 8

•Pan: CTR

•MIDI: 34

Pad 4: ABass C2

•Tune: -1

•Rev: 3

•Trig: 1 SH

•Lev: 8

•Pan: CTR

•MIDI: 35

Kit 8 Pad 5: 808 Kick

•Tune: 0

•Rev: 4

•Trig: 1 SH

•Lev: 8

•Pan: CTR

•MIDI: 45

Pad 6: 808 Kick

•Tune: 1

•Rev: 4

•Trig: 1 SH

•Lev: 8

•Pan: CTR

•MIDI: 46

Pad 7: 808 Kick

•Tune: 2

•Rev: 4

•Trig: 1 SH

•Lev: 8

•Pan: L2

•MIDI: 47

Pad 8: 808 Kick

•Tune: 3

•Rev: 4

•Trig: 1 SH

•Lev: 8

•Pan: R2

•MIDI: 48

Pad 1: 808 Kick

•Tune: -4

•Rev: 4

•Trig: 1 SH

•Lev: 8

•Pan: CTR

•MIDI: 41

Pad 2: 808 Kick

•Tune: -3

•Rev: 4

•Trig: 1 SH

•Lev: 8

•Pan: CTR

•MIDI: 42

Pad 3: 808 Kick

•Tune: -2

•Rev: 4

•Trig: 1 SH

•Lev: 8

•Pan: CTR

•MIDI: 43

Pad 4: 808 Kick

•Tune: -1

•Rev: 4

•Trig: 1 SH

•Lev: 8

•Pan: CTR

•MIDI: 44

Technical Specifications

Pads 8 pads (velocity-sensitive and pressure-sensitive)

Kits 8 Internal Kits

99 User Kits possible (on optional SD card, sold separately)

Internal Sounds 21

Supported File Format 16-bit mono WAV with a sample rate of 48, 44.1, 32, 22.05, or

11.205 KHz

Supported SD Cards SD or SDHC up to 32 GB capacity (FAT16 or FAT32 file format)

Connections 1/4" (6.35 mm) TS x 2 (Main Out)

1/8" (3.5 mm) TRS (Headphone Out)

1/8" (3.5 mm) TRS x 2 (MIDI In/Out)

1 USB-MIDI port

1 SD card slot

1 Kensington lock slot

Power 5 V, 1 A (via USB)

Dimensions (W x D x H) 11.6" x 4" x 1.3"

295 mm x 102 mm x 33 mm

Weight 1 lb.

0.45 kg

Inhaltsverzeichnis

Andere Akai Aufnahmegeräte Handbücher

Akai

Akai S1100 Bedienungsanleitung

Akai

Akai MPC 5000 Bedienungsanleitung

Akai

Akai MPK mini plus Bedienungsanleitung

Akai

Akai MPC 60 Bedienungsanleitung

Akai

Akai MPC 2500 Montage- und Bedienungsanleitung

Akai

Akai EWV2000 Bedienungsanleitung

Akai

Akai MPD218 Bedienungsanleitung

Akai

Akai DPS24 Bedienungsanleitung

Akai

Akai MPC 5000 Bedienungsanleitung

Akai

Akai MPC 60 Bedienungsanleitung

Akai

Akai Professional LPK25 Bedienungsanleitung

Akai

Akai MPC 5000 Bedienungsanleitung

Akai

Akai MPC 3000 Bedienungsanleitung

Akai

Akai LPD8 Bedienungsanleitung

Akai

Akai Deep Impact SB1 Bedienungsanleitung

Akai

Akai S6000 Bedienungsanleitung

Akai

Akai MPC 2500 Anleitung zur Verwendung

Akai

Akai MPD218 Bedienungsanleitung

Akai

Akai MPD 24 Bedienungsanleitung

Akai

Akai MPC2000 Bedienungsanleitung

Akai

Akai Professional MPC 1000 Bedienungsanleitung

Akai

Akai Professional MPC 1000 Bedienungsanleitung

Akai

Akai MPC ELEMENT Bedienungsanleitung

Akai

Akai DR16 pro Bedienungsanleitung

Beliebte Aufnahmegeräte Handbücher anderer Marken

KV2 Audio

KV2 Audio 500 Series Bedienungsanleitung

Robotics Technologies

Robotics Technologies microBus-Cam II Bedienungsanleitung

Seca

Seca 460 Bedienungsanleitung

Cognex

Cognex MVS-8000 Series Bedienungsanleitung

Mect

Mect MPNC006 Series Bedienungsanleitung

Bad Caf

Bad Caf THE LEASH Bedienungsanleitung

Strymon

Strymon NIGHTSKY Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric 16CH DIGITAL RECORDER DX-TL5000U Bedienungsanleitung

Tews Technologies

Tews Technologies TPMC465 Bedienungsanleitung

Honeywell

Honeywell Excel 50 Bedienungsanleitung

SeaLevel

SeaLevel COMM+8.LPCI Bedienungsanleitung

Arturia

Arturia AUDIOFUSE STUDIO Bedienungsanleitung

Rukra

Rukra RK-1240 Bedienungsanleitung

Samson

Samson SCOM Bedienungsanleitung

Dynacord

Dynacord DPS260 Bedienungsanleitung

Nice

Nice Core Bedienungsanleitung

Pyle Pro

Pyle Pro PSS8 Bedienungsanleitung

RF-System

RF-System TinyGate Gebrauchs- und Pflegehandbuch
