Akai AK2417FHDC Bedienungsanleitung

User Manual

24" Full HD TV

with Built-in DVD Player

MODEL: AK2417FHDC

Welcome

Congratulations on your purchase!

This manual tells you all you need to know about using your new AKAI product.

Please take special note of any important safety and usage information presented with the symbol.

All products brought to you by AKAI are manufactured to the highest standards of performance and safety and, as

part of our philosophy of customer service and satisfaction, are backed by our comprehensive 3 Year Warranty.

We hope you will enjoy using your purchase for many years to come.

On-Screen Set Up 17

TV Setting Menus 18

Picture 20

Sound 22

Channel (DTV and ATV) 24

Lock 26

System 28

PVR Settings 31

TV Guide 32

Recording 33

Recording Live TV 34

Scheduled Recording 34

Playback 34

Pause Live TV (Time-shift) 35

USB Mode 36

Set up 36

Contents

Welcome 2

Unpack and Prepare 4

What's in the Box 4

Important Tips 5

Attaching the Stand 6

Wall-Mounting the TV 7

Connect to Power 8

Connect to 12V Power Source 8

Connect your Antenna 9

Controls and Connections 10

Get to know your TV 10

Buttons on the TV 10

Ports on the TV 11

Remote Control 13

Setup 13

Using the Remote Control 14

Buttons on the Remote 15

DVD Mode 39

Basic DVD Movie Playback 39

Media File Playback 42

Menu Navigation 45

Troubleshooting 47

Specications 50

Compliance and

Responsible Disposal 51

4 | UNPACK AND PREPARE

HIJK

Unpack and Prepare

What's in the Box

In the box you will find:

A. 24" Full HD TV with Built-in DVD Player

B. Remote Control

C. AAA Batteries

D. 12V DC Car Adaptor

E. AV Cable

F. TV Stands

G. Screws for TV Stands

H. Quick Start Guide

I. Warranty Certificate

J. General Safety Warnings

K. User Manual

You will need:

• Phillips-head screwdriver (for stand installation)

• Antenna cable (to watch live TV)

Before installing your new TV, check you have everything needed.

UNPACK AND PREPARE | 5

Important Tips

• Place the TV on a level surface.

• Place the TV away from any source that may generate heat or vibrations.

• Make sure there is enough space around vents for airflow.

• The remote control works up to 5 metres away from the TV.

• Unplug the TV before cleaning it.

• Clean using a dry cloth only - do not use water or chemicals.

• Use only the power supply provided.

• It is highly recommended to use safety straps for securing the TV in place.

• Keep liquid, children and pets away from the TV at all times.

6 | UNPACK AND PREPARE

Unless you are wall-mounting the TV, you will need to

attach its stands/legs.

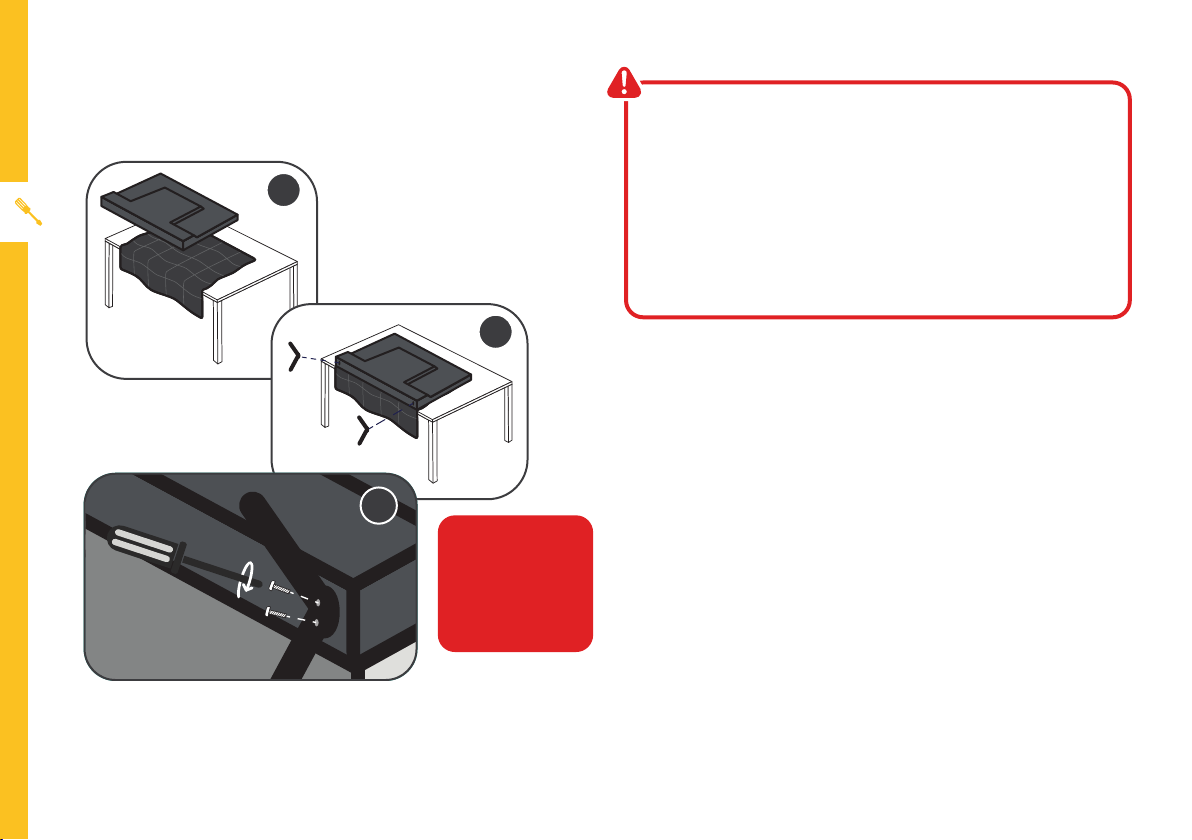

1. Lay the TV face-down on a soft, flat surface (like the

sofa, or a towel on a table) larger than the TV itself.

2. Match the stands to the installation points on the

underside of the TV.

3. Attach the stand to the TV at the installation points

using the screws provided. (Grab a screwdriver for

this bit). Make sure the legs are facing away from

each other (not leaning inwards).

Attaching the Stand

• This TV is heavy! We recommend asking

someone to help you lift it.

• Unplug the TV from the power outlet before

installing or removing the stand.

• Only touch the frame, not the screen.

• It is highly recommended to use safety straps for

securing the TV.

CAUTION!

Do not apply

excessive force as

you might damage

the screw holes.

UNPACK AND PREPARE | 7

100mm

Back of the TV

100mm

Wall-Mounting the TV

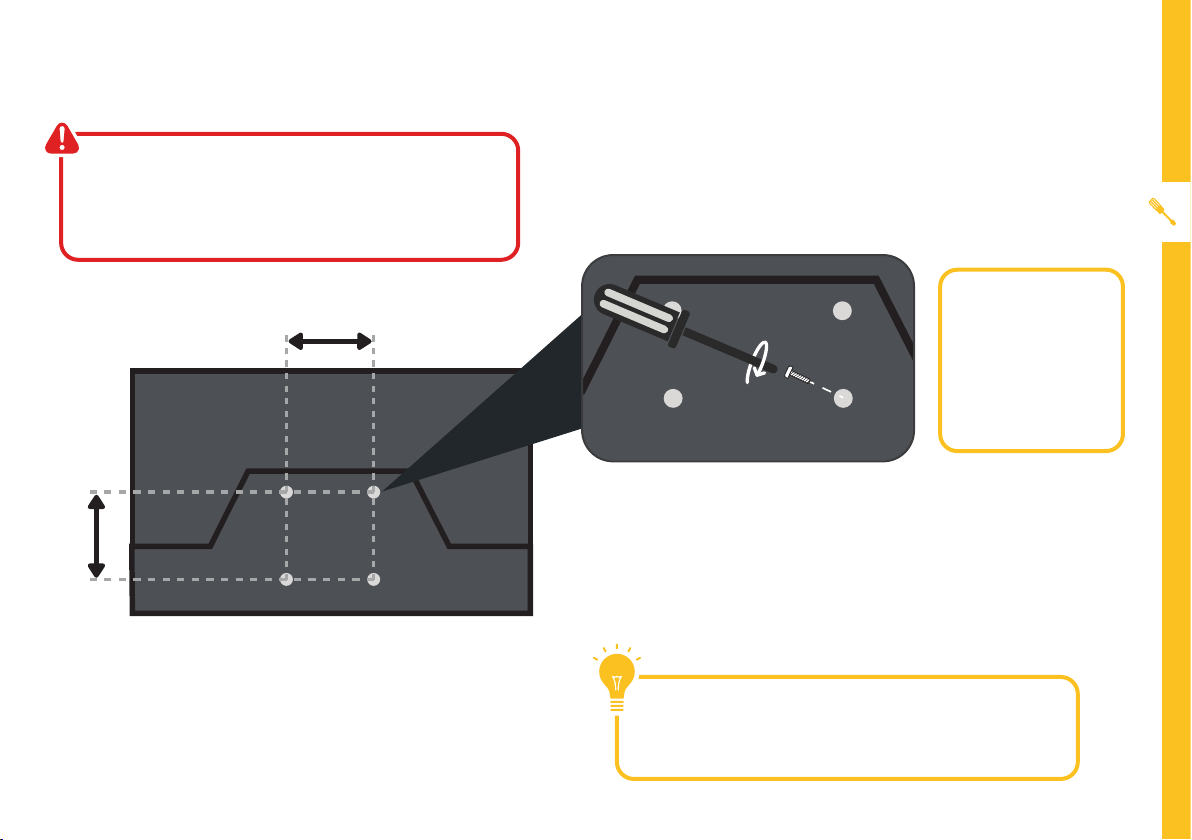

The TV comes with holes on the back panel for use with

wall-mounting brackets (bracket not included).

Use four standard M4*10mm screws (or longer,

depending on the mounting bracket) to wall-mount this

TV (screws are not included).

• Unplug the TV from the power outlet

before wall-mounting.

• Contact a professional for assistance with

wall-mounting the TV.

Required

• VESA Mounting

Bracket

• 4 x M4*10mm

screws (or longer

as required)

The screws in the package are for securing the TV stand

only. If you are wall-mounting the TV, consult a qualified

installer for advice on bracket support and wall support.

8 | UNPACK AND PREPARE

Connect to Power

Connect to 12V Power Source

Don't forget to plug in the TV

to the power outlet. Leave

the power switched off until

installation is finished.

12V car adaptor

(plug into the DC IN

socket on the TV)

12V power outlet

Make sure the TV is switched off at the power outlet

until you have finished connecting your cables.

UNPACK AND PREPARE | 9

Free-to-airTVinHD(HighDenition)

High Definition (HD) channels

provide the best viewing quality and

are available with a digital antenna

connection.

Make sure the TV is switched off at the power outlet

until you have finished connecting your cables.

Connect your Antenna

Antenna cable not included.

ABC HD

SBS ONE HD

7HD

9HD

10 HD

PRIME7 HD

WIN HD

Example

HD Channels

10 | CONTROLS AND CONNECTIONS

See next page for more info on the connections.

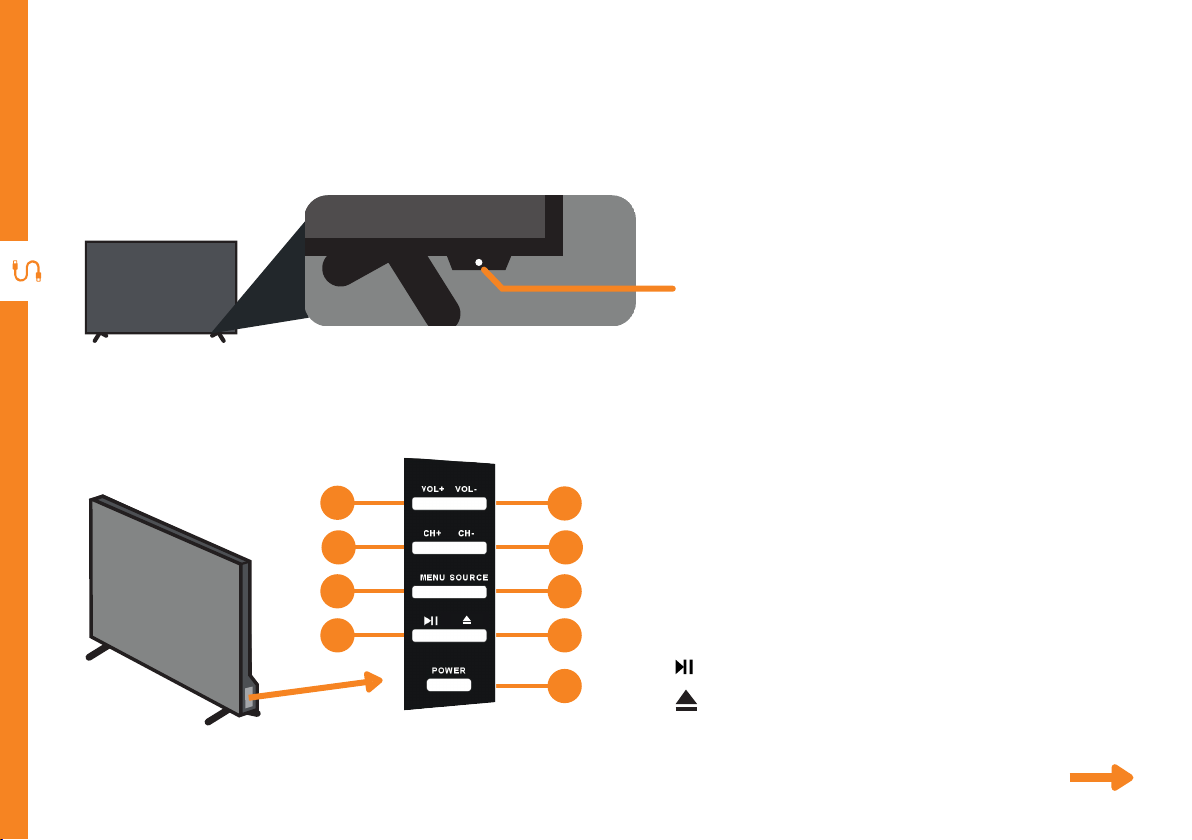

1. VOL + : Increase the volume level.

2. VOL - : Decrease the volume level.

3. CH + : Select the next channel.

4. CH - : Select the previous channel.

5. MENU : Enter the settings menu.

6. SOURCE : Change the input source.

7. : Play or pause playback.

8. (EJECT): Eject a disc from the DVD player.

9. POWER: Switch the TV ON or to Standby.

Controls and Connections

Buttons on the TV

Get to know your TV

On/Standby light and

Remote sensor
