Akira CMO-V270B1 Bedienungsanleitung

LCD TV

Service Manual

-2-

MODEL:

LCT-27KX1EST

Model No.: LCT-27KX1EST.doc

Version: 1.0

-3-

CONTENTS

SAFETY PRECAUTION .............................................................................................................4

SPECIFICATION ........................................................................................................................6

MAIN FEATURE .........................................................................................................................8

EXPLODED VIEW AND PART NAME........................................................................................9

CIRCUIT DIAGRAM .................................................................................................................11

REPLACEMENT PARTS ........................................................................................................35

INSTALLTION GUIDE .............................................................................................................44

TROUBLESHOOTING .............................................................................................................48

Model No.: LCT-27KX1EST.doc

Version: 1.0

-4-

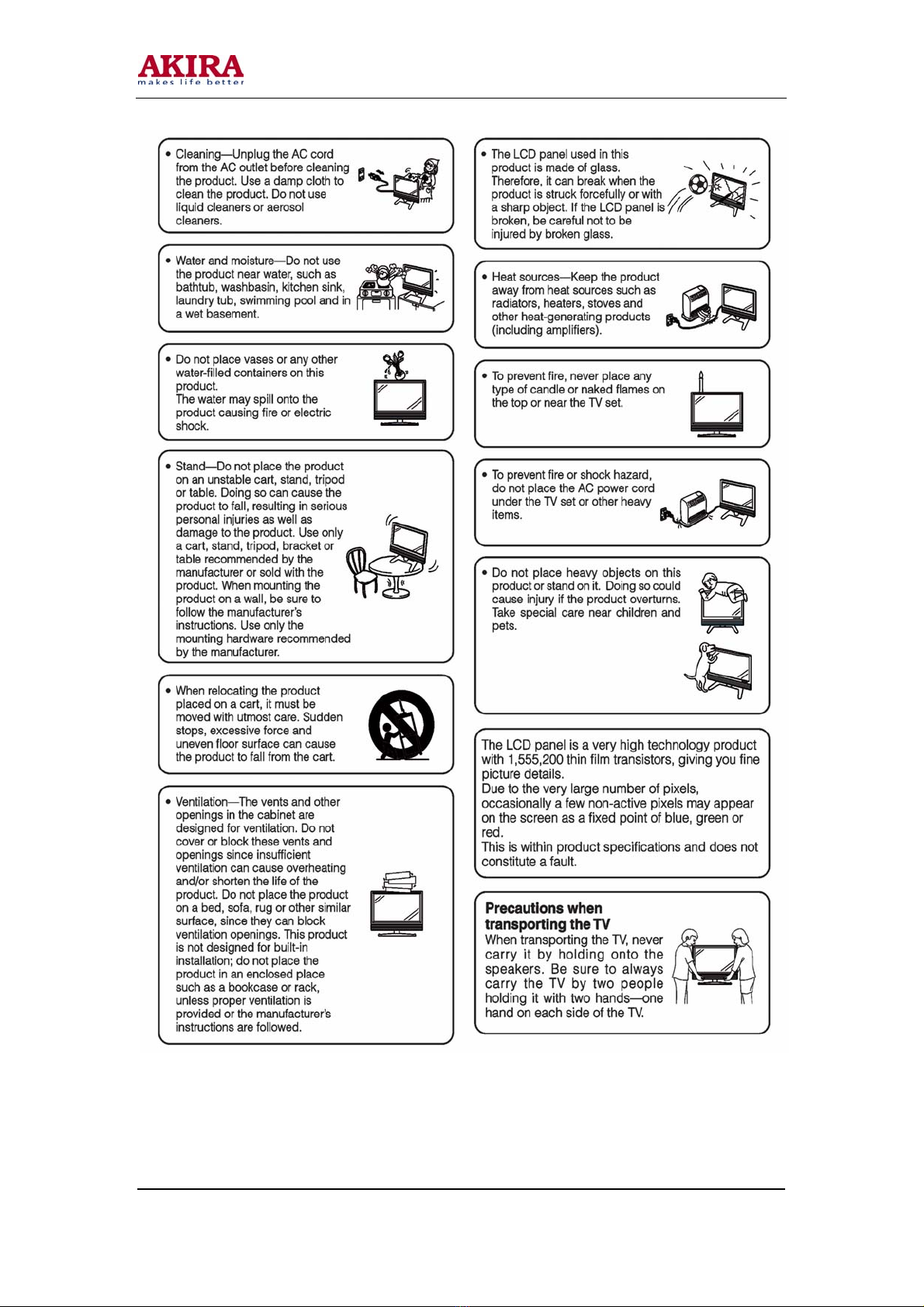

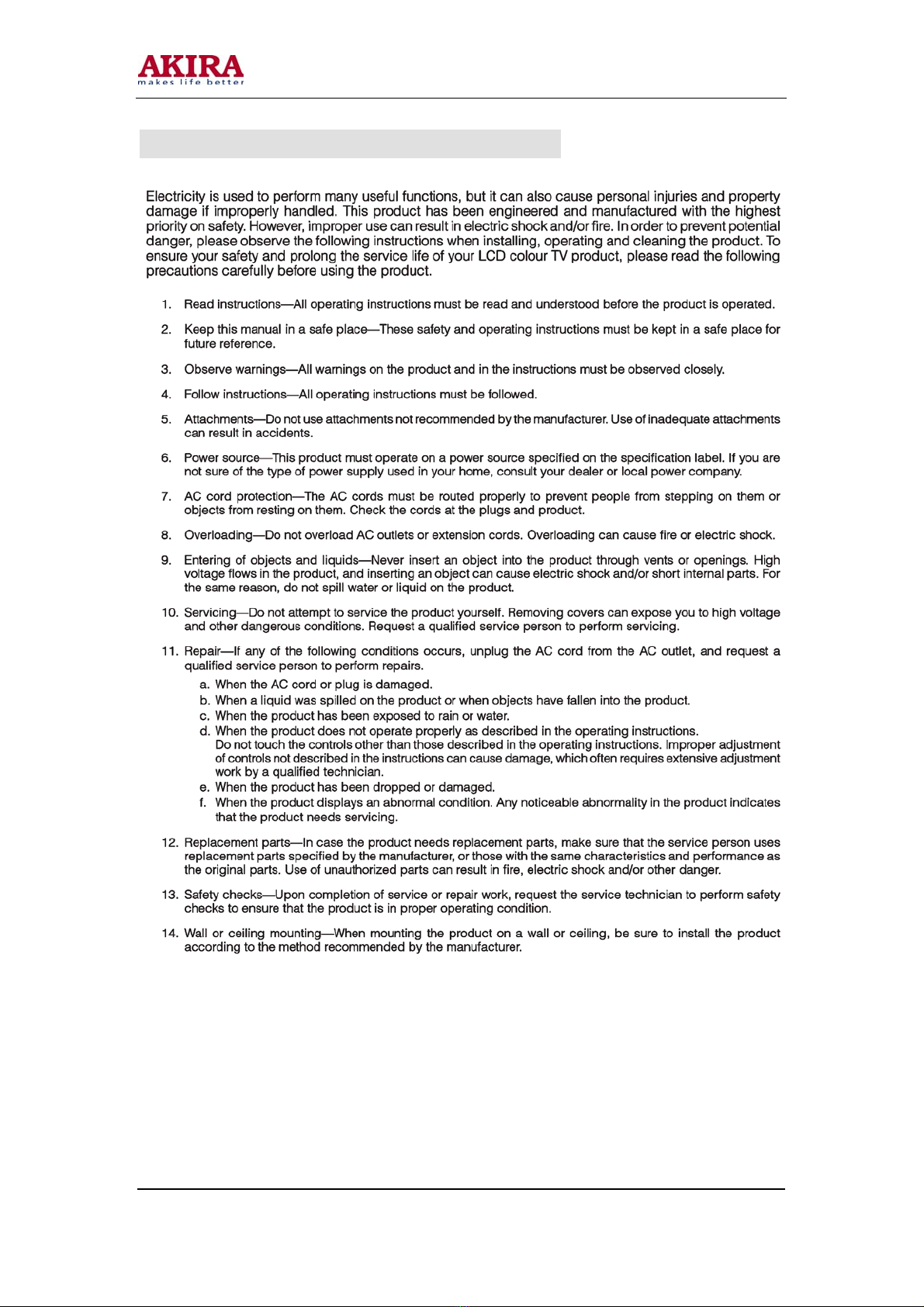

IMPORTANT SAFETY PRECAUTION

Model No.: LCT-27KX1EST.doc

Version: 1.0

-5-

Model No.: LCT-27KX1EST.doc

Version: 1.0

-6-

SPECIFICATION

PART I

POWER CONSUMPTION 200 Watt (Max)_

≤3 Watt (STBY)

TV RECEIVE SYSTEM PAL D/K, I ,B/G

VIDEO SYSTEM MULTI PAL / SECAM / NTSC

VISION INTERMEDIATE FREQUENCY 38.9MHz, 33.95MHz(L’)

5.5 MHz (B/G)

6.0 MHz (I)

6.5MHz (D/K,LL’)

5.85MHZ (NICAM B/G, D/K, L)

6.55 MHz (NICAM I )

INTER-CARRIER FREQUENCY

5.74 MHz (German Stereo )

BG/DK/L:34.47MHz

CHROMA IF FREQUENCY L” 38.38MHz

VHF-L 46.25 ~ 163.25MHz

VHF-H 158.25 ~ 466.25MHz

CHANNELS RECEIVED

UHF 471.25 ~ 855.25MHz

TUNNING MODE PLL SYSTEM

1 AV IN, 1 S-VIDEO IN

AV IN/OUT 21 PIN SCART IN / YCbCr

Y/C IN-Y: 1.0± 0.2Vp-p 75 Ω

C:0.7 VP-P 75Ω

VIDEO IN –-- 1.0±0.2Vp-p 75Ω

AUDIO IN --– Approx, 500mV

VIDEO OUT – 1.0±0.2Vp-p 75Ω

AV IN/OUT SPECIFICATION

RGB IN --------- 0.7 Vp-p

ANTENNA INPUT IMPEDNCE 75 OHM

ENGLISH / SPANISH / ITALIAN

OSD LANGUAGE RUSSIAN / GERMAN/ FRENCH

AUDIO OUTPUT POWER > 5Wx2 (1KHz, 0.5Vms, 10% THD)

GREEN -- POWER ON

LED INDICATORS RED -- STANDBY

HAND SET POWER SUPPLY BATTERY 1.5V (AAA) x 2

Model No.: LCT-27KX1EST.doc

Version: 1.0

-7-

PART II

MODEL CMO-V270B1

RESOLUTION 1366 x 768

DISPLYABLE COLOR 16.7MHz

SURFACE Hard Coating + Anti-Radiation

VIEWING ANGLE (H/V) 176º (H) / 176º (v)

DISPLAY RESPONSE TIME 8ms

CONTRAS RATION 1:800

BRIGNTNESS 500 nit

ASPECT 16:9

LAMP LIFE 50,000 Hrs

BAD PIXWL QUALITY ( BRIGHT / DARK / ALL) 2 / 6 / 8

Model No.: LCT-27KX1EST.doc

Version: 1.0

-8-

MAIN FEATURE

POWER SUPPLY: AC 100~240V 50 / 60Hz

MULTI SYSTEM: PAL BG / DK / I and SECAM BG / DK, LL’

MULTISTANDARD SOUND PROCESSORS: NICAM, FM-STEREO

MULTI VIDEO SYSTEM : PAL/NTSC/SECAM

VERSATILE INPUT SOURCES:TV,VIDEO,S-VIDEO,SCART

1,SCART 2, YcbCr / YPbPr, PC (ANALOG)

FULL FUNCTION REMOTE CONTROLLER

EXCELLENT SOUND EFFECT WITH VOLUME, TREBLE, BASS,

BALANCE, AVC ADJUSTABLE SMART SOUND & PICTURE

MODE: STANDARD, PERSONAL, BRIGHT, MILD

ADAPTIVE 2/4 LINE COMB FILTER FOR PAL/NTSC

AUTOMATICALLY TURN OFF THE SET WHEN SINGNAL

ABSENT LONGER IN VGA

10 PAGES TELETEXT

150 CHANNELS

BLUE SCREEN DISPLAY

SLEEP

SCREEN SIZE CHANGE

STANDBY

CHANNEL SWAP

Model No.: LCT-27KX1EST.doc

Version: 1.0

-9-

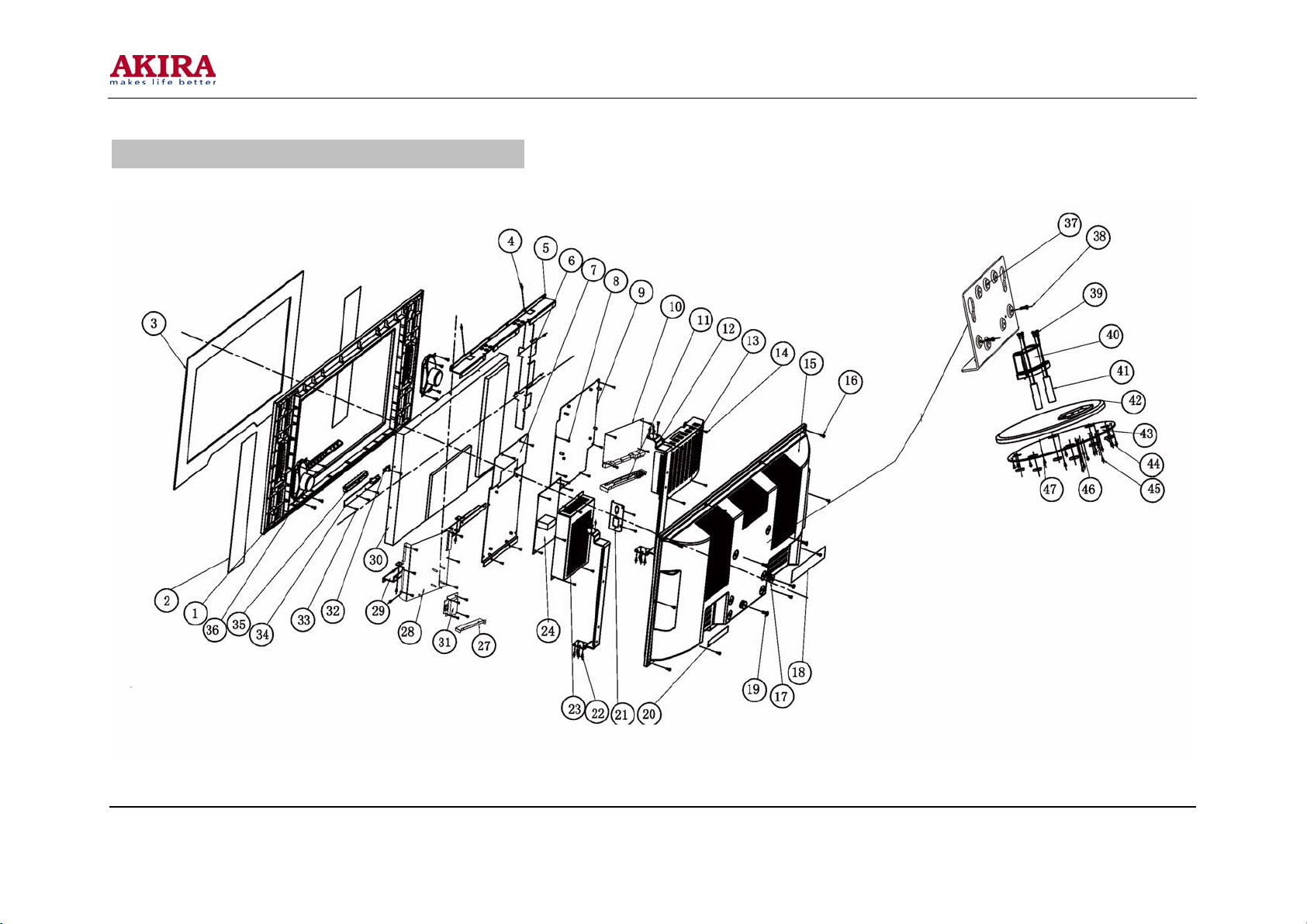

EXPLODED VIEW and PART NAME

Model No.: LCT-27KX1EST.doc

Version: 1.0

-10 -

No. PART CODE DESCRIPTION QTY

1 101E2701020A1P FRONT CABINET 1

2 101E270102005 DECORATING NET 2

3 110E270103B01P DECORATING SHEET 1

4 6020BMZ030050 MACHINE SCREW BM 3x5 12

5 305T2701040A1P TOP BRACKET FOR LCD 1

6 305T270104003 LEFT BRACKET FOR LCD 1

7 305E2701030B2P SUPPORT SHEET FOR POWER PCB 1

8 6020PWA030060 MACHINE SCREW WITH WASJER 4

9 305E2701030B3P SUPPORT SHEET FOR MAIN PCB 1

10 7536T2703003A ASSY FOR MAIN PCB 1

11 305E2701030B6P TERMINAL BRACKET FOR MAIN PCB (VDE) 1

12 305TETV270010 SUPPORT RIDGE 1

13 304T270103001 STEEL COVER FOR MAIN PCB 1

14 6020BMW030060 MACHINE SCREW 3 x 6 51

15 101E2701020B2P REAR CABINET 1

16 6020BTB040100 MACHINE SCREW BT4x10 29

17 305T30010013AP BRACKET RING 2

18 509L27KX00010P DECORATING SHEET WITH PVC 1

19 6020BMZ050120 MACHINE SCREW BM 5 x 12 4

20 509E270300010P DECORATING PVC FOR VOLUME PCB 1

21 305T270103008 JACKET BRACKET FOR INPUT POWER 1

22 6020KMB040080 MACHINE SCREW KM4 X 8 16

23 304T260100A30P COVER FOR POWER PCB 1

24 7506T26270A5F ASSY FOR POWER PCB 1

25 NIL

26 NIL

27 305T2701040B5P TERMINAL BRACKET FOR VOLUME PCB 1

28 305T2701040B4P RIGHT BRACKET FOR LCD 1

29 305T270104002 DOWN BRACKET FOR LCD 1

30 419V270B1L050P LCD PANEL 1

31 704T2703002A ASSY FOR TUNER PCB 1

32 110E320100002 TRANSPARENCE PART 4

33 6020BTW030080 SELF TAMPING SCREW BT3*8 5

34 7516T2703003A PCB DOWN FUNCTION KEY 1

35 107E2701020B2P FUNCTION KEY 1

36 4400000600830 SPEAKER 2

37 305TETV27002AP REAR SUPPORT 1

38 6020BMZ050200 MCAHINE SCREW BM5x20 2

39 6020BMB040120 MACHINE SCREW BM4x12 6

40 105E320100A30P DECORATING BRACKET 1

41 305T3201040A4P STEEL COLUMN 2

42 102E320102B02P BASE COVER 1

43 302E320102B01 SUPPORT STEEL FOR BASE 1

44 503T300100020 UNDERLAYER 6

45 6020KTB030100 SELF-SCREW KT3x10 (BLACK) 4

46 6020KMB040080 MACHINE SCREW KM4x8 (BLACK) 4

47 6020KTB040100 SELF SCREW KT4x10 (BLACK) 10

Model No.: LCT-27KX1EST.doc

Version: 1.0
