Akira CT-29TP9AS Bedienungsanleitung

Model No: CT-29TP9AS-5P60

Version 1.0

T-

-2

Model No: CT-29TP9AS-5P60

Version 1.0

CONTENT

SAFETY NOTICE ................................................................................................................................... 4

TECHNICAL SPECIFICATION ............................................................................................................. 5

GENERAL SPECIFICATION................................................................................................................. 6

CHASSIS BLOCK DIAGRAM ............................................................................................................... 7

CHASSIS WIRING DIAGRAM............................................................................................................ 17

PBC BOARD ......................................................................................................................................... 18

SERVICE ADJUSTMENT .................................................................................................................... 21

MECHANICAL DISASSEMBLY......................................................................................................... 30

SCHEMATIC DIAGRAM..................................................................................................................... 33

TROUBLE SHOOTING CHART.......................................................................................................... 34

Model No: CT-29TP9AS-5P60

Version 1.0

SAFETY NOTICE

SAFETY PRECAUTIONS

1. An isolation transformer should be connected in the power line between the receiver and the AC

line when a service is performed on the primary of the converter transformer of the set.

2. Comply with all caution and safety-related notes provided on the cabinet back, inside the cabinet,

on the chassis or the picture tube.

3. When replacing a chassis in the cabinet, always be certain that all the protective devices are

installed properly, such as control knobs, adjustment covers or shields, barriers, isolation resistor-

capacitor network etc. Before returning any television to the customer, the service technician must

be sure that it is completely safe to operate without danger of electrical shock.

X-RADIATION PRECAUTION

The primary source of X-RADIATION in television receiver is the picture tube. The picture tube is

specially constructed to limit X-RADIATION emissions. For continued X_RADIATION protection,

the replacement tube must be the same type as the original including suffix letter. Excessive high

voltage may produce potentially hazardous X-RADIATION. To avoid such hazards, the high voltage

must be maintained within specified limit. Refer to this service manual, high voltage must be

maintained within the specified limits.

PRODUCT SAFETY NOTICE

Product safety should be considered when a component replacement made in any area of a receiver.

Components indicated by mark ! in the parts list and the schematic diagram designate components in

which safety can be of special significance. It is particularly recommended that only parts designed on

the parts list in this manual be used for component replacement designated by mark !. No deviations

from resistance wattage or voltage ratings may be made for replacement items designated by mark !.

Model No: CT-29TP9AS-5P60

Version 1.0

TECHNICAL SPECIFICATION

FEATURES

• Hyper-Band Tuner

• 100-Channel Memories

• NTSC Playback

• Front or Side AV Input

• Rear AV Input/Output

• S-Video Input

• On-Screen display

• Sleep Timer

• Auto Search/Store/Shut-off

• Full Function Remote Control

• 8W x 2 speakers

• 685(W) x 493(D) x 702(H) mm

• Weight: 52kg

• Options

o DVD-Component Input

o Fastext

o MTS

o NICAM/German Stereo

o Wide Power Supply

Model No: CT-29TP9AS-5P60

Version 1.0

GENERAL SPECIFICATION

POWER CONSUMPTION 150W MAX

STANDBY POWER CONSUMPTION 5W

RECEIVER SYSTEM D/K; I; B/G; M

COLOUR SYSTEM PAL/ SECAM / NTSC

VISION INTERMEDIATE FREQUENCY 38.9MHz

4.5 MHz (M)

5.5 MHz (B/G)

6.0 MHz (I)

6.5 MHz (D/K)

5.85 MHz (NICAM B/G, D/K)

6.55 MHz (NICAM I)

INTER-CARRIER FREQUENCY

5.74 MHz (GERMAN STEREO)

CHROMA IF FREQUENCY PAL/NTSC 34.47 / 35.32 MHz

ANTENNA TYPE DIN TYPE 75 OHM

VHF-1 A-0; E2-E4; S1-S9 CH 44.25-161.25 MHz

VHF-2 S10-S41; E5-E12 CH 168.25-163.25MHz

CHANNELS RECEIVING

UHF E21-E69 CH 471.25-863.25 MHz

TUNING SYSTEM VS TUNING

1 AV IN+1 AV OUT; 1 FRONT AV INPUT

1 S-VIDEO IN, 1 YUV IN (OPTION);

AV IN/OUT

21 PIN SCART (OPTION)

Y/C IN-----y 1.0 0.2Vp-p 75 ohm c: 0.7Vp-p 75 ohm

VIDEO IN ----1.0 0.2Vp-p 75ohm

AUDIO IN ---- 0.2V (r.m.s)

VIDEO OUT ---- 1.0 0.2Vp-p 75ohm

AUDIO OUT ----0.2V (r.m.s)

RGB IN: -----0.7Vp-p

AV IN/OUT SPECIFICATION

YUV ---- Y 1.0Vp-p; U 0.7Vp-p; V 0.7Vp-p

OSD LANGUAGE ENGLISH, RUSSIAN, IRANIAN, ARABIC,

ITALIAN, TURKIC, GERMAN, FRANCE

TELETEXT LANGUAGE PAN-EUROPEAN, CYRILLIC 2, IRANIAN,

ARABIC

AUDIO OUTPUT POWER >5W (1KHz, 0.5v INPUT, 10% THD)

SAFETY AUTHENTICATION STANDARD CB/ CE

LED INDICATOR POWER ON

HAND SET TYPE HS08 HS09

HAND SET POWER SUPPLY BATTERY 3V UM-3/R6/AA x2

COLOUR PICTURE TUBE 25” – 38” 110 DEGREE TUBE

REMOTE CONTROL DISTANCE 5m

Model No: CT-29TP9AS-5P60

Version 1.0

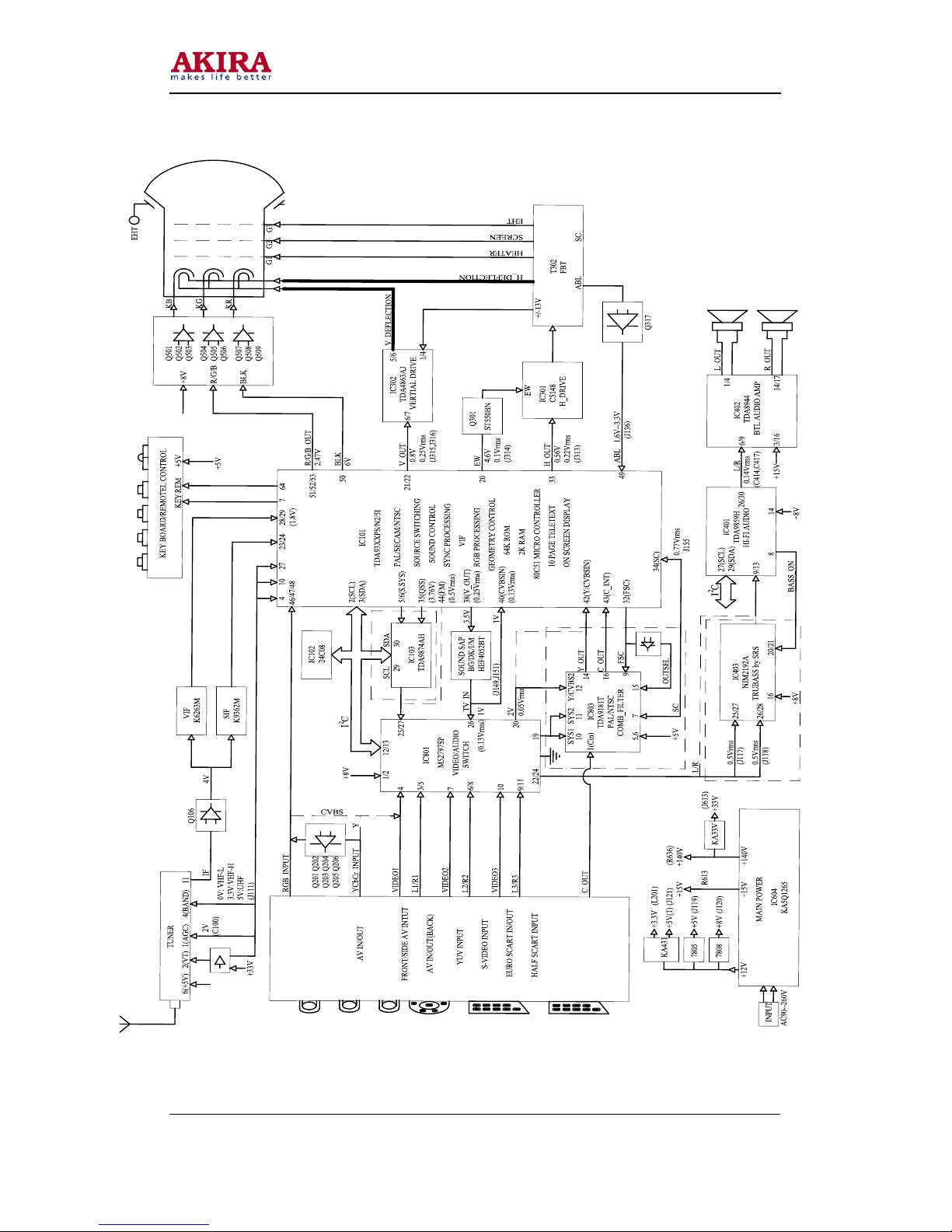

CHASSIS BLOCK DIAGRAM

Model No: CT-29TP9AS-5P60

Version 1.0

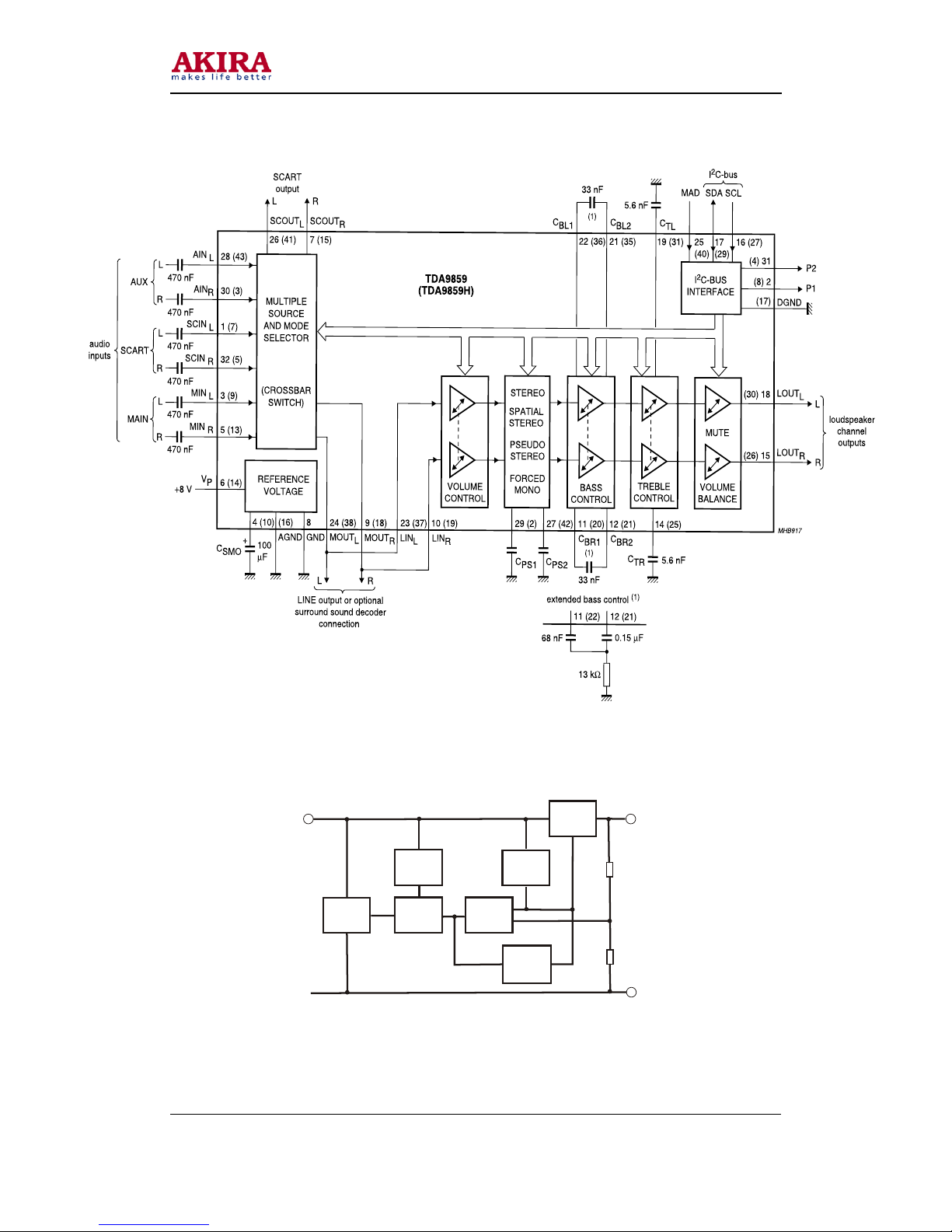

IC 401 (UNIVERSAL HI-FI AUDIO PROCESSOR) TDA9859H

IC605. IC606 <REGULATORS> L7800 SERIES

INPUT

OUTPUT

SERIES

PASS

ELEMENT

SOA

PROTECTION

REFERENCE

VOLTAGE

ERROR

AMPLIFIER

THERRMAL

PROTECTION

STARTING

CIRCUIT

CURRENT

GENERATOR

REFERENCE

VOLTAGE

GND

Model No: CT-29TP9AS-5P60

Version 1.0

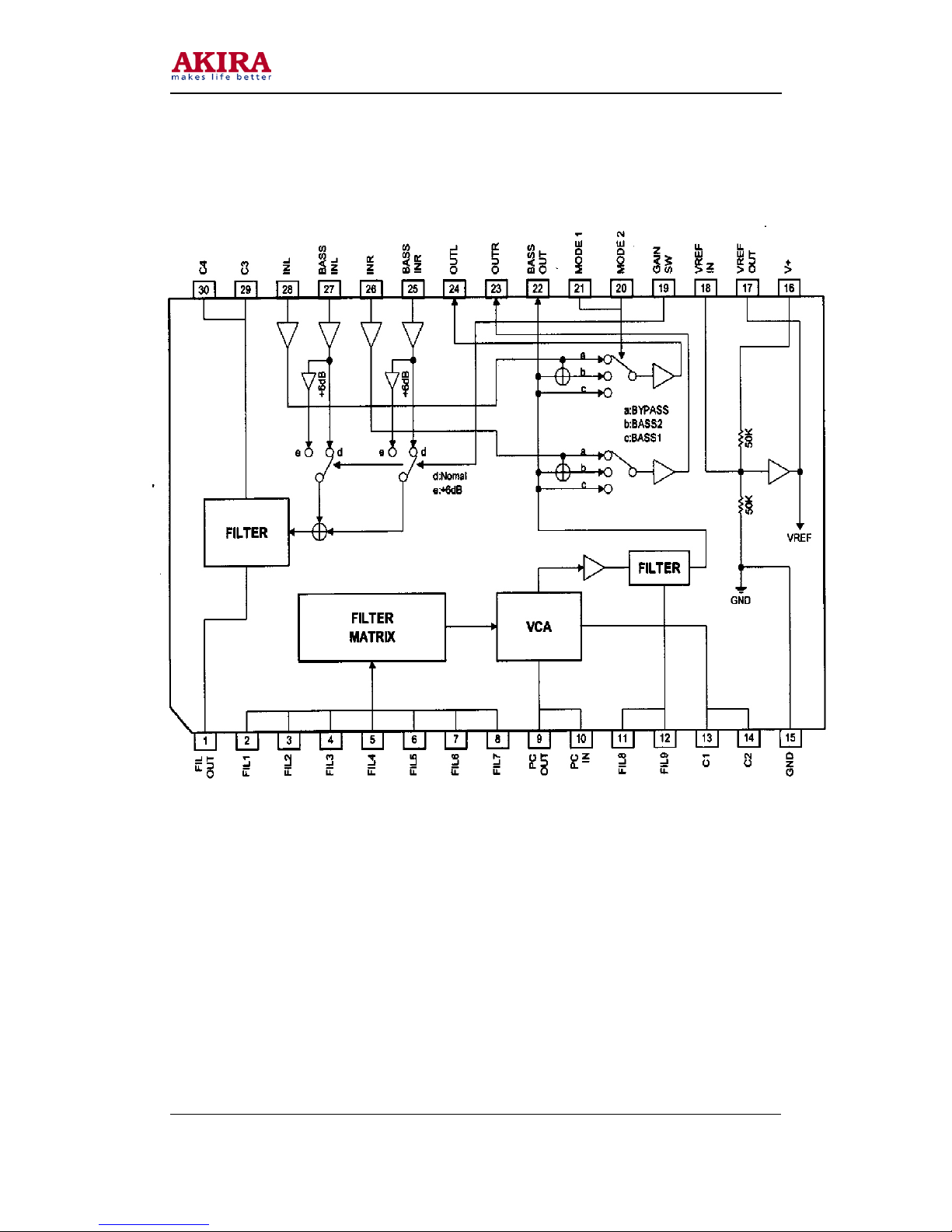

IC 402 (SRS TRUBASS) NJM2192 AM

Model No: CT-29TP9AS-5P60

Version 1.0

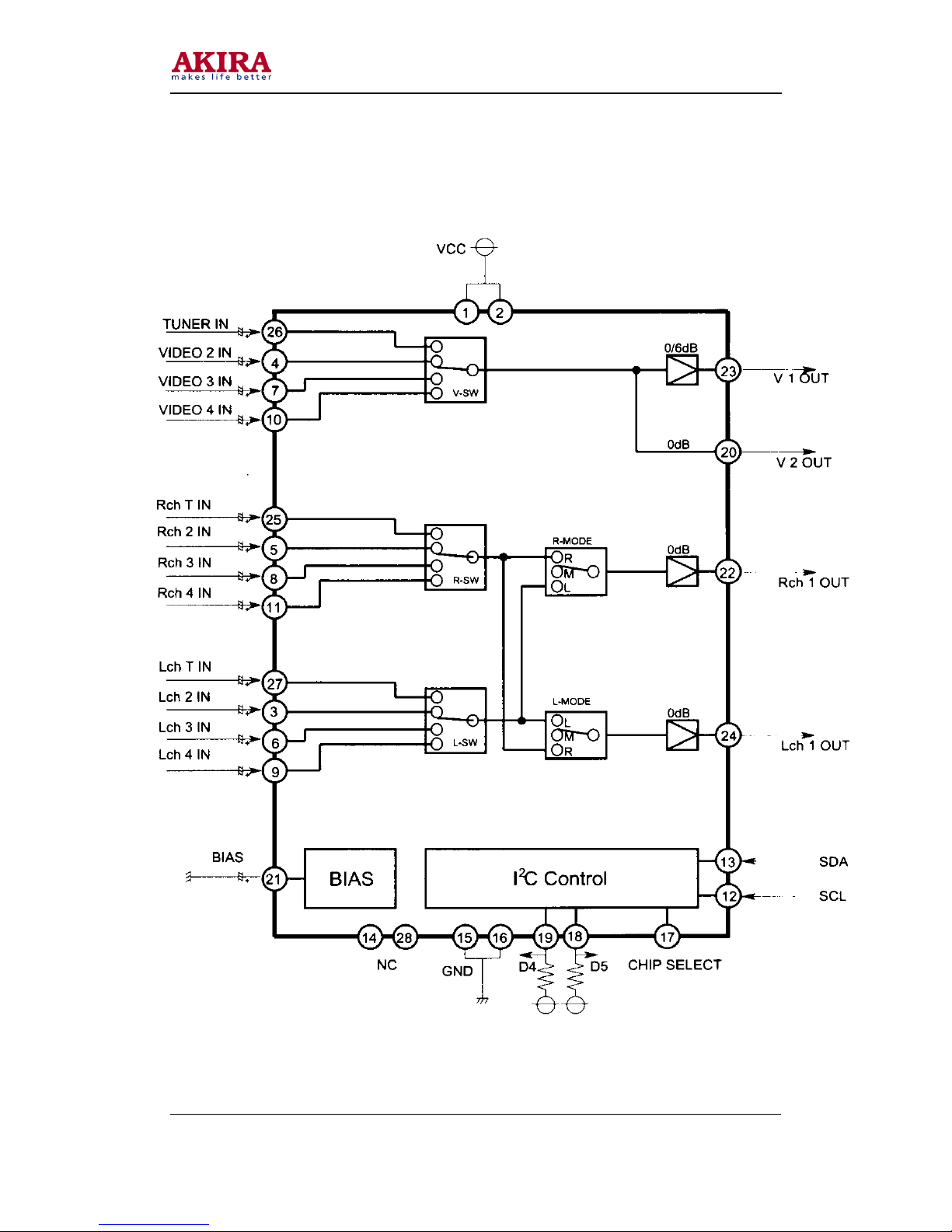

IC 401 (AV SWITCH W/IIC BUS CONTROL) M52797SP
