Akuvox C317A Bedienungsanleitung

Product Overview

Rear Panel

Loudspeaker

10 Pin Terminals

11 Pin Terminals

Network Interface（POE）

RJ45 Interface

Loudspeaker

Plastic wall anchors x 4 ST4x20 screw x 4 M4x30 screw x 4

M3x10.5 screw x 1 Allen Wrench x 1

Wall bracket x 110 Pin cable x 1 11 Pin cable x 1

C317X x 1

M3x6 screw x 1

Camera (Optional)

Touch Screen

MIC

Micro SD slot

Right SideFront Panel

C317X

Without embedded box in the wall

According to the position

of the cable in the wall,

dig out a square

hole(height*width*depth

=66*50*50 mm) that can

accommodate all cables.

Align the square holes of

the wall bracket with the

holes previously dug,

and then mark the four

fixing holes of the wall

bracket on the wall.

Once the fixing holes

were made, insert plastic

wall anchors provided.

Take down the bracket

and drill the four marked

fixing holes on the wall

(5 mm drill bit required).

Twist M3x10.5 screw into the bottom hole of the

bracket until the tail of which align to the edge. Then

fix the wall bracket on the wall with four ST4x20

screws. If there is a ground wire to be connected,

use M3x6 screw to fix it on the wall bracket.

With embedded box in the wall

Make sure all cables in

the embedded box .

Twist M3x10.5 screw into the

bottom hole of the wall

bracket until the tail of which

align to the edge. Then fix

the wall bracket on the wall

with two/four M4x30 screws.

If there is a ground wire to be

connected , use M3x6 screw

to fix it on the wall bracket.

Step 1: Wall Bracket Installaon

1 2

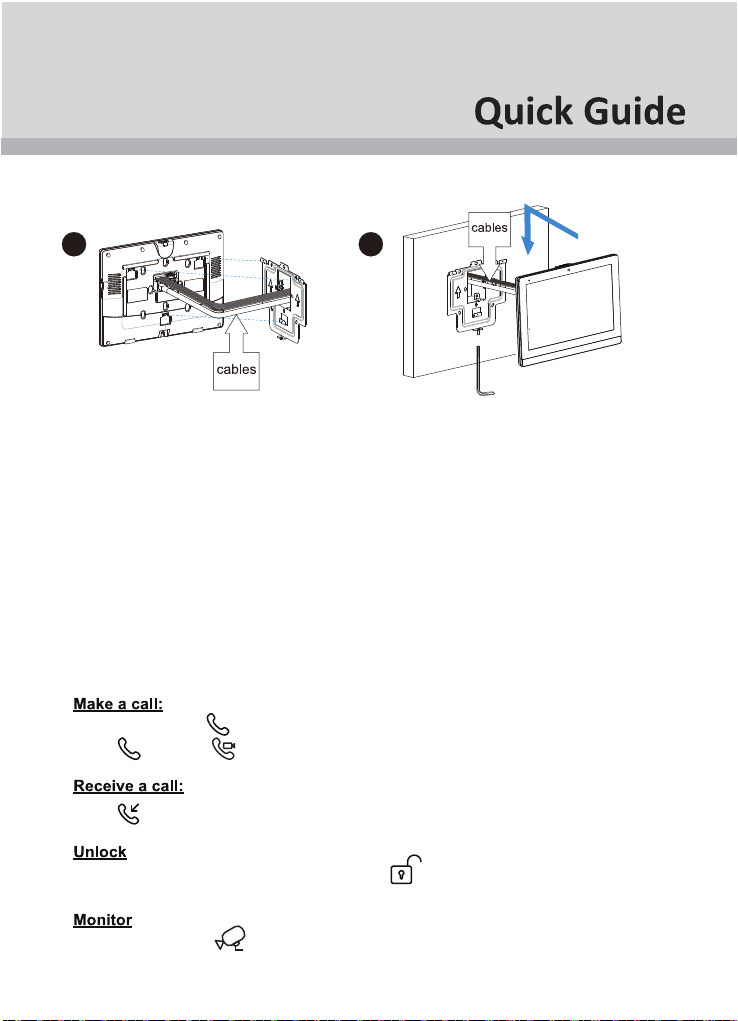

Step 2: Device Mounng

Connect the cables to device. Push down to fix the device securely. Use the Allen

wrench to tighten the device with one M3x10.5 screw.

Conﬁguraon

Operaon

1.Access basic information: After setting up network and power, enter More -> System Info to

check Account, Network,Version status.

2.Access the Website: Launch a browser and type in the IP address then enter the username and

password to login.(username/password: admin /admin by default)

3.Account Registration: On web UI, go to the path: Account -> Basic page to fill in the account

information,click Submit to confirm.(Please refer to user manual for more information)

Press Intercom icon , enter the callee’s number or room address, then choose

Audio or Video mode to make out.

Press on the incoming interface to pickup the incoming call.

During the talk, called party can press Unlock Key on the talking interface to unlock the door.

Press Live View icon to receive the video from the IPC any time.

1 2

C317X

AKUVOX (XIAMEN) NETWORKS CO., LTD.

ADD: 10/F, NO.56 GUANRI ROAD, SOFTWARE PARK II, XIAMEN 361009, CHINA

www.akuvox.com

Device Wiring
