Akuvox C313X Bedienungsanleitung

C313X

Quick Guide

Unpacking

Please make sure the package contains the following items:

Screw fixing seat x 2

ST4X20 screw x 2

10 Pin cable x 1

11 Pin cable x 1

Wall bracket x 1

C313X x 1

M4X30 screw x 2

C313X

Front Panel

Touch Screen

Product Overview

MIC

C313X

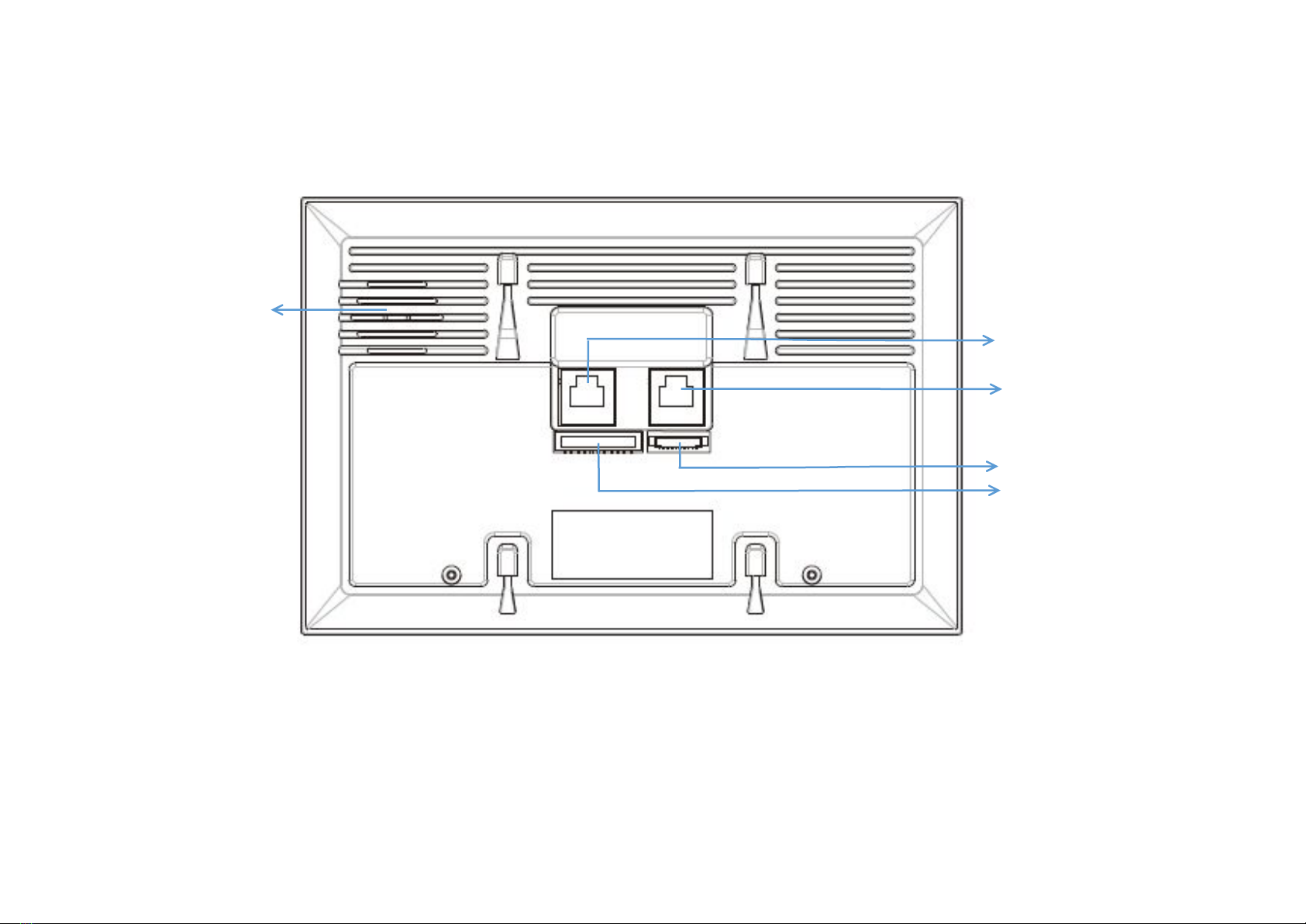

Rear Panel

RJ45 Interface

10 Pin Terminals

Loudspeaker

Network Interface（Power in）

11 Pin Terminals

C313X

Installation

Mark two fixation holes through

wall bracket on the wall,the

distance between which is

60mm. Make sure the all cables

can be passed from the middle

of wall bracket.

Take down the bracket,

then using a 5mm hand drill

to make the two fixation

holes on the wall you

marked before.

Once the fixation holes are

made, insert the two screw

fixing seats provided.

Use two ST4X20 screws to fix

the wall bracket on the wall.

Without 86 embedded box in the wall

C313X

Device Mounting

Push down to fix the

device securely.

With 86 embedded box in the wall

Make sure all cables in

the 86 embedded box.

Fix the wall bracket on the

86 embedded box with

two M4X30 screws.

C313X

Configuration

Operation

1. After setting up network and power, press Status icon to check IP address (DHCP by default).

2. Launch web browser and type in the IP address to access web interface, login with username and password.(admin by default).

3. Register the device with your SIP account.(please refer to user manual for more information).

Make a call

Press Intercom key , enter the callee’s number or room address , then choose Audio or Video

mode to call out.

Receive a call

When receiving a video call, users can choose Audio or Video mode to answer. However, if there is an

audio call, users can only press Audio mode to pick up.

C313X

Unlock

During the talk, press the Open Door key in talking interface to unlock the door.

Monitor

Press Monitor key to receive the video from indoor IPC or community IPC any time.

SOS

Press SOS key in case of an emergency.
