Akw 28403 Bedienungsanleitung
Rise and Fall
Cistern Unit
INSTALLATION & USER GUIDE
Read all instructions before installation and leave this document with the end user for future
reference as it contains important warranty information and how to register the product warranty.
Stock Code
28403
General: 01905 823 298 | www.akw-ltd.co.uk
2

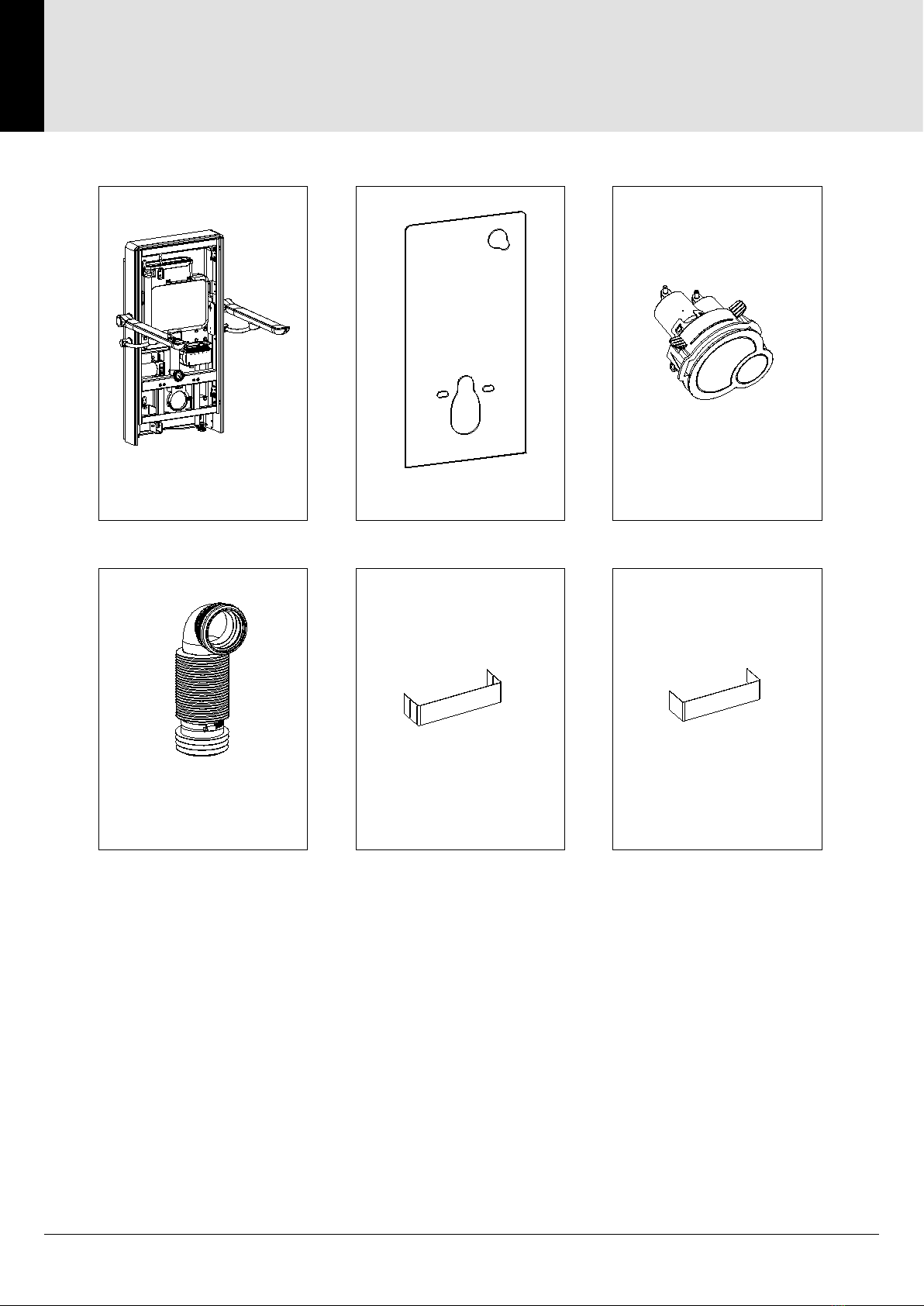

CONTENTS
Contents
User Functions ........................................................................................................................................................3
Contents ..............................................................................................................................................................4-5
...........................................................................................................................................6
Dimensions..............................................................................................................................................................7
Important Safety Information.............................................................................................................................8-9
Site Positioning..................................................................................................................................................... 10
Installation - Preparation................................................................................................................................ 11-12
Installation - Fixing ......................................................................................................................................... 13-15
Installation - Waste Outlet ................................................................................................................................... 16
Option 1: Standard Toilet Installation............................................................................................................ 17-18
Option 2: AKW Bidet Installation ................................................................................................................... 19-20
Installation - Covers, Panels, Hoses.............................................................................................................. 20-24
Option 2: AKW Bidet and Wall Hung Pan Installation ....................................................................................... 25
Troubleshooting Guide......................................................................................................................................... 26
User Care .............................................................................................................................................................. 27
Contact Us............................................................................................................................................................ 28
Technical Support: 01905 560 219Order: 01905 823 299 |orders.akw-ltd.co.uk
3

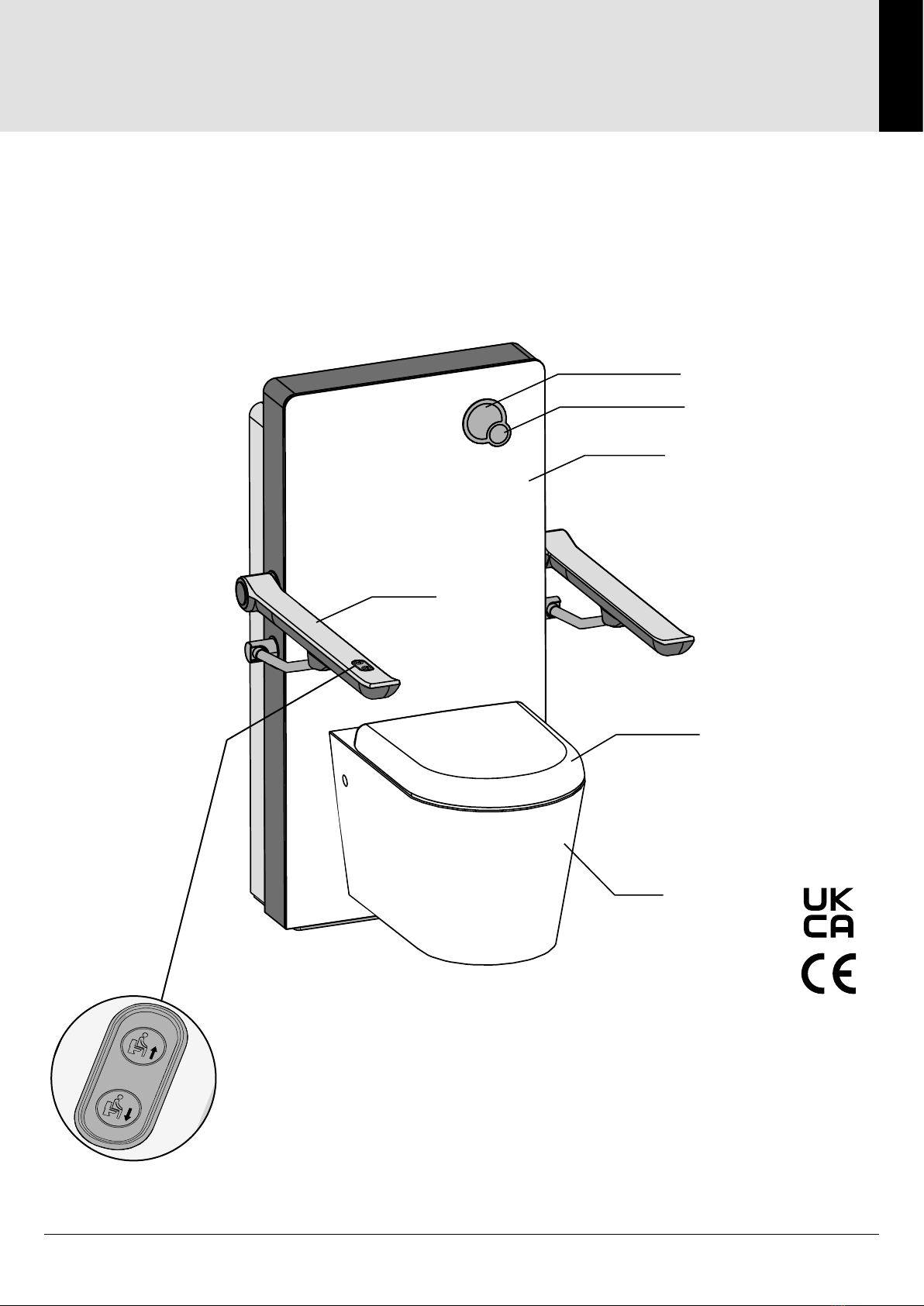

Overview
OVERVIEW
Toilet seat
Toilet
Glass panel
Half Flush button
Armrest
Full Flush button
Rise and fall operation
Press and hold the up or down button to raise or lower the unit.
Release the button to stop. The unit has 200 mm of vertical travel.
Flush operation
Armrests can be rotated up 90 degrees.
NOTICE: The toilet and the toilet seat are not part of the appliance, they should be
purchased separately. Also suitable with the AKW Bidet seat.
General: 01905 823 298 | www.akw-ltd.co.uk
4
CONTENTS
Contents
Rise and Fall Cistern unit Glass panel Flush button
Flexible drain pipe Exterior cover panel Interior cover panel
Technical Support: 01905 560 219Order: 01905 823 299 |orders.akw-ltd.co.uk
5
Contents
CONTENTS

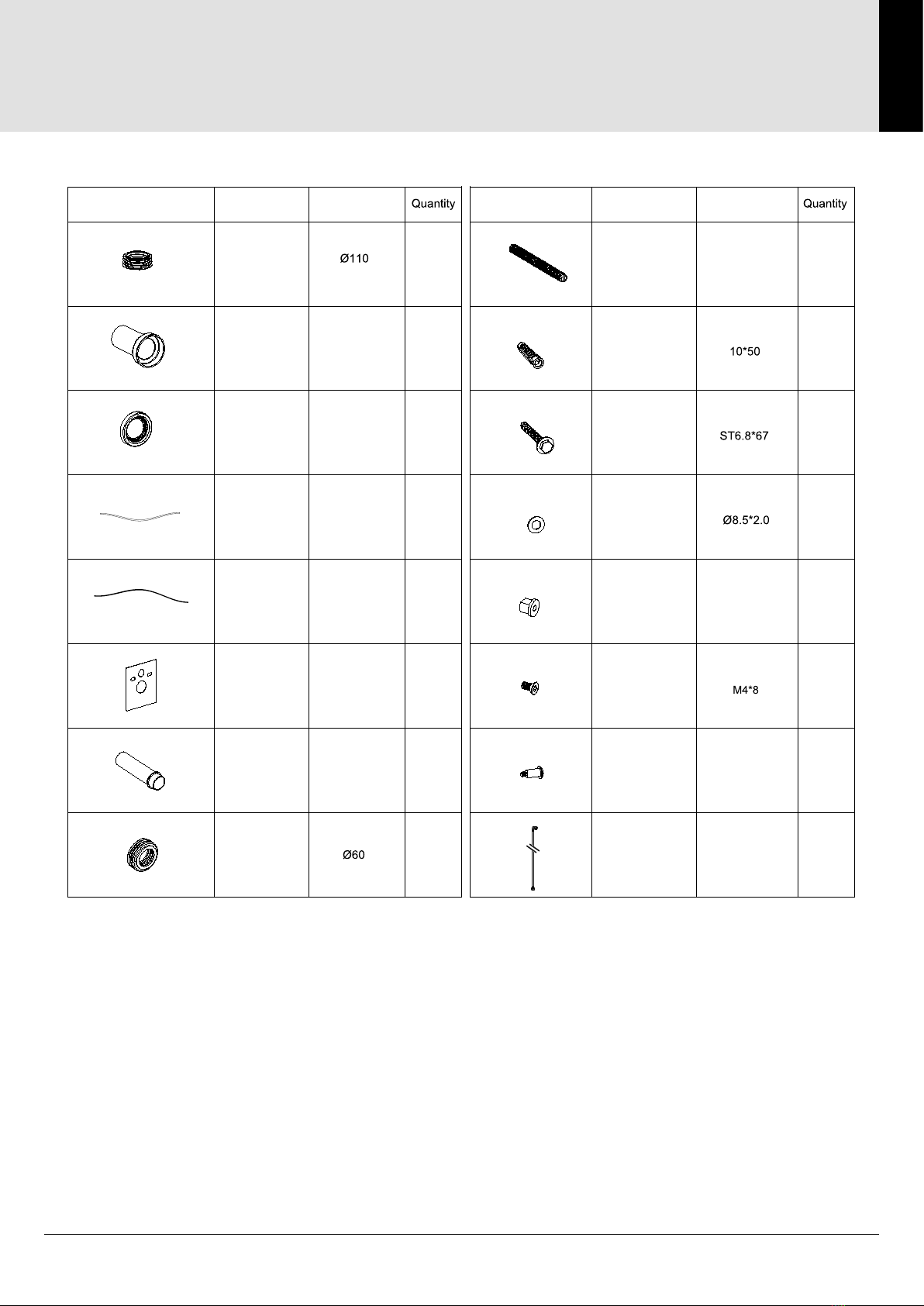

Specification
Names
Item list NamesItem List Specifications
Soil pipe
gasket
Clear full
flushing
air hose
Blue half
flushing
air hose
Rubber
protective
cover
Flush pipe
Flush pipe
gasket
Flush pipe seal
Straight waste
pipe
Bolt
1
1
1
1
1
1
1
1
4
2
white
M12*180
Wall Fixings 4
Wall
fixings screw
4
Fixing nut
Countersunk head
screw
Washer
Extention
G1/2 Flexible
Hose
Screw
4
2
2
M4
2
1.2 m
M4
Bill of material
General: 01905 823 298 | www.akw-ltd.co.uk
6
Specification Description
Model L003P-000-W01
Product name Rise and Fall Cistern Unit
Flush volume 6L(full flush) and reduced flush
Lift direction Vertical lift
Rated voltage AC 220-240V,50/60Hz
Max. power 200 W
Drive mode DC motor lead screw
Duty cycle 10%, Max.2 min operate/Min.18min stop
Operation switch Push-button switch
Adjustable lifting range 200 mm
Length of power cord 2.0 m
Max. load weight 200 kg
Max. load weight each arm rest 120 Kg
Waterproof rating IPX4
Ambient temperature 4~40C
Drainage direction Wall and floor drainage
Dimension H:1099xW:543xD:212mm
Net weight 55.9 kg
Colour of glass panel White
Technical Support: 01905 560 219Order: 01905 823 299 |orders.akw-ltd.co.uk
7

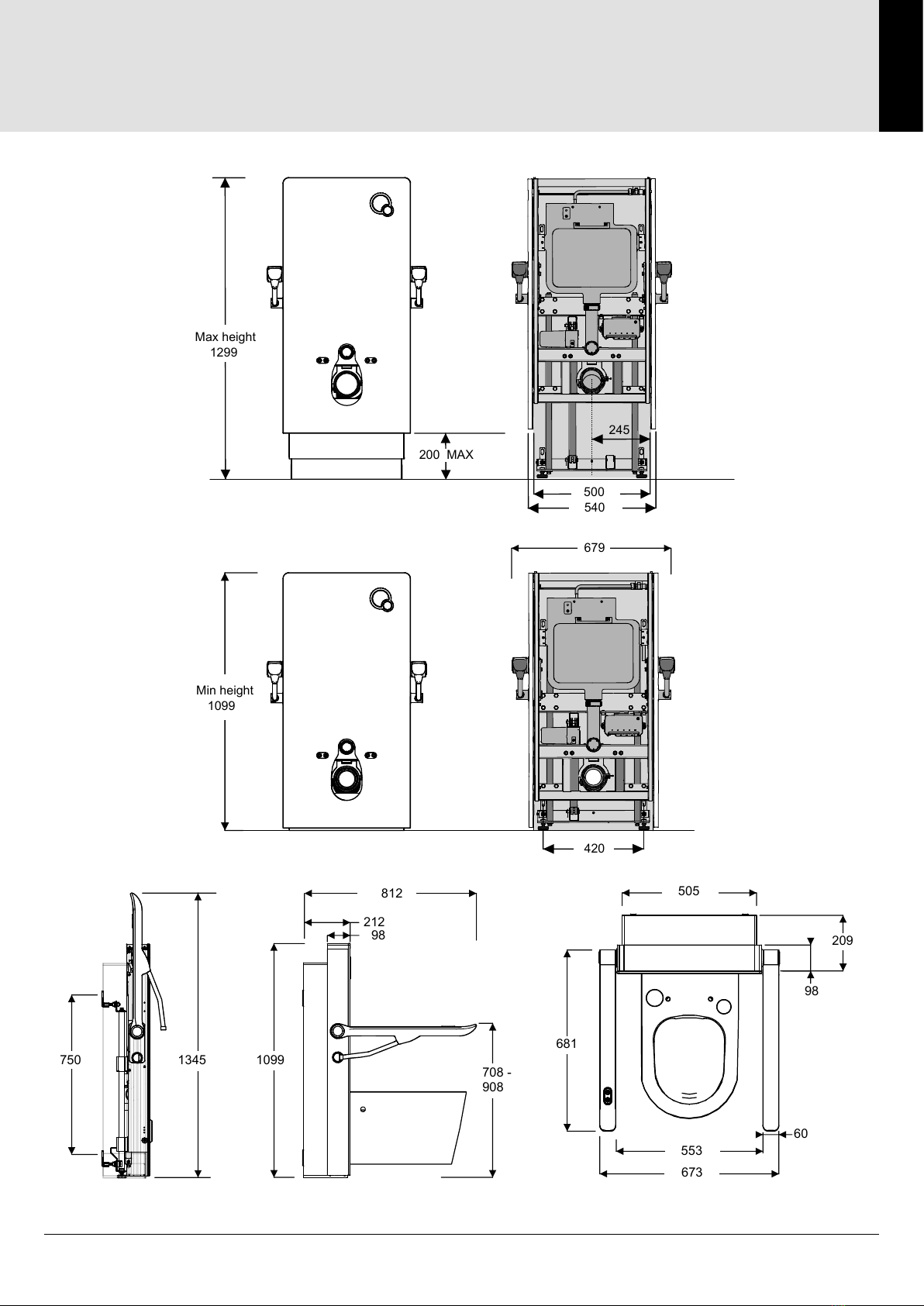

Dimensions
DIMENSIONS
98
212
1099
708 -
908
750
1345
812
681
60
673
553
505
98
209
245
540
500
200 MAX
679
Max height
1299
Min height
1099
420
*Dimensions in mm
General: 01905 823 298 | www.akw-ltd.co.uk
8
IMPORTANT SAFETY INFORMATION
Important Safety Information
Before you start
Remove all protective packaging and carefully remove the product. Notify the retailer immediately
of any damage or faults. The manufacturer cannot be held responsible for any installation costs
that may arise from damaged or faulty products being installed and not in accordance with these
instructions. Dispose of all packaging in accordance with the local recycling authorities.
Safety
Installation of this appliance must be carried out in accordance with these instructions by
a competent and experienced installer. The supplier is not liable for any loss arising from
the failure to comply with the following instructions.
• Handle this product with care. This product is heavy and will require two people to carry.
• Have the correct tools available.
•
• Use safety eye wear when drilling.
• Keep small parts and packaging away from children.
• Isolate the electrical and water supplies before commencing installation. The electricity must be
isolated at the consumer unit.
• This equipment is “Class 1” type electrical appliance, and must be Earthed. If the power supply
avoid a hazard.
• Do not install this appliance in areas of high humidity, high temperatures, or where it can be easily
splashed, e.g. a steam room.
• Ensure that an extractor fan is installed to aid good ventilation when using the bathroom.
• The appliance must be permanently connected to a wired mains power supply and not plugged
into a electrical socket or connected to a lighting circuit.
• The appliance must be permanently connected to the cold water supply with an isolating valve.
• Do not switch on the appliance if water is leaking from the casing. Isolate the electricity supply
immediately and then isolate the water supply.
• This appliance can be used by children aged from 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge if they have been
given supervision or instruction by a person responsible for their safety and shown how to use
the appliance in a safe way and understand the hazards involved.
• Children must not play with the appliance. Cleaning and user maintenance must not be undertaken
by children.
• For safety, people heavier than 200 kg must not use this appliance.
Technical Support: 01905 560 219Order: 01905 823 299 |orders.akw-ltd.co.uk
9
Important Safety Information
IMPORTANT SAFETY INFORMATION
CAUTION
• This product is heavy, get someone to help move and install this product.
• Carefully remove the glass panel from the packaging and place it to one side.
•
packaging during installation.
• Connect the cistern only to the cold water supply.
• Do not operate if the power cable is damaged.
• After the installation, check all water supply connections for leaks.
• Rubber washers should be in place for the water connection hoses and .
• Ensure that the user is familiar with the operation of the rise and fall mechanism and leave
this manual with the owner.
• Do not stand with feet under the unit when in operation. Ensure that no objects are placed
under the unit that could get trapped when lowered.
• When this appliance has reached the end of its serviceable life, it should be disposed of in
a safe manner in accordance with current local authority recycling or waste disposal policy.

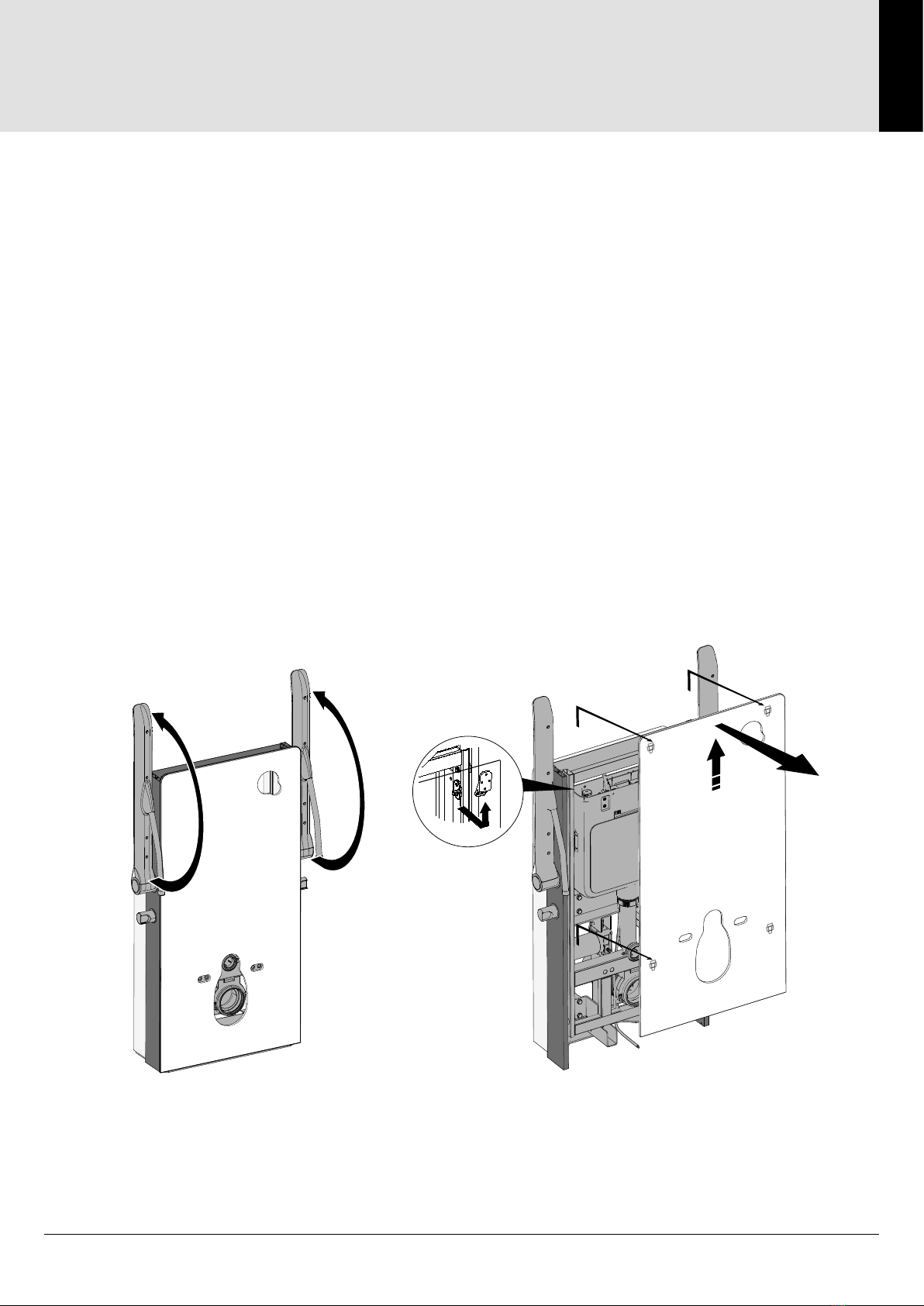

Note: support arms move independently. Carefully remove the glass panel
installation steps.
General: 01905 823 298 | www.akw-ltd.co.uk
10

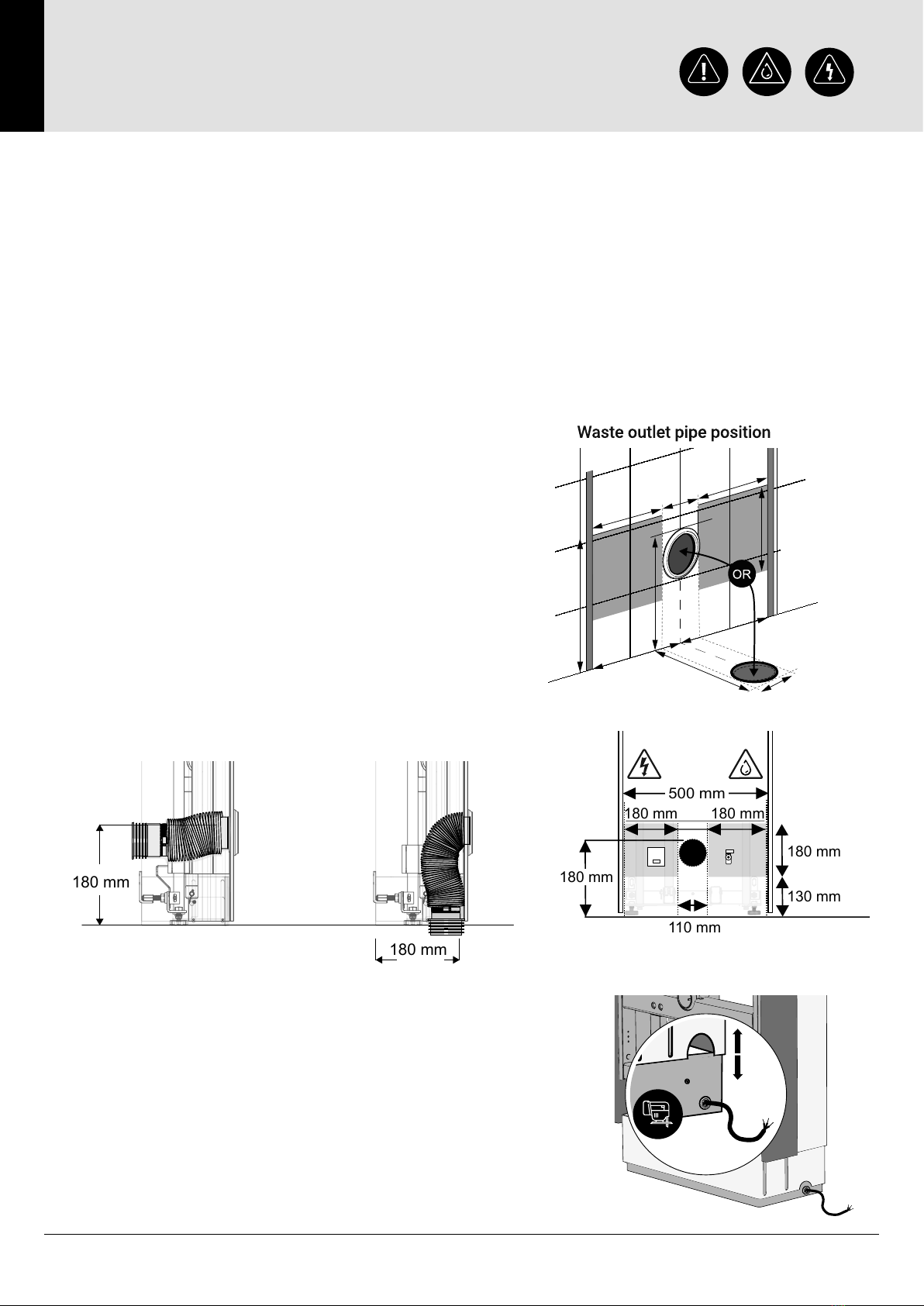

SITE POSITIONING
Site Positioning
Important! Before installation, isolate the water and electrical supplies. Ensure that the installation
complies with the latest wiring regulations, and is situated away from any wet areas such as a
cause damage during installation.
outlet pipe is attached to the soil outlet pipe with the supplied gaskets and clamps. This allows the
Measure and install all the necessary pipework and
electrical services prior to installing the rise and fall
cistern unit on the wall.
For new build installations, the power socket, isolation
valve and outlet waste pipe should all be installed
within the rise and fall covers but they must not
interfere with the rise and fall operation. Ensure that
the services are installed within 180 mm either side
shown in grey areas.
Modify entry points
Alternatively, for existing toilet installations, side entry may be the
only access to the rise and fall unit. There may be no electrical
supply on the intended wall surface and the isolated water supply
cut the external covers. This will allow for the long power cable to
reach an alternative connection in accordance to the latest wiring
regulations.
500 mm
180 mm
110 mm
180 mm
130 mm
180 mm
180 mm
L
13
Wall or
floor exits
24
0
m
m
18
0
m
m
180
m
m
24
0
m
m
300 mm
180 mm
180 mm ±25
180 mm ±
2
5
Ø
1
0
0-1
1
0
m
m
180 mm
180 mm
Through wall
Installation
Through oor
Installation
