AL Tech AE-L-ALAS-35 Bedienungsanleitung
Specifications
Model Number
AE-L-ALAS-35
AE-L-ALAS-50
AE-L-ALAS-80
AE-L-ALAS-100
AE-L-ALAS-120
AE-L-ALAS-150
DLC #
U-ARALS-35
U-ARALS-50
U-ARALS-80
U-ARALS-100
U-ARALS-120
U-ARALS-150
DLC Partner
Ultron Industries
Input Wattage
35W
50W
80W
100W
120W
150W
Replacement Wattage
175W MH
250W MH
375W MH
500W MH
600W MH
750W MH
Input Voltage Range
100-277V
Delivered Lumens
4800 lm
7000 lm
11000 lm
12212 lm
15700 lm
19500 lm
Lumen Efficiency
133 lm/w
Color Rendering Index (CRI)
80+
Color Temperature (Kelvin)
3000K-5700K
Beam Angle
120°
Power Factor
0.99
Frequency
50/60Hz
MAX THD (%)
15
Min. Ambient Temp
-30.0°F / -34.4℃
Max. Ambient Temp
130.0°F / 48.9℃
Driver Manufacturer
Mean Well
Chip Manufacturer
Phillips
IP Rating
IP65
Dimming Compatible
3 in 1 dimming function (1˜10Vdc or PWM signal or resistance)
Product Weight
9.0LBS / 4.1KG
Product Height
3.9in / 100mm
Product Length
13.0in / 332mm
Product Width
9.1in / 233mm
Lens
PC
Materials
Die Cast Aluminum
Finish
Black (Default)
LM70 Life Time
100,000 Hours
UL/cUL
E481056
DesignLights Consortium®
YES
CE
YES
FCC
YES
Warranty
10 Years
"
/63

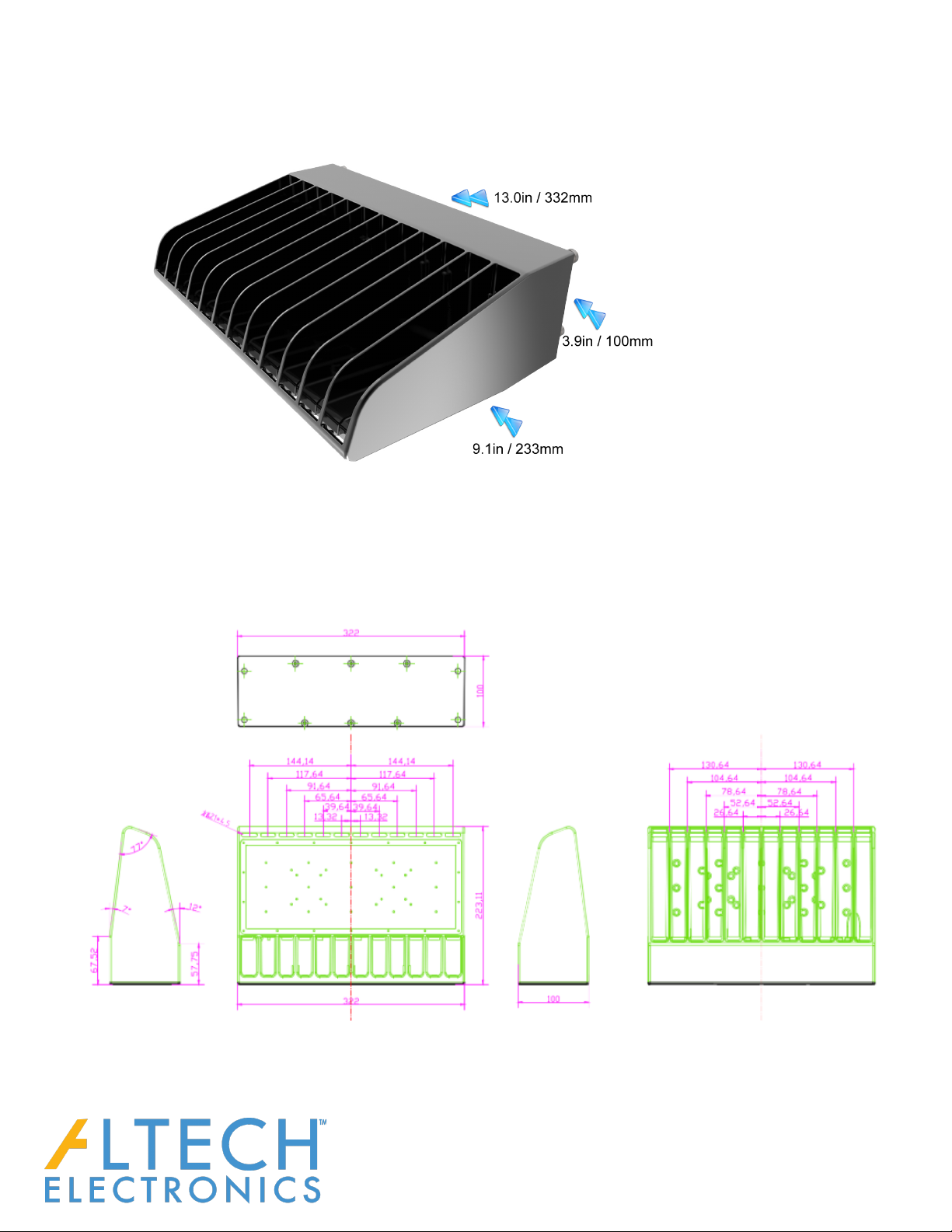

Dimensions
Ultron Industries Corp.
/3 3
Dimensions
User Guide
Note:
Please read this entire manual to fully understand and safely use this fixture. The
products can be used at the voltage of 100-277V AC, 50/60HZ, suitable for indoor and
outdoor, moisture proof and dust proof applications. Specifications are subject to
change without notice. Please visit www.altechefficiency.com for the most recent
product information.
Unpacking:
1. Unpack and carefully examine the product to make sure all of the materials are
included.
2. if any part(s) were damaged during shipping, please contact us immediately and
save all packing materials
3. DO NOT ATTEMPT TO USE THE FIXTURE IF IT IS DAMAGED IN ANY WAY.
Before You install:
1. Before installing any light fixtures, carefully read and understand all of the installation
instructions and product labels as well as all advisories and warnings. Failure to do
so can result in injury and/or void the warranty.
2. CONSULT A QUALIFIED ELECTRICIAN TO ENSURE THE PROPER
INSTALLATION OF ALL FIXTURES.
3. The product should be installed and operated in accordance with ALL relevant local
codes.
4. There is risk of electric shock. Ensure that main power source is off when wiring any
fixtures.
Maintenance:
1. This fixture is designed for years with minimum care. For optimum performance,
periodically clean the lens with a mild, non abrasive glass cleaner and soft cloth. DO
NOT use solvents or cleaners containing abrasive agents. When cleaning the fixture,
make sure you have the power turned off and do not spray liquid cleaner directly
onto the LED chips, board or wiring.
2. Disconnect the product from the power supply prior to cleaning.
3. Use a dry or slightly moistened cloth for cleaning.
4. Never use any chemicals or abrasive materials on fixture or components.
5/6

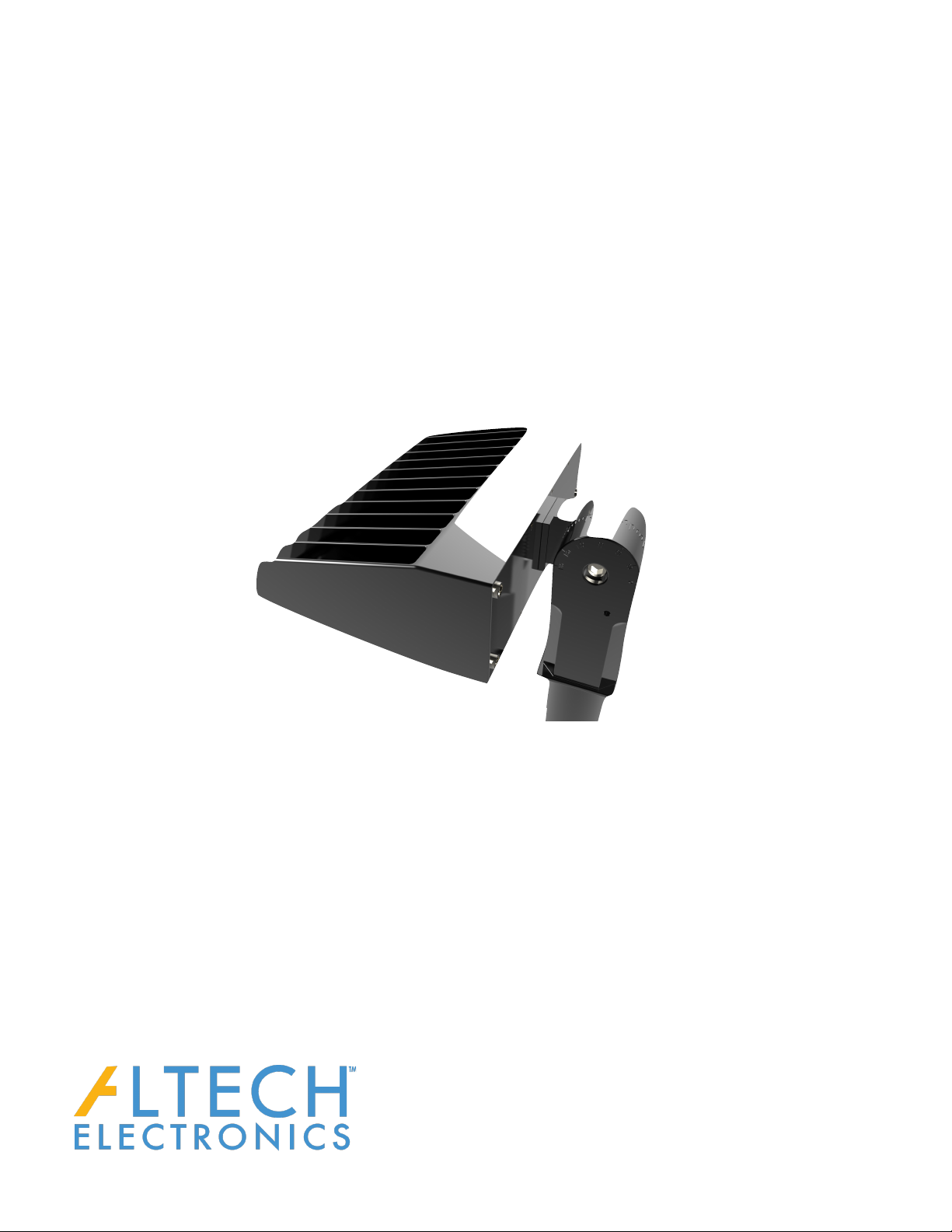

Installation Instructions for Slip Fitter Mount:
1. Ensure that the lamp pole diameter is less than the diameter of the connection tube
diameter of 2 1/2”. Loosen screws on connection tube.
2. Adjust the lighting angle as needed utilizing the slip fitter adjustment.
3. Connect the input and ground wires of the fixture to the power supply. Brown is live. Blue
is neutral. Green/Yellow is ground.
4. Place lamp pole into connection tube and tighten screws.
5. The angle of the slip fitter mount can be adjusted from +90° through -90°.
6. Restore Power
!
5/6
Installation Instructions for 6”Arm:
1. Remove the cover of the 6” arm bracket.
2. Be certain the support pole has adequate mounting surface and conforms to code
3. Determine whether to store the wire connections in the cable access cavity [*] or in the pole
interior
4. Open cable-access plate, safely store the tiny screws.
5. With the pole and its mounting holes set at the desired height, bring the lamp and bracket
arm up to be mounted.
6. Support the backing plate inside the pole, aligned precisely with the mounting holes.
7. Support the luminaire arm near the mounting holes and thread power cable through the
largest hole of the sealing gasket, through the pole’s largest drilled hole, and through the
backing plate’s hole.
8. Feed the three Allen 6mm bolts through to the backing plate to set their screws hand tight.
Then fully tighten the middle bolt, followed by the upper bolt, then the lower bolt.
9. Connect the input and ground wires of the fixture to the power supply. Brown is live. Blue is
neutral. Green/Yellow is ground.
10. Re-fasten cover plate.
11. Enclose the open pole top and seal as necessary
6/6
