ALCAR EasiTV 15.5 Bedienungsanleitung
16" HD LED TV with DVB-T2/-S2 & DVD-Player
Model No.: EasiTV 15.5
Contents
Caution
Safety Information
Accessories
Basic functions
EPG Menu(Programm Guide)
Simple Troubleshooting
1
2
3
4
9
27
28
Product Introduction
5
Connections
Remote Control
First installation
6-7
8
The Main Menu 10-20
DVD operation 21-23
Multimedia operation(USB) 24-26

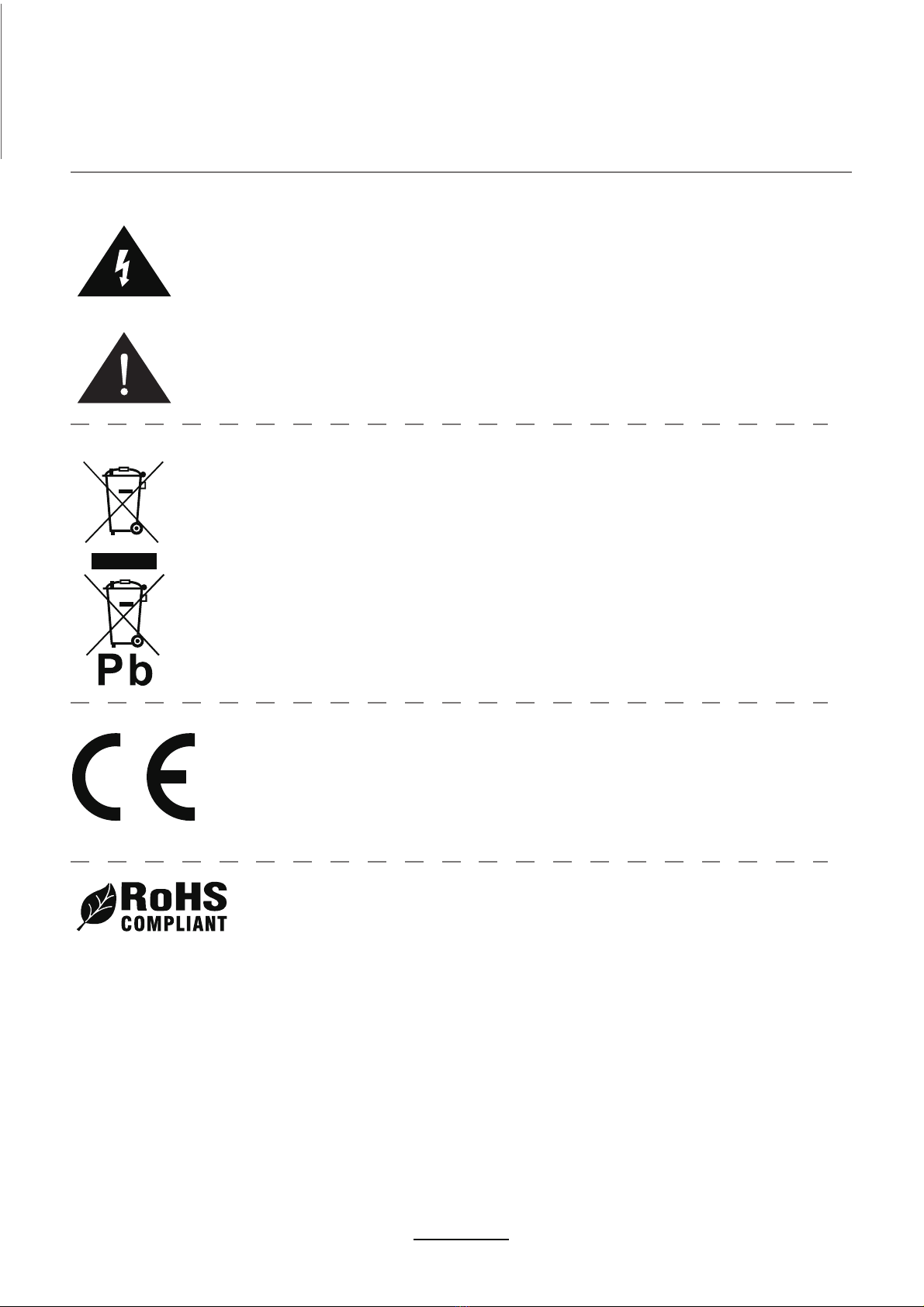

Caution
Correct disposal of this Product
(Waste Electrical & Electronic Equipment (WEEE)
Your product is designed and manufactured with high quality materials and
components which can be recycled and reused.
This symbol means that electrical and electronic equipment, at their end-
of-life should be disposed of separately from your household waste.
Please dispose of this equipment at your local community waste collection/
recycling center.
In the USA there are separate collection systems for used electrical and
electronic products. Please help us to conserve the environment we live in!
1
The exclamation point within an equilateral triangle is intend to alert the
user to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
is intended to alert the user to the presence of un-insulated “dangerous
to constitute a risk of electric shock to the persons.
This unit complies with The Restriction of the use of certain Hazardous
substances in Electnical and Electronic Equipment
This unit complies with European safety and electrical interference directives.
The lightning ash with arrowhead symbol,within an equilateral triangle
voltage”within the products enclosure that may be of sufcient magnitude
Safety Information
To ensure reliable and safe operation of this equipment, please read carefully all the
instructions in this user guide, especially the safety information below.
Electrical safety
• To prevent overload, don't share the same mains supply socket with too many other
items of equipment.
- Do not place any connecting wires where they may be stepped on or tripped over.
- Do not place heavy items on the leads, which may damage them.
- Hold the Mains plug, not the wires, when removing from a socket.
- During a thunderstorm or while leaving the TV for long periods, disconnect the aerial
(if outdoor) and mains power from the supply.
- Do not allow water or moisture to enter the TV . Do NOT use in wet
or moist areas such as Bathrooms, steamy kitchens or near swimming pools.
• Pull the plug out immediately, and seek professional help if:
- the mains plug or cable is damaged.
- liquid is spilt onto the set, or if it is accidentally exposed to water or moisture.
- anything accidentally penetrates the ventilation slots.
- the set does not work normally.
- Do NOT remove the safety covers. There are no user serviceable parts inside.
this apparatus.
- To avoid battery leakage, remove exhausted batteries from the remote control
handset, or when not using for along period.
Physical safety
• Do NOT block ventilation slots in the back cover. You may place the TV in a cabinet,
but ensure at least 5cm (2") clearance all around the unit.
• Do NOT tap or shake the TV screen, you may damage the internal circuitry. Take good
care of the remote control, do not drop it or allow it to come into contact with liquids.
stubborn stains, you may use a damp soft cloth with diluted detergent.
2
You may invalidate the warranty.Qualied personnel only are permitted to service
- Do NOT break open or throw exhausted batteries on a re.
• To clean the TV use a soft dry cloth.Do NOT use solvents or petrol based uids.For
Adapter
Cigar lighter
3
Technical Specification
* Note: The configuration of the components may look different from the following illustration
- TV System
- Screen Size
- Resolution
- Aerial input
Remote Control
Type
Control distance
Control angle
Batteries
PAL BG/DK/I SECAM BG/DK L/L’
16 inch(diagonal)
1366 x 768
0
infrared
5m
30 (horizontal)
2 x 1.5V, size AAA
- Audio output power
- Power Consumption
2x3W
12V 2A 24W
Accessories
User’s Guide
Remote Control Mini YPbPr cable Mini AV cable
E-35D
Batteries
75 (unbalanced)
INPUT

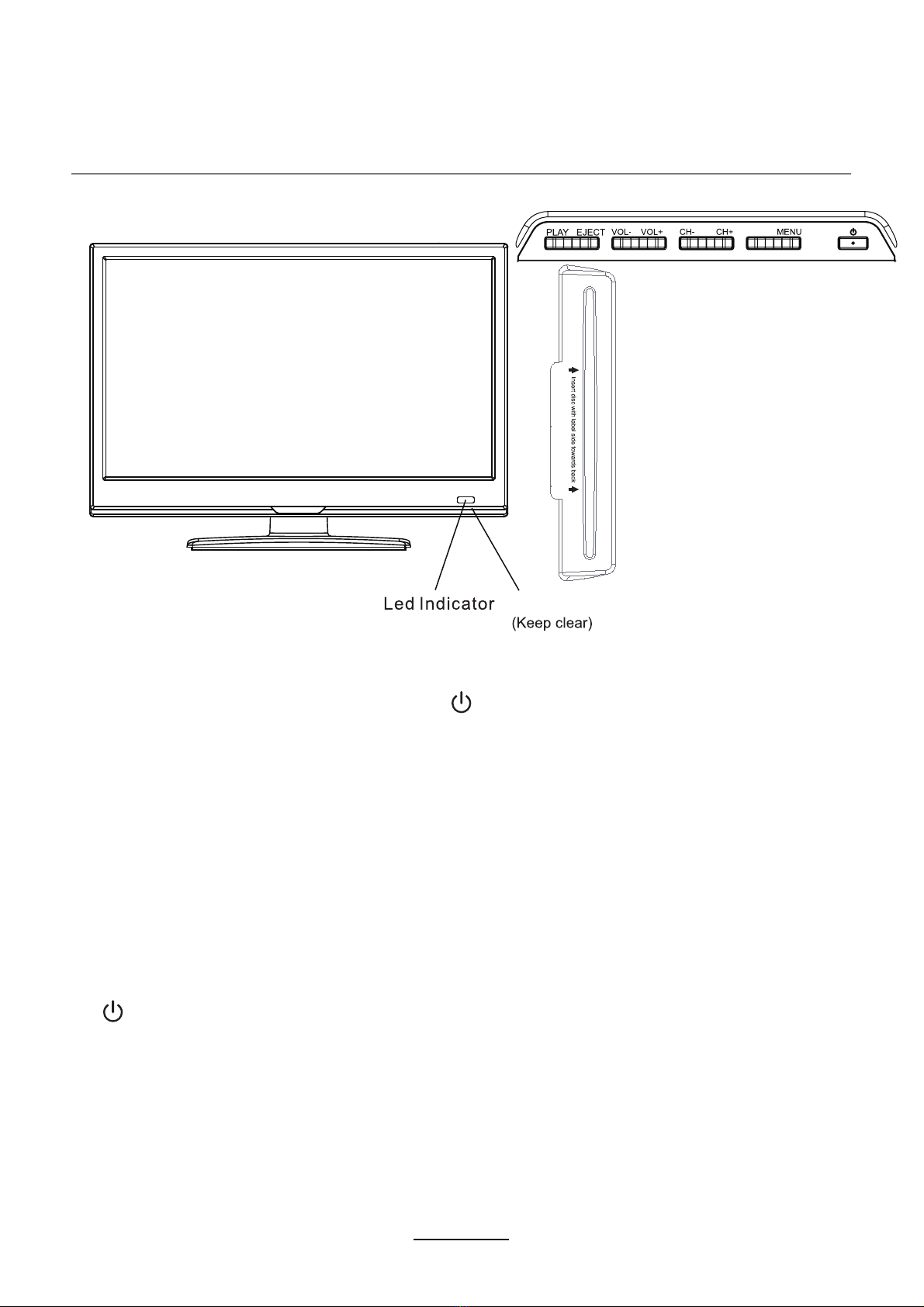

Product Introduction
MENU: Display/exit the OSD menu.
CH+/-: Scan through channels.
VOL+/-: Adjust the volume.
DVD: Insert a 12cm disc according to the
silk.
EJECT: Eject the disc
PLAY: Play/pause the disc playing.
INPUT: Display the input source menu.
:Turn on/standby the TV set.
(IR) Infrared Receiver: Receives IR signals from the remote control.
(Power on/Standby) LED indicator: Press to turn on and off.
The effective receiving range for the signal is 5-8 metres from the front of the remote
control window, and 30
0
to the left or right side and 20
0
above or below the control
window.
Indicator on(Red) Standby mode
Indicator on(Green) Power on mode
Remote Control window
4
Front View
POWER
HDMI
XAOCFRTRACSNI-CPAGV
Common Interface
DVB-S2
USB
MINI YPbPr MINI AV
Headphone out
Connections
5
RF: Connect antenna or cable 75 Ohm coaxial to receive TV signal.
POWER: Connect to the mains adaptor.
HDMI: Connect it to the HDMI of DVD or other equipment.
VGA: For PC display.Connect it to the D-Sub 15 pins analog output connector of the PC.
PC-IN: Connect it to the audio output terminal of PC.
SCART: Connect them to the SCART video output terminal of DVD.
Coax: Digital output to AV receiver.
MINI AV: Connect it to the audio & video output terminal of DVD with the Converter cable.
(Audio terminals are shared with YPbPr)
MINI YPbPr: Connect it to the YPbPr video output terminal of DVD with the Converter cable.
USB: Connect to USB device for multimedia and PVR.
DVB-S2: Connect a Satellite signal.
Common Interface: CI slot.
Headphone: Connect it to your headphone or other audio equipment.
EPG: To show the Electronic Program Guide during no-menu
state only in DTV mode.
: Turn the TV on/standby.
MUTE: Press to mute the sound, press again or press
VOL+ to unmute.
PICTURE: Select the picture mode.
ASPECT: Change the screen display mode.
SOUND: Select the sound mode.
SLEEP: Standby timer.
FAV: Display the favorite program list.
NUMBER BUTTONS
Press 0-9 to select a TV channel directly when you
are watching TV.
Return to the previous channel viewed.
INPUT: Press to display the input source menu.
MENU: System setup menu.
EXIT: Exit the OSD menu.
INFO: Show informations
Allows you to navigate the on-screen menus and adjust the
system settings to your preference.
CURSOR KEYS OK
TV/RADIO: Switch to TV/RADIO.
CH / : Scan through channels.
VOL+/-: Adjust the volume.
CH.LIST: Opens the channel list.
6

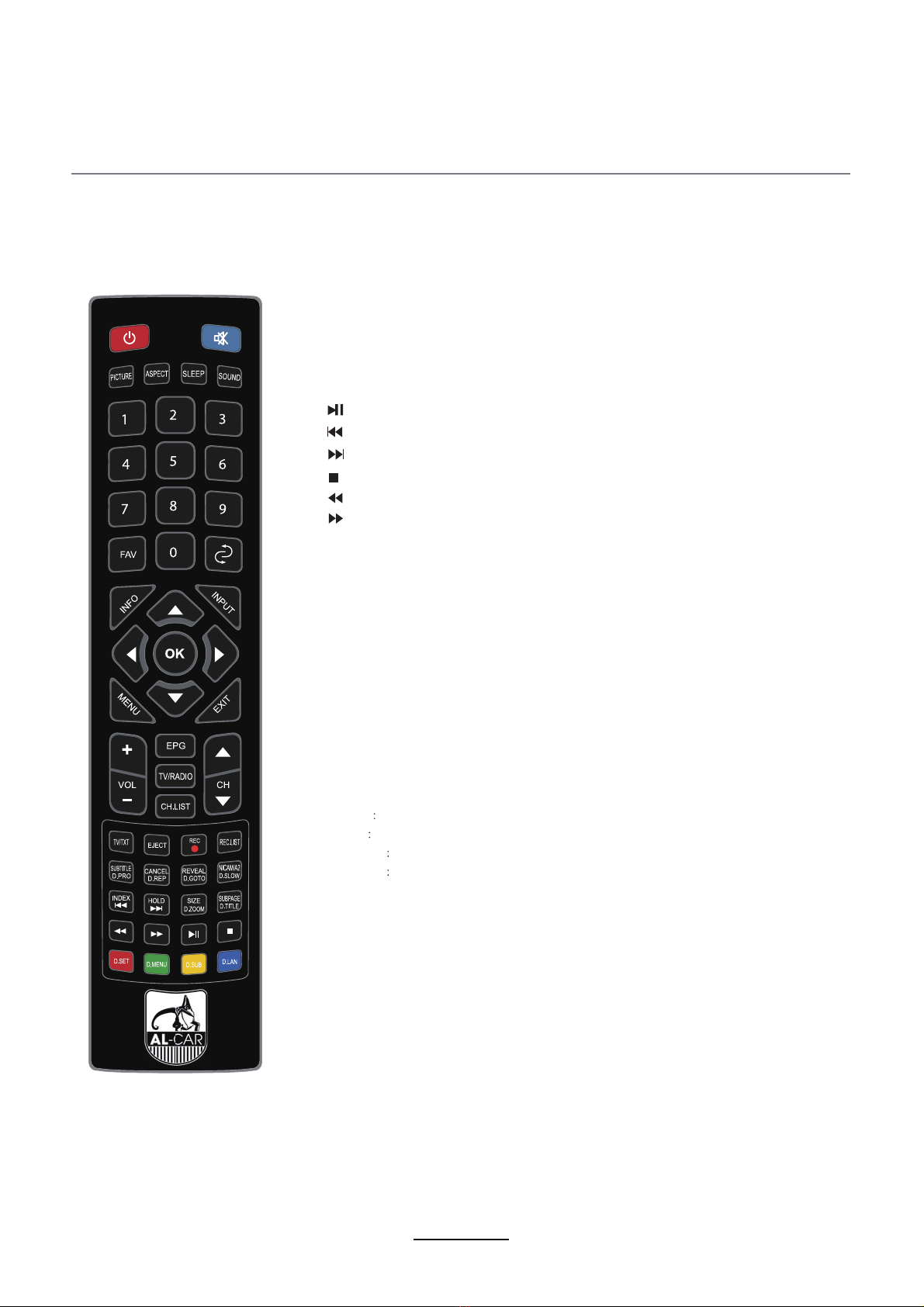

Remote Control
The remote control is using Infra-Red(IR). Point it towards the front of the LED TV. The remote
control may not work correctly if it is operated out of range or out of angle.
PVR/DVD
REC : Press to start record the program in DTV mode.
: Previous chapter.
: Next chapter.
: Fast reverse.
: Fast forward.
: Stop program.
TV/TXT: Show and close Teletext.
EJECT: Ejects the DVD(only in DVD mode only)
REC.LIST: Record List.
SUBTITLE / D.PRO: Show / hide subtitles(if available).
CANCEL: Cancel the Teletext display.
REVEAL: Reveal any hidden text.
NICAM/A2: TV Nicam/A2 select.
INDEX: Go to index.
HOLD: Hold or carry on the current subpage.
SIZE: Press to see top half of page double size,
Press again to see the bottom half of page
double size. Press again for normal size.
SUBPAGE: Press to enter subpages, pressagain to cancel.
D.SET: DVD system setup.
D.MENU: DVD play list/Disc menu.
D.SUB: Turn on/off the subtitle display in DVD mode.
D.LAN: Select DVD disc language.
:Play/Pause program.
D.PRO Edit the program and play.
D.REP Repeat playing the title or chapter.
D.GOTO Play your favorite title/chapter/track.
D.SLOW Play DVD programs at slow speed.
D.ZOOM:Adjust picture size in DVD mode.
D.TITLE：DVD title.
7
Remote Control
