1Introduction

Welcome!

Thank you for making the Alesis AcoustiFX a part of your setup. Since 1984,

we’ve been designing and building creative tools for the audio community. We

believe in our products, because we’ve heard the results that creative people like

you have achieved with them. One of Alesis’ goals is to make high-quality music

equipment available to everyone, and this user manual is an important part of that.

After all, there’s no point in making equipment with all kinds of capabilities if no

one explains how to use them. So, we try to write our manuals as carefully as we

build our products.

The goal of this manual is to get you the information you need as quickly as

possible, with a minimum of hassle. We hope we’ve achieved that. If not, please

drop us an email and give us your suggestions on how we could improve future

editions of this manual.

We hope your investment will bring you many years of creative enjoyment and

help you achieve your musical goals.

Sincerely,

The people of Alesis

1Introduction

About the AcoustiFX

The first thing you’ll probably notice about the AcoustiFX is

its size—it’s not much larger or smaller than most other

effect pedals. But don’t let that fool you. The AcoustiFX does

much more than most pedals you’ll find on the market today

(and for an unbeatable price too). We’ve packed a lot of

effects and other features into this unit. Here’s a glimpse:

AcoustiFX Key Features

•Audio processing that’s made specifically for mic’d

acoustic guitars and other acoustic instruments (sounds

great with acoustic/electrics too)

•40 preset patches that you can fully edit, store and

restore to the factory default settings

•8 effect modules that provide multiple selectable effects

•More than 40 different effects with adjustable

parameters and numerous effect combinations

•Built-in auto-chromatic tuner

•Battery-powered operation and an external power

option (9VDC)

•Simple interface that gives you quick and easy access to

the AcoustiFX’s features

AcoustiFX Basics

Benefits of a Multi-Effects Pedal

If you’ve ever used effect pedals, you know they come in an

infinite array of effects, colors and sizes. If you use multiple

pedals, you probably do so by linking them all together into a

chain. The AcoustiFX eliminates the need for so many pedals

because in addition to turning your electric into an acoustic,

this pedal also combines just about all the effects you need

Introduction 1

into one unit. Instead of turning knobs and pushing buttons

on pedal after pedal, with the AcoustiFX you have full

control over dozens of effects with one foot pedal! It’s that

easy.

Effect Modules

If you were to think of the AcoustiFX as a series of individual

pedals linked together, then each pedal in that series would be

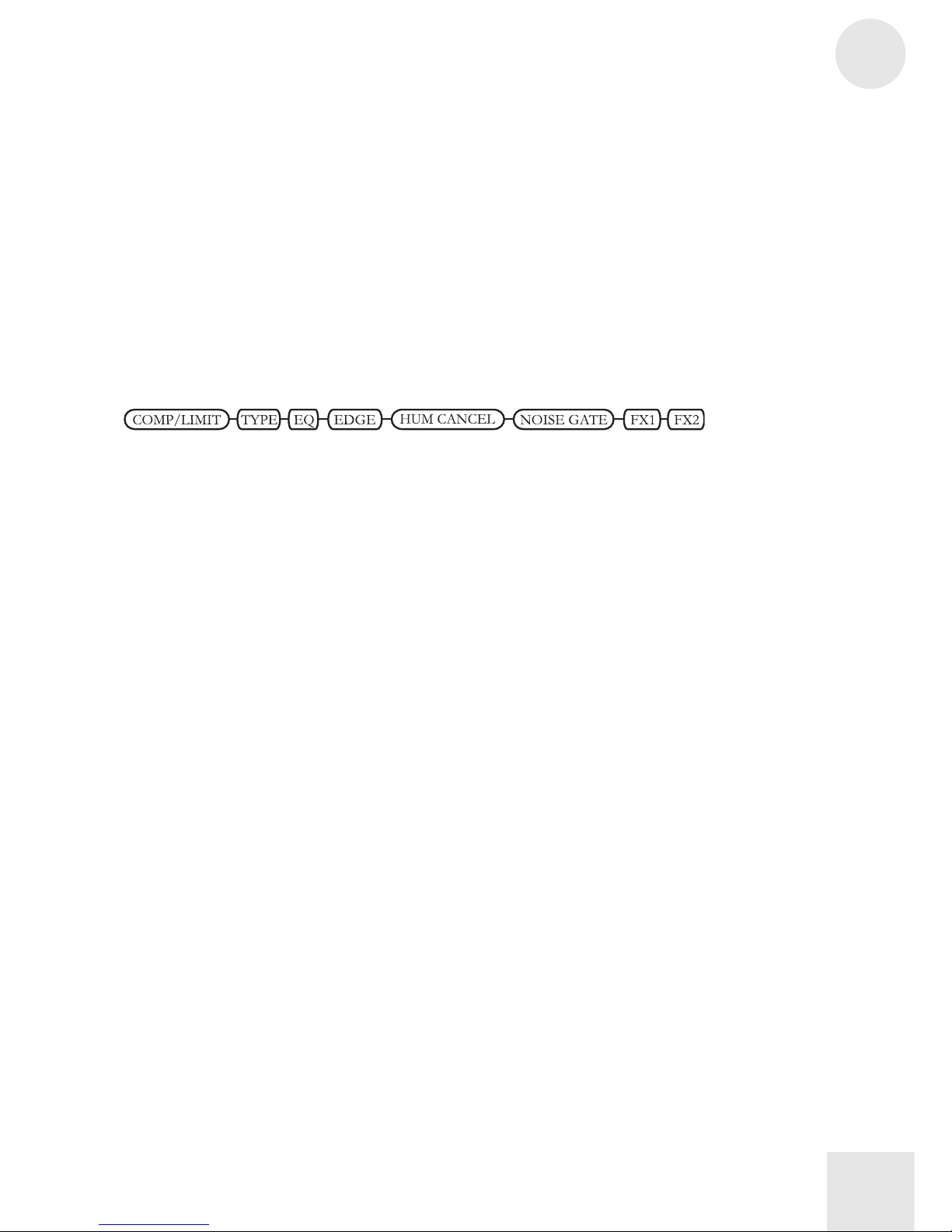

considered an effect module. The AcoustiFX has eight

separate effect modules, as shown below:

You can assign one effect to each of these modules and

adjust its parameters accordingly. On the face of the unit,

you’ll see a list of possible effect types for some of these

modules. For more on effect modules, see chapter 10.

Effect Types

When we use the word “effect” in this manual, we’re usually

referring to an effect type. Each module provides you with a

selection of effect types, only one of which may be chosen

for each module. For example, the TYPE module allows you

to select which type of acoustic sound you want (Clean,

Warm, Bright, Rhythm and others). The behavior of each of

these effect types may be adjusted in one or more ways to

produce variations of the effect.

Parameters

A parameter is a control that changes the characteristics of an

effect. When we use the word “parameter,” we are referring

to the “direct control” parameter available to the FX1 and

FX2 modules. The parameters for FX1 and FX2 are labeled

PARAM on the face of the AcoustiFX. The characteristic

controlled by a parameter varies from effect to effect.

1Introduction

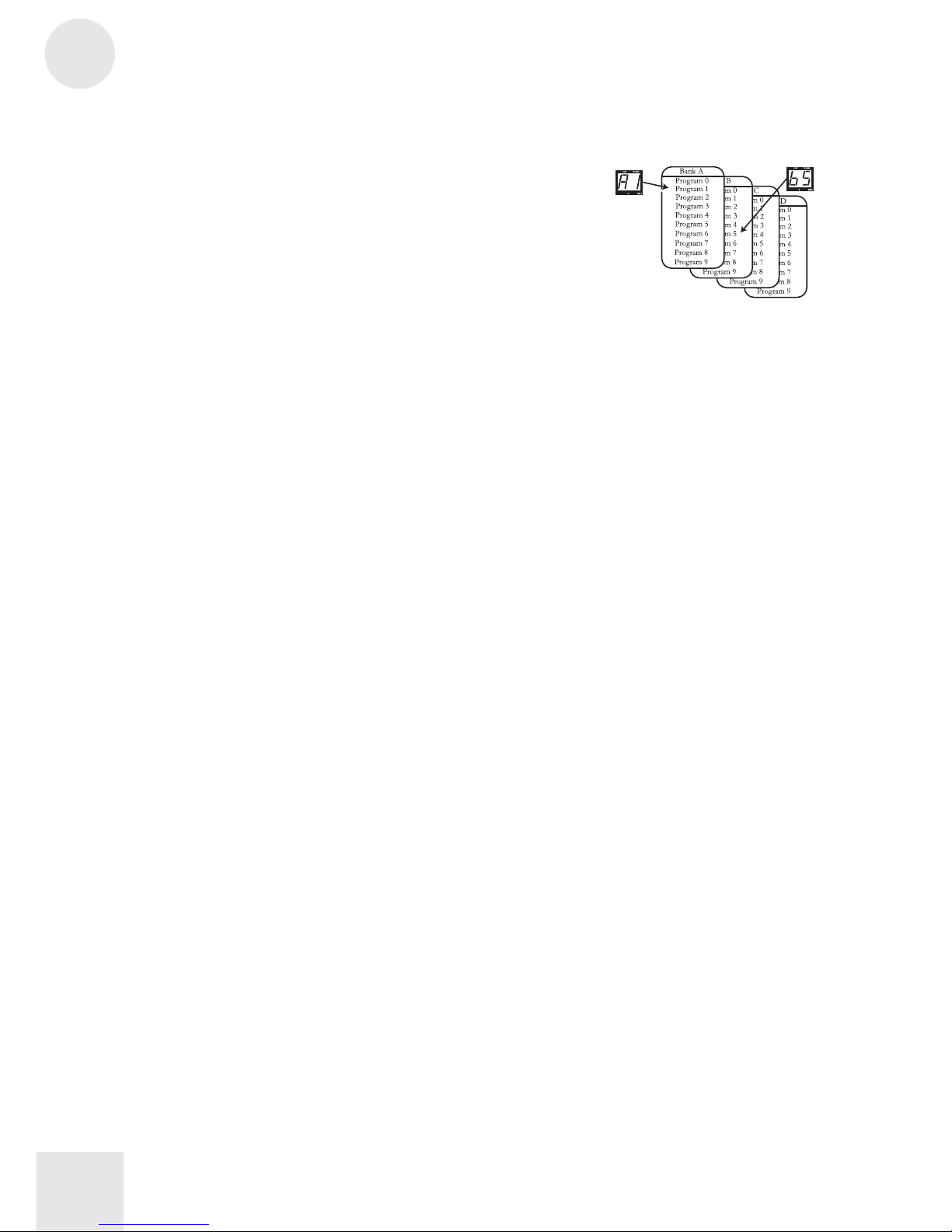

Programs

A program is a combination of effects modules and

their respective settings. In PLAY mode, you have

quick access to the AcoustiFX’s 40 programs via the

foot pedals and the VALUE knob. The programs are

divided up into banks A – D and are identified by a bank

letter and a program number on the display.

Introduction 1

How to Use This Manual

This manual is divided into the following sections describing

the various functions and applications for the AcoustiFX.

While it’s a good idea to read through the entire manual once

carefully, if you already have general knowledge about effects,

you should use the table of contents to look up specific

functions.

Chapter 3: Getting Started shows you how to get the unit

connected and turned on. We’ve included a hookup diagram

and some tips on using the AcoustiFX.

Chapter 4: A Tour of the AcoustiFX describes all the controls

and features of the unit. This chapter features diagrams of the

top and rear panels that are labeled with the name and a brief

overview of each function. The paragraphs that follow the

diagrams provide in-depth description of these features.

Chapters 5 through 9 include step-by-step instructions for using

the AcoustiFX, including how to select and edit programs,

use the tuner function, store and copy programs, and defer

program changes.

Chapter 10: Effects Knob Settings explains the unit’s effect

modules and types, as well as other settings controlled by the

EFFECT and VALUE knobs.

Chapter 11: Troubleshooting can give you a hand if you’re

experiencing problems with the AcoustiFX. You’ll find that

most issues can be resolved simply and quickly.

Chapter 12: Specifications is full of information for the more

technical users.

Chapter 13: Warranty/Contact Alesis explains the warranty we

supply with the AcoustiFX and lets you know the best way to

reach us if you have any questions or comments.

Helpful tips and advice

are highlighted in a

shaded box like this.

When something

important appears in

the manual, an

exclamation mark (like

the one shown at left)

will appear with some

explanatory text. This

symbol indicates that

this information is vital

when operating the

AcoustiFX.

1Introduction

This page intentionally left blank.

2Important Safety Instructions

Important Safety Instructions (English)

Safety symbols used in this product

This symbol alerts the user that there are important operating

and maintenance instructions in the literature accompanying this

unit.

This symbol warns the user of uninsulated voltage within the

unit that can cause dangerous electric shocks.

This symbol warns the user that output connectors contain

voltages that can cause dangerous electrical shock.

Please follow these precautions when using this

product:

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a damp cloth. Do not spray any liquid cleaner onto

the faceplate, as this may damage the front panel controls or cause a

dangerous condition.

7. Install in accordance with the manufacturer's instructions.

8. Do not install near any heat sources such as radiators, heat registers,

stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type

plug. A polarized plug has two blades with one wider than the other.

A grounding-type plug has two blades and a third grounding prong.

The wide blade or the third prong is provided for your safety.

When the provided plug does not fit into your outlet, consult an

electrician for replacement of the obsolete outlet.

2Important Safety Instructions

10. Protect the power cord from being walked on or pinched, particularly

at plugs, convenience receptacles, and the point where they exit

from the apparatus.

11. Use only attachments or accessories specified by the manufacturer.

12. Use only with a cart, stand, bracket, or table designed for use with

professional audio or music equipment. In any installation, make

sure that injury or damage will not result from cables pulling on the

apparatus and its mounting. If a cart is used, use caution when

moving the cart/apparatus combination to avoid injury from tip-

over.

13. Unplug this apparatus during lightning storms or when unused for

long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required

when the apparatus has been damaged in any way, such as when the

power-supply cord or plug is damaged, liquid has been spilled or

objects have fallen into the apparatus, the apparatus has been

exposed to rain or moisture, does not operate normally, or has been

dropped.

15. This unit produces heat when operated normally. Operate in a well-

ventilated area with at least six inches of clearance from peripheral

equipment.

16. This product, in combination with an amplifier and headphones or

speakers, may be capable of producing sound levels that could cause

permanent hearing loss. Do not operate for a long period of time at

a high volume level or at a level that is uncomfortable. If you

experience any hearing loss or ringing in the ears, you should consult

an audiologist.

17. Do not expose the apparatus to dripping or splashing. Do not place

objects filled with liquids (flower vases, soft drink cans, coffee cups)

on the apparatus.

18. WARNING: To reduce the risk of fire or electric shock, do not

expose this apparatus to rain or moisture.

Andere Handbücher für AcoustiFX

Inhaltsverzeichnis

Andere Alesis Aufnahmegeräte Handbücher

Alesis

Alesis MultiMix16USB 2..0 Technisches Dokument

Alesis

Alesis GRIP Legacy Series Audio Processor... Bedienungsanleitung

Alesis

Alesis Q20 Bedienungsanleitung

Alesis

Alesis MIXING CONSOLES Bedienungsanleitung

Alesis

Alesis ADAT RMB Bedienungsanleitung

Alesis

Alesis Studio Interface MasterControl Bedienungsanleitung

Alesis

Alesis MICROVERB 4 Bedienungsanleitung

Alesis

Alesis MultiMix USB 8 Bedienungsanleitung

Alesis

Alesis airFX Bedienungsanleitung

Alesis

Alesis Ineko Bedienungsanleitung

Alesis

Alesis MULTIMIX8 USB2.0 Bedienungsanleitung

Alesis

Alesis ADAT-HD24 FirePort 1394 Bedienungsanleitung

Alesis

Alesis QuadraVerb 2 Bedienungsanleitung

Alesis

Alesis M1ACTIVE 520 Bedienungsanleitung

Alesis

Alesis MASTERLINK ML-9600 Bedienungsanleitung

Alesis

Alesis Photon 25 Technisches Dokument

Alesis

Alesis CLX440 Bedienungsanleitung

Alesis

Alesis DM DOCK Bedienungsanleitung

Alesis

Alesis iO4 Bedienungsanleitung

Alesis

Alesis MMT-8 Bedienungsanleitung

Alesis

Alesis iO Dock II Bedienungsanleitung

Alesis

Alesis MidiVerb 3 Bedienungsanleitung

Alesis

Alesis TWOTRACK Bedienungsanleitung

Alesis

Alesis ADAT-HD24 FirePort 1394 Bedienungsanleitung

Beliebte Aufnahmegeräte Handbücher anderer Marken

KV2 Audio

KV2 Audio 500 Series Bedienungsanleitung

Robotics Technologies

Robotics Technologies microBus-Cam II Bedienungsanleitung

Seca

Seca 460 Bedienungsanleitung

Cognex

Cognex MVS-8000 Series Bedienungsanleitung

Mect

Mect MPNC006 Series Bedienungsanleitung

Bad Caf

Bad Caf THE LEASH Bedienungsanleitung

Strymon

Strymon NIGHTSKY Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric 16CH DIGITAL RECORDER DX-TL5000U Bedienungsanleitung

Tews Technologies

Tews Technologies TPMC465 Bedienungsanleitung

Honeywell

Honeywell Excel 50 Bedienungsanleitung

SeaLevel

SeaLevel COMM+8.LPCI Bedienungsanleitung

Arturia

Arturia AUDIOFUSE STUDIO Bedienungsanleitung

Rukra

Rukra RK-1240 Bedienungsanleitung

Samson

Samson SCOM Bedienungsanleitung

Dynacord

Dynacord DPS260 Bedienungsanleitung

Nice

Nice Core Bedienungsanleitung

Pyle Pro

Pyle Pro PSS8 Bedienungsanleitung

RF-System

RF-System TinyGate Gebrauchs- und Pflegehandbuch
