Alfa Network Wifi Camp Pro Mini Installations- und Betriebshandbuch
1
Table of Contents
Package Contents 2
LED Indicators & Buttons 3
Hardware Installation 4
Software Setup
Using Mac computer 5
Using iPhone/iPad 6
Using Android phone or tablet 7
Using Microsoft Windows 10 WiFi 8
Using Ethernet cable (optional, Windows only) 14
Device Overview
WAN / LAN2 PoE LAN1 PWRANT
Front PanelBack Panel
Funconal Descripons
Ethernet ports are set as LAN to share Internet access via Ethernet with
desktop/laptop computer(s) or network peripherals
Used to connect USB cable to AWUS036NH
ANT port is used to connect 1 x indoor omni-antenna
Used to connect to the power adapter
Interface
PoE LAN1
/ LAN2
USB
ANT
PWR
Camp Pro Mini 2 Package Contents:
1 x R36A Router
1 x AWUS036NH USB
wireless signal receiver
2 x Indoor Omni-antenna
•
•
•
1 x DC power adapter for
R36A Router
1 x USB cable for
connecting R36A Router
and AWUS036NH
1 x Optional Ethernet
cable for connecting R36A
Router and computer
•
•
•
2
Table of Contents
Package Contents 2
LED Indicators & Buttons 3
Hardware Installation 4
Software Setup
Using Mac computer 5
Using iPhone/iPad 6
Using Android phone or tablet 7
Using Microsoft Windows 10 WiFi 8
Using Ethernet cable (optional, Windows only) 14
3
LED Indicators & Buttons
Reset
LED Indicator
PWR (Blue)
SYS (Blue)
LAN1 / LAN2 (Blue)
of R36A Router)
Descripons
On - Power on
- No power
On - Device is running properly
Blinking - Device is sending or receiving data
On - LAN port is connected
Flashing - LAN port is sending or receiving data
Toggle - reboots device with current parameters
- reboots device
device to fully reboot.
4
If you see this error during setup, be sure your AWUS036NH is fully
connected to the USB port on the R36A router using included USB cable

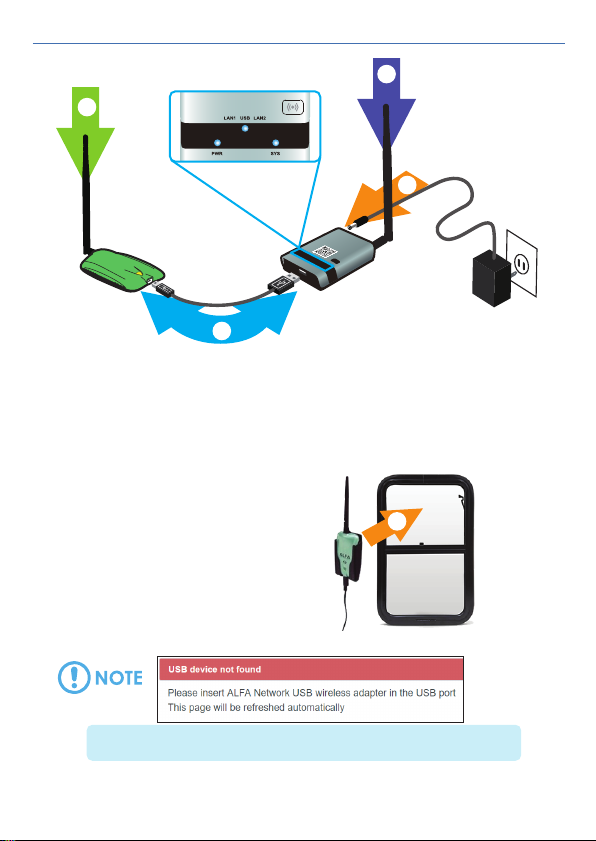

1. Attach one of the Omni-antennas to AWUS036NH.
2. Attach the other Omni-antenna to the R36A router.
3. Connect AWUS036NH to R36A router using USB cable provided.
4. Connect the power adapter to R36A router. Allow 90 seconds for R36A to fully
boot up.
5. Mount the AWUS036NH on or near a
window to allow for the best reception.
If no window is nearby, place on a
tabletop or shelf with the antenna
pointing upward as shown in step 1.
Hardware Installation
AWUS036NH
R36A
Router Power
Adapter
USB
Cable
2
Omni-antenna
Omni-antenna
3
1
4
5
Using Mac Computer to Access Setup
5
Log In to the Router
On the main page create an administrator password and repeat the password in
the second box. Then click “Submit”.
Via WifI Connection
Open your web browser, and type
“alfa.myalfasetup.com”or
“192.168.36.1” in the address bar.
9
After logging
in you must
proceed to
Page #9
for Setup

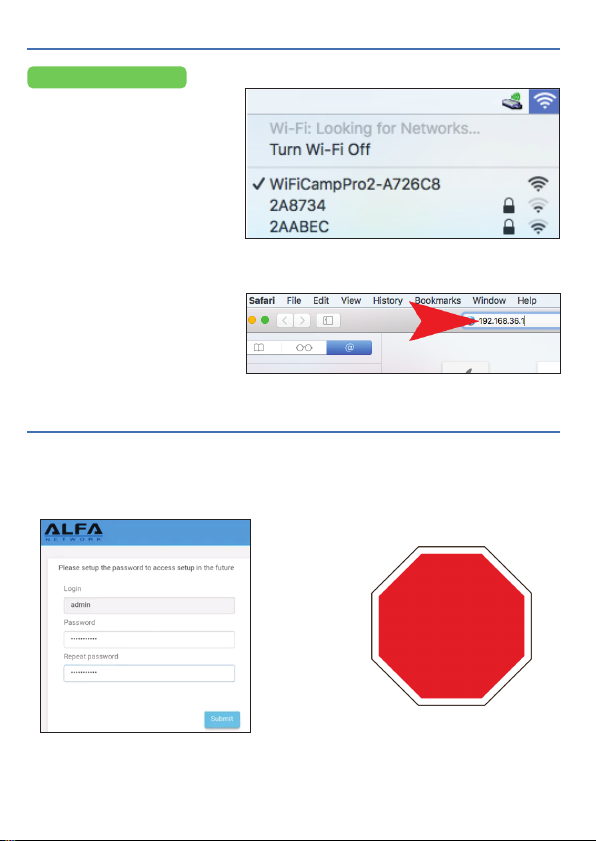

On your Mac computer,
click the WiFi icon at the top right
of your screen.
Look for the WiFi network
called “WiFiCampPro2-xxxxxx”
and connect to it.
Using iPhone / iPad to Access Setup
Log In to the Router
On the main page create an administrator password and repeat the password in
the second box. Then click “Submit”.
6
Via Wireless Connection
On your iPhone or iPad, go to
Settings > WiFi and connect to the network
called: “WiFiCampPro2-xxxxxx”
After connecting you will be
automatically redirected to
the log in page.
After logging
in you must
proceed to
Page #9
for Setup
Or scan QR code on top of R36A router
using your phone’s QR code reader app.
If log-in page doesn’t appear, please open your web browser and type in
“alfa.myalfasetup.com”or “192.168.36.1” in the address bar
Using Android Device to Access Setup
Log In to the Router
On the main page create an administrator password and repeat the password in
the second box. Then click “Submit”.
7
Via WiFi Connection
Open your web browser app
(like Google Chrome),
and type in “alfa.myalfasetup.com”
or “192.168.36.1” in the address bar.
Or scan QR code on top of R36A router
using your phone’s QR code reader app.
After logging
in you must
proceed to
Page #9
for Setup

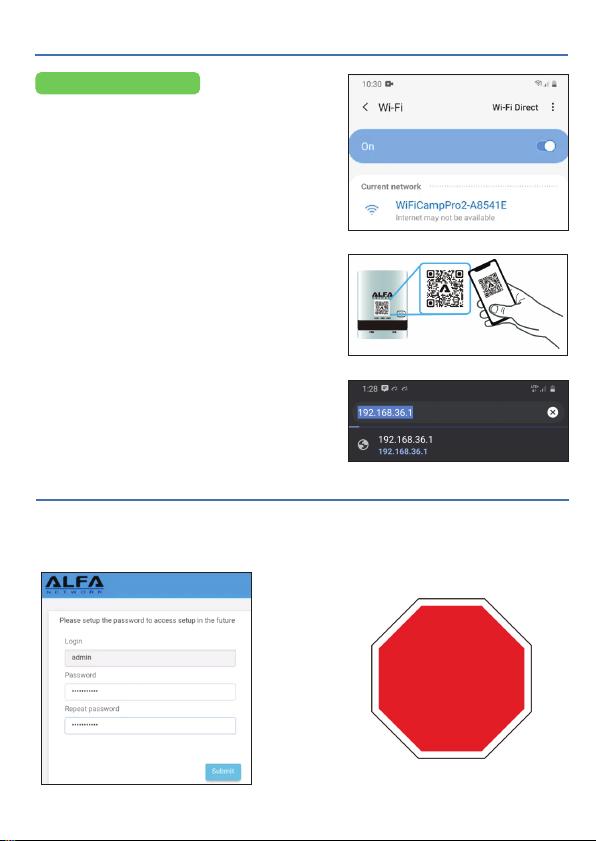

On your Android phone or tablet, go to
Settings > WiFi and connect to the network
called “WiFiCampPro2-xxxxxx”
Using Microsoft Windows to Access Setup
8
Via WiFi Connection
On your Microsoft Windows computer,
click on the WiFi icon at the bottom
right corner of the screen.
Log In to the Router
On the main page create an administrator password and repeat the password in
the second box. Then click “Submit”.
Open your web browser, and type-in
“alfa.myalfasetup.com”or
“192.168.36.1” in the address bar.
Look for the WiFi network called
“WiFiCampPro2-xxxxxx”
and connect to it.
After logging
in you must
proceed to
Page #9
for Setup
Setup (For All Device Types)
Connecting to Campground or Hotspot Internet

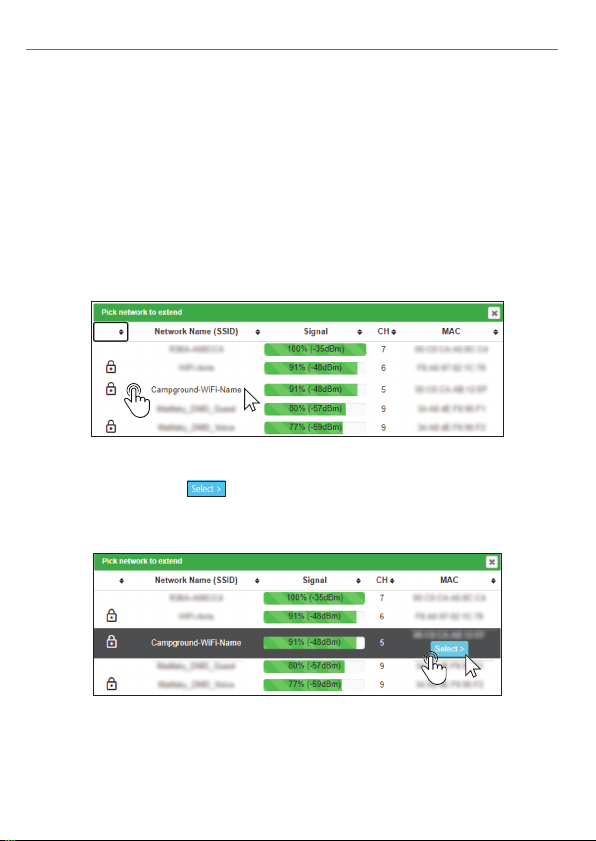

After logging-in, the setup wizard will scan for nearby WiFi signals automatically.
The list of available signals will be displayed on the screen.
If you have previously set up your Camp Pro Mini you may need to click or tap
“Easy Setup” on the top left of your screen to bring up the scan window.
- Click or tap the name of your campground network or the network you
wish to extend
- Click or tap the blue button on the right of the screen.
9
The Hotspot Password is the security key or passkey for your campground network
or the network you are trying to extend
- In the Hotspot Conguration menu, enter the Wi-Fi password for the
campground WiFi or the network you are extending into the Hotspot
Password eld.
10
Secure Wireless Network for Your Smartphones, Tablet, and Computers
- Then, in the “Network Password” eld, create a new password to secure your WiFiCamp-
Pro2 Wi-Fi network. You will be prompted for this password when connecting other
devices.
- You can make your password anything you want as long as the password is eight
characters or longer. This is all you need to do on this screen.
Then click “Finish” and read on-screen instructions.
Setup
