SWITCHBLADE POWER SUPPLY UNIT

QUICK INSTALL GUIDE

SwitchBlade Power Supply Unit Quick Install Guide

Document Number C613-04028-01 REV B.

Bothell, WA 98011, USA.

permission from Allied Telesyn.

Allied Telesyn International, Corp. reserves the right to make changes in specifications

and other information contained in this document without prior written notice. The

information provided herein is subject to change without notice. In no event shall Allied

Telesyn be liable for any incidental, special, indirect, or consequential damages

whatsoever, including but not limited to lost profits, arising out of or related to this

manual or the information contained herein, even if Allied Telesyn has been advised of,

known, or should have known, the possibility of such damages.

All trademarks are the property of their respective owners.

Quick Install Guide 3

C613-04028-01 REV B

Models Covered By This Guide

This Quick Install Guide includes information on installing the following units:

■AT-SB4161 SwitchBlade AC Power Supply Units

■AT-SB4161-80 SwitchBlade DC Power Supply Units

Quick Install Guide updates can be downloaded from

www.alliedtelesyn.co.nz/support/switchblade/.

Package Contents

The following items are included with each SwitchBlade PSU. Contact your

sales representative if any items are damaged or missing.

■One AC or DC power supply unit.

■One IEC power cord (AC models only).

■One Power Supply Unit Quick Install Guide.

■One Safety and Statutory Information booklet.

■One warranty card.

Related items that can be purchased separately:

■Blank faceplates for PSU bays (AT-SB4192).

SwitchBlade

Printed Acrobat PDF Website

Documentation Roadmap

Safety and Statutory Information Booklet

Chassis & Fan Tray Quick Install Guide

Switch Controller Quick Install Guide

Software Reference

Hardware Reference

General Customer Support

Visit www.alliedtelesyn.co.nz for

the latest documentation, FAQs,

and support information.

Line Card Quick Install Guide

Power Supply Unit Quick Install Guide

CAM Quick Install Guide

Bandwidth Expander Quick Install Guide

4SwitchBlade Power Supply Unit

C613-04028-01 REV B

Installing A Power Supply Unit (PSU)

All AC and DC versions of this equipment must be earthed.

PSUs can be hot swapped. When swapping PSUs, the SwitchBlade 8 (AT-SB4108) will

continue to operate as long as two functional PSUs remain in place. The SwitchBlade 4

will continue to operate as long as one functional PSU remains in place.

Follow these steps to install a PSU:

1. Read the safety information

The SwitchBlade Safety and Statutory Information booklet includes all

relevant safety information. A copy of the safety booklet is supplied with

each PSU. It can also be found on the CD-ROM that ships with every

switch controller and every chassis, or can be downloaded from

www.alliedtelesyn.co.nz/support/switchblade/.

2. Gather the tools and equipment you will need

To loosen or secure the PSU’s mounting screws you will need a Phillips #2

screwdriver.

3. Choose a PSU bay

PSU bays should be filled from left to right.

Unless replacing an existing PSU, choose the empty PSU bay that is nearest

to the chassis’s front left-hand corner.

4. Prepare the PSU

In an antistatic environment, remove the PSU from its packing material. Be

sure to observe ESD precautions.

Do not attempt to install a PSU without observing correct antistatic

procedures. Failure to do so may damage the chassis or PSU. If you are unsure

what the correct procedures are, contact your authorised Allied Telesyn

distributor or reseller.

An ESD socket is provided on the front panel of the SwitchBlade chassis. The socket is

designed to be used in conjunction with an ESD wrist strap (see Figure 1 on page -4).

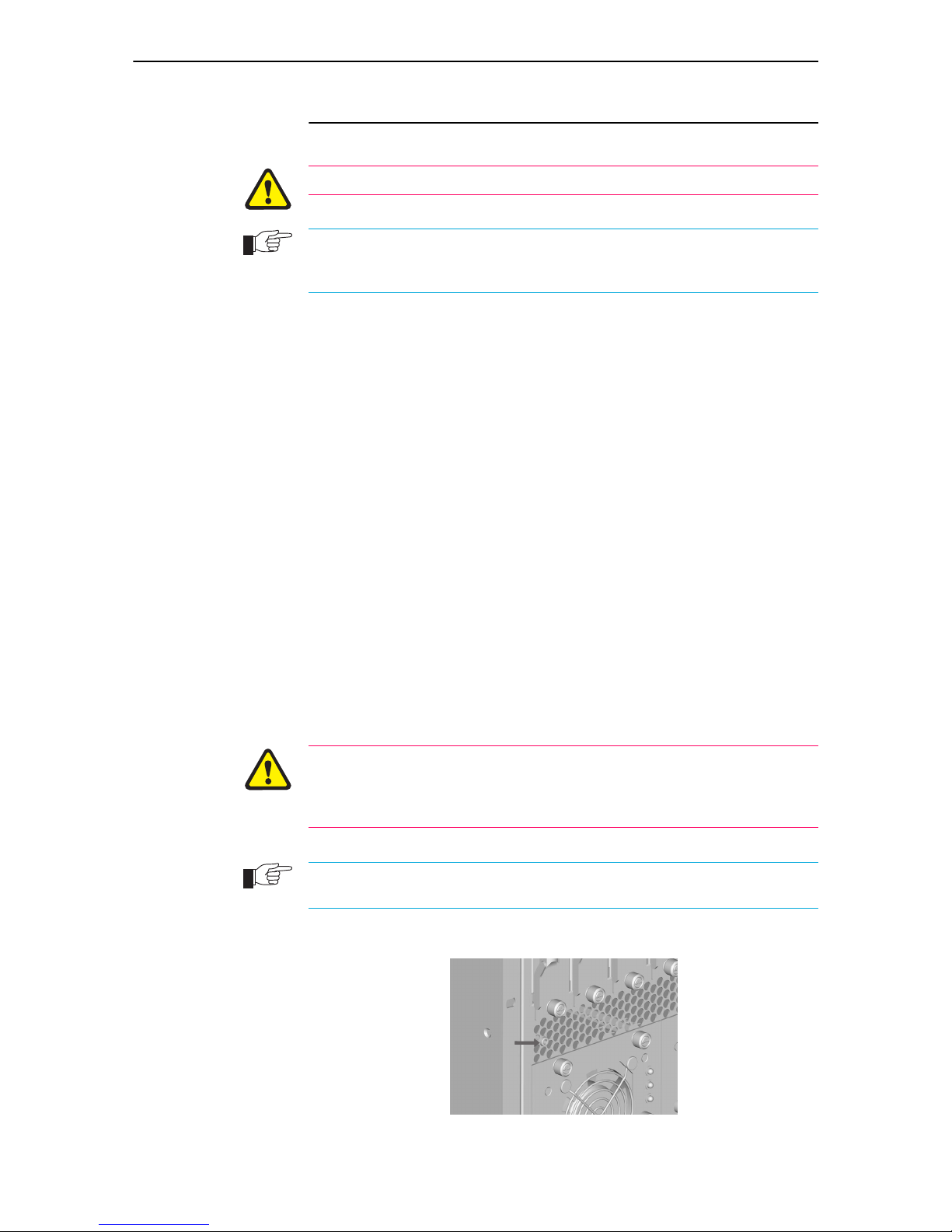

Figure 1: ESD socket on the SwitchBlade 8 chassis.

ESD socket

Quick Install Guide 5

C613-04028-01 REV B

5. Remove the PSU bay faceplate or existing PSU

To remove a blank faceplate:

Loosen the faceplate’s four Phillips mounting screws until they disengage

from the chassis, then remove the faceplate.

Keep the faceplate for future use. If you remove a PSU, replace the faceplate to prevent

dust and debris from entering the chassis and to maintain proper airflow.

The switch and PSU may overheat or be damaged by dust and debris if PSU

bays are left uncovered.

To remove an existing PSU:

Loosen the PSU’s four Phillips screws until they disengage from the chassis.

Using the PSU’s handle, pull the PSU out of the chassis.

6. Insert the PSU

Slowly and carefully slide the PSU into the chassis (see Figure 2 on

page -5).

Firmly press the PSU home (until its front panel engages or nearly engages

the chassis).

Keep the PSU in a straight alignment and insert it slowly. Forcing a misaligned

PSU is likely to damage the chassis and PSU.

Figure 2: PSU insertion.

7. Secure the PSU

Tighten the PSU’s four Phillips screws.

8. Apply AC power to the PSU (for AC models)

Plug the power cord into the PSU’s AC power connector on the chassis’s

rear panel (see Figure 3 on page -6). The connector for each PSU is the

connector that is directly behind the corresponding PSU bay.

6SwitchBlade Power Supply Unit

C613-04028-01 REV B

Also plug the power cord into an outlet that can supply a voltage of 90-

264V AC.

Make sure the Standby switch is in the Run position.

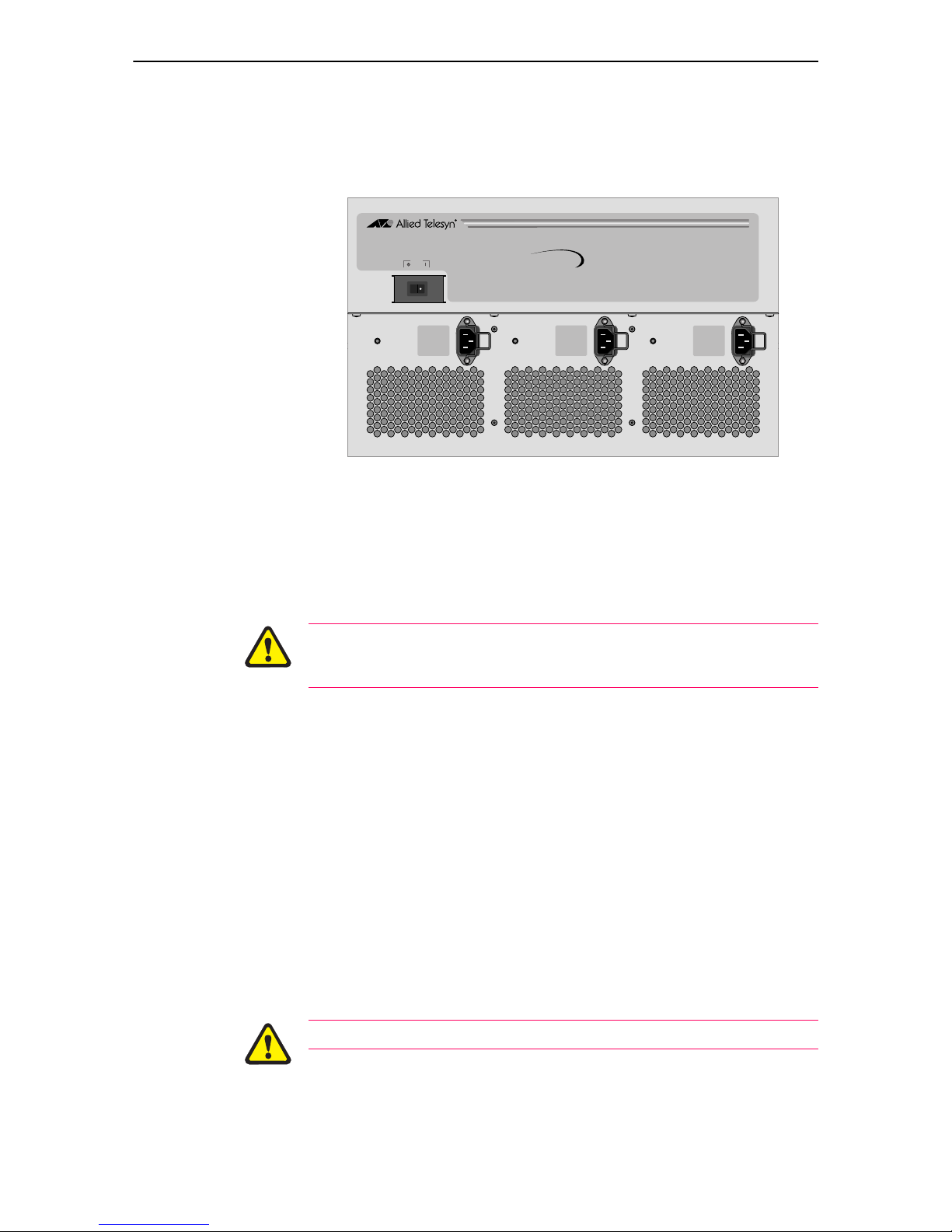

Figure 3: AC power connectors.

9. Apply DC power to the chassis (for DC models)

Read the Safety and Statutory Information booklet before connecting a DC

power supply. A copy of the safety booklet is included with each PSU. A

PDF version is included on the Documentation and Tools CD-ROM

shipped with every switch controller and every chassis, or can be

downloaded from www.alliedtelesyn.co.nz/support/switchblade/.

Only trained and qualified personnel should connect a DC power supply. Due

to exposed terminals, DC powered switches should only be installed in

Restricted Access Areas.

DC supply cable specifications:

• Number of wires (cores): 3 (only 2 wires are required if the switch is

ground bonded via the separate ground terminal on the chassis’s rear

panel)

• Minimum size: 3.3 mm2(12 AWG)

•Minimumcablerating:600V, 90 degrees Celsius

DC power supply specifications:

• 48 V DC (36-59 V DC is acceptable)

• Either positive grounded or negative grounded

Circuit protection:

• Use a 20 Amp circuit breaker

To connect the DC supply:

Ensure that the supply cable is not live.

a) Strip the supply cable wires to expose 8mm (0.31 in.) of bare conductor

b) If using 3 wires, on the chassis’s rear panel, connect the ground wire to

the ground terminal for the corresponding PSU (The terminals can be

AC INPUT

100-240V

8.0-4.0A

50-60Hz

AC INPUT

100-240V

8.0-4.0A

50-60Hz

AC INPUT

100-240V

8.0-4.0A

50-60Hz

RESET RUN

STANDBY

SwitchBlade

4000

Quick Install Guide 7

C613-04028-01 REV B

identified by the diagram on the switch’s rear panel, see Figure 4 on

page -7). Tighten the terminal to between 0.6 and 0.8 Nm (0.041 to 0.055

pound-force per foot)

If using separate ground bonding, connect a separate ground wire to

the ground bonding terminal on the chassis’s rear panel

c) On the chassis’s rear panel, connect the positive feed to the + (positive)

terminal and the negative feed to the - (negative) terminal for the

corresponding PSU. Tighten the terminals to between 0.6 and 0.8 Nm

(0.041 to 0.055 pound-force per foot)

Check that the PSU terminals are wired to the correct polarity. The PSUs will

be damaged if incorrectly connected.

d) Ensure that there are no exposed conductor strands

e) Secure the supply cable (to the rack framework or similar object) so that

the connections are isolated from any forces applied to the cable

f) Ensure that the circuit breaker is in the Off position

g) Connect the supply-cable wires to the circuit breaker

h) Energise the circuit breaker

i) Make sure the Standby switch (on the chassis’s rear panel) is in the Run

position.

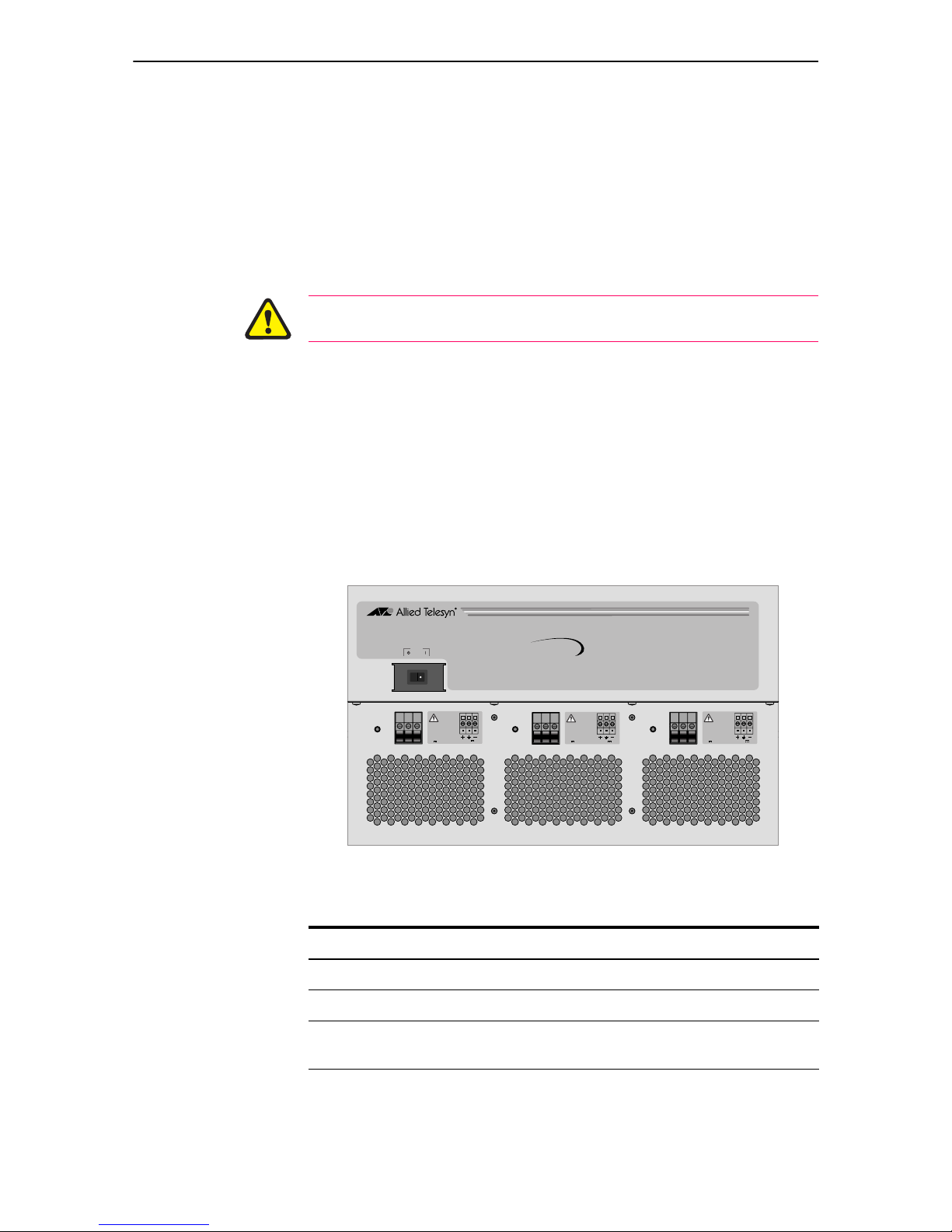

Figure 4: DC power terminals.

10. Check the PSU’s LEDs.

If installed, the switch controller(s) have an LED labelled Power, which lights

green to indicate that at least one PSU is operational.

More troubleshooting information can be found in the SwitchBlade Hardware

Reference.

Table: 1 LEDs on AC and DC PSUs.

LED State Function

DC Good Green The PSU is supplying power to the switch

Fan Good Green The PSU’s fan is functioning

Power Present Green The PSU is receiving power from its supply

circuit

RESET RUN

STANDBY

SwitchBlade

4000

FOR CENTRALIZED DC

POWER CONNECTION,

INSTALL ONLYIN A

RESTRICTED AREA

DC INPUT 36-59VDC , 25A

FOR CENTRALIZED DC

POWER CONNECTION,

INSTALL ONLYIN A

RESTRICTED AREA

DC INPUT 36-59VDC , 25A

FOR CENTRALIZED DC

POWER CONNECTION,

INSTALL ONLYIN A

RESTRICTED AREA

DC INPUT 36-59VDC , 25A

8SwitchBlade Power Supply Unit

C613-04028-01 REV B

How Many PSUs Do You Need?

The number of PSUs required depends on how many bays are in use.

If any five bays are in use (one switch controller bay and four line card bays, or

two switch controller bays and three line card bays), one PSU is sufficient.

Installing a second PSU provides N+1 redundancy.

If six or more bays are in use (one switch controller bay and five line card bays,

or two switch controller bays and four line card bays), two PSUs are required.

In this case, installing a third PSU in the SwitchBlade CH8 chassis provides

N+1 redundancy.

Where To Find More Information

Sources of further information:

■The Documentation and Tools CD-ROM bundled with every switch

controller and every chassis, which contains the complete Documentation

Set for your switch and its expansion options, as well as tools for managing

the switch.

■The SwitchBlade Safety and Statutory Information Booklet, which provides

safety and statutory information for the SwitchBlade and its accessories.

■The SwitchBlade Hardware Reference, which provides detailed information

on the switch and its hardware features.

■The SwitchBlade Software Reference, which provides detailed information on

configuring the switch and its software.

■The SwitchBlade Chassis and Fan Tray Quick Install Guide, which outlines the

procedure for installing the chassis and its fan tray.

■The SwitchBlade Switch Controller Quick Install Guide, which outlines the

procedure for installing switch controllers.

■The SwitchBlade Line Card Quick Install Guide, which outlines the procedure

for installing line cards.

■The SwitchBlade Bandwidth Expander Quick Install Guide, which outlines the

procedure for installing bandwidth expanders.

■The CAM Quick Install Guide, which outlines the procedure for installing

Content Addressable Memory.

■www.alliedtelesyn.co.nz/support/switchblade/

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Allied Telesis Stromversorgung Handbücher

Allied Telesis

Allied Telesis AR740 RPS Bedienungsanleitung

Allied Telesis

Allied Telesis AT-WDRPS-10 Bedienungsanleitung

Allied Telesis

Allied Telesis AT-MCF2000AC Bedienungsanleitung

Allied Telesis

Allied Telesis AT-FAN01 Bedienungsanleitung

Allied Telesis

Allied Telesis AT-8400 Series Bedienungsanleitung

Allied Telesis

Allied Telesis AT-PWR4 Bedienungsanleitung

Allied Telesis

Allied Telesis AT-8516F/SC Series Bedienungsanleitung

Allied Telesis

Allied Telesis CONVERTEON AT-PWR14 Bedienungsanleitung

Allied Telesis

Allied Telesis AT-PWR9 Bedienungsanleitung

Allied Telesis

Allied Telesis AT-PWR3202 Bedienungsanleitung

Allied Telesis

Allied Telesis AT-PWR10 Bedienungsanleitung

Allied Telesis

Allied Telesis AT-RPS9700 Bedienungsanleitung

Allied Telesis

Allied Telesis AT-RPS3204 Bedienungsanleitung

Allied Telesis

Allied Telesis IE048-480 Bedienungsanleitung

Allied Telesis

Allied Telesis AT-WDRPS-80 Bedienungsanleitung

Allied Telesis

Allied Telesis AT-PBPWRDC Bedienungsanleitung

Allied Telesis

Allied Telesis AT-PWR11 Bedienungsanleitung

Allied Telesis

Allied Telesis AT-PWR01 Bedienungsanleitung

Allied Telesis

Allied Telesis AT-PWR01 Bedienungsanleitung

Allied Telesis

Allied Telesis AT-RPS3000 Bedienungsanleitung

Allied Telesis

Allied Telesis AT-9408LC/SP Series Bedienungsanleitung

Allied Telesis

Allied Telesis AT-PWR4 Bedienungsanleitung

Allied Telesis

Allied Telesis AT-RPS3204 Bedienungsanleitung

Allied Telesis

Allied Telesis AT-PWR01 Bedienungsanleitung

Beliebte Stromversorgung Handbücher anderer Marken

Monacor

Monacor PS-12CCD Bedienungsanleitung

VOLTIMA

VOLTIMA MagicBox 15 Bedienungsanleitung

Agilent Technologies

Agilent Technologies 6032A Bedienungsanleitung

Miller

Miller Auto Deltaweld 452 Bedienungsanleitung

BCP

BCP PUOUBK Merkblatt

HC 2210 Bedienungsanleitung

Puls

Puls CT5.241 Bedienungsanleitung

OCZ

OCZ ZX1250W Bedienungsanleitung

iseg

iseg ECH 238 Bedienungsanleitung

Power

Power XXL A Series Bedienungsanleitung

Agilent Technologies

Agilent Technologies 6631B Bedienungsanleitung

Renogy

Renogy PHOENIX 300 Bedienungsanleitung

HP 6200B Service-Handbuch

Epson

Epson Stylus Scan 2500 Betriebsanleitung

Pulsar

Pulsar GREEN POWER CCTV PoE POE044816 Bedienungsanleitung

Puls

Puls MiniLine ML50.100 Bedienungsanleitung

Puls

Puls AS-Interface SLA4.100 Bedienungsanleitung

Kenwood

Kenwood PS-60 Bedienungsanleitung
