Allied Telesis AT-9900s Series Bedienungsanleitung

A5 Quick Install Guide Cover

AT-9900s Switches

Expansion Module

Installation Guide

AT-A60

AT-A61

AT-A62

613-000032 REV B

AT-9900s Series Switch Expansion Modules

Expansion Module Installation Guide for AT-9900s Switches

Document Number 613-000032 REV B

reproduced without prior written permission from Allied Telesyn Inc.

Allied Telesyn Inc. reserves the right to change specifications and other

information in this document without prior written notice. The information

provided herein is subject to change without notice. In no event shall Allied

Telesyn Inc. be liable for any incidental, special, indirect, or consequential

damages whatsoever, including but not limited to lost profits, arising out of or

related to this manual or the information contained herein, even if Allied Telesyn

Inc. has been advised of, known, or should have known, the possibility of such

damages.

All company names, logos, and product designs that are trademarks or

registered trademarks are the property of their respective owners.

Installation Guide

Contents

Models Covered by this Guide ...................................................................................... 4

Package Contents ............................................................................................................. 4

Overview ............................................................................................................................ 4

XFP Port ............................................................................................................................. 5

SFP Ports ............................................................................................................................ 7

RJ-45 Ports ......................................................................................................................... 9

Installation Procedure .................................................................................................... 10

Documentation ............................................................................................................... 11

AT-9900s Series Switch Expansion Modules

Models Covered by this Guide

■AT-A60 provides a single XFP port

■AT-A61 provides 12 SFP ports

■AT-A62 provides 12 10/100/1000Mbps RJ-45 ports

Package Contents

One warranty card and this Installation Guide are included with each expansion

module. Contact your sales representative if either is damaged or missing.

Overview

Two front bays in the AT-9900s switch allow quick and easy installation of

optional expansion modules (XEMs). These modules enable economical

combinations of speed and port density with the AT-9900s Series gigabit link

aggregation switch.

For example, add one 10GbE expansion module to provide a single high-speed,

high capacity fiber connection; add a second 10GbE module for redundancy or

as bandwidth needs increase. Add one or two 12-port RJ-45 copper expansion

modules to provide maximum gigabit Ethernet port density in a compact 1RU

chassis. For flexible port options, add one or two 12-port SFP expansion

modules to aggregate copper and fiber links from data centres and enterprise

networks, while providing long haul fiber links.

Installation Guide

XFP Port

The single-port 10Gigabit Ethernet expansion module, model AT-A60, features

the following:

■support for hot-swappable XFP modules

■two 16MByte DDR-SDRAM for packet buffering

■compatibility with a number of different 10Gb XFP serial transceivers

■status LEDs

■XFP connector, cage, and heatsink are provided for use with any standard

XFP module

Front view AT-A60

The following LEDs report operations on AT-A60 expansion modules.

LED State Description

L/A

(Link Activity)

Green An XFP transceiver is installed and a 10Gb

link has been established.

Green flashing An XFP transceiver is installed and link

activity is occurring.

XFP Green An XFP transceiver is installed and enabled.

No XFP is installed if this light is off.

Amber An XFP transceiver is installed but not

operating.

Amber flashing The installed XFP transceiver has a

transmission fault.

XFP

L/A

LINK ACT ENABLED DISABLED FAULT

AT-A 60

AT-9900s Series Switch Expansion Modules

The following XFP modules are approved for the AT-A60 expansion module.

For the latest list of approved transceiver modules, contact an authorised

distributor or reseller.

Product No. Media Type Description

AT-XPSR 10GBASE-SR 850nm short-haul transmission, 300m with

MMF.

AT-XPLRM 10GBASE-LRM 1310nm short-haul transmission, 300m with

MMF.

AT-XPLR 10GBASE-LR 1310nm medium-haul transmission, 10km

with SMF.

AT-XPER40 10GBASE-ER 1550nm long-haul transmission, 40km with

SMF.

Installation Guide

SFP Ports

The 12-port 1000BASE-X expansion module, model AT-A61, features the

following:

■two rows of 6 SFP ports

■support for hot-swappable SFP modules

■status LEDs

■two 16MByte DDR-SDRAM for packet buffering

■cable fault detection and distance-to-fault diagnostics for copper SFP ports

(see the Test Facility chapter in the Software Reference for the switch)

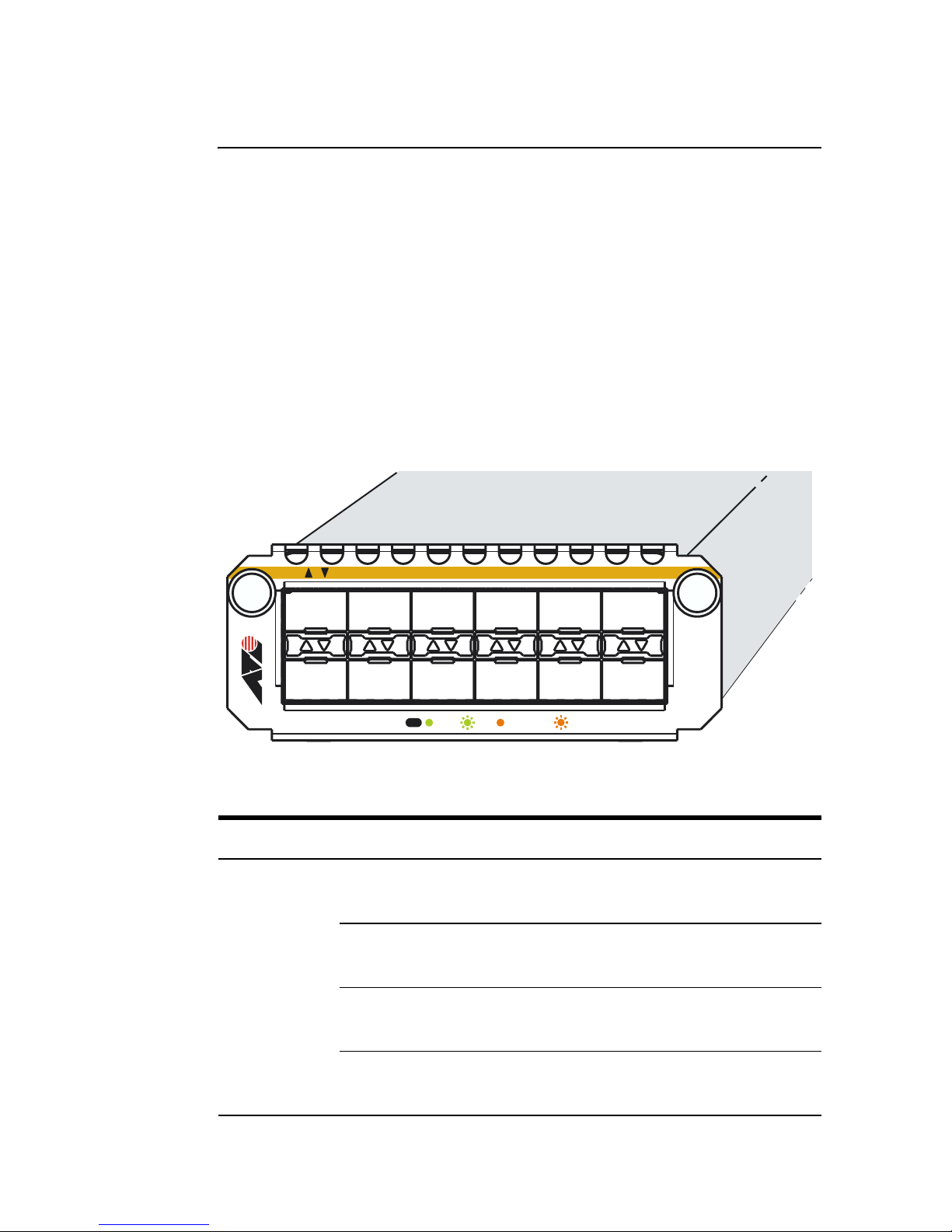

Front view AT-A61

The following LEDs report operations on AT-A61 expansion modules.

LED State Description

L/A

(Link Activity)

Green An SFP transceiver is installed and a link has

been established.

Green flashing An SFP transceiver is installed and link

activity is occurring.

Amber An SFP transceiver is installed but a link has

not been established.

Amber flashing An SFP is installed but there is a transmission

fault.

1 2 3 4 5 6 7 8 9 10 11 12

PORTS 1-12 LINK

SFP ACT INSTALLED FAULT

AT-A 61

AT-9900s Series Switch Expansion Modules

The following SPF modules are approved for AT-A61expansion modules.

For the latest list of approved transceiver modules, contact an authorised

distributor or reseller.

Product No. Media Type Description

AT-SPTX 10/100/1000BASE-T Copper, 100m at 1000Mbps, RJ-45

connector.

AT-SPSX 1000BASE-SX 850nm, 2 to 550 m with 50/125µm fiber,

2m to 275m with 62.5/125µm fiber, LC

connector.

AT-SPLX10 1000BASE-LX 1310nm, 2m to 10km with 9µm SM

fiber, 2m to 550m with 50µm MM fiber,

2m to 550m with 62.5µm MM fiber, LC

connector.

AT-SPLX40 1000BASE-LX 1310nm SM fiber up to 40km, LC

connector

AT-SPLX40/

1550

1000BASE-LX 550nm SM fiber up to 40 km, LC

connector

AT-SPZX80 1000BASE-ZX 1550nm, 80km with 9µm SM fiber, LC

connector.

AT-SPZX80/

xxxx

1000BASE-ZX

CWDM

Wavelengths of 1610nm to 1470nm

(20nm intervals) and 1310nm, 80km

with 9µm SM fiber, LC connector.

Where xxxx can be:

1610 1590 1570 1550

1530 1510 1490 1470

Installation Guide

RJ-45 Ports

The 12-port RJ-45 expansion module, model AT-A62, features the following:

■two rows of 6 RJ-45 ports

■gigabit ports that support speeds of 10/100/1000 Mbps

■status LEDs

■two 16MByte DDR-SDRAM for packet buffering

■cable fault detection and distance-to-fault diagnostics are available for RJ-45

Ethernet ports (see the Test Facility chapter in the Software Reference for the

switch)

Front view AT-A62

The following LEDs report operations on AT-A62 expansion modules.

LED State Description

L/A

(Link Activity)

Green A 1000Mbps link has been established.

Green flashing 1000Mbps activity is occurring.

Amber A 10/100Mbps link has been established.

Amber flashing 10/100Mbps activity is occurring.

D/C

(Duplex/

Collision)

Green The port is operating in full duplex mode.

Amber The port is operating in half duplex mode.

Amber flashing Collisions are occurring.

AT-A62

1 2 3 4 5 6 7 8 9 10 11 12

L/A D/C D/C

FULL DUP HALF DUP COLACT

L/A

LINK 1000M ACT LINK 10/100M

L/A

L/A D/C

AT-9900s Series Switch Expansion Modules

Installation Procedure

Before you begin:

■Unpack the expansion module.

In an anti-static environment, remove the expansion module from its packing

material. Be sure to observe ESD precautions.

Caution Failure to observe proper anti-static procedures may damage the

unit. If you are unsure about correct procedures, contact your authorised

Allied Telesyn distributor or reseller.

■Verify the package contents if you have not already done so.

See “Package Contents” on page 4. If any items are damaged or missing,

contact your authorised distributor or reseller.

■Read the safety information for the switch.

Safety information is available in the Installation and Safety Guide that is on

the CD-ROM for the AT-9900s switch. Or you can download this document

from www.alliedtelesyn.co.nz/documentation.

■Gather necessary tools.

You may need a Phillips #2 screwdriver to adjust the retaining screws on a

blank faceplate.

Procedure

If you want to swap expansion modules, first save your configuration file as

necessary (create config and set config commands).

1. If connected, disconnect the switch from its redundant power supply.

2. Disconnect the switch from its AC or DC power supply.

3. Loosen the thumbscrews to the faceplate or existing expansion module,

and remove it.

Keep the faceplate for future use. If you remove the expansion module,

cover the bay with the faceplate to prevent dust and debris from entering it

and to maintain proper airflow.

4. Carefully slide the module into the empty bay until you feel it engage the

rear plug.
