Allied Telesis AT-x230-10GP Bedienungsanleitung

C613-04072-00 REV A

AT-x230-10GP

AT-AR3050S

AT-AR4050S

Rack Mount Installation Guide

x230-10GP

CONSOLE

RS-232

FAULT

POWER

1000LINKACT10/100LINKACT PDONPDERR MAXCURRENT

SFP

246

1357

MAC Address Label

CLASS1

LASERPRODUCT

CONSOLE

FAUL

PWR

FNC1

FNC2

RESET

12345678 21

BYPASS

2121

USB

FDXHDXCOL

READYFAUL

MASTERSTANDBY

ETH

SFP

AR3050S

1000LINK ACT 100LINK ACT

AR3050S

CLASS1

LASERPRODUCT

CONSOLE

FAUL

PWR

FNC1

FNC2

RESET

12345 678 2 1

BYPASS

2121

USB

FDXHDXCOL

READYFAUL

MASTERSTANDBY

ETH

SFP

AR4050S

1000LINKACT 100LINK ACT

Inc.

Allied Telesis and the Allied Telesis logo are trademarks of Allied Telesis, Incorporated. All other product names,

company names, logos or other designations mentioned herein are trademarks or registered trademarks of their respective

owners.

Allied Telesis, Inc. reserves the right to make changes in specifications and other information contained in this document

without prior written notice. The information provided herein is subject to change without notice. In no event shall Allied

Telesis, Inc. be liable for any incidental, special, indirect, or consequential damages whatsoever, including but not limited

to lost profits, arising out of or related to this manual or the information contained herein, even if Allied Telesis, Inc. has

been advised of, known, or should have known, the possibility of such damages.

AT-x230-10GP and AT-x230-18GP Rack Mount Installation Guide

Contents

Installation ......................................................................................................................................................... 7

Contents of AT-RKMT-J15 for the device .................................................................................................... 8

Installing a device in an equipment rack ...................................................................................................... 9

AT-x230-10GP and AT-x230-18GP Rack Mount Installation Guide

Figures

Figure 1: Removing the rubber feet from the device ........................................................................................................... 10

Figure 2: Installing the tray chassis in a 19-inch equipment rack ........................................................................................ 11

Figure 3: pulling out the tray ................................................................................................................................................ 11

Figure 4: Aligning the faceplate with the edge of the tray.................................................................................................... 12

Figure 5: Aligning the faceplate 60mm off the edge of the tray ........................................................................................... 13

Figure 6: Returning the tray ................................................................................................................................................ 13

AT-x230-10GP, AT-AR3050S and AT-AR4050S Rack Mount Installation Guide

Installation

This chapter contains the following sections:

“Contents of AT-RKMT-J15 for the device” on page 8

“Installing a device in an equipment rack” on page 9

The procedures apply to AT-x230-10GP, AT-AR3050S and AT-AR4050S.

AT-x230-10GP, AT-AR3050S and AT-AR4050S Rack Mount Installation Guide

Contents of AT-RKMT-J15 for the device

The AT-RKMT-J15 rack mount kit can be purchased from your Allied

Telesis dealer. The rack mount kit should contain the following items:

If any item is missing, contact your Allied Telesis dealer for assistance.

1 main unit (tray chassis)

4 M4x6mm truss head screws

AT-x230-10GP, AT-AR3050S and AT-AR4050S Rack Mount Installation Guide

Installing a device in an equipment rack

Before installing

the device

Observe the following requirements before installing your device in an

equipment rack:

Verify that the rack is safely secured and will not tip over. Devices

in a rack should be installed starting at the bottom, with the heavier

devices near the bottom of the rack.

Ensure that there is a power outlet for the switch that is close to the

device and is easily accessible.

Ensure that the position of the device in the rack will provide easy

access to the device’s ports. This will make it easier to connect and

disconnect cables, as well as view the device’s LEDs.

Verify that the air flow around the device and through its vents on

the side and rear will not be restricted, so that the device can

maintain adequate cooling.

Do not place objects on top of the device.

Do not expose the device to moisture or water.

Ensure that the rack is in a dust-free environment.

Be sure to use dedicated power circuits or power conditioners to

supply reliable electrical power to the network devices.

Note

This product is non-compatible with L-shaped connector power

cable (AT-PWRCBL-J01L/J01R).

AT-x230-10GP, AT-AR3050S and AT-AR4050S Rack Mount Installation Guide

How to install the

device

You will need an AT-RKMT-J15 rack mount kit to install one or two side-

by-side devices in a 19-inch equipment rack. The rack mount kit can be

purchased from your Allied Telesis dealer.

To install a device in the equipment rack, follow these steps:

1. If rubber feet are attached to the base of the device, place the unit

upside down on a level, secure surface.

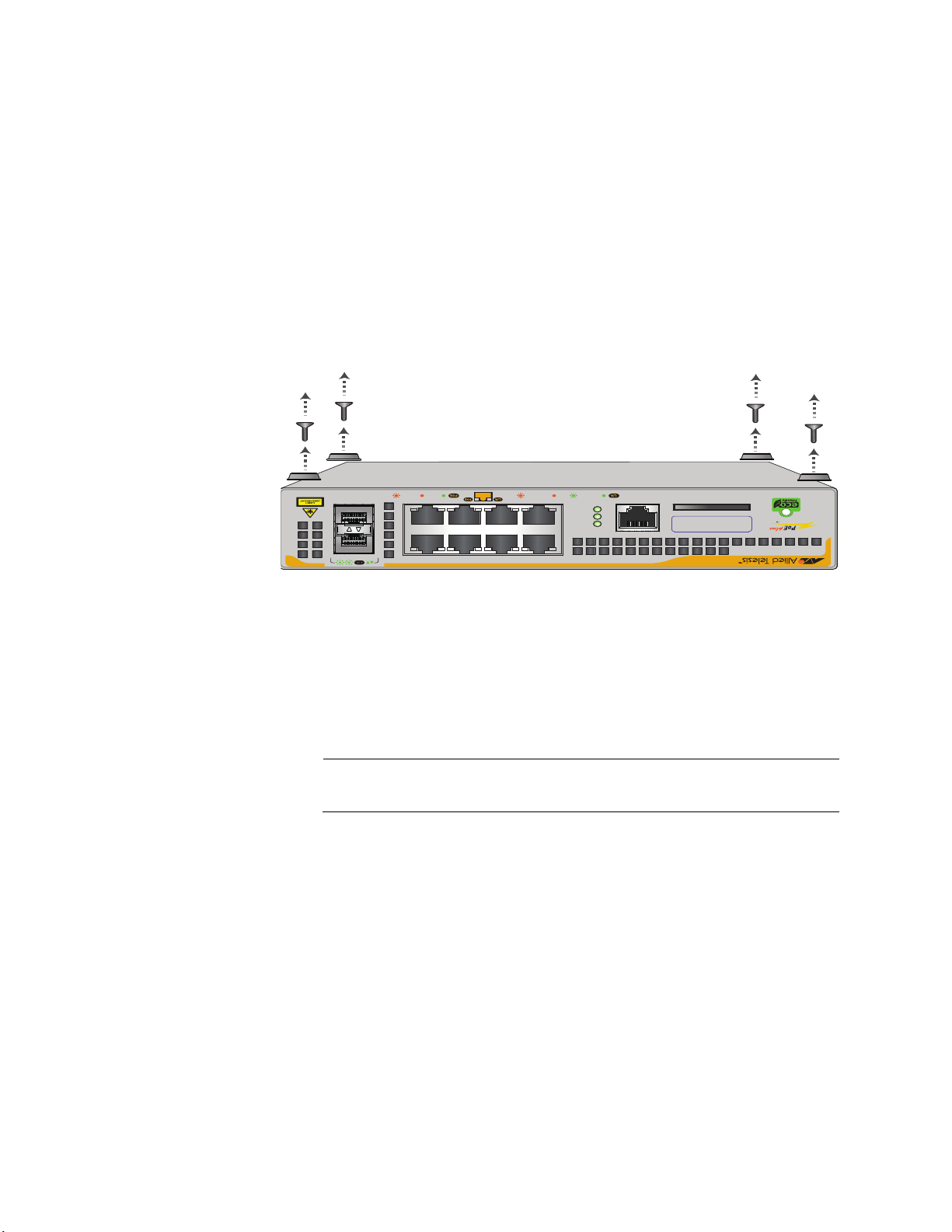

2. Remove the rubber feet with a screwdriver (Figure 1).

FIGURE 1. REMOVING THE RUBBER FEET FROM THE DEVICE

x230-10GP

CONSOLE

RS-232

FAULT

POWER

1000 LINK ACT 10/100 LINK ACT PD ON PD ERR MAX CURRENT

SFP

24 68

1357

MAC Address Label

3. Turn the device back over.

4. Installing the tray chassis in a 19-inch equipment rack (Figure 2)

Mount the tray chassis to a desired location in a 19-inch equipment

rack using four equipment rack screws. The rack screws are supplied

with the equipment rack.

Note

At the time of installation, do not loosen the tray fixing screws.
