Allnet ALL4806W Bedienungsanleitung

ALL4806W Rev.B

Smart managed 24 Port Gigabit Switch

incl. 4 Combo Ports (RJ/SFP)

User Manual

- 1 -

ALL4806 Rev.B

Ⅰ

ⅠⅠ

Ⅰ. Features Overview

Supports real-time status (link, speed, duplex) of each

port

Supports port setting for enable or disable operation

(the 1st port can’t be disabled)

Supports port setting for N-Way or force mode operation

Supports Broadcast Storm Protection

Supports Port-bases VLAN

Supports priority queues for QoS

Ⅱ

ⅡⅡ

Ⅱ. Configure

Please follow the steps to configure the ALL4806 Rev.B.

Step 1:

Use a twisted pair cable to connect this switch to your PC.

Step 2:

Set your PC’s IP to 192.168.2.xx.

- 2 -

Step 3:

Open the browser (like IE…) and go to

http:// 192.168.2.1

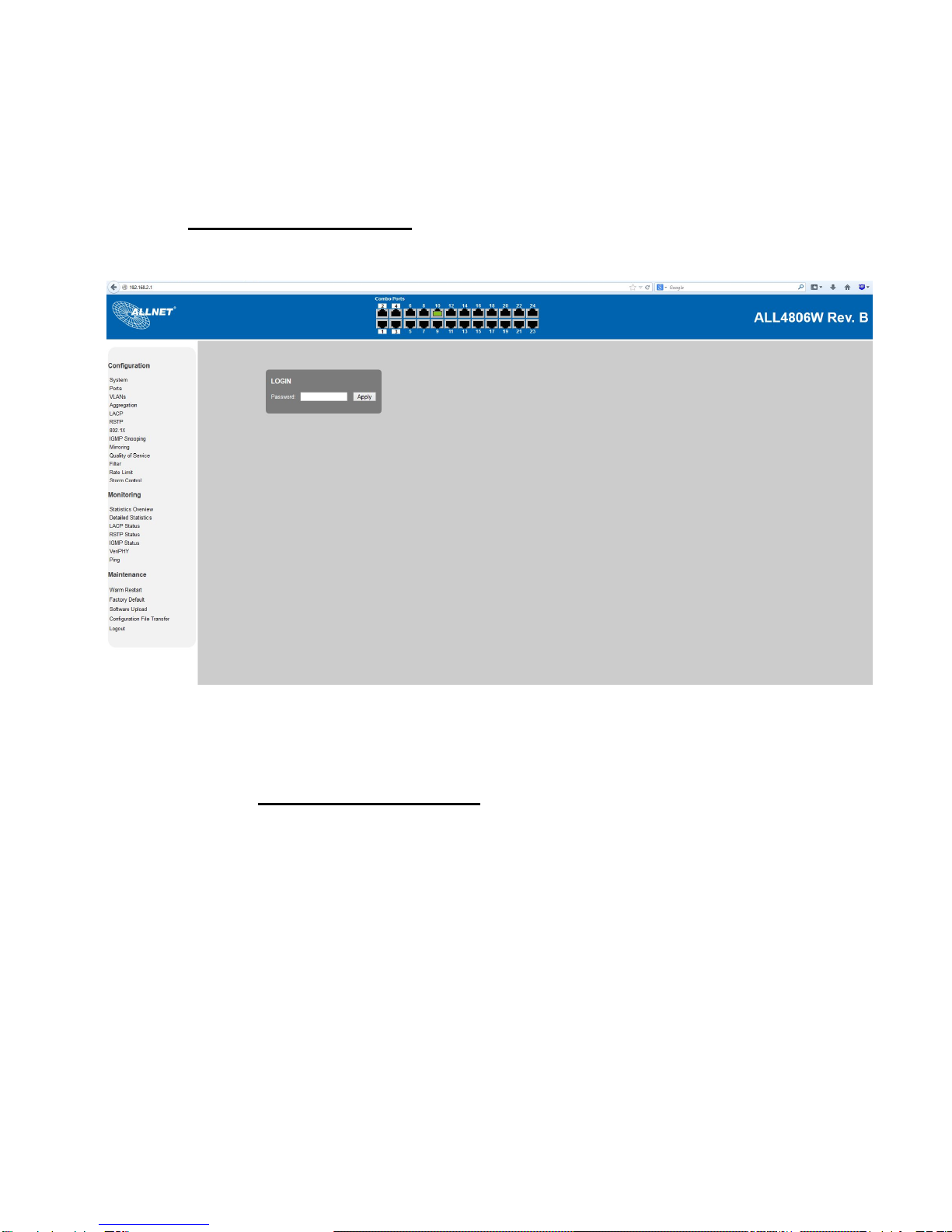

You will see the login screen as below:

Please key in the password to pass the authentication.

Password: admin

After the authentication procedure, the switch can be used

now.

Step 4:

On the home page, select the configuration by clicking

the icon as below:

- Configuration

- Monitoring

- Maintenance

- Logout

- 3 -

Configuration: System Configuration

It shows system status, such as: MAC address, system

firmware version and so on.

You can change the user name, the password and IP

address, and click “Apply” to confirm the new change.

Afterwards, you can reset the switch by turning off and

turning on it to take the new user name, the password and

IP address effectively.

- 4 -

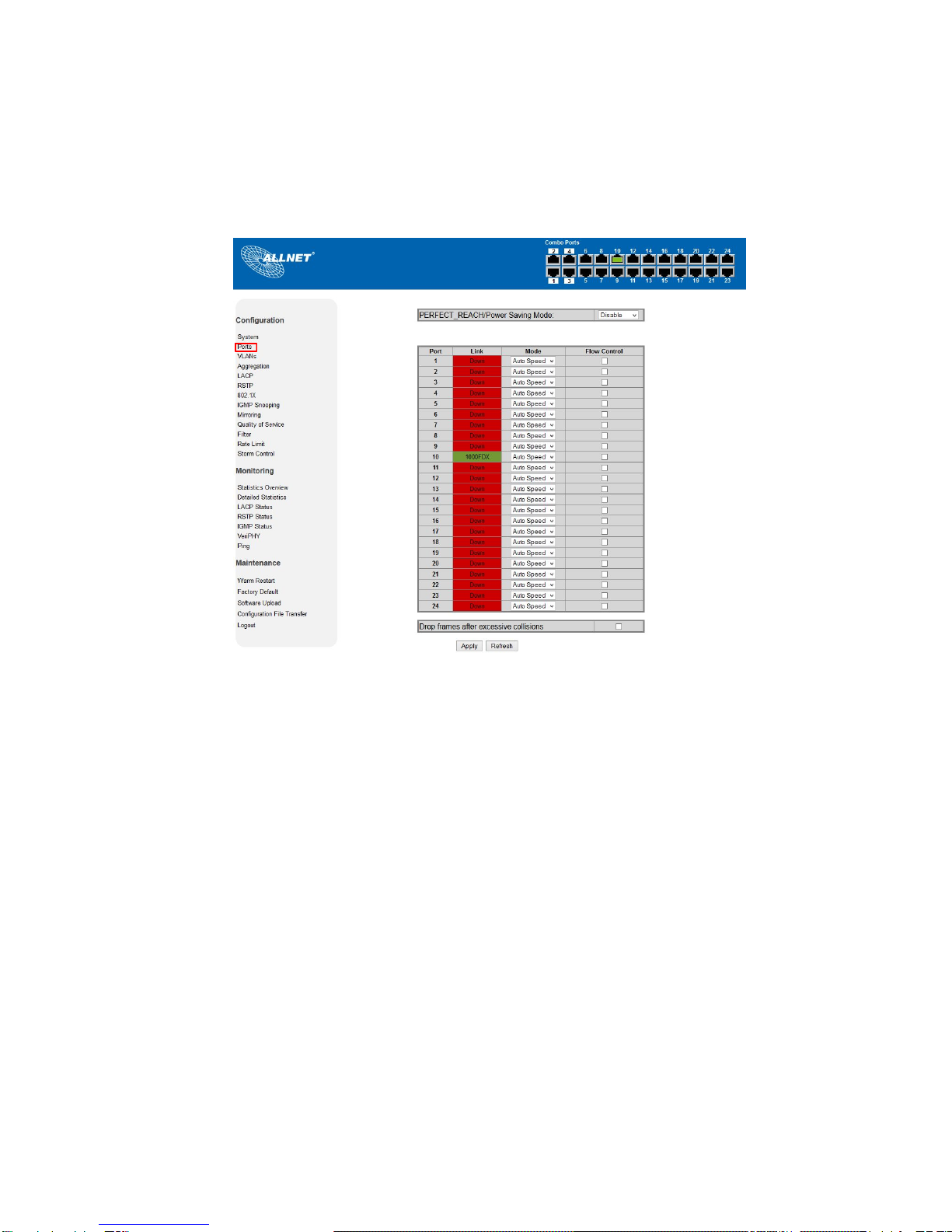

Configuration: Port Configuration

You can enable or disable Jumbo Frames by clicking the

checking box.

Select the “Port no.” which you want to configure the mode

below,

- Auto speed

- enable/disable the port

- 10M/100M/1000M

- full/half-duplex

- enable/disable flow control

- 5 -

Configuration: VLAN Configuration

There are 16 VLAN groups.

Select and add a group into “VLAN ID” and then click the

port number which you want to put into the selected VLAN

group.

- 6 -

Configuration: Aggregation/Trunk Configuration

Set up port trunk groups and then click the port number you

want to include into the same group.

There are eight groups to choose and the maximum for one

group is 24 ports.

- 7 -

Configuration: LACP Port configuration

Select the port number which you want to enable/disable its

protocol.

- 8 -

Configuration: RSTP Configuration

Select the port number which you want to enable/disable its

protocol.

- 9 -

Configuration: 802.1x Configuration

Select the “Port no.” which you want to configure the mode

below,

- Auto

- Force Authorized

- Force Unauthorized
