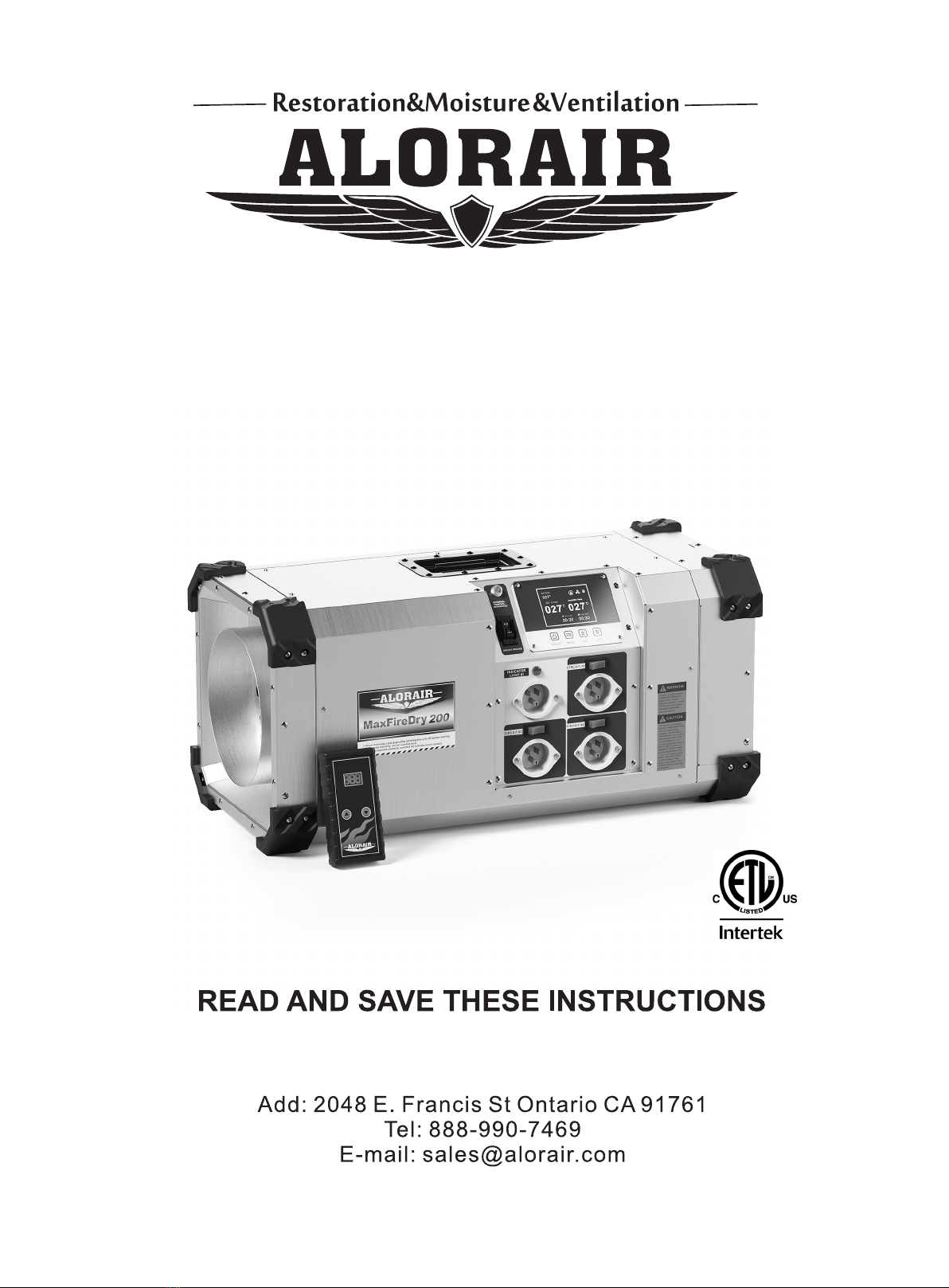

ALORAIR MaxFireDry 200 Bedienungsanleitung
MaxFireDry 200
Portable Heater
OWNER’S MANUAL
Electric Heat Drying System
Specifications subject to change without notice.
AlorAir Solutions INC.
We standard equipped with 4 x length (25 feet) power cord for you, if you
need a longer power cord, you can buy (50 feet) power cord from the
dealer or designated network.
ln order to avoid overheating, do not cover the heater.
Do not turn on the machine or try to enter through the grille with the power
on.
The risk of electric shock, do not use overload sockets or extension
cables. Check the power rating before use.
In order to provide continuous protection against the risk of electric shock,
you can only connect sockets with grounding.
Make sure you have read and understood this manual before
operating the machine.
Check whether there is any damage on the outside of the machine
before operation. If there is any damage, please contact customer
service.
Do not let children or patients operate.
WARNING!
Electric Heat Drying System
CATALOGUE
Electric Heat Drying System
01
02
04
06
07
12
13
14
Matters Needing Attention
Overview
Accessories and Maintenance
Service Section
LCD Display Instructions
Wiring Diagram
Troubleshooting
Warranty and After-sale

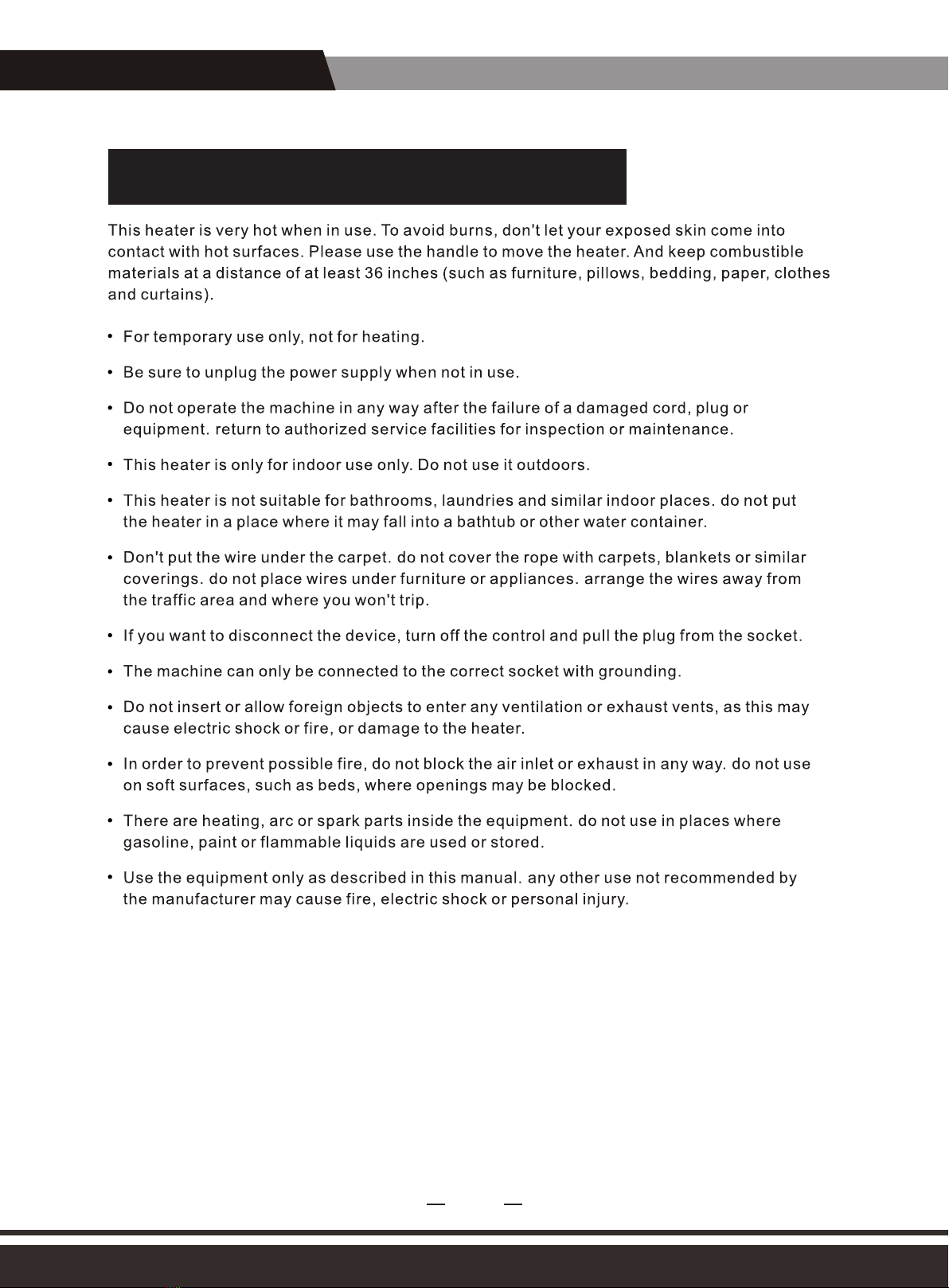

MATTERS NEEDING ATTENTION
Electric Heat Drying System
01
OVERVIEW
PARAMETERS
Power
120VAC 60Hz,
1 Phase Heater Circuits (up to 4)
Heating Unit PTC thermistor wire
Maximum Heat 20,000 BTUs
Maximum Setting Temperature
Air Volume 250 CFM
Filter MERV-8
Pipeline Import and export-8 inch flexible
pipe (aluminum conduit).
Width 12.6” 17”
Height 12.6” 17.8”
Depth 26.2” 30.5”
Weight 34.6 pounds 42 pounds
SIZE SPECIFICATION
Without Packing With Packing
Electric Heat Drying System
02
HOW TO WORK

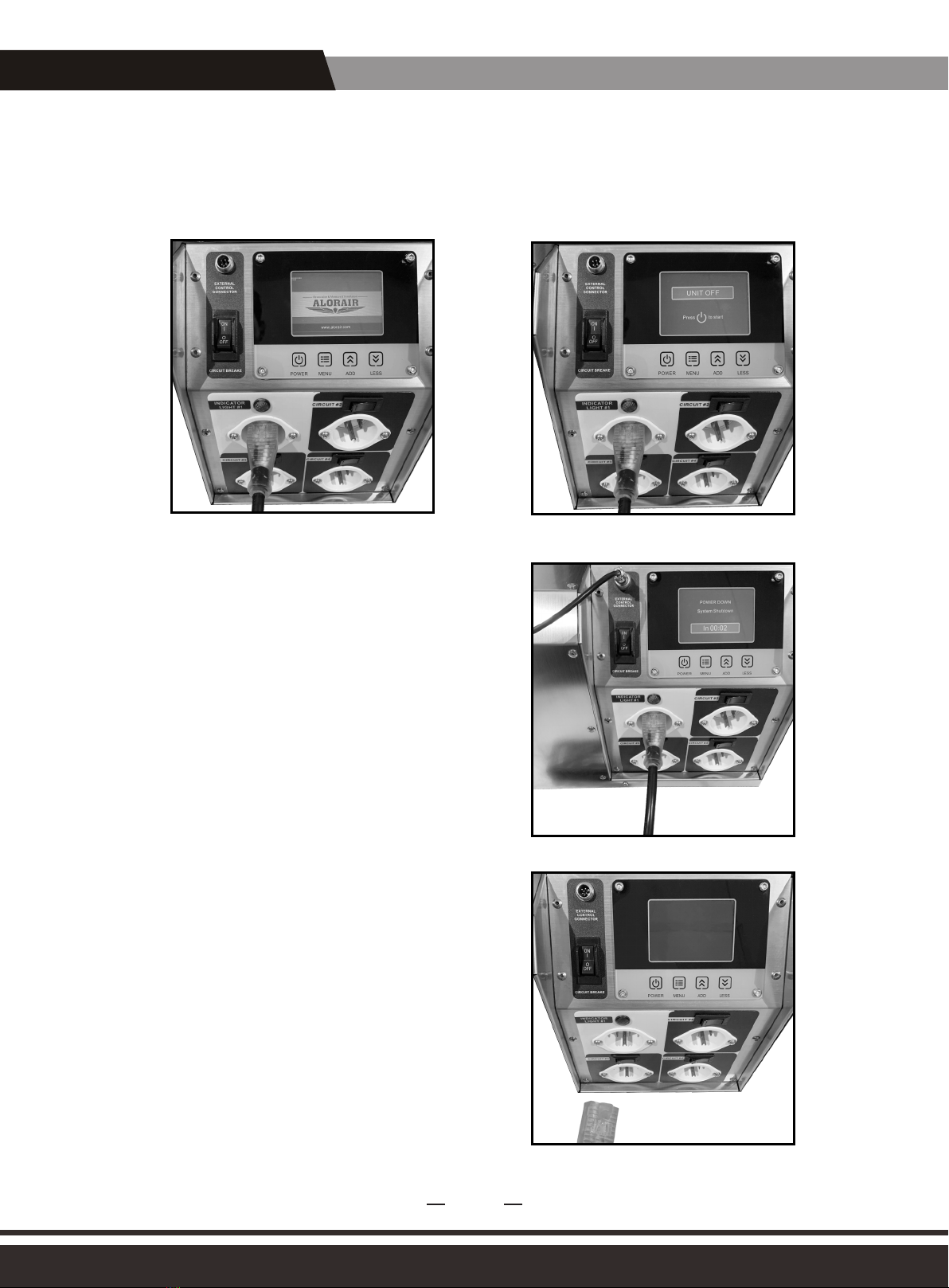

The power cord is plugged into socket # 1, the main control system of the
device is power on and starts to operate, as shown in figure:
Connect the controller data cable to the
EXTERNAL CONTROL GONNECTOR
socket to switch on the controller for
external temperature detection and
control, as shown in figure.
When the equipment is not in use, please
shut down the operating system (POWER
button) first, then disconnect the rocker
switch, and then pull out the plug from the
socket, as shown in figure.
Electric Heat Drying System
03
1.
2.
3.
PRODUCT FEATURES
Timing Off
Blackout Memory Room temperature detection
Button Led Display
Fault Judgment
Cycle Mode
Overheating power cut-off protection
Wired Remote Control High energy efficiency
Stackable
Fire-proof and flame-retardant material
for shell
DETAILS OF ACCESSORIES
Name
Filter
External Controller
Power Connection Line
Specification Manual
Straps (stainless Steel)
Specification
8.9 x 8.7 x 0.6 in MERV-8
1
2
EXTERNAL PIPE
MaxFireDry 200 can be connected to the inlet, outlet or both to accommodate 8
"flexible pipes. When choosing flexible pipes, keep in mind the expected outlet
temperature. The air temperature usually increases by 50 to 80 degrees Fahrenheit.
Increasing the pipe will reduce the airflow, which will cause the outlet temperature to
rise again."
Air intake ducts can be ordered from the factory,need to be purchased separately.
Note: aluminum conduit is strongly recommended as it can effectively
avoid fire.
Electric Heat Drying System
04
ACCESSORIES AND MAINTENANCE
MAINTAIN
Max Fire Dry 200 is equipped with standard MERV-8 high efficiency filter.
Before replacing the filter, you can usually clean it once with a vacuum cleaner.
Using a dirty or clogged filter to operate the Max Fire Dry 200 will reduce the output of
the air flow and eventually cause the heating element to turn off. Installing a clean filter
or removing obstacles to restore airflow will make the heating element work again.
It must be checked regularly.
Replacement filters can be ordered from the factory or purchased locally, if any.
!Warning: do not operate this machine without a filter or using an
inefficient filter.
Do not operate the machine without the upper cover installed. The
presence of high pressure may cause the heater to burn out.
!Warning: repairing MaxFireDry 200 alone can cause health hazards
and can lead to death, serious personal injury or property damage. Only
qualified maintenance personnel can carry out maintenance operations.
Electric Heat Drying System
05

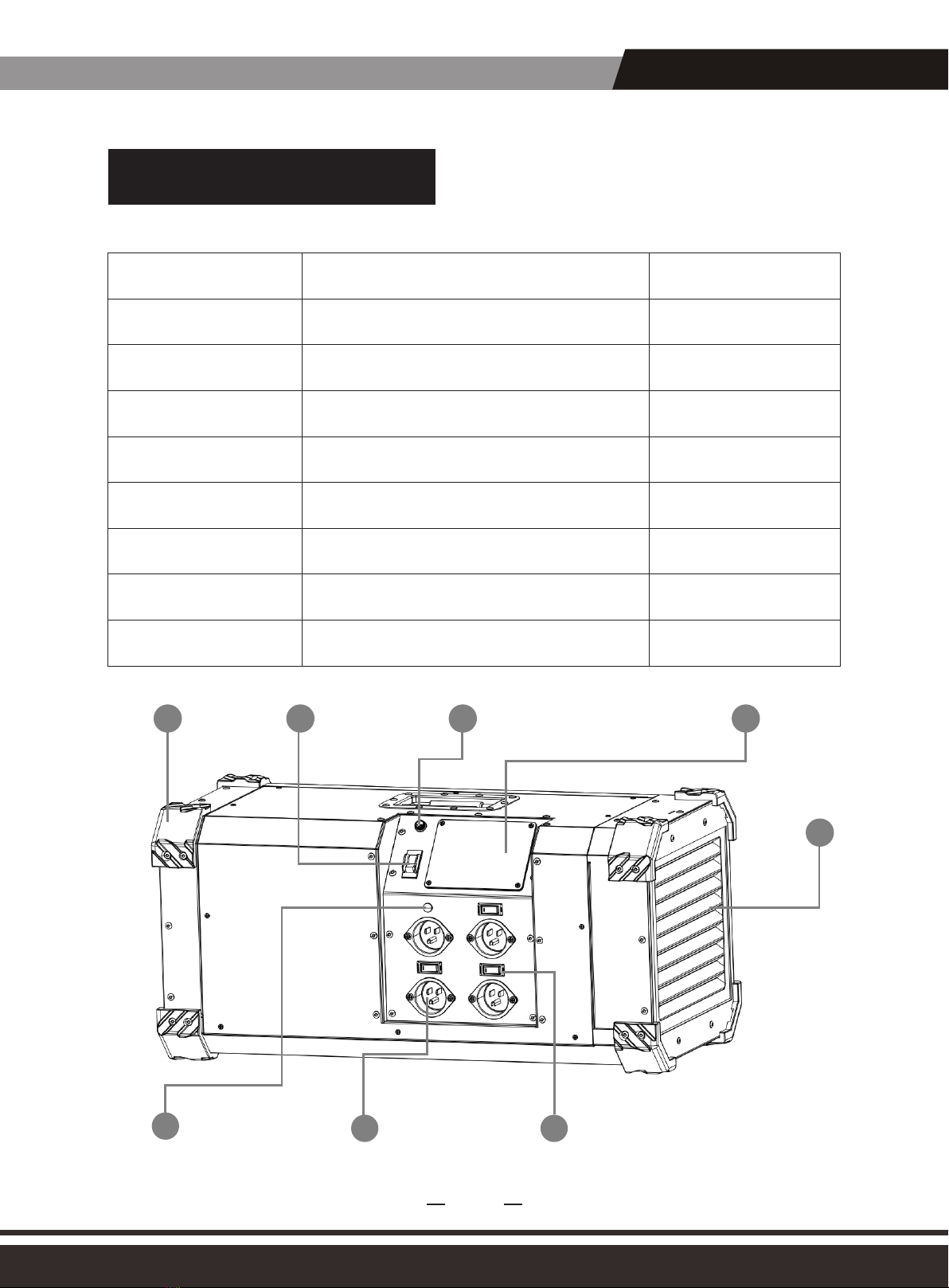

SERVICE SECTION
Serial Number Specification
Foot Pad
Main Switch
External Controller Socket
Display Screen
MERV-8 Filter Net
Indicator Light
Socket
Overload Switch
Number
1
3
2
4
5
6
7
8
8
1
1
1
1
1
4
3
1234
5
678
Electric Heat Drying System
06
