ADM-PCIE-9V3

User Manual

Document Revision: 2.7

4th December 20 8

ADM-PCIE-9V3 User Manual

publication may be reproduced, in any shape or form, without prior written consent from Alpha

Data Parallel Systems Ltd.

Head Office

Address: 4 West Silvermills Lane

Edinburgh, EH3 5B , UK

Telephone: +44 131 558 2600

Fax: +44 131 558 2700

email: [email protected]

website: http://www.alpha-data.com

US Office

611 Corporate Circle, Suite H

Golden, CO 80401

(303) 954 8768

(866) 820 9956 - toll free

[email protected]

http://www.alpha-data.com

All trademarks are the property of their respective owners.

ADM-PCIE-9V3 User Manual

Table Of Contents

Introduction ......................................................................................................................................

1.1 Key Features ................................................................................................................................. 1

1.2 Order Code .................................................................................................................................... 1

2 PCB Information .............................................................................................................................. 2

2.1 Physical Specifications .................................................................................................................. 2

2.2 Chassis Requirements ................................................................................................................... 2

2.2.1 PCI E press ............................................................................................................................... 2

2.2.2 Mechanical Requirements ......................................................................................................... 2

2.2.3 Power Requirements ................................................................................................................. 2

2.3 Thermal Performance .................................................................................................................... 3

2.4 Optional Blower ............................................................................................................................. 4

2.5 Full Height Heat Sink ..................................................................................................................... 4

3 Functional Description .................................................................................................................... 5

3.1 Overview ........................................................................................................................................ 5

3.1.1 Switches .................................................................................................................................... 6

3.1.2 LEDs .......................................................................................................................................... 7

3.2 Clocking ......................................................................................................................................... 8

3.2.1 PCIe Reference Clocks ............................................................................................................. 8

3.2.2 Fabric Clock ............................................................................................................................... 8

3.2.3 Programming Clock (EMCCLK) ................................................................................................. 9

3.2.4 QSFP28 ..................................................................................................................................... 9

3.2.5 Ultraport SlimSAS .................................................................................................................... 10

3.2.6 DDR4 SDRAM Reference Clocks ............................................................................................ 10

3.3 PCI E press ................................................................................................................................. 11

3.4 DDR4 SDRAM ............................................................................................................................. 11

3.5 QSFP28 ....................................................................................................................................... 12

3.6 OpenCAPI Ultraport SlimSAS ...................................................................................................... 13

3.7 System Monitor ............................................................................................................................ 14

3.7.1 System Monitor Status LEDs ................................................................................................... 15

3.8 USB Interface .............................................................................................................................. 16

3.9 Configuration ............................................................................................................................... 16

3.9.1 Configuration From Flash Memory .......................................................................................... 16

3.9.1.1 Building and Programming Configuration Images ............................................................... 17

3.9.2 Configuration via JTAG ............................................................................................................ 17

3.10 GPIO Connector .......................................................................................................................... 18

3.10.1 Direct Connect FPGA Signals .................................................................................................. 18

3.10.2 Timing Input ............................................................................................................................. 18

3.11 User EEPROM ............................................................................................................................. 19

Appendix A Complete Pinout Table .................................................................................................................. 2

List of Tables

Table 1 Mechanical imensions ..................................................................................................................... 2

Table 2 Available Power By Rail ..................................................................................................................... 2

Table 3 Switch Functions ................................................................................................................................ 6

Table 4 LE etails ........................................................................................................................................ 7

Table 5 PCIe Reference Clocks ..................................................................................................................... 8

Table 6 Fabric Clock ....................................................................................................................................... 9

Table 7 EMCCLK ............................................................................................................................................ 9

ADM-PCIE-9V3 User Manual

Table 8 QSFP28 Reference Clocks ................................................................................................................ 9

Table 9 QSFP28 Jitter Attenuated Reference Clocks ..................................................................................... 9

Table 10 SlimSAS Reference Clocks (OpenCAPI) ......................................................................................... 10

Table 11 Memory Reference Clocks .............................................................................................................. 10

Table 12 QSFP28 Part Numbers .................................................................................................................... 12

Table 13 Voltage, Current, and Temperature Monitors ................................................................................... 14

Table 14 Status LE efinitions ..................................................................................................................... 15

Table 15 Complete Pinout Table ..................................................................................................................... 21

List of Figures

Figure 1 A M-PCIE-9V3 Product Photo .......................................................................................................... 1

Figure 2 Thermal Performance ........................................................................................................................ 3

Figure 3 Optional Blower ................................................................................................................................. 4

Figure 4 Full Height Heat Sink ......................................................................................................................... 4

Figure 5 A M-PCIE-9V3 Block iagram ......................................................................................................... 5

Figure 6 Switches ............................................................................................................................................ 6

Figure 7 Backside LE s .................................................................................................................................. 7

Figure 8 Front Panel LE s .............................................................................................................................. 7

Figure 9 Clock Topology .................................................................................................................................. 8

Figure 10 Si5328 Block iagram ..................................................................................................................... 10

Figure 11 QSFP Locations ............................................................................................................................... 12

Figure 12 OpenCAPI Location ......................................................................................................................... 13

Figure 13 Flash Address Map .......................................................................................................................... 16

Figure 14 GPIO Connector Schematic ............................................................................................................ 18

Figure 15 GPIO Connector Location ................................................................................................................ 18

ADM-PCIE-9V3 User Manual

Introduction

The A M-PCIE-9V3 is a high-performance reconfigurable computing card intended for ata Center applications,

featuring a Xilinx Virtex UltraScale Plus FPGA.

Figure : ADM-PCIE-9V3 Product Photo

. Key Features

Key Features

• PCIe Gen1/2/3 x1/2/4/8/16 capable

• Half-length, low-profile x16 PCIe form factor

• Two banks of R4 S RAM 72 bit wide memory (ECC), 16GB (8GB per bank) default rated at 2400MT/s,

32GB option rated at 1866MT/s.

• Two QSFP28/zQSFP+ sites capable of data rates up to 28 Gbps per channel (112 Gbps per cage)

• One 8 lane Ultraport SlimSAS connector that is compliant with OpenCAPI

• Optional timing input

• Front panel and rear edge JTAG access via USB port

• FPGA configurable over USB/JTAG and SPI configuration flash

• XCVU3P-2FFVC1517I FPGA

• Voltage, current, and temperature monitoring

.2 Order Code

A M-PCIE-9V3

See http://www.alpha-data.com/pdfs/adm-pcie-9v3.pdf for complete ordering options.

Page Introduction

ad-ug- 322_v2_7.pdf

ADM-PCIE-9V3 User Manual

2 PCB Information

2. Physical Specifications

The A M-PCIE-9V3 complies with PCI Express CEM revision 3.0.

escription Measure

Total y 68.9 mm

Total x (Inc. QSFP Cages) 174 mm

Total z 17.45 mm

Weight 230 grams

Table : Mechanical Dimensions

2.2 Chassis Requirements

2.2. PCI Express

The A M-PCIE-9V3 is capable of PCIe Gen 1/2/3 with 1/2/4/8/16 lanes, using the Xilinx Integrated Block for PCI

Express.

2.2.2 Mechanical Requirements

A 16-lane physical PCIe slot is required for mechanical compatibility.

Each A M-PCIE-9V3 is shipped with a full height PCIe card bracket installed by default. A half-height bracket is

shipped along with the product and can be easily changed out with a Philips screw driver. If the application

requires a low-profile bracket and the order quantity is high, contact [email protected] to get the correct

bracket fitted before shipping.

2.2.3 Power Requirements

The PCIe Specification permits a standard low-profile, half-length PCIe card to dissipate up to 25 W of power,

drawn from the PCIe slot. The A M-PCIE-9V3 may consume more than 25 W of power for larger user FPGA

designs. Power estimation requires the use of the Xilinx XPE spreadsheet and/or a power estimator tool

available from Alpha ata. Please contact [email protected] to obtain this tool.

The power available to the rails calculated using XPE are as follows:

Voltage Source Name Current Capability

0.85 VCC_INT + VCCINT_IO + VCC_BRAM 36A

1.8 VCCAUX + VCCAUX_IO + VCC_BRAM + VCCO_1.8V 6A

3.3 VCCO_3.3V 6A

1.2 VCCO_1.2V 9A

1.8 MGTVCCAUX 1A

0.9 MGTAVCC 9A

1.2 MGTAVTT 15A

Table 2 : Available Power By Rail

Page 2 PCB Information

ad-ug- 322_v2_7.pdf

ADM-PCIE-9V3 User Manual

2.3 Thermal Performance

If the FPGA core temperature exceeds 100 degrees Celsius, the FPGA design will be cleared to prevent that

card from over-heating.

The A M-PCIE-9V3 comes with a heat sink to reduce the heat of the FPGA which is typically the hottest point on

the card. The FPGA die temperature must remain under 100 degrees Celsius. To calculate the FPGA die

temperature, take your application power and multiply by Theta JA from the table below, and add to your system

internal ambient temperature. If you are using the fan provided with the board, you will find theta JA is

approximately 1.4 degC/W for the board in still air.

The power dissipation can be estimated by using the Alpha ata power estimator in conjunction with the Xilinx

Power Estimator (XPE) downloadable at http://www.xilinx.com/products/technology/power/xpe.html. ownload

the UltraScale tool and set the evice to Virtex UltraScale+, VU3P, FFVC1516, -2, Industrial. Set the ambient

temperature to your system ambient and select User Override for the Effective theta JA and enter the figure

associated with your system LFM in the blank field. Proceed to enter all applicable design elements and

utilization in the following spreadsheet tabs. Next aquire the 9V3 power estimator from Alpha ata by contacting

[email protected]. You will then plug in the FPGA power figures along with R4 and QSFP usage to get

an estimate.

Figure 2 : Thermal Performance

Page 3PCB Information

ad-ug- 322_v2_7.pdf

ADM-PCIE-9V3 User Manual

2.4 Optional Blower

Because it is possible for generic PC chassis to not provide sufficient airflow to cool the FPGA, the

A M-PCIE-9V3 is shipped with an uninstalled blower. The blower is optional and can be easily installed with a

Philips screw driver at the discretion of the user. Ensure the opening is facing the heatsink fins. The blower

hangs off the back of the PCB outside of the PCIe card envelope. After screwing the blower into the heatsink,

plug in the small power connector into the connector in the corner of the board. It is possible to alternatively ship

a fan that fits in the adjacent PCIe card slot if required for mechanical fit, contact [email protected] for

details.

Figure 3 : Optional Blower

2.5 Full Height Heat Sink

For customers with full height chassis that would like better thermal performance, and to baffle the empty space

above the card, Alpha ata sells a full height heat sink variant. The thermal performance boost is documented in

the Thermal Performance image above. Contact [email protected] for more details.

Figure 4 : Full Height Heat Sink

Page 4 PCB Information

ad-ug- 322_v2_7.pdf

ADM-PCIE-9V3 User Manual

3 Functional Description

3. Overview

The A M-PCIE-9V3 is a versatile reconfigurable computing platform with a Virtex UltraScale VU3P FPGA, a

Gen3x16 PCIe interface, two banks of R4 both 72 bits wide (for 64 bits with 8 bits ECC), two QSFP28 cages

capable of 8x 28G or 2x 112G Serial IO of any Xilinx supported standard (Ethernet, SRIO, Infiniband, etc.), one

OpenCAPI compatible Ultraport SlimSAS connector also capable of 28G/channel, an input for a timing

synchronization input, a 12 pin header for general purpose use (clocking, control pins, debug, etc.), and a robust

system monitor.

XCVU3P-2

FFVC1517I

(0,4) (5,7) (8,11) (12,15)

x16 PCIe Gen3/4 Edge

QSFP28 C ge

(4x28 Gbps m x)

QSFP28 C ge

(4x28 Gbps m x) DDR4 B nk 1

DDR4-2400/1866, 8/16GB

DDR4 B nk 0

DDR4-2400/1866, 8/16GB

System

Monitor

MGT

MGT HPIO

HPIO

HRIO

x8 SPI

Config

x72

MGTMGT MGT

HRIO

USB JTAG 0

Auxili ry IO

(gpio, timing)

MGTMGT

OpenCAPI SAS

(8x28Gbps m x)

MGT

MAC ID

EEPROM

Figure 5 : ADM-PCIE-9V3 Block Diagram

Page 5Functional Description

ad-ug- 322_v2_7.pdf

ADM-PCIE-9V3 User Manual

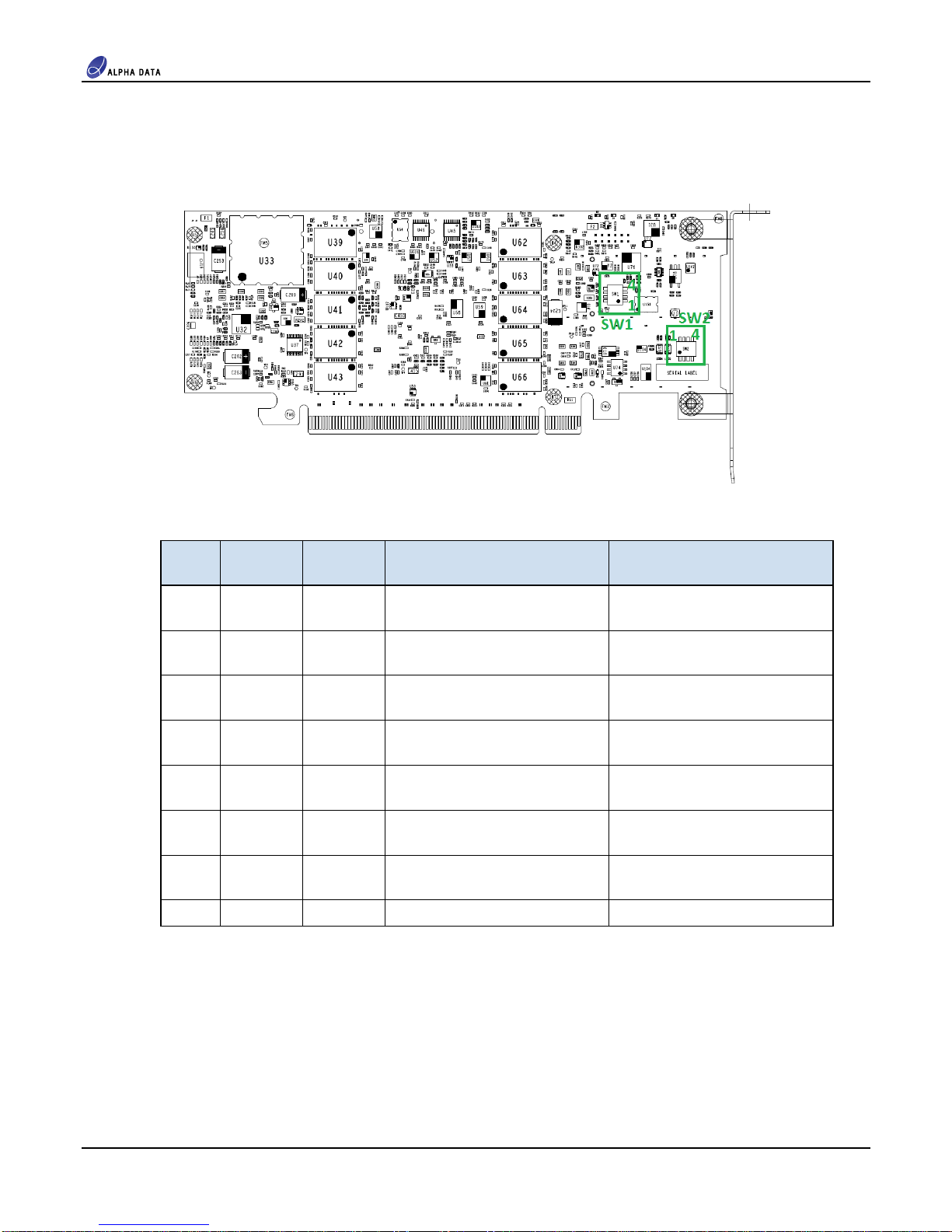

3. . Switches

The A M-PCIE-9V3 has a quad IP switch SW1, located on the rear side of the board. The function of each

switch in SW1 is detailed below:

Figure 6 : Switches

Switch Factory

efault Function OFF State ON State

SW1-1 OFF User

Switch 0 Pin AV27 = '1' Pin AV27 = '0'

SW1-2 OFF User

Switch 1 Pin AW27 = '1' Pin AW27 = '0'

SW1-3 OFF Service

Mode Regular Operation Firmware update service mode

SW1-4 OFF JTAG

Source JTAG to FPGA from USB JTAG to FPGA from debug

header

SW2-1 ON HOST_I2

C_EN Sysmon over PCIe I2C Sysmon isolated

SW2-2 ON CAPI_VP

_EN OpenCAPI VP available OpenCAPI VP isolated

SW2-3 ON CAPI_VP

_WP CAPI VP is write protected CAPI VP is writable

SW2-4 ON Reserved Reserved Reserved

Table 3 : Switch Functions

Use IO Standard "LVCMOS18" when constraining the user switch pin.

Page 6 Functional Description

ad-ug- 322_v2_7.pdf

Inhaltsverzeichnis

Andere Alpha Data Hauptplatine Handbücher

Alpha Data

Alpha Data ADM-VPX3-9Z2 Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

ASROCK

ASROCK ROMED8-2T Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung
