Alpha ESS SMILE-G3-S3.6 Betriebsanleitung

COMMISSIONING GUIDE & REPORT

V01

SMILE-G3-S3.6 / S5 / B5

Commissioning Procedures

1. Commissioning Procedures

1.1. Checking Before Power-On

No.

Check Item

Acceptance Criteria

Mounting environment

The mounting space is proper, and the

mounting environment is clean and tidy,

without foreign objects.

Battery pack and

inverter mounting

The battery pack and inverter are mounted

correctly, securely, and reliably.

WiFi mounting

The WiFi module is mounted correctly,

securely, and reliably.

Cable layout

Cables are routed properly as required by

the customer.

Cable tie

Cable ties are secured evenly and no burr

exists.

Grounding

The ground cable is connected correctly,

securely, and reliably.

Switch and breakers status

The PV switch and battery breakers and all

the breakers connecting to the product are

OFF.

Cable connections

The AC cables, PV cables (if there is any),

battery power cables, and communication

cables are connected correctly, securely,

and reliably.

Unused power

terminals

Unused power ports and communication

ports are blocked by watertight caps.

1.2. Powering on the Product

Check the voltage range and frequency range of the grid and the installation of

CT(s) or meter(s).

Switch on the battery breaker of the battery.

Switch on the battery breaker located on the energy storage inverter.

Switch on the external AC breaker between the grid and the energy storage

inverter.

Firstly, don’t press the battery button, don’t switch on the PV switch on the energy

storage inverter and don’t switch on the AC breaker on the PV inverter if there is

any.

Commissioning Procedures

1.3. WiFi Module Configuration and Parameter Settings

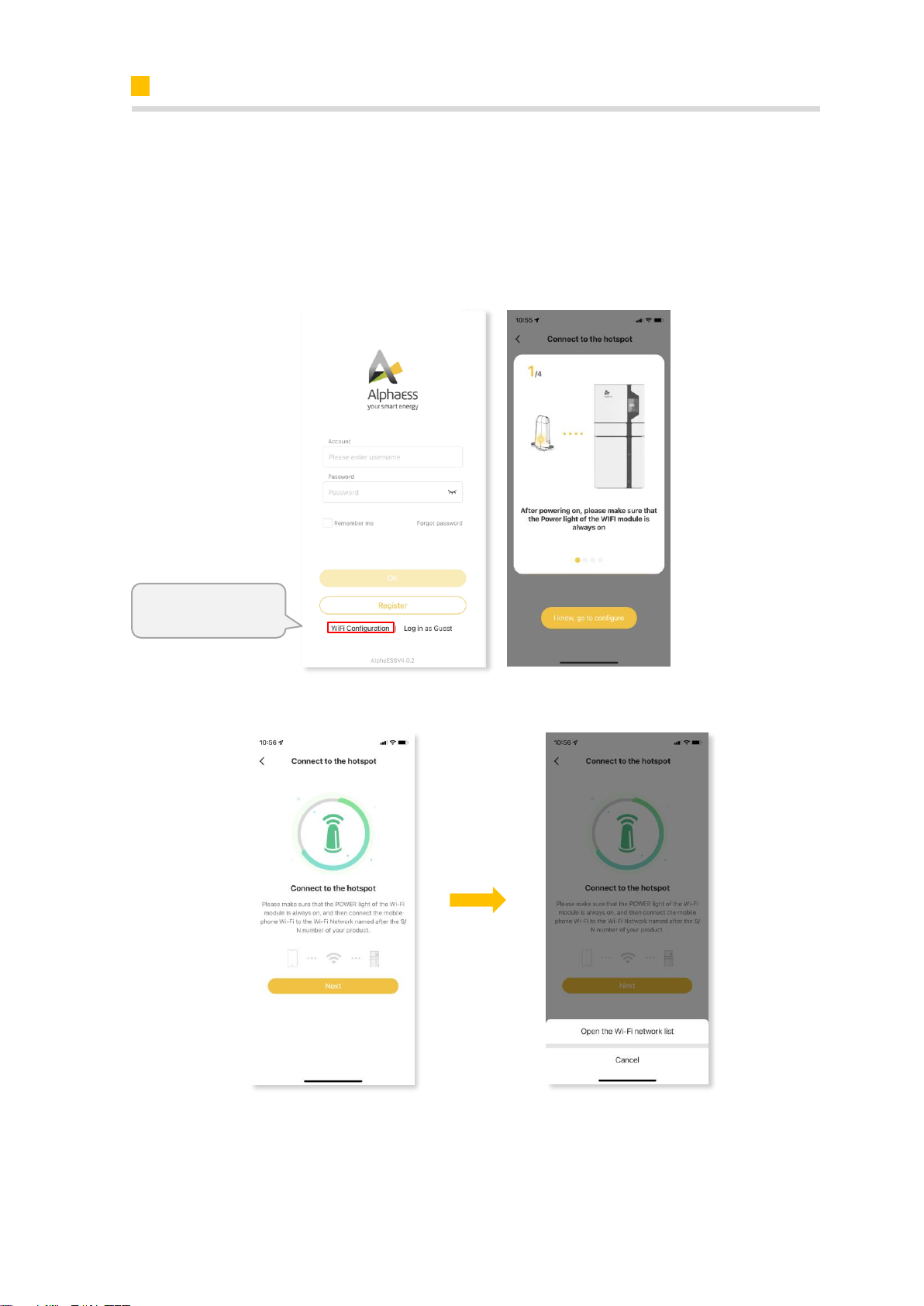

1.3.1. WiFi Configuration

This section is for users who have an energy storage system with a WiFi module.

AlphaESS App is able to configure the network, set system basic parameter, monitor

system operation status and check configuration information.

Click ”WiFi

Configuration”

Commissioning Procedures

The system will not be able to connect to the internet without WiFi configuration.

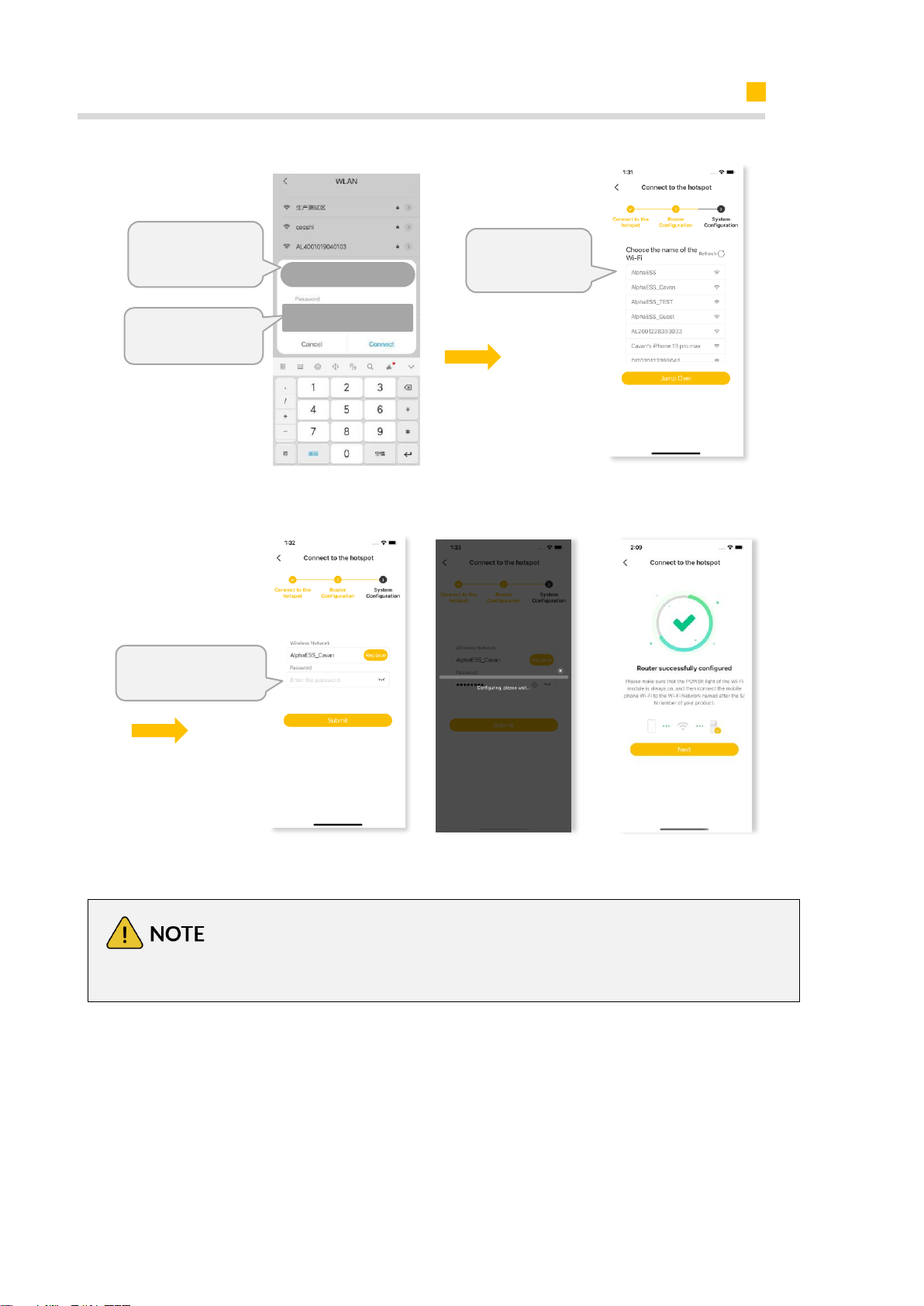

This is default

pass code

Select the WiFi

Module Signal

Select the WiFi

Router Signal

Enter WiFi router

password

12345678

ALXXXX

Commissioning Procedures

1.3.1.1 Basic Parameters Settings

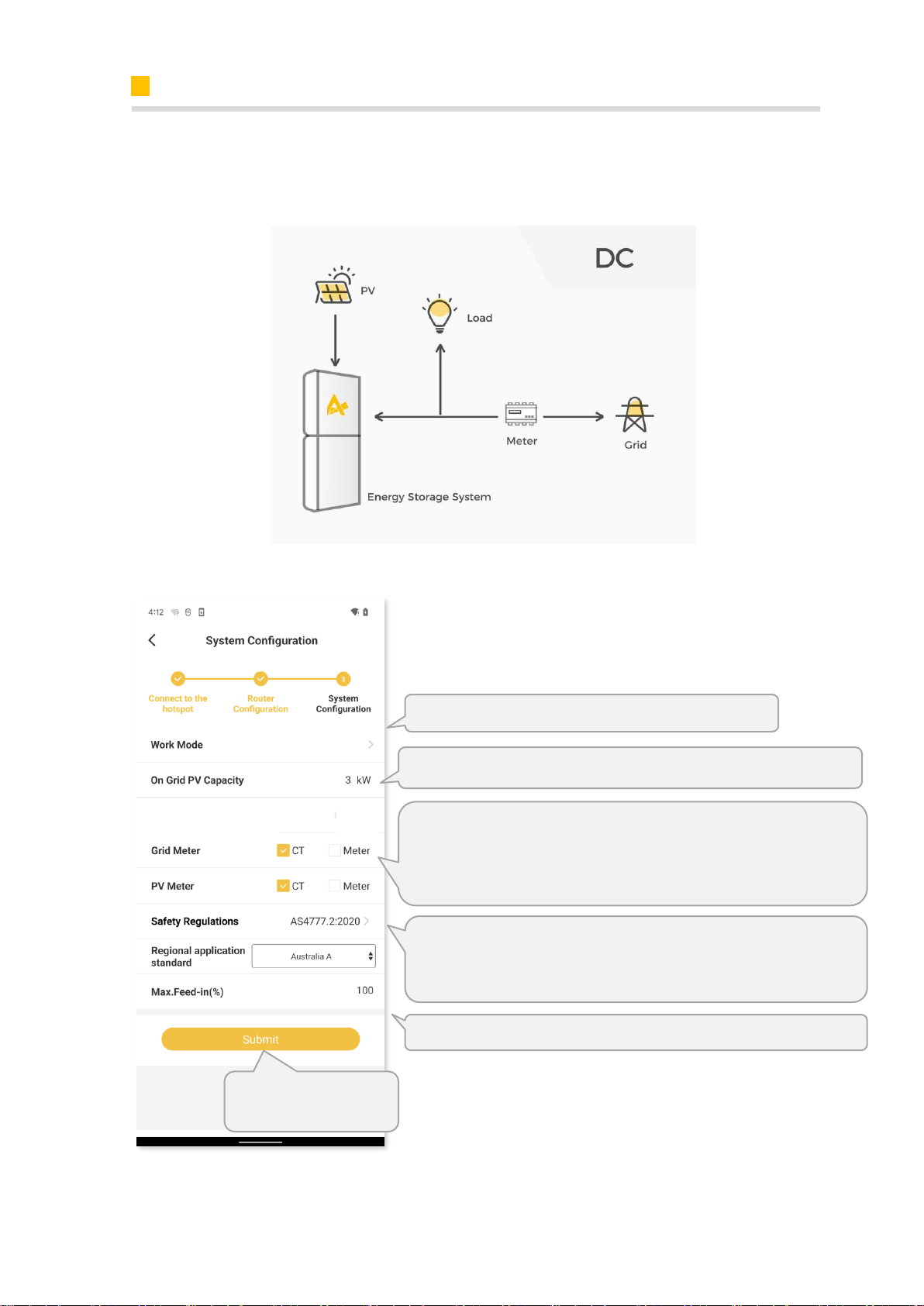

DC Mode

Three mode options: DC/AC/Hybrid

Storage PV capacity: PV capacity on the energy storage inverter side

You can set the allowable feed-in ratio from 0%-100%.

Note:

When the safety standard is set as AS4777.2 (Australia and New Zealand), the

secondary sub-options can be selected according to the region or local grid

company.

On the grid side, if only a CT is installed, please select CT for grid side.

If the grid meter is installed, please select Meter for grid side. If this meter is a

CT meter and the CT ratio is not 1, please select CT below and input the Meter

CT Ratio. If this meter is not a CT meter or the CT ratio is 1, please do not select

CT below.

Click “Submit” when the

settings are complete.

Storage PV Capacity

5 kW

Commissioning Procedures

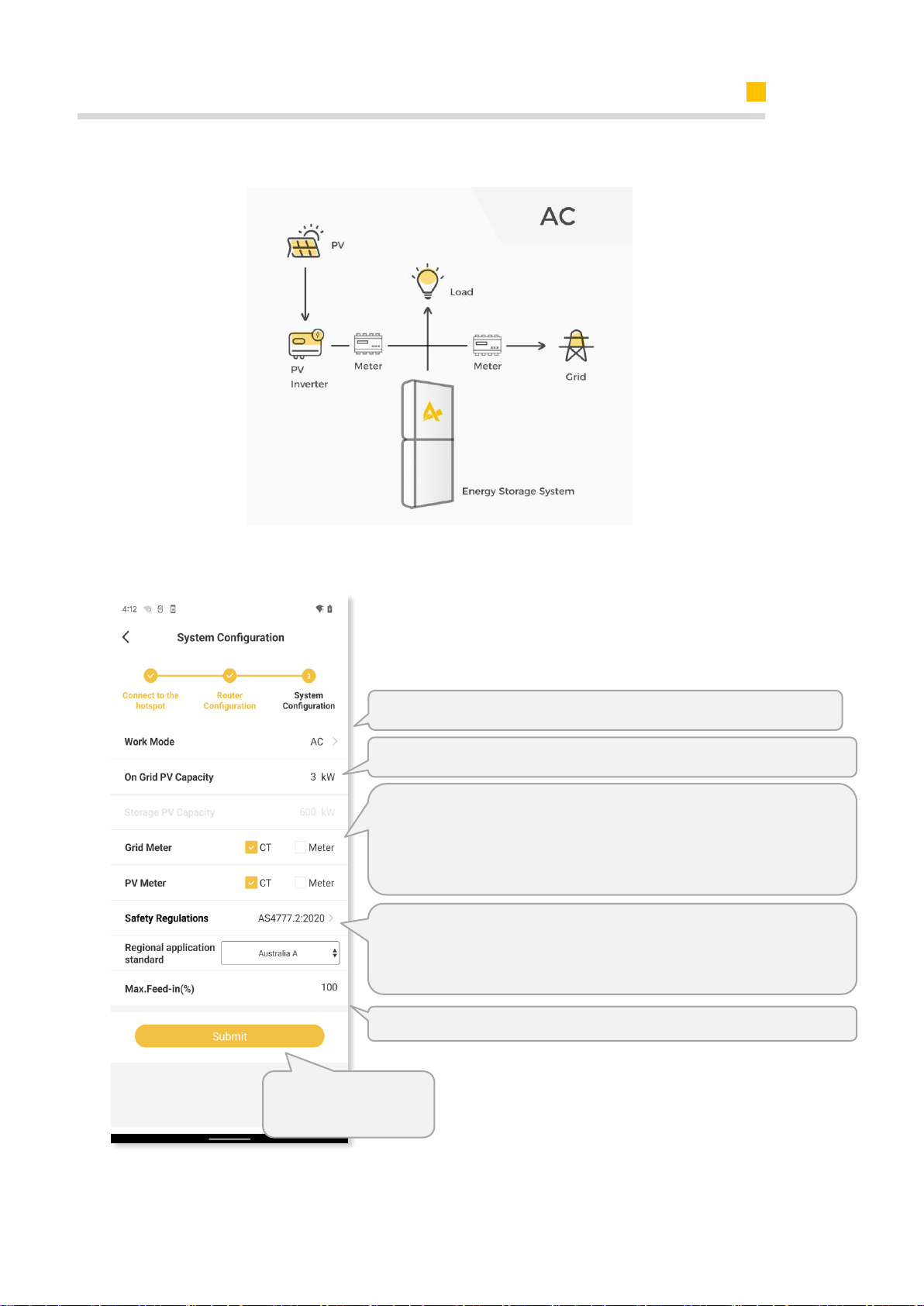

AC Mode

SMILE-B3, SMILE-B3-PLUS and SMILE-B5 work as AC coupled energy storage system.

Three mode options: DC/AC/Hybrid

You can set the allowable feed-in ratio from 0%-100%.

Note:

When the safety standard is set as AS4777.2 (Australia and New Zealand), the

secondary sub-options can be selected according to the region or local grid

company.

On the grid side, if only a CT is installed, please select CT for grid side.

If the grid meter is installed, please select Meter for grid side. If this meter is a CT

meter and the CT ratio is not 1, please select CT below and input the Meter CT Ratio.

If this meter is not a CT meter or the CT ratio is 1, please do not select CT below.

Click “Submit” when the

settings are complete.

PV capacity on the PV-inverter (on-grid) side

Commissioning Procedures

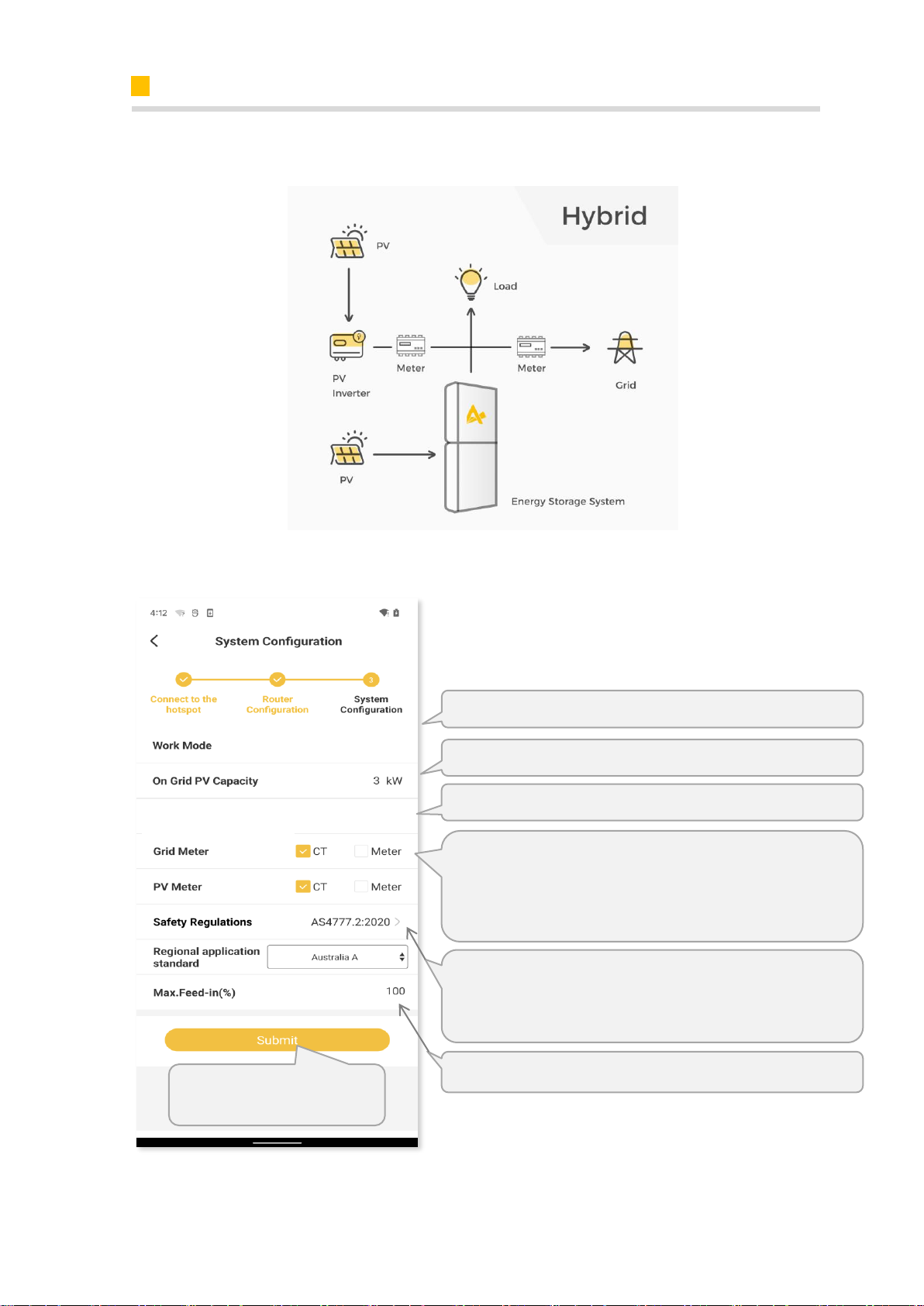

Hybrid Mode

Three mode options: DC/AC/Hybrid

You can set the allowable feed-in ratio from 0%-100%.

Note:

When the safety standard is set as AS4777.2 (Australia and New

Zealand), the secondary sub-options can be selected according to the

region or local grid company.

On the grid side, if only a CT is installed, please select CT for grid side.

If the grid meter is installed, please select Meter for grid side. If this

meter is a CT meter and the CT ratio is not 1, please select CT below and

input the Meter CT Ratio. If this meter is not a CT meter or the CT ratio

is 1, please do not select CT below.

Click “Submit” when the settings

are complete.

Storage PV capacity: PV capacity on the energy storage inverter side

Storage PV Capacity

5 kW

PV capacity on the PV-inverter (on-grid) side

Hybrid

Commissioning Procedures

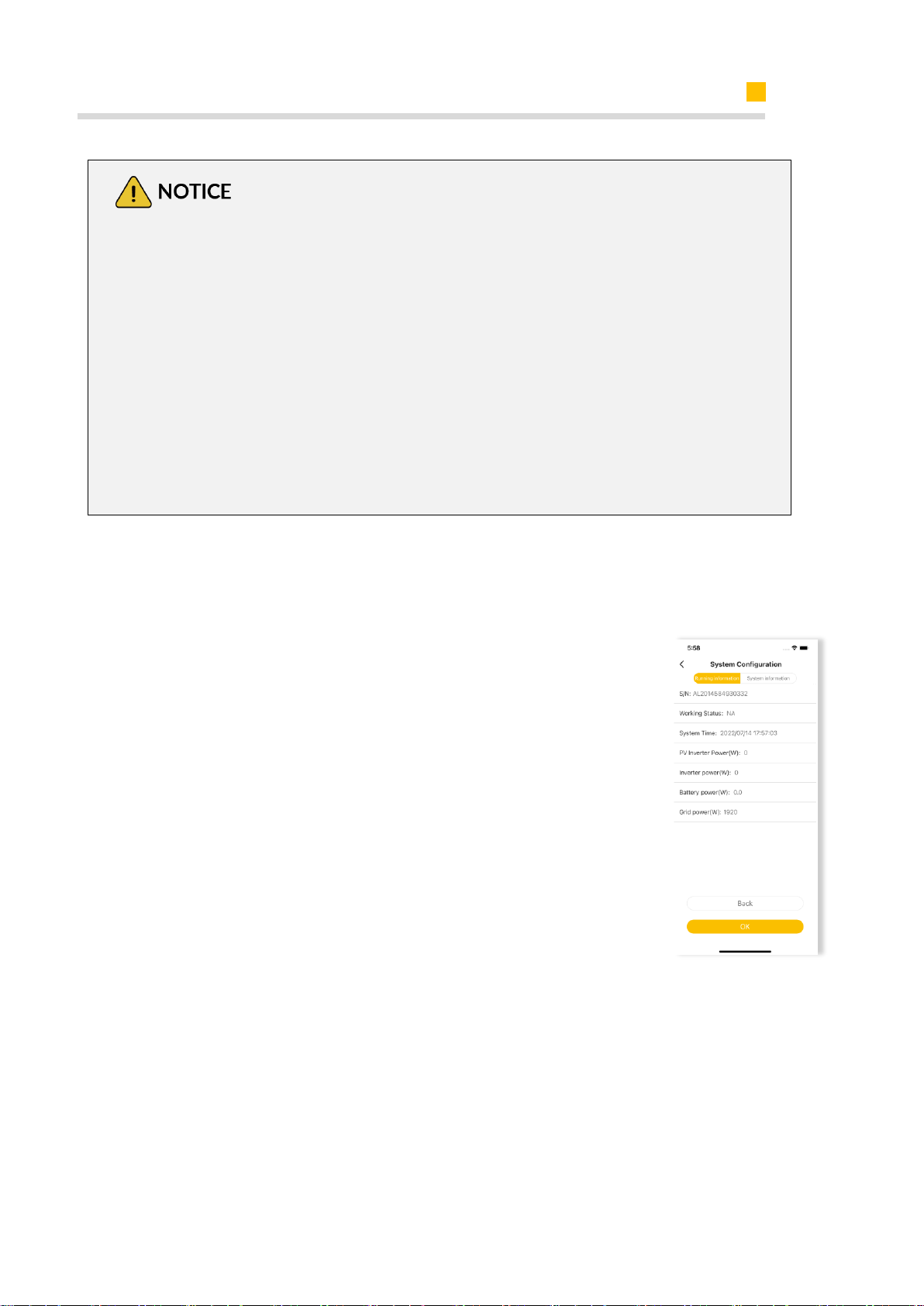

The safety regulation must be set correctly

If you select a safety regulation which is not valid for your country and purpose, it

will cause a disturbance in the energy storage system and lead to problems with the

grid operator. When selecting the safety regulation, you must always observe the

locally applicable standards and directives as well as the properties of the PV system

(e.g. PV system size, grid-connection point).

If you are not sure which safety regulation is valid for your country or purpose,

please contact your grid operator for information on which safety regulation is

to be configured.

1.3.2. Direct Commissioning on WiFi configuration

You can commission the system during the WiFi configuration process directly.

1.3.2.1 Check the Running State without PV and Battery

Keep the PV switch of the energy storage inverter and AC breaker

of the PV-inverter off. Don’t power on the batteries.

Turn on some larger loads directly connected on the grid to

check the grid status, the inverter LED (“Fault”) will be red, don’t

worry, because the battery is not communicated. The grid power

should be positive. Otherwise please check the direction of grid

CT or grid meter installation.

1.3.2.2 Check the Running State of PV and Battery

Switch off the AC breaker between the grid port on the energy storage inverter

and the grid, and switch off the AC breaker between the backup port on the

energy storage inverter and the loads.

Press the battery button. If there are more than one battery, press the button of

each battery and the interval time of powering on any two batteries should be less

than 5s.

Switch on the AC breaker between the grid port of the energy storage inverter

and the grid.

Commissioning Procedures

Switch on the PV switch on the energy storage inverter if there is any and AC

breaker on the PV-inverter if there is any.

Switch off all the loads to see the battery charging status and the inverter LED

(“SYSTEM”)* will be solid on green. Battery power value should be negative. If the

system is in AC or hybrid mode, the PV inverter power value should be positive. If

it is not normal, please check the direction of PV CT or PV meter installed.

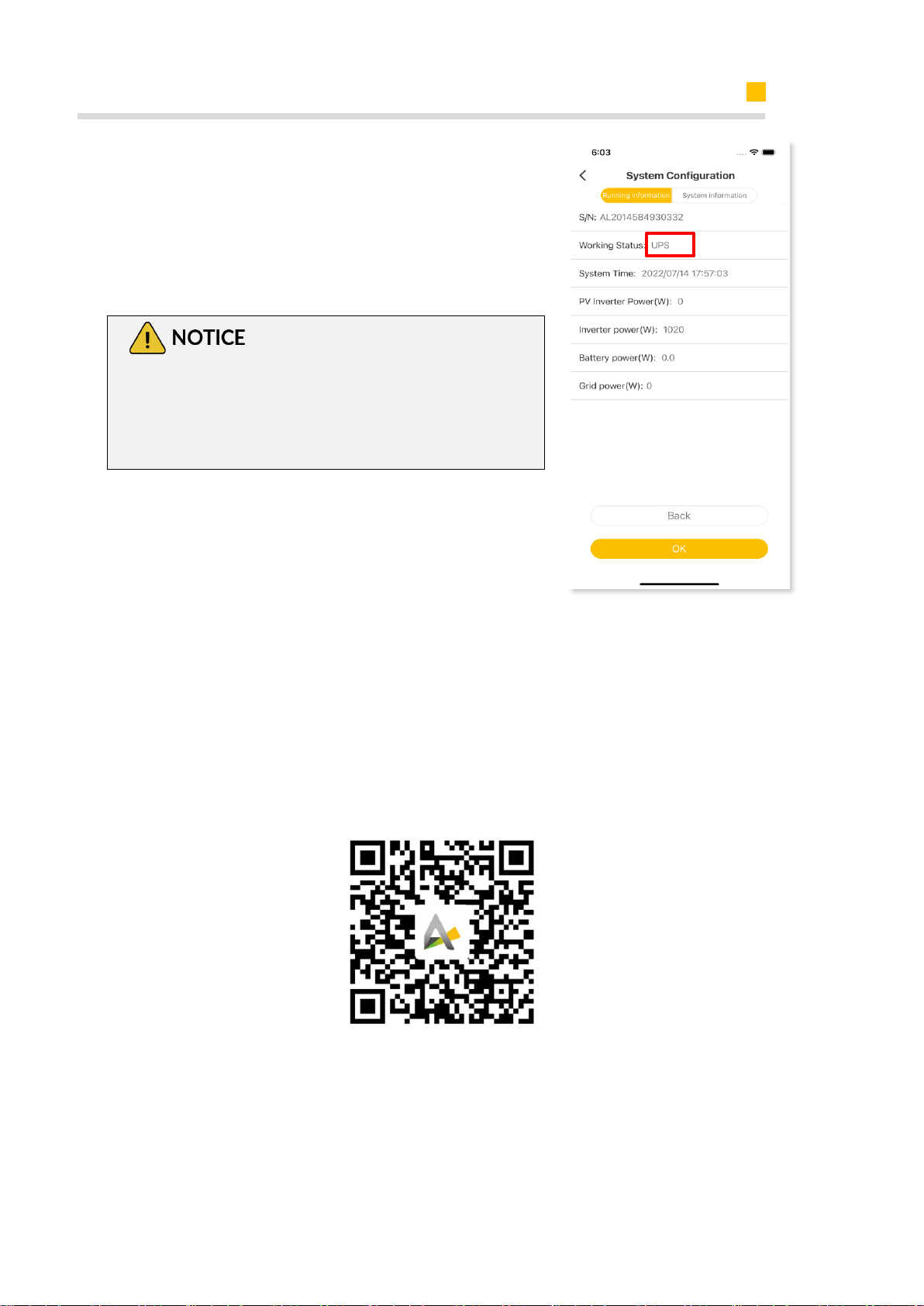

1.3.2.3 Check the UPS State

Please connect an essential electrical appliance to the socket of backup load. Or

switch on an essential electrical appliance already connected on the backup load

port of the inverter.

Switch on the AC breaker on the backup port of the energy storage inverter.

Switch oﬀ external AC breaker between the grid and the energy storage inverter.

The inverter will enter the UPS mode at once.

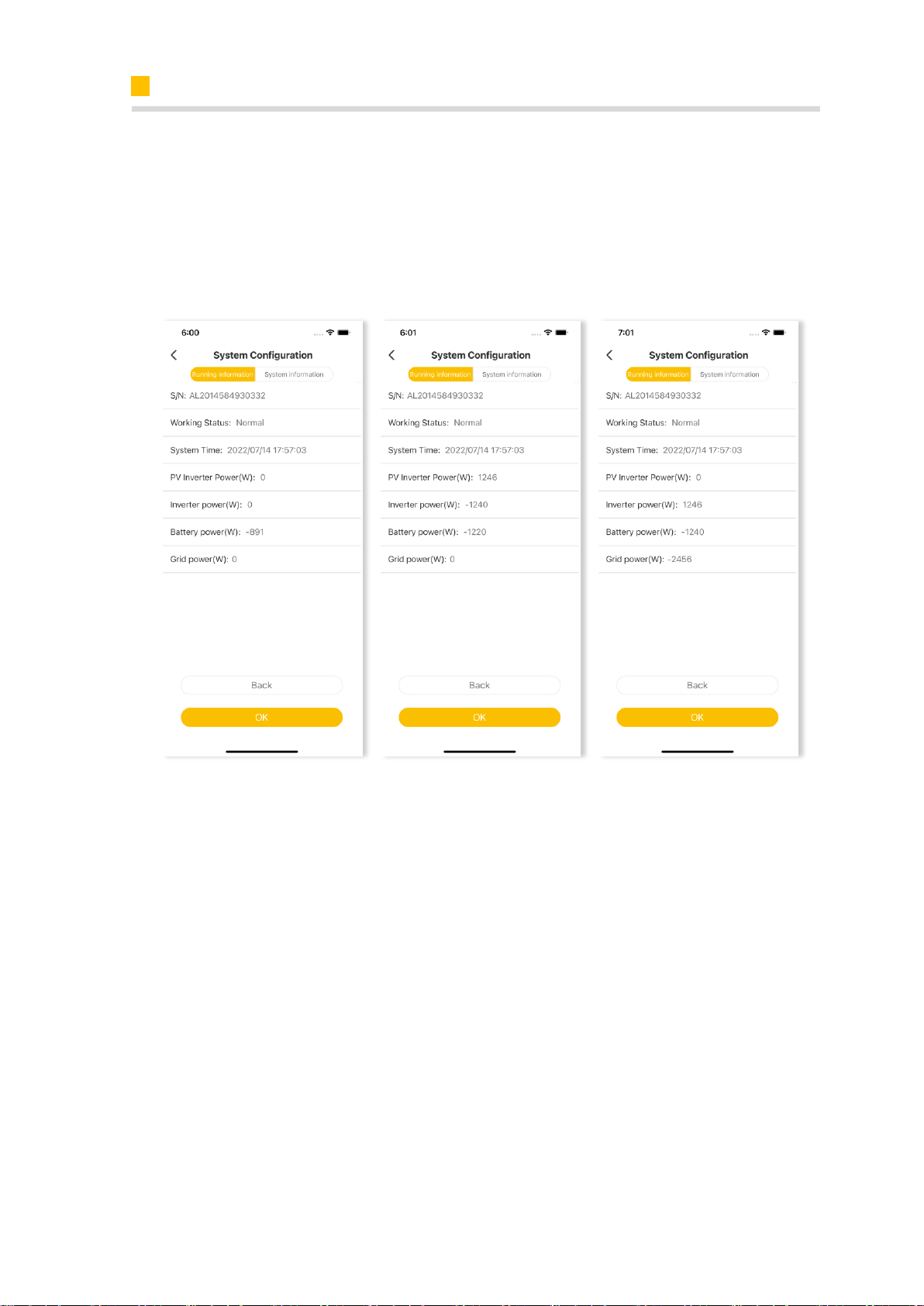

DC Mode

AC Mode

Hybrid Mode

Commissioning Procedures

If the electrical appliance on backup side can work

normally, it means that the wiring of the backup has

been connected correctly.

1.4. Installing New System and Settings on the APP

1.4.1. Download and Install the APP

During commissioning, if the LED indictors on the

display panel of the inverter or the battery pack

show red, please refer to chapter troubleshooting.
