Alpic Air ACI/O-50HPR1 Technisches Datenblatt

Please read this MANUAL carefully prior to use.

CASSETTE TYPE AIR CONDITIONER

OPERATION AND INSTALLATION MANUAL

MODELS:

ACI/O - 50HPR1

CONTENTS

Thank you purchasing this AlpicAir air conditioner.Read this MANUAL carefully prior to use of the air conditioner

and then keep it properly for future reference.

CONTENTS

Operation procedureinstallation

Operation mechanism and working range

Names and functions of parts

Safety cautions

Remote control operation procedure

Optimum operation

Trouble shooting

Installation notes

Care and maintenance

Technical specifications

Installation accessories and drawings

Indoor unit installation

Outdoor unit installation

Test and check items after installation

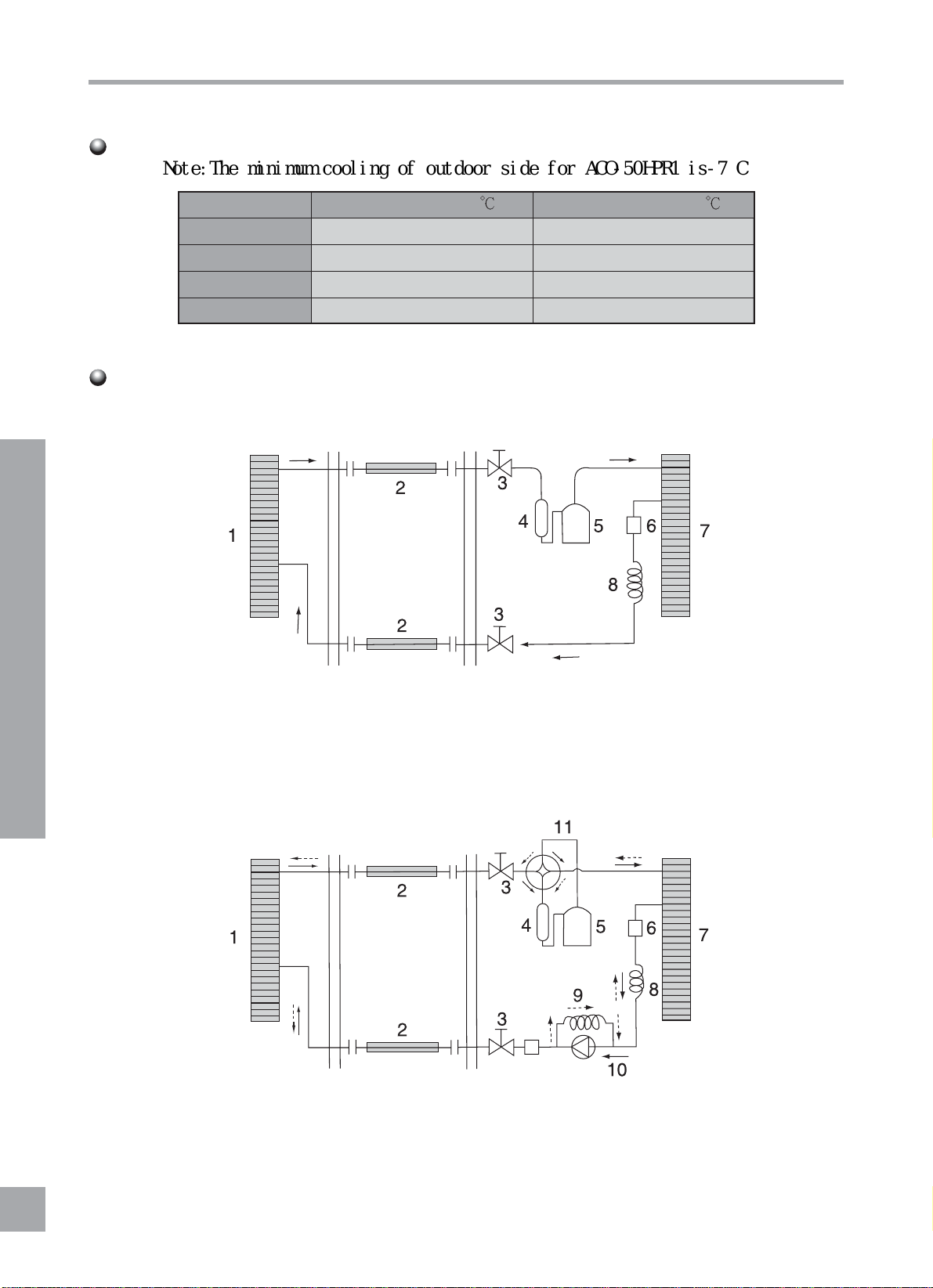

Operation mechanism and working range.

Working temperature range.

Schematic diagram of refrigeration

1. Indoor heat-exchanger

4. Accumulator

7. Outdoor heat-exchanger

10. One-way valve

2. Connecting pipe

5. Compressor

8. Master capillary

11. Four-way reversing valve

3. Check valve

6. Filter

9. Auxiliary capillary

maximum cooling

minimum cooling

maximum heating

minimum heating

Indoor side DB/WB ( )

32/23

21/15

27/-

20/-

Outdoor side DB/WB ( )

43/26

21/15

24/18

-5/-6

Operation mechanism and working range

1. Schematic diagram of cooling type

2. Schematic diagram of heat pump type

Ｎｏｔｅ：ＴｈｅｍｉｎｉｍｕｍｃｏｏｌｉｎｇｏｆｏｕｔｄｏｏｒｓｉｄｅｆｏｒＡＣＯ－５０ＨＰＲ１ｉｓ－７Ｃ。

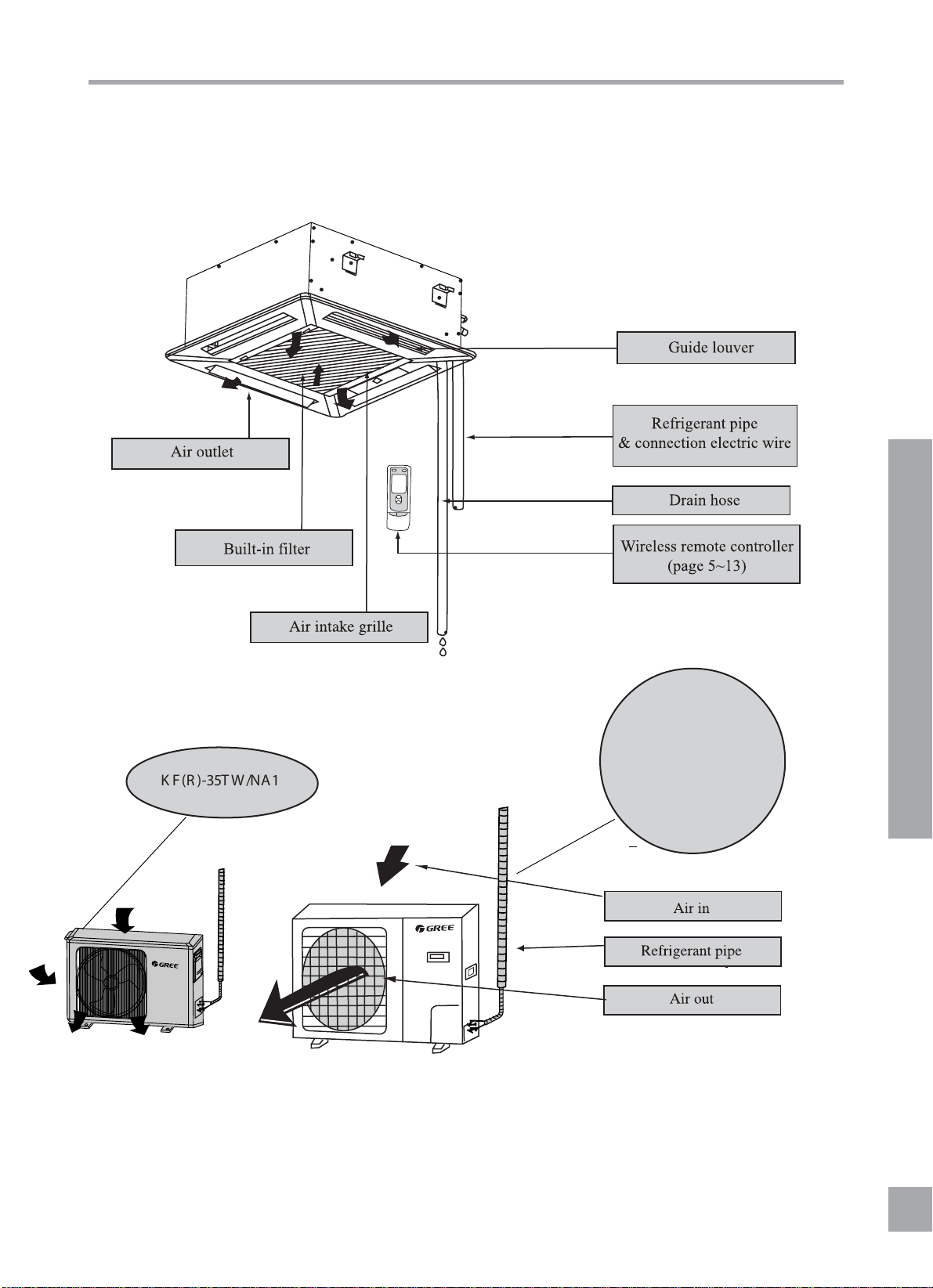

Names and functions of par ts.

I ndoor unit

Outdoor unit

(r efrigerating in low

temp. condition)

K F (R )-35T W /NA 1

ACO - 50HPR1

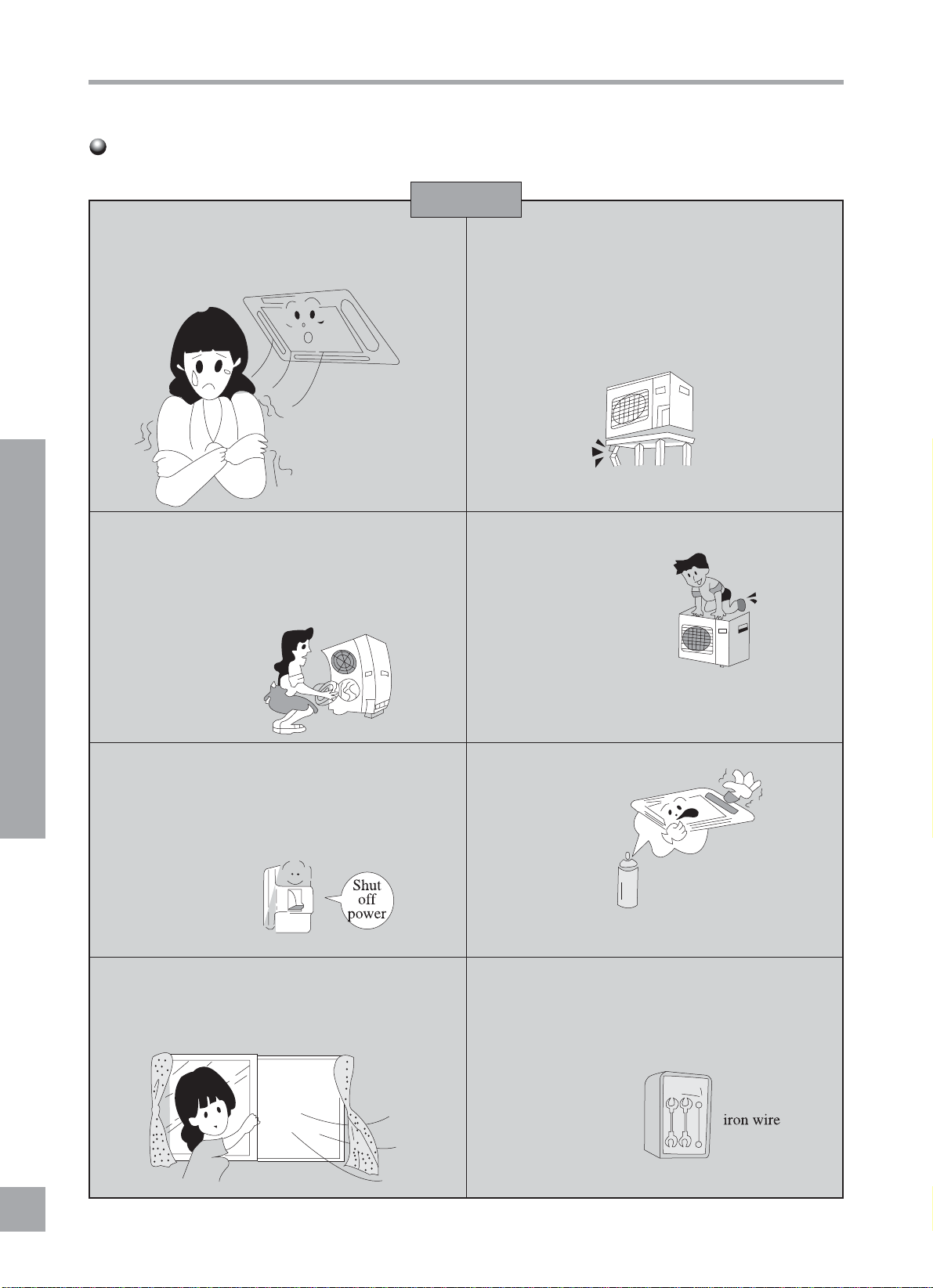

Safety cautions

Read the following instructions carefully before use.

Avoid direct air flow to your body and avoid

excessive heating or cooling,which may make

you feel uncomfortable and do harm to your

health.

Do not remove protection grill nets from the

outdoor unit.

Do not reach hands or insert anything into the

unit air outlet.

If there is something abnormal (eg.burning

smell), cut off the power immeditely and con-

tact service center.

If room air is stuffy, air the room by opening

door and window for a while, but please close

the curtains when operating the unit to prevent

conditioned air from leaking.

Check whether the installed stand is still firm

enough after the unit has operated for a long

time.

If a worn-out stand is left unfixed,the unit may

topple and do harm.

Do not stand on the outdoor

unit or put anything on it, or

you may fall down or people

may get hurt by the falling

things.

Do not spray any paint or

pesticide on the unit, or it

may cause fire.

Never use wrong ampere rating fire.

Use of iron wire or copper wire may

cause the unit to break down or

cause fire.

Warning

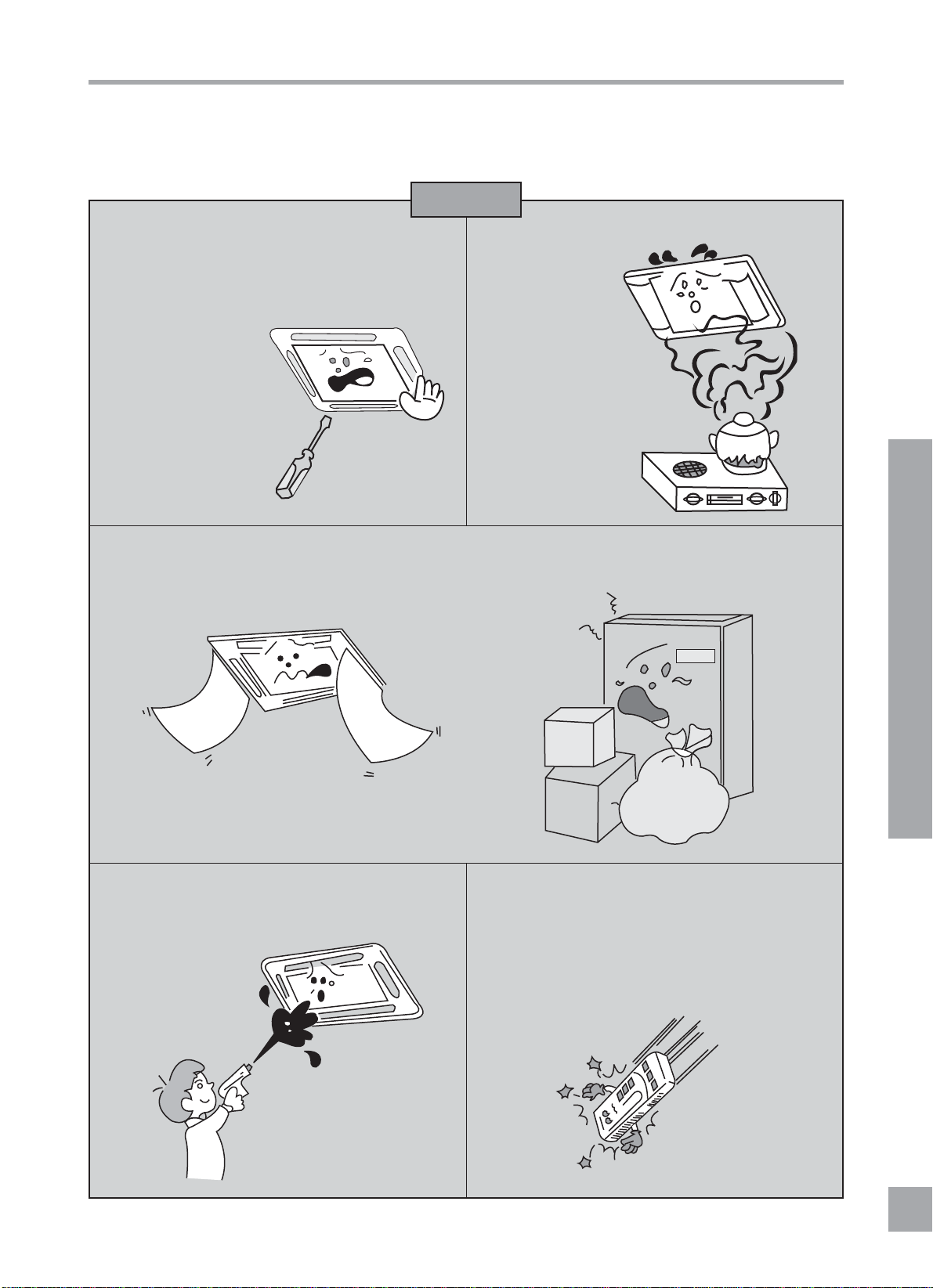

Safety cautions

Do not check or repair during the unit is

operating. It is very dangerous.

Never place objects near the air intake and the air outlet of the unit.

It may affect performance or stop operation of the unit.

Do not splash water directly to indoor unit

It may cause trouble or electric shock.

Do not use other

heating equip-

ment near the air

conditioner.

It will affect the

cooling perfor-

mance.

Do not bang the remote controller.and do not

press the button of the remote controller with

pointed object, or the remote controller may

be damaged.

Warning

Safety cautions

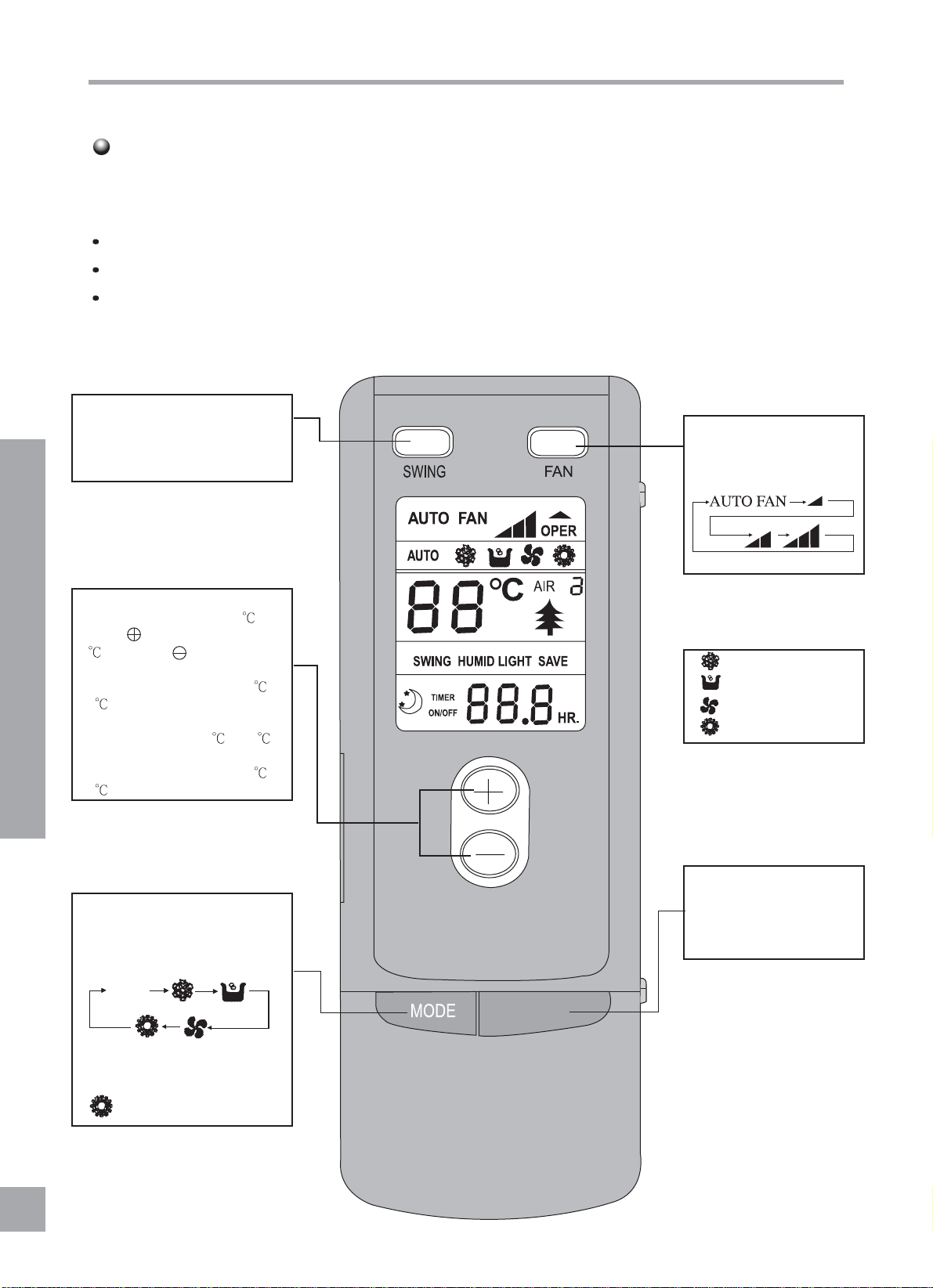

Remote control operation procedure

Name and Function-Remote control

SWINGbutton

When it is pressed, the louvers

start to rotate automatically and

stop when repressed.

TEMP.button

SET TEMP. increases 1 by

pressing button once,and decreases

1by pressing button once.

At COOL mode operation, SET

TEMP. can be selected from 16 to

30 .

At DRY mode operation, SET TEMP.

can be selected from 16 to 30 .

At HEAT mode operation, SET

TEMP. can be selected from 16 to

30 .

MODE button

press this button to change the

operation mode in order of:

Note:

Cooling only type have no

“ ” mode.

FANbutton

Press this button to

change the fan speed of:

“ ” COOL mode

“ ” DRY mode

“ ” FAN mode

“ ” HEAT mode

ON/OFF button

Press this button to turn on

or turn off the unit.

Note:

Be sure that there are no obstructions.

Don’t drop or throw the remote controller.

Don’t place the remote controller directly in the sunlight.

Remote control operation procedure

AUTO

ＯＮ／ＯＦＦ

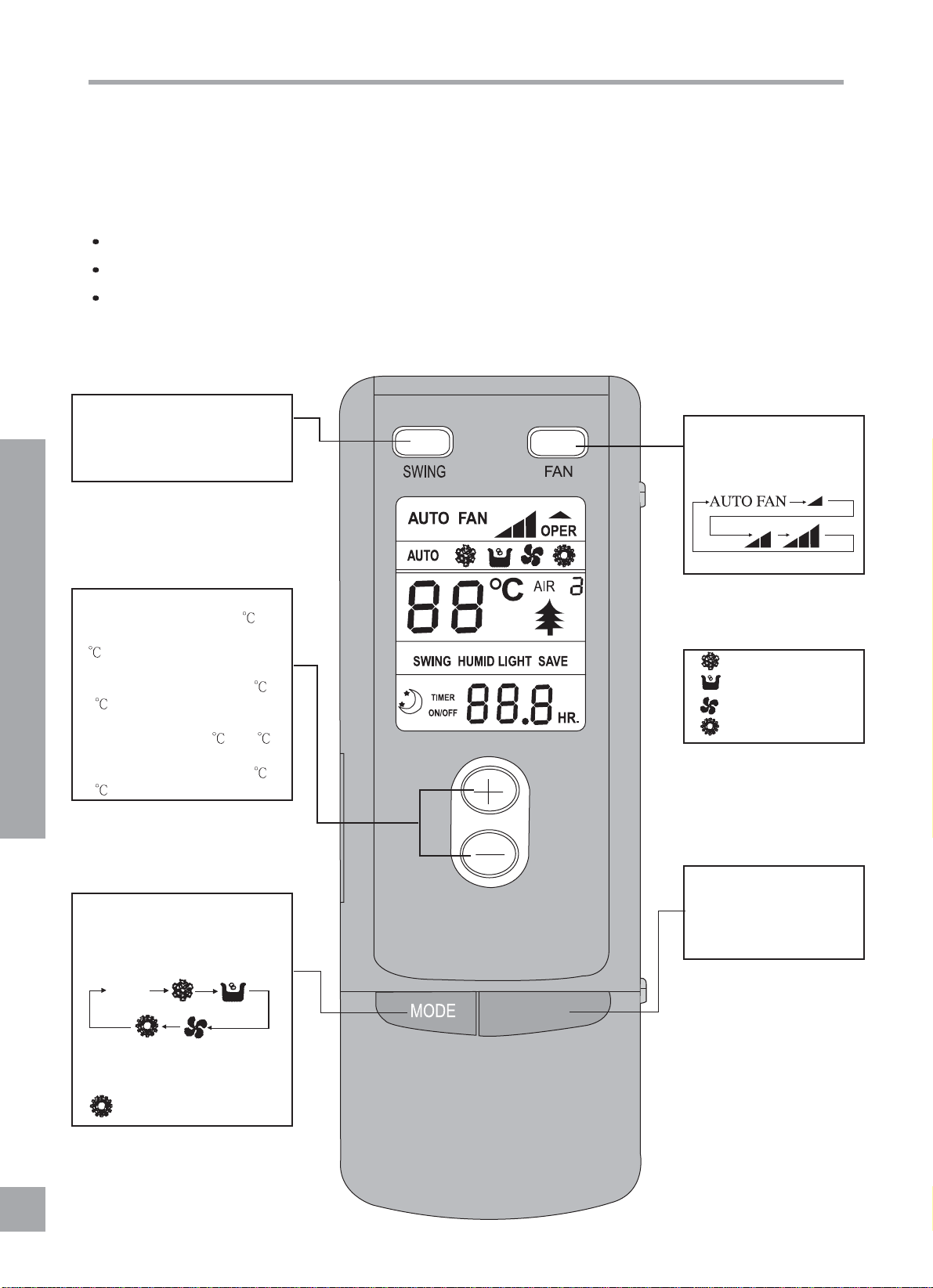

R emote contr ol operation procedur e

Name and F unction-R emote contr ol

SW I NG button

When it is pressed, the louvers

start to rotate automatically and

stop when repressed.

T E M P.button

SE T T E M P. increases 1 by

pressing button once,and decreases

1by pressing button once.

A t C OOL mode operation, SE T

T E MP. can be selected from 16 to

30 .

A t DR Y mode operation, SE T T E M P.

can be selected from 16 to 30 .

A t H E AT mode operation, SE T

T E MP. can be selected from 16 to

30 .

M ODE button

press this button to change the

operation mode in order of:

Note:

Cooling only type have no

“ ” mode.

F A N button

Press this button to

change the fan speed of:

“ ” COOL mode

“ ” DR Y mode

“ ” FAN mode

“ ” HE A T mode

ＯＮ／ＯＦＦ button

Press this button to turn on

or turn off the unit.

Note:

B e sure that there are no obstructions.

Don’ t dr op or thr ow the r emote contr oller .

Don’ t place the r emote controller directly in the sunlight.

AUTO

ＯＮ／ＯＦＦ

L iquid crystal displayer. It

shows all set contents.

SL E E P button

Press this button to set

SL E E P operation.

T I M E R O F F button

A t operating, press T IME R

OFF button, set OFF T IME

in range of 0 to 24 hour to

stop the unit automatically.

T I M E R ON button

A t stopping, press T IME R

ON button, set ON TIME in

range of 0 to 24 hour to start

the unit automatically.

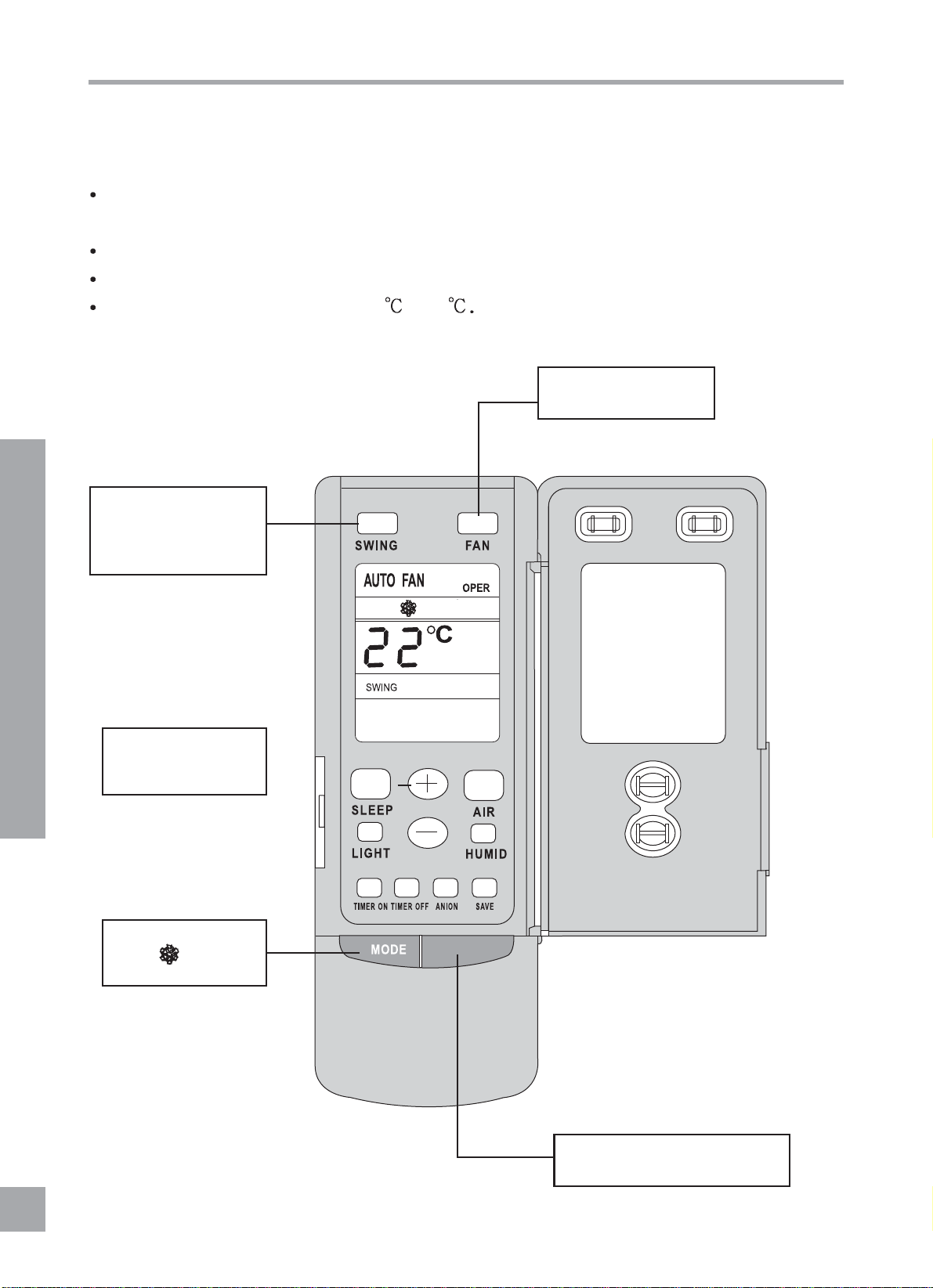

R emote contr ol operation procedure

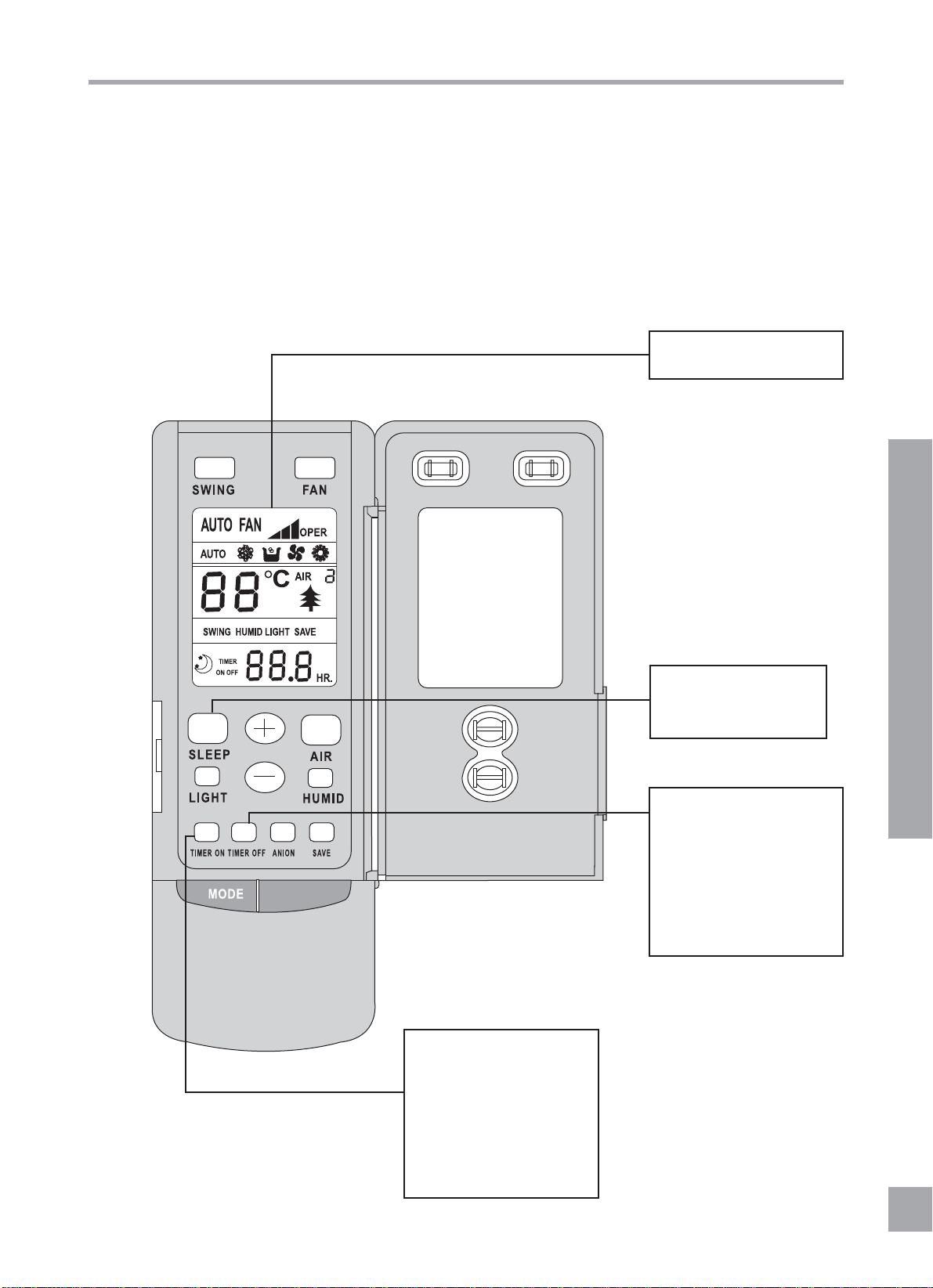

Name and F unction-R emote contr ol. (R emove the cover )

Note: T his type of r emote controller is a kind of new cur r ent controller . some buttons of

the controller which ar e not available to this Air conditioner will not be described

below.

ＯＮ／ＯＦＦ

C OOL mode oper ation procedur e

4.Press F AN button, set

fan speed.

5.Press T E M P. but-

ton, set suitable

T E MP.

2.Press M ODE button,

set operation

mode.

3.Press SW I NG button,

the louvers start to ro-

tate automatically, and

stop when repress.

1.Plug in, press ＯＮ／ＯＦＦ button,

then air conditioner is turned on.

R emote contr ol operation procedur e

Accor ding to differ ence between r oom temp. and set temp., micr ocomputer can contr ol cooling

on or not.

I f room temp. is higher than set temp., compressor r uns at C OOL mode.

I f room temp. is lower than set temp., compressor stops and only indoor fan motor r uns.

Set T E M P. should be in r ange of 16 to 30

ＯＮ／ＯＦＦ
