POWER SUPPLY

MANUAL PART NUMBER: 400-0088-001

PRODUCT REVISION: 0

PS5581SM

SYSTEM POWER SUPPLY

WITH 12 VDC OUTPUTS

USER’S GUIDE

PS5581SM

POWER SUPPLY

INTRODUCTION

Altinex appreciates your purchase of the

PS5581SM Power Supply. We are sure you will

find it a reliable and useful product.

Superior performance for the right price backed by

solid technical and customer support is what we

have to offer.

The product you are holding in your hands is

designed using state-of-the-art technology and is

superior to anything available on the market. You

will find this and our other products reliable, long

lasting, and simple to operate.

We are committed to providing our customers with

solutions to the most demanding audio-visual

installations at very competitive pricing.

We appreciate your selection of our products and

are confident that you will join the ranks of our

many satisfied customers throughout the world.

This manual covers:

PS5581SM SM – System Power Supply with 12

VDC outputs

TABLE OF CONTENTS

Page

PRECAUTIONS / SAFETY WARNINGS ...............2

GENERAL..........................................................2

RACK MOUNTING SAFETY GUIDELINES........2

INSTALLATION..................................................2

CLEANING.........................................................2

FCC / CE NOTICE .............................................2

ABOUT YOUR POWER SUPPLY .........................3

TECHNICAL SPECIFICATION..............................3

DESCRIPTION OF PS5581SM.............................4

APPLICATION DIAGRAM .....................................4

INSTALLING YOUR POWER SUPPLY.................5

OPERATION .........................................................5

ACCESSORIES.....................................................5

TROUBLESHOOTING GUIDE ..............................6

ALTINEX POLICY .................................................6

LIMITED WARRANTY........................................6

RETURN POLICY ..............................................6

CONTACT INFORMATION ................................6

POWER SUPPLY

PRECAUTIONS / SAFETY WARNINGS 1

Please read this manual carefully before using your

PS5581SM. Keep this manual handy for future

reference. These safety instructions are to ensure

the long life of your PS5581SM and to prevent fire

and shock hazard. Please read them carefully and

heed all warnings.

1.1 GENERAL

•Unauthorized personnel shall not open the unit

since there are high-voltage components

inside.

•Qualified Altinex service personnel, or their

authorized representatives must perform all

service.

1.2 SAFETY GUIDELINES FOR THE RACK-

MOUNTING OF THE PS5581SM

•Maximum operating ambient temperature is 35

(degrees C).

•Never restrict the air flow through the devices’

fan or vents.

•When installing equipment into a rack,

distribute the units evenly. Otherwise,

hazardous conditions may be created by an

uneven weight distribution.

•Connect the unit to a properly rated supply

circuit.

•Reliable Earthing (Grounding) of Rack-

Mounted Equipment should be maintained.

1.3 INSTALLATION

•For best results, place the PS5581SM on a

flat, level surface in a dry area away from dust

and moisture.

•To prevent fire or shock, do not expose this

unit to rain or moisture. Do not place the

PS5581SM in direct sunlight, near heaters or

heat radiating appliances, or near any liquid.

Exposure to direct sunlight, smoke, or steam

can harm internal components.

•Handle the PS5581SM carefully. Dropping or

jarring can damage internal components.

•Do not place heavy objects on top of the

PS5581SM. If the PS5581SM is to be

mounted to a table or wall, use only Altinex

made mounting accessories, such as the

mount mini-brackets DA1294FC or

DA1293FC.

•To turn off the main power, be sure to remove

the cord from the power outlet. The power

outlet socket should be installed as near to the

equipment as possible, and should be easily

accessible.

•Do not pull the power cord or any cable that is

attached to the PS5581SM.

•If the PS5581SM is not used for an extended

period, disconnect it from the power outlet.

1.4 CLEANING

•Unplug the PS5581SM power cord before

cleaning. Clean surfaces with a dry cloth.

Never use strong detergents or solvents, such

as alcohol or thinner. Do not use a wet cloth or

water to clean the unit.

1.5 FCC / CE NOTICE

•This device complies with part 15 of the FCC

Rules. Operation is subject to the following two

conditions: (1) This device may not cause

harmful interference, and (2) this device must

accept any interference received, including

interference that may cause undesired

operation.

•This equipment has been tested and found to

comply with the limits for a Class A digital

device, pursuant, to Part 15 of the FCC Rules.

These limits are designed to provide

reasonable protection against harmful

interference when the equipment is operated

in a commercial environment. This equipment

generates, uses, and can radiate radio

frequency energy and, if not installed and used

in accordance with the instruction manual, may

cause harmful interference to radio

communications. Operation of this equipment

in a residential area is likely to cause harmful

interference in which case the user will be

required to correct the interference at his own

expense.

POWER SUPPLY

•Any changes or modifications to the unit not

expressly approved by Altinex, Inc. could void

the user’s authority to operate the equipment.

ABOUT YOUR POWER SUPPLY 2

The PS5581SM is a general purpose power supply

(or adapter) designed for products that operate on

low voltage DC power.

It is ideal for use with the VA6854WM and the

VA6875WM Wall/Furniture Mount Interfaces,

providing the ability to power up to 25 units

simultaneously.

It may also be used to power other ALTINEX

products, such as most of the compact DA1900

series interfaces, distribution amplifiers, and

switchers. Since most of these products are

shipped with a wall-wart type power supply, the use

of a PS5581SM would be an alternative solution.

For example, it can be used in applications with

limited space or with limited power outlets where

the product is installed.

The PS5581SM uses a continuous 100-240V AC

power input and provides 12V, 4.0 Amps (45 watts)

on its output.

To simplify the installation process, the output is

available on a series of five 5-pin terminal block

connectors. These terminal block connectors use

solder-free screw-down contacts. Each terminal

block offers two grounds and three 12V 250mA

outputs. All grounds are common to one another.

Outputs can be paralleled to increase the available

current, though they should not exceed 4.0 Amps.

The PS5581SM is 1U high, ½ rack wide and may

be installed in a rack or under a table using

optional hardware.

TECHNICAL SPECIFICATIONS 3

FEATURES/DESCRIPTION PS5581SM

Input 100-240V, 50-60Hz, 1A

Input Connector Universal IEC Power

Connector

Line Regulation ±0.1%

Output 12V DC, 4.0 Amp

capacity

Output Connector Five 5-pin terminal

block connectors

Load Regulation ±1%

Ripple 1% p-p

Noise 1% p-p

Hold up time 16m sec

Over-current/Short Circuit Auto-recovery

Power Consumption 45 watts max when fully

loaded

Enclosure

Material 0.1” Aluminum

Finish Gray

Front/Back Panel Lexan

Height (inches) 1.75in

Width (inches) 8.50in

Depth (inches) 4.93in

Weight (pounds) 2.0lbs

Ship Weight (pounds) 4.0lbs

T°Operating 0°C – 40°C

T°Maximum Operating 50°C

T°Storage -30°C – 75°C

Humidity 90% non-condensing

MTBF (calculations) 40,000 hrs

Included

PS5581SM System Power Supply

Manual X

Power Cord PC5302US

POWER SUPPLY

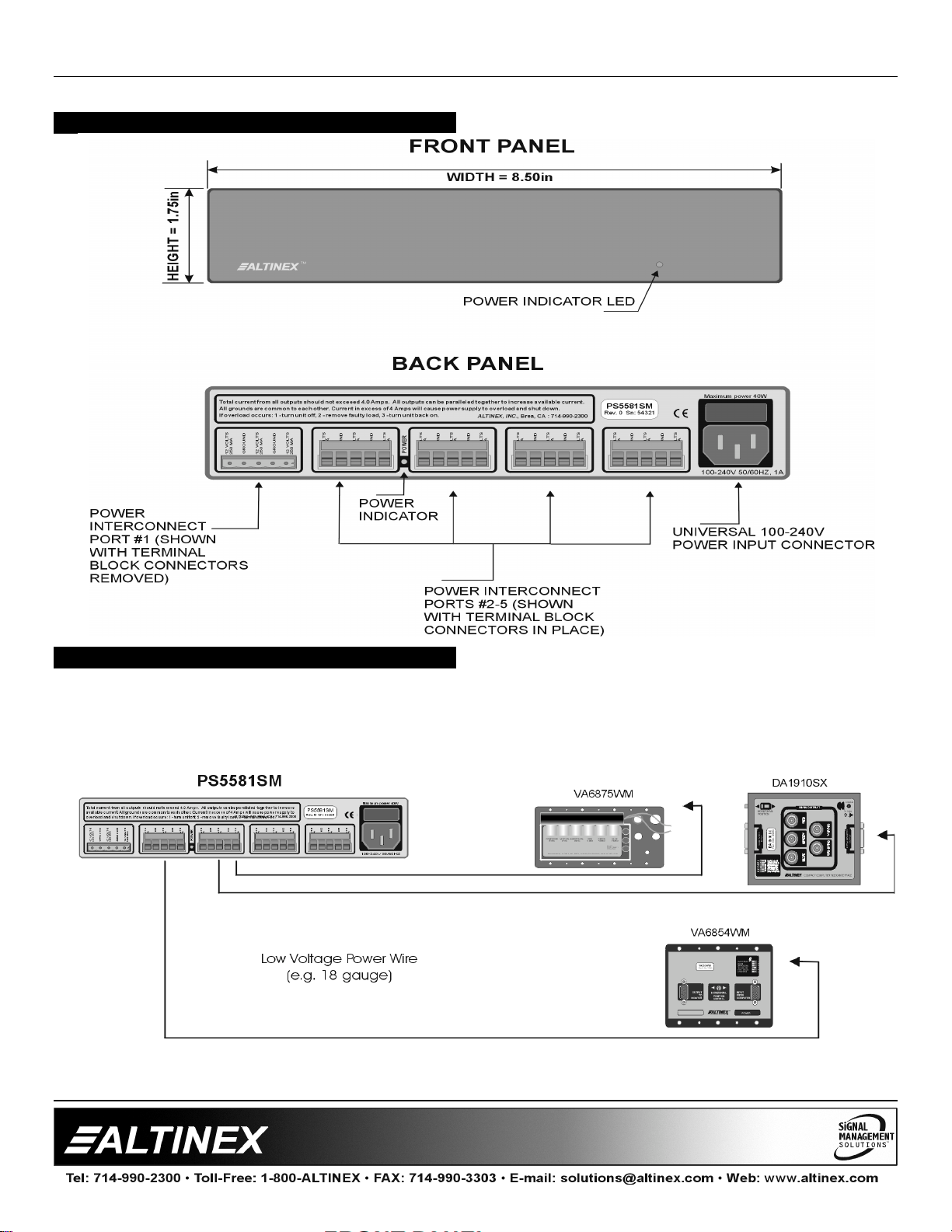

DESCRIPTION OF PS5581SM 4

APPLICATION DIAGRAM 5

POWER SUPPLY

INSTALLING YOUR POWER SUPPLY 6

Step 1. Attach the PS5581SM to the rack with the

accessories (DA1294FC or DA1293FC)

which are available through ALTINEX.

Step 2. Attach the output cables to the five 5-

position terminal block connectors. Make

sure that you do not short any +12V pin to

Ground pin. Connect +12V output that

draws a maximum of 250mA per each

port.

Note: Do not overload any of the outputs.

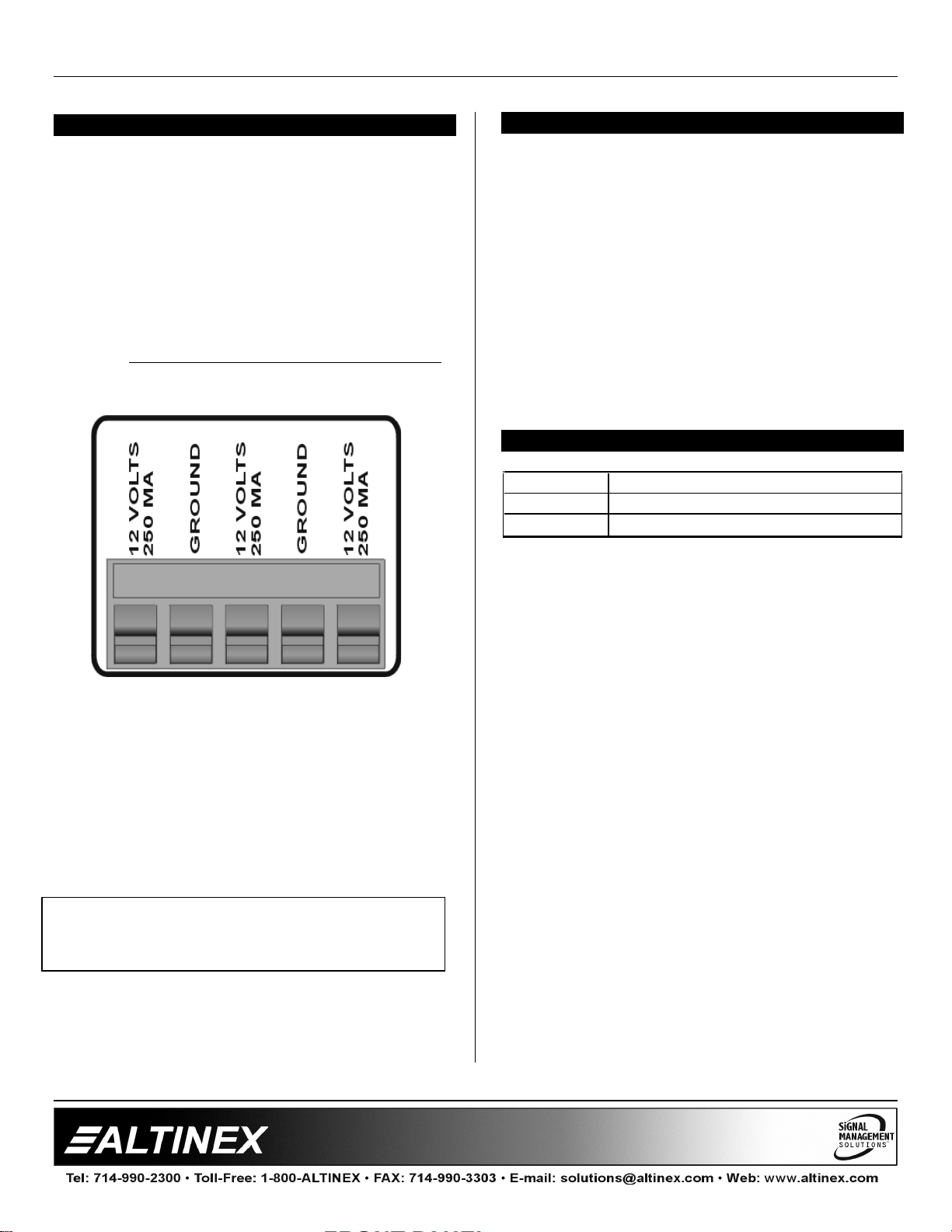

Diagram 1: 5-pin terminal block connector

Step 3. Plug in the AC power cord into the power

input connector.

Step 4. Make sure that the power indicator light is

on. This indicates that the unit is working

properly.

CONGRATULATIONS! YOU ARE DONE.

OPERATION 7

•As long as the power is plugged in, the unit

should operate successfully.

•Do not short or overload any outputs.

•Do not interrupt the AC power input, otherwise

there will be an interruption in the output.

•There are no switches or controls provided so

no adjustments are necessary for the operation

of the PS5581SM.

ACCESSORIES 8

Model No. Description

DA1294FC Rack ears for single unit

DA1293FC Rack shelf for two units side-by-side

If you experience any problems, please call

1-800-258-4623 or 1-714-990-2300 for

international calls.

POWER SUPPLY

TROUBLESHOOTING GUIDE 9

•Make sure that the power cord is attached and

the correct voltage setting is shown on the fuse.

•Remove the output connectors one by one to

isolate the output being sorted, or overloaded.

•If a problem arises after continuous usage at

higher voltage, higher temperature, higher

humidity, or at other extreme environmental

conditions, please correct the problem.

ALTINEX POLICY 10

10.1 LIMITED WARRANTY

Altinex warrants that its products and cables are

free from defects in materials under normal use

and service. This warranty is limited to repairing at

company’s factory any part or parts of the product,

which upon company’s examination shall disclose

to be, thus defective. Products considered

defective should be returned to company with

transportation charges pre-paid within 2 years or

(90 days for cables) from date of shipment to the

purchaser. The warranty is expressly instead of all

other warranties expressed or implied. Altinex

neither assumes nor authorizes any other person

to assume for it any other liability in connection

with the sale of the products. This warranty shall

not apply to any product that shall have been

repaired or altered outside of company’s factory in

any way so as, in its judgment, to affect its

stability or reliability, or that has been subject to

misuse, negligence or accident.

10.2 RETURN POLICY

It is very important to Altinex that you receive the

products that you have ordered and that this

product fulfills your need. In the unlikely event,

that an Altinex product needs to be returned

please follow the policies below:

Altinex will accept product returns for a period of

30 days from authorized Altinex dealers. Products

should be returned in an unopened package.

If a product has been opened, the restocking fees

will apply. For the restocking fee amount, please

contact an Altinex Sales Representative.

If the product is in your possession for more than

30 days, the restocking fees will apply.

Altinex will not accept any returns on cables or

custom products.

If your product is in warranty and needs service,

contact the Altinex Sales Department for an RMA

(Return Material Authorization). Products returned

without an RMA number may experience a delay

in service.

If your product is out of warranty and needs

service, contact the Altinex Sales Department for

an RMA (Return Material Authorization). Products

returned without an RMA number may experience

a delay in service. The service charges will be

quoted to you before the actual repairs are done.

10.3 CONTACT INFORMATION

Sales Department

Phone: 714-990-2300

Fax: 714-990-3303

Accounting Department

Phone: 714-990-6088

Fax: 714-990-5778

Inhaltsverzeichnis

Andere Altinex Stromversorgung Handbücher

Altinex

Altinex V-MATRIX VM2218PS Bedienungsanleitung

Beliebte Stromversorgung Handbücher anderer Marken

Monacor

Monacor PS-12CCD Bedienungsanleitung

VOLTIMA

VOLTIMA MagicBox 15 Bedienungsanleitung

Agilent Technologies

Agilent Technologies 6032A Bedienungsanleitung

Miller

Miller Auto Deltaweld 452 Bedienungsanleitung

BCP

BCP PUOUBK Merkblatt

HC 2210 Bedienungsanleitung

Puls

Puls CT5.241 Bedienungsanleitung

OCZ

OCZ ZX1250W Bedienungsanleitung

iseg

iseg ECH 238 Bedienungsanleitung

Power

Power XXL A Series Bedienungsanleitung

Agilent Technologies

Agilent Technologies 6631B Bedienungsanleitung

Renogy

Renogy PHOENIX 300 Bedienungsanleitung

HP 6200B Service-Handbuch

Epson

Epson Stylus Scan 2500 Betriebsanleitung

Pulsar

Pulsar GREEN POWER CCTV PoE POE044816 Bedienungsanleitung

Puls

Puls MiniLine ML50.100 Bedienungsanleitung

Puls

Puls AS-Interface SLA4.100 Bedienungsanleitung

Kenwood

Kenwood PS-60 Bedienungsanleitung
