Altronix PD16WCB Bedienungsanleitung

PD16W, PD16WCB

Power Distribution Modules

Overview:

These power distribution modules converts a single AC input into sixteen (16) individually fuse

or PTC protected outputs.

Power Distribution Module Configuration Reference Chart:

PD16W -- 16 3.5 amp 10 amp 12.5 amp

PD16WCB 16 -- 2.5 amp 10 amp 12.5 amp

*Total output is limited by the total output of UL Listed power supply employed.

Specifications:

Installation Instructions:

1. Mount sub-assembly power distribution module in desired location/enclosure.

2. Connect the desired UL Listed power supply output of a suitable rating to terminals marked [INPUT] (Fig. 1a, pg. 2).

3. Measure output voltage before connecting devices. This helps avoid potential damage.

All terminals with common suffix P 1P, 2P...” are same polarity.

5. Connect each device to terminal pairs 1 to 16, marked [1P-1N thru 16P - 16N] (Fig. 1, pg. 2).

For DC applications “N” terminals are negativeand “P” terminals are positive. Note: Observepolarity.

WARNING: Toreduce the risk of fire or electric shock, do not expose the unit to rain or

moisture. This installation should be made by qualified service personnel and should conform to

all local codes and in accordance with the National Electrical Code.

For continuous protection against fire hazard, replace fuses only with the same type and rating.

Altronix

Model Number

Fuse Protected

Outputs

PTC Protected

Outputs (Class 2

power limited).

Output Current

(max per output

do not exceed

total output)

Input:

• 24VAC or 28VAC up to 12.5 amp

or 12VDC or 24VDC up to 10 amp.

Fuse Ratings:

•Fuses are rated @ 3.5A/250V.

Visual Indicators:

• Power output LED indicator.

BoardDimensions (approximate):

6"H x 5.875"W x .95"D (PD16W, PD16WCB)

*Total output

12 or 24VDC

*Total output

24 or 28VAC

common

outputs

protected

outputs

NPS

XFMR Input

12345678

910 11 12 13 14 15 16

3.5A 250V

For continuous protection against risk of fire

replace fuses with same type and rating.

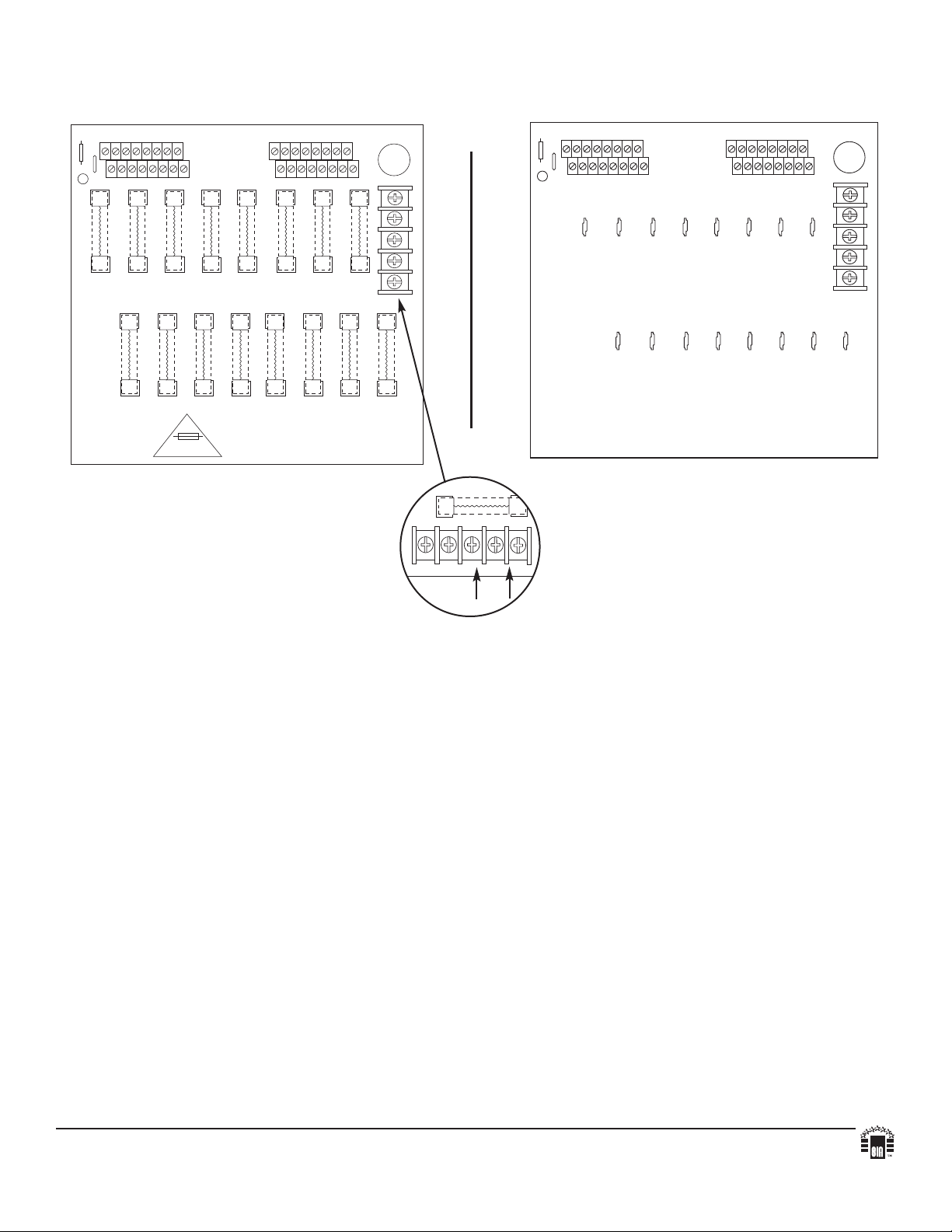

Fig. 1

common

outputs

protected

outputs

NPS

XFMR Input

12345678

9 10 11 12 13 14 15 16

3.5A 250V

For continuous protection against risk of fire

replace fuses with same type and rating.

Fig. 1a

Altronix is not responsible for any typographical errors. Product specifications are subject to change without notice.

140 58th Street, Brooklyn, New York 11220 USA, 718-567-8181, fax: 718-567-9056

website: www.altronix.com, e-mail: [email protected], Lifetime Warranty, Made in U.S.A.

IIPD16W - Rev. 072505 B12H MEMBER

NPS

XFMR Input

common

outputs

protected

outputs

12345678

9 10 11 12 13 14 15 16

PD16W PD16WCB

*If DC power supplyis used,connect

negativeto “N” and positive

to “P” terminals.
