Altronix ALTV2416300M Bedienungsanleitung

Rev. 021804

ALTV2416 Series

CCTV Power Supplies

Installation Guide

Models Include:

•ALTV2416 •ALTV2416CB

- 24VAC @ 8 amp (200VA). - 24VAC @ 8 amp (200VA).

or 28VAC @ 7 amp. or 28VAC @ 7 amp.

- Sixteen (16) Fuse Protected Outputs. - Sixteen (16) PTC Protected Outputs.

•ALTV2416350 •ALTV2416350CB

- 24VAC @ 14 amp (350VA) - 24VAC @ 14 amp (350VA)

or 28VAC @ 12.5 amp (350VA). or 28VAC @ 12.5 amp (350VA).

- Sixteen (16) Fuse Protected Outputs. - Sixteen (16) PTC Protected Outputs.

•ALTV2416300M •ALTV2416300CBM

- 24VAC @ 12.5 amp (300VA) - 24VAC @ 12.5 amp (300VA)

or 28VAC @ 10 amp (300VA). or 28VAC @ 10 amp (300VA).

- Sixteen (16) Fuse Protected Outputs. - Sixteen (16) PTC Protected Outputs.

•ALTV2416600 •ALTV2416600CB

- 24VAC @ 28 amp (700VA) - 24VAC @ 28 amp (700VA)

or 28VAC @ 25 amp (700VA). or 28VAC @ 25 amp (700VA).

- Sixteen (16) Fuse Protected Outputs. - Sixteen (16) PTC Protected Outputs.

Overview:

These Altronix CCTV Power Supplies provide 24VAC/28VAC distributed via sixteen (16) fuse or PTC protected outputs

for powering CCTV Cameras, heaters and other video accessories.

Sixteen (16) Output ALTV2416 Reference Chart:

ALTV2416 24VAC 8 amp 16 - x 3.5 amp 5 amp/250V 1.9 amp

28VAC 7 amp

ALTV2416CB 24VAC 8 amp 16 x - 2.5 amp 5 amp/250V 1.9 amp

28VAC 7 amp

ALTV2416350 24VAC 14 amp 16 - x 3.5 amp 15amp/32V 2.7 amp

28VAC 12.5 amp

ALTV2416350CB 24VAC 14 amp 16 x - 2.5 amp 15amp/32V 2.7 amp

28VAC 12.5 amp

ALTV2416300M 24VAC 12.5 amp 16 - x 3.5 amp - 2.7 amp

28VAC 10 amp

ALTV2416300CBM 24VAC 12.5 amp 16 x - 2.5 amp - 2.7 amp

28VAC 10 amp

ALTV2416600 24VAC 28 amp 16 - x 3.5 amp 15amp/32V 5.4 amp

28VAC 25 amp

ALTV2416600CB 24VAC 28 amp 16 x - 2.5 amp 15amp/32V 5.4 amp

28VAC 25 amp

Specifications:

- 2 -

Altronix

Model Number

Output Current

(max per output)

Total Output Current

(Power)

Output Voltage

115VAC

50/60Hz Input

Current

PTC Protected

Outputs

Fuse Protected

Outputs

Number of

Outputs

Main Fuse Ratings

on Board

• Surge suppression.

• AC power LED indicator.

• Power ON/OFF switch.

• Unit maintains camera synchronization.

• Ease of installation saves time & eliminates costly labor.

•Spare fuses included (on fuse protected models).

Enclosure Dimensions:

ALTV2416 and ALTV2416CB: 8.5"H x 7.5"W x 3.5"D

ALTV2416300M and ALTV2416300CBM:

8.5"H x 7.5"W x 3.75"D

ALTV2416350, ALTV2416350CB, ALTV2416600

and ALTV2416600CB: 13"H x 13.5"W x 3.25"D

Two (2)

- 3 -- 3 -

Installation Instructions:

1. Mount unit in desired location.

2. Slide switch on PD board to OFF position for models ALTV2416 and ALTV2416CB (Fig. 1, pg. 4).

Turn OFF main switch on all other models (Figs. 2-4, pgs. 4-6).

3. All units are factory set for 24VAC operation.

For 28VAC operation, adjust unit prior to mounting and applying power as follows:

Change the wire position so that the black wire [28V] is connected to the terminal marked [P] and

the yellow wire [24V] is connected to the terminal marked [S].

4. Connect AC power to the black and white flying lead of the transformer(s) (Figs. 1-4, pgs. 4-6).

Use 18 AWG or larger for all power connections.

5. Measure output voltage before connecting devices. This helps avoid potential damage.

Terminals marked [1P - 8P] are positive of the same polarity.

CAUTION: Determine the maximum operating voltage of the equipment being powered before adjusting

the output voltage.

6. Connect devices to terminals marked [1P - 1N through 8P - 8N] on PD8/PD8CB board (Fig. 1, pgs. 4),

carefully observing polarity [1P - 1N through 16P - 16N] on PD16W board.

7. Slide switch on PD board to ON position for models ALTV2416, and ALTV2416CB (Fig. 1, pg. 4).

Turn main switch on all other models to the “RESET” (ON) position (Figs. 3-5, pgs. 5-6).

8. Green LED will illuminate when unit is powered.

9. Upon completion of wiring, secure enclosure door with screws (supplied).

Caution: Equipment to be installed / serviced by authorized / trained personnel only.

Shut branch circuit power before installing / servicing equipment.

WARNING:To reduce the risk of fire or electric shock, do not expose the unit to rain or moisture.

This installation should be made by qualified service personnel and should conform to all local codes

and in accordance with the National Electrical Code.

Terminal Identification:

PD8/PD8CB - Power Distribution Module

1P - 8P Positive AC output.

1N - 8N Negative AC output.

- 4 -

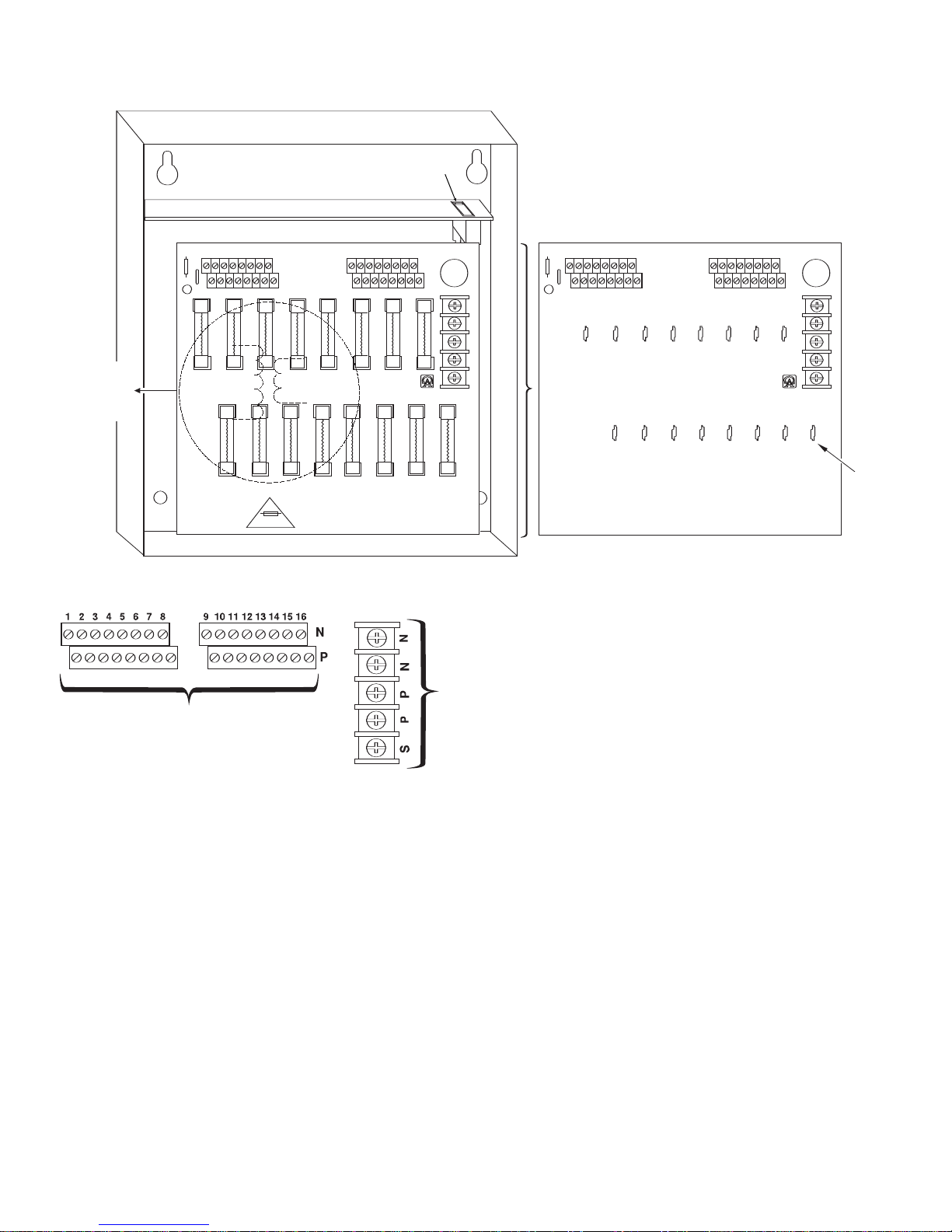

Fig. 1 - ALTV2416 • ALTV2416CB

115VAC input

50/60 Hz.

White

Lead

Black

Lead

115VAC input

50/60 Hz.

White

Lead

Black

Lead

XFMR

Used on PTC Models

(example: ALTV2416CB)

COMMON POWER OUTPUTS

FUSED POWER OUTPUTS

1 2 3 4 5 6 7 8

INPUT

LED

SW1

ON OFF

MAIN FUSE

COMMON POWER OUTPUTS

FUSED POWER OUTPUTS

1 2 3 4 5 6 7 8

INPUT

LED

SW1

ON OFF

MAIN FUSE

COMMON POWER OUTPUTS

FUSED POWER OUTPUTS

INPUT

LED

SW1

ON OFF

MAIN FUSE

F1 F2 F3 F4 F5 F6 F7 F8

1 2 3 4 5 6 7 8

NPS NPS NPS

NP S NP S

24VAC Output

(Factory Set)

Black

Yellow

28VAC Output

24VAC or 28VAC fused output 1

(Follow same procedure using terminals

2P & N through 8P & N fused

outputs 2 through 8)

24VAC or 28VAC fused output 1

(Follow same procedure using terminals

2P & N through 8P & N fused

outputs 2 through 8)

Enclosure Door Back Panel of Enclosure

COMMON POWER OUTPUTS

FUSED POWER OUTPUTS

1 2 3 4 5 6 7 8

Black Lead

White Lead

115VAC input

50/60 Hz,

Power

Switch

Used on PTC Models

(example: ALTV2416350CB)

COMMON POWER OUTPUTS

FUSED POWER OUTPUTS

INPUT

N P S

LED

INPUT

N P S

LED

MAIN FUSE MAIN FUSE

F1 F2 F3 F4 F5 F6 F7 F8

XFMR*

COMMON POWER OUTPUTS

FUSED POWER OUTPUTS

1 2 3 4 5 6 7 8

INPUT

N P S

LED

MAIN FUSE

NP S

24VAC Output

(Factory Set)

Black

Yellow

28VAC Output

24VAC or 28VAC

fused output 1

(Follow same procedure

using terminals

2P & N through 8P & N

fused outputs 2 through 8)

Fig. 2

ALTV2416350 • ALTV2416350CB

24VAC or 28VAC fused or PTC

protected outputs 1 through 8.

Terminal Blocks for Fig. 2

24VAC or 28VAC fused or PTC

protected outputs 1 through 8.

Terminal Blocks for Fig. 1

- 5 -

NPS

XFMR Input

PD16W

common

outputs

protected

outputs

12345678

9 10 11 12 13 14 15 16

Used on PTC Models

(example: ALTV2416300CBM)

PTC’s

Transformer

underneath

power supply

board

Power

Switch

3.5A 250V

For continuous protection against risk of fire 

replace fuses with same type and rating.

common

outputs

protected

outputs

NPS

XFMR Input

PD16W

12345678

9 10 11 12 13 14 15 16

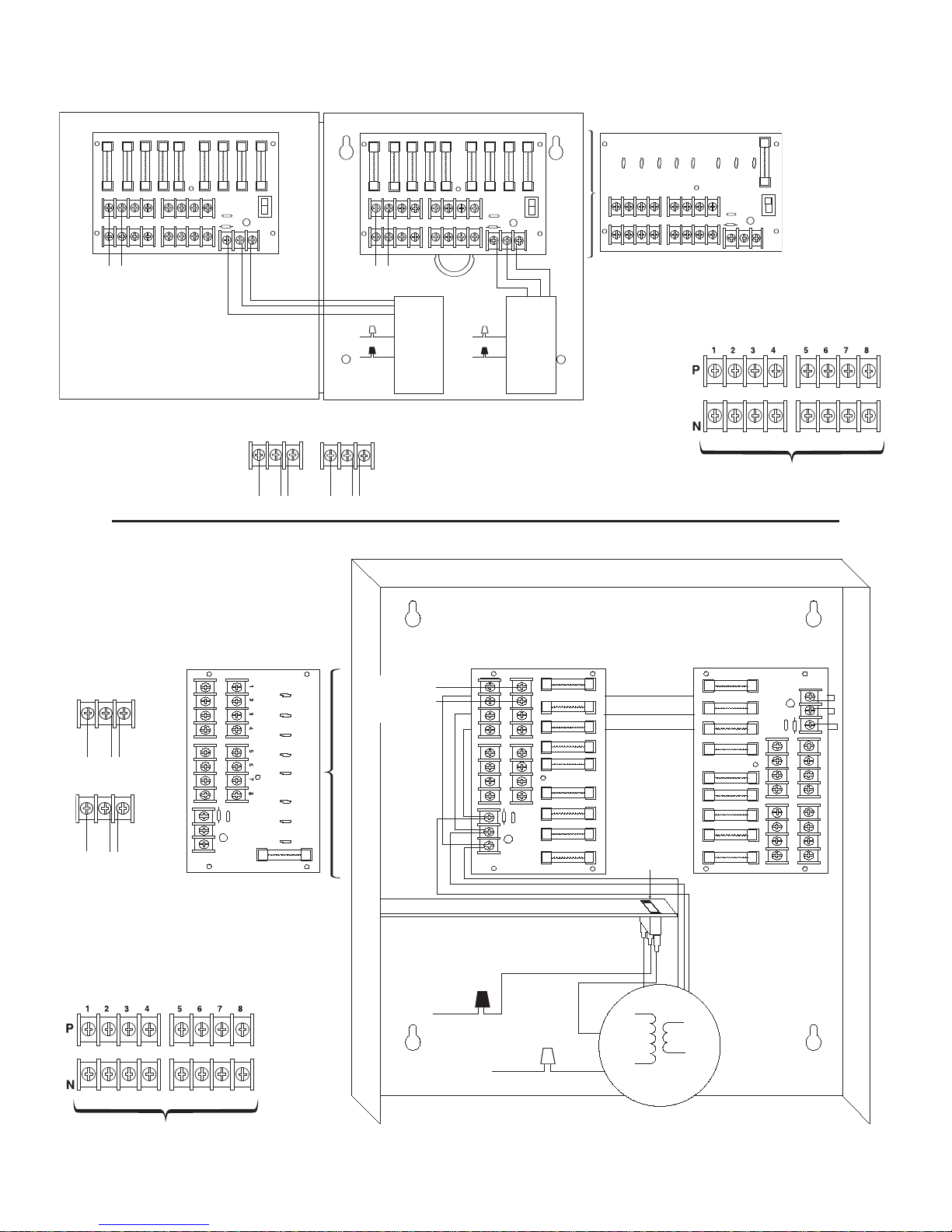

Fig. 3

ALTV2416300M • ALTV2416300CBM

24VAC or 28VAC

fused or PTC protected outputs

1 through 16.

Input:

24VAC or

28VAC

operation.

Terminal Blocks for Fig. 3

- 6 -

COMMON POWER OUTPUTS

FUSED POWER OUTPUTS

1 2 3 4 5 6 7 8

INPUT

N P S

R1 LED

COMMON POWER OUTPUTS

FUSED POWER OUTPUTS

1 2 3 4 5 6 7 8

INPUT

N P S

R1 LED

White

Lead

Power

Switch

XFMR*

Black

Lead

115VAC input,

50/60 Hz.

Used on PTC Models

(example: ALTV2416600CB)

XFMR*

FUSED POWER OUTPUTS

ALTRONIX CORP. MADE IN USA

BROOKLYN, NY 11220

INPUT

LED

MAIN FUSE MAIN FUSE

F1 F2 F3 F4 F5 F6 F7 F8

COMMON POWER OUTPUTS

MAIN FUSE

NPS

24VAC Output

(Factory Set)

Black

Yellow

28VAC Output

24VAC or 28VAC

fused output 1

(Follow same procedure

using terminals

2P & N through 8P & N

fused outputs 2 through 8)

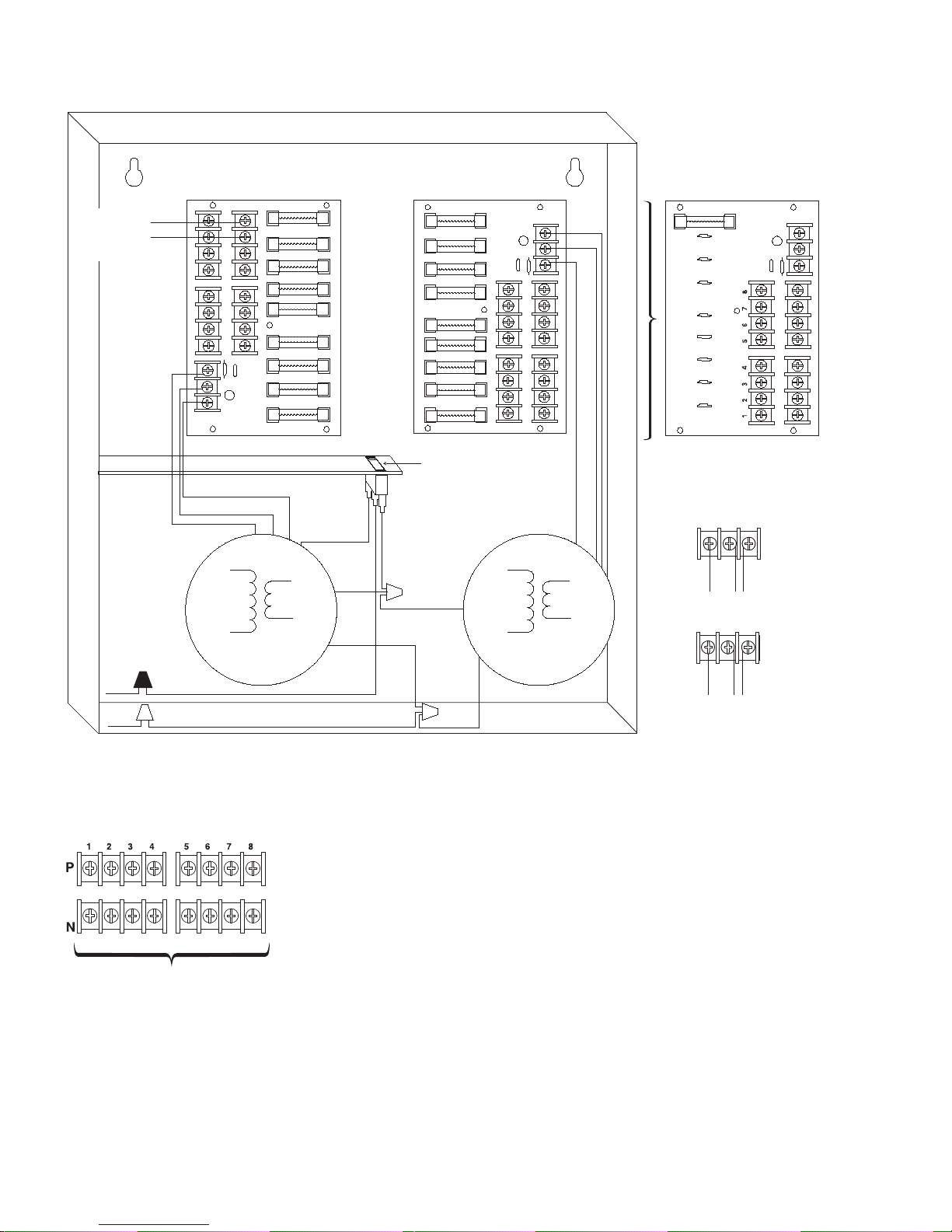

Fig. 4

ALTV2416600 • ALTV2416600CB

24VAC or 28VAC fused or PTC

protected outputs 1 through 8.

Terminal Blocks for Fig. 4

- 7 -

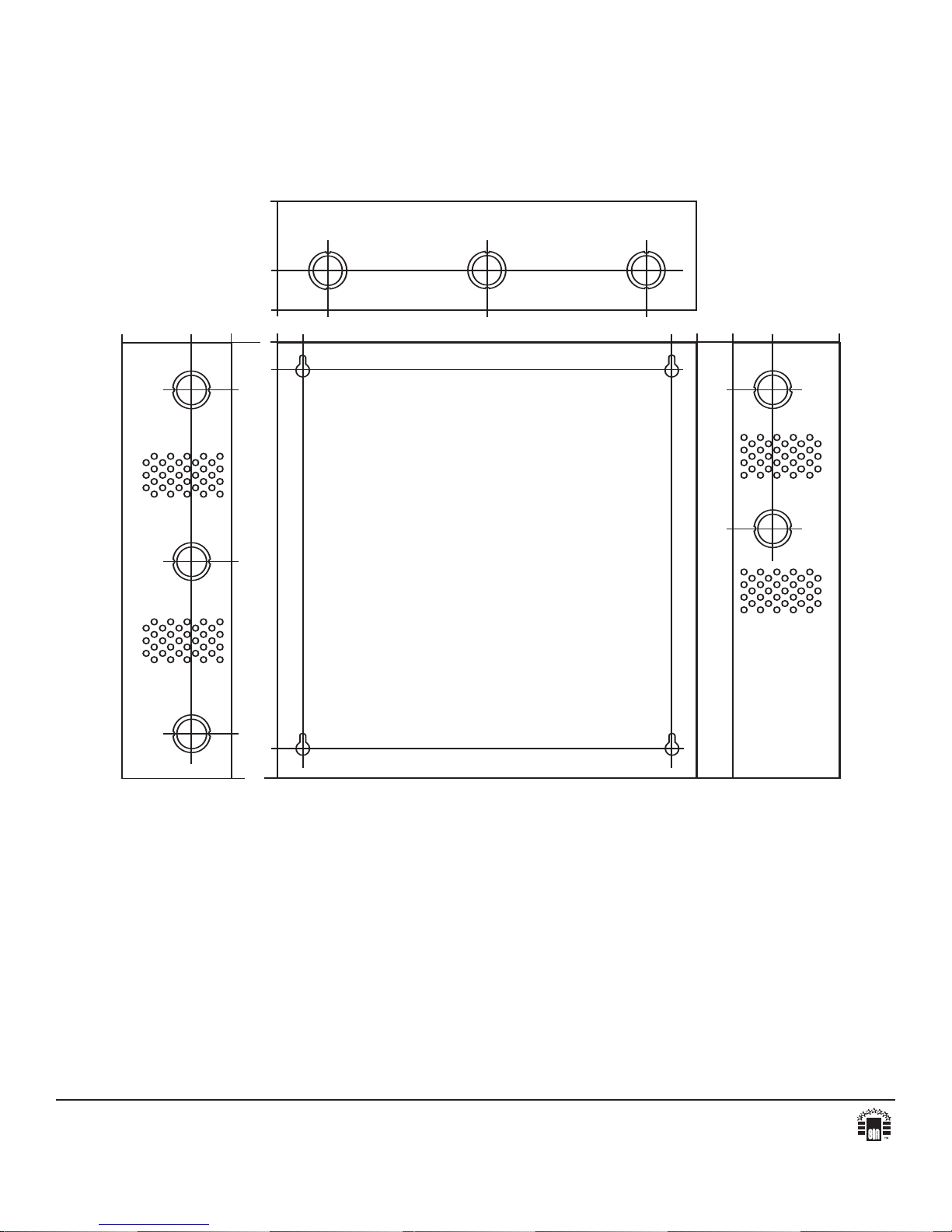

Enclosure Dimensions for:

• ALTV2416

• ALTV2416CB

8.5"H x 7.5"W x 3.5"D

TOP ONLY

Enclosure Dimensions for:

• ALTV2416300M

• ALTV2416300CBM

8.5"H x 7.5"W x 3.75"D

0.50”

6.05”

7.25”

3.85”

1.25”

3.625”

6.825” 8.125”

1.25”

1.00”

5.25”

1.25”

7.25”

3.85”

1.75”

Access for Linecord

- 8 -

Altronix Corp.

140 58th Street, Brooklyn, New York 11220 USA, 718-567-8181, fax: 718-567-9056

web site: www.altronix.com, e-mail: [email protected], Lifetime Warranty, Made in U.S.A.

II1ALTV2416Series B09E MEMBER

Altronix is not responsible for any typographical errors.

.81"

1.1875"

3.25"

0 1.1875" 3.25".75" 1.5" 6.25" 11"

1.4"

6.5"

5.5"

1.4"

11.66"

12.1"

13"

12.5"

11.75"

TOP ONLY

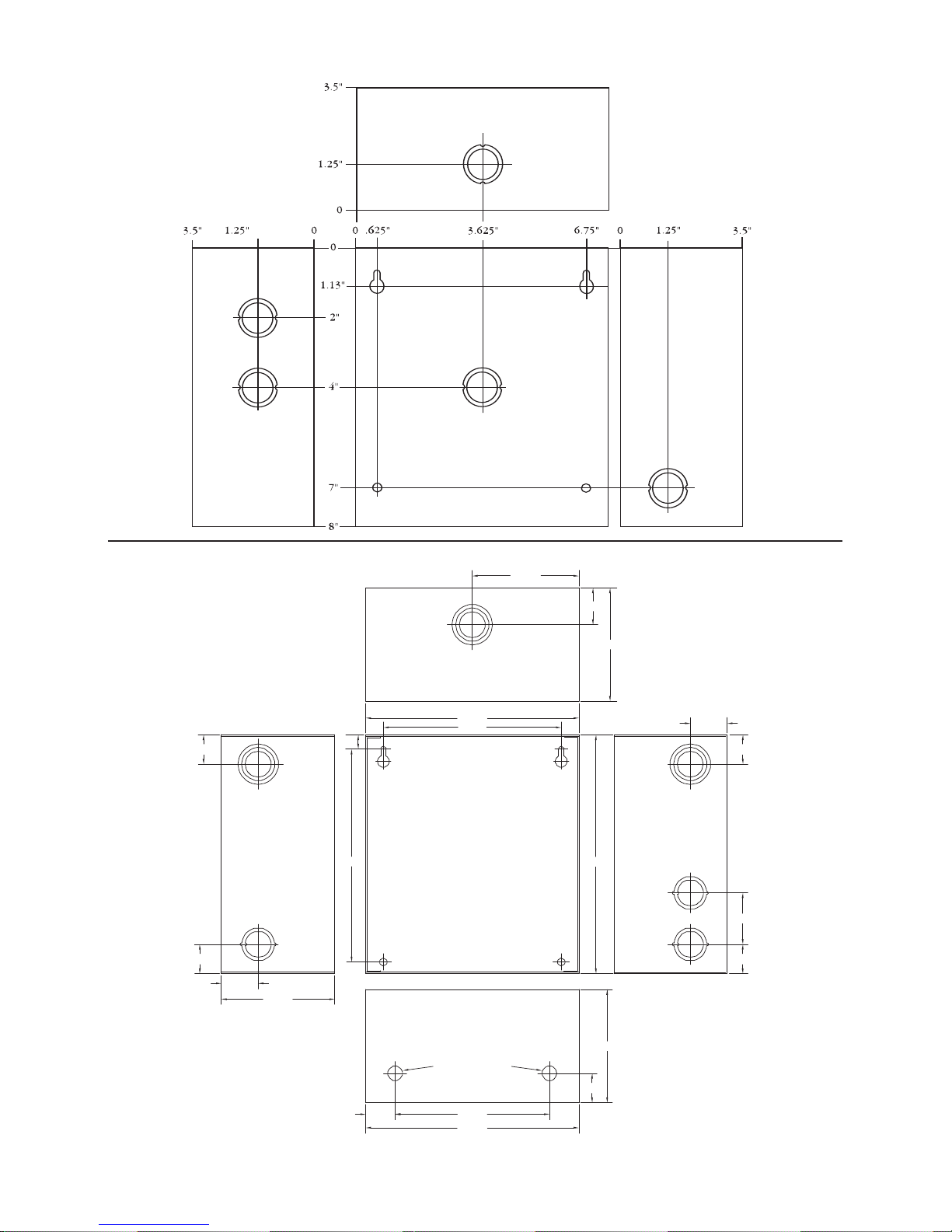

Enclosure Dimensions for:

• ALTV2416350

• ALTV2416350CB

• ALTV2416600

• ALTV2416600CB

13"H x 13.5"W x 3.5"D
