Altronix ALTV244 Bedienungs- und Wartungsanleitung

Rev. 020705

ALTV244 Series

CCTV Power Supplies

Installation Guide

Models Include:

•

ALTV244

•

ALTV244CB

- 24VAC @ 4 amp (100VA) - 24VAC @ 4 amp (100VA)

or 28VAC @ 3.5 amp. or 28VAC @ 3.5 amp.

- Four (4) Fuse Protected - Four (4) PTC Protected

Outputs. Outputs.

•

ALTV244175

•

ALTV244175CB

- 24VAC @ 7.25 amp (175VA) - 24VAC @ 7.25 amp (175VA)

or 28VAC @ 6.25 amp. or 28VAC @ 6.25 amp.

- Four (4) Fuse Protected - Four (4) PTC Protected

Outputs. Outputs.

•

ALTV244300

•

ALTV244300CB

- 24VAC @ 12.5 amp (300VA). - 24VAC @ 12.5 amp (300VA).

or 28VAC @ 10 amp. or 28VAC @ 10 amp.

- Four (4) Fuse Protected - Four (4) PTC Protected

Outputs. Outputs.

Overview:

These Altronix CCTV Power Supplies provide 24VAC or 28VAC distributed via four (4) fuse or PTC protected outputs

for powering CCTV Cameras, heaters and other video accessories.

Four (4) Output ALTV244 Reference Chart:

ALTV244 4 amp 24VAC 4 - x 3.5 amp 5 amp/250V .9 amp

3.5 amp 28VAC

ALTV244CB 4 amp 24VAC 4 x - 2.5 amp 5 amp/250V .9 amp

3.5 amp 28VAC

ALTV244175

7.25 amp 24VAC 4 - x 3.5 amp 10 amp/250V 1.5 amp

6.25 amp 28VAC

ALTV244175CB

7.25 amp 24VAC 4 x - 2.5 amp 10 amp/250V 1.5 amp

6.25 amp 28VAC

ALTV244300 12.5 amp 24VAC 4 - x 3.5 amp 15 amp/32V 2.7 amp

10 amp 28VAC

ALTV244300CB 12.5 amp 24VAC 4 x - 2.5 amp 15 amp/32V 2.7 amp

10 amp 28VAC

Specifications:

• Surge suppression.

Enclosure Dimensions:

• AC power LED indicator. ALTV244, ALTV244CB

• Power ON/OFF switch 8.5”H x 7.5”W x 3.5”D

• Unit maintains camera synchronization. ALTV244175, ALTV244175CB, ALTV244300

• Ease of installation saves time & eliminates costly labor. and ALTV244300CB

• Spare fuses included (on fuse protected models). 8.5”H x 7.5”W x 3.75”D

Installation Instructions:

1. Mount unit in desired location.

2. Slide switch SW1 to OFF position (Models ALTV244 and ALTV244CB), (Fig. 1, pg. 3).

Turn main switch on all other models to the OFF position.

3. All units are factory set for 24VAC operation.

For 28VAC operation, adjust unit prior to mounting and applying

power as follows: Change the wire position so that the black wire [28V] is connected to the terminal marked [P] and

the yellow wire [24V] is connected to the terminal marked [S].

4. Connect AC power to the black and white flying lead of the transformer (Fig. 1, pg. 3).

Use 18 AWG or larger for all power connections (Battery, AC output).

5. Measure output voltage before connecting devices. This helps avoid potential damage.

Terminals marked [1P - 4P] are positive (+) and terminals marked [1N - 4N] are negative.

CAUTION: Determine the maximum operating voltage of the equipment being powered before adjusting the

output voltage.

Altronix

Model Number

Output Current

(max per output)

Total Output Current

(Power)

Output Voltage

115VAC

50/60Hz Input

Current

PTC Protected

Outputs

Fuse Protected

Outputs

- 2 -

Number of

Outputs

Main Fuse Ratings

6. Connect devices to terminals marked [1P - 1N through 4P - 4N] on PD4/PD4CB board carefully observing

correct polarity (Fig. 1, pg. 3).

7. Slide switch SW1 to ON position (Models ALTV244 and ALTV244CB), (Fig. 1, pg. 3).

Turn main switch on all other models to the “RESET” (ON) position.

8. Green LED will illuminate when unit is powered.

9. Upon completion of wiring, secure enclosure door with screws (supplied).

Caution: Equipment to be installed / serviced by authorized / trained personnel only.

Shut branch circuit power before installing / servicing equipment.

WARNING: To reduce the risk of fire or electric shock, do not expose the unit to rain or moisture.

This installation should be made by qualified service personnel and should conform to all local codes

and in accordance with the National Electrical Code.

Terminal Identification:

PD4/PD4CB - Distribution Module

1P - 4P Positive AC output.

1N - 4N Negative AC output.

The lightning flash with arrow head symbol within an equilateral triangle is intended to alert the user to the

presence of an insulated “DANGEROUS VOLTAGE” within the products enclosure that may be of sufficient

magnitude to constitute an electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important

operating and maintenance (servicing) instructions in the literature accompanying the appliance.

CAUTION: To reduce the risk of electric shock do not open enclosure. There are

no user serviceable parts inside. Refer servicing to qualified service personnel.

- 3 -

ALTV244

XFMR

24VAC or 28VAC

fused output 1

(Follow same procedure

using terminals 2P & N

thru 4P & N fused

outputs 2 thru 4)

115 VAC input

50/60 Hz,

.9 amps

White Lead

Black Lead

F1 F2 F3 F4

INPUT

OFF

JMP1

1P 1N 2P 2N 3P 3N 4P 4N

LED

SW1

MAIN FUSE

NPS

1P, 2P, 3P, 4P = FUSED OUTPUTS

1N, 2N, 3N, 4N = COMMON OUTPUTS

XFMR

24VAC or 28VAC

circuit breakered output 1

(Follow same procedure

using terminals 2P & N thru

4P & N circuit breakered

outputs 2 thru 4)

115 VAC input

50/60 Hz,

.9 amps

White Lead

Black Lead

F1 F2 F3 F4

INPUT

OFF

1P 1N 2P 2N 3P 3N 4P 4N

LED

SW1

MAIN FUSE

1P, 2P, 3P, 4P = FUSED OUTPUTS

1N, 2N, 3N, 4N = COMMON OUTPUTS

JMP1

ALTV244CB

- 4 -

NP S

24VAC

Output

(Yellow) (Black)

(Black) (Yellow)

28VAC

Output

Voltage Selection

Configuration

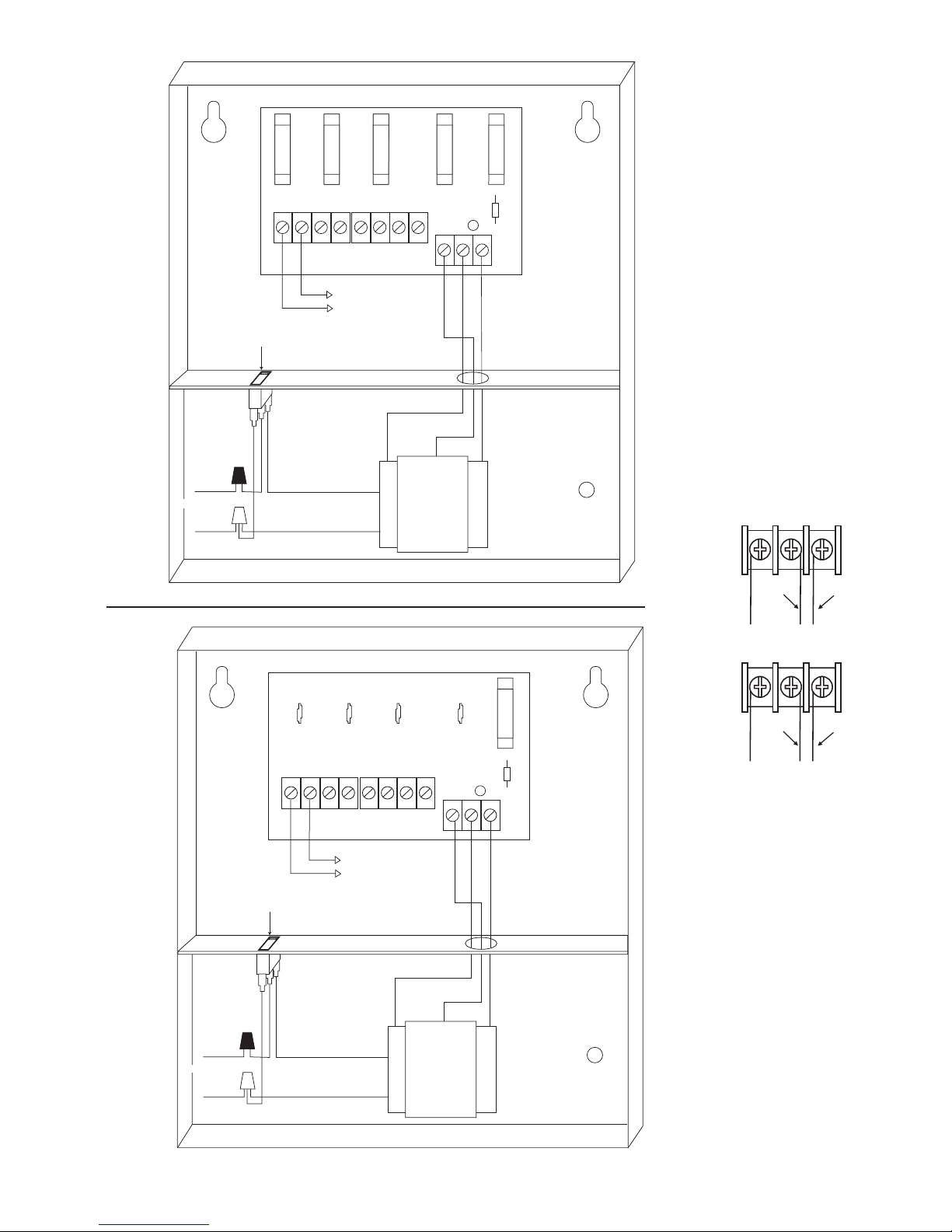

ALTV244175

XFMR

White Lead

24VAC or 28VAC fused output 1

(Follow same procedure

using terminals 2P & N

thru 4P & N fused

outputs 2 thru 4)

F1 F2 F3 F4

INPUT

1P 1N 2P 2N 3P 3N 4P 4N

LED

MAIN FUSE

1P, 2P, 3P, 4P = FUSED OUTPUTS

1N, 2N, 3N, 4N = COMMON OUTPUTS

Power

Switch

Black

Lead

115VAC input

50/60 Hz,

1.5 amps

F1 F2 F3 F4

INPUT

1P 1N 2P 2N 3P 3N 4P 4N

LED

MAIN FUSE

1P, 2P, 3P, 4P = FUSED OUTPUTS

1N, 2N, 3N, 4N = COMMON OUTPUTS

XFMR

White Lead

24VAC or 28VAC circuit breakered 1

(Follow same procedure

using terminals 2P & N

thru 4P & N fused

outputs 2 thru 4)

Power

Switch

Black

Lead

115VAC input

50/60 Hz,

1.5 amps

ALTV244175CB

- 5 -

NP S

24VAC

Output

(Yellow) (Black)

(Black) (Yellow)

28VAC

Output

Voltage Selection

Configuration

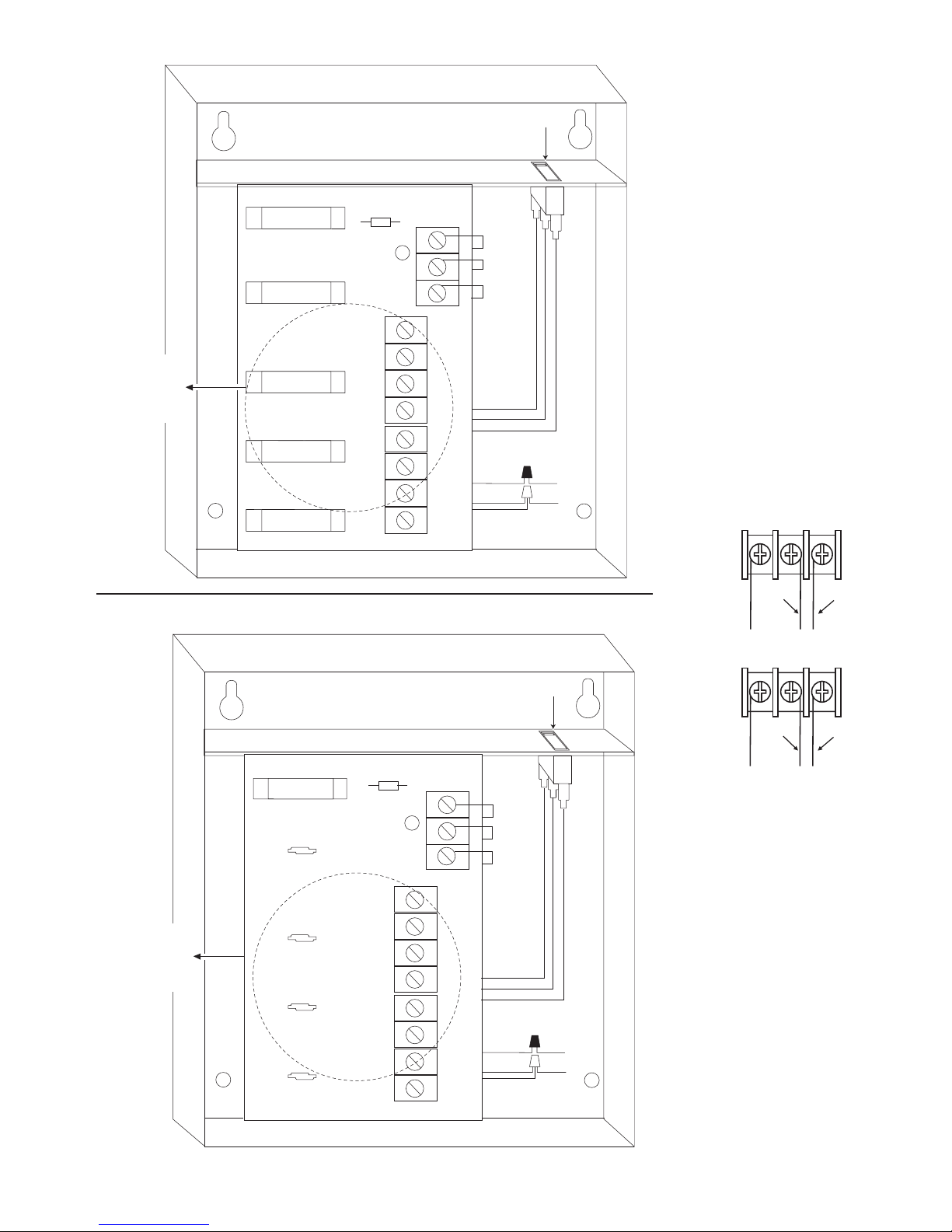

ALTV244300

Transformer

underneath

power supply

board

Power

Switch

White Lead

Black Lead

F1 F2 F3 F4

INPUT

1P 1N 2P 2N 3P 3N 4P 4N

LED

1P, 2P, 3P, 4P = FUSED OUTPUTS

1N, 2N, 3N, 4N = COMMON OUTPUTS

MAIN FUSE

Transformer

underneath

power supply

board

Power

Switch

F1 F2 F3 F4

INPUT

1P 1N 2P 2N 3P 3N 4P 4N

LED

MAIN FUSE

1P, 2P, 3P, 4P = FUSED OUTPUTS

1N, 2N, 3N, 4N = COMMON OUTPUTS

White Lead

Black Lead

ALTV244300CB

- 6 -

NP S

24VAC

Output

(Yellow) (Black)

(Black) (Yellow)

28VAC

Output

Voltage Selection

Configuration

TOP ONLY

Enclosure Dimensions for:

• ALTV244

• ALTV244CB

• ALTV244175

• ALTV244175CB

• ALTV244300

• ALTV244300CB

8.5"H x 7.5"W x 3.5"D

- 7 -

Altronix Corp.

140 58th Street, Brooklyn, New York 11220 USA, 718-567-8181, fax: 718-567-9056

web site: www.altronix.com, e-mail: [email protected], Lifetime Warranty, Made in U.S.A.

II1ALTV244Series B17E

Altronix is not responsible for any typographical errors.

- 8 -
