AlzaTools AT-CJS20V Bedienungsanleitung

Cordless Jig Saw

AT-CJS20V

User Manual

ENGLISH 4

DEUTSCH 15

ČESKY 26

SLOVENSKY 37

MAGYAR 48

4ENGLISH

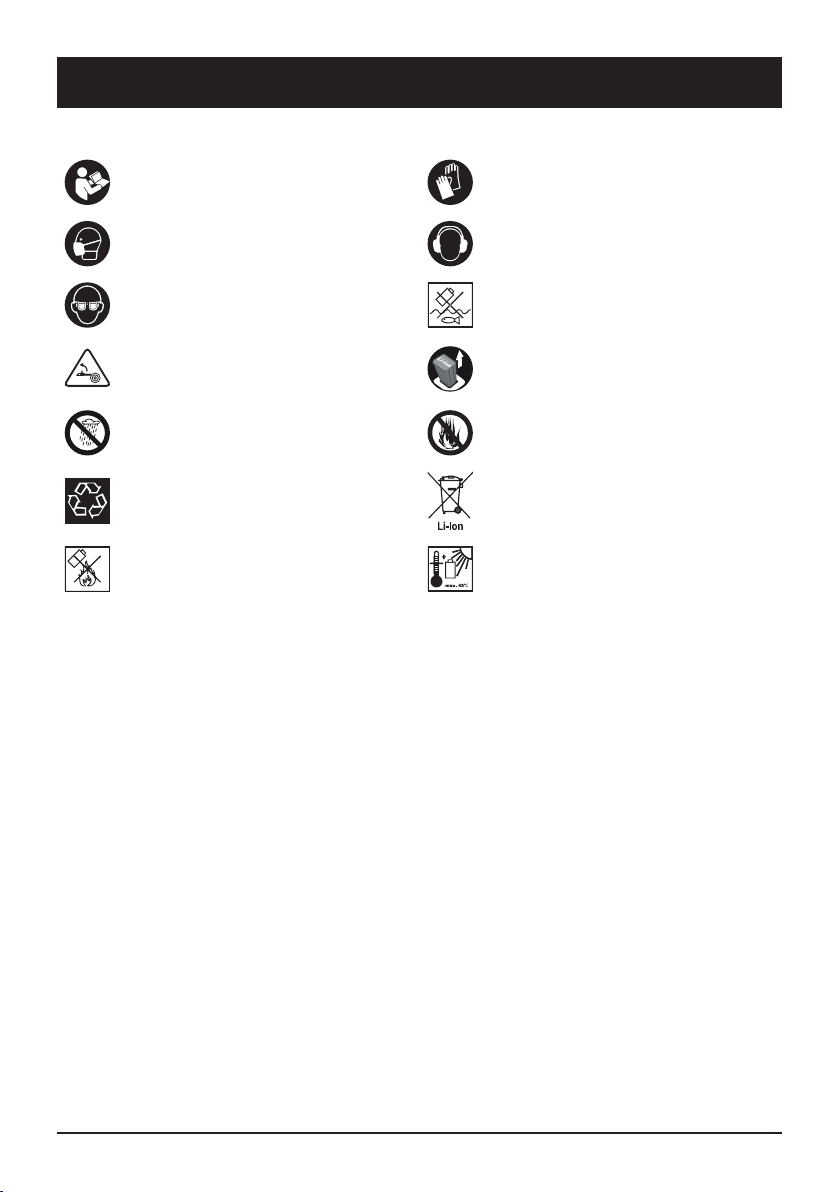

EXPLANATION OF SYMBOLS ON THE PRODUCT PACKAGING/TYPE LABEL

Read the operating instructions careful-

ly before use! Wear protective gloves

Wear mouth and nose protection. Wear noise protection.

Wear protective glasses Do not throw batteries into water!

Observe the safety instructions con-

cerning recoil and the safety precau-

tions.

Always remove the battery during

work, transport, storage, maintenance

or repair.

Protect from rain and moisture. Protect from heat and ﬁre.

Ensure proper recycling of the product

at the end of its service life and all pack-

aging materials.

Do not dispose of batteries with normal

household waste.

Do not throw batteries into a ﬁre! Do not expose batteries to excessive

temperatures above 50 °C.

GENERAL SAFETY INSTRUCTIONS FOR POW-

ER TOOLS

WARNING! All safety instructions, user man-

uals, images and regulations supplied with

these tools must be read. Failure to follow all

of the following instructions may result in elec-

tric shock, ﬁre, and/or serious personal injury.

All instructions and the user manual must be

kept for future reference.

Safety of working environment

1. The workplace must be kept clean and well lit.

Untidy and dark spaces are often the cause of

accidents.

2. Power tools must not be used in potentially ex-

plosive atmospheres, such as in the presence

of ﬂammable liquids, gases or dust. Power tools

create sparks that can ignite dust or fumes.

3. Children and other persons must be kept away

when using power tools. If the operator is dis-

turbed, he/she may lose control of the opera-

tion.

Electrical safety

1. The plug on the power tool's ﬂexible lead must

match the power outlet. The plug must never

be modiﬁed in any way. No socket adapters

may be used with tools that have a protective

earth connection. Plugs and respective sockets

that are rendered unusable will reduce the risk

of electric shock.

2. The operator must not touch grounded ob-

jects, such as pipes, central heating units,

cookers and refrigerators. The risk of electric

shock is greater if your body is connected to

the ground.

3. Power tools must not be exposed to rain, mois-

ture or wetness. If water enters the power tool,

the risk of electric shock increases.

4. The ﬂexible supply must not be used for oth-

er purposes. The power tool must not be car-

ried or pulled by the cord, nor must the plug

be unplugged from the socket. The inlet must

be protected from heat, grease, sharp edges

or moving parts. Damaged or tangled leads

increase the risk of electric shock.

5. If the power tool is used outdoors, an extension

cord suitable for outdoor use must be used. Us-

ing an extension cord for outdoor use reduces

the risk of electric shock.

6. If the power tool is used in a humid environ-

SAFETY INSTRUCTIONS

5ENGLISH

ment, a residual current device (RCD) must be

used. Using an RCD reduces the risk of electric

shock.

Safety of persons

1. When using a power tool, the operator must be

careful, pay attention to what he/she is doing,

and concentrate and think clearly. Power tools

must not be used if the operator is tired or un-

der the inﬂuence of drugs, alcohol or medica-

tion. Momentary inattention while using a pow-

er tool can result in serious personal injury.

2. Use personal protective equipment. Always

use eye protection. Protective equipment such

as a respirator, non-slip safety shoes, hard hat

and hearing protection, used in accordance

with the working conditions, reduces the risk of

personal injury.

3. Unintentional starting of the machine must be

avoided. Make sure that the switch is in the off

position before plugging in and/or connecting

the battery pack, lifting or carrying the tool.

Carrying a tool with your ﬁnger on the switch

or plugging in a tool fork with the switch on can

cause injury.

4. All adjusting tools or wrenches must be re-

moved before turning on the tool. An adjusting

tool or wrench that remains attached to the ro-

tating part of the power tool may result in per-

sonal injury.

5. The operator must only work where he/she can

safely reach. The operator must always main-

tain a stable posture and balance. This will al-

low better control of the power tool in unfore-

seen situations.

6. Dress appropriately. Do not wear loose cloth-

ing or jewellery. The operator must make sure

that his/her hair and clothing are a sufﬁcient

distance away from moving parts. Loose cloth-

ing, jewellery and long hair can be caught in

moving parts.

7. Where equipment is provided for connecting

dust extraction and collection facilities, care

must be taken to ensure that it is connected

and used correctly. The use of such equipment

can reduce hazards caused by dust.

8. The operator must not allow the routine that

results from the frequent use of the tools, to

cause them to become complacent and ignore

the principles of tool safety. Careless activity

can cause serious injuries in a split second.

Use and the maintenance of power tools

1. Power tools must not be overloaded. It is es-

sential to use the correct power tool for the

work being carried out. The correct power tool

will do the work it was designed to do better

and safer.

2. Power tools that cannot be turned on and off

with the switch must not be used. Any power

tool that cannot be operated with the switch is

dangerous and must be repaired.

3. Before making any adjustments, changing ac-

cessories, or storing power tools, unplug the

power tool and/or remove the battery pack

from the power tool if it is removable. These

precautions reduce the risk of accidentally

starting the power tool.

4. Unused power tools must be stored out of

the reach of children. Persons unfamiliar with

the power tool or these instructions must not

be allowed to use the power tool. Power tools

are dangerous in the hands of inexperienced

users.

5. Power tools and accessories must be main-

tained. The adjustment of moving parts and

their mobility must be checked and attention

focused on cracks, broken parts and any other

circumstances that may jeopardize the func-

tion of the power tool. If the tool is damaged,

it must be repaired before use. Many accidents

are caused by poorly maintained power tools.

6. Cutting tools must be kept sharp and clean.

Properly maintained and sharpened cutting

tools are less likely to catch on material or jam

and are easier to control.

7. Power tools, accessories and tool bits etc. must

be used in accordance with these instructions

and in the manner intended for the particular

power tool, taking into account the working

conditions and the work to be carried out. Us-

ing power tools for activities other than those

for which they are designed can lead to dan-

gerous situations.

8. Handles and grip surfaces must be kept dry,

clean and free of grease. Slippery handles and

gripping surfaces mean the tool cannot be

held and controlled in unexpected situations.

Service

1. Power tool repairs must be carried out by qual-

iﬁed personnel using identical spare parts. This

will ensure the same level of safety of the pow-

SAFETY INSTRUCTIONS

6ENGLISH

er tool as before the repair.

USE AND MAINTENANCE OF CORDLESS

TOOLS

1. The tool must only be charged with the charger

speciﬁed by the manufacturer. A charger that

may be suitable for one type of battery pack

may present a ﬁre hazard when used with an-

other battery pack.

2. The tool must only be used with a battery pack

that is speciﬁcally designed for the tool. The

use of any other battery pack may present a risk

of injury or ﬁre.

3. When the battery set is not used, the battery

pack must be protected from contact with oth-

er metal objects, such as paper clips, coins,

keys, nails, screws or other small metal objects

that can cause one battery contact to come into

contact with another. Short-circuiting the bat-

tery terminals may cause burns or ﬁre.

SAFETY INSTRUCTIONS FOR RECIPROCATING

SAWS

1. When performing operations where the cutting

tool may contact hidden wiring or its own sup-

ply, the power tool must be held by insulated

gripping surfaces. Contact of the cutting tool

with a "live" wire can cause uninsulated metal

parts of the power tool to become "live" and

can result in an electric shock to the user.

2. Clamps or other practical means must be used

to secure and support the workpiece on a sta-

ble base. Holding the workpiece by hand or

against the body leads to instability and loss of

control.

NOTE: The above instructions do not apply to

garden saws for tree ventilation or hedge trim-

ming.

SAFETY INSTRUCTIONS

7ENGLISH

TECHNICAL DATA

Oscillations per minute (no load) 0-2700

Oscillation length 20 mm

Swing adjustment 4

Maximum cut thickness

Wood 80 mm

Aluminium 12 mm

Steel 5 mm

Slope of the cut 0°-45°

Sound pressure level * 79.4 dB(A), K=3 dB(A)

Sound power level ** 90.4 dB(A), K=3 dB(A)

Level of vibrations

Wood 9.68 m/s2, K=1.5 m/s2

Metal 11.18 m/s2, K=1.5 m/s2

Weight (only machine) 1.78 kg

* Continuous sound pressure level with ﬁlter A for hand tools measured according to prEN ISO

15744: 1999 and stated according to EN ISO 4871.

** Sound power level with ﬁlter A for hand tools measured according to prEN ISO 15744: 1999 and

stated according to EN ISO 4871.

8ENGLISH

DESCRIPTION

1 Switch

2 Switch fuse

3 Quick blade change clamp

4 Blade protector

5 20 V Li-ion rechargeable battery (sold separately)

6 Blade support pulley

7 LED lighting

8 Side guide mounting bolts

9 Baseplate

10 Oscillating adjustment switch

11 Blowing/dust extraction switch

12 Dust extraction output

13 Cut inclination adjustment screws

14 Key holder

9ENGLISH

DESCRIPTION

The product is designed for cutting wood and medium-hard metals. The product is designed for

domestic and light commercial use. Other uses are outside the warranty conditions.

UNPACKING

Carefully unpack the product, remove the packaging material and check the condition for any dam-

age during transport. Disassemble the contents of the package and check the completeness of the

accessories according to the next paragraph. If anything is missing, contact your dealer and do not

use the product.

Keep the packaging material for at least the warranty period, it must be used in the case of shipment.

Warning!

• Packaging material can be dangerous to children. Keep it out of the reach of children.

• Follow applicable local recycling regulations when disposing of the packaging.

PACKAGE CONTENTS

In addition to the product, the package also contains an Allen key, a side guide, a wood cutting blade

and a dust adapter

UNPACKING AND INSPECTION

10 ENGLISH

USE

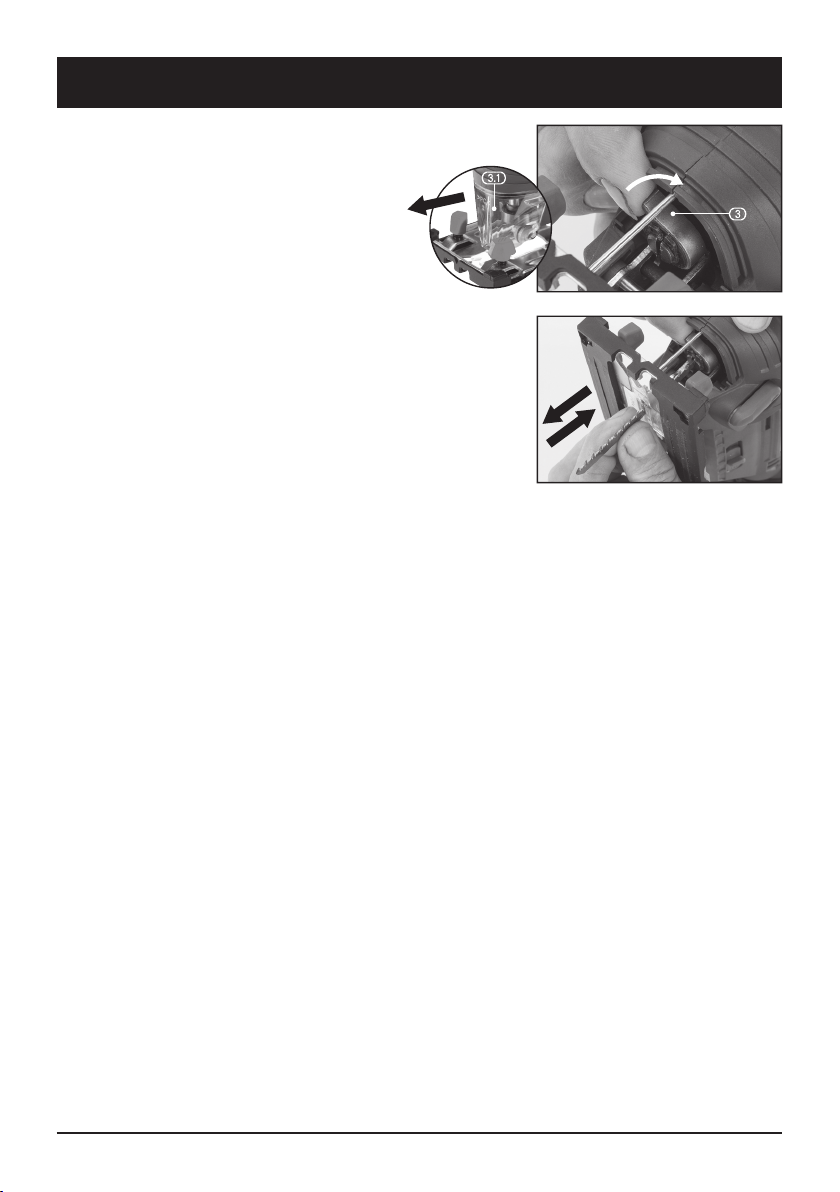

INSTALLATION AND REPLACEMENT OF THE BLADE

The saw can be used to cut a variety of mate-

rials. Therefore, it is vital to choose the correct

saw blade.

• Remove the battery from the machine.

•If it is already in place, slide off the plastic

blade guard (3.1).

•Rotate and hold the quick blade change

clamp (3).

•Insert the saw blade into the clamp (3) with

the teeth facing forward.

•Release the clamp and the blade is held in

place.

Note: Only bayonet blades can be used in the

saw.

SWITCH

The switch (1) can only be pressed simultaneously with the safety catch (2) to prevent the saw from

starting accidentally.

• To start the saw, ﬁrst hold the lock (2) and then press the switch (1).

• Always wear hearing protection when using the saw.

ATTENTION: The saw blade moves for a few seconds after the switch is released.

Important: The shape of the machine means it can be gripped and operated with one hand; howev-

er, we recommend using both hands on the saw for safety reasons.

Note: Pressure on the saw blade overloads the motor and can cause damage.

• During cutting, make sure that the base of the saw is still resting on the material being cut.

• When cutting metal, it is recommended to apply a drop of oil to the place of the future cut.

• The board material must be ﬁrmly supported so that it cannot move or spring.

• Smaller cut pieces must be fastened so that they cannot move (e.g. with clamps).

LED LIGHTING

The LED illumination (7) starts together with the machine motor when the switch is pressed and illu-

minates the cut.

SWINGING MOTION ADJUSTMENT

The oscillating movement of the saw blade in the cut affects the quality and speed of the cut.

There are 3 selectable grades for faster and more efﬁcient cutting across a range of possible wood

and plastic materials. The rocking motion of the blade pushes the blade upwards into the cut and

delays it on the return downwards so the blade does not pull on the material.

• Turn the switch (10) to set the desired blade behaviour.

• Position 1 allows only a small rocking motion, so the cut is smoother; used at low speeds.

Inhaltsverzeichnis

Sprachen:

Andere alzaTools Akku-Säge Handbücher

alzaTools

alzaTools AT-CCS20V Bedienungsanleitung

Beliebte Akku-Säge Handbücher anderer Marken

EDM Product

EDM Product 08754 Bedienungsanleitung

GreenWorks

GreenWorks GD24JS Bedienungsanleitung

AEG

AEG BKS18LI-401B Bedienungsanleitung

Black & Decker

Black & Decker BDEJS4C Bedienungsanleitung

DeWalt

DeWalt DC330 Bedienungsanleitung

Makita

Makita HS301D Bedienungsanleitung

Makita

Makita RS001GM101 Bedienungsanleitung

Metabo HPT

Metabo HPT C 3607DWA Bedienungsanleitung

Panasonic

Panasonic EY47A1 Bedienungsanleitung

Bosch

Bosch RS20 Montageanleitung

Parkside

Parkside PAAS 12 A2 Bedienungsanleitung

Makita

Makita DHS783ZJU Bedienungsanleitung

Makita

Makita DJR188Z Bedienungsanleitung

Max

Max 61011 Bedienungsanleitung

Makita

Makita DJV181 Bedienungsanleitung

Makita

Makita DJR188 Bedienungsanleitung

EINHELL

EINHELL TE-AP 18 Li Bedienungsanleitung

Festool

Festool RSC 18 Bedienungsanleitung

alzaTools AT-CJS20V Bedienungsanleitung

Beliebte Akku-Säge Handbücher anderer Marken
