BUILT-IN TALL-TUB DISHWASHER

1. Minimum 32” drain loop, 1/2” inside diameter minimum. Floor drains require a siphon break.

2. Connections preferably located toward left side of dishwasher. Care should be taken to route plumbing

away from motor and blower (if equipped).

3. Electrical and plumbing should meet all local and national codes.

4. Electrical and water supplies should enter cabinet opening on the ﬂoor, or through the back or side walls,

as shown in the shaded area of the drawing.

5. When installing dishwasher in or near a corner, allow enough room for door to open without interfering

with cabinet drawers or hardware.

Electrical requirements: Adequately wired individual 120V A/C, 60Hz approved electrical circuit. Use

required fuse (15 amp) or comparable circuit breaker.

NOTES:

Style of product may vary from picture

Keep back

free of drain

inlet water and

electrical. Preferred

drain area

Preferred

drain area

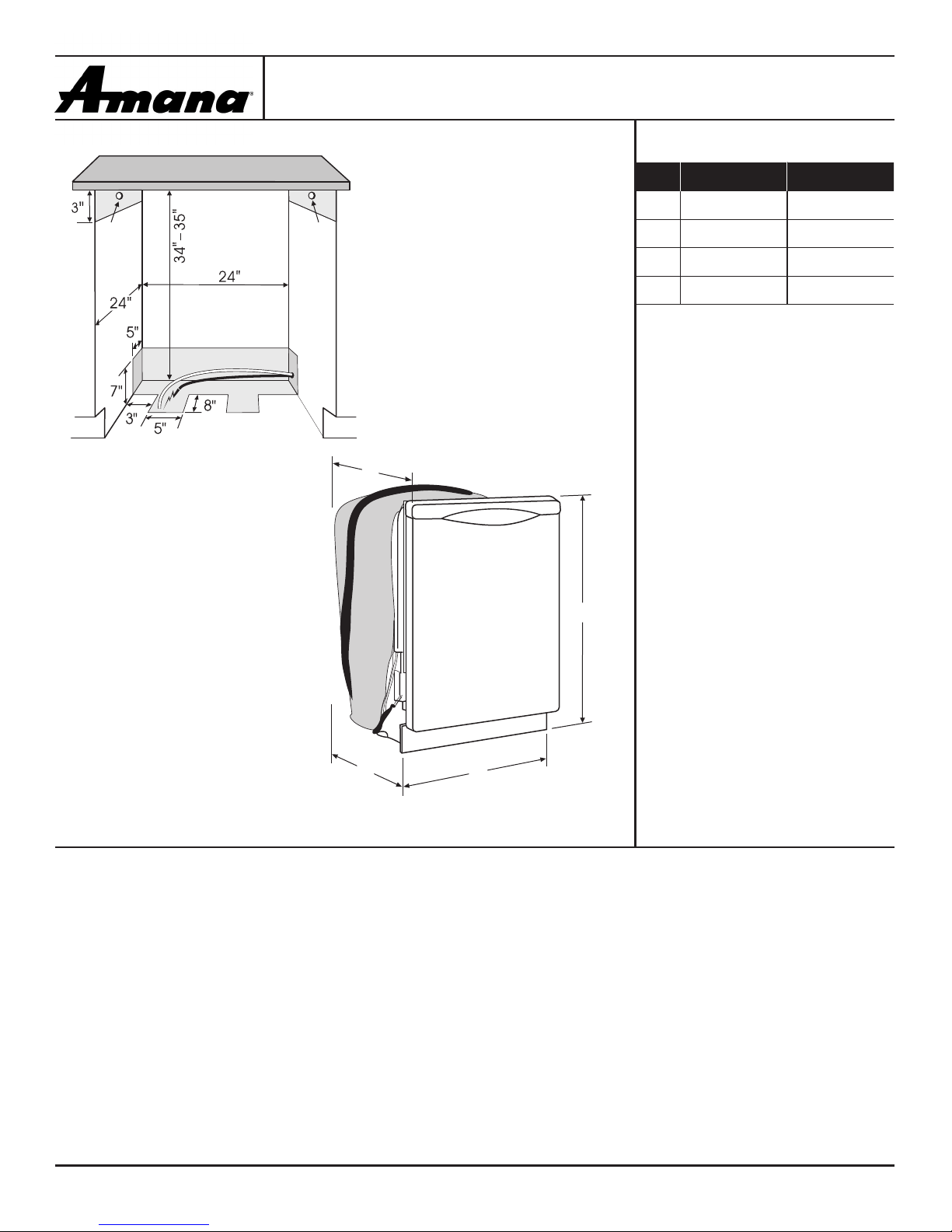

PRODUCT DIMENSIONS

INCHES CENTIMETERS

MODEL SKUs

23 7/8 60.6

19 1/2 49.5

23 7/8 60.6

33 1/2-35 1/4 85.1-89.5

ADB1500AWW

ADB1500AWB

ADB1500AWQ

ADB1500AWS

ADB1500AWZ

Important:Because of continuing product improvements, Amana® reserves the right to change specifications without notice. Dimensional specifications are provided for

planning purposes only. For complete details see installation instructions that accompany each product before selecting cabinetry, making cutouts or beginning installation.

2005-11-04 at 13:38:21 CST
