Dryer

Use & Care

GUIDE

OF CONTENTS

Safety Instructions ................................................. 1-2

Dryer Exhaust Tips ................................................... 3

Operating Instructions ........................................... 4-5

Using the Controls ................................................ 6-8

Special Laundry Tips ................................................... 9

Care and Cleaning .................................................... 10

Reverse the Door .................................................... 10

Troubleshooting .................................................. 11- 12

Warranty ................................................................... 15

Guide d'utitisation et d'entretien ........................ 16

Gu'a de Uso y Cuidado ......................................... 32

WI01611016

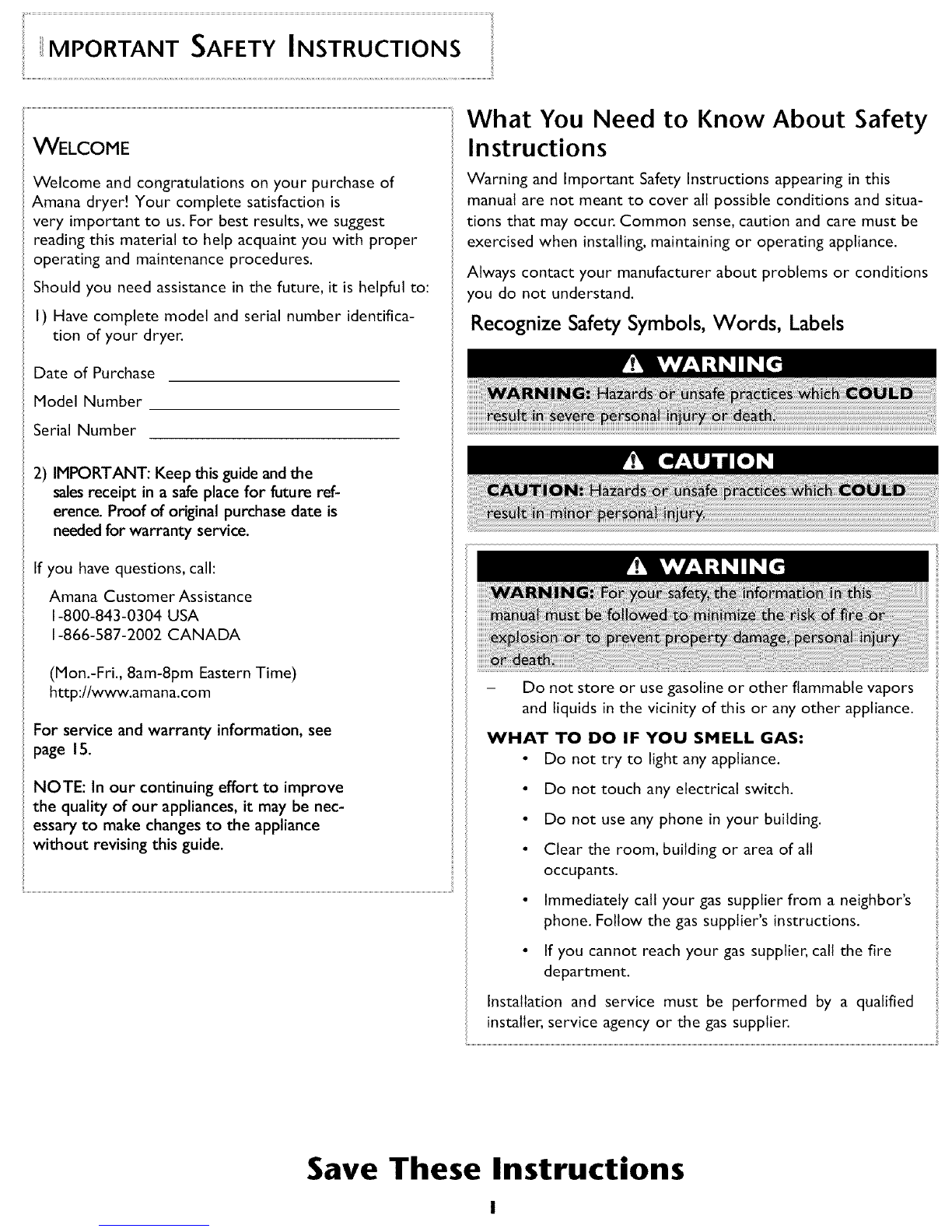

iiMPORTANT SAFETY INSTRUCTIONS

WELCOME

Welcome and congratulations on your purchase of

Amana dryer! Your complete satisfaction is

very important to us. For best results, we suggest

reading this material to help acquaint you with proper

operating and maintenance procedures.

Should you need assistance in the future, it is helpful to:

I) Have complete model and serial number identifica-

tion of your dryer.

Date of Purchase

Model Number

Serial Number

2) IMPORTANT: Keep this guide and the

salesreceipt in a safe place for future ref-

erence. Proof of original purchase date is

needed for warranty service.

If you have questions, call:

Amana Customer Assistance

1-800-843-0304 USA

1-866-587-2002 CANADA

(Mon.-Fri., 8am-8pm Eastern Time)

http://www.amana.com

For service and warranty information, see

page 15.

NOTE: In our continuing effort to improve

the quality of our appliances, it may be nec-

essary to make changes to the appliance

without revising this guide.

What You Need to Know About Safety

Instructions

Warning and Important Safety Instructions appearing in this

manual are not meant to cover all possible conditions and situa-

tions that may occur. Common sense, caution and care must be

exercised when installing, maintaining or operating appliance.

Always contact your manufacturer about problems or conditions

you do not understand.

Recognize Safety Symbols, Words, Labels

Do not store or use gasoline or other flammable vapors

and liquids in the vicinity of this or any other appliance.

WHAT TO DO IF YOU SMELL GAS:

•Do not try to light any appliance.

• Do not touch any electrical switch.

• Do not use any phone in your building.

• Clear the room, building or area of all

occupants.

• Immediately call your gas supplier from a neighbor's

phone. Follow the gas supplier's instructions.

• If you cannot reach your gas supplier, call the fire

department.

Installation and service must be performed by a qualified

installer, service agency or the gas supplier.

Save These Instructions

MPORTANT SAFETY INSTRUCTIONS

I. Read all instructions before using the appliance.

2. To avoid the possibility of fire or explosion:

a. Do not dry items that have been previously cleaned

in, washed in, soaked in, or spotted with gasoline, dry-

cleaning solvents, other flammable or explosive sub-

stances as they give off vapors that could ignite or

explode.Any material on which you have used a

cleaning solvent, or which is saturated with flammable

liquids or solids, should not be placed in the dryer,

until all traces of these flammable liquids or solids and

their fumes have been removed.There are many highly

flammable items used in homes, such as: acetone,

denatured alcohol, gasoline, kerosene, some liquid

household cleaners, some spot removers, turpentine,

waxes and wax removers.

b. Items containing foam rubber (may be labeled latex

foam) or similarly textured rubber-like materials must

not be dried on a heat setting. Foam rubber materials

when heated, can under certain circumstances pro-

duce fire by spontaneous combustion.

3. Do not allow children or pets to play on, in, or in front of

the appliance. Close supervision is necessary when the

appliance is used near children and pets.

4. Before the appliance is removed from service or dis-

carded, remove the door to the drying compartment.

5. Do not reach into the appliance if the drum is moving.

6. Do not install or store this appliance where it will be

exposed to the weather.

7. Do not tamper with controls.

8. Do not repair or replace any part of the appliance or

attempt any servicing unless specifically recommended in

published user-repair instructions that you understand and

have the skills to carry out.

9. Do not use fabric softeners or products to eliminate static

unless recommended for dryer use by the manufacturer of

the fabric softener or product.

10. Clean the lint screen before or after each load.

II.

12.

13.

14.

15.

Keep the area around the exhaust opening and sur-

rounding areas free from lint accumulation, dust and dirt.

The interior of the dryer and exhaust duct should be

cleaned periodically by qualified service personnel.

This appliance must be properly grounded. Never plug the

appliance cord into a receptacle which is not grounded

adequately and in accordance with local and national

codes. See installation instructions for grounding this

appliance.

Do not sit on top of the clothes dryer.

Do not place items exposed to cooking oils in the dryer.

Items contaminated with cooking oils may contribute to a

chemical reaction that could cause a load to catch fire.

NOTE: Because of continuing product improvements,

Amana reserves the right to change specifications

without notice.For complete details,see the Installation

Instructions packed with your product before selecting

cabinetry, making cutouts or beginning installation.

I_RYER EXHAUST TIPS

Read the installation instructions

and the Use and Care Guide.

DON'T

Let a poor exhaust system

cause slow drying.

Let your dryer exhaust

the air easily.

DON'T

Restrict your dryer with a

poor exhaust system.

Use 4 inch

diameter rigid

metal duct.Tape all

joints, including at the dryer.

Never use lint-trapping screws.

DON'T

Use plastic, thin foil, or

non-metal flexible duct.

Keep duct runs as straight

as possible.

DON'T (I I I

Use longer than necessary

duct runs with many

elbows.

Clean all old ducts before installing

your new dryer. Be sure vent flap

opens and closes freely. Inspect and

clean the exhaust system annually.

DON'T

Allow crushedor clogged

ductsand vent.

PERATING INSTRUCTIONS

• After each load.

• To shorten drying time.

• To operate more energy efficiently.

NOTE: Do not operate the dryer without the lint filter in place.

Place only one washload in the dryer at a time.

Mixed loads of heavy and lightweight clothes wilt dry differently.

Lightweight clothes will dry, while heavy clothes may be damp.

Add one or more similar items to the dryer when only one or

two articles need drying. This improves the tumbling action

and drying efficiency.

Overloading restricts tumbling action, resulting in uneven

drying as well as excessive wrinkling of some fabrics.

Lint Filter

PERATING INSTRUCTIONS

After setting the cycle and desired options, press the

Cycle Selector dial to start the dryer.To pause the

cycle, press Cycle Selector dial again.To restart the

cycle, press Cycle Selector dial and the cycle will

resume from the point of interruption.

PUSH DUAL TO

START /PAUSE

POWEROFF

Press the Power Off pad to cancel the cycle and stop

the dryer.

Power Off

The display window shows the estimated time remaining

in the cycle after the Cycle Selector dial is pressed.

The estimated time remaining may fluctuate as the cycle

progresses.

The Drying light will illuminate and remain lit until the

cycle is complete. When the dryer is in the cool-down

portion of the cycle, the Cooling light will illuminate.

If the Wrinkle Prevent option has been selected, the

Wrinkle Prevent light will illuminate. Chasing lights will

appear in the display when Wrinkle Prevent is selected

(select models). See page 8.

When the cycle is complete,"END" or "00" (select

models) wilt appear in the display until the dryer door is

opened.

If the dryer is paused during a cycle, the indicator lights

will blink until the Cycle Selector dial is pressed.

_i SING THE CONTROLS

--wRSENSOR DRY_

INKLE REGULAR _

CONTROL

TiME

DRY

OEUCA S

wR,N E

RELEASE

FLUFF PUSH DiALTO

START/PAUSE

Control features vary by model.

Step

To select a cycle, rotate the Cycle Selector dial to the

desired cycle.The indicator light by the cycle name will illumi-

nate.

The Regular and Wrinkle Control cycles are Sensor Dry

cycles. Sensor Dry automatically senses the moisture in the

load and shuts the dryer off when the selected dryness level

(very dry to damp dry) is reached.

Regular

The Regular cycle is designed to dry loads such astowels,

underwear, jeans, etc.

Wrinkle Control

The Wrinkle Control cycle is designed to dry wrinkle-free

cottons, synthetic fabrics, knits and permanent press fabrics

automatically. The cycle minimizes wrinkling by providing a

longer unheated cool-down period at the end of the cycle.

Time Dry

Time Dry allows you to select the desired cycle

time in minutes.Turn the Cycle Selector dial to ÷s0 M_N

Time Dry, then press the Time up arrow to set

the drying time. Press the arrow repeatedly to ÷30 M_N

scroll through the time settings.To add or subtract _z0 MIN

time from the cycle, see Options-AdjustTime,

page 8.

THME

Delicates

The Delicates cycle is designed to dry heat-sensitive items at

the low drying temperature.

Air Fluff

The Air Fluff cycle tumbles the load in room temperature air.

Wrinkle Release

The Wrinkle Release cycle will release wrinkles from items

that are clean and dry but only slightly wrinkled, such as from

a crowded closet or suitcase or from sitting in the dryer too

long after the cycle has ended. Wrinkle Release can be used

with any temperature selection.

!SING THE CONTROLS

Step

To select the dryness level in the Regular orWrinkle Control

Sensor Dry cycles, press the Sensor Dry Level pad. An

indicator light will illuminate next to the desired dryness

level. Press the pad repeatedly to scroll through the settings.

Loads of larger or bulkier size may require More Dry setting

to completely dry the load.

The Less Dry setting is best suited for lightweight fabrics

or for leaving some moisture in the clothing at the end of the

cycle.

_MORE DRY

_NORNAL DRY

_LESS DRY

SENSORDRY LEVEL

To select the correct temperature for the load, press the

Temperature pad. An indicator light will illuminate next

to the desired temperature. Press the pad repeatedly to

scroll through the settings.

Use the chart below as a guide:

DRYERTEMPS

Regular

Medium

Low

LOAD TYPE

For sturdy cottons or those labeled

Tumble Dry.

For permanent press, synthetics,

lightweight cottons or items labeled

Tumble Dry Medium.

For heat sensitive items labeled

Tumble Dry Low orTumble Dry

Warm.

REGULAR

MEDIUM

LOW

TEMPERATURE

SING THE CONTROLS

Step

Adjust Time

Time can be added or subtracted from the automatically set

times in the Time Dry, Delicates, Air Fluff, Wrinkle Release cycles.

To add or subtract time from the cycle, press the Adjust

Time up or down arrow pad until the desired time is displayed.

End of Cycle Chime

When the cycle is complete, an audible chime will sound.

When the Wrinkle Prevent option is selected, the chime will

sound intermittently.

Turn off the chime by pressing the Chime pad.

Press the pad repeatedly to scroll through the choices.

Wrinkle Prevent

Wrinkle Prevent provides approximately 95 minutes of inter-

mittent tumbling in unheated air at the end of the cycle to

reduce wrinkling. Press the Wrinkle Prevent pad to acti-

vate this feature. The indicator light above the pad will illumi-

nate when Wrinkle Prevent is selected. Chasing lights appear

in the display when the Wrinkle Prevent option is selected

(select models). The load is dry and can be removed at any

time during the Wrinkle Prevent cycle.

Control Lock

The control panel can be locked for safety, cleaning or to pre-

vent unwanted use. The panel will not function when locked.

To lock the controls, press and hold the Sensor Dry Level

and Temperature pads for 3 seconds. The Control Lock

indicator light will illuminate.

To unlock the controls, press and hold the Sensor Dry

Level and Temperature pads for 3 seconds. The Control

Lock indicator light will go out.

ADJUST

TINE

lOFF

CHINE

OPTIONS

SENSORDRY LEVEL TEMPERATURE

@ CONTROLLOCK

Press the Cycle Selector dial to start the dryer. The dryer

door must be closed for the dryer to operate. If the door is

opened during the cycle, the Cycle Selector dial must be

pushed again to resume the cycle once the door is closed.

PUSH DiAL TO

START/PAUSE

'!Ii PECIAL LAUNDRY TIPS

Pleasefollow the care label or manufacturer's instructions for drying special items. If care label instructions

are not available, use the following information as a guide.

•Follow the care label instructions or dry on the Sensor Dry

Regular cycle and Regular temperature.

Bedspreads &Comforters •Be sure the item is thoroughly dry before using or storing.

May require repositioning to ensure even drying.

•Use Sensor Dry Regular and dry only one blanket at a time for

Blankets best tumbling action.

Be sure the item is thoroughly dry before using or storing.

Use the Sensor Dry Wrinkle Control cycle to help

minimize wrinkling.

Curtains &Draperies • Dry these in small loads for best results and remove as soon as

possible.

Cloth Diapers .Use the Sensor Dry Regular cycle and the Regular temperature

setting for soft, fluffy diapers.

"Use the Sensor Dry Regular cycle and the Low

Down-filled Items temperature setting.

(jackets, sleeping bags, . Place a clean pair of sneakers in the dryer with the item to fluff the

comforters, etc.) down comforters, etc. Adding a couple of dry towels shortens dry

time and absorbs moisture.

Foam Rubber . DO NOT dry on a heat setting. Use the Air Fluff cycle (no heat).

(rug backs, stuffed toys, . _ WARNING -Drying a rubber item with heat may damage it

shoulder pads, etc.) or be a fire hazard.

•Use the Sensor Dry Regular cycle.

•Add a couple of dry towels and a pair of clean sneakers to help the

Pillows tumbling action and to fluff the item.

•DO NOT drer-dry kapok or foam pillows.

Plastics .Use the Air Fluff cycle or the Time Dry cycle and the Low

(shower curtains, outdoor temperature setting depending on the care label instructions.

furniture covers, etc.)

•Fiberglass items (curtains, draperies, etc.)

• Woolens, unless recommended on the label.

• Vegetable or cooking oil soaked items (see pg. 2).

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere Amana Trockner Handbücher

Amana

Amana NGD5700B Bedienungsanleitung

Amana

Amana NED7200T Bedienungsanleitung

Amana

Amana 4KWED4750 Bedienungsanleitung

Amana

Amana LED20AW-PLED20AW Bedienungsanleitung

Amana

Amana NDG2335AWW Bedienungsanleitung

Amana

Amana TEA600 Bedienungsanleitung

Amana

Amana NED4800VQ1 Fehlerbehebungshandbuch

Amana

Amana NGD4500V Bedienungsanleitung

Amana

Amana NED5800HW Bedienungsanleitung

Amana

Amana LE1100 Bedienungsanleitung

Amana

Amana NTW4516FW Bedienungsanleitung

Amana

Amana Dryer Bedienungsanleitung

Amana

Amana NDG6800AWW Bedienungsanleitung

Amana

Amana NGD4500VQ0 Bedienungsanleitung

Amana

Amana AAV1200AGW Bedienungsanleitung

Amana

Amana 40086101 Bedienungsanleitung

Amana

Amana TEA400 Bedienungsanleitung

Amana

Amana NED7200TW10 Bedienungsanleitung

Amana

Amana W10573715A Bedienungsanleitung

Amana

Amana LE4307 Bedienungsanleitung

Amana

Amana NED5800HW Bedienungsanleitung

Amana

Amana NGD5800DW0 Bedienungsanleitung

Amana

Amana NGD7200TW10 Bedienungsanleitung

Amana

Amana Home Laundry Dryers Bedienungsanleitung

Beliebte Trockner Handbücher anderer Marken

Bosch

Bosch WTA79200GB Bedienungsanleitung

Miele

Miele TWH 780 WP Bedienungsanleitung

Asko

Asko T760 Bedienungsanleitung

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Bedienungsanleitung

Bosch

Bosch Logixx 10 WTB76556GB Technisches Datenblatt

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Bedienungsanleitung

Electrolux

Electrolux EW2H328R2 Bedienungsanleitung

Beko

Beko DS8433RX1M Bedienungsanleitung

Dawlance

Dawlance Spinner DS 6000 C Bedienungsanleitung

Electrolux

Electrolux TP5080TW Bedienungsanleitung

AEG

AEG TR838P4OB Bedienungsanleitung

Indesit

Indesit IDV 75 Bedienungsanleitung

Infiniton

Infiniton SD-DG85C Bedienungsanleitung

BOMANN

BOMANN WT 5019 Bedienungsanleitung

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Bedienungsanleitung

Asko

Asko T793C Bedienungsanleitung

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Bedienungsanleitung

Frigidaire

Frigidaire CAQE7077KW0 Betriebsanleitung
