Amana AER5830VAW0 Bedienungsanleitung

COOKTOP PARTS

For Models: AER5830VAW0, AER5830VAB0, AER5830VAD0, AER5830VAS0

(White) (Black) (Universal Silver) (Stainless Steel)

30" ELECTRIC CERAN

FREESTANDING RANGE

SELF CLEAN CONVECTION OVEN

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10196163

Owner’s Manual

W10246520

Tech Sheet

W10196158

Installation

Instructions

Template, Anti−Tip

9757143 English/French

9757142 English/Spanish

9762761 Brochure, Tips

Safe Cooking

2 Cooktop

W10172293

White

W10172294

Black

3 Element, Surface

8273992 2500 W − RF & LF

8273994 1200 W − LR & RR

4 3195060 Hinge, Cooktop (2)

5 3196169 Screw

W10162042

Spring, Locator

7 3196170 Screw

W10170526

Pan, Radiant

12−10 Litho in U.S.A. (JMJ) (eeb) Part No. W10255426 Rev. C

CONTROL PANEL PARTS

For Models: AER5830VAW0, AER5830VAB0, AER5830VAD0, AER5830VAS0

(White) (Black) (Universal Silver) (Stainless Steel)

W10255426

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Endcap

W10184433

White Left Hand

W10184434

White Right Hand

W10184437

Black Left Hand

W10184438

Black Right Hand

W10182322

Bracket, Console

3 Panel, Control

W10170011

White

W10170012

Black

W10170013

Universal Silver

W10170014

Stainless Steel

4 Switch, Infinite

3148951 Left Rear

3148954 Right Front

5 3196068 Light, Indicator

6 3196068 Lens, Light

7 Knob, Infinite (4)

9761962 White

9761964 Black

W10134247

Shield, Heat

W10138683

Brkt, Mntg EOC

10 8272473 Cover, Rear

11 Control, Range

W10173500

White

W10173501

Black

12 3196178 Screw

13 3400882 Screw

14 8273564 Clip, Cover

15 Screw

3196166 White

3196168 Black

16 3196200 Clip, Spring (2)

CHASSIS PARTS

For Models: AER5830VAW0, AER5830VAB0, AER5830VAD0, AER5830VAS0

(White) (Black) (Universal Silver) (Stainless Steel)

W10255426

CHASSIS PARTS

For Models: AER5830VAW0, AER5830VAB0, AER5830VAD0, AER5830VAS0

(White) (Black) (Universal Silver) (Stainless Steel)

W10255426

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

W10134285

Vent Tube Asmbly

2 9761512 Clip, Mounting

3 Panel, Side (2)

8053830 White

8053832 Black

4 9761517 Clip,Door Mntg(2)

5 8522416 Seal, Oven Door

6 9757340 Element, Broil

7 9758541 Element, Bake

(Hidden)

W10182346

Insulation, Side

9 3196548 Fuse, Thermal

W10114344

Glide, Drwr Top

11 3196037 Foot, Front (2)

12 3196566 Screw

13 8054068 Tray, Insulation

W10137382

Clip, Panel (6)

15 9760314 Rail, Base (2)

W10058460

Foot, Rear (2)

17 3195987 Guard, Wire

18 9757239 Rod − Dr Switch

19 3186116 Support, Oven (2)

20 3186034 Bracket, Service

21 9761958 Block, Terminal

22 8274034 Back, Main

23 9757262 Switch, Door

24 3196701 Light Socket Assy

25 311255 Bulb, Oven Light

26 3196165 Screw

W10181986

Sensor, Oven

28 3196179 Screw

29 3196178 Screw

30 3400016 Screw

31 3196172 Screw

W10031780

Screw

W10067840

Screw

34 3196168 Screw

35 3196174 Screw

36 9758238 Retainer, Side (2)

37 9760407 Brkt − Mounting

38 9761013 Latch, Door

W10078380

Rod, Latch

W10107820

Latch Asy, Rear

41 9758701 Spacer, Door

42 3196169 Screw

43 9758283 Cover, Box

44 9761301 Screen − Catalyst

45 3196560 Screw (2)

7103P027−60

Nut (3)

W10010350

Seal, Oven

INSULATION

W10208653

Insulation, Wrap

8272612 Insulation, Back

8272613 Insulation, Vent

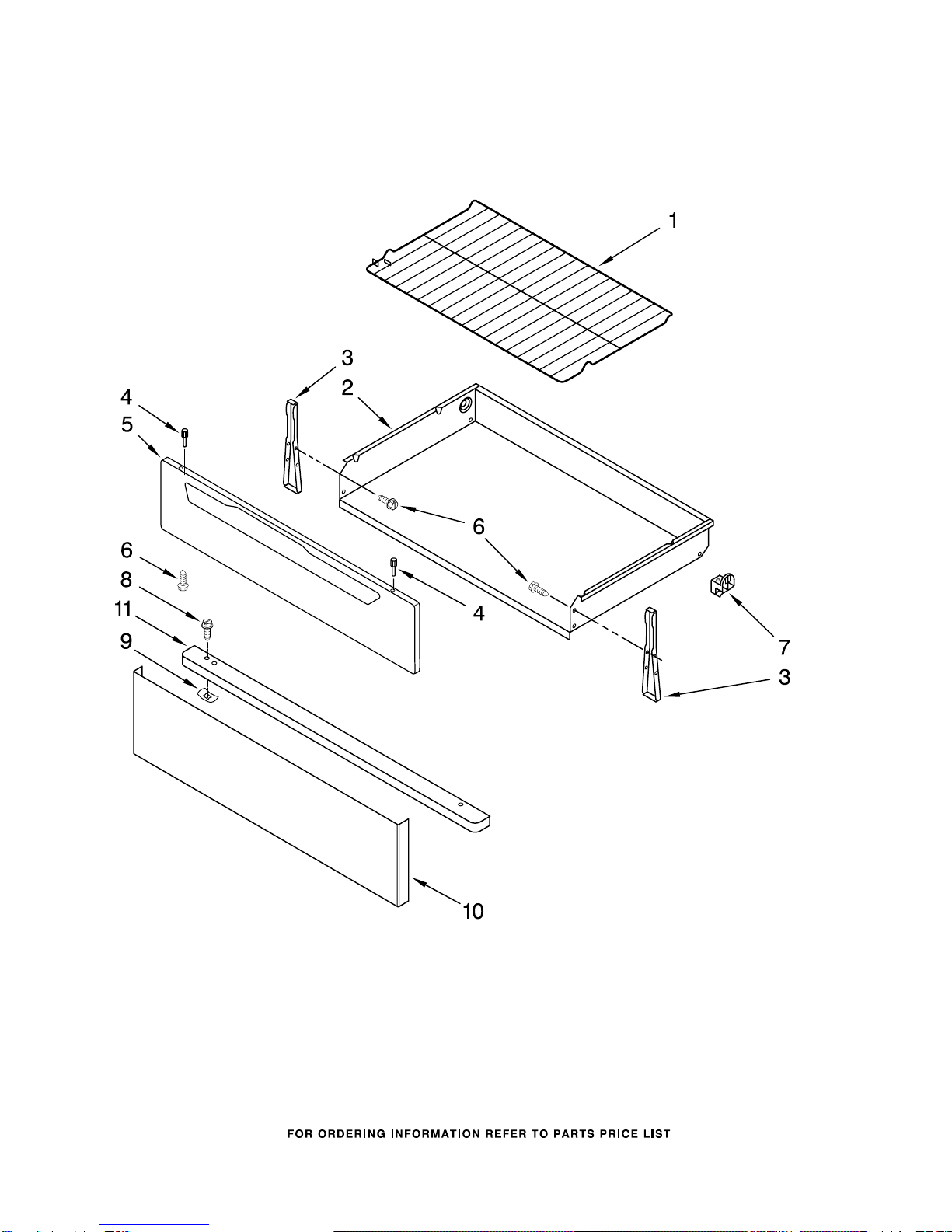

DRAWER & BROILER PARTS

For Models: AER5830VAW0, AER5830VAB0, AER5830VAD0, AER5830VAS0

(White) (Black) (Universal Silver) (Stainless Steel)

W10255426

DRAWER & BROILER PARTS

For Models: AER5830VAW0, AER5830VAB0, AER5830VAD0, AER5830VAS0

(White) (Black) (Universal Silver) (Stainless Steel)

W10255426

Illus. Part

No. No. DESCRIPTION

W10179196

Rack, Oven (2)

2 9761031 Drawer, Storage

W10174396

Brkt−Mntg, Drawer

4 Rivet, Push (2)

3196814 White

3196813 Black

5 Panel, Drawer Frnt

8053339 White

8053341 Black

9761694 Universal Silver

6 3196168 Screw

7 8053334 Glide, Drawer (2)

W10031790

Screw(Stls.Model)

9 9781235 Clip(Stls.Model)

W10133363

Panel(Stls.Model)

11 9757237 Handle(Stls.Model)

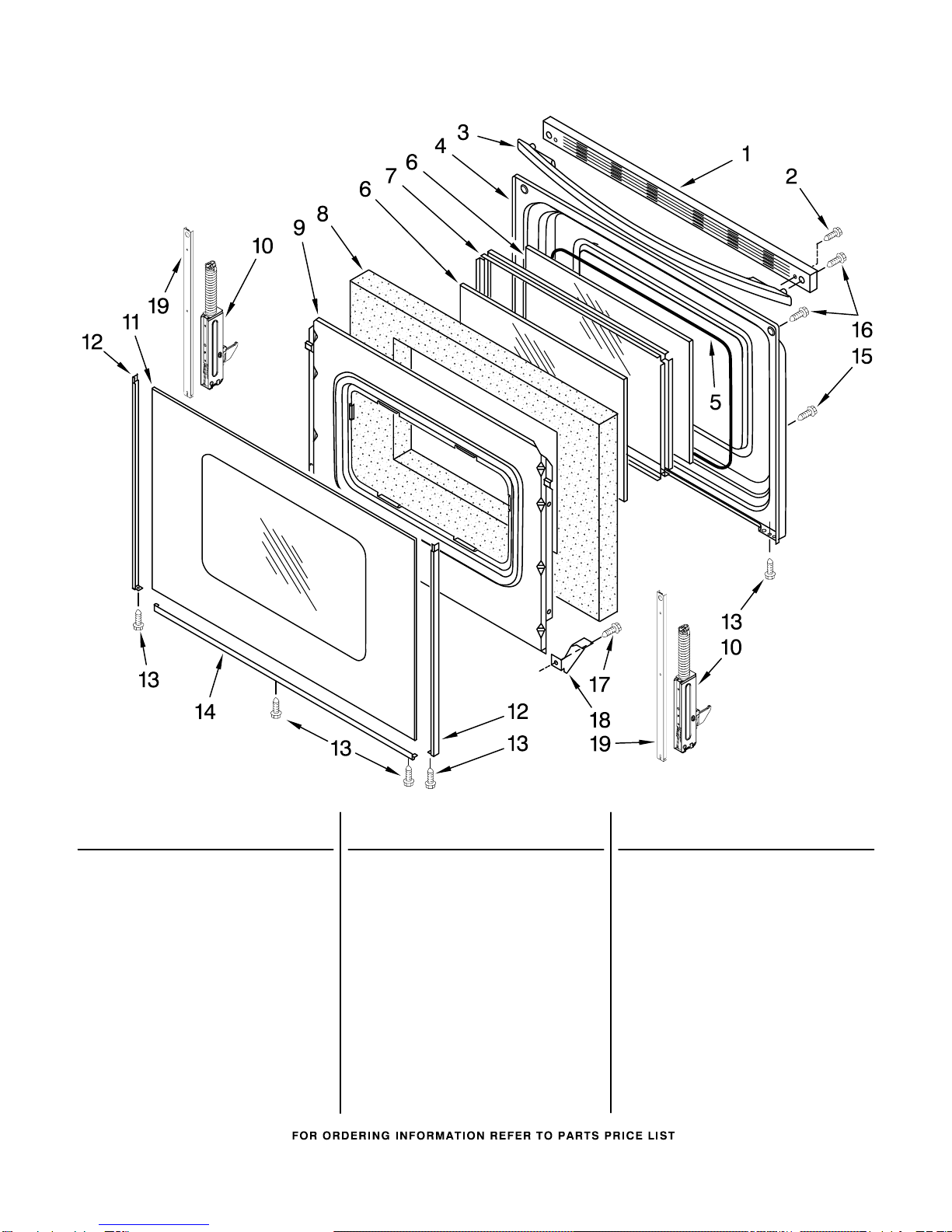

DOOR PARTS

For Models: AER5830VAW0, AER5830VAB0, AER5830VAD0, AER5830VAS0

(White) (Black) (Universal Silver) (Stainless Steel)

W10255426

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Trim, Top

W10144869

White

W10144870

Black

2 3196164 Screw

3 Handle, Door

W10144888

White

W10144889

Black

W10144890

Stainless Steel

4 9761344 Liner, Door

W10238912

Seal, Window

6 9758162 Glass, Inner (2)

7 3186289 Frame, Glass

8 8272618 Insulation, Door

W10196451

Retainer, Insul.

10 Hinge, Door (2)

9761493 White, Black,

Universal Silver

9761496 Stainless Model

11 Glass, Outer

W10118454

White

W10118455

Black

W10144949

Universal Silver

W10144884

Stainless

12 Trim, Side

8523172 White Left Hand

8523166 White Right Hand

8523171 Black Left Hand

8523165 Black Right Hand

W10113926

Stainless LH

W10113925

Stainless RH

13 3196160 Screw

14 Trim, Lower

8523175 White

8523177 Black

W10031790

Screw

W10031780

Screw

17 3196165 Screw

W10137382

Clip, Panel (2)

W10113759

Strap, Door

OPTIONAL PARTS

For Models: AER5830VAW0, AER5830VAB0, AER5830VAD0, AER5830VAS0

(White) (Black) (Universal Silver) (Stainless Steel)

W10255426

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

Following Parts Not Illustrated

SPLICING WIRES−−25FT.

LENGTH

REFINISHING MATERIAL

799832 Kit, Porcelain

Repair (White)

242756 Touch−Up

Self−Clean(1/2 Pt)

261582 Grease

INSULATION

240132 Insulation,

Fiberglass (2−1/2"

x 22" x 120")

PAINT, TOUCH−UP (1/2oz.)

72017 White

72032 Black

8212473 Universal Silver

511873 White Porcelain

(2 Oz.)

PAINT, PRESSURIZED SPRAY

(12 oz.)

350930 White

285006 Superior Black

206922 Primer (White)

PAINT, BULK (1 qt.)

799344 White (Uncut)

241430 Foil, Aluminum

Oven (18" x 25’)

3184478 Cleaner, Glass

ANTI−TIP KIT

W10017440

Anti−Tip Kit

WIRING HARNESS PARTS

Following Parts Not Illustrated

W10174424

Harness, Wire

(Cooktp Lft Dual)

W10174422

Harness, Wire

(Cooktop Right)

W10174453

Harness, Wire

(Main)

W10084660

Harness, Wire

(Sensor/Dr Switch)

W10144763

Tie, Wire

8523279 Wire, Ground

313660 Clip, Ground Wire

3196154 Screw

3196173 Screw, Grnd Wire
