COOKTOP PARTS
1
For Model: AGR4422VDW0, AGR4422VDB0, AGR4422VDD0, AGR4422VDS0
(White) (Black) (Metallic) (Stainless Steel)
12−10 Litho in U.S.A. (JMJ) (eeb) Part No. W10224830 Rev. C
30" GAS FREESTANDING
STANDARD CLEAN RANGE
ELECTRONIC IGNITION
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Literature Parts
W10153329
Instruct, Install
98015589 Installation Instr
(Template)
W10174736
Guide, Use & Care
98007130 Safer Cooking Tips
W10155514
Tech Sheet
2 Cooktop
98017619W
White
W10174480
Metallic
98017619B
Black
3 Panel, Manifold
W10177831
Black
W10163288
Metallic
W10174730
White
4 Knob, Burner (4)
W10177821
Black
W10163288
Metallic
W10177820
White
5 98007225 Screw
6 Grate, Burner (2)
W10180089
Black
W10219702
Grey
W10133344
Metallic
7 98004722 Clip, Cooktop (2)
8 6610473 Wire, Ground
9 98013389 Bumper, Cooktop
10 98005000 Screw (3)
11 Cap, Burner
98017461 Black
98017465 Grey
12 8534079 Screw
14 98017537 Burner, Top (4)

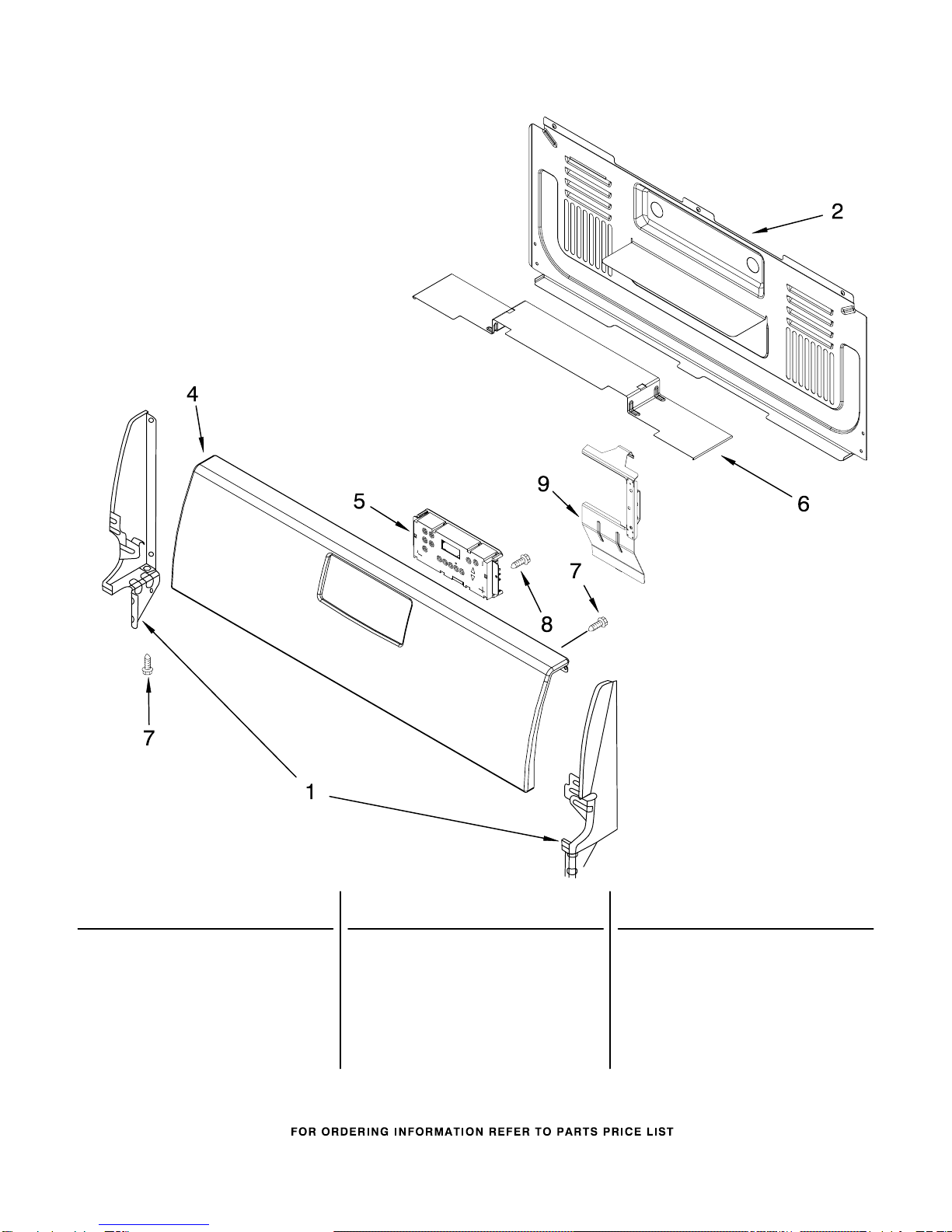

BACKGUARD PARTS
2
For Model: AGR4422VDW0, AGR4422VDB0, AGR4422VDD0, AGR4422VDS0
(White) (Black) (Metallic) (Stainless Steel)
W10224830
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Endcap
98004632 Black
98004633 Black
98004632 Metallic Left
98004633 Metallic Right
98005336 White Left
98005337 White Right
2 98006083 Rear, Backguard
4 Panel, Control
W10141574
Black
W10193819
Stainless Steel
W10141573
White
5 Control, Elec
6610485 Black
6610486 White
6
W10120794
Deflctor, Rear Cvr
7 98015526 Screw
8 98004219 Screw
9 Bracket, Timer
98018144 Left
98018143 Right
MANIFOLD PARTS
3
For Model: AGR4422VDW0, AGR4422VDB0, AGR4422VDD0, AGR4422VDS0
(White) (Black) (Metallic) (Stainless Steel)
W10224830
MANIFOLD PARTS
4
For Model: AGR4422VDW0, AGR4422VDB0, AGR4422VDD0, AGR4422VDS0
(White) (Black) (Metallic) (Stainless Steel)
W10224830
Illus. Part
No. No. DESCRIPTION
1 98017323 Nut (4)
2 Venturi, Front (2)
98017583 LF
98017582 RF
3 98017741 Brkt., Venturi (4)
4 98017359 Venturi, Rear (2)
5 6610341 Spark Module
6 98007411 Regulator
7 98007192 Cover, Module
8 98015099 Spreader, Flame
9 98006632 Screw
10 98012138 Burner, Oven
11 98006633 Screw
12 98014545 Harness, Switch
13 98014893 Valve, Oven
14 98006633 Screw
15
W10141709
Valve, Burner (4)
16 98017517 Bolt, Valve Mtg
17 98017556 Pipe, Manifold
18 98009179 U−Nut
20 Orifice
98017348 RF, RR, LR
98017349 LF
21 98005652 Igniter, Oven
Oven Pilot)
22 98017516 Bracket, Valve (4)
23 98007428 Tubing (Regltr to
Oven Valve)
24 98013314 Locator, Burner
25 98007410 Bracket, Regulator
26 98007431 Fitting 3/8to9/16
27 98013634 Screw
28 1180823 Screw
31 98017171 Tubing, Inlet
34 98005659 Screw
35
W10146346
Screw
36 Igniter, Top
W10209656
RF, RR & LF
W10209657
LR
37 98015032 Clip, Igniter
FOLLOWING PARTS
NOT ILLUSTRATED
W10032030
LP Orifice Kit
(For Use With LP)
CHASSIS PARTS
5
For Model: AGR4422VDW0, AGR4422VDB0, AGR4422VDD0, AGR4422VDS0
(White) (Black) (Metallic) (Stainless Steel)
W10224830
CHASSIS PARTS
6
For Model: AGR4422VDW0, AGR4422VDB0, AGR4422VDD0, AGR4422VDS0
(White) (Black) (Metallic) (Stainless Steel)
W10224830
Illus. Part
No. No. DESCRIPTION
1 98003799 Flue Box
2 98013690 Clip, Flue
4 Panel, Side (2)
98010042 White
98010043 Black & Metallic
5 98005502 Clip, Oven Bottom
6 98006710 Counterweight
7 98006739 Wire, Brick
8
W10166434
Frame, Front
9
W10153610
Foot, Front (2)
10
W10058460
Foot, Rear (2)
11 98004449 Bottom, Oven
12
W10121634
Baffle, Side (2)
13 98003847 Baffle, Base
14 98003830 Rail, Base (2)
15 98012175 Support, Burner
16 98017162 Gasket, Broil Door
18 98009179 U−Nut
20 98015100 Back, Main
21 98017163 Seal, Oven
22 98006633 Screw
24 98007126 Base, Foot
25 98006632 Screw
26 98006715 Shield, Channel
27 98007191 Shield, Lower
29 6610433 Cord, Power
30 98005026 Clip, Tubing
31 98015346 Foil, Side (2)
32 98006634 Screw
33 98004447 Top, Oven
34 Side, Oven
98004452 Right Hand
98004451 Left Hand
35 98013777 Back, Oven
36 98015363 Support, Rear
37 98004498 Bulb, Light
38
W10114530
Socket, Light
40 98007205 Cap, Insulation
41
W10181986
Sensor, Oven
42 98014105 Cover, Valve
43 98014104 Cover, Socket
INSULATION
W10137227
Insulation, Wrap
W10137233
Insulation, Back
W10137227
Insulation, Top
OVEN & BROILER PARTS
7
For Model: AGR4422VDW0, AGR4422VDB0, AGR4422VDD0, AGR4422VDS0
(White) (Black) (Metallic) (Stainless Steel)
W10224830
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 98014136 Rack, Oven (2)
2 98003480 Grill, Broiler
3 98016005 Pan, Broiler
5 Support, Tray
98016664 Left (2)
98016666 Right (2)
6 Guide, Fixed(2)
W10206640
Left
W10206639
Right
7 Guide, Mobile(2)
W10206642
Left
W10206641
Right
8 Screw
98006727 White
98006726 Black & Metallic
9
W10137230
Liner, Door
10 98017784 Storage, Drawer
11
W10137230
Insulation, Door
12 Panel, Door
W10174741
White
W10175151
Metallic
W10174742
Black
13 Handle, Brlr Door
98008486 White
98015643 Black & Metallic
15 98004052 Bumper, Door(2)
20 98004219 Screw
DOOR PARTS
8
For Model: AGR4422VDW0, AGR4422VDB0, AGR4422VDD0, AGR4422VDS0
(White) (Black) (Metallic) (Stainless Steel)
W10224830
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 8533842 Screw
3 98010182 Liner, Door
4
W10137238
Insulation, Door
W10110943
Left Side
W10110944
Right Side
5 Clip, Glass
98004952 Left
98004953 Right
6 98017875 Hinge, Door (2)
7 Trim, Top Door
98006884 Black & Metallic
98006885 White
8 Panel, Door
W10174486
Black & Metallic
W10174485
White
9 98006801 Glass, Inner
10 Handle, Oven Door
98004942 Black
98004943 White
12 98004993 Screw
13 Side Trim, Door(2)
98006793 Black
98006794 White
14 Screw
98008545 Black
98008544 White
15 Retainer
98004564 Right
98004629 Left
16 Lower Trim, Door
98010187 Black
98010185 White
17 98004219 Screw
18 98004979 Bumper
19 98004938 Insulation,
Retainer−Top
20 98012904 Insulation,
Retainer−Bottom
21 98017250 Retainer, Upper
22 98004650 Push Nut, Hndl (2)
Following Parts Not Illustrated
98012220 Pin Kit−Dr Removal
OPTIONAL PARTS (NOT INCLUDED)
9
For Model: AGR4422VDW0, AGR4422VDB0, AGR4422VDD0, AGR4422VDS0
(White) (Black) (Metallic) (Stainless Steel)
W10224830
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
Following Parts Not Illustrated
SPLICING WIRES−−25FT.
LENGTH
REFINISHING MATERIAL
799832 Kit, Porcelain
Repair (White)
242756 Touch−Up
Self−Clean(1/2 Pt)
261582 Grease
INSULATION
261514 Insulation,
Fiberglass (1−1/2"
x 24" x 120")
240132 Insulation,
Fiberglass (2−1/2"
x 22" x 120")
PAINT, TOUCH−UP (1/2oz.)
72017 White
4392899 Biscuit
511873 White Porcelain
(2 Oz.)
WIRING HARNESS PARTS
W10154424
Harness, Control
W10154425
Harness, Sensor
W10142307
Connector, RTD
98005896 Clip, Wire
3196696 Clip, Wire
3391018 Cable Tie−Push Mnt
98015022 Bushing, Snap (2)
98005894 Clamp, Cord
PAINT, PRESSURIZED SPRAY
(12 oz.)
350930 White
4392901 Biscuit
285006 Superior Black
206922 Primer (White)
PAINT, BULK (1 qt.)
799344 White (Uncut)
4392900 Biscuit(Uncut)
ANTI−TIP KIT
W10138977
Anti−Tip Kit
