Amana A1RXNGFY Bedienungsanleitung

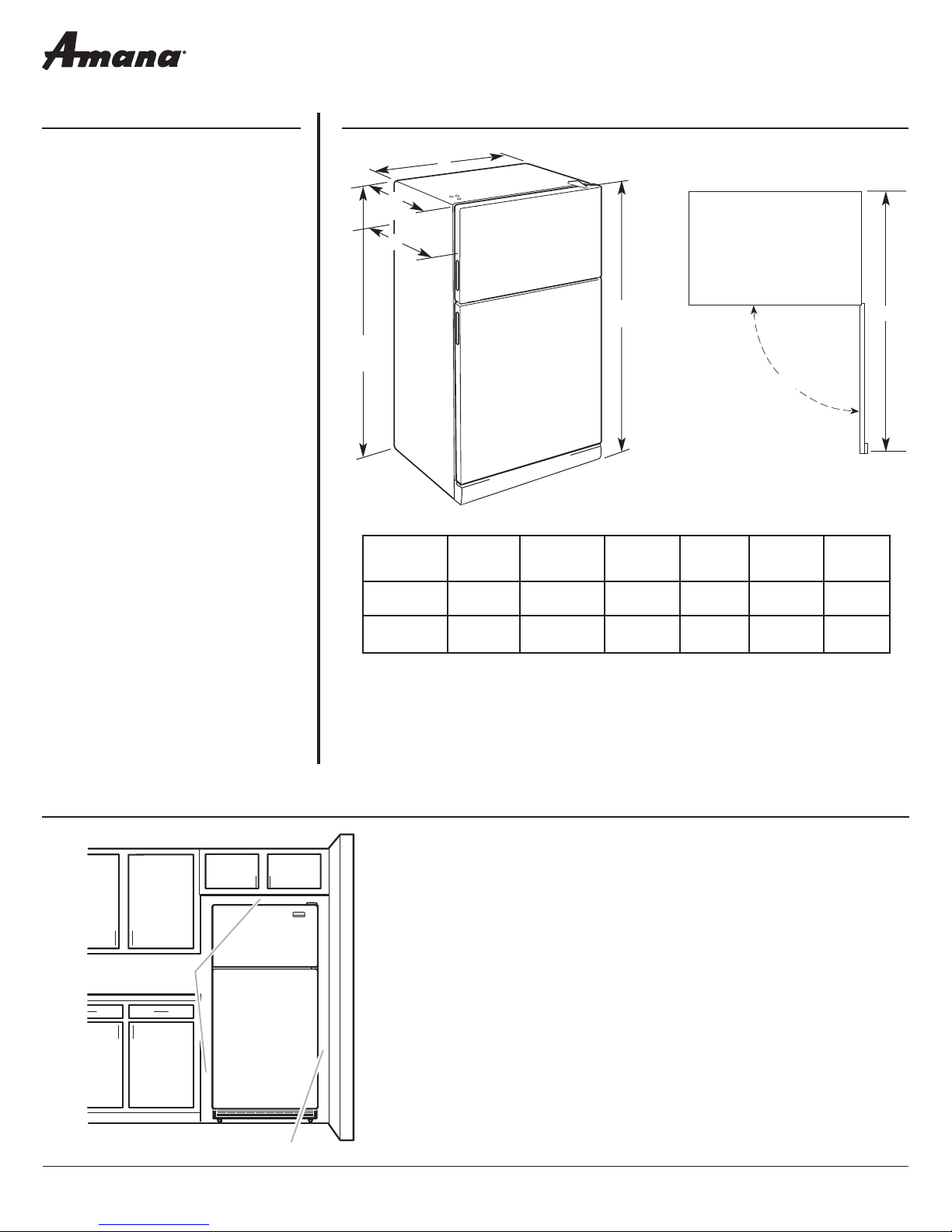

PRODUCT MODEL NUMBERS PRODUCT DIMENSIONS

LOCATION REQUIREMENTS

A1RXNGFY

A9RXNGFY

Electrical: A 115-volt, 60-Hz, AC-only, 15-

or 20-amp fused, grounded electrical supply

is required. It is recommended that a

separate circuit serving only your refrigerator

be provided. Use an outlet that cannot be

turned off by a switch. Do not use an

extension cord.

NOTE: Before performing any type of

installation, cleaning, or removing a light

bulb, turn the control (Thermostat,

Refrigerator or Freezer Control depending on

the model) to OFF and then disconnect the

refrigerator from the electrical source. When

you are finished, reconnect the refrigerator to

the electrical source and reset the control

(Thermostat, Refrigerator or Freezer Control

depending on the model) to the desired

setting. See “Using the Controls.”

Water: A cold water supply with water

pressure between 30 and 120 psi (207 and

827 kPa) is required to operate ice maker and

water dispenser. If you have questions about

your water pressure, call a licensed, qualified

plumber.

IMPORTANT: The pressure of the water

coming out of a reverse osmosis system

going to the water inlet valve of the

refrigerator needs to be between 30 and

120 psi (207 and 827 kPa).

Reverse Osmosis Water Supply: If a reverse

osmosis water filtration system is connected

to your cold water supply, the water pressure

to the reverse osmosis system needs to be a

minimum of 40 to 60 psi (276 to 414 kPa).

Because Whirlpool Corporation policy includes a continuous commitment to improve

our products, we reserve the right to change materials and specifications without notice. Dimensions are for planning purposes only. For complete details, see Installation

Instructions packed with product. Specifications subject to change without notice. Ref. W10359280A

4/28/11

2" (1.25 cm)

2" (5.08 cm)

To ensure proper ventilation for your refrigerator, allow for a 1⁄2" (1.25 cm) space on

each side and at the top. Allow at least 1" (2.54 cm) between back of cabinet and the

wall. If your refrigerator has an ice maker, make sure you leave some extra space at

the back for the water line connections.

If you are installing your refrigerator next to a fixed wall, leave 2" (5.08 cm)

minimum on the hinge side (depending on your model) to allow for the door to

swing open.

NOTE: It is recommended that you do not install the refrigerator near an oven,

radiator, or other heat source, nor in a location where the temperature will fall below

55°F (13°C).

overall

top of

cabinet

90˚

cabinet

Model

Height -

Overall

“A”

Height -

Top of Cabinet

“B”

Depth - Door

Open 90°

“C” Depth -

“D”

Depth -

Cabinet Only

“E”

Width -

Cabinet

“F”

A1RXNGFY 661⁄8"

(167.96 cm) 651⁄2"

(166.4 cm) 621⁄4"

(158.1 cm) 323⁄8"

(82.23 cm) 281⁄2"

(72.4 cm) 321⁄2"

(82.6 cm)

A9RXNGFY 661⁄8"

(167.96 cm) 651⁄2"

(166.4 cm) 591⁄4"

(150.5 cm) 321⁄2"

(82.6 cm) 281⁄2"

(72.4 cm) 291⁄2"

(74.9 cm)

Top Mount Refrigerator
