Amana ABB1921DEW14 Fehlerbehebungshandbuch

CABINET PARTS

4−08 Litho In U.S.A. (CJJ) Part No. W10202518 Rev.A

REFRIGERATOR

For Model: ABB1921DEW14

(White)

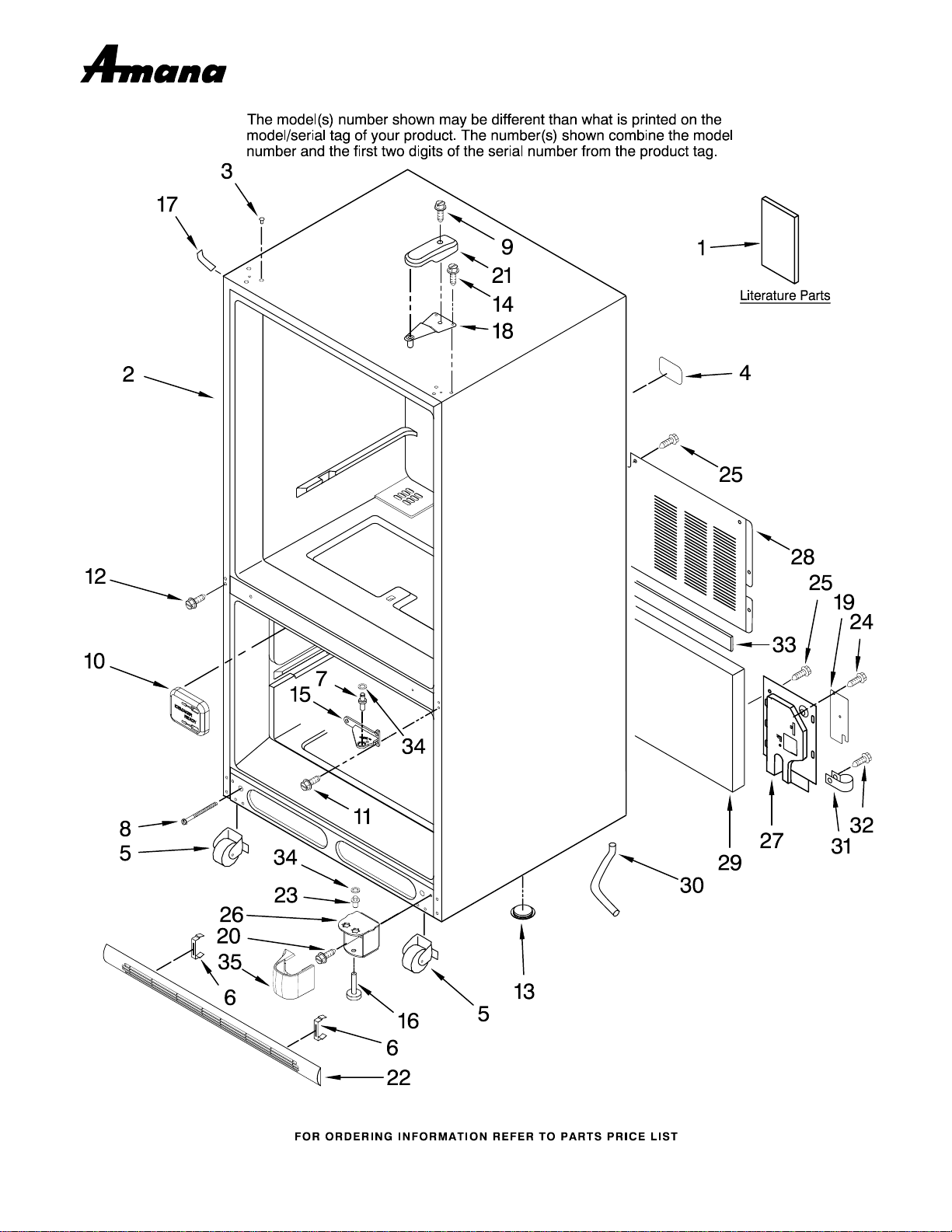

CABINET PARTS

2W10202518

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10175445

Owners Manual

W10183276

Energy Tag

W10169671

Tech Sheet

2 Cabinet (Not a

Servicable Part)

3 Plug, Button (3)

67001130 White

4 67005064 Label, Fill Tube

5 67006118 Roller Assembly

6 12627302 Clip, Grille

7 67006744 Pin, Center Hinge

8 67006611 Bolt, Adjusting

(Rear)

9 67006521 Screw

10 67001098 Cover, Fill Tube

11 67006380 Screw (3)

12 67005822 Screw

13 A3076901 Plug, Button

14 67006303 Screw (3)

15 Hinge, Center

67006960 White

16 67003868 Foot Brake (2)

17 Cover, Corner

67003484 White

12566604ED

Hinge, Top

19 12479901 Plate, Cover

20 67006564 Screw (8)

21 Cover, Hinge

67001014 White

22 Grille Assembly

(Includes Clips)

67003849 White

23 67007018 Pin, Bottom Hinge

24 67006662 Screw

25 67006425 Screw (9)

26 Hinge, Bottom

67001069 White

27 67001173 Cover, Water Valve

28 67006101 Cover, Unit

29 67003796 Insulation, Sound

W10164397

Tube, Drain

W10157973

Clip, Drain Tube

32 67006737 Screw

33 B5759649 Gasket

34 Shim

M0274057 White

35 Cover, Lw Hinge

12561901W

White

For Model: ABB1921DEW14

(White)

REFRIGERATOR LINER PARTS

W10202518

For Model: ABB1921DEW14

(White)

REFRIGERATOR LINER PARTS

For Model: ABB1921DEW14

(White)

W10202518

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 67002083 Bracket, Control

and Lights

3 67001040 Belt, Damper

4 67001034 Tensioner, Belt

5 67001036 Timer, Defrost

6 C3680310 Switch, Light

7 67002512 Knob, Front

8 67001035 Housing, Light

9 67003568 Bulb, Light (2)

Y12570701

Socket, Light (2)

11 67002301 Cover, Light

12 12990514 Screw (2)

13 67002000 Cover, Damper

14 67003803 Insulation

15 67003410 Gear, Damper

Assembly

16 67001033 Knob

17 M0310343 Plug Button

18 67003104 Logo

19 67003108 Pan, Timer

Light Housing

Following Parts Not Illustrated

67001043 Harness, Controls

(Refrigerator)

(Includes # 16)

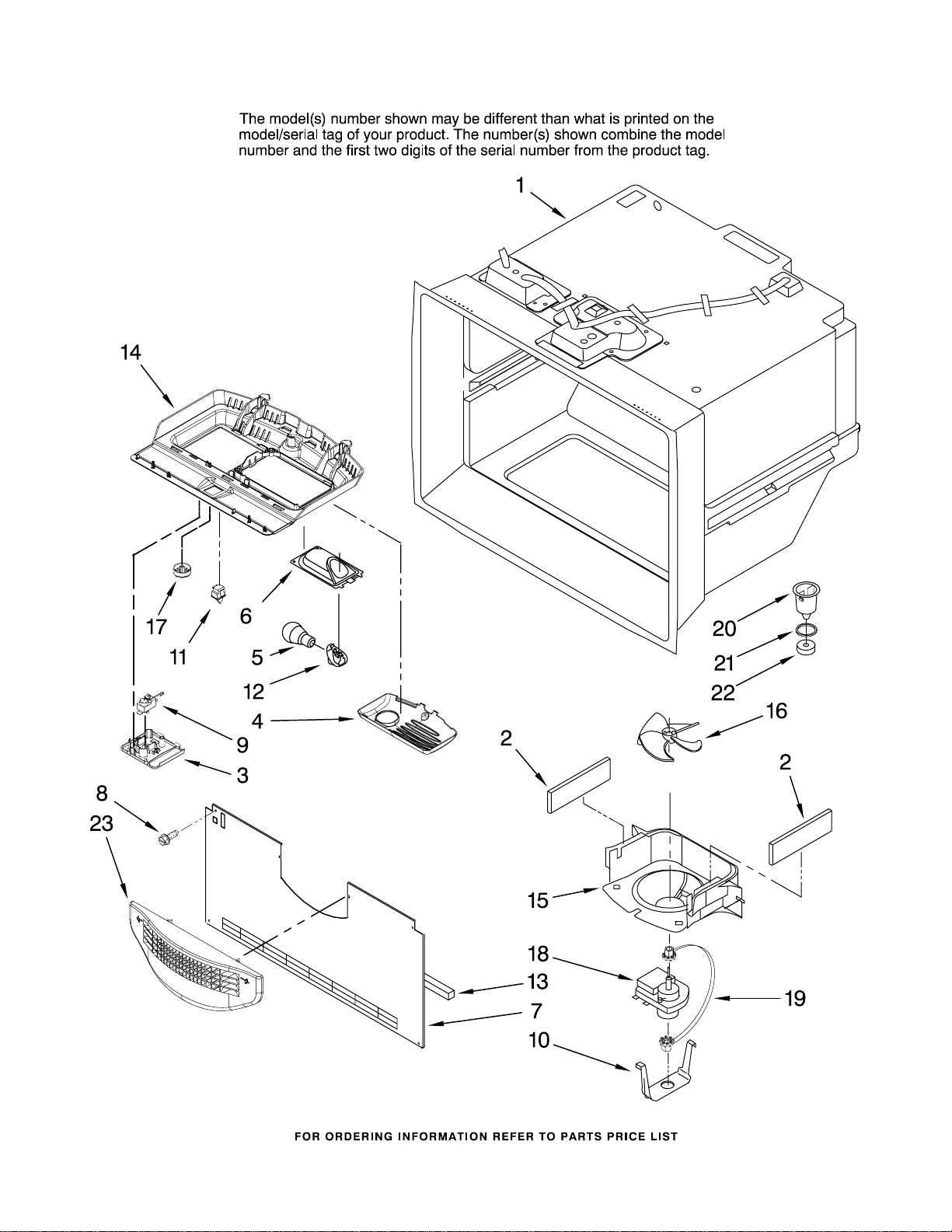

FREEZER LINER PARTS

For Model: ABB1921DEW14

(White)

W10202518

FREEZER LINER PARTS

For Model: ABB1921DEW14

(White)

W10202518

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Seviceable Part)

2 67001291 Gasket, Foam (2)

3 67001045 Panel, Fz Control

4 67001285 Cover, Light

5 67003568 Bulb, Light

6 67001035 Housing

7 67005868 Cover, Evaporator

8 67005822 Screw (8)

9 67001046 Control, Fz Temp

W10167028

Clip, Motor

11 67005653 Switch, Light

Y12570701

Socket

13 67003731 Gasket, Bottom

14 67001286 Module, Freezer

W10167023

Shroud, Evaporator

16 2169142 Blade

17 67003420 Knob, Fz Control

18 67003636 Motor, Evaporator

W10121318

Grommet

20 D7753903 Funnel, Drain

21 B8381501 Gasket

22 M0500703 Seal

W10175909

Grille, Freezer

Following Parts Not Illustrated

W10130480

Harness, Lights

(Freezer)

REFRIGERATOR DOOR PARTS

W10202518

For Model: ABB1921DEW14

(White)

REFRIGERATOR DOOR PARTS

For Model: ABB1921DEW14

(White)

W10202518

Illus. Part

No. No. DESCRIPTION

1 Refrigerator Door

(w/ Insulation)

67001138 White

2 Plug, Vent

10712401 White

3 67003819 Door, Compartment

4 67001279 Tray, Dairy

5 67001021 Bucket (2)

(Medium)

6 12528501 Nameplate

7 Plug, Button (2)

12246601 White

8 Gasket, Door

Magnetic

W10130148

White

9 Handle, Door

67003129 White

10 67006682 Screw

11 67001141 Bucket (2)

Small

12 12248201 Screw

13 Bushing

67004977 White

14 67001296 Retainer, Door

15 67006287 Screw

16 10423131 Bin, Utility

17 Stop, Door

67003779 White

18 67005137 Trim, Handle

Lower

19 67005131 Trim, Handle

Upper

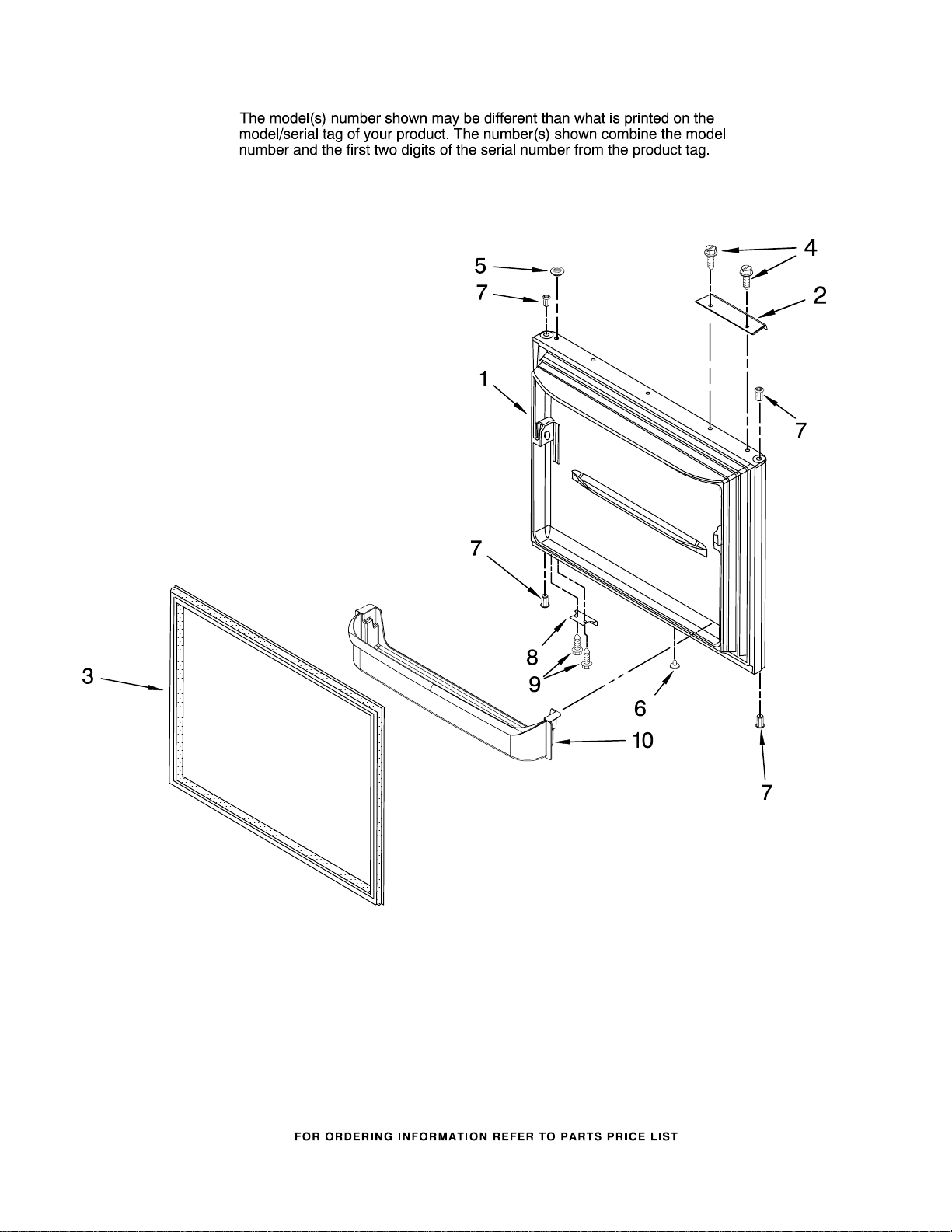

FREEZER DOOR PARTS

W10202518

For Model: ABB1921DEW14

(White)

FREEZER DOOR PARTS

For Model: ABB1921DEW14

(White)

W10202518

Illus. Part

No. No. DESCRIPTION

1 Freezer Door

(w/ Insulation)

W10176974

White

2 Handle, Door

67005140 White

3 Gasket, Door

W10130150

White

4 67006831 Screw

5 12246601 Plug, Hole White

6 Plug, Vent (2)

10712401 White

7 67004977 Bushing (4)

8 Stop, Door

67003779 White

9 67006287 Screw (2)

10 67003397 Retainer, Basket
