Amana ABB1921DEW15 Fehlerbehebungshandbuch

CABINET PARTS

For Model: ABB1921DEW15

(White)

3−09 Litho In U.S.A. (mat)(bay) Part No. W10260129 Rev.A

REFRIGERATOR

CABINET PARTS

For Model: ABB1921DEW15

(White)

W10260129

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10175445

Owners Manual

W10183276

Energy Tag

W10238839

Tech Sheet

2 Cabinet (Not a

Servicable Part)

3 Plug, Button (3)

M0310729 White

4 12249902 Label, Fill Tube

5 12580304 Roller Assembly

12627302SP

Clip, Grille

7 10351005 Pin, Center Hinge

8 12606103 Bolt, Adjusting

(Rear)

9 12992602 Screw

10 12477501 Cover, Fill Tube

11 12992201 Screw (3)

12 12990101 Screw

13 A3076901 Plug, Button

14 12992403 Screw (3)

15 Hinge, Center

12607103WD

White

16 10354002 Foot Brake (2)

17 Cover, Corner

12587703W

White

12566606ED

Hinge, Top

20 12991302 Screw (8)

21 Cover, Hinge

12477601W

White

22 Grille Assembly

(Includes Clips)

12734404W

White

23 10200802 Pin, Bottom Hinge

25 12990511 Screw (9)

26 Hinge, Bottom

12465002WD

White

W10217701

Cover, Water Valve

W10210978

Cover, Unit

29 12820505 Insulation, Sound

W10210987

Tube, Drain

33 B5759655 Gasket

34 Shim

M0274057 White

35 Cover, Lw Hinge

12561901W

White

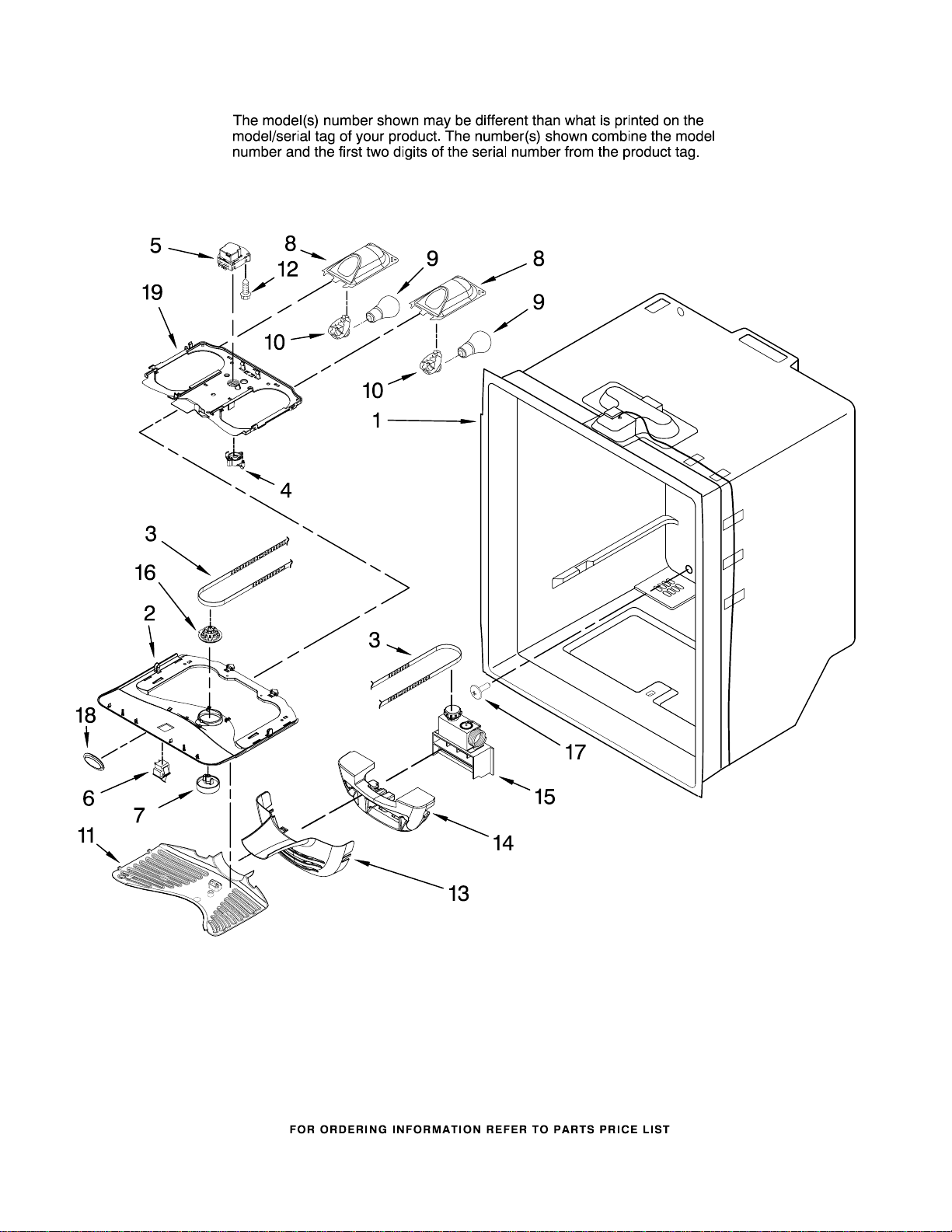

REFRIGERATOR LINER PARTS

For Model: ABB1921DEW15

(White)

W10260129

REFRIGERATOR LINER PARTS

For Model: ABB1921DEW15

(White)

W10260129

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 12724303 Bracket, Control

and Lights

3 12650101 Belt, Damper

4 12649601 Tensioner, Belt

5 12566303 Timer, Defrost

C3680310V

Switch, Light

7 12706201 Knob, Front

12476401V

Housing, Light

A0282810V

Bulb, Light (2)

12570701V

Socket, Light (2)

11 12724201 Cover, Light

12990514V

Screw (2)

13 12649903 Cover, Damper

14 12650002 Insulation

15 12796101 Gear, Damper

Assembly

16 12694001 Knob

17 M0310343 Plug Button

18 12649207 Logo

19 12724401 Pan, Timer

Light Housing

Following Parts Not Illustrated

12679901 Harness, Controls

(Refrigerator)

(Includes # 16)

FREEZER LINER PARTS

For Model: ABB1921DEW15

(White)

W10260129

FREEZER LINER PARTS

For Model: ABB1921DEW15

(White)

W10260129

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Seviceable Part)

2 A3189392 Gasket, Foam (2)

3 12476101 Panel, Fz Control

4 12476302 Cover, Light

A0282810V

Bulb, Light

12476401V

Housing

7 12226107 Cover, Evaporator

8 12990101 Screw (8)

9 12351008 Control, Fz Temp

10 13058002 Clip, Motor

11 12466105 Switch, Light

12570701V

Socket

13 A3189397 Gasket, Bottom

14 12476002 Module, Freezer

15 13057901 Shroud, Evaporator

16 2169142 Blade

17 12476209 Knob, Fz Control

W10128551

Motor, Evaporator

W10121318

Grommet

20 D7753903 Funnel, Drain

21 B8381501 Gasket

22 M0500703 Seal

23 13024803 Grille, Freezer

24 12932103 Guide, Fill Tube

Following Parts Not Illustrated

12966001 Harness, Lights

(Freezer)

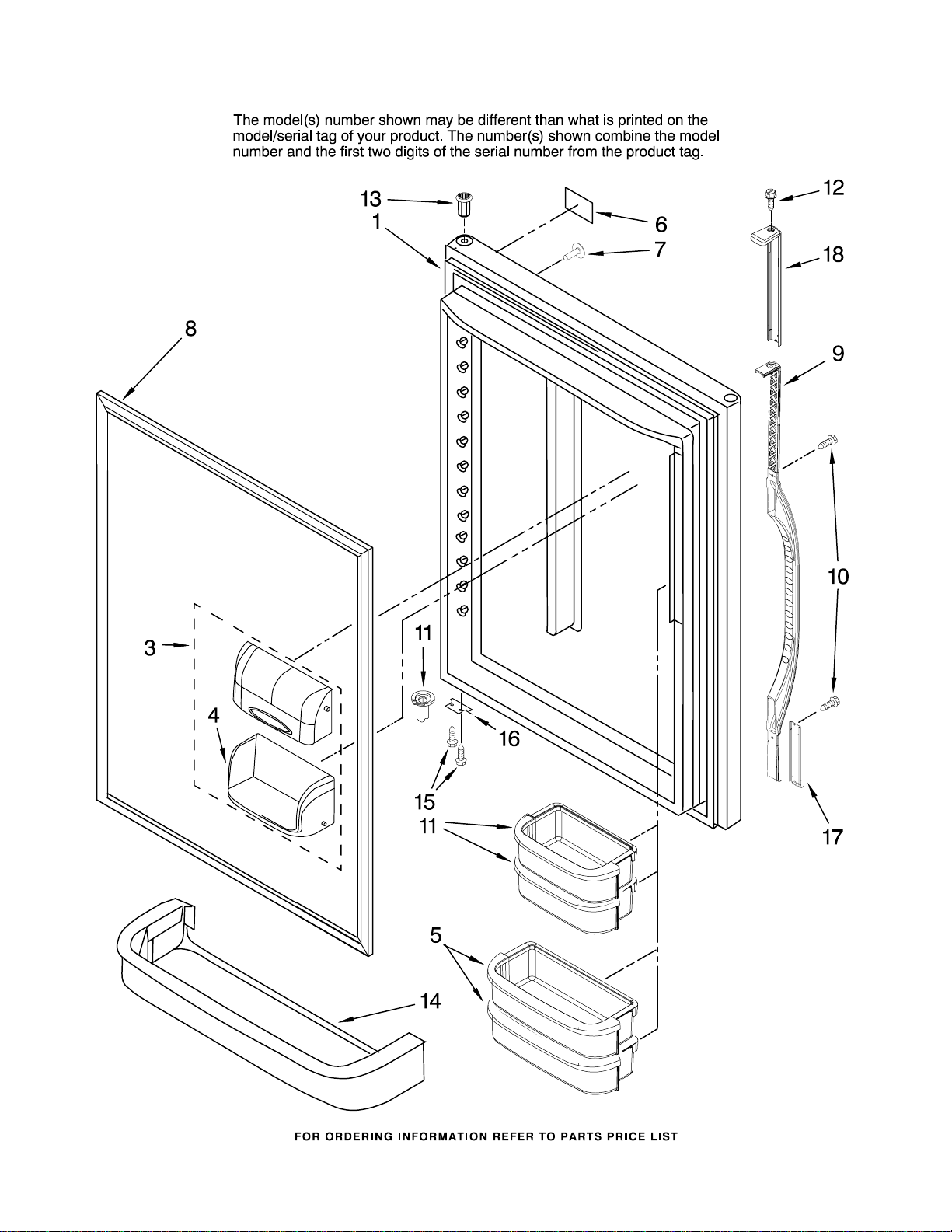

REFRIGERATOR DOOR PARTS

For Model: ABB1921DEW15

(White)

W10260129

REFRIGERATOR DOOR PARTS

For Model: ABB1921DEW15

(White)

W10260129

Illus. Part

No. No. DESCRIPTION

1 Refrigerator Door

(w/ Insulation)

12658501WQ

White

12744905V

Door, Compartment

12369502SP

Tray, Dairy

12557204V

Bucket (2)

(Medium)

6 12528501 Nameplate

7 Plug, Button (2)

12246601 White

8 Gasket, Door

Magnetic

W10164030

White

9 Handle, Door

12753101W

White

10 12990508 Screw

11 12557202 Bucket (2)

Small

12 12248201 Screw

13 Bushing

10961006W

White

14 12557904 Retainer, Door

15 12990504 Screw

16 Stop, Door

10447111 White

12660304W

Trim, Handle

Lower

12641702W

Trim, Handle

Upper

FREEZER DOOR PARTS

For Model: ABB1921DEW15

(White)

W10260129

FREEZER DOOR PARTS

For Model: ABB1921DEW15

(White)

W10260129

Illus. Part

No. No. DESCRIPTION

1 Freezer Door

(w/ Insulation)

13024224WQ

White

2 Handle, Door

12610803W

White

3 Gasket, Door

W10164032

White

4 12990301 Screw

5 12246601 Plug, Hole White

10961006W

Bushing (4)

7 Stop, Door

10447111 White

8 12990504 Screw (2)

9 12737501 Retainer, Basket
