CABINET PARTS

For Model: ABB1922FEW11,ABB1922FEQ11,ABB1922FEB11

(White) (Bisque) (Black)

4−08 Litho In U.S.A. (CJJ)(BAY) Part No. W10201592 Rev.A

REFRIGERATOR

CABINET PARTS

For Model: ABB1922FEW11,ABB1922FEQ11,ABB1922FEB11

(White) (Bisque) (Black)

W10201592

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10175445

Owners Manual

W10183296

Energy Tag

W10165418

Tech Sheet

2 Cabinet (Not a

Servicable Part)

3 Plug, Button (3)

67001130 White

67001131 Black

4 67005064 Label, Fill Tube

5 67006118 Roller Assembly

6 12627302 Clip, Grille

7 67006642 Pin, Center Hinge

8 67006611 Bolt, Adjusting

(Rear)

9 67006521 Screw

10 67001098 Cover, Fill Tube

11 67006380 Screw

12 67006473 Screw

13 A3076901 Plug, Button

14 67006303 Screw (3)

15 Hinge, Center

67006960 White

67007043 Black

16 67003868 Foot Brake (2)

17 Cover, Corner

67003484 White

67003486 Bisque

67003485 Black

12566604ED

Hinge, Top

19 12479901 Plate, Cover

20 67006564 Screw (8)

21 Cover, Hinge

67001014 White

67001013 Bisque

67001012 Black

22 Grille Assembly

(Includes Clips)

67006905 White

67006904 Bisque

67006886 Black

24 67006662 Screw

25 67006425 Screw (9)

26 67007174 Bracket, Foot

27 67001173 Cover, Water Valve

28 67006101 Cover, Unit

29 B5759649 Gasket

W10164397

Tube, Drain

W10157973

Clip, Drain Tube

32 67006737 Screw

REFRIGERATOR LINER PARTS

For Model: ABB1922FEW11,ABB1922FEQ11,ABB1922FEB11

(White) (Bisque) (Black)

W10201592

REFRIGERATOR LINER PARTS

For Model: ABB1922FEW11,ABB1922FEQ11,ABB1922FEB11

(White) (Bisque) (Black)

W10201592

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

Y67003896

Bracket, Control

and Lights

3 67004279 Overlay

W10185244

Housing,

Electronic Control

W10165748

Board, Control

6 C3680310 Switch, Light

7 67003897 Cover, Light

8 67003901 Housing, Light

9 A0282812 Bulb, Light (2)

Y12570701

Socket, Light (2)

11 67003900 Insert,

Damper Cover

12 67006602 Screw (2)

13 67003899 Cover, Damper

14 67006604 Insulation

W10127429

Control, Damper

16 12002355 Thermistor

17 M0310343 Plug Button

Following Parts Not Illustrated

67004033 Harness, Controls

(Refrigerator)

(Includes # 16)

FREEZER LINER PARTS

For Model: ABB1922FEW11,ABB1922FEQ11,ABB1922FEB11

(White) (Bisque) (Black)

W10201592

FREEZER LINER PARTS

For Model: ABB1922FEW11,ABB1922FEQ11,ABB1922FEB11

(White) (Bisque) (Black)

W10201592

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Seviceable Part)

2 67001291 Gasket, Foam (2)

3 12002497 Gear (2)

(Includes RH & LH)

4 67003905 Cover, Light

5 67004067 Shaft

Y12570701

Socket, Light

8 67006473 Screw (8)

9 A0282812 Bulb, Light

10 67001035 Housing, Frz. Light

11 67005871 Cover, Evaporator

12 67006425 Screw (7)

13 Bracket, Door

W10122147

Left

W10122148

Right

14 67003906 Housing, Lighting

W10167028

Clip, Evap. Motor

16 67005653 Switch, Light

18 Bracket, Basket

W10187668

Left

W10187667

Right

W10120018

Slide, Drawer (2)

20 67003731 Gasket, Bottom

21 Bracket, Slide

W10128118

Left

W10128119

Right

W10175909

Cover, Grille

W10167023

Shroud, Evap.Fan

24 2169142 Fan, Evaporator

W10121318

Grommet (2)

26 67003636 Motor, Evaporator

27 D7753903 Funnel, Drain

(Incl. # 28 & 29)

28 M0500703 Seal

29 B8381501 Gasket

30 12002355 Thermistor

31 67003924 Cover, Thermistor

32 67006406 Screw (6)

33 67006530 Screw

Following Parts Not Illustrated

67006095 Harness, Lights

(Freezer)

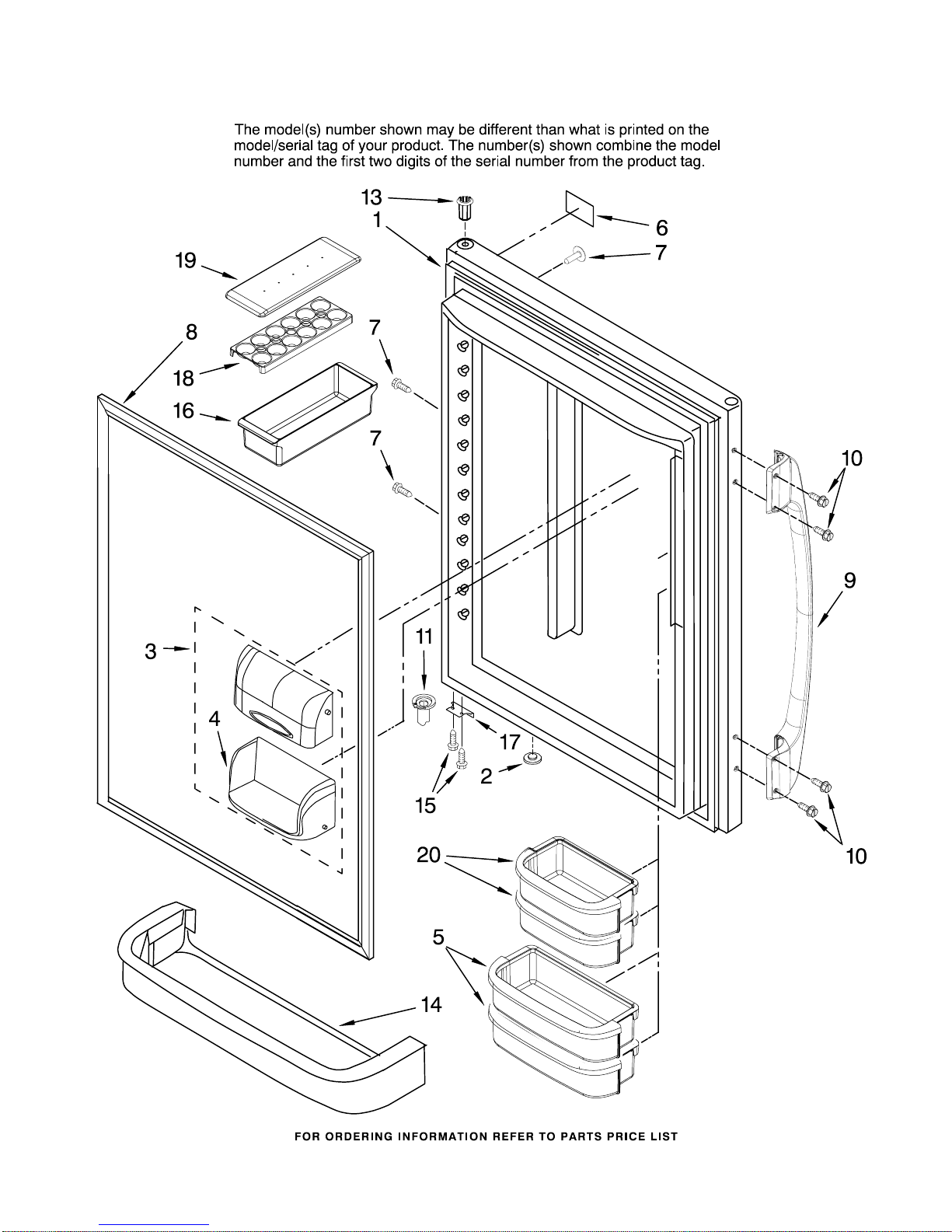

REFRIGERATOR DOOR PARTS

For Model: ABB1922FEW11,ABB1922FEQ11,ABB1922FEB11

(White) (Bisque) (Black)

W10201592

REFRIGERATOR DOOR PARTS

For Model: ABB1922FEW11,ABB1922FEQ11,ABB1922FEB11

(White) (Bisque) (Black)

W10201592

Illus. Part

No. No. DESCRIPTION

1 Refrigerator Door

(w/ Insulation)

67004039 White

67004036 Black

67004037 Bisque

2 Plug, Vent

10712401 White

67004838 Black

3 67003819 Door, Dairy

4 67001279 Tray, Dairy

5 67001021 Bucket (2)

(Medium)

6 12528501 Nameplate

7 Screw,Handle Hole

67007166 Black

12991103 White

12991104 Bisque

8 Gasket, Door

Magnetic

W10130148

White

12683815B

Black

9 Handle, Door

67006721 White

67006804 Bisque

67006805 Black

10 67006668 Screw

11 Closure, Door

67003638 White

67003639 Black

13 Bushing

67004977 White

67004978 Black

14 67001296 Retainer, Door

15 67006287 Screw

16 10423131 Bin, Utility

17 Stop, Door

67003779 White

67003781 Bisque

67003780 Black

18 10436506 Tray, Egg

19 10436404 Lid, Utility

20 67001141 Bucket (2)

(Small)

FREEZER DOOR PARTS

For Model: ABB1922FEW11,ABB1922FEQ11,ABB1922FEB11

(White) (Bisque) (Black)

W10201592

FREEZER DOOR PARTS

For Model: ABB1922FEW11,ABB1922FEQ11,ABB1922FEB11

(White) (Bisque) (Black)

W10201592

Illus. Part

No. No. DESCRIPTION

1 Freezer Door

(w/ Insulation)

W10192430

White

W10192431

Bisque

W10190236

Black

2 Handle, Door

W10119666

White

W10119667

Bisque

W10119668

Black

3 Plug, Vent(2)

10712401 White

67004838 Black

4 Gasket, Door

W10130150

White

12683816B

Black

5 67006197 Screw
