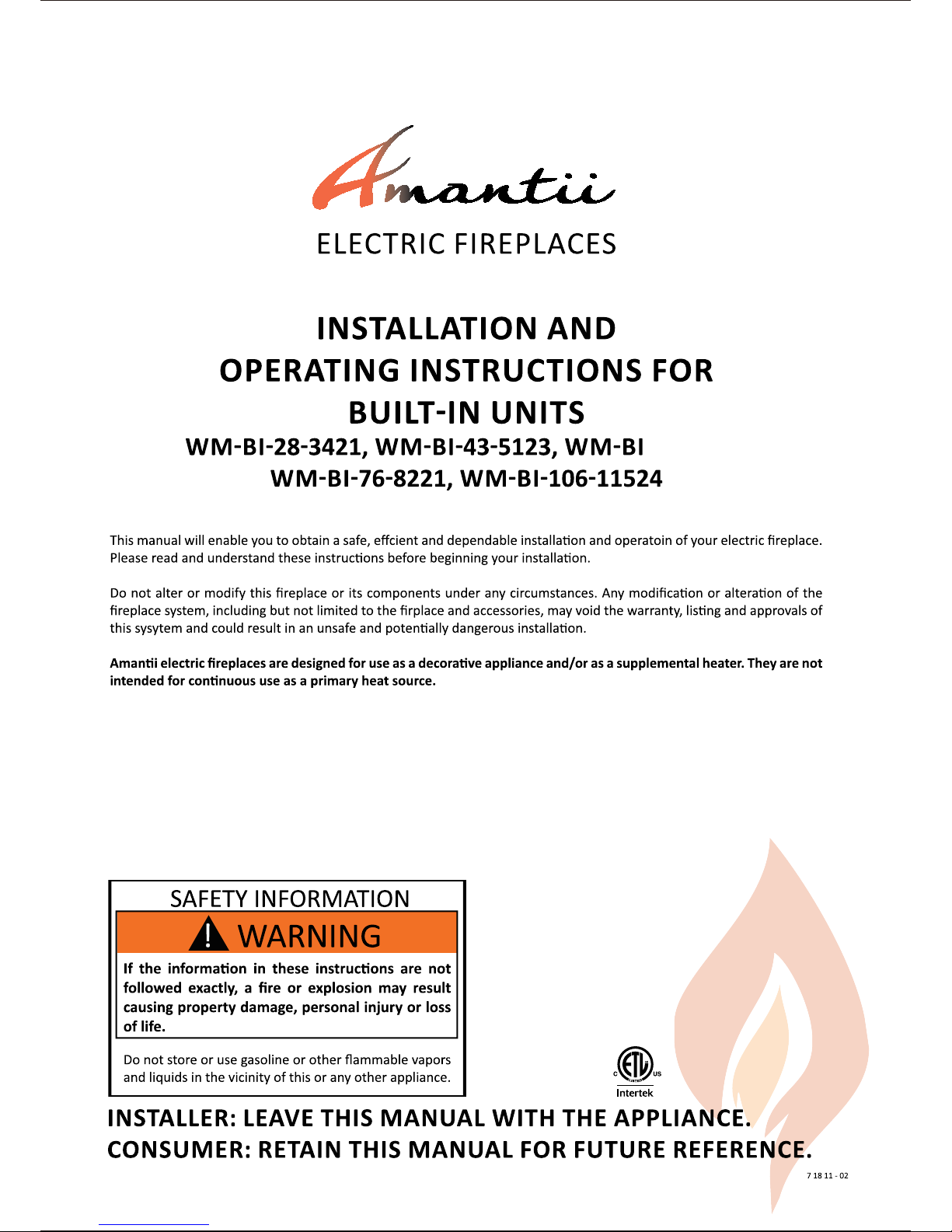

Amantii WM-BI-28-3421 Benutzerhandbuch
-58-6421,
TABLE OF CONTENTS
1
CONGRATULATIONS!
-
WM-BI-28-3421
WM-BI-43-5123
WM-BI-43-5123
WM-BI-58-6421
WM-BI-76-8221
WM-BI-106-11524
Trouble Shoong

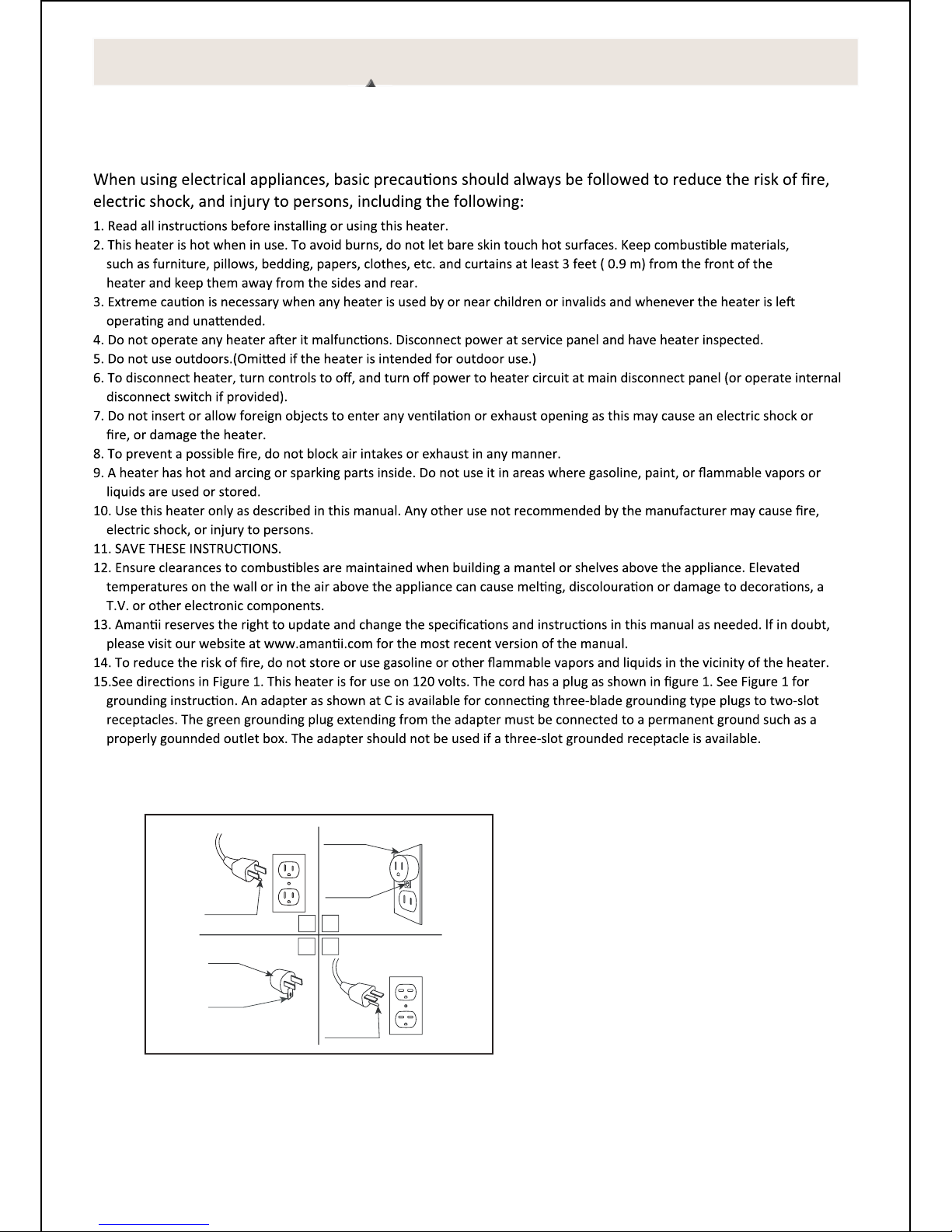

IMPORTANTINSTRUCTIONS
WARNING!
SAVE THESE INSTRUCTIONS
3
B
A
C D
Fig. 1
Grounding Pin
Cover Of Grounded
Outlet Box
Metal
Screws
Adapter
Grounding
Means Grounding
Pin
16.This heater is include a visual alarm to warn that parts of the heater are geng excessively hot. If the alarm illuminates,
immediately unplug the heater and inspect for an objects on or adjacent to the heater that may have locked the airflow or
otherwise caused high temperatures to have occurred. DO NOT OPERATE THE HEATER WITH THE ALARM ILLUMINATION.
NOTE: This appliance must be electrically
wired and grounded in accordance with
local codes. In the absence oflocal codes,
us the current CSA C22.1 Canadian Elec-
trical Code in Canada or the ANSI/NFPA
States.

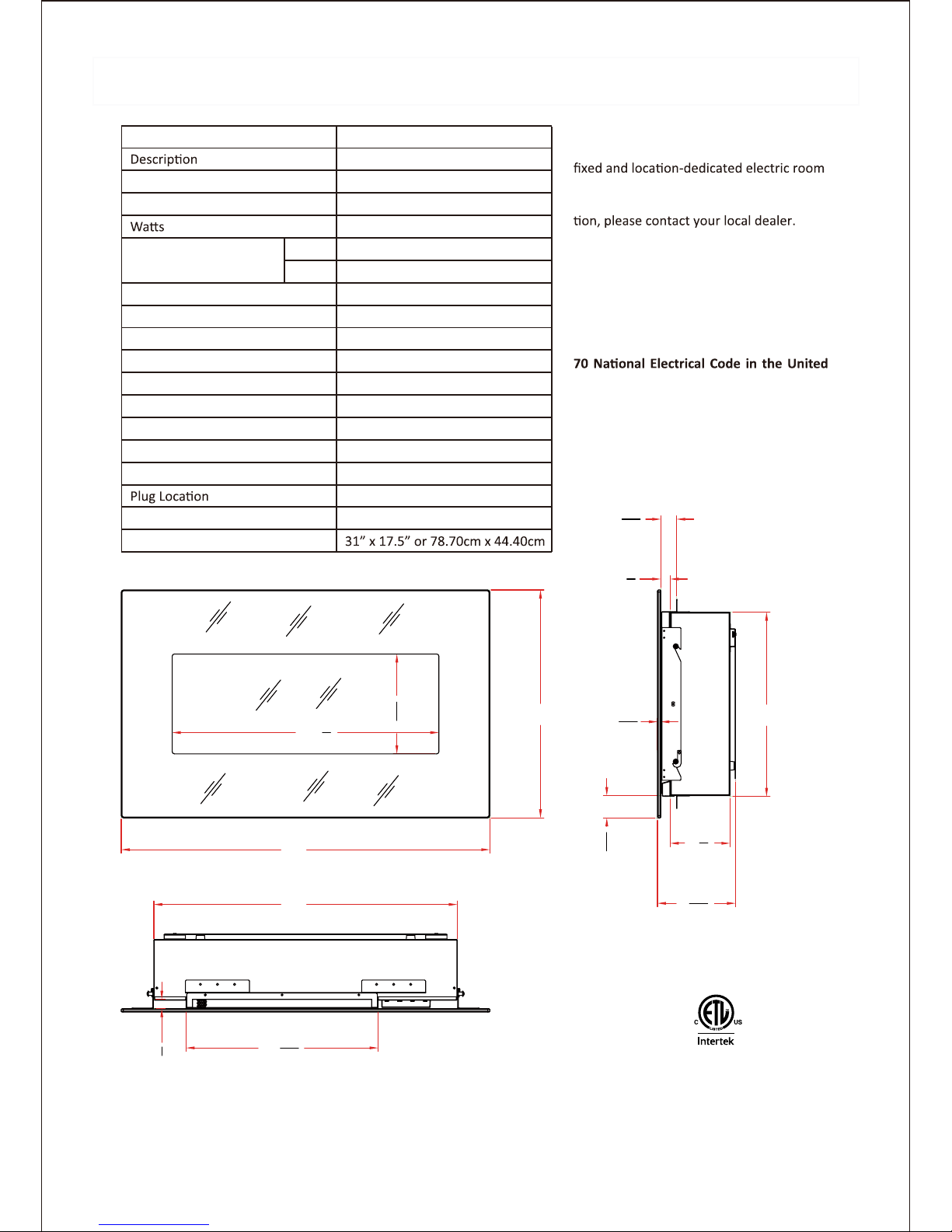

WM-BI-28-3421
4
WM-BI-28-3421
Built-In Appliance
120V AC,60Hz
1400W
11.7A
Model Number
Voltage
Amps
28” or 71.50 cm
17” or 43.00 cm
5 1/2” or 14.00 cm
7 3/16” or 18.30 cm
46.76 lbs or 21.21kg
47.71 lbs or 21.64 kg
Right side
Appliance Width (Glass & Stone)
Appliance Height (Glass & Stone)
Appliance Depth Glass Models
Appliance Depth Stone Models
Gross Weight Glass Models
Gross Weight Stone Models
Cord Length
Rough Wall Opening Size
74.81” or 190.00 cm
HEATER HIGH
LOW
NO HEATER
1350W
675W
15W
MOTOR HEATER
MOTOR FLAME
14.5W
4W
21
93
16
24 1
5
34
28
51
2
17
21
16
73
16
5
16
17
16
7
8
17 11
16
7
8
4006492
This appliance has been tested in accor-
dance with the UL Standand 2021 for
appliances in the United States and Cana-
da. If you need assistance during installa-

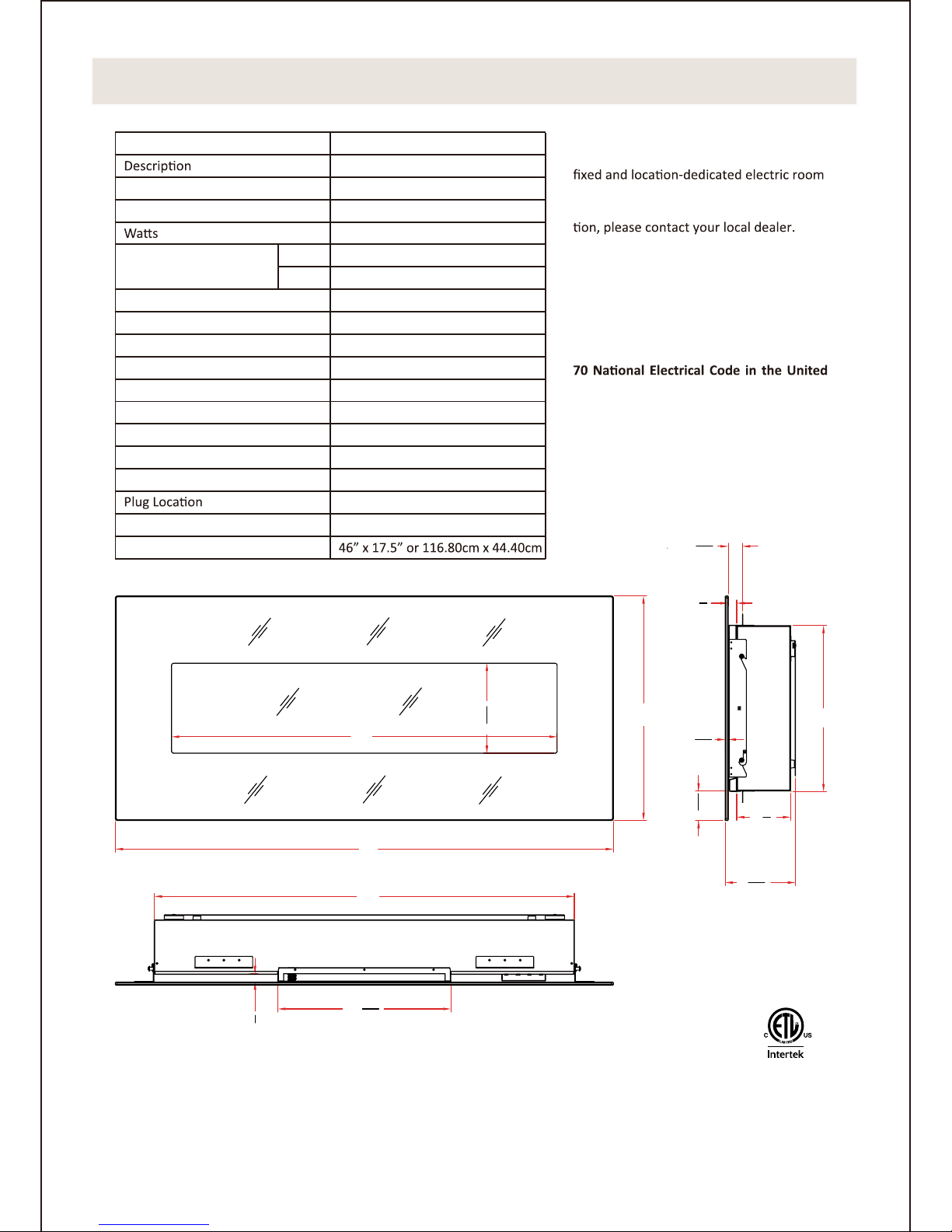

WM-BI-43-5123
NOTE: This appliance must be electrically
wired and grounded in accordance with
local codes. In the absence oflocal codes,
us the current CSA C22.1 Canadian Elec-
trical Code in Canada or the ANSI/NFPA
States.
5
WM-BI-43-5123
Built-In Appliance
120V AC,60Hz
1400W
11.7A
Model Number
Voltage
Amps
43” or 109.30 cm
17” or 43.00 cm
5 1/2” or 14.00 cm
7 3/16” or 18.30 cm
70.00 lbs or 31.75kg
71.43 lbs or 32.4 kg
Right side
Appliance Width (Glass & Stone)
Appliance Height (Glass & Stone)
Appliance Depth Glass Models
Appliance Depth Stone Models
Gross Weight Glass Models
Gross Weight Stone Models
Cord Length 74.81” or 190.00 cm
HEATER HIGH
LOW
NO HEATER
1350W
675W
23W
MOTOR HEATER
MOTOR FLAME
14.5W
4W
23
93
16
39
51
2
17
31
16
51
73
16
5
16
17
16
7
8
17 11
16
7
8
43
4006492
This appliance has been tested in accor-
dance with the UL Standand 2021 for
appliances in the United States and Cana-
da. If you need assistance during installa-
Rough Wall Opening Size
NOTE: This appliance must be electrically
wired and grounded in accordance with
local codes. In the absence oflocal codes,
us the current CSA C22.1 Canadian Elec-
trical Code in Canada or the ANSI/NFPA
States.

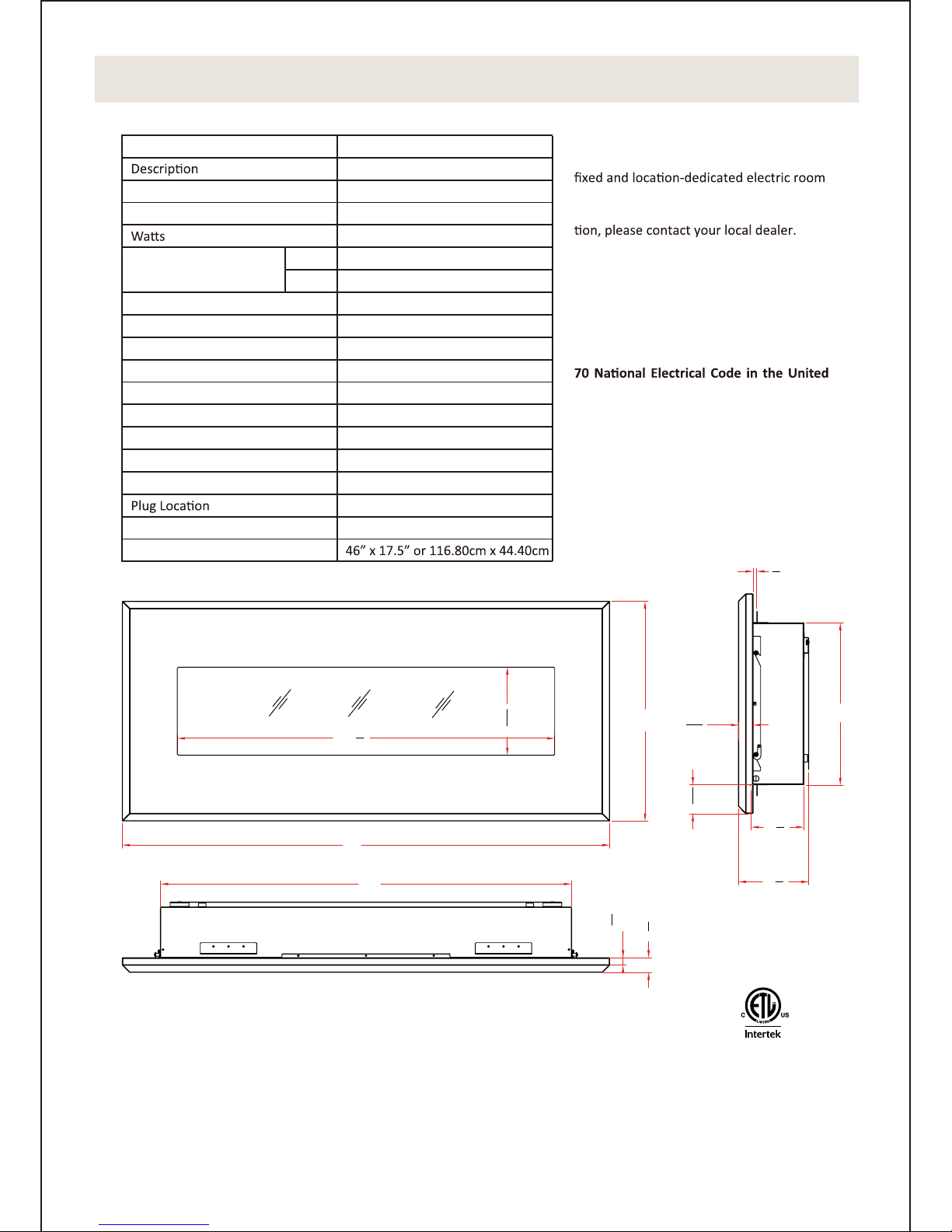

WM-BI-43-5123
6
WM-BI-43-5123
Built-In Appliance
120V AC,60Hz
1400W
11.7A
Model Number
Voltage
Amps
43” or 109.20 cm
17” or 43.00 cm
5 1/2” or 14.00 cm
7 3/8” or 18.70 cm
59.79 lbs or 27.12kg
61.22 lbs or 27.77 kg
Right side
Appliance Width (Glass & Stone)
Appliance Height (Glass & Stone)
Appliance Depth Glass Models
Appliance Depth Stone Models
Gross Weight Glass Models
Gross Weight Stone Models
Cord Length 74.81” or 190.00 cm
HEATER HIGH
LOW
NO HEATER
1350W
675W
23W
MOTOR HEATER
MOTOR FLAME
14.5W
4W
51
23
39 1
2
93
16
43
51
2
17
73
8
3
8
31
16
19
16
13
16
19
16
4006492
This appliance has been tested in accor-
dance with the UL Standand 2021 for
appliances in the United States and Cana-
da. If you need assistance during installa-
Rough Wall Opening Size
NOTE: This appliance must be electrically
wired and grounded in accordance with
local codes. In the absence oflocal codes,
us the current CSA C22.1 Canadian Elec-
trical Code in Canada or the ANSI/NFPA
States.

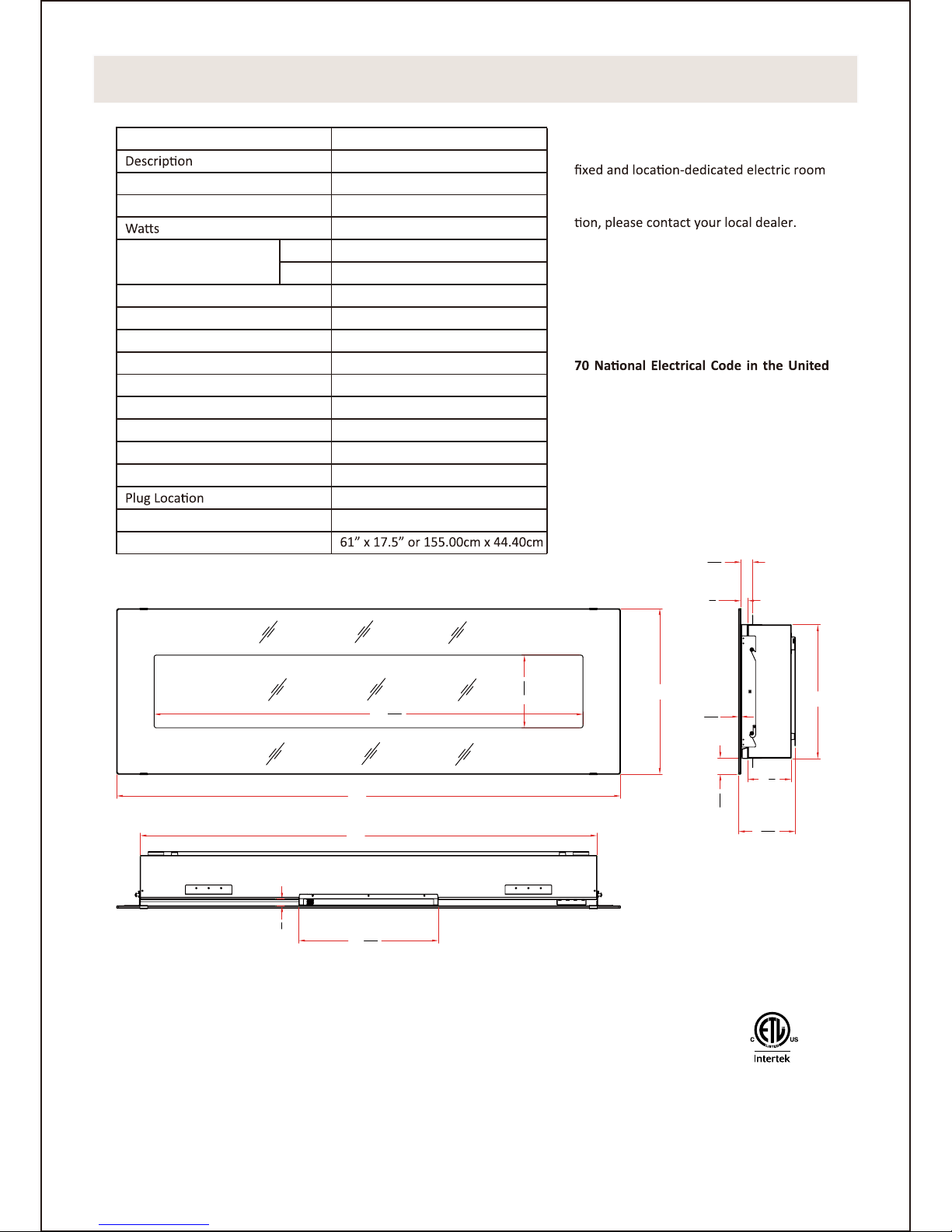

7
Built-In Appliance
120V AC,60Hz
1400W
11.7A
Model Number
Voltage
Amps
58” or 147.30 cm
17” or 43.00 cm
5 1/2” or 14.00 cm
7 3/16” or 18.30 cm
84.99 lbs or 38.55kg
86.93 lbs or 39.43 kg
Right side
Appliance Width (Glass & Stone)
Appliance Height (Glass & Stone)
Appliance Depth Glass Models
Appliance Depth Stone Models
Gross Weight Glass Models
Gross Weight Stone Models
Cord Length 74.81” or 190.00 cm
HEATER HIGH
LOW
NO HEATER
1350W
675W
27W
MOTOR HEATER
MOTOR FLAME
14.5W
6W
WM-BI-58-6421
WM-BI-58-6421
21
93
16
54 7
16
64
51
2
17
21
16
73
16
5
16
17
16
7
8
17 11
16
7
8
58
4006492
This appliance has been tested in accor-
dance with the UL Standand 2021 for
appliances in the United States and Cana-
da. If you need assistance during installa-
Rough Wall Opening Size
8

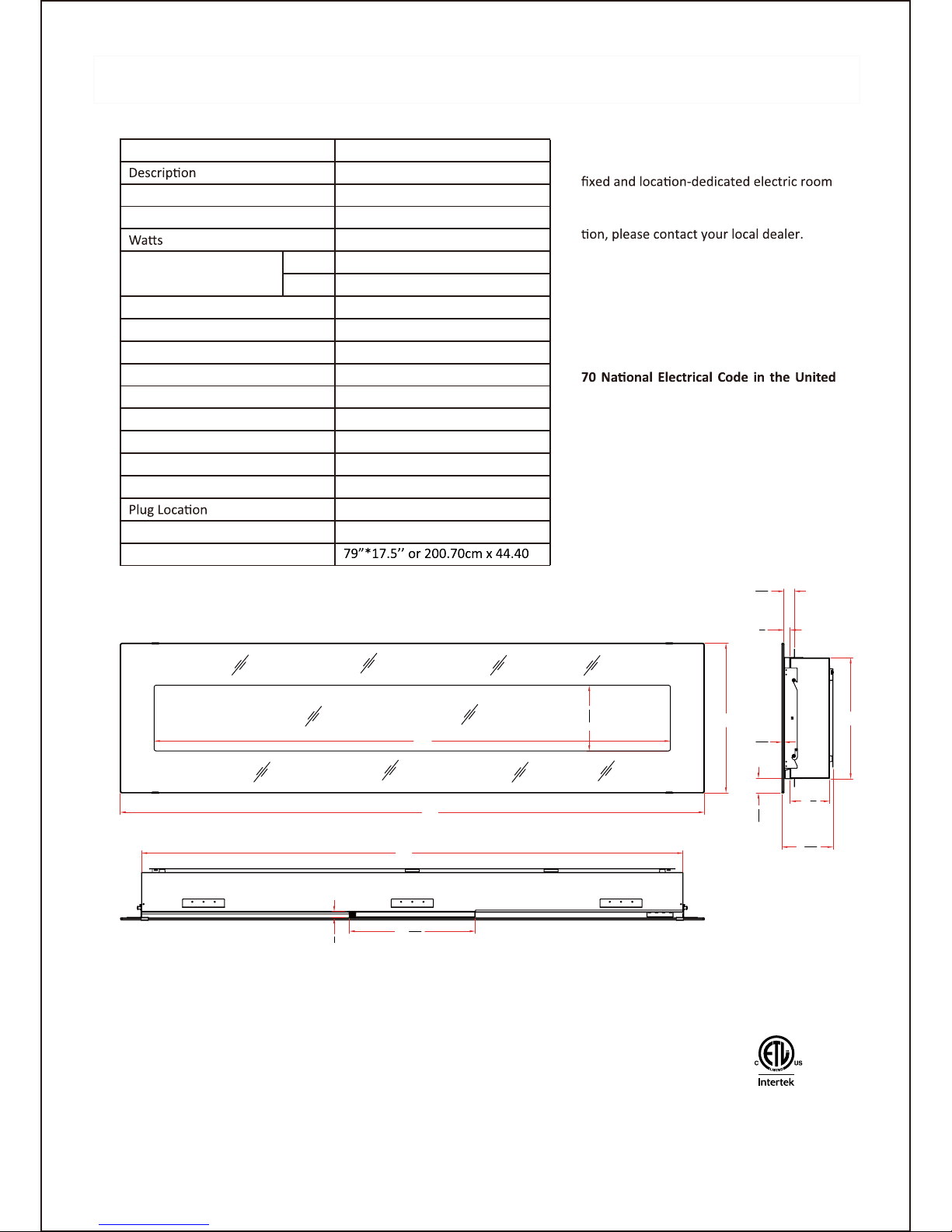

WM-BI-76-8221
WM-BI-76-8221
Built-In Appliance
120V AC,60Hz
1400W
11.7A
Model Number
Voltage
Amps
76” or 193.00 cm
17” or 43.00 cm
5 1/2” or 14.00 cm
7 3/16” or 18.30 cm
104.35 lbs or 47.33kg
106.88 lbs or 48.48 kg
Right side
Appliance Width (Glass & Stone)
Appliance Height (Glass & Stone)
Appliance Depth Glass Models
Appliance Depth Stone Models
Gross Weight Glass Models
Gross Weight Stone Models
Cord Length 74.81” or 190.00 cm
HEATER HIGH
LOW
NO HEATER
1350W
675W
30W
MOTOR HEATER
MOTOR FLAME
14.5W
6W
NOTE: This appliance must be electrically
wired and grounded in accordance with
local codes. In the absence oflocal codes,
us the current CSA C22.1 Canadian Elec-
trical Code in Canada or the ANSI/NFPA
States.
21
93
16
70
82 51
2
17
21
16
73
16
5
16
17
16
7
8
17 11
16
7
8
76
4006492
This appliance has been tested in accor-
dance with the UL Standand 2021 for
appliances in the United States and Cana-
da. If you need assistance during installa-
Rough Wall Opening Size
