50D0112 RCSTEBA Installation & Operating Manual

Rel 1.0 April 2009 Page 1 of 10 Ambient Technologies

A Division Of

Monessen Hearth Systems

RCSTEBA

Thermostatic On/Off and Blower Remote Control– 120VAC

INSTALLATION AND OPERATING INSTRUCTIONS

This remote control system provides a safe, reliable and user-friendly remote control for millivolt valve gas

appliances and blower speed adjustment. The system can be manually or thermostatically turned on and off with the

transmitter. Always check the appliance home owner’s manual for additional information, or warnings regarding

accessory installation before connecting this remote control system.

Carefully inspect the contents for shipping damage. If any parts are missing or damaged, immediately contact the

dealer from whom you purchased the kit or Ambient Technologies Technical Support at 1 800 398 6195. Do not

attempt to install any part of the kit unless all parts are in good condition. Please keep this booklet for future

reference.

CONTENTS OF KIT

Description Qty

Transmitter 1

Battery Alkaline AAA (for Transmitter) 3

Receiver (Assembly) consists of : 1

Receiver Box

AC Adaptor for Receiver

Slide Button-Black (On/RS/Off) 1

Wall Cover Plate-Black 1

Wire Nuts 2

Plug-In Wiring Assembly – 22” Inches 1

Velcro (Loop and Hook) 1

Installation Instructions 1

Screws (for fireplace system control covers) 2

FEATURES/SPECIFICATIONS

•Easy Access Thermostatic Control

•Battery Powered Transmitter with Low battery Indication

•Compact 120 VAC Adapter with 30” wire

•Three Speed Control for Blower with Blower Type Selection

•Programmable Timer to turn blower on and off

•Child Proof Lock-out

•16 Security Codes

•6 hour Shut Down on Receiver(Optional)

•Quick Disconnect Wiring Assembly

•Reset Button

50D0112 RCSTEBA Installation & Operating Manual

Rel 1.0 April 2009 Page 2 of 10 Ambient Technologies

A Division Of

Monessen Hearth Systems

WARNING

Important Safety Information

•Read this manual thoroughly prior to installing, programming or operating any remote control.

•This remote control system is designed for use with a millivolt gas valve system with blower. Do not use

this remote control system on applications with voltages above 24 Volts AC/DC and 1 amp current.

•This remote control system requires three (3) “AAA” alkaline batteries to power the transmitter. The

receiver is powered by external AC Adapter.

•Wiring must conform to appliance requirement and building codes/ordinances as required by local and

national code authorities having jurisdiction.

•Do not short (or jumper) across the gas valve terminals to test the remote control installation. This could

damage the unit and void the warranty.

•This remote control system should only be used as described in this manual. Any other use is not

recommended and will void the warranty.

NOTE

Due to the sensitive temperature monitoring components in the transmitter, it is necessary to

allow the transmitter to stabilize to room temperature before accurate room temperatures are

displayed. If the transmitter is activated from a severe cold condition, allow 15 minutes for

accurate temperature readings to appear on the LCD.

WARNING

Turn appliance OFF and allow to cool before installing or servicing. DO NOT connect

110-120 VAC wiring to the milli-volt gas control valve. The remote operator must be installed

exactly as outlined in these instructions. Read all instructions completely before attempting

installation. Follow instructions carefully during installation. Any modification of

components will void the warranty and may cause a fire hazard.

WARNING

Turn appliance OFF (at the appliance or remote receiver) if you are away from your house for

an extended period of time. Never leave anything on top of the surface of the transmitter.

INSTALLATIONS

Remote Receiver:

The remote receiver may be installed in the appliance per the appliance homeowner’s manual. Refer to the

Homeowner’s Manual for special installation instructions. Failure to follow the installation instructions found

in the appropriate Homeowner’s Manual will void the warranty and may cause a fire hazard.

This system comes with an 22 inch wire assembly labled “MV VALVE”. Insert the white terminal into the back of

the receiver. The terminal wire block can only be installed one way and do not force the terminal plug into the

receiver.

50D0112 RCSTEBA Installation & Operating Manual

Rel 1.0 April 2009 Page 3 of 10 Ambient Technologies

A Division Of

Monessen Hearth Systems

Connect the wiring terminal two (2) ¼” female spade terminals to the appliance valve. Refer to the appropriate

Homeowner’s Manual for proper wiring connections to the appliance. Your appliance may have other options to

connect wiring from receiver. For applications longer than 22 inches, use 18 gauge wire, 105ºC rated, with no

splices. Connect to the two (2) 1/4“ female spade wiring terminals and wire can be no longer than 20 feet.

WARNING

Speed control module and thermal sensor must be removed before installing receiver and

applying the AC power. Failure to do so may cause the part damage and void the warranty.

Without removing the control module and thermal sensor, they and RCSTEBA both will try

to operate the blower at the same and may cause unexpected blower operation or damage.

Before connecting the blower with the receiver, always DISCONNECT SPEED CONTROL MODULE AND

THERMAL SENSOR from your fireplace if they exist as displayed in following diagram:

WARNING

The blower has to be grounded to the body of the fireplace.

50D0112 RCSTEBA Installation & Operating Manual

Rel 1.0 April 2009 Page 4 of 10 Ambient Technologies

A Division Of

Monessen Hearth Systems

WARNING

STOP: Make sure 120VAC fan and MV valve are correct. If not wired correctly, this could

cause damage to receiver.

Make sure that the wires do not contact the appliances any place other than at the terminals.

Exposure to temperatures higher than 105C (250ºF) may cause the receiver to malfunction

and cause possible fire hazard.

MV Valve

50D0112 RCSTEBA Installation & Operating Manual

Rel 1.0 April 2009 Page 5 of 10 Ambient Technologies

A Division Of

Monessen Hearth Systems

Back of the Transmitter

Battery

Door

Tab

Remote Transmitter:

Installing Batteries:

The remote transmitter uses three (3) “AAA”- size batteries.

To install batteries,

1. Press down the battery door tab and pull out to remove the battery door.

2. Install the batteries as indicated on transmitter.

3. Close the battery door by snapping in place.

4. When three batteries are installed, the transmitter will initialize for 10

seconds and then is ready for use.

5. The batteries should be replaced at least once every 6 months or when the

low battery icon indicator is displayed.

Setting Privacy (DIP) Switch on Receiver and Transmitter:

The remote receiver and transmitter privacy (DIP) switches are preset at the factory. In the event of activation or

interference from other nearby transmissions, reset the code using the following procedure:

1. There are four switches on the transmitter and seven switches on the receiver (see figure below). Switches

#1, #2, #3 and #4 on both transmitter and receiver are privacy switches and #5, #6, #7 on the receiver are

blower switches.

2. Slide the privacy code switches (#1, #2, #3 and #4) on the transmitter and receiver to your choice of ON

or OFF position. All switches are preset to “ON” for both the transmitter and receiver.

3. The privacy code switches(#1, #2, #3 and #4) on the transmitter and on the receiver must match in order

for the system to work.

4. To check, press either the On or Off button on the transmitter and the receiver indicator light will blink. If

not repeat step 2.

5. The system is now ready to operate.

NOTE See the optional 6 hour shutdown section and the blower type selection section.

Receiver

Privacy Dip Switch (Need to match)

Transmitter

50D0112 RCSTEBA Installation & Operating Manual

Rel 1.0 April 2009 Page 6 of 10 Ambient Technologies

A Division Of

Monessen Hearth Systems

WARNING

Do not use two (2) or more remote control systems in the same area with the same dip switch

settings, as they will communicate with each other. This may cause the appliances to

malfunction.

Reset Button:

1. The reset button can be used to reset the transmitter if transmitter is not working properly. The reset

button (recessed) is located behind the battery door cover in the lower left corner of battery comparment.

Using a paper clip, press the reset button and the transmitter will reset and initialize for 10 seconds before it

can be used.

OPERATIONS

Transmitter:

General:

The RCSTEBA Remote Control has two (2) operating modes: Manual and

Thermostatic. The control system can be set to temperature ranges between 45°F and

90°F. The blower speed can be adjusted in either the manual and thermostatic mode.

The transmitter will operate the remote receiver from 1foot to a maximum of 30 feet.

The distance is reduced when batteries are low or when the receiver is inside a metal

enclosure.

Initial start up:

1. After initial power up or when RESET button is pressed, the transmitter is reset.

The reset button is located behind the battery door of transmitter.

2. During system reset, all features of the LCD will be visible. After one second,

the LCD will be initialized. A typical reset display is shown above. Note that

the temperature scale is degree F.

3. When only the "F" is displayed without the number, press On button to select

between °C and °F display. It will exit setting mode automatically after 10

seconds if no key is pressed. The transmitter will send an Off signal after reset.

4. After reset, the transmitter is operating in manual mode. The room temperature

is shown as above.

50D0112 RCSTEBA Installation & Operating Manual

Rel 1.0 April 2009 Page 7 of 10 Ambient Technologies

A Division Of

Monessen Hearth Systems

Manual Mode:

1. Press the ON button once to turn on the appliance. Press the OFF button to

turn it off.

Thermostatic mode:

1. Press the AUTO button to enter the thermostatic mode.

2. In thermostatic mode, press the ON / Δbutton or OFF / ∇button to set the

desired set temperature.

3. Once the setting is completed, the transmitter will automatically turn on the

fireplace when the room temperature is below the set temperature and turn off

the appliance when the room temperature is above the set temperature within 1

degree.

4. There will be a slight delay in the response of the unit (on/off) to a temperature.

Room temperature is monitored every 3 minutes.

5. Press the Auto button to exit the thermostatic mode (Return to Manual Mode).

The transmitter will be in the manual on/off mode and receiver / transmitter will

maintain the previous settings of Fan speed & blower Delay on & Delay off time.

3-Speed Blower Control:

Note: Blower operates with flame on only

1. Press FAN button once to enter blower speed setup mode at low speed

initially and one of the three blade icon will display darken on LCD.

2. Continue to press FAN button to set up the blower speed you desire.

3. If there is no input within 3 seconds, the new setting will be transmitted to

receiver. If fireplace is on, the blower speed will take effect right away; if

fireplace is off, the receiver will remember this setting and blower is still off.

4. If you continue to press FAN button while fire is on or off the FAN icon will

disappear and turn the blower off.

Blower On Delay Time and Off Delay Time Setting:

Note: Blower operates with flame on only

1. Hold FAN button for 5 second and two numbers will show up in LCD screen.

The upper one is On Delay Time and the bottom is Off Delay Time.

2. Use the ON / Δbutton to set the desired On Delay Time from 0 to 15 min.

3. Use the OFF / ∇button to set the desired Off Delay Time from 0 to 15 min.

4. If there is no input within 3 seconds, the new setting will be transmitted to

receiver.

5. The default settings for both transmitter and receiver are 5 minutes for On

Delay Time and 8 minutes for Off Delay Time, as shown in this picture.

NOTE The most efficient setting for your fireplace blower is when blower comes

on and off, it is blowing warm air only not hot air. Giving the fireplace as

much time to discharge as much warm air as possible before turning off.

50D0112 RCSTEBA Installation & Operating Manual

Rel 1.0 April 2009 Page 8 of 10 Ambient Technologies

A Division Of

Monessen Hearth Systems

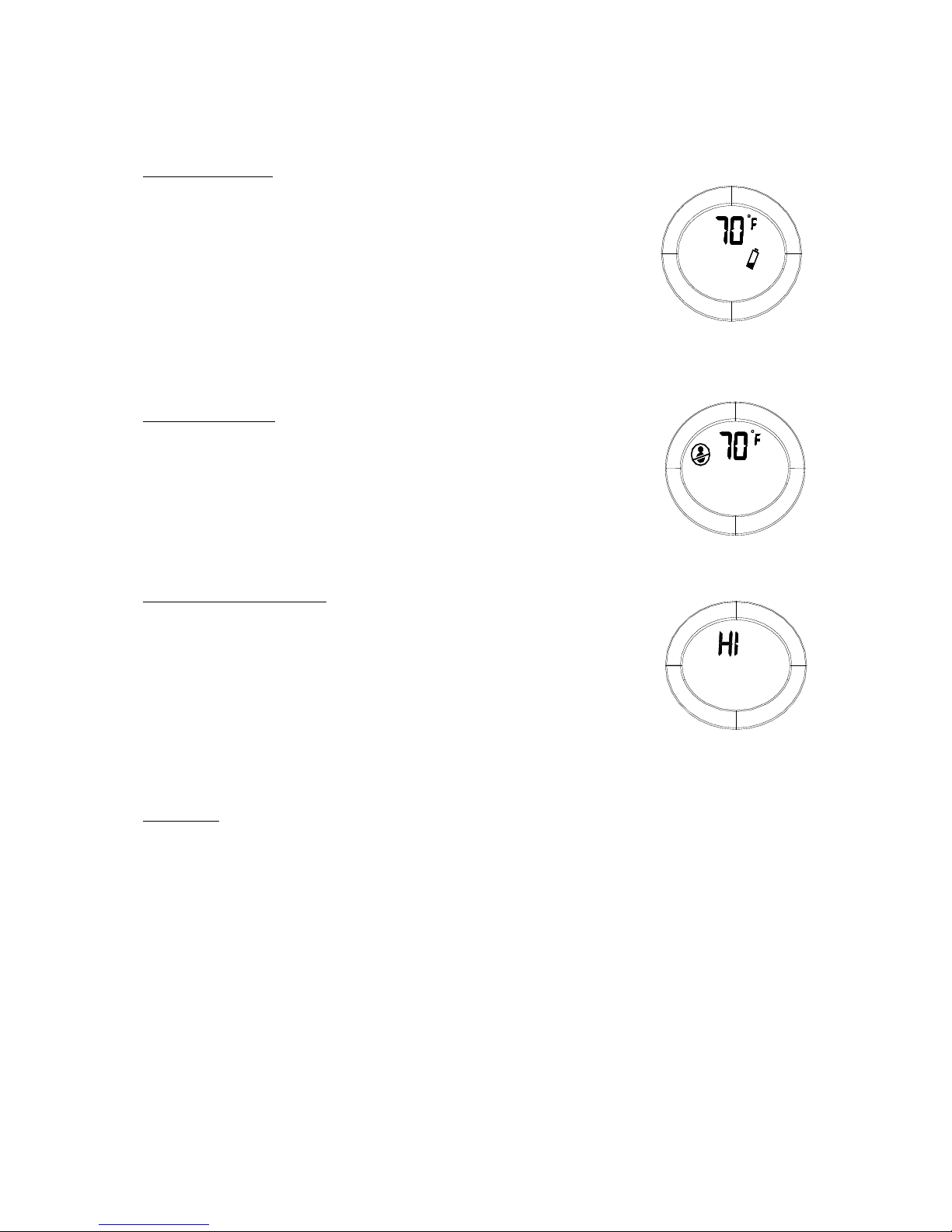

Low-battery detection:

1. Battery voltage is checked once a minute. When the battery voltage drops to a

certain level, the low-battery icon will display on LCD, and the transmitter

will turn off the appliance. The transmitter will not function anymore until

fresh batteries are installed.

2. When the batteries are low, the LCD displays a low battery indicator. The low

battery indicator will be displayed in any mode.

3. The transmitter will not operate with low batteries. Change the batteries before

the batteries are too weak for normal operation. TURN THE UNIT OFF

BEFORE REPLACING BATTERIES.

Child-proof protection:

1. Press and hold the ON and OFF buttons simultaneously for 3 seconds to enter

childproof mode as shown in this picture.

2. The transmitter will not send a signal again until childproof mode is deactivated

by pressing the ON and OFF buttons simultaneously for 3 seconds to exit

childproof mode and the Childproof indicator disappears from LCD.

Transmitter Thermal Shutdown:

1. If transmitter measures a room temperature exceeding 99 degrees Fahrenheit, the

LCD will display "HI" and the transmitter will turn off the appliance.

2. Transmitter will not function until the room temperature has dropped below 99

degree Fahrenheit. If transmitter measures a room temperature less than 40

degrees Fahrenheit, the LCD will display “LO” and NO SIGNAL will be sent

to turn on the appliance.

Receiver:

Slide Switch:

1. ON position: the main burner will ignite and blower will come on when Blower on Delay Time is reached

and fan speed has been enabled; otherwise just burner will ignite until the slide switch is placed in the OFF

or RS position to turn burner off.

2. RS position: the system will operate if the remote receiver receives a signal from the transmitter.

3. OFF position, the system is off. If fan speed has been enabled blower will continure to operate until Off

Delay Time expires. The slide switch should be placed in the OFF position if you will be away for an

extended period of time. If the remote receiver is mounted out of children’s reach, the OFF position also

functions as a safety device by both turning the system off and rendering the receiver inoperable.

50D0112 RCSTEBA Installation & Operating Manual

Rel 1.0 April 2009 Page 9 of 10 Ambient Technologies

A Division Of

Monessen Hearth Systems

Blower Type Selection:

1. The remote control can work with different type/size of blowers. The three levels of blower speeds

(High/Medium/Low) can be fine tuned using the blower switches. See figure below for location of the

switches.

2. In the event that the blower runs too slow or too fast on Low or Medium, change the blower switch setting

to achieve desired speed levels.

3. Turn on the blower at Low speed with the transmitter and start from STEP 1 (ON/ON/OFF), then follow

the following steps in the chart below to set up the blower switches. The blower speed will decrease when

going through the steps. Stop when the desired speed level of Low is achieved.

4. To asure that the proper Low is selected, run through Low, Medium, High to check all speeds to

achieve the desired best speed levels.

NOTE

It is very important that the Low speed is not too low that to overheat blower motor.

Selection Steps DIP5 DIP6 DIP7

STEP 1 ON ON OFF

STEP 2 (DEFAULT) ON ON ON

STEP 3 OFF ON ON

STEP 4 OFF OFF ON

STEP 5 OFF OFF OFF

WARNING

To avoid overheating the blower when the blower runs too slow, always start from higher

speed (from STEP 1) when adjusting speed levels using the blower switches. And stop trying

the rest of the settings when desired speed level of Low is achieved.

Optional Auto Shutdown:

5. The receiver comes preset from the factory with a 6 hour shutdown from its last ON operation. This is

done to prevent the appliance from continuing to run if unattended.

6. You may disable this feature if you wish. To disable, change the receiver privacy (DIP) switch #1 ONLY

50D0112 RCSTEBA Installation & Operating Manual

Rel 1.0 April 2009 Page 10 of 10 Ambient Technologies

A Division Of

Monessen Hearth Systems

to the OFF position. Make sure the receiver privacy (DIP) switches are set the same. Follow the

instructions on how to set the privacy (DIP) switch setting.

7. By disabling this feature, your appliance may continue to run unattended.

Optional Wall Cover Plate:

1. Receiver snaps into wall cover plate. The wall plate is mounted by using 2 screws provided.

TESTING YOUR NEW REMOTE CONTROL SYSTEM

1. Light your gas appliance following the appliance lighting instructions that came with the appliance.

Confirm that the pilot light is on; it must be in operation for the remote control to operate the main gas

valve and blower. Appliance control knob must be in the ON position, and appliance ON/OFF switch must

be in OFF position.

2. Slide the 3 position button on the remote receiver to the ON position and the main gas flame should ignite.

3. Slide the button to OFF and the main gas flame should extinguish, but the pilot light will remain on.

4. Slide the button to RS (the center position), then press the ON button on transmitter to turn the system ON.

The main gas flame should ignite and blower should come on after the On Delay Time is reached and fan

speed you desire is selected.

5. Press the OFF button on transmitter to turn the system to OFF. The flame should extinguish (the pilot light

will remain on) and blower should be off after the Off Delay Time you set.

TROUBLESHOOTING

Symptom Causes Action

1. Battery icon on

LCD on transmitter.

2. LCD display is

blank

3. LCD display shows

“funny” display

1. Low Battery 1. Replace batteries. Change

batteries every 6 months.

2. Check battery installation or

replace batteries.

3. Press Reset button at the back of

the transmitter.

4. Appliance does not

come on. 1. Wiring / Electrical Connections 1. Slide the switch to ON, if

appliance comes ON, wiring is

not the cause.

2. If appliance does not come on,

check wiring connections.

2. Privacy (DIP) switch setting on transmitter

does not match receiver 1. Make sure the transmitter and

receiver have the same DIP

switch settings.

3. Transmitter measures temperature exceeding

99 degrees Fahrenheit and shows “HI” on LCD 1. Move transmitter to a cooler

place and wait until temperature

drops below 99 degree.

4. Distance between the transmitter and receiver

is more than 30 feet 1. Make sure the operating distance

is less than 30 feet

5. Receiver cannot

receive signal. 1. Receiver is installed in an enclosure

1. Make sure the receiver is not

located inside to tight of an

enclosure.

6. Blower is not on

after the fireplace is

turned on

1. Blower setting is off

2. Blower delay setting is set too high 1. Press FAN key to select Fan

speed you desire.

2. Press and hold FAN key to set

Inhaltsverzeichnis

Andere Ambient Technologies Fernbedienung Handbücher

Ambient Technologies

Ambient Technologies WMTD Bedienungsanleitung

Ambient Technologies

Ambient Technologies RCST Bedienungsanleitung

Ambient Technologies

Ambient Technologies RCBHC Bedienungsanleitung

Ambient Technologies

Ambient Technologies RCB Bedienungsanleitung

Ambient Technologies

Ambient Technologies RCMT Bedienungsanleitung

Ambient Technologies

Ambient Technologies RCMHL Bedienungsanleitung

Ambient Technologies

Ambient Technologies RCSITEA Bedienungsanleitung

Ambient Technologies

Ambient Technologies TOUCH LIGHT Bedienungsanleitung

Ambient Technologies

Ambient Technologies RMSC Bedienungsanleitung

Ambient Technologies

Ambient Technologies RCB Bedienungsanleitung

Ambient Technologies

Ambient Technologies RCSTE Bedienungsanleitung

Ambient Technologies

Ambient Technologies RCMT Bedienungsanleitung

Ambient Technologies

Ambient Technologies RTSC Bedienungsanleitung

Ambient Technologies

Ambient Technologies RCBE Bedienungsanleitung

Ambient Technologies

Ambient Technologies WWTD Bedienungsanleitung

Ambient Technologies

Ambient Technologies RCB Bedienungsanleitung

Beliebte Fernbedienung Handbücher anderer Marken

Panasonic

Panasonic EUR7622KB0 Bedienungsanleitung

Bang & Olufsen

Bang & Olufsen Beo4 Bedienungsanleitung

Sunwave Tech.

Sunwave Tech. RemoteComm SRC-7000 Bedienungsanleitung

Multiplex

Multiplex PROFI TX 9 Bedienungsanleitung

One Remote

One Remote RMB4 Bedienungsanleitung

FUTABA

FUTABA 9ZAP - PART2 Bedienungsanleitung

HR Matic

HR Matic HR MULTI 3 Bedienungsanleitung

Yamaha

Yamaha ACC-GNRST-30-20 Bedienungsanleitung

EisSound

EisSound KBSOUND Bedienungsanleitung

Marantz

Marantz RC101 Bedienungsanleitung

Conrad

Conrad FS20 TC6 Bedienungsanleitung

Anritsu

Anritsu MP1777A Bedienungsanleitung

Niles

Niles WVC100 Fehlerbehebungshandbuch

RCA

RCA RCU1300 Bedienungsanleitung

Bang & Olufsen

Bang & Olufsen BEO6 Bedienungsanleitung

GE 94901 Bedienungsanleitung

Onbon

Onbon YQ1-75 Bedienungsanleitung

FUTABA

FUTABA R7108SB Montageanleitung
