Model 3015A Digital

Insulaon Resistance Tester

User Manual

Amblyonix Industrial

Instrument Company

20 Republic Road

North Billerica, MA 01862

Dear Customer,

Thank you for purchasing our

Model 3015A Digital Insulation Resistance Tester!

Please read this manual carefully before using the device.

Keep this manual for reference.

2
 Table of Contents
Before Using the Device                                                                                                                   3
Model 3015A Digital Insulation Resistance Tester                                                                                 4
 Overview                                                                                                                                          4
        How the Model 3015A Digital Insulation Resistance Tester works                                                  4
         Measuring Principle                                                                                                                          5
Product Information                                                                                                                                5
 What’s Included in the Box?                                                                                                             5
    Model 3015A Digital Insulation Resistance Tester Structure                                                           6
     Model 3015A Digital Insulation Resistance Tester Features                                                   7
     Model 3015A Digital Insulation Resistance Tester Technical Specifications                                   8
    Measuring Range and Accuracy                                                                                                      9
 Voltage Range and Accuracy                                                                                                         11
 DC Current Range and Accuracy                                                                                                   12
 Capacitance Range and Accuracy                                                                                                 12
Using the Model 3015A Digital Insulation Resistance Tester                                                               13
   Switching on the Device                                                                                                                13
     Checking the Battery                                                                                                                  13
     Setting the Backlight                                                                                                                  13
    Setting the Alarm                                                                                                                  14
 Saving the Data                                                                                                                  14
    Reviewing the Data                                                                                                                        15
      Deleting the Data                                                                                                                           16
 Adjusting the Resistance Measurement Voltage                                                                           16
During the Test Procedures                                                                                                                     17
    Using the Guard Terminal                                                                                                              17
Test Procedures                                                                                                                                        18
     DC Voltage Test                                                                                                                             18
     AC Voltage Test                                                                                                                             19
     DC Current Test                                                                                                                             20
 Capacitance Test                                                                                                                           21
 Insulation Resistance Test                                                                                                             23
 Polarization Index (PI) and Dielectric Absorption Ratio (DAR) Tests                                  25
                  PI and DAR Functions                                                                                                          26
                   PI and DAR Differences                                                                                                       26
           PI and DAR Applications                                                                                                      27
After Test Procedures                                                                                                                               28
After-Sales Services                                                                                                                                 29


1. Before Using the Device

This manual describes the proper use of the Model 3015A Digital Insulation Resistance Tester.

This device conforms to International Electrotechnical Commission standards (IEC61010) on design,

production, and testing. For your safety, please read and follow the safety instructions and precautions

properly before using this device.

Electrical Safety Symbols

Lightning bolt

Double insulation Caution

This symbol indicates risks

of high voltage, electric

shocks, or live wires.

This symbol indicates that the

device is protected by double

or reinforced insulation.

This symbol indicates a

warning to avoid potential

risk or danger.

IMPORTANT: You must read the instructions whenever the safety symbols appear in the

manual. You must pay attention to the safety symbols on the device.

• You must use this device in accordance with the manual to avoid the risk of danger.

• You must use this device carefully to avoid possible electric shock and personal injury.

• Make sure that this device and accessories are in good condition before use.

* You can only use this device when there are no damaged, exposed wires, or

broken parts in testing cables or insulation layers.

• Make sure to fully insert the connector plugs into the correct interfaces of this device.

• You must not impose over 600V AC or DC voltage between the device and the circuit under test.

• To avoid explosions, you must not use this device in a flammable environment.

• You must not keep or store this device in a place with high temperature, moisture or condensation,

or under direct sunlight.

• You must check the batteries regularly.

* When the screen displays a low battery symbol, charge the battery in a timely

manner to increase the life of the battery.

* You must dispose of used batteries in a specified collection place accordingly.

• You must not disassemble this device without our company’s permission.

* We do not provide any maintenance or replacement warranty for device failure

caused by disassembling equipment without our explicit written authorization.

* We are not responsible for any physical or property damage caused by

disassembly of the equipment without our permission.

2. The Model 3015A Digital Insulation

Resistance Tester

The Model 3015A Digital Insulation Resistance Tester is a lightweight and portable megohmmeter

designed for high voltage insulation resistance tests. You can use this device to measure the insulation

resistance of insulating materials, motors, cables, transformers, and electrical installations. This device

gives you real-time results in ohms or megohms that can be stored or exported for future analysis.

It has strong anti-interference and is indispensable for the following:

• Electrical systems

• Electric telecommunications

• Substation testing applications

• Metrology and computer rooms

• Oil fields

• Industrial enterprises

• Electromechanical installation and maintenance

The Model 3015A Digital Insulation Resistance Tester is an industrial tester designed to provide

years of dependable service. This device is powered by an advanced lithium-ion battery and can perform

hundreds of insulation resistance tests from a single charge. It has selectable functions that are

programmable for measuring DC voltage, AC voltage, DC current, insulation resistance (IR), capacitance,

polarization index (PI), and dielectric absorption ratio (DAR).

The insulation resistance (IR) quality of electrical systems deteriorates over time due to environmental

conditions and the presence of electrical and mechanical stress. The performance and life of electrical

systems depend on the insulation conditions. That is why it is vital to check the IR of electrical systems

periodically. The Model 3015A Digital Insulation Resistance Tester generates a high voltage across

the insulator to measure resistance. It safeguards electrical systems from abrupt current leakage in

wires that lead to accidental damage, blown circuits, or electrical shocks.

2.1 Overview

2.2 How the Model 3015A Digital Insulation Resistance

Tester works

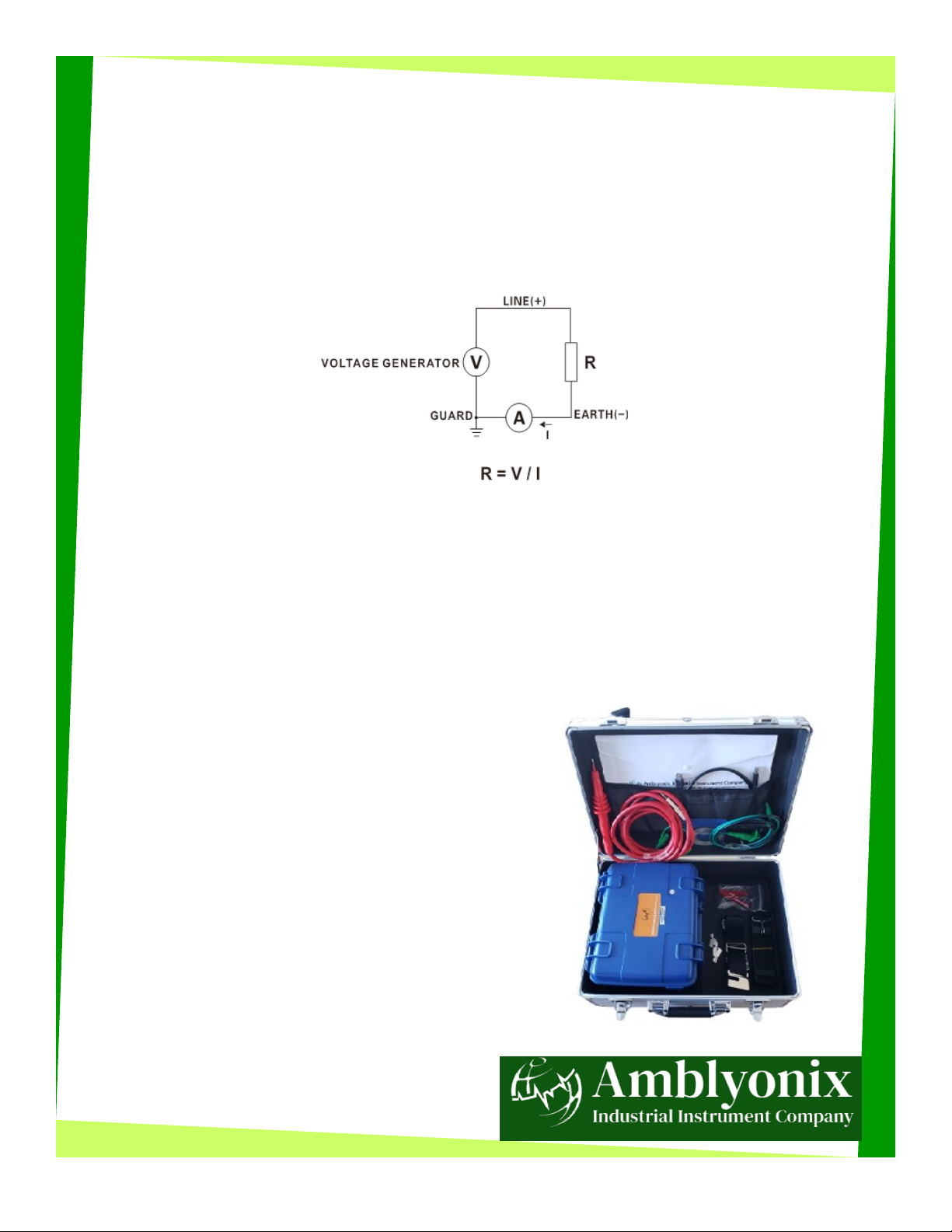

The Model 3015A Digital Insulation Resistance Tester generates a high voltage (V) that creates

electron flow across the insulator. It measures the flowing current (I) and calculates the insulation

resistance value (R) according to the formula, Resistance = Voltage/Current (R=V/I).

This section shows what’s inside the rugged aluminum case.

• 1 Digital insulation resistance tester

• 1 Red high-voltage test cable

• 2 High voltage test cables

• 1 Monitoring software CD

• 1 USB communication line

• 1 12.6V Battery

• 1 Charger

• User Manual

• Warranty Card

2.2.1 Measuring principle

3. Product Information

3.1 What’s included in the box?

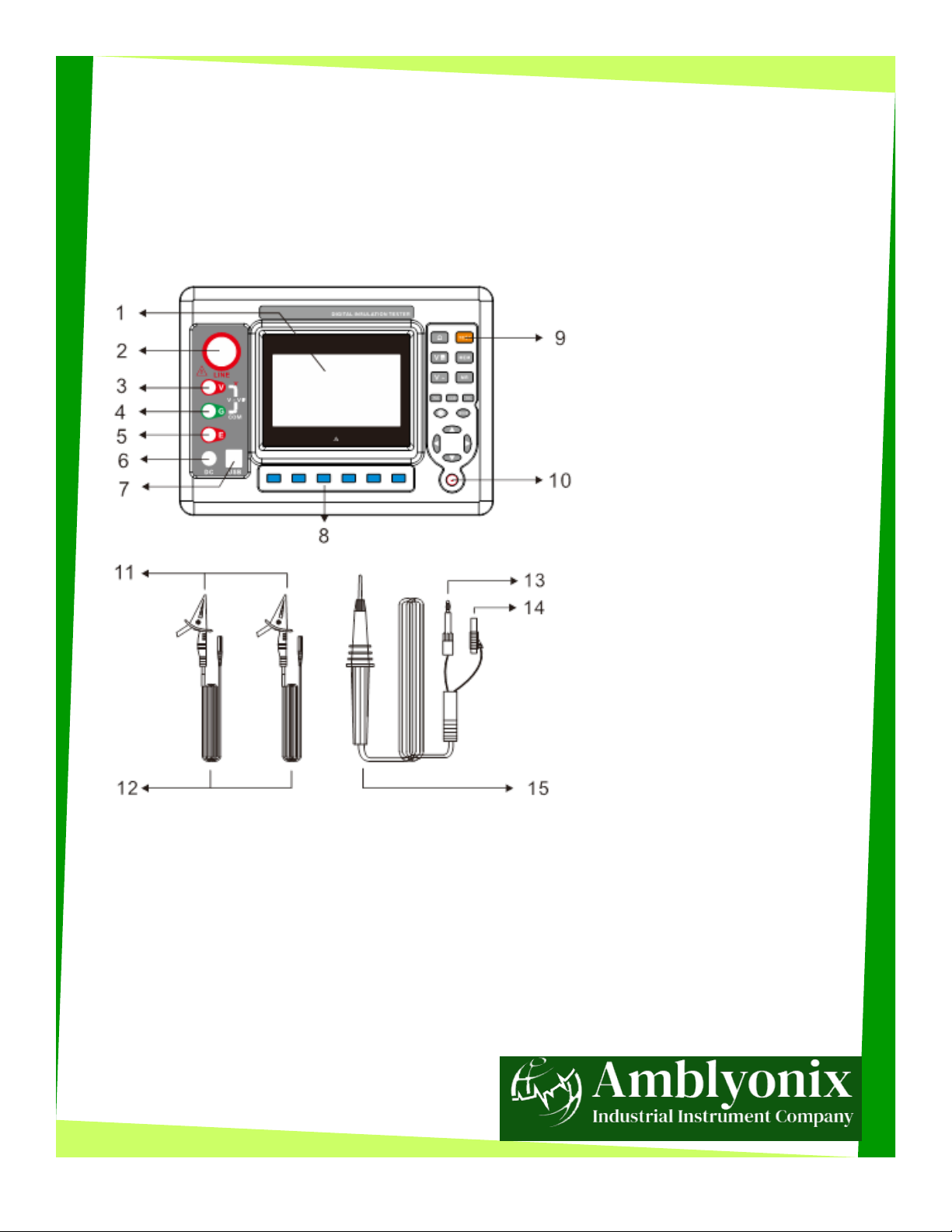

3.2 Model 3015A Digital Insulation

Resistance Tester Structure

1. LCD screen

2. LINE terminal

3. V interface

4. GUARD interface

5. EARTH interface

6. Charger terminal

7. USB interface

8. Voltage select button

9. Test button

10. Power on/o buon

11. Safety alligator clips

12. Test cables（1 green, 1 black）

13. High voltage banana plug

14. Shielded cable connector

15. High voltage test cable

This section shows the structure of the Model 3015A Digital Insulation Resistance Tester.

3.3 Model 3015A Digital Insulation Resistance

Tester Features

This section highlights the features of the Model 3015A Digital Insulation Resistance Tester.

Excellent design

The device is beautiful, upscale, and has a shockproof, dustproof, moisture-proof structure.

It is ultra-lightweight, compact, and portable, but is powerful enough for industrial field use.

Measuring voltage

The device is compatible with different voltage ranges, ranging from 500V to 15KV, depending on

the dielectric strength of the insulation.

Multifunctional

The device is suitable for insulation resistance, voltage, DC current, and capacitance tests.

It can also measure dielectric absorption ratios and polarization indexes.

Front-panel interactive interface

The device is easy to use with a unique interactive interface that displays easy-to-read

measurements and test routines.

Display mode

The device has a 4-bit large liquid crystal display (LCD) with high resolution.

USB communication interface

The device is equipped with a USB interface and software monitoring that allows uploading stored

data to the computer, saving, and printing.

Communication Line

The device uses one USB communication line.

Data storage

The device is equipped with an onboard memory that can store 500 test results.

Data review

The device has a memory recall (MR) feature that allows the user to review stored data.

Overload warning

The device has an overload warning (>) feature that warns the user when the measurement range

exceeds the allowable range.

Backlight feature

The screen has a gray backlight feature that is suitable for use in dim places.

Automatic shut-down

The device shuts down automatically after 15 minutes of inactivity.

Alarm feature

The device is designed to alarm when the measured voltage value is greater than the

alarm set value or the insulation resistance value is less than the alarm set value.

Safety Regulations full compliance

The device is equipped with strong anti-interference circuit architecture and is in full

compliance with IEC 61010-1, IEC 1010-2-31, IEC 61557-1,5, IEC60529 (IP54)

pollution grade 2, CAT III 300V.

3.4 Model 3015A Digital Insulation Resistance

Technical Specifications

Base conditions 23°C±5°C， below 75%rh

Test voltage ranges 500V, 1000V, 2500V, 5000V, 10KV, 15KV

Test voltage accuracy Rated voltage x (1±10%)

Insulation resistance range (TΩ) 0.01 MΩ – 50 TΩ

Insulation resistance resolution 0.01 MΩ – 0.01 TΩ

DC voltage range = 0 – 1000V DC voltage range resolution = 0.1V

AC voltage range = 0 – 750V AC voltage range resolution = 0.1V

DC current = 0.1 nA～6 mA DC Current resolution = 0.1 nA

Capacitance = 10 nF～50 uF Capacitance resolution = 10 nF

Output short-circuit current ≥6mA

Power supply 12.6V rechargeable battery

LCD screen size 108mm × 65mm

Instrument size L/W/H：10.9 ” × 9.0 ” × 6.0 ”

Instrument weight 6.0 lbs (including battery)

Insulation resistance ≥50MΩ (between measuring line and housing)

Voltage withstand AC3kV/60Hz 1 minute

Working temperature and humidity -10°C — +50°C＜85%RH

Storage temperature and humidity -15°C — +55°C＜90%RH

Test Cables

3m red high voltage test cable

1.5m black high voltage test cable

1.5m green high voltage test cable

Standby: 30mA Max (backlight off)

Power Consumption Standby: 42 mA Max ( backlight on )

Measuring: 300 mA Max (backlight off)

This table shows the technical specifications of the Model 3015A Digital Insulation Resistance Tester.

3.5 Measuring Range and Accuracy

3.5.1 Insulation Resistance Range and Accuracy

This table shows the output voltage, measuring range, accuracy, and resolution for the insulation

resistance (IR) test.

Test Function Output Voltage Measure Range Accuracy Resolution

Insulation

Resistance

100V (±10%)

0 MΩ – 0.5 MΩ ±5%rdg±5dgt 0. 001 MΩ

0.5 MΩ – 5 MΩ ±5%rdg±5dgt 0. 01 MΩ

5 MΩ – 50 MΩ ±5%rdg±5dgt 0. 1 MΩ

50 MΩ – 500 MΩ ±5%rdg±5dgt 1 MΩ

0 .5 GΩ – 5 GΩ ±5%rdg±5dgt 0. 01 GΩ

5 GΩ – 50 GΩ ±5%rdg±5dgt 0. 1 GΩ

50 GΩ – 500 GΩ ±20%rdg±5dgt 1 GΩ

250V (±10%)

0 MΩ – 1 MΩ ±5%rdg±5dgt 0. 001 MΩ

1 MΩ – 10 MΩ ±5%rdg±5dgt 0. 01 MΩ

10 MΩ – 100 MΩ ±5%rdg±5dgt 0. 1 MΩ

100 MΩ – 1000 MΩ ±3%rdg±5dgt 1 MΩ

1 GΩ – 10 GΩ ±5%rdg±5dgt 0.01 GΩ

10 GΩ – 100 GΩ ±10%rdg±5dgt 0.1 GΩ

100 GΩ – 1000 GΩ ±20%rdg±5dgt 1 GΩ

500V (±10%)

0 MΩ – 2 MΩ ±5%rdg±5dgt 0. 001 MΩ

2 MΩ – 20 MΩ ±5%rdg±5dgt 0. 01 MΩ

20 MΩ – 200 MΩ ±5%rdg±5dgt 0. 1 MΩ

200 MΩ – 2000 MΩ ±5%rdg±5dgt 1 MΩ

2 GΩ – 20 GΩ ±5%rdg±5dgt 0. 01 GΩ

20 GΩ – 200 GΩ ±10%rdg±5dgt 0. 1 GΩ

200 GΩ – 2000 GΩ ±20%rdg±5dgt 1 GΩ

Test Function Output Voltage Measure Range Accuracy Resolution

Insulation

Resistance

1000V (±10%)

0 MΩ – 5 MΩ ±5%rdg±5dg 0. 001 MΩ

5 MΩ – 50 MΩ ±5%rdg±5dg 0. 01 MΩ

50 MΩ – 500 MΩ ±5%rdg±5dg 0. 1 MΩ

500 MΩ – 5000 MΩ ±5%rdg±5dg 1 MΩ

5 GΩ – 50 GΩ ±10%rdg±5dg 0. 01GΩ

50 GΩ – 500 GΩ ±15%rdg±5dg 0. 1 GΩ

500 GΩ – 5000 GΩ ±20%rdg±5dg 1 GΩ

0 MΩ – 10 MΩ ±5%rdg±5dgt 0. 01 MΩ

10 MΩ – 100 MΩ ±5%rdg±5dgt 0. 1 MΩ

100 MΩ – 1000 MΩ ±3%rdg±5dgt 1 MΩ

2500V (±10%) 1 GΩ – 10 GΩ ±5%rdg±5dgt 0. 01 GΩ

10 GΩ – 100 GΩ ±5%rdg±5dgt 0. 01 GΩ

100 GΩ – 1000 GΩ ±15%rdg±5dgt 1 GΩ

1 TΩ – 10 TΩ ±20%rdg±10dgt 0. 01 TΩ

0 MΩ – 20 MΩ ±5%rdg±5dgt 0. 01 MΩ

5000V (±10%)

20 MΩ – 200 MΩ ±5%rdg±5dgt 0. 1 MΩ

200 MΩ – 2000 MΩ ±5%rdg±5dgt 1 MΩ

2 GΩ – 20 GΩ ±5%rdg±5dgt 0. 01 GΩ

20 GΩ – 200 GΩ ±10%rdg±5dgt 0. 1 GΩ

200 GΩ – 2000 GΩ ±15%rdg±5dgt 1 GΩ

2 TΩ – 10 TΩ ±25%rdg±10dgt 0. 01 TΩ

Inhaltsverzeichnis

Andere Amblyonix Prüfgeräte Handbücher

Amblyonix

Amblyonix 3005A Bedienungsanleitung

Beliebte Prüfgeräte Handbücher anderer Marken

SMART

SMART KANAAD SBT XTREME 3G Series Bedienungsanleitung

Agilent Technologies

Agilent Technologies BERT Serial Bedienungsanleitung

Agilent Technologies

Agilent Technologies N3280A Bedienungsanleitung

Vernier

Vernier Go Direct Voltage Bedienungsanleitung

Lifeloc

Lifeloc R.A.D.A.R. Bedienungsanleitung

Fluke

Fluke T5-600 Bedienungs- und Montageanleitung

Mercury

Mercury TSL01 Bedienungsanleitung

MAHA

MAHA MBT Series Bedienungsanleitung

Fuji Electric

Fuji Electric P-61 Bedienungsanleitung

ETC

ETC SealerAtor Bedienungsanleitung

Skyfine

Skyfine ETHYWAY V2 Bedienungsanleitung

Appion

Appion G5 Twin Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics 8159-0112A Bedienungsanleitung

BW Technologies

BW Technologies MicroDock II Bedienungsanleitung

Sun Nuclear

Sun Nuclear 1027 Bedienungsanleitung

Biomark

Biomark HPR LITE READER Bedienungsanleitung

Hioki

Hioki 3169-20 Bedienungsanleitung

Ashcroft

Ashcroft ATE-100 Bedienungsanleitung
