Amerec IPOD DOCK Bedienungsanleitung

4211-41 08-24-12 Page 1

iPOD DOCK, INSTALLATIONAND OPERATING INSTRUCTIONS

WATER AND DUST PROOF iPOD DOCKAND DIGITAL MEDIALOCKER™

with FLOATING 2-WAY WIRELESS REMOTE CONTROL

The iPod Dock is water proof, intended for installation inside or outside you steam bath. It is the heart of a sound system providing 2 front

and 2 rear channels, a built in stereo FM radio, connection to audio devices such as an MP3 player and a connection for charging and

listening to an iPod.Awireless remote controls system on/off, volume, tone, balance, and sound source.Three built in equalizer settings

are provided and three FM radio station pre-sets are available.

Your sound system comes with:

• an iPod Dock

• a 2-way RF wireless Remote control with a CR2430 battery (installed)

• a 9 inch long audio cable (3.5mm plug to 3.5mm plug)

• an FM antenna

• Six (6) Stainless Steel mounting screws

• a 12VDC, 5APower Supply

• Two in-wall water proof speakers

• This owners manual

You may also want extra speakers. Atotal of 8 speakers may be connected to the iPod dock, 2 per channel (see dock Wire Harness Con-

nections, page 4).

4211-41 08-24-12

iPOD DOCK, INSTALLATIONAND OPERATING INSTRUCTIONS

Page 2

FCC ID:

MADE IN CHINA

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause

harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTE:

The equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment gener-

ates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try and correct the interference by one or more of the following measures:

- Reorientate or relocate the receiving antenna.

- Increase the separation between the equipment and the receiver.

- Consult the dealer or an experienced radio/TV technician for help.

The manufacturer is not responsible for any radio or TV interference caused by unauthorized modiﬁcations to this equipment. Such modiﬁ-

cations could void the user authority to operate the equipment.

The low voltage dock and Remote are tested and approved per FCC Part 15 and Industry Canada requirements.

The power supply is ETLListed for the US and Canada, with CE, and selectable for use with 110VAC or 220V~ single phase line voltage.

4211-41 08-24-12 Page 3

iPOD DOCK, INSTALLATIONAND OPERATING INSTRUCTIONS

iPOD DOCK CONNECTIONS

1. 12-pin Watertight Harness

This harness (1) supplies power and ground connections to the iPod Dock and four (4) speaker channel output connections from the

Dock.Amating harness is supplied (see drawing, page 4).

Make all connections to the mating harness. Do Not Cut or modify the wire harness attached to the Dock or warranty will be void.

2. FM RadioAntenna Jack

Connect an antenna to the female antenna receptacle. For best FM performance make sure the FMAntenna is extended to the highest

achievable position.

3.Auxiliary Input

The Dock has a 3.5mm stereo jack socket for connecting other audio devices such as an MP3 player.

4.Auxiliary Outputs

Allows external ampliﬁer to be connected to power additional speakers.

5. 12V DC External Trigger

Allows for an external light or relay to be triggered by the Remote Control (350mAmax load). Also see Lights section, page 8.

6. RFAntenna

Used for communications between the Dock and the Remote control. Do not connect this wire to an other wire or surface!

(+12VDC, Red Wire)

FM Radio Antenna Jack

12 Pin Wire Harness

Left Audio (White)

Right Audio (Red)

Auxilliary Output

RCAJacks

External +12VDC, Triggered (Brown)

Auxillliary Device

Input Jack

RF Antenna (White)

12 Pin Wire Harness

15AFuse and Holder

4211-41 08-24-12

iPOD DOCK, INSTALLATIONAND OPERATING INSTRUCTIONS

Page 4

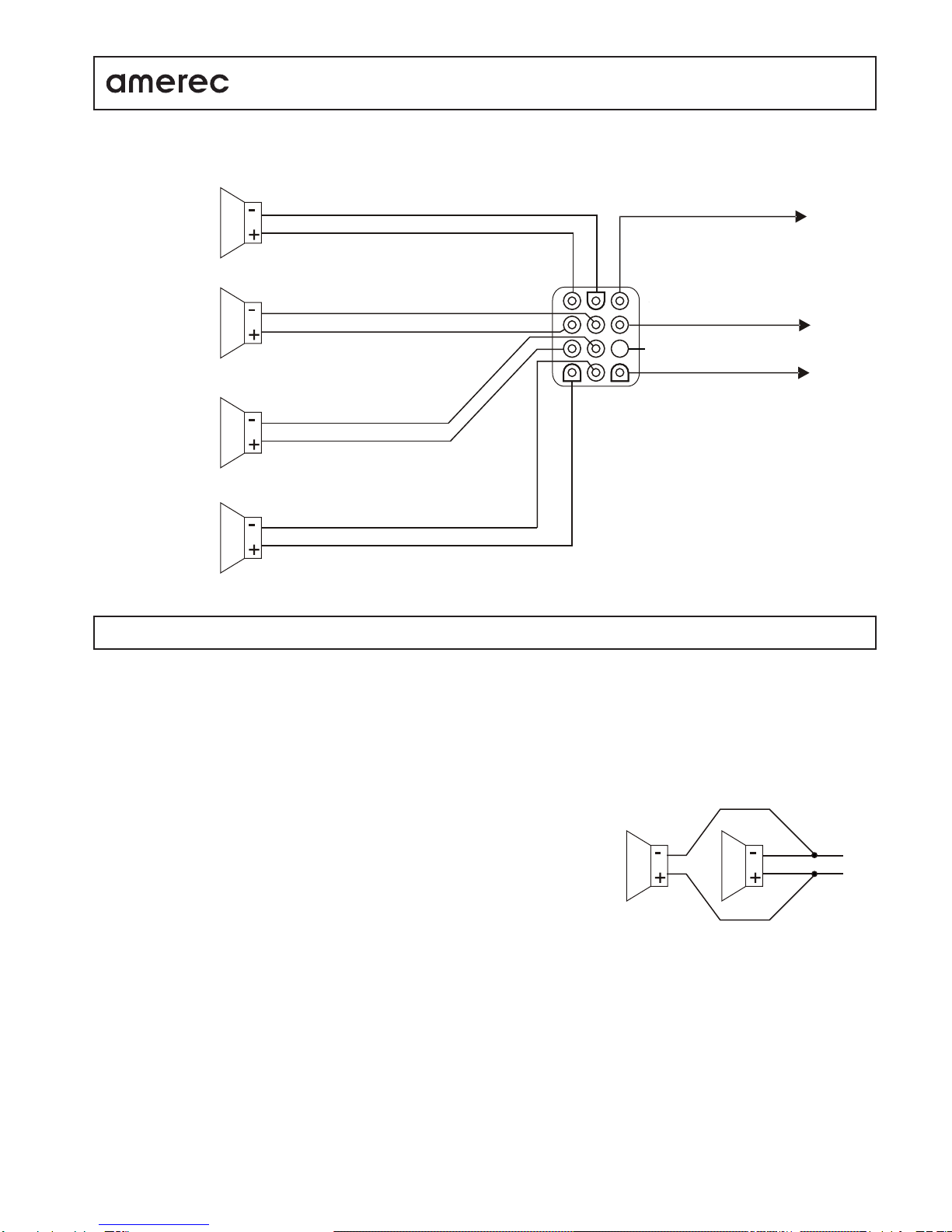

WIRE HARNESS CONNECTIONS

Connect the Power Supply to the Red and Black wires (pins 1 and 10 shown above).

ATriggered +12DCV output is available (pin 6) for loads up to 350mA. Connect the load’s ground (-) to the system DC ground at pin 10.

This output is off when the sound system is off and is at +12VDC whenever the sound system is on.Also see Lights, page 8.

All open wire connections should be soldered and protected against moisture and dust for best long term performance.

Connect your speakers as shown above. If additional speakers are desired,

they should be wired in parallel as shown at right. Using this method allows 8

speakers to be connected to the dock. Note that connecting speakers in this

manner lowers the speaker resistance seen by the Dock.

The speakers provided with your system are 4 ohms. Connecting two speakers

in parallel will result in an effective speaker resistance of 2 ohms!

CAUTION Speaker resistance must be at least 2 ohms! If you need assistance, please contract Technical Support at 1-800-363-0251.

CAUTION Make sure the polarity of all speakers are connected correctly!

Note: If your speakers are not supplied with wire or you need longer wires than supplied, we recommend using at least 22AWG speaker

wire for lengths up to 100 feet. Wire lengths up to 200 feet are possible but that may reduce the sound quality. In some cases, particularly

with long wire lengths, a larger wire size may provide better sound quality compared to a smaller one.

12 Pin Harness connections:

(Purple/Black Stripe)

(Purple)

(Gray/Black Stripe)

(Gray)

(White/Black Stripe)

(White)

(Green/Black Stripe)

(Green)

Speaker

Right

Front

Left

Rear

Left

Front

RR (Pin 11)

RR (Pin 12)

RF (Pin 8)

RF (Pin 9)

LR (Pin 3)

LR (Pin 2)

LF (Pin 5)

Not Used (Pin 6)

+12VDC, Triggered (Pin 6) (Blue)

DC Ground (Pin 10) (Black)

+12VDC (Pin 1) (Red)

Right

Rear

4211-41 08-24-12 Page 5

iPOD DOCK, INSTALLATIONAND OPERATING INSTRUCTIONS

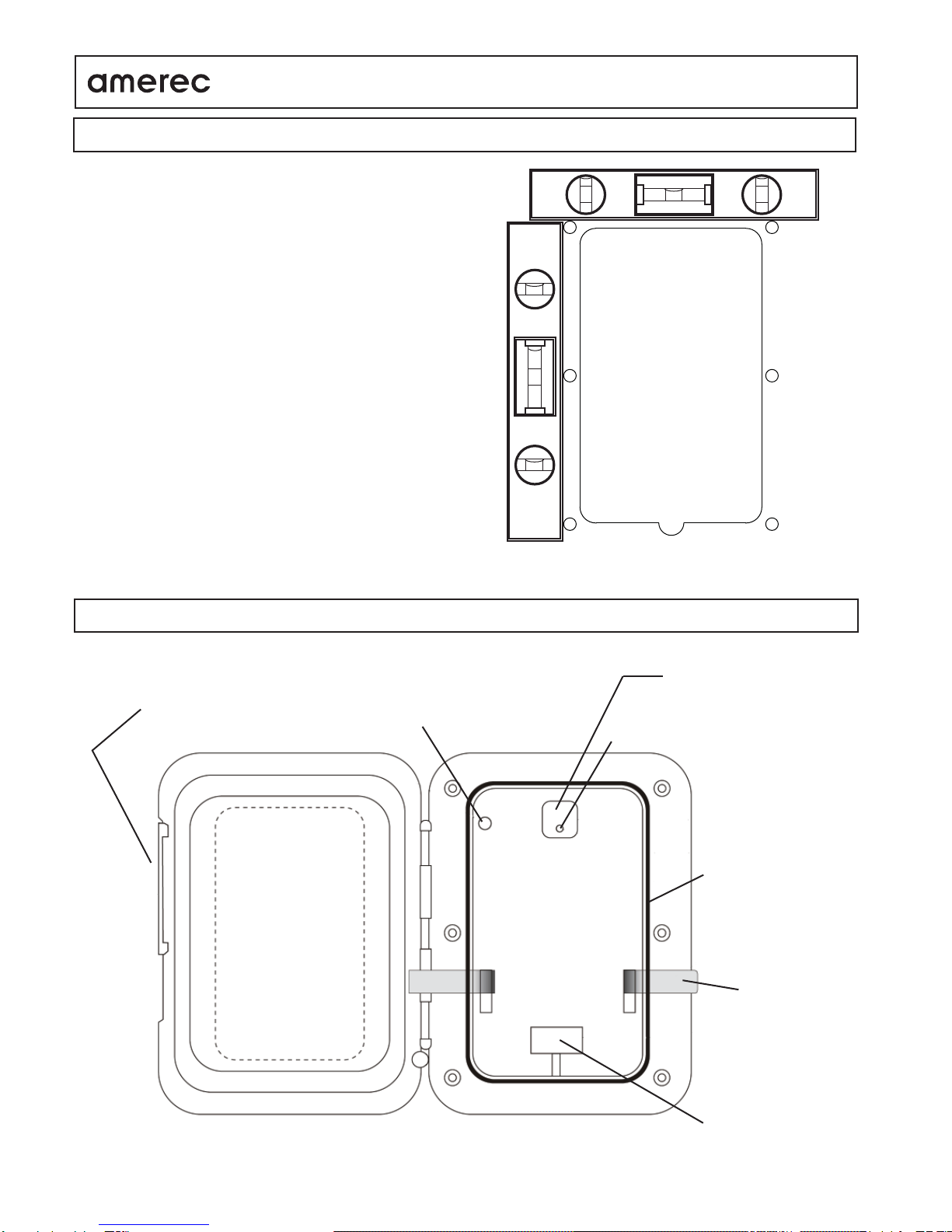

MOUNTING THE iPOD DOCK

1. Mounting templates are included. We recommend using the ‘measure

twice, cut once’method.

2. Once the mounting hole is complete, make sure the outside surface is

clean and clear of debris. The iPod Dock has an external water/dust

gasket, but this requires a clean surface for best performance.

3. The Dock is supplied with six(6) mounting screws. Drive the 6 screws

using a screw driver. During ﬁnal mounting, apply equal pressure to all

points for the best water/dust outer seal performance.

4. Review all outside surfaces of the Digital Media Locker™ to ensure

proper water/dust seal. This is important for long term environmental

protection performance for iPod or MP3 devices.

OPERATION

Dock Locking Knob

and Protective Door 3.5mmAUX Input Jack

for MP3 Devices

ON/OFF Button

(must be ON with the LED lit

before using an audio device)

iPod 30-pin Connector

ON/OFF Power LED

Water/Dust Protection

Inner Gasket

Security Strap

For Media Devices

(MP3/iPod)

4211-41 08-24-12

iPOD DOCK, INSTALLATIONAND OPERATING INSTRUCTIONS

Page 6

Buttons Music mode FM Radio Mode

Power Press once; Turn Remote and audio on/off

12V Trigger Press once: Turn Triggered 12V on/off

(See Item 5, Page 3) Press and hold: No change

Volume - Up Press once; Volume UP a value Press and hold; Volume UP fast

Volume - Down Press once; Volume DOWN a value Press and hold; Volume DOWN fast

Mode Press once; Change the source Press and hold; No change

Audio Press once; Step through audio options (see section onAudio Settings)

Press and hold; No change

1 Press once; No change Press once; Listen to saved FM radio station #1

Press and hold; No change Press and hold; store a station setting in #1

2 Press once; No change Press once; Listen to saved FM radio station #2

Press and hold; No change Press and hold; store a station setting in #2

3 Press once; No change Press once; Listen to saved FM radio station #3

Press and hold; No change Press and hold; store a station setting in #3

Fast Rewind Press once; Last track Press once; radio station scan DOWN

Press and hold;Fast rewind Press and hold; tune radio DOWN manually

Pause/Play Press once; Play/Pause Press once; No change

Press and Hold; No change Press and hold; No change

Fast Forward Press once; Next track Press once; radio station scan UP

Press and hold;Fast Forward Press and hold; tune radio UP manually

Note: If your player is not an iPod, you will not be able to control tracks or receive track information.

Note: In order to prolong the Remote’s battery life, the LCD will turn off after 20 seconds if no button is pressed. To turn the LCD on again,

press any key once then press the key for the function desired.

LCD

Function Keys

Battery Door

OPERATION: WIRELESS REMOTE CONTROL: KEY FUNCTIONS

MODE

AUDIO

4211-41 08-24-12 Page 7

iPOD DOCK, INSTALLATIONAND OPERATING INSTRUCTIONS

The Remote control communicates wirelessly with the Dock to control the audio functions.ARemote is required in order to operate the

sound system.

The MODE Key is used to select the audio device to be used: FM Radio, iPod orAUX. Press the key once to select the Mode

menu then press again to step through each input. When done, wait a few seconds without pressing any keys and the control will

return to normal.

Input Device operation:

FM radio is only available when you are in the FM Radio Mode. You may save up to three (3) stations.

(1) To select a station press and release or to automatically seek another station.

(2) Press and hold either or to select manual tuning mode then press again to search for the desired station.

(3) If you want to save the current station for later use, press and hold one of the preset keys or for more

than 2 seconds. The station will be held in that key’s memory. To change to a saved station, simply press its preset key

while in Radio mode.

AUX audio is provided from a device connected thought theAUX cable, such as an MP3 player. The Remote may be used

to turn the audio system on and off and to adjust volume and the audio options. When operating inAUX mode:

(1)Attach your MP3 device to one of the 3.5mm connectors on theAUX cable and connect the other end of the cable to the

AUX jack in the iPod dock.

(2) Put the MP3 player inside the Dock and secure it with the provided straps.

(3) Turn on the MP3 player and set it to play music as desired.

(4) Close and lock the Dock’s protective door.

(5) Use the remote to turn the system on then press to select theAUX input, if needed.

iPod devices may be controlled and charged using the iPod connector in the dock. The Remote may be used to turn the

audio system and iPod on and off, adjust the volume, adjust the audio options, and change tracks. When operating in iPod

mode:

(1)Attach your iPod to the 30 pin connector in the Dock.

(2) Secure the iPod with the provided straps.

(3) Close and lock the Dock’s protective door.

(4) Use the remote to turn the system on then press to select the iPod input, if needed.

(5) Use the Remote to control the audio:

Key Press Once Press and Hold

Last Track Fast Rewind

Toggle between Play and Pause

Next Track Fast Forward

Note: If you are listening to an iPod then switch to Radio or Standby mode, the iPod will automatically stop playing and

its charging screen will appear.

! Always be sure to connect or disconnect your media player with dry hands!

! Leave the protective door shut while the environment around the Dock is wet!

MODE

OPERATION (continued)

Before using your sound system, press the ON/OFF switch inside the Dock to turn it on. Its red LED light should turn on. When the LED is lit, and the

audio system off, the Dock is in standby and ready for use.The LED should remain lit while the Dock is on or in Standby.

Note: While in standby, an iPod will charge, if installed.

MODE

4211-41 08-24-12

iPOD DOCK, INSTALLATIONAND OPERATING INSTRUCTIONS

Page 8

TheAudio Key is used to select the various audio functions. Press the key once to select theAudio menu then press again

to step through each function. When done making adjustments, wait a few seconds without pressing any keys and the control will

return to normal. The audio functions are listed below in order:

FUNCTION USE TO DEFAULT DESCRIPTION

BAS Adjust Bass level 0 Press UP or DOWN arrows to increase or decrease; Range from -10 to +10

TRE Adjust Treble level 0 Press UP or DOWN arrows to increase or decrease; Range from -10 to +10

BAL Adjust Left-Right

speaker balance L = R Press UP or DOWN arrows to change balance;

Range from L10 to R10 (only left channel to only right channel).

FADE Adjust Front-Rear

speaker balance F = R Press UP or DOWN arrows to change balance;

Range from R10 (only rear speakers) to F10 (only front speakers).

DSP Automatic

Equalizer OFF Press UP or DOWN arrows to select digital equalizer effects;

Options are Off, Classic, Pop, and Rock.

LOUD Boost low tones OFF Press UP or DOWN arrows to turn Loudness on or off.

Note: Loudness boosts low tones at low volumes for better sound.

DX Adjust FM Radio

sensitivity Dx Press UP or DOWN arrows to change FM reception sensitivity.

Use Dx for weak or distant stations, use Local for close stations with strong signals.

STEREO switch between

Stereo/Monaural STEREO Press UP or DOWN arrows to select Stereo or Mono (monaural) sound.

Note: Using MONO may improve the sound when listening to a weak FM station.

AUDIO

LIGHT OPTIONS

The Dock has two +12VDC accessory outputs available to control other low voltage devices, such as indicator lights. These outputs are

typically used to switch low power accessories, such as LED room or indicator lights.

(1)Aswitched line supplies 12V when switched on using the Remote. While the audio system is on, press the key on the Remote to

turn this line on or off. Connect the 12V device to this line and to ground from the power supply (see Dock drawing and iPod Dock Con-

nections item 5 on page 3). This line might be used to turn on a Chromatherapy system, for instance, and cycle through its colors using

the Remote. This line supplies 12VDC at 350mAmax. (4.2W).

(2)An unswitched line supplies 12V only while the audio system is on. Connect the 12V device to this line and to ground from the power

supply (see wiring drawing and Wire Harness Connections section on page 4). This line might be used to light an indicator light to show

when theAudio system is turned on, for instance. This line supplies 12VDC at 350mAmax. (4.2W).

For example:

Front Rear

Ground from iPod Dock/Harness

Triggered +12VDC from iPod Dock/Harness

Speaker (-) from iPod Harness

Speaker (+) from iPod Harness

LED Lights

4211-41 08-24-12 Page 9

iPOD DOCK, INSTALLATIONAND OPERATING INSTRUCTIONS

!Be sure the dock is sealed against the wall surface! !Keep the inside of the dock clean and dry!

!Moisture can severely damage the wall or electrical connections!

If the following steps do not correct your problem, contact Technical Support at 1-800-363-0251 for assistance.

Set-up Make sure the power supply is connected to a 120VAC outlet and properly connected to the Dock. Press the Dock’s ON/OFF

switch and verify its light turns on. If the light does not turn on, check the power supply’s 4Afuse (type T4-AL250VSB) and the Dock’s

15Afuse (see drawing, page 3).

Remote Press a key on the remote. The LCD should display “Welcome” then the selected audio device.

If the Remote displays only two dashes or “No Link”, it is not communicating with the Dock. Make sure the Dock’s power light is on then:

• Move the Remote closer to the Dock. The Remote should normally work within 25 feet of the dock.This range can be affected by wall

materials and other local conditions.

• Has the Remote worked before? If the Remote displays two dashes or “No Link” periodically but does control the Dock properly, you

may need a new battery. See Checking/Replacing the Battery.

• You may need to pair the Remote to its Dock, particularly if this is a new Remote. To pair a Remote to a Dock:

1) Turn the Dock off using its power switch

2) then press a key to turn on the Remote.

3) then press and hold the MODE key until “PAIR” is displayed.

4) while continuing to press the MODE key, turn on the Dock using its power switch and

5) continue pressing the MODE key until “Welcome” is displayed on the Remote.

The Remote and Dock should now be paired.

Checking/Replacing the Battery: If the Remote’s display remains blank when a key is pressed, check or replace the battery.

To check the battery, use a voltmeter to check its voltage. It should be measure 3VDC or higher.

To replace the battery, unscrew the waterproof cap on the back of the Remote control and replace the CR-2430 battery. Replace the

water/dust proof cap.

If the Remote displays correctly but there is no sound, make sure the correct audio device is selected. If the device is correct, then

select a different device to determine if the problem is with the device or the sound system.

• If a different device does not provide sound, change the volume and Front-Rear and Left-Right balances.

• If a different device works correctly, check the iPod connector for moisture or moisture damage. Make sure the device is turned on

and playing audio.

- If the device is an iPod, make sure it is securely connected to the iPod jack.

- If the device is connected to theAUX jack, make sure the cable is securely plugged in at both ends. Turn up the volume on the

audio device (MP3 and similar devices may have low output levels and require higher volume settings when connected used with

the Dock).

- If the FM radio can not ﬁnd a station when auto-scanning, make sure the antenna is connected. Manually tune in a know FM

station with a good signal then spread the antenna wires out and move them higher or lower or turn them another direction while

listening for a response.

- Remove the device from the Dock and verify it is operating properly on its own.

TROUBLESHOOTING

LCD

Function Keys

Battery Door

Technical Support

17683 128th Place NE, Bldg C

Woodinville, WA98072

USA

phone 1-800-363-0251

fax 425-951-1130

email [email protected]

4211-41 08-24-12

iPOD DOCK, INSTALLATIONAND OPERATING INSTRUCTIONS

Page 10

Fuse Holder

(+12VDC, Red Wire)

FM Radio Antenna Jack

12 Pin Wire Harness

Left Audio (White)

Right Audio (Red)

Auxilliary Output

RCAJacks

External +12VDC, Triggered (Brown)

Auxillliary Device

Input Jack

RF Antenna (White)

12 Pin Wire Harness

12 Pin Harness connections:

(Purple/Black Stripe)

(Purple)

(Gray/Black Stripe)

(Gray)

(White/Black Stripe)

(White)

(Green/Black Stripe)

(Green)

Speaker

Right

Front

Left

Rear

Left

Front

RR (Pin 11)

RR (Pin 12)

RF (Pin 8)

RF (Pin 9)

LR (Pin 3)

LR (Pin 2)

LF (Pin 5)

Not Used (Pin 6)

+12VDC, Triggered (Pin 6) (Blue)

DC Ground (Pin 10) (Black)

+12VDC (Pin 1) (Red)

Right

Rear

Andere Handbücher für iPOD DOCK

Inhaltsverzeichnis

Andere Amerec Dockingstation Handbücher

Amerec

Amerec iPOD DOCK Bedienungsanleitung

Beliebte Dockingstation Handbücher anderer Marken

Sony

Sony Dream Machine XDR-DS12iP Bedienungsanleitung

Acer

Acer USB Type-C Dock II Bedienungsanleitung

ATEN

ATEN UC-2000 Bedienungsanleitung

Xcellon

Xcellon HDD-202 Bedienungsanleitung

Dok

Dok CR09 Bedienungsanleitung

Philips

Philips BTM630/12 Bedienungsanleitung

IOGear

IOGear Travel Pro GUD3C09 Bedienungsanleitung

RKI

RKI SDM-E2 Bedienungsanleitung

iHome

iHome iP15 Bedienungsanleitung

VITURE ONE

VITURE ONE MOBILE DOCK Bedienungsanleitung

Lindy

Lindy 42984 Bedienungsanleitung

CipherLab

CipherLab 8001 Bedienungsanleitung

Pyle

Pyle PIPDSP2 Bedienungsanleitung

Avol

Avol AS2350 Bedienungsanleitung

Datalogic

Datalogic JoyaTouch Bedienungsanleitung

Philips

Philips DC190/79 Bedienungsanleitung

Targus

Targus DOCK315EUZ Bedienungsanleitung

Akasa

Akasa DuoDockX3 AK-DK08U3-BK Bedienungsanleitung
